  1. Dynamic Analysis of Windows Phone 7 apps BehrangFouladi, SensePost

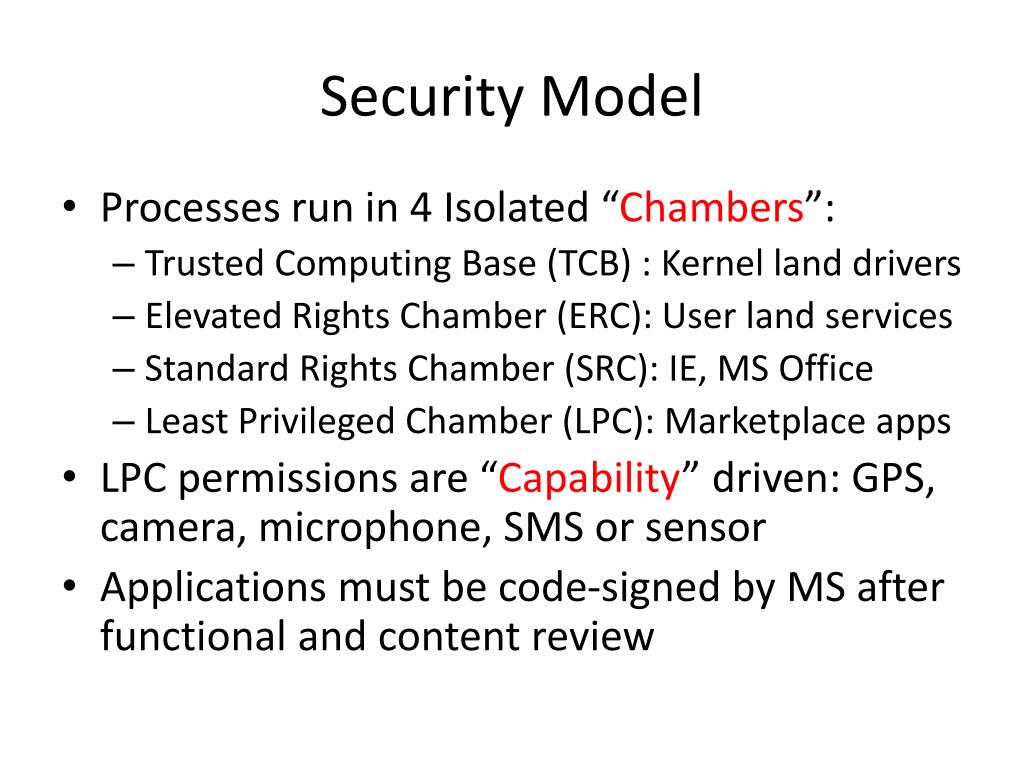

  2. Security Model • Processes run in 4 Isolated “Chambers”: • Trusted Computing Base (TCB) : Kernel land drivers • Elevated Rights Chamber (ERC): User land services • Standard Rights Chamber (SRC): IE, MS Office • Least Privileged Chamber (LPC): Marketplace apps • LPC permissions are “Capability” driven: GPS, camera, microphone, SMS or sensor • Applications must be code-signed by MS after functional and content review

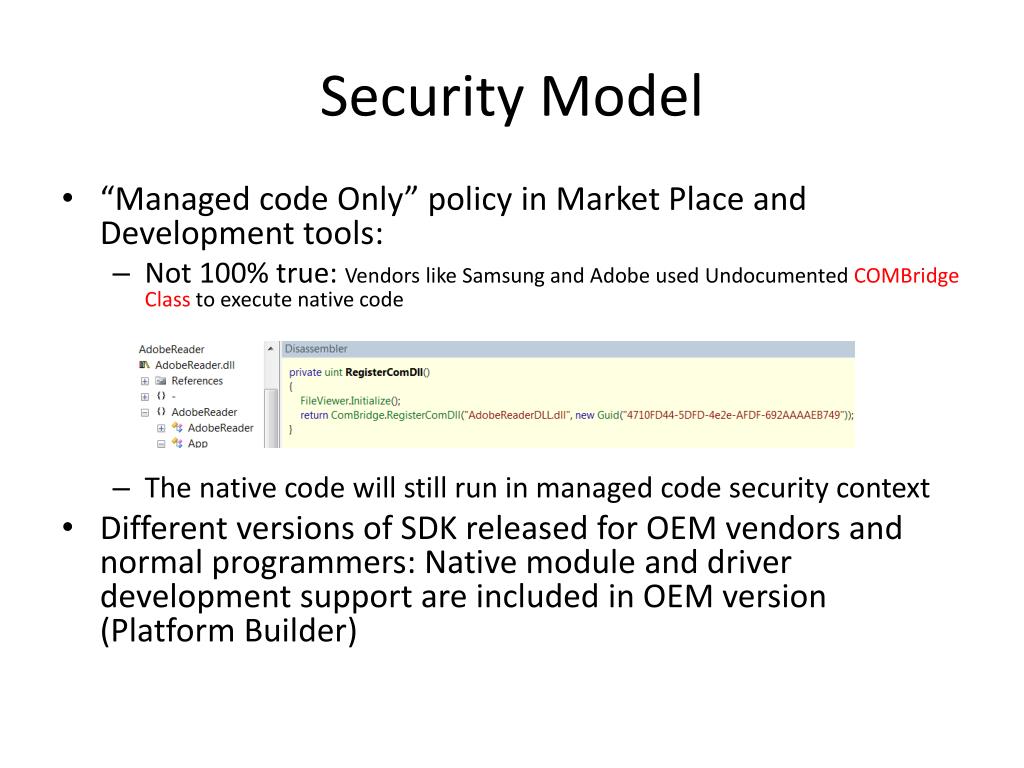

  3. Security Model • “Managed code Only” policy in Market Place and Development tools: • Not 100% true: Vendors like Samsung and Adobe used Undocumented COMBridgeClass to execute native code • The native code will still run in managed code security context • Different versions of SDK released for OEM vendors and normal programmers: Native module and driver development support are included in OEM version (Platform Builder)

  4. Windows Phone 7 SDK • Installed as a VS 2010 component • The Express version allows app (Silverlight) and Game development (XNA framework) • No native module development features • Uses MS Smart Device API to connect, deploy apps and exchange data with device/emulator • VS Debugger UI has no “Attach to Process” option: no third-party app debugging

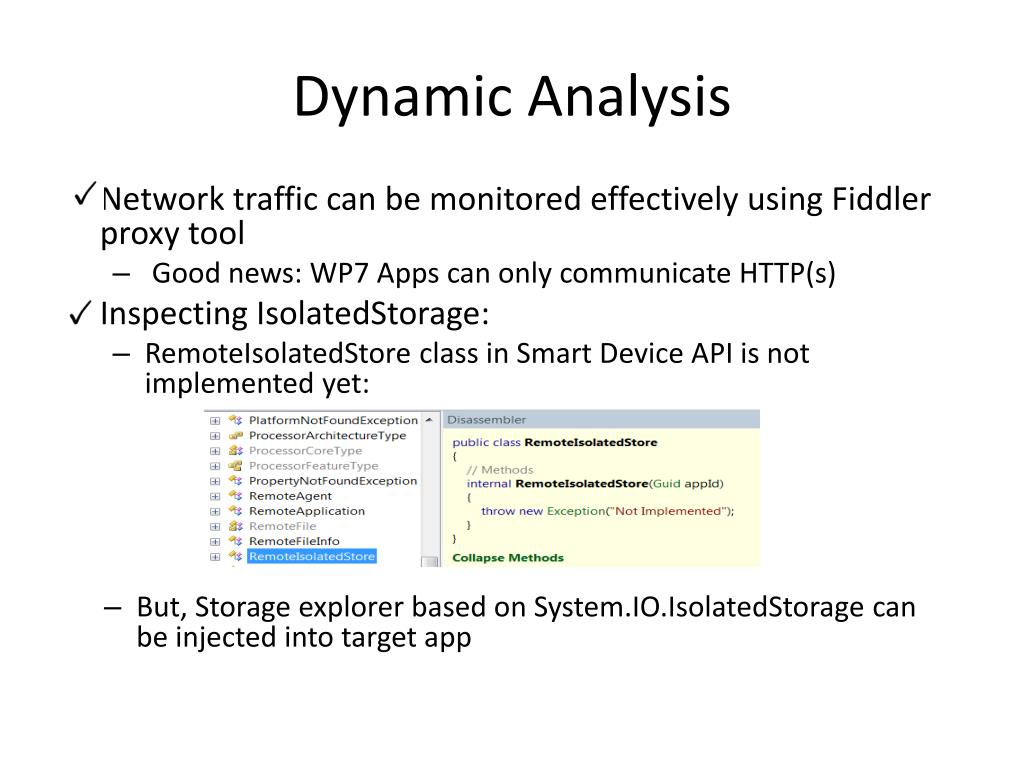

  5. Dynamic Analysis • Network traffic can be monitored effectively using Fiddler proxy tool • Good news: WP7 Apps can only communicate HTTP(s) • Inspecting IsolatedStorage: • RemoteIsolatedStore class in Smart Device API is not implemented yet: • But, Storage explorer based on System.IO.IsolatedStorage can be injected into target app

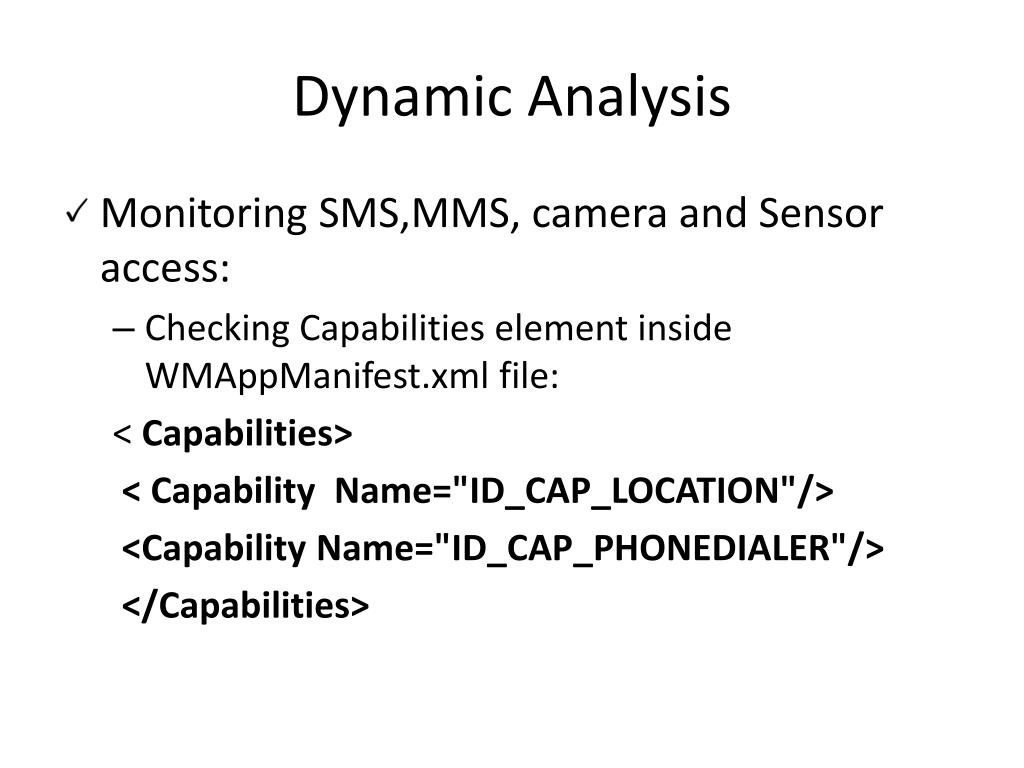

  6. Dynamic Analysis • Monitoring SMS,MMS, camera and Sensor access: • Checking Capabilities element inside WMAppManifest.xml file: <Capabilities> < Capability Name="ID_CAP_LOCATION"/> <Capability Name="ID_CAP_PHONEDIALER"/> </Capabilities>

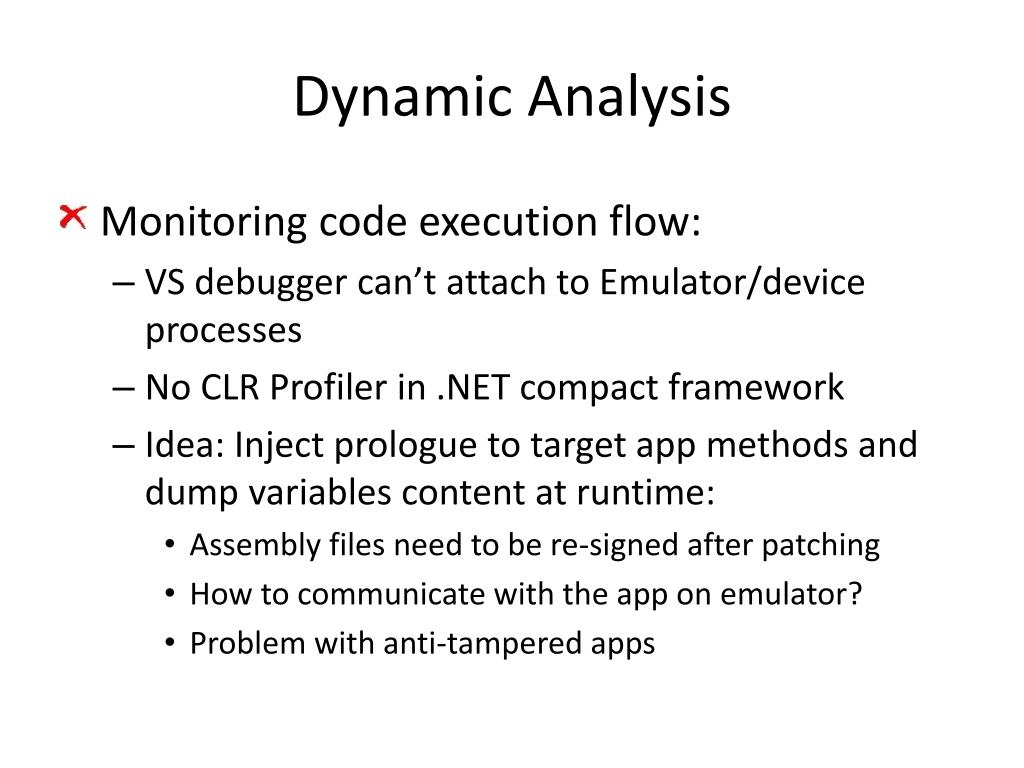

  7. Dynamic Analysis • Monitoring code execution flow: • VS debugger can’t attach to Emulator/device processes • No CLR Profiler in .NET compact framework • Idea: Inject prologue to target app methods and dump variables content at runtime: • Assembly files need to be re-signed after patching • How to communicate with the app on emulator? • Problem with anti-tampered apps

  8. XAP Spy • Automates the process of prologue injection, signing, deployment and logging • Uses Mono.Cecil library for code injection • MS Smart Device API for app deployment • Communication with remote app: • HTTP server and clients : approach that used by code profiling tools like EQATEC and RuntimeIntelligence: resource expensive, access violation for multi-thread apps • Enabling emulator console (by registry trick) and pointing output there: HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\XDE\EnableConsole

  9. XAP Spy

  10. Demo

  11. Iimitations • No GAC assemblies trace • No code breakpoints and manual trace • No runtime code/variable modification • Anti-tampered apps need to be “cracked” before analysis

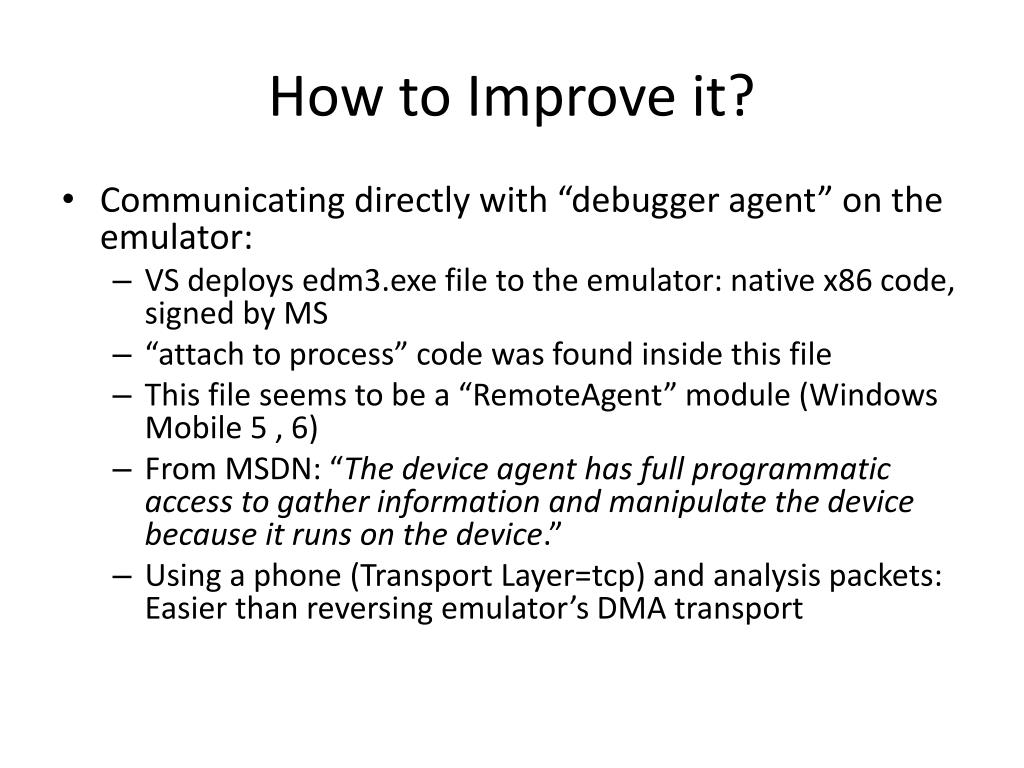

  12. How to Improve it? • Communicating directly with “debugger agent” on the emulator: • VS deploys edm3.exe file to the emulator: native x86 code, signed by MS • “attach to process” code was found inside this file • This file seems to be a “RemoteAgent” module (Windows Mobile 5 , 6) • From MSDN: “The device agent has full programmatic access to gather information and manipulate the device because it runs on the device.” • Using a phone (Transport Layer=tcp) and analysis packets: Easier than reversing emulator’s DMA transport

  13. Thank you!
