近代核子物理實驗

2008 年雷射電漿物理暑期學校 【 電漿實驗專題 】. 近代核子物理實驗. 中央研究院 物理所　章文箴 2008/07/11 （五） 台大物理系 111 教室. Outline. Discovery of nuclear structure Development of “modern” nuclear physics Nuclear structure at extreme and excited states Hadron physics with laser-electron photon Laser Nuclear Physics.

gerda
Télécharger la présentation

近代核子物理實驗

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 2008年雷射電漿物理暑期學校 【電漿實驗專題】 近代核子物理實驗 中央研究院 物理所　章文箴 2008/07/11（五） 台大物理系111教室

  2. Outline • Discovery of nuclear structure • Development of “modern” nuclear physics • Nuclear structure at extreme and excited states • Hadron physics with laser-electron photon • Laser Nuclear Physics

  3. Discovery of nuclear structure

  4. A Wide Range of Scale in Observation

  5. Mendeleev and Periodic Table

  6. Models of Atom Rutherford model of atom Thomson model of atom

  7. Rutherford experiment • From angular distribution of rescattered  -particles Rutherford concluded existence of positively charged core of atom then called nucleus • The size of the nucleus was much smaller(10-14m) than size of the atom (10-10m)

  8. Angular distribution of scattered -particles

  9. Development of modern nuclear physics

  10. All observed nuclei: • stable nuclei • b decaying nuclei • particle emitting nuclei Stable and decaying nuclei Stable nuclei neutron- rich proton- rich Off the valley of stability...

  11. beta + proton g neutron + light particles fissionbreak-up of a nucleus g two light nuclei beta - neutron g proton + light particles alpha emission of 4He 2 protons + 2 neutrons "classical" radioactivities

  12. Nuclear Stability Proton unstable Stablenuclei Neutron unstable

  13. Designer Nuclei in Nuclear Landscape superheavy nuclei 225Ra 62Ga 78Ni 134Sn 11Li 283112 45Fe 68Se 101Sn 149Tb 82 126 protons terra incognita 50 82 stable nuclei 28 • How do protons and neutrons make stable nuclei and rare isotopes? • What are properties of neutron matter? • What are the heaviest nuclei that can exist? • What is the origin of simple patterns in complex nuclei? 20 50 8 28 known nuclei 2 20 8 2 neutrons

  14. Radiation Detectors • Photographic Film • To detect ,  and  radiations • Spark counter • To detect -particles • Ionization Chamber • To detect -particles • Cloud Chamber • To detect  and  particles • Geiger-Müller Tube • To detect ,  and  radiations

  15. Isomer ? What is an isomer ? Metastable (long-lived) nuclear excited state. ‘Long-lived’ could mean ~10-19 seconds, shape isomers in alpha-clusters or ~1015 years 180Ta 9-->1+ decay. Why/when do you get isomers? If there is (i) large change in spin (‘spin-trap’) (ii) small energy change (iii) dramatic change in structure (shape, K-value)

  16. Excited State of Nuclei

  17. Superdeformed Nuclei • A band terminates when all valence particles outside a doubly magic (spherical)core are aligned

  18. Astrophysical Consequences of Isomers 180Ta is ‘stable’ in its isomeric state, but its ground state decays in hours! Longstanding problem as to how the isomeric state is created in nature (via eg. S-process). Possible mechanism via heavier nuclei spallation or K-mixing of higher states in 180Ta.

  19. Some nuclei are more important than others - + - + - + + - + - 149Tb 18F,22Na 225Ra Over the last decade, tremendous progress has been made in techniques to produce designer nuclei, rare atomic nuclei with characteristics adjusted to specific research needs nuclear structure tests of fundamental laws of nature 45Fe applications astrophysics

  20. Medical Imaging - 99mTc Technetium-99m a metastable isomer that decays into 99Tc by g emission with a half-life of 6h. Then decays into ruthenium by b emission, but with a half-life of 2.1 x 105 years. N.B. As a gamma emitter, 99mTc remains the same element during its residence in the body so it doesn’t change its chemistry when it decays. Highly penetrating g radiation. Long half-life = low activity.

  21. Gamma camera CT scanner E.g. g-camera image of 131I (from NaI solution) uptake in a normal and diseased thyroid gland, showing localisation of iodine. E.g. tomographic image of a single anatomical level of the brain using 18F-labelled glucose.

  22. Gamma spectroscopy • Radiation interaction in scintillator produces light (may be in visible range) • Quantification of output requires light amplification and detection device(s) • This is accomplished with the: • Photocathode • Photomultiplier tube • Both components are • placed together as one unit • optically coupled to the scintillator

  23. Basic Physics Processes in a Sodium Iodide (NaI) Calorimeter The amount of light given off by NaI is proportional to the amount energy absorbed. The light yield is ~ 1 photon per 25 eV deposited in NaI, lmax=415 nm, decay time ~250nsec NaI is often used to measure the energy low gamma rays Compton Scattering ge-→ge- “elastic scattering” Photoelectric Effect g absorbed by material, electron ejected Pair Production g→e+e- creates anti-matter g g g e- e- e+ e- g NaI 0.05 < hv < 10 MeV hv > 10 MeV g-ray must have E>2me hv < 0.05 MeV Attenuation of the gamma rays is energy dependent radiation length of NaI ~2.5 cm but only useful for E > few MeV Richard Kass

  24. Scintillation detector Photocathode Scintillation event Photomultiplier tube Gamma ray Dynodes Photoelectrons Fluor crystal NaI (Tl) Reflector housing

  25. Major components of PM Tube • Photocathode material • Dynodes • electrodes which eject additional electrons after being struck by an electron • Multiple dynodes result in 106 or more signal enhancement • Collector • accumulates all electrons produced from final dynode • Resistor • collected current passed through resistor to generate voltage pulse

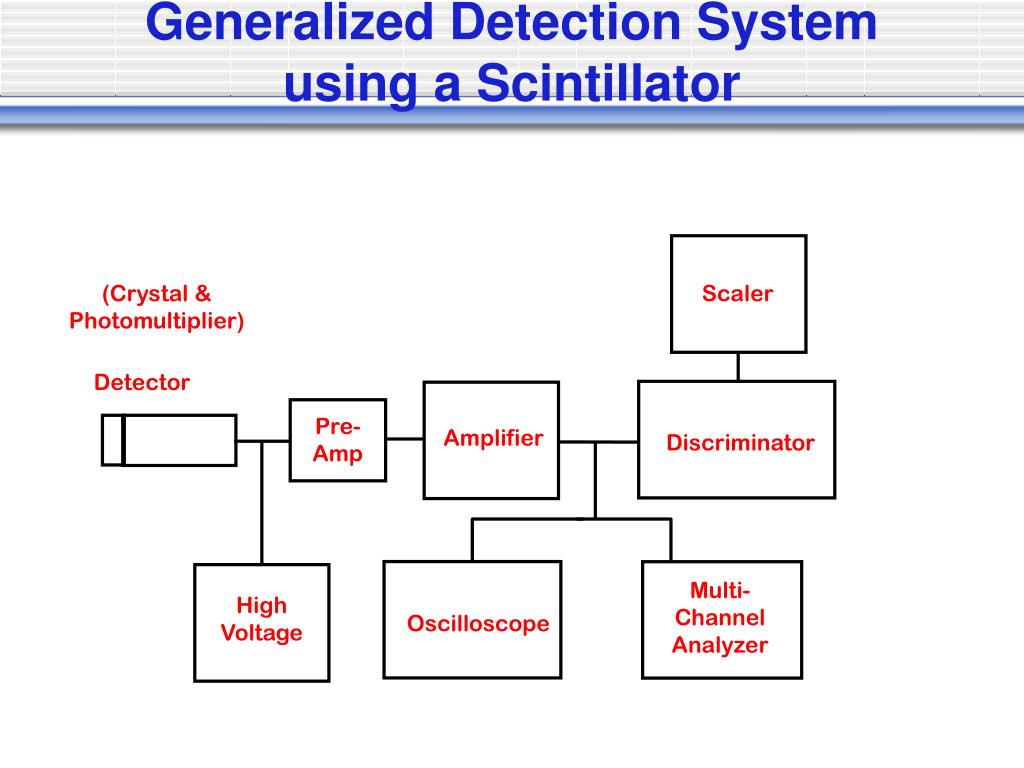

  26. Generalized Detection System using a Scintillator (Crystal & Photomultiplier) Scaler Detector Amplifier Pre- Amp Discriminator Multi- Channel Analyzer High Voltage Oscilloscope

  27. Commonly Used Scintillators (1) Effective average decay time For g-rays.(2) At the wavelength of the emission maximum.(3) Relative scintillation signal at room temperature for g-rays when coupled to a photomultiplier tube with a Bi-Alkalai photocathode.

  28. Commonly Used Scintillators (1) Effective agerage decay time For g-rays.(2) At the wavelength of the emission maximum.(3) Relative scintillation signal at room temperature for g-rays when coupled to a photomultiplier tube with a Bi-Alkalai photocathode.

  29. Coincidence helps! Amplification Amplification Timing Multi-channel Analyzer Detector Coincidence Unit Source Gate Detector Scaler Timing After Tsoulfanidis, 1995

  30. Inner BGO ball at G.A.S.P. ACS BGO BALL

  31. Projectile Fragmentation Reactions projectile Final fragment Excited pre-fragment target hotspot Energy (velocity) of beam > Fermi velocity inside nucleus ~30 MeV/u Can ‘shear off’ different combinations of protons and neutrons. Large variety of exotic nuclear species created, all at forward angles with ~beam velocity. Some of these final fragments can get trapped in isomeric states. Problem 1: Isotopic identification. Problem 2: Isomeric identification.

  32. Recoil – Decay –Tagging (RDT) method

  33. Nucleonic matter

  34. Hadronic Properties of GeV Photon Vector-Meson Dominance Model

  35. Bremsstrahlung Energy loss by Bremsstrahlung (charge particles) Effect plays a role only for e± and ultra-relativistic µ (>1000 GeV) Ec(e-) in Cu(Z=29) = 20 MeV, Ec(µ) in Cu ≈ 1 TeV. muons in multi-GeV range can traverse thick layers of dense matter.

  36. Laser-Electron-PhotonS facility

  37. LEPS Facilities Worldwide

  38. Laser-Electron-PhotonS facility 3.3 GeV electron Backward-Compton scattering Collision Recoil electron Tagging counter a) Storage Ring Laser light Energy spectrum of BCS photons Bremsstrahlung Compton g-ray b) Laser hutch c) Experimental hutch

  39. Linearly Polarized Photon • Backward Compton scattering with UV laser light • Intensity (typ.) : 2.5 * 106 cps • Tagging region : 1.5 GeV< Eg < 2.4 GeV • Linear polarization : 95 % at 2.4 GeV Counts Linear polarization Eg(GeV) Eg(Tagger) (GeV)

  40. Photon Flux

  41. Super Photon Ring 8 GeV (SPring-8) Harima Science Garden City

  42. SPring-8 Beam-Lines

  43. Synchrotron Radiation

  44. Laser System Ar ion laser (MLUV,CW 5.5W) Polarization rotator Focusing lens

  45. e Collision in Storage Ring Straight section e- (8GeV) Laser Bending magnet g Tagging counter e’

  46. Experimental Hutch

  47. LEPS Detector System g Dipole Magnet (0.7 T) TOF wall Start counter Aerogel Cherenkov (n=1.03) MWDC 3 Silicon Vertex Detector MWDC 2 MWDC 1 1m

  48. Elementary Observables • Momentum • Time-of-Flight • Energy Loss • Particle Identification • Invariant Mass Reconstruction

  49. Momentum Measurements • Definition • Newtonian Mechanics • Special Relativity • But how does one measure “p”?
