Chapter 3.3 : OS Policies for Virtual Memory

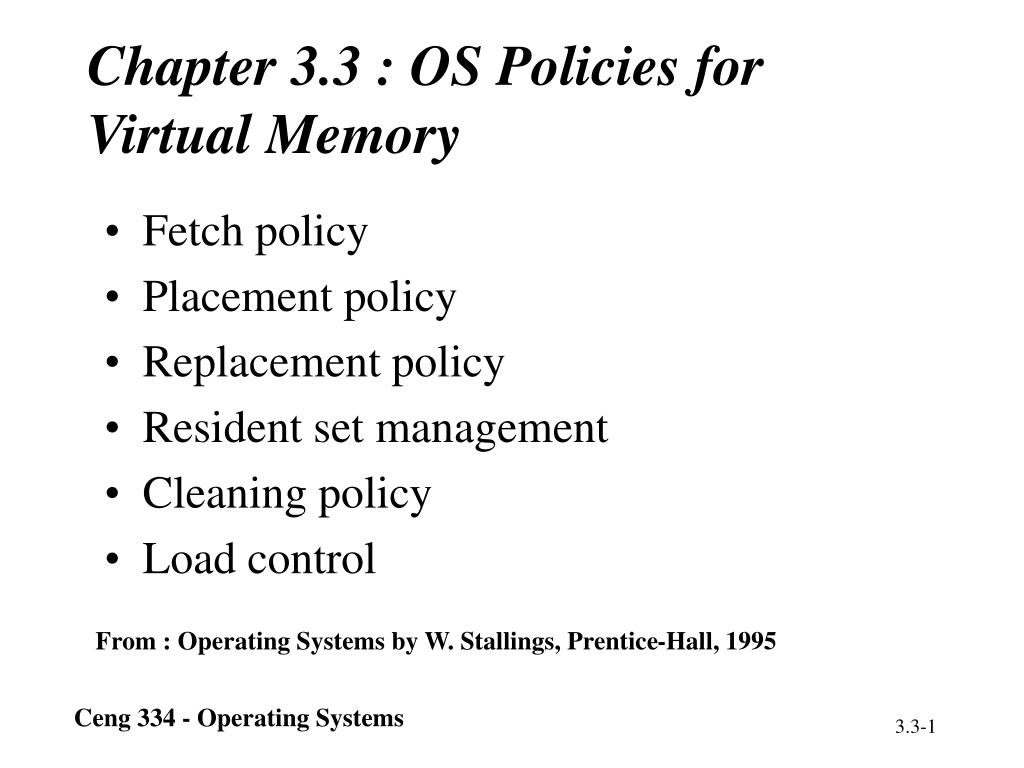

1. Chapter 3.3 : OS Policies for Virtual Memory • Fetch policy • Placement policy • Replacement policy • Resident set management • Cleaning policy • Load control From : Operating Systems by W. Stallings, Prentice-Hall, 1995 Ceng 334 - Operating Systems

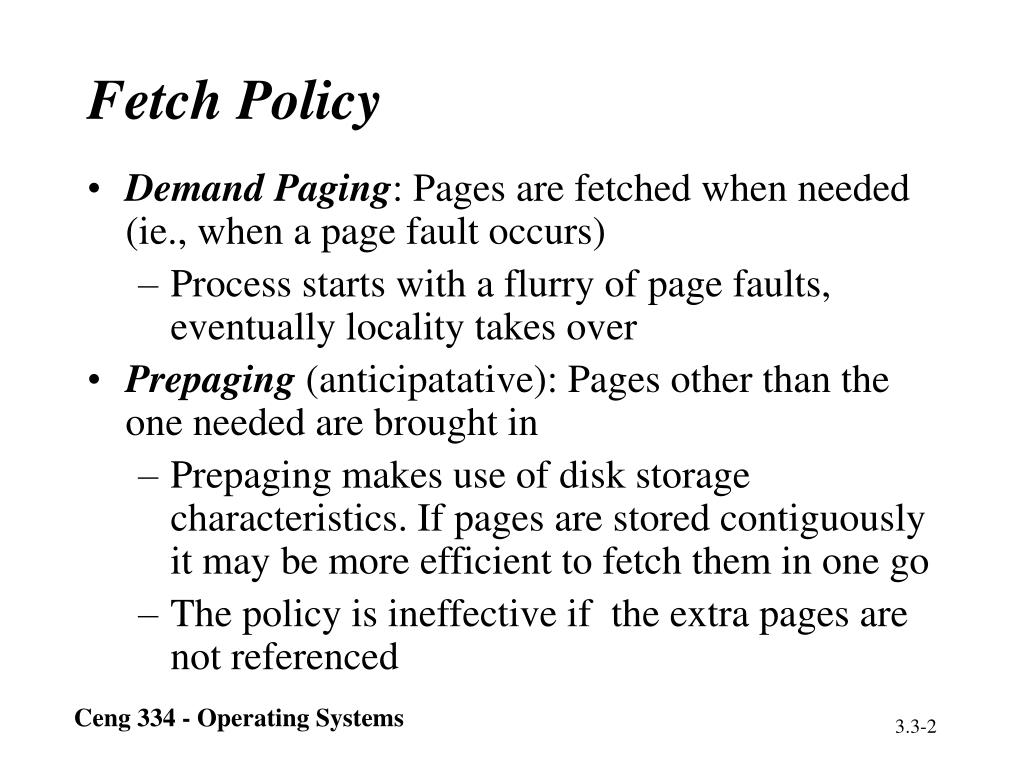

2. Fetch Policy • Demand Paging: Pages are fetched when needed (ie., when a page fault occurs) • Process starts with a flurry of page faults, eventually locality takes over • Prepaging (anticipatative): Pages other than the one needed are brought in • Prepaging makes use of disk storage characteristics. If pages are stored contiguously it may be more efficient to fetch them in one go • The policy is ineffective if the extra pages are not referenced Ceng 334 - Operating Systems

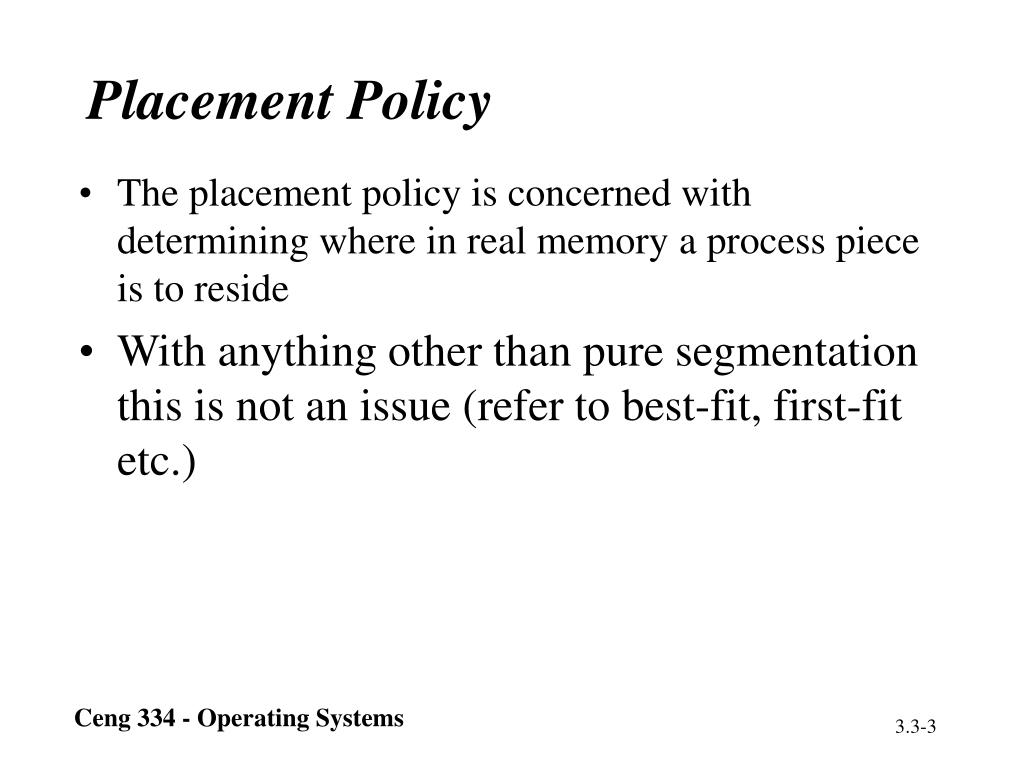

3. Placement Policy • The placement policy is concerned with determining where in real memory a process piece is to reside • With anything other than pure segmentation this is not an issue (refer to best-fit, first-fit etc.) Ceng 334 - Operating Systems

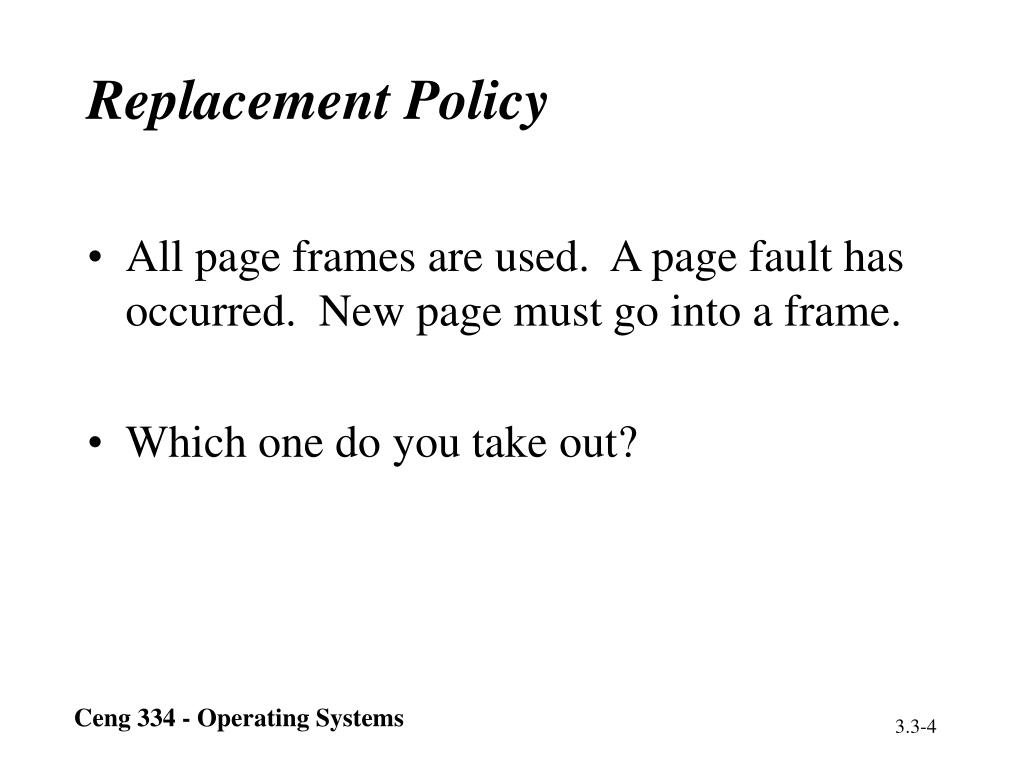

4. Replacement Policy • All page frames are used. A page fault has occurred. New page must go into a frame. • Which one do you take out? Ceng 334 - Operating Systems

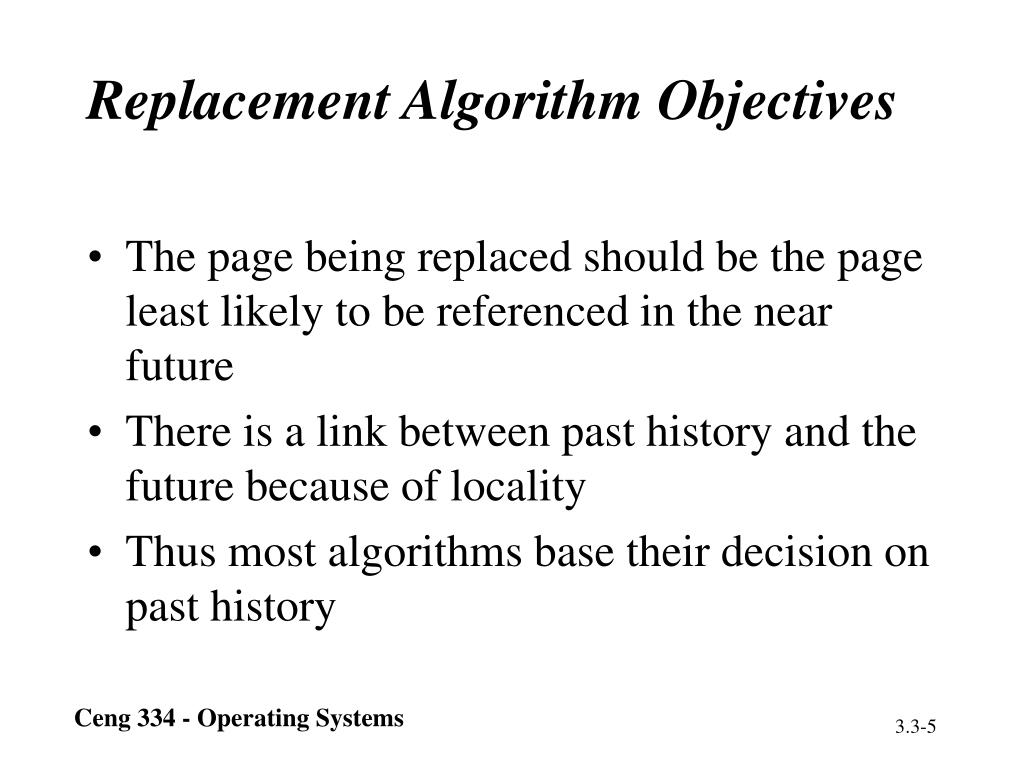

5. Replacement Algorithm Objectives • The page being replaced should be the page least likely to be referenced in the near future • There is a link between past history and the future because of locality • Thus most algorithms base their decision on past history Ceng 334 - Operating Systems

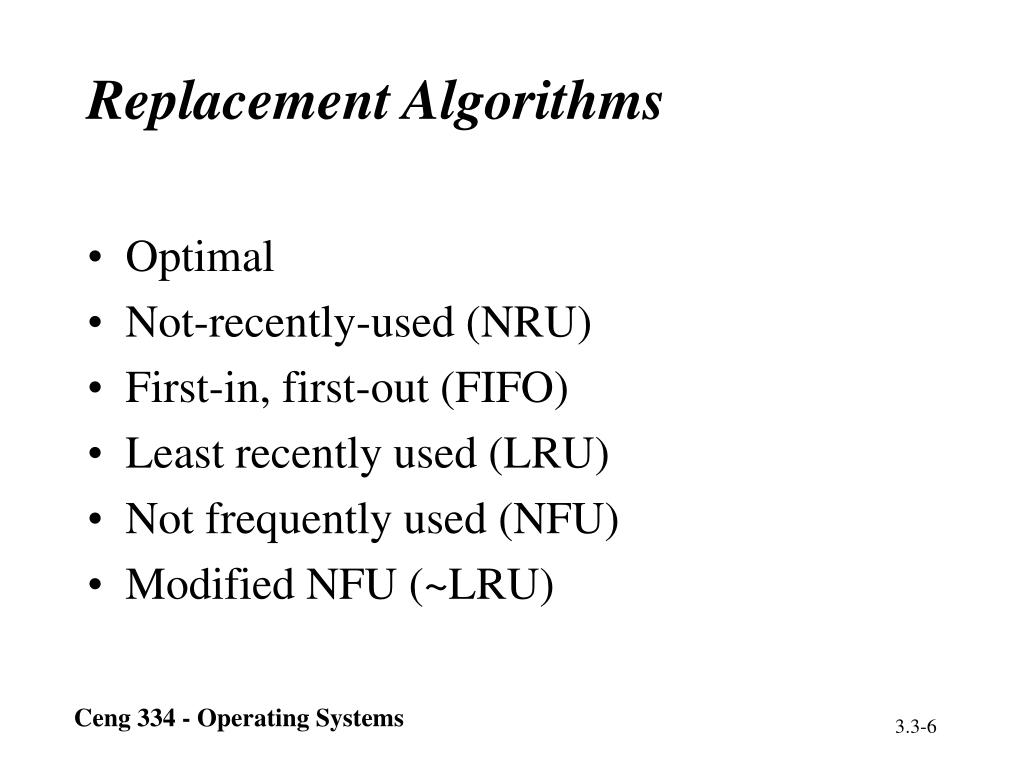

6. Replacement Algorithms • Optimal • Not-recently-used (NRU) • First-in, first-out (FIFO) • Least recently used (LRU) • Not frequently used (NFU) • Modified NFU (~LRU) Ceng 334 - Operating Systems

7. Scope of Replacements • The set of frames from which these algorithms choose is based on the scope • Local Scope: Only frames belonging to the faulting process can be replaced. • Global Scope: All frames can be replaced • Some frames will be locked (e.g. Kernel, system buffers etc.,) Ceng 334 - Operating Systems

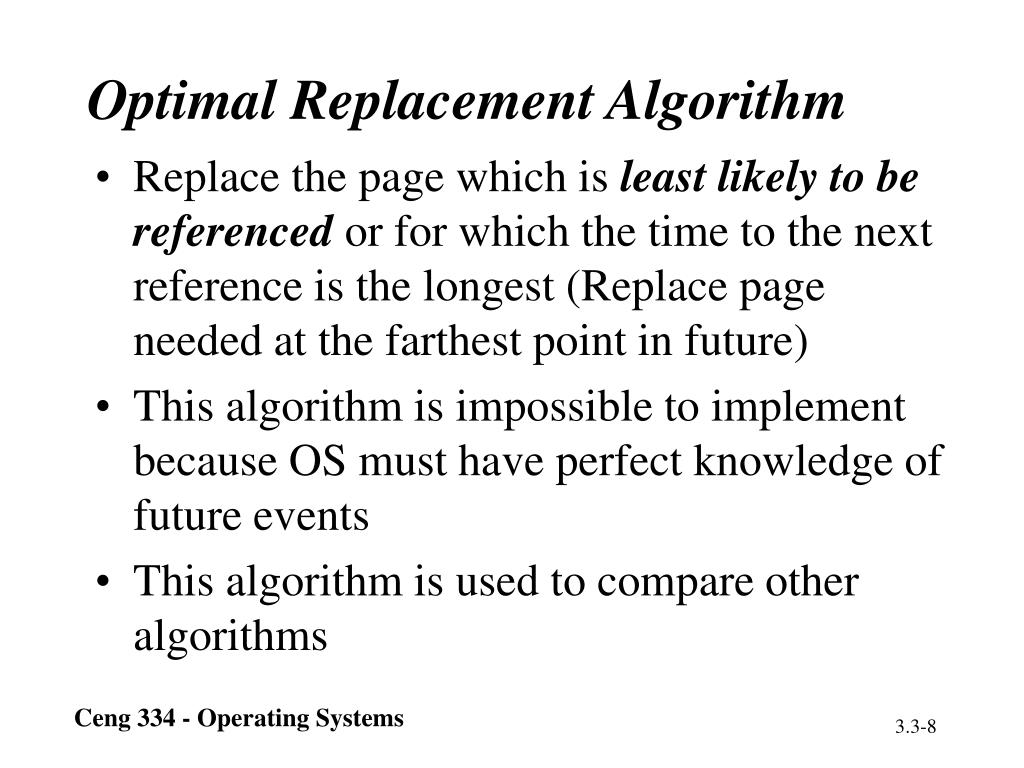

8. Optimal Replacement Algorithm • Replace the page which is least likely to be referenced or for which the time to the next reference is the longest (Replace page needed at the farthest point in future) • This algorithm is impossible to implement because OS must have perfect knowledge of future events • This algorithm is used to compare other algorithms Ceng 334 - Operating Systems

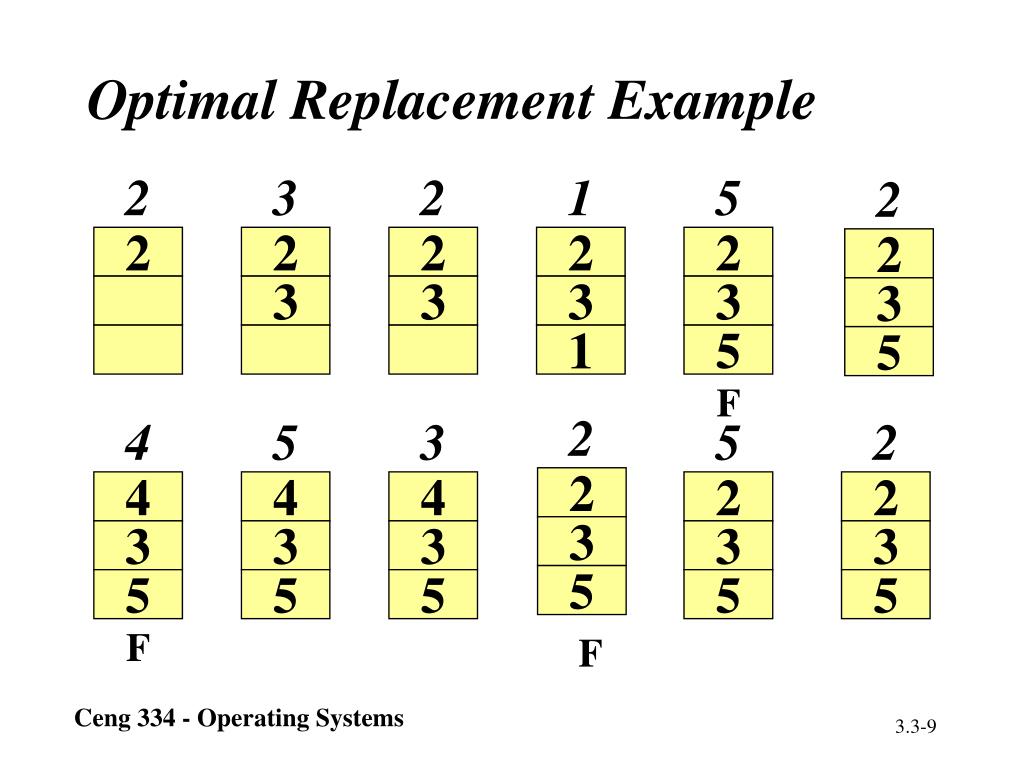

9. 2 2 2 2 3 5 1 5 3 2 5 4 2 2 2 2 4 4 2 4 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 5 5 5 5 1 5 5 5 5 F F F Optimal Replacement Example Ceng 334 - Operating Systems

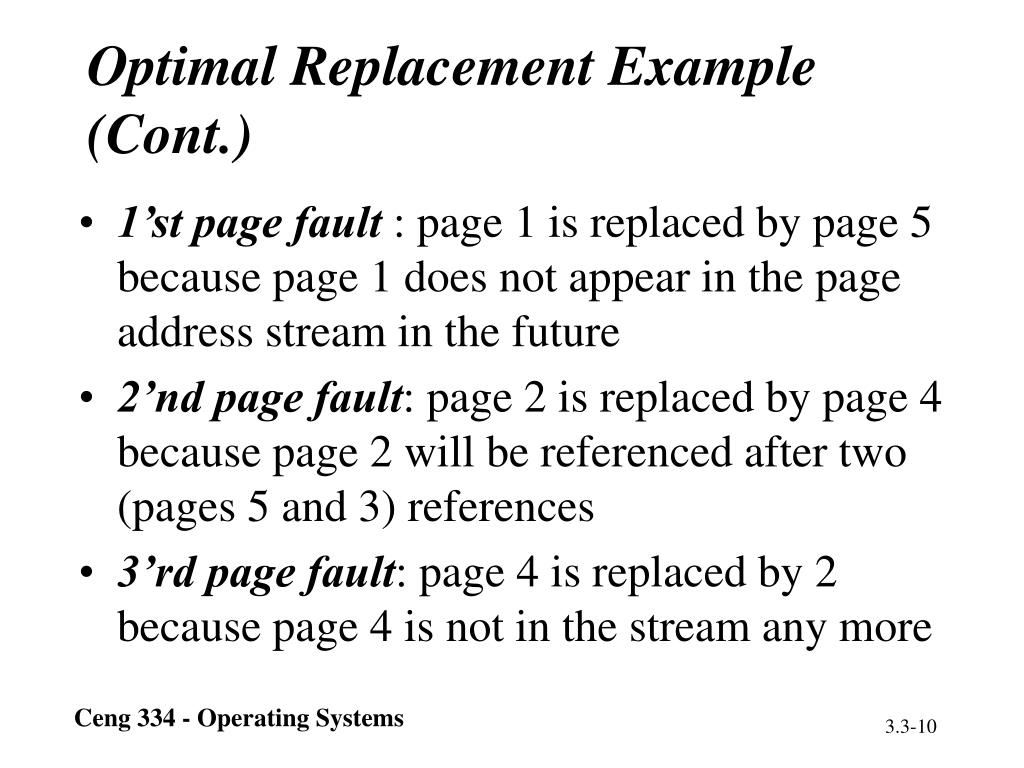

10. Optimal Replacement Example (Cont.) • 1’st page fault : page 1 is replaced by page 5 because page 1 does not appear in the page address stream in the future • 2’nd page fault: page 2 is replaced by page 4 because page 2 will be referenced after two (pages 5 and 3) references • 3’rd page fault: page 4 is replaced by 2 because page 4 is not in the stream any more Ceng 334 - Operating Systems

11. Not-Recently-Used (NRU) • Replace the page which is not used recently • Use the referenced (R) & modified (M) bits in the page table entry • R bit is set when the page is referenced (read or written) • M bit is set when the page is modified (contents changed - written) Ceng 334 - Operating Systems

12. NRU Implementation • Hardware • R & M bits are set by hardware on every memory reference • Software • R & M bits in the page table entry is modified at page faults Ceng 334 - Operating Systems

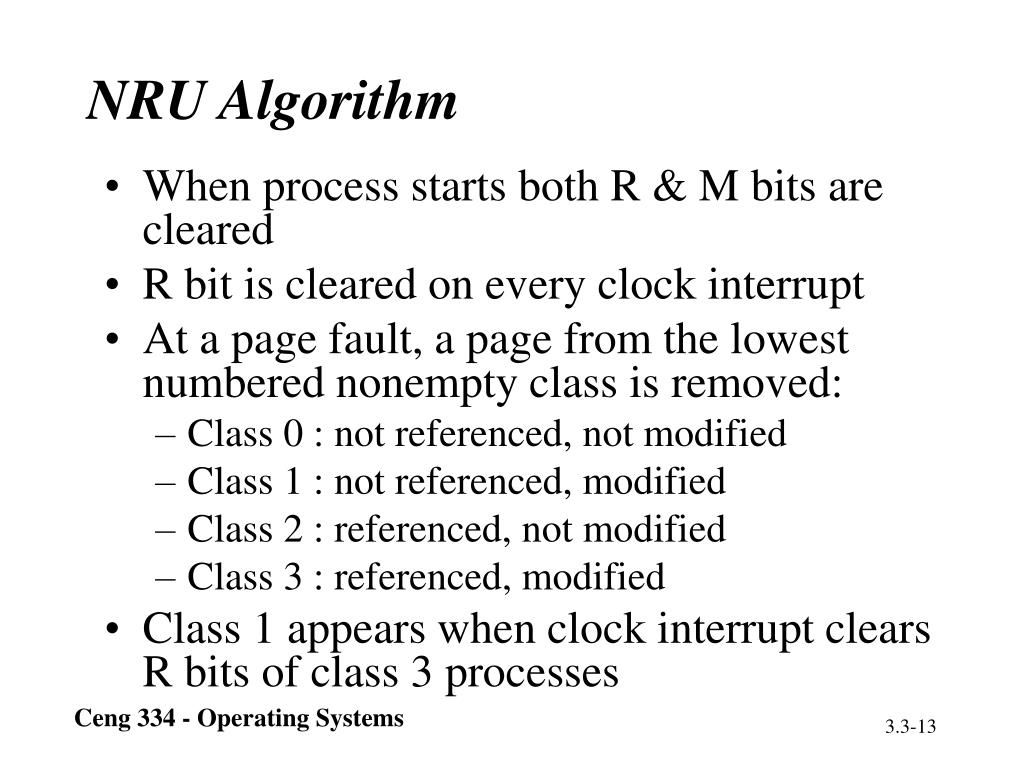

13. NRU Algorithm • When process starts both R & M bits are cleared • R bit is cleared on every clock interrupt • At a page fault, a page from the lowest numbered nonempty class is removed: • Class 0 : not referenced, not modified • Class 1 : not referenced, modified • Class 2 : referenced, not modified • Class 3 : referenced, modified • Class 1 appears when clock interrupt clears R bits of class 3 processes Ceng 334 - Operating Systems

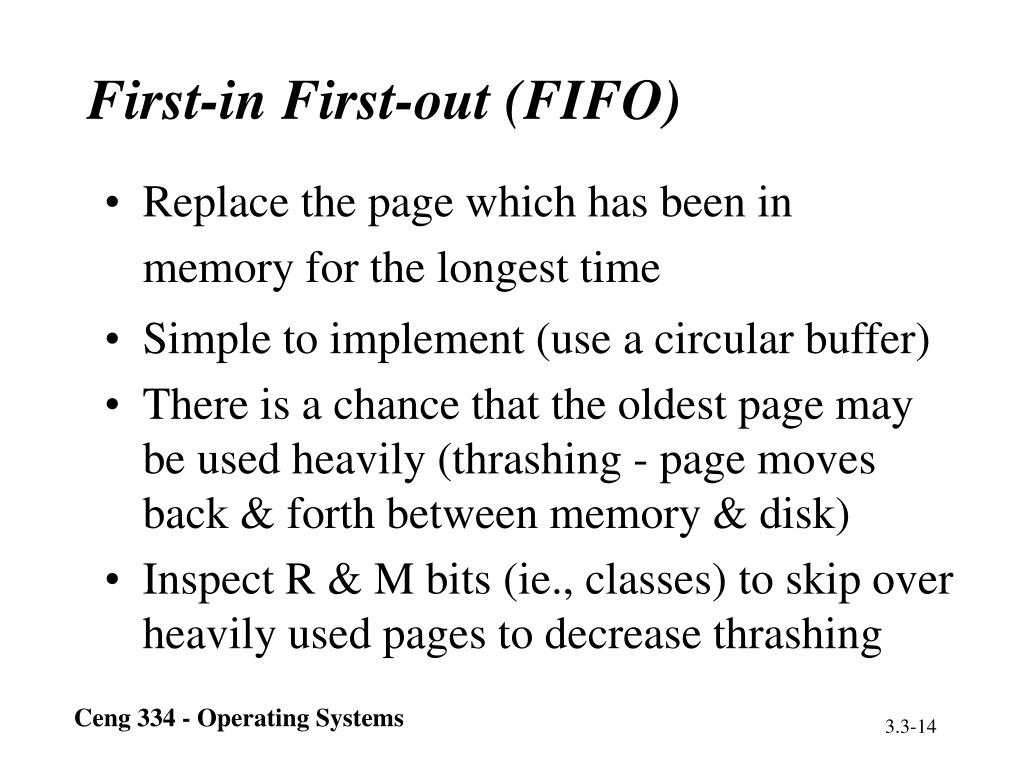

14. First-in First-out (FIFO) • Replace the page which has been in memory for the longest time • Simple to implement (use a circular buffer) • There is a chance that the oldest page may be used heavily (thrashing - page moves back & forth between memory & disk) • Inspect R & M bits (ie., classes) to skip over heavily used pages to decrease thrashing Ceng 334 - Operating Systems

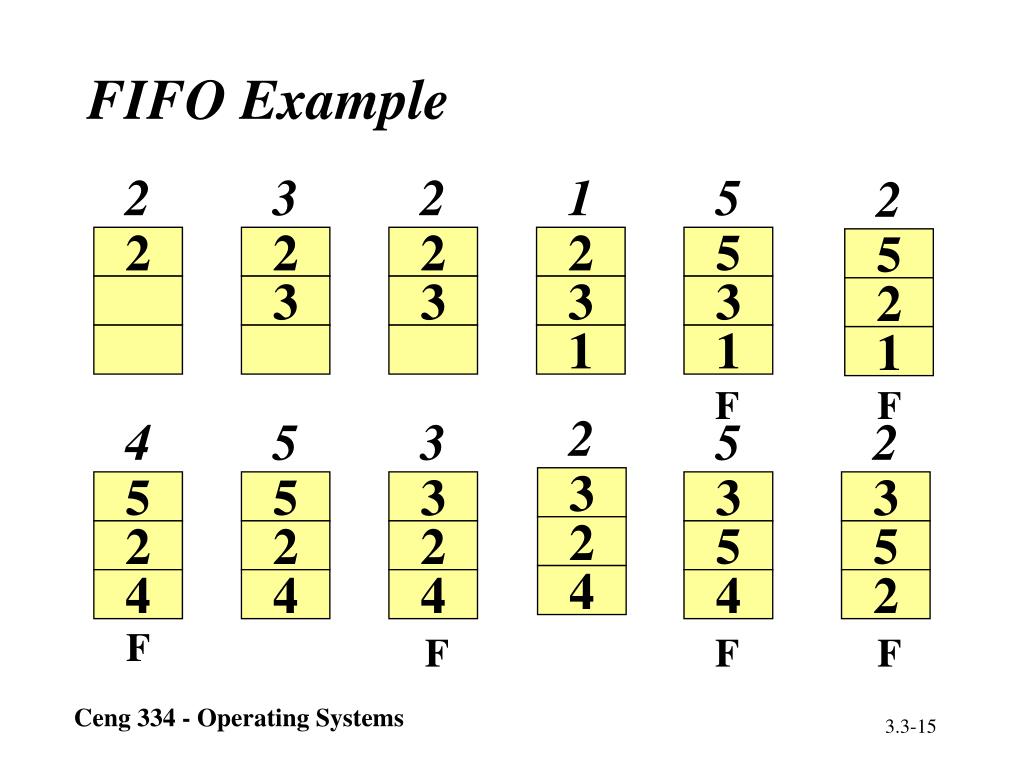

15. 2 3 4 1 2 5 5 2 2 5 2 3 2 5 2 3 2 2 3 5 5 5 3 3 3 3 2 3 3 5 2 5 2 2 2 4 1 4 4 1 1 4 2 4 FIFO Example F F F F F F Ceng 334 - Operating Systems

16. Least Recently Used (LRU) • Replace the page which has been unused for the longest time • Does almost as well as optimal • Implementation poses overheads • Implementation uses a time stamp for each page (time of last reference) Ceng 334 - Operating Systems

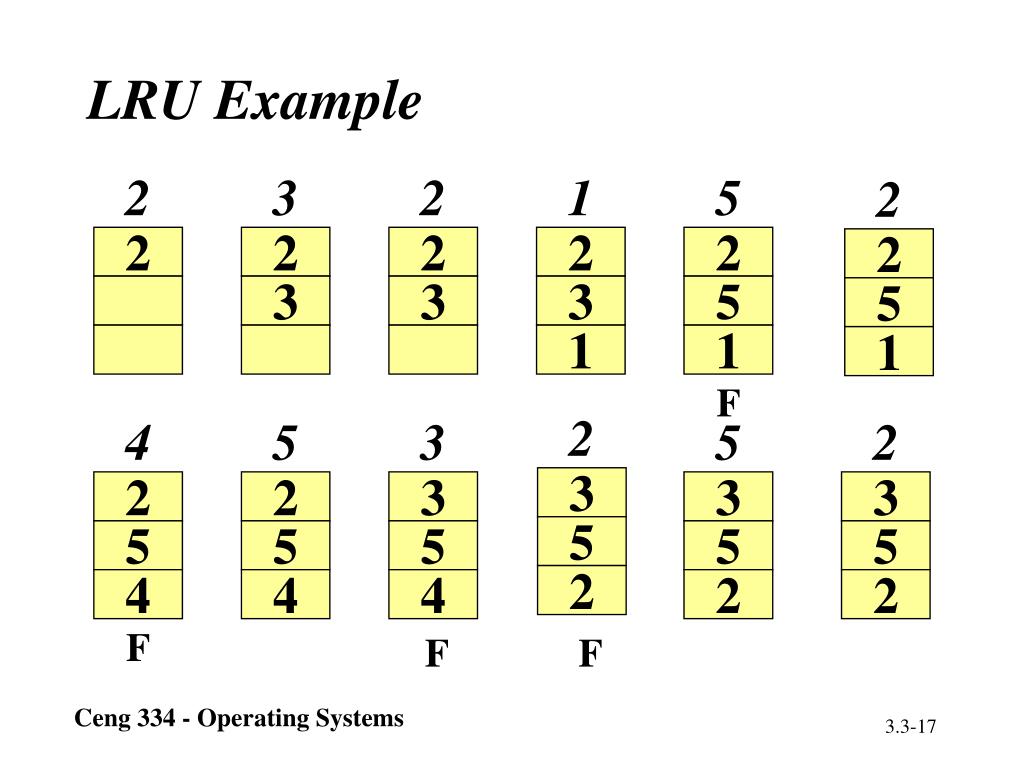

17. 2 2 2 5 3 5 1 4 5 3 2 2 2 3 2 3 2 3 2 3 2 2 2 2 3 5 3 3 5 5 5 5 5 5 5 4 1 2 2 4 2 4 1 1 F F F LRU Example F Ceng 334 - Operating Systems

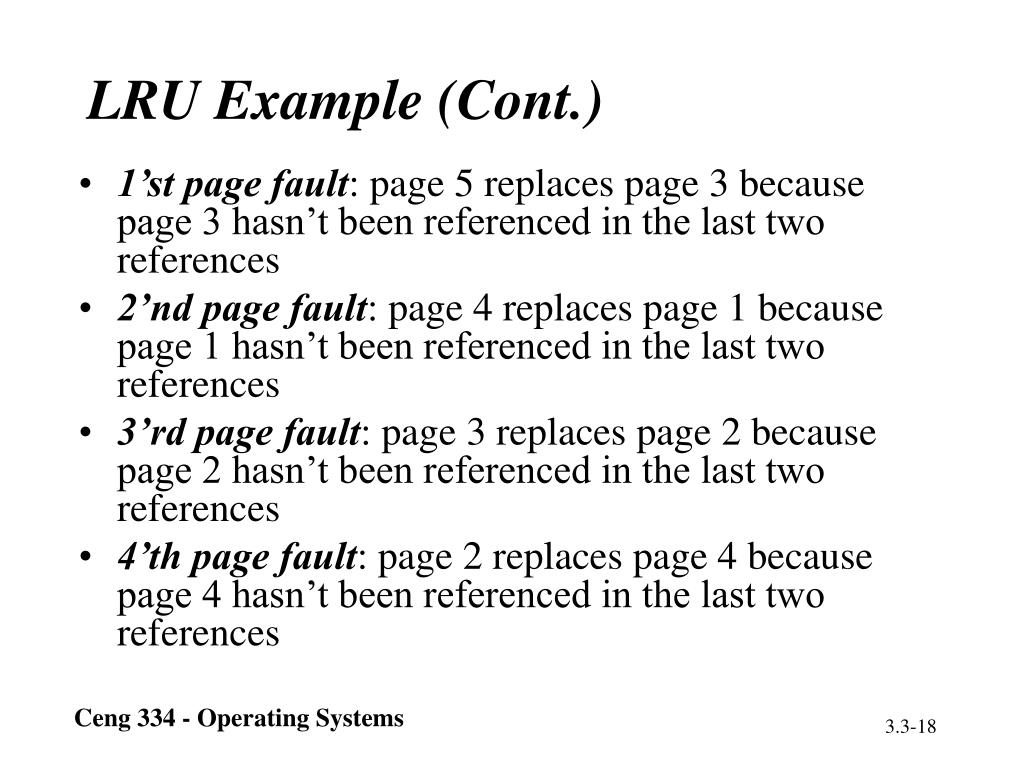

18. LRU Example (Cont.) • 1’st page fault: page 5 replaces page 3 because page 3 hasn’t been referenced in the last two references • 2’nd page fault: page 4 replaces page 1 because page 1 hasn’t been referenced in the last two references • 3’rd page fault: page 3 replaces page 2 because page 2 hasn’t been referenced in the last two references • 4’th page fault: page 2 replaces page 4 because page 4 hasn’t been referenced in the last two references Ceng 334 - Operating Systems

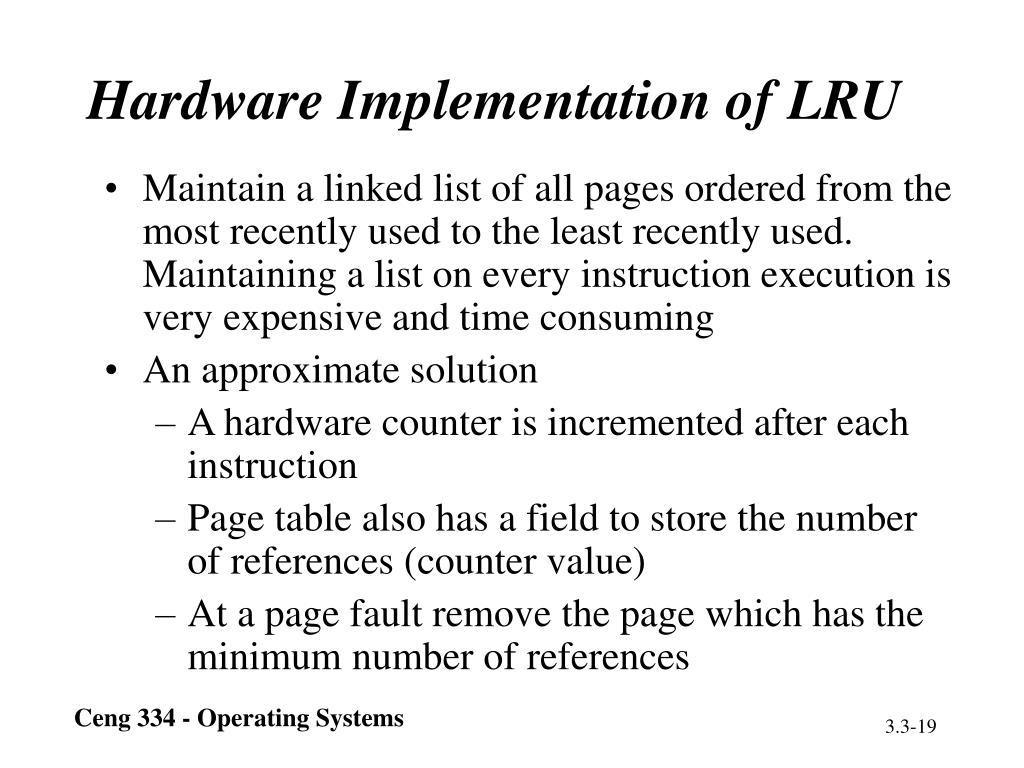

19. Hardware Implementation of LRU • Maintain a linked list of all pages ordered from the most recently used to the least recently used. Maintaining a list on every instruction execution is very expensive and time consuming • An approximate solution • A hardware counter is incremented after each instruction • Page table also has a field to store the number of references (counter value) • At a page fault remove the page which has the minimum number of references Ceng 334 - Operating Systems

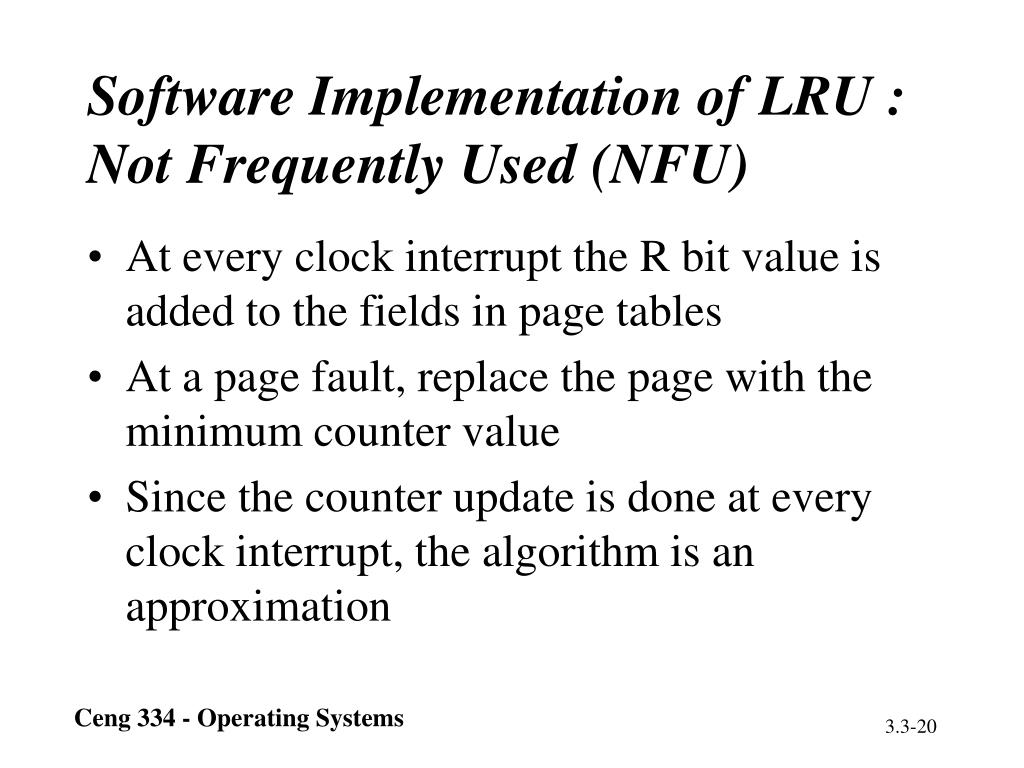

20. Software Implementation of LRU : Not Frequently Used (NFU) • At every clock interrupt the R bit value is added to the fields in page tables • At a page fault, replace the page with the minimum counter value • Since the counter update is done at every clock interrupt, the algorithm is an approximation Ceng 334 - Operating Systems

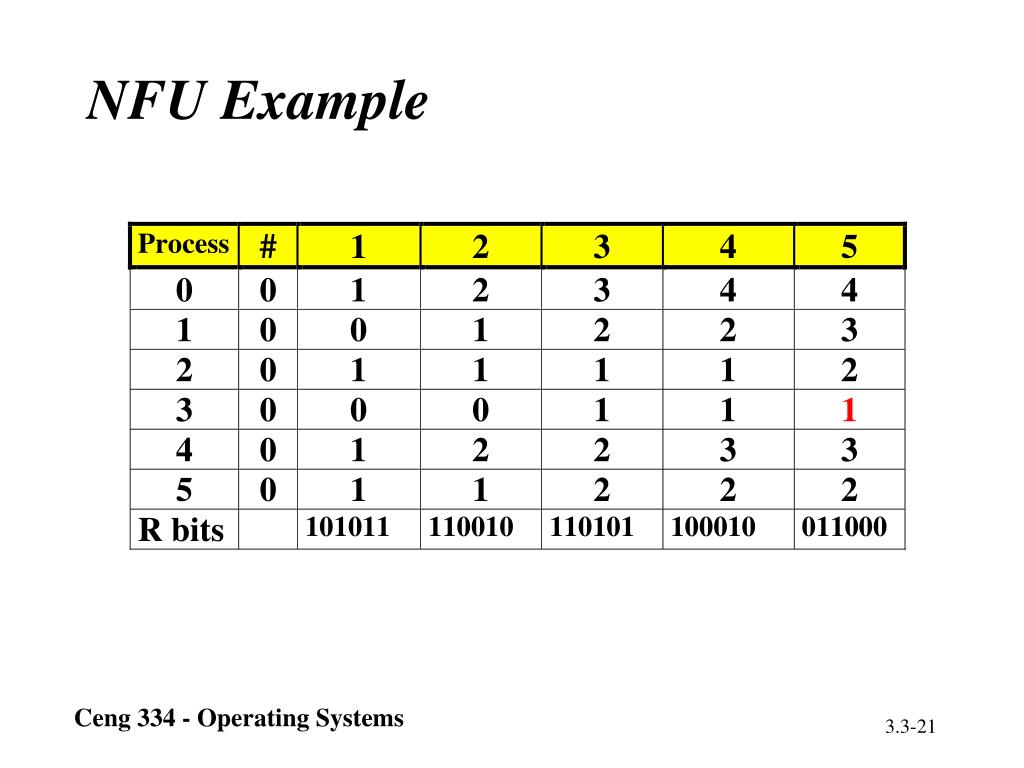

21. NFU Example Ceng 334 - Operating Systems

22. Modified NFU : ~LRU • Aging of pages • Algorithm • Shift right counter values (in page table) by 1 • Put R bit value (0 - not referenced or 1- referenced ) as the new leftmost bit at every clock tick • At a page fault replace the page with the lowest counter value (this is the least recently used page) Ceng 334 - Operating Systems

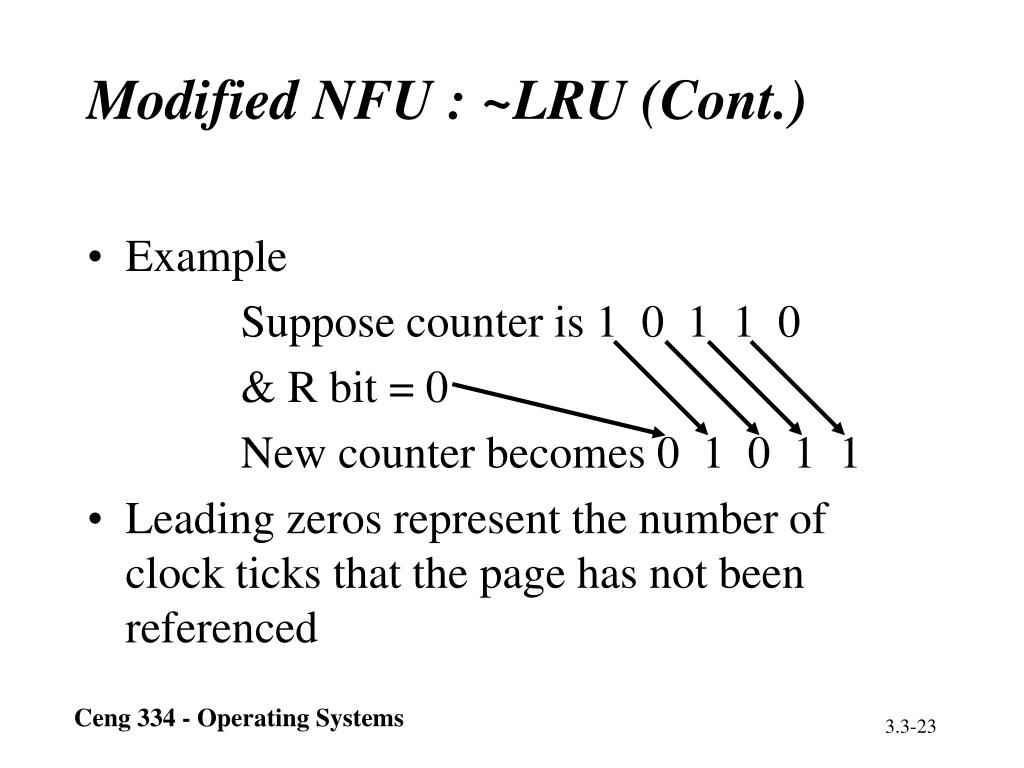

23. Modified NFU : ~LRU (Cont.) • Example Suppose counter is 1 0 1 1 0 & R bit = 0 New counter becomes 0 1 0 1 1 • Leading zeros represent the number of clock ticks that the page has not been referenced Ceng 334 - Operating Systems

24. Differences Between NFU & ~LRU • NFU counts the number of times that a page is accessed in a given period • ~LRU incorporates a time factor by shifting right (aging) the counter value Ceng 334 - Operating Systems

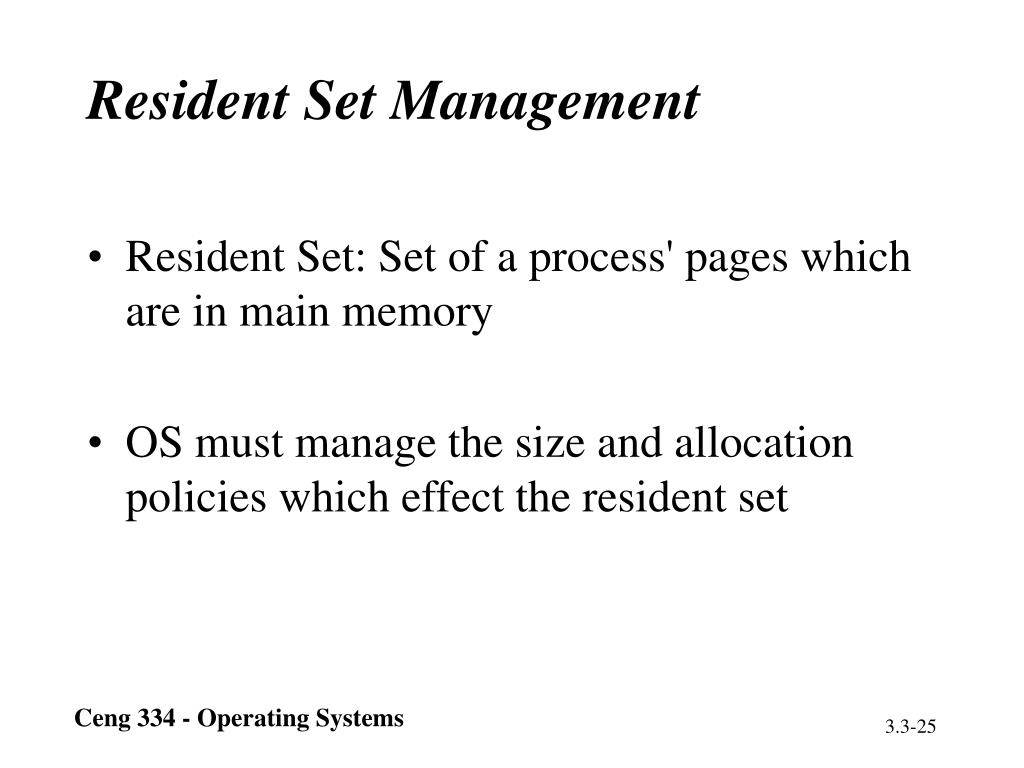

25. Resident Set Management • Resident Set: Set of a process' pages which are in main memory • OS must manage the size and allocation policies which effect the resident set Ceng 334 - Operating Systems

26. Factors Include • Smaller resident set per process, implies more processes in memory, implies OS will always find at least one ready process (if not swapping must occur) • If process' resident set is small, page fault frequency will be higher • Increasing the resident set size beyond some limit does not effect page fault frequency Ceng 334 - Operating Systems

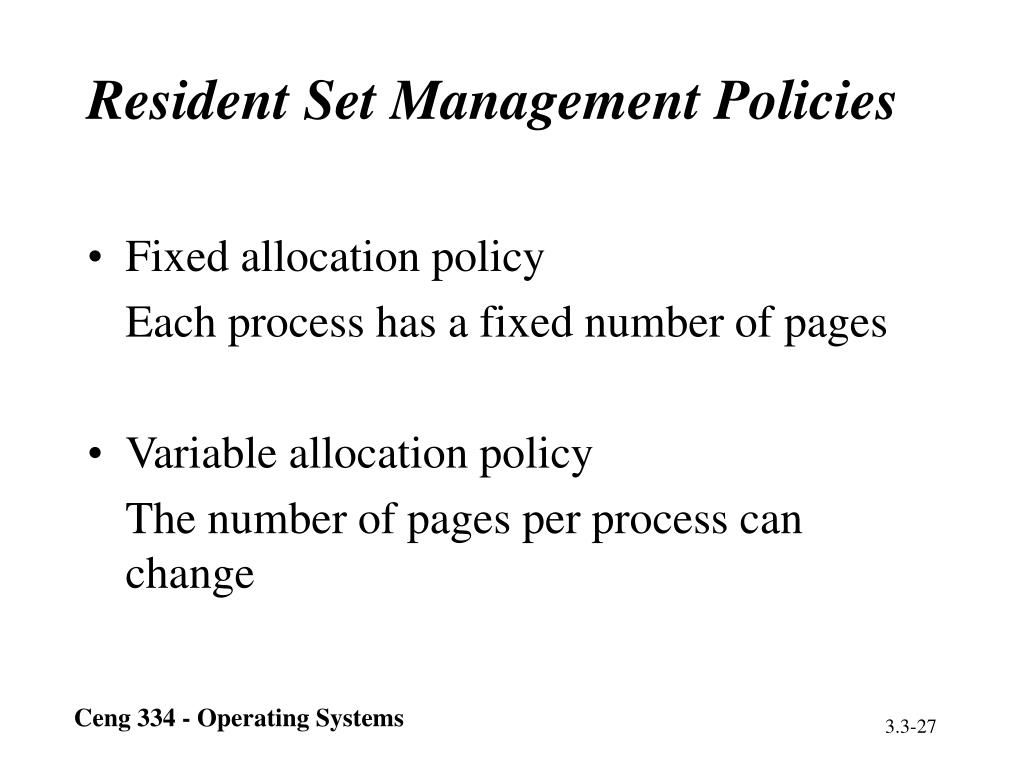

27. Resident Set Management Policies • Fixed allocation policy Each process has a fixed number of pages • Variable allocation policy The number of pages per process can change Ceng 334 - Operating Systems

28. Allocation vs Scope Ceng 334 - Operating Systems

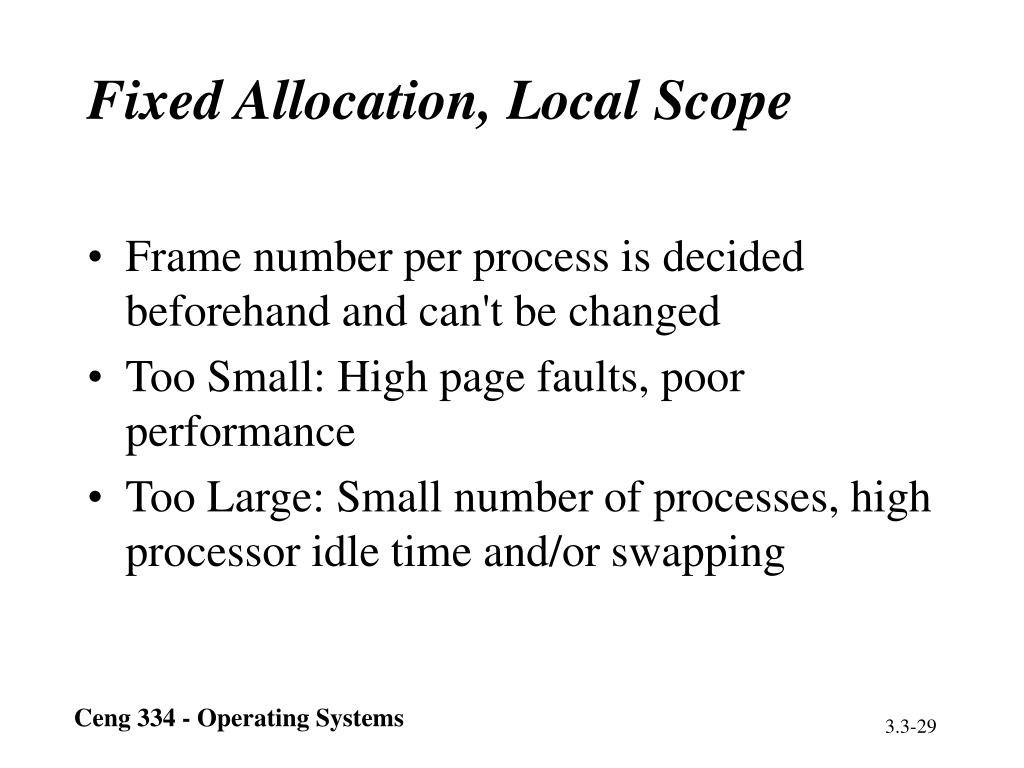

29. Fixed Allocation, Local Scope • Frame number per process is decided beforehand and can't be changed • Too Small: High page faults, poor performance • Too Large: Small number of processes, high processor idle time and/or swapping Ceng 334 - Operating Systems

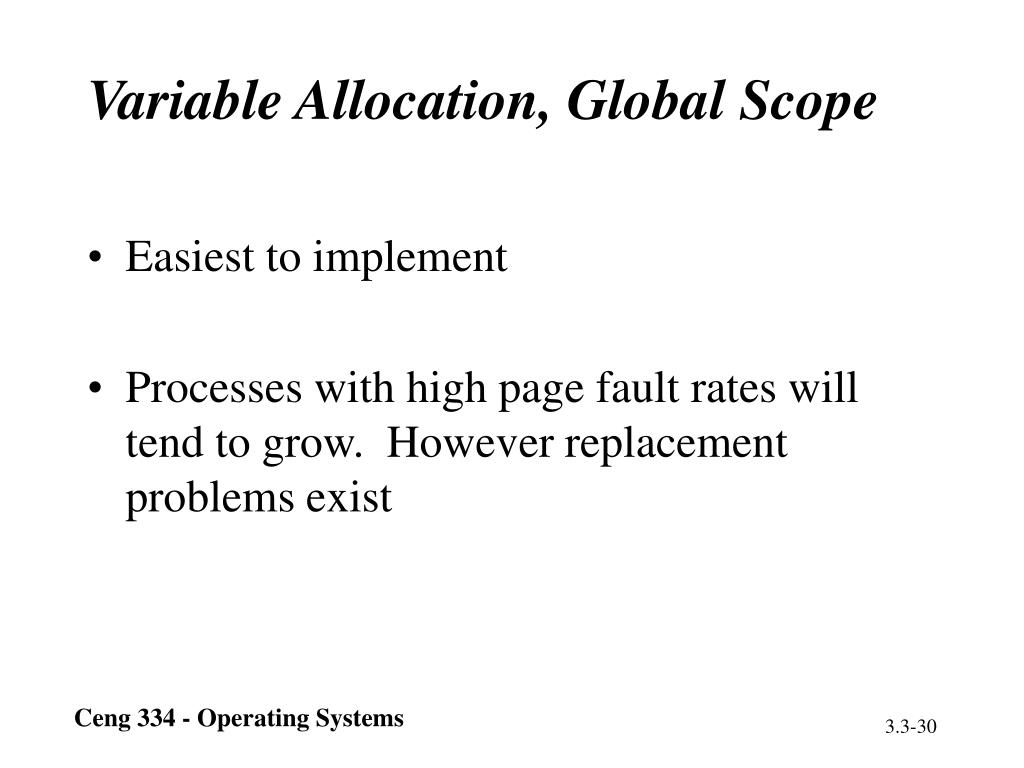

30. Variable Allocation, Global Scope • Easiest to implement • Processes with high page fault rates will tend to grow. However replacement problems exist Ceng 334 - Operating Systems

31. Variable Allocation, Local Scope • Allocate new process a resident set size. • Prepaging or demand to fill up allocation • Select replacement from within faulting process • Re-evaluate allocation occasionally Ceng 334 - Operating Systems

32. 1 Routine 1 2 Routine 2 3 4 5 Main loop 6 7 8 Main program Working Set (Denning’s) • Program Execution • Start with main program (page 8) • Main program loads the main loop (pages 4,5,6,7) • Program executes in the main loop for 20 seconds • Then routine 1 is called (page 1) which executes 2 seconds • Finally routine 2 (pages 2, 3) is called to execute for 3 seconds Ceng 334 - Operating Systems

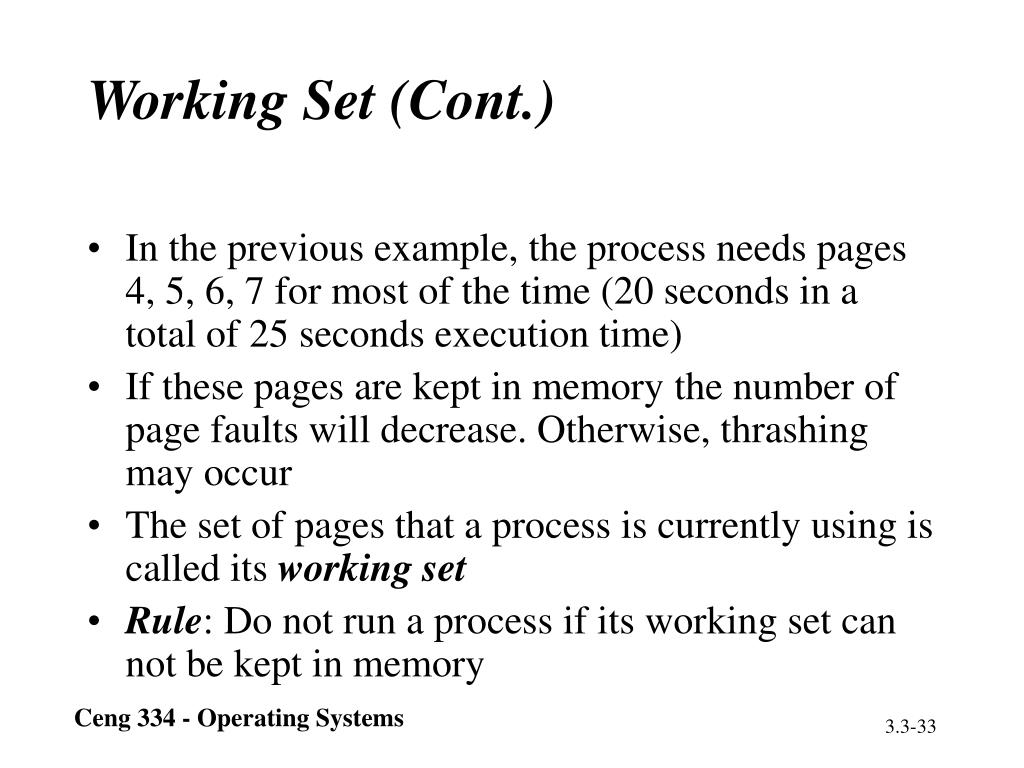

33. Working Set (Cont.) • In the previous example, the process needs pages 4, 5, 6, 7 for most of the time (20 seconds in a total of 25 seconds execution time) • If these pages are kept in memory the number of page faults will decrease. Otherwise, thrashing may occur • The set of pages that a process is currently using is called its working set • Rule: Do not run a process if its working set can not be kept in memory Ceng 334 - Operating Systems

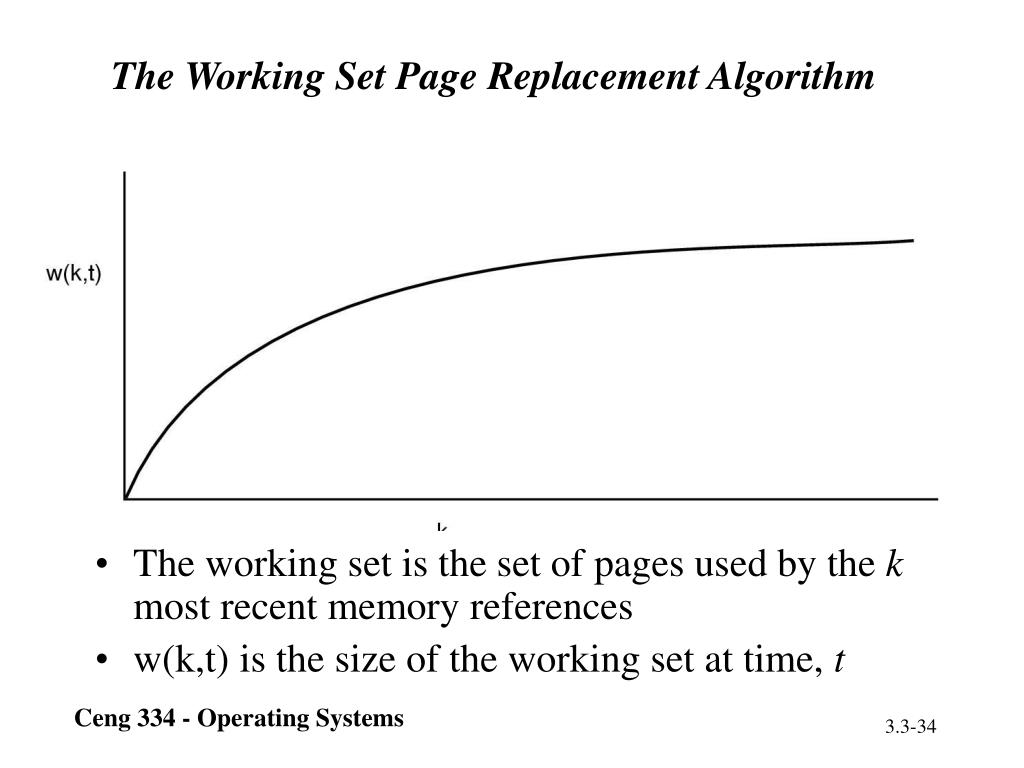

34. The Working Set Page Replacement Algorithm • The working set is the set of pages used by the k most recent memory references • w(k,t) is the size of the working set at time, t Ceng 334 - Operating Systems

35. Working Set Implementation • Use aging as in ~LRU • Pages with 1 (referenced) in “n” clock ticks are assumed to be a member of the working set • “n” is experimentally determined Ceng 334 - Operating Systems

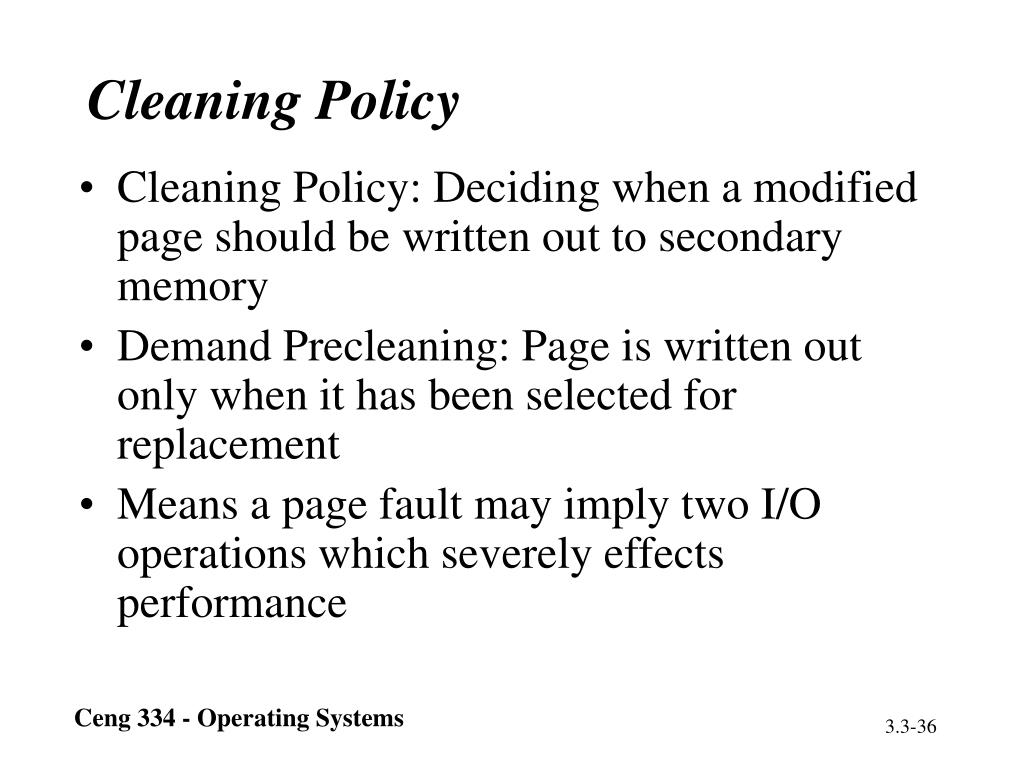

36. Cleaning Policy • Cleaning Policy: Deciding when a modified page should be written out to secondary memory • Demand Precleaning: Page is written out only when it has been selected for replacement • Means a page fault may imply two I/O operations which severely effects performance Ceng 334 - Operating Systems

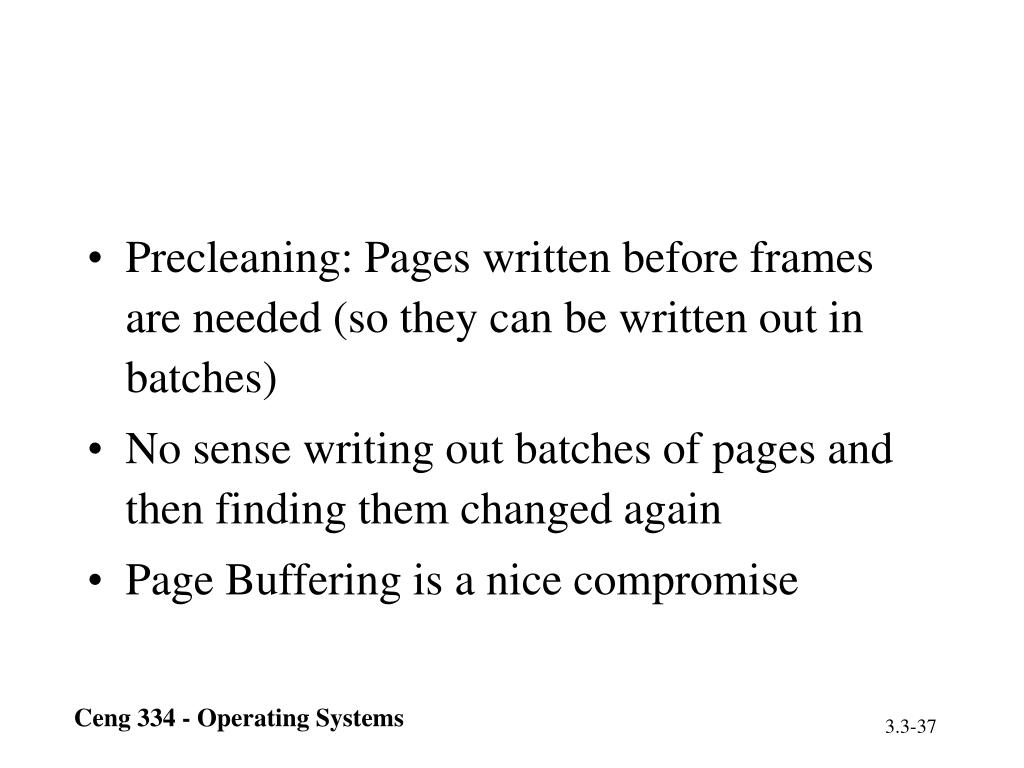

37. Precleaning: Pages written before frames are needed (so they can be written out in batches) • No sense writing out batches of pages and then finding them changed again • Page Buffering is a nice compromise Ceng 334 - Operating Systems

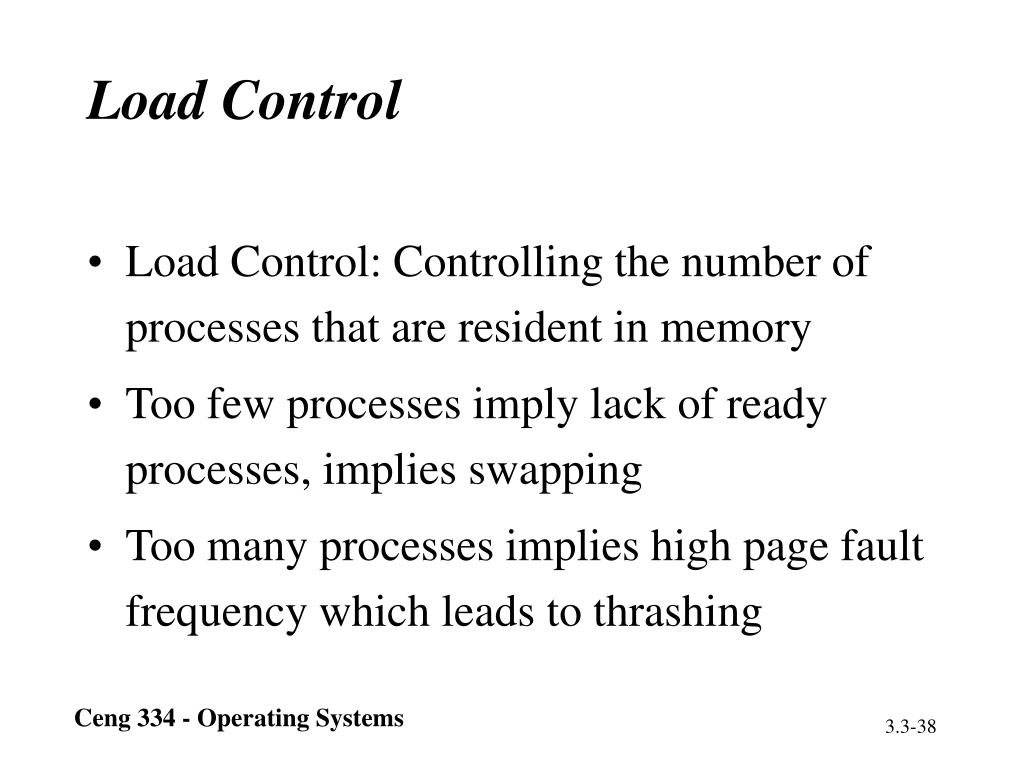

38. Load Control • Load Control: Controlling the number of processes that are resident in memory • Too few processes imply lack of ready processes, implies swapping • Too many processes implies high page fault frequency which leads to thrashing Ceng 334 - Operating Systems
