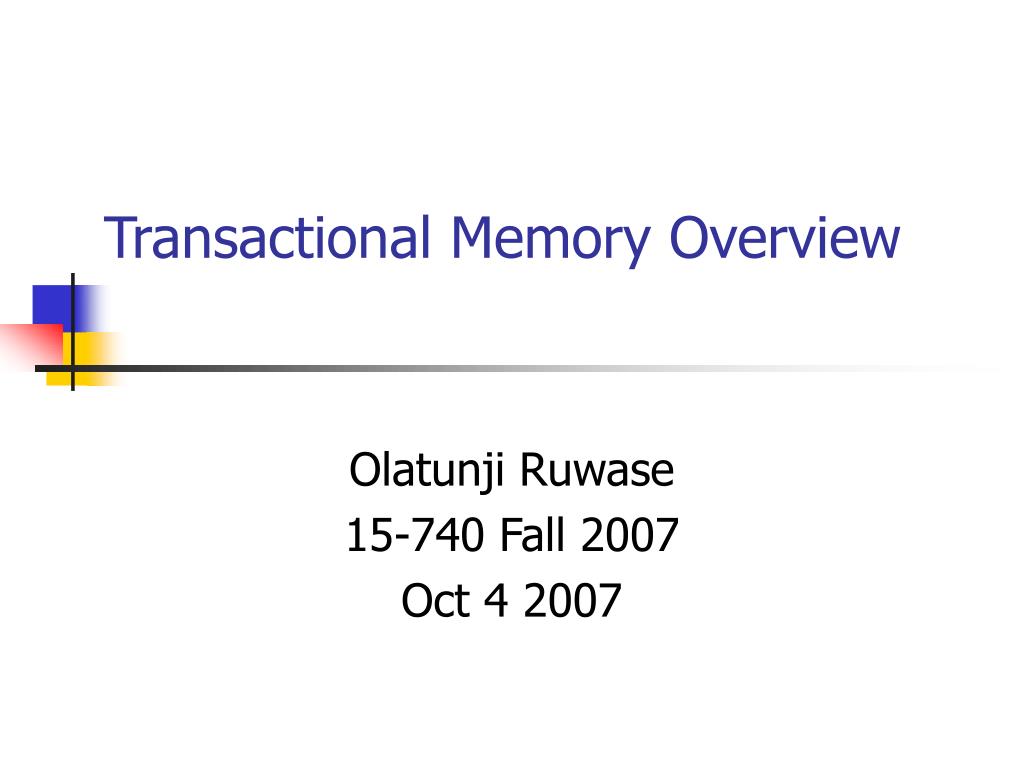

  1. Transactional Memory Overview Olatunji Ruwase 15-740 Fall 2007 Oct 4 2007

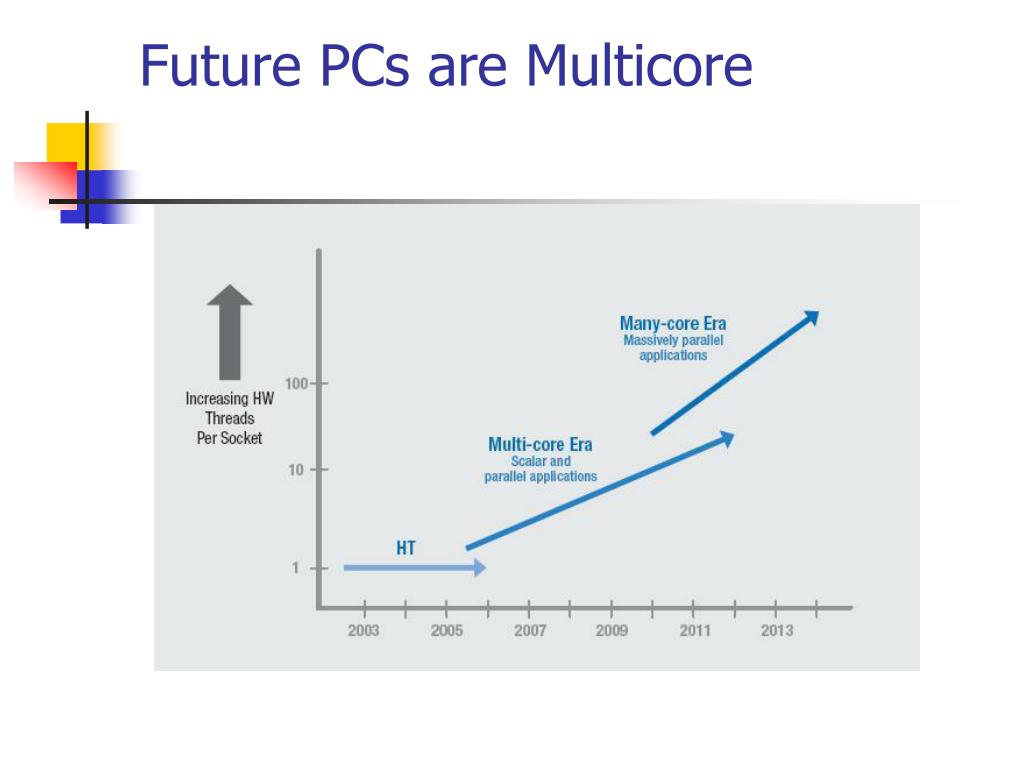

  2. Future PCs are Multicore

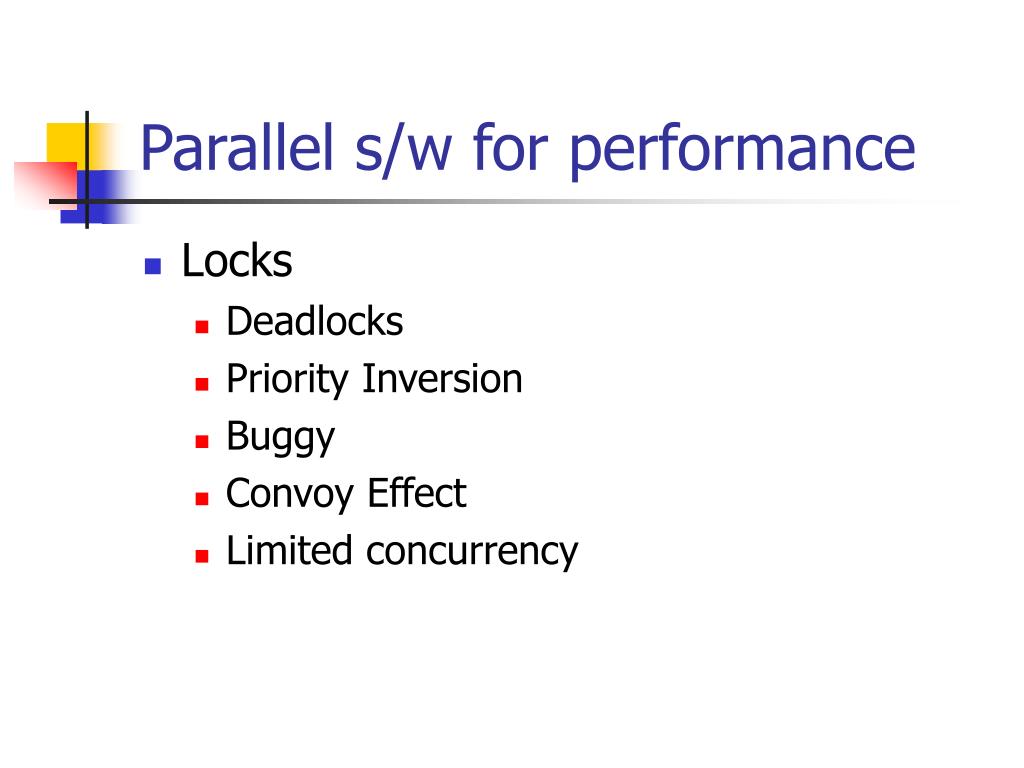

  3. Parallel s/w for performance • Locks • Deadlocks • Priority Inversion • Buggy • Convoy Effect • Limited concurrency

  4. Transactions • Borrowed from Databases • Definition : A transaction is a finite sequence of machine instructions executed by a single process, that satisfies the following properties • Atomicity • Serializability Herlihy and Moss. “Transactional Memory: Architectural Support for Lock-free Data Structures, ISCA’93

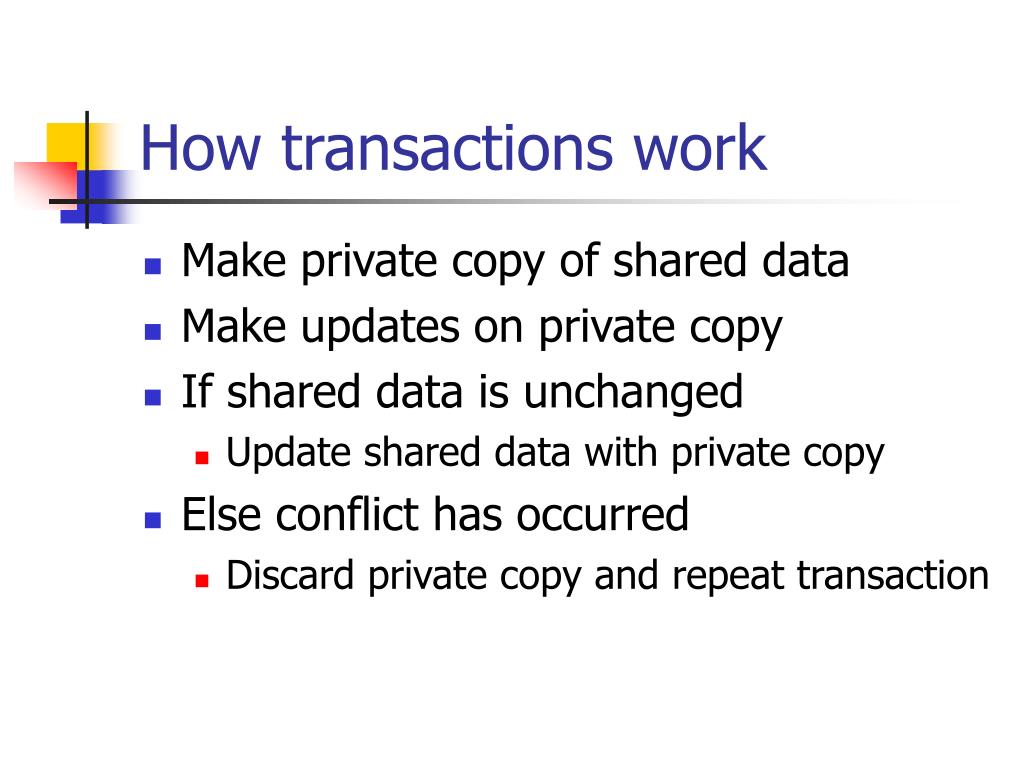

  5. How transactions work • Make private copy of shared data • Make updates on private copy • If shared data is unchanged • Update shared data with private copy • Else conflict has occurred • Discard private copy and repeat transaction

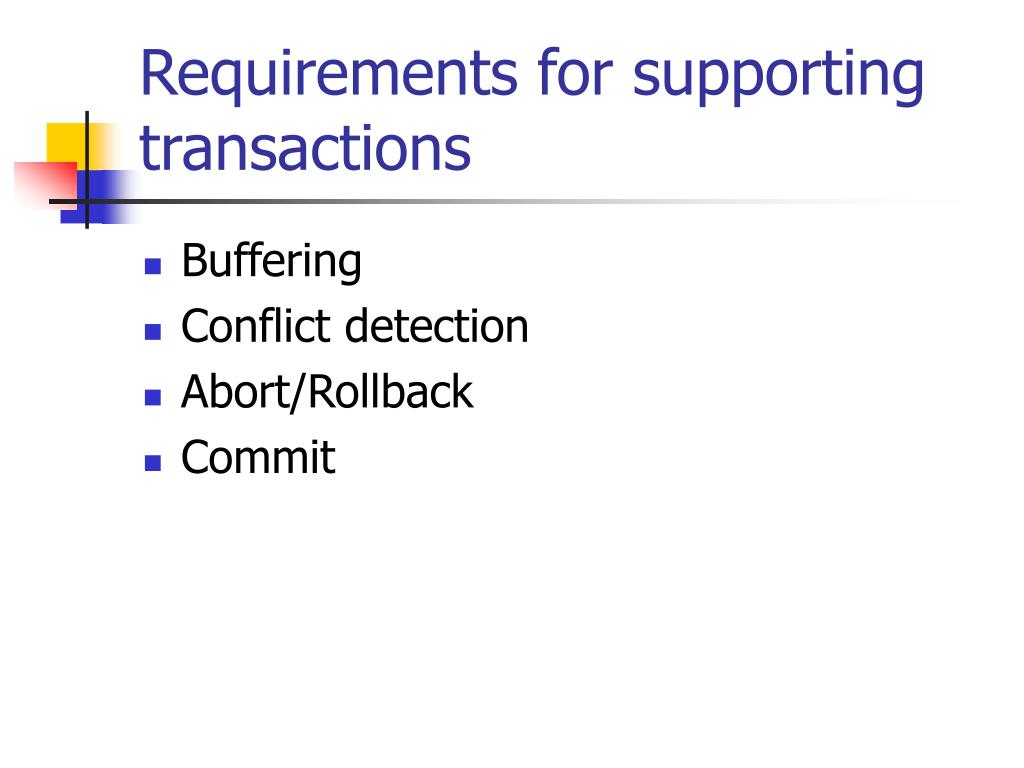

  6. Requirements for supporting transactions • Buffering • Conflict detection • Abort/Rollback • Commit

  7. Transactional Memory • Herlihy and Moss, ISCA ’93 • ISA changes • LT,LTX, ST, COMMIT, VALIDATE, ABORT • Fully associative transactional cache • Per processor • Contents are exclusive of regular cache • Cache coherence protocol changes • Transactional cache line states • Transactional bus messages • Snoopy bus based implementation

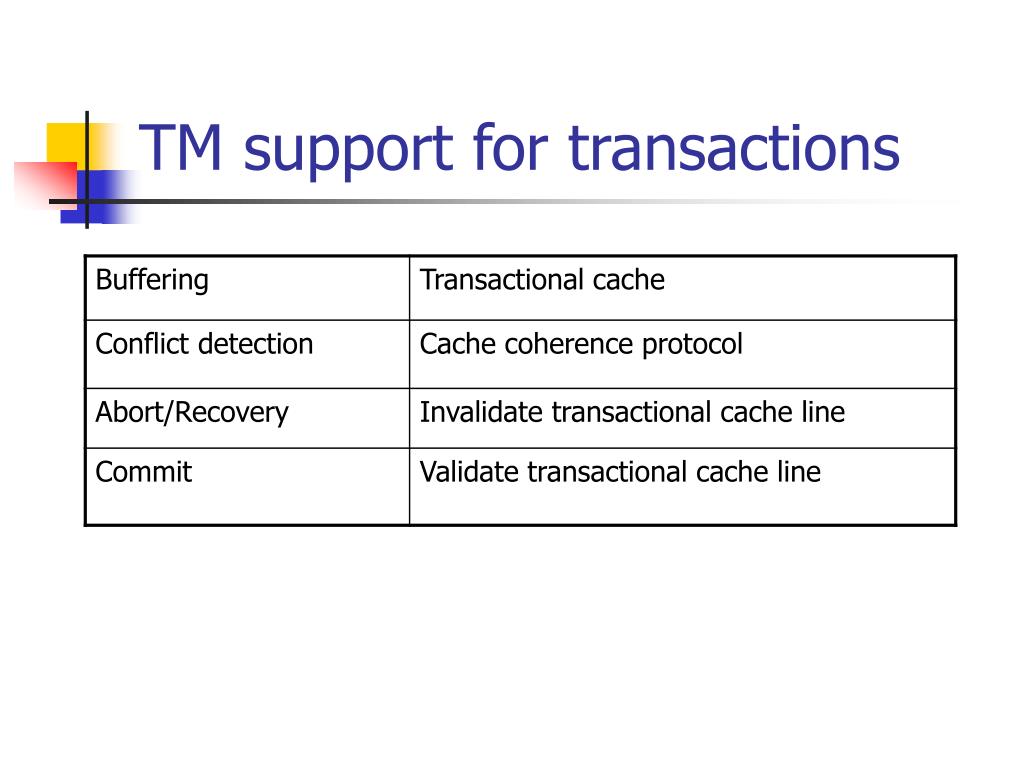

  8. TM support for transactions

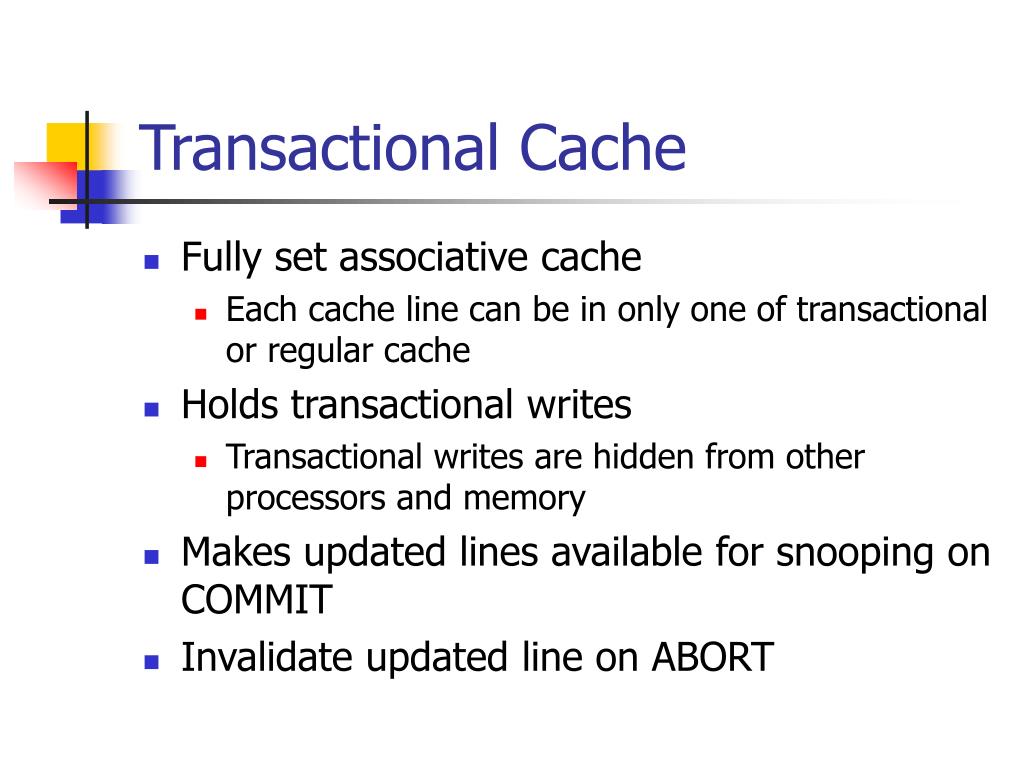

  9. Transactional Cache • Fully set associative cache • Each cache line can be in only one of transactional or regular cache • Holds transactional writes • Transactional writes are hidden from other processors and memory • Makes updated lines available for snooping on COMMIT • Invalidate updated line on ABORT

  10. CPU Herlihy and Moss, ISCA ‘93 Memory Cache Transaction Cache

  11. Sample Counter code

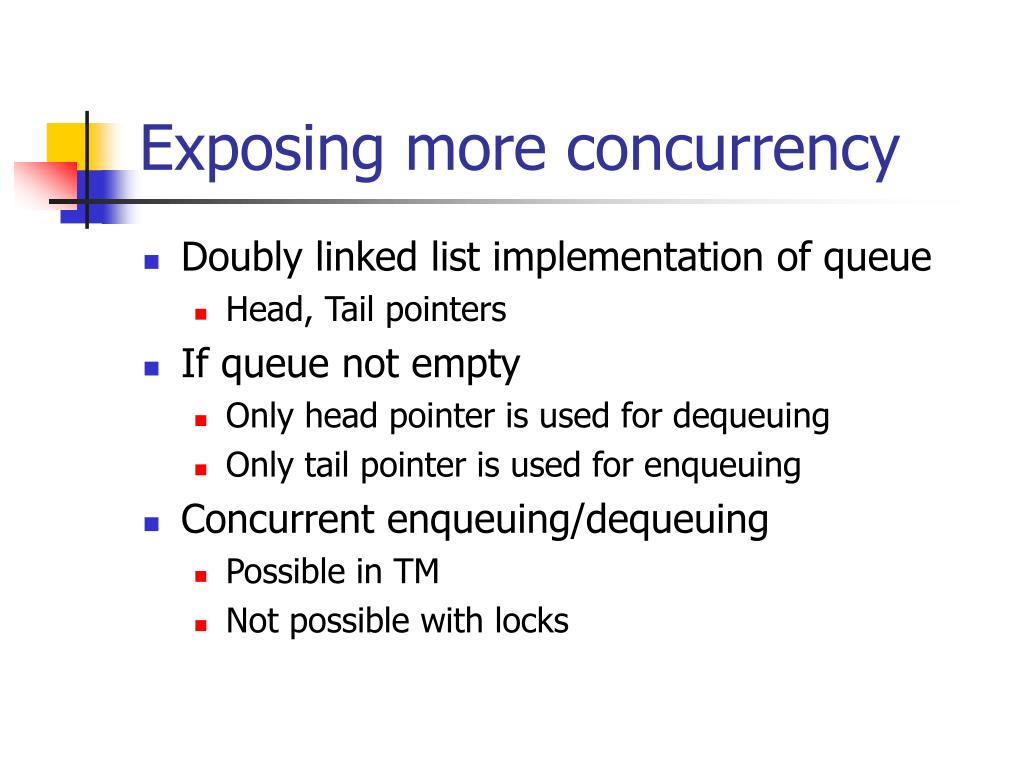

  12. Exposing more concurrency • Doubly linked list implementation of queue • Head, Tail pointers • If queue not empty • Only head pointer is used for dequeuing • Only tail pointer is used for enqueuing • Concurrent enqueuing/dequeuing • Possible in TM • Not possible with locks

  13. Challenges of TM • Long transactions • I/O • Nested transactions • Interrupts

  14. Other TM Ideas • Speculative Lock Elision • Software Transactional Memory • Requires no hardware changes • Allows composition of transactions

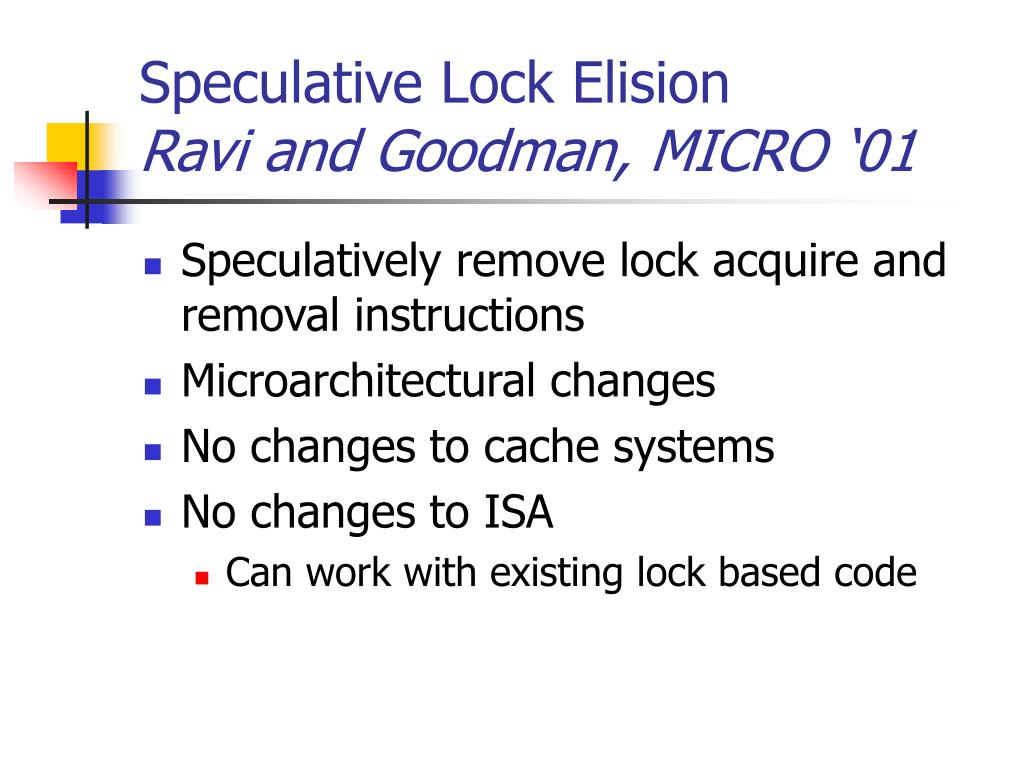

  15. Speculative Lock ElisionRavi and Goodman, MICRO ‘01 • Speculatively remove lock acquire and removal instructions • Microarchitectural changes • No changes to cache systems • No changes to ISA • Can work with existing lock based code

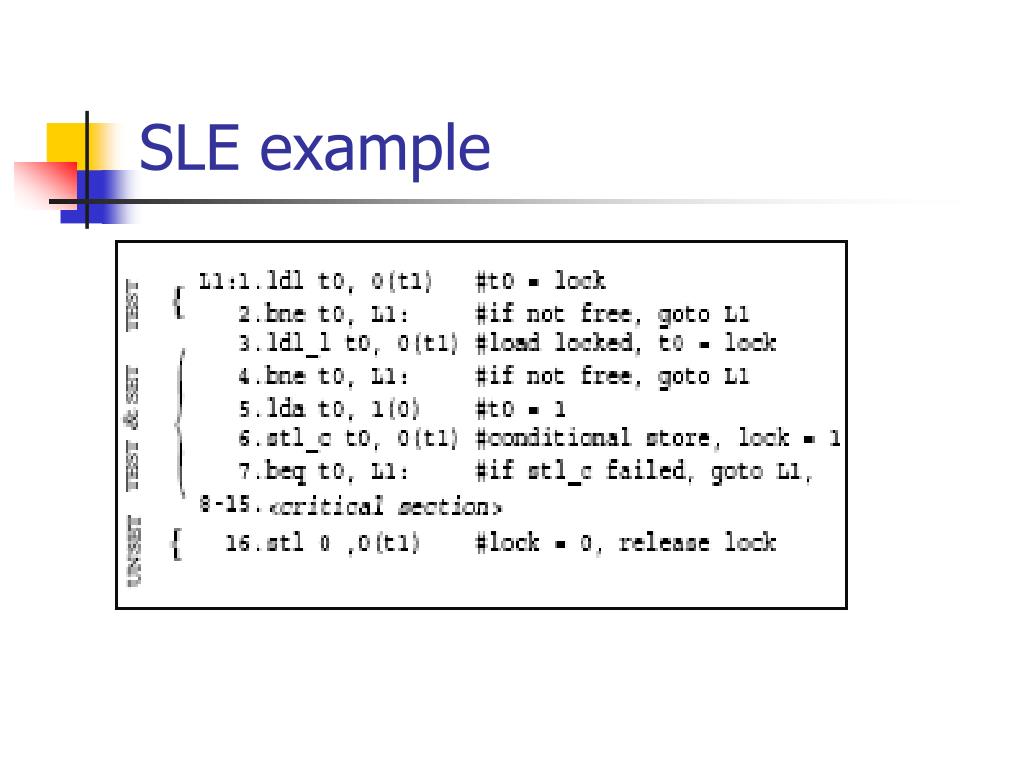

  16. SLE example

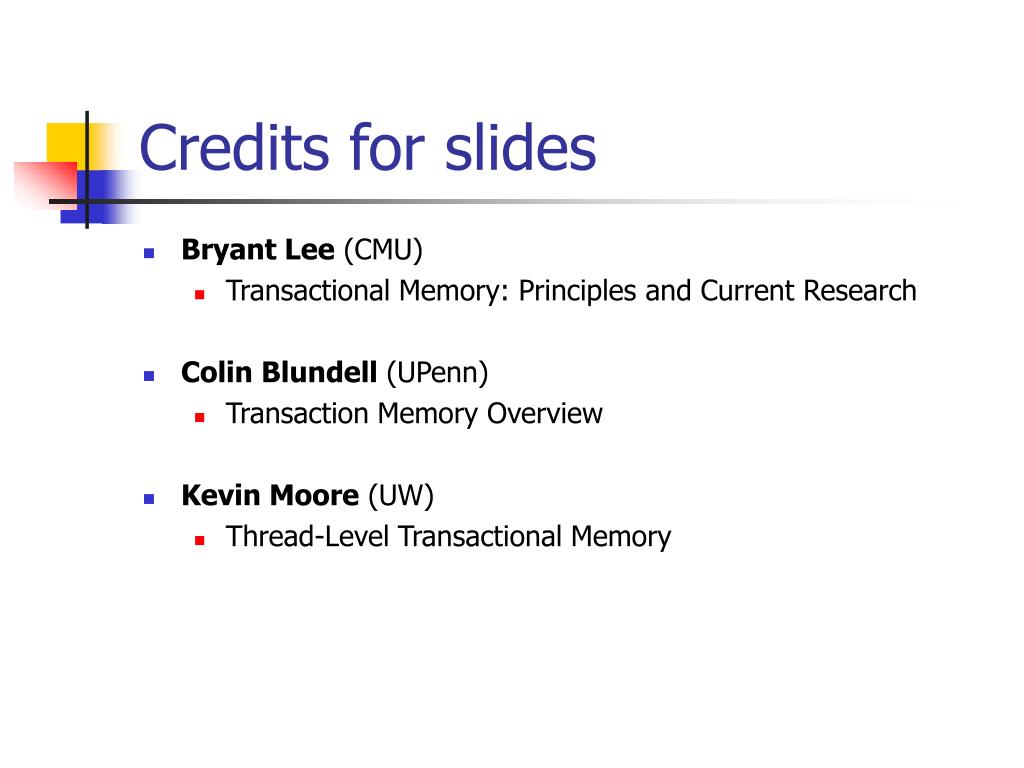

  17. Credits for slides • Bryant Lee (CMU) • Transactional Memory: Principles and Current Research • Colin Blundell (UPenn) • Transaction Memory Overview • Kevin Moore (UW) • Thread-Level Transactional Memory

  18. Compare TM and TLS • TM is optimistic synchronization • TLS is optimistic parallelization • Any other similarities or differences

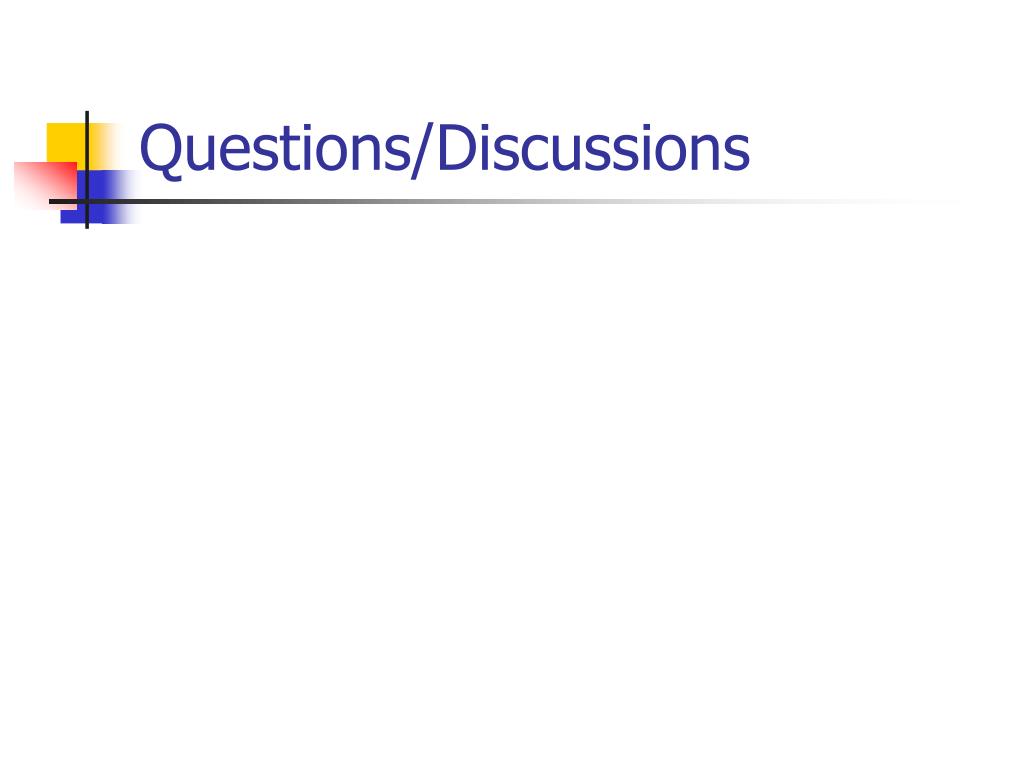

  19. Questions/Discussions
