  1. Final Wiring Robot Challenge 2013 Updated 10th October

  2. Final Wiring Notes • USE MASTERSKETCH_TEMPLATE • Motors and Motor Drivers • Ultrasonic Sensor • Line Followers • Tilt and Pan Servos • IR Obstacle Sensors • Wheel Sensors – Not Used

  3. Motors • Driver Board to Arduino P12 P8 P6 P5 IN1 IN2 IN3 IN4 P6 P5 P12 P8

  4. Motors • Use MasterSketch_TEMPLATE • Motor Pinout for all sketches • int L1 = 6, L2 = 5, L3 = 12, L4 =8; • Test – forward back spin left spin right – must be correct otherwise other sketches wont work • This will allow motor speed variation – eg • forward(1000,150); where 150 is speed ( max 255)

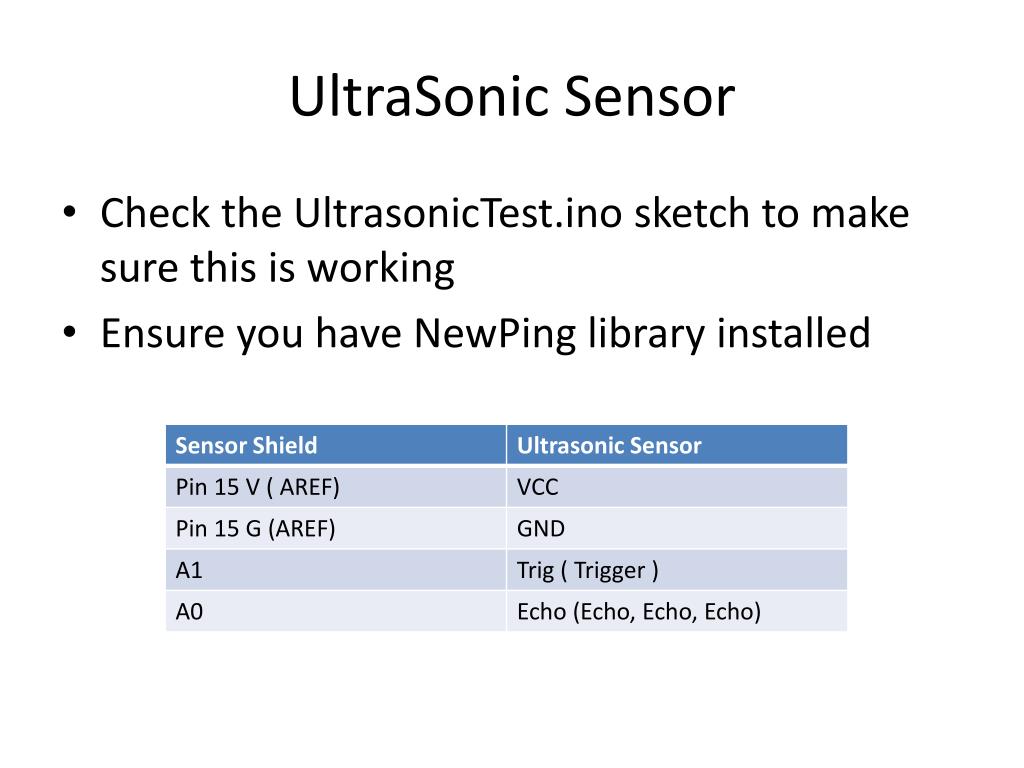

  5. UltraSonic Sensor • Check the UltrasonicTest.ino sketch to make sure this is working • Ensure you have NewPing library installed

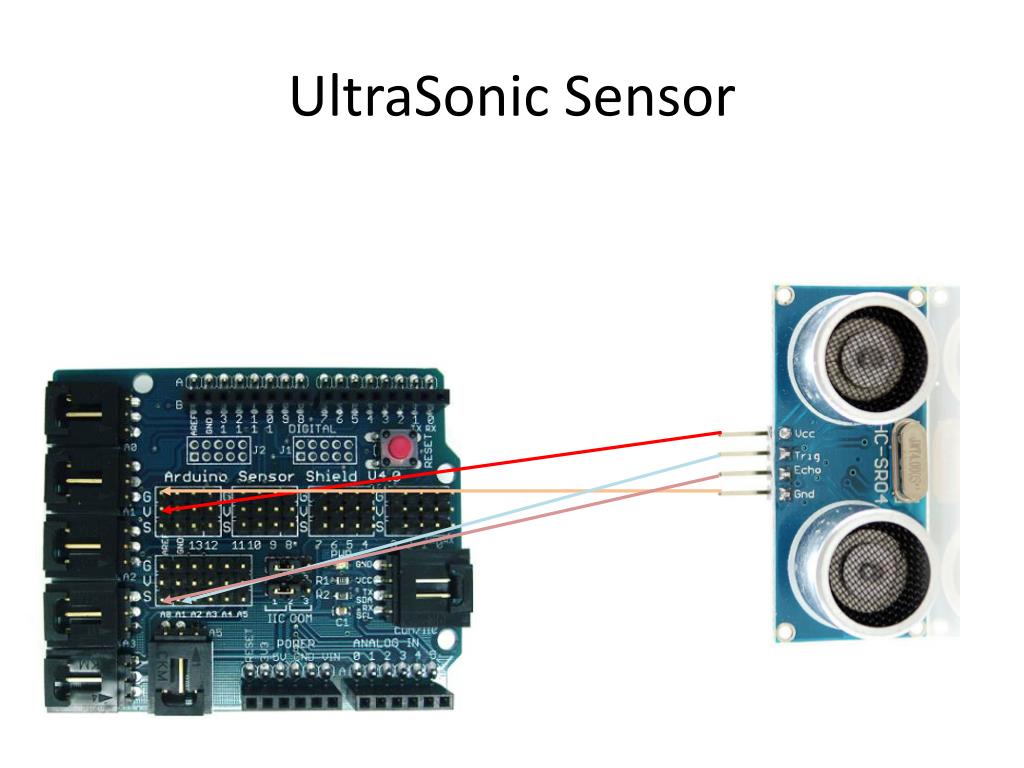

  6. UltraSonic Sensor

  7. Line Followers • Check the LineFollowerTest.ino sketch to make sure this is working

  8. Line Followers G S V LEFT THE SENSOR SHOWN IS POINTING DOWN

  9. Line Followers G S V RIGHT THE SENSOR SHOWN IS POINTING DOWN

  10. Tilt and Pan • Use the MASTERSKETCH_TEMPLATE • Maxservo value 180 • Min servo value 0 • Midpoint 90

  11. Tilt and Pan • Use sensor shield pins 10 and 11 • 10 Tilt ( Up and Down action ) • 11 Pan Servo ( left to right action)

  12. Tilt and Pan Just remember for servo – Yellow goes to sensor pin

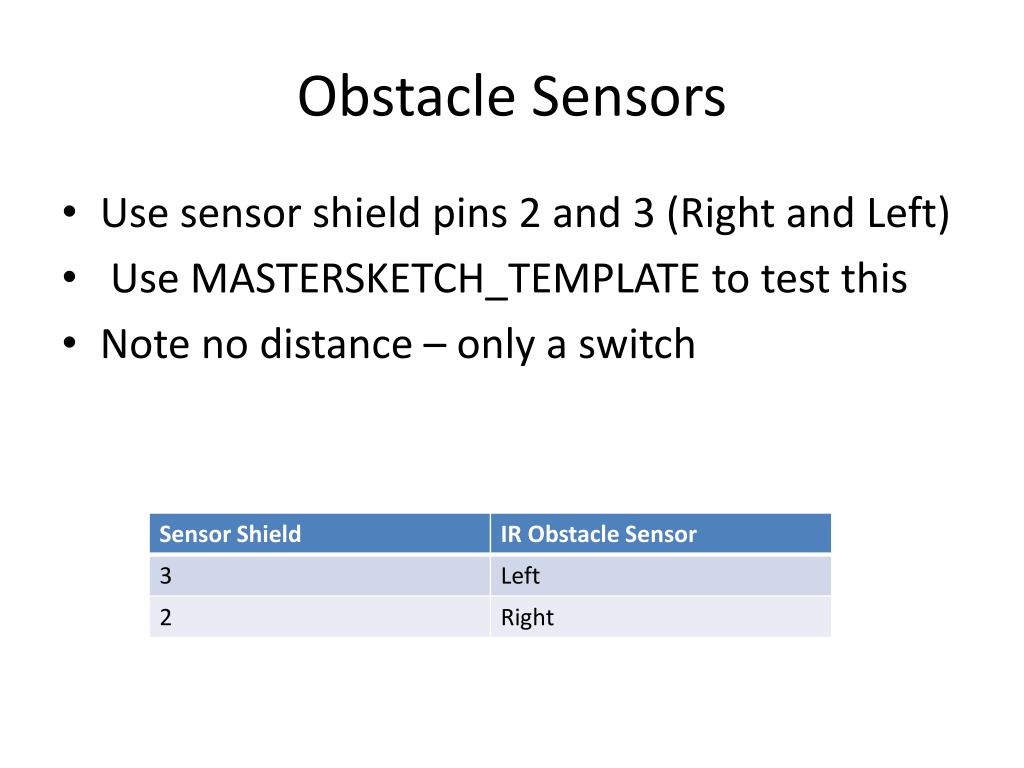

  13. Obstacle Sensors • Use sensor shield pins 2 and 3 (Right and Left) • Use MASTERSKETCH_TEMPLATE to test this • Note no distance – only a switch

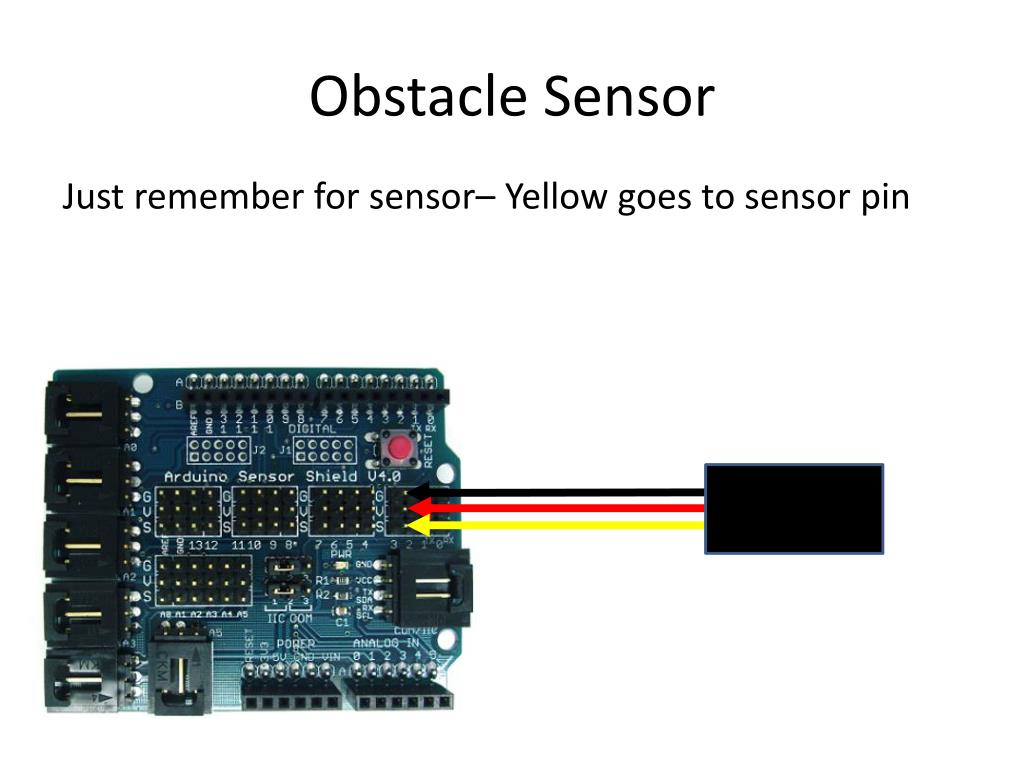

  14. Obstacle Sensor Just remember for sensor– Yellow goes to sensor pin
