ax + by + c = 0

ax + by + c = 0. An alternative for the equation of a straight line is given by:. This equation is used to avoid fractions. It can make the equation of a line look “tidier”. a, b & c are all integers and usually a > 0. eg 5x - 4y + 7 = 0 Note: Integers = {….-2, -1, 0, 1, 2, …..}.

gertrude-lehmann
Télécharger la présentation

ax + by + c = 0

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. ax + by + c = 0 An alternative for the equation of a straight line is given by: This equation is used to avoid fractions. It can make the equation of a line look “tidier”. a, b & c are all integers and usually a > 0. eg 5x - 4y + 7 = 0 Note: Integers = {….-2, -1, 0, 1, 2, …..}

  2. Example 1: (y = mx + c ax + by + c = 0) Suppose that y = -3/5x + 2/3 X 15 We now get 15y = -9x + 10 Move all to left This becomes 9x + 15y - 10 = 0 Example 2: (ax + by + c = 0 y = mx + c) Find the gradient & intercept for 6x + 3y - 16 = 0 Starting with6x + 3y - 16 = 0 (-6x & +16) We now get 3y = -6x + 16 3 Finally we have y = -2x + 16/3 This line has gradient -2 and intercept (0, 16/3)

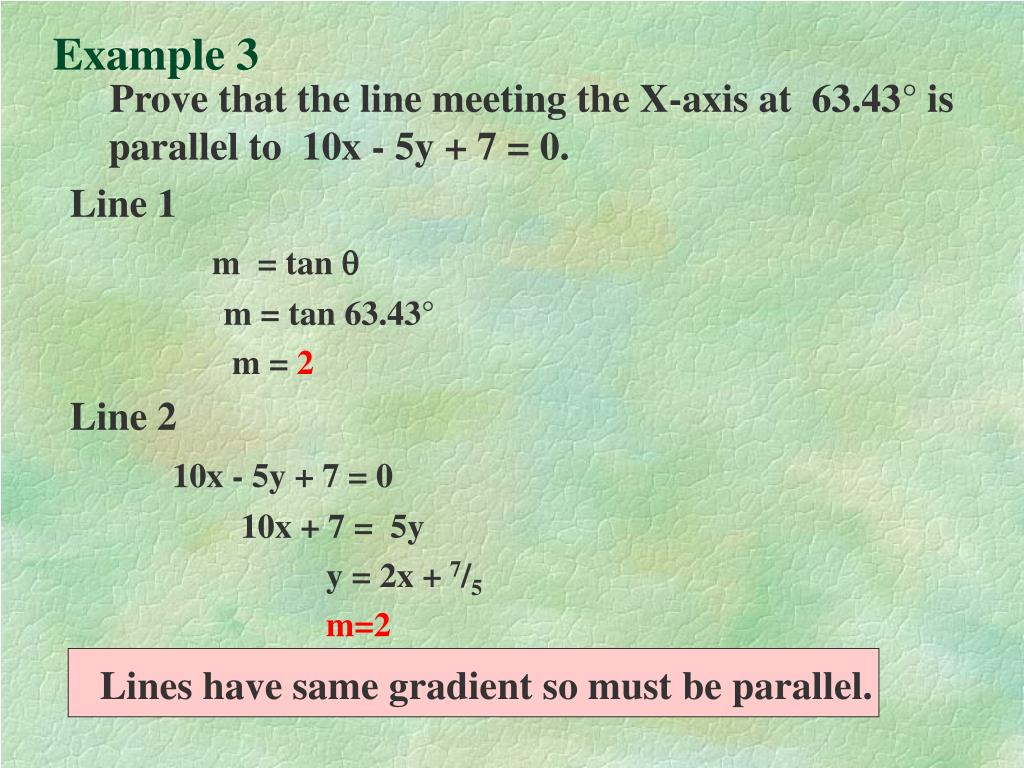

  3. Example 3 Prove that the line meeting the X-axis at 63.43° is parallel to 10x - 5y + 7 = 0. Line 1 m = tan  m = tan 63.43° m = 2 Line 2 10x - 5y + 7 = 0 10x + 7 = 5y y = 2x + 7/5 m=2 Lines have same gradient so must be parallel.
