8086 maximum & minimum modes

8086 maximum & minimum modes. The mode is controlled by MN/MX. Maximum mode is obtained by connecting MN/MX to low and minimum mode is by connecting it to high. Having two different modes (minimum and maximum) is used only 8088/8086. Each mode enables a different control structure.

ghada
Télécharger la présentation

8086 maximum & minimum modes

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

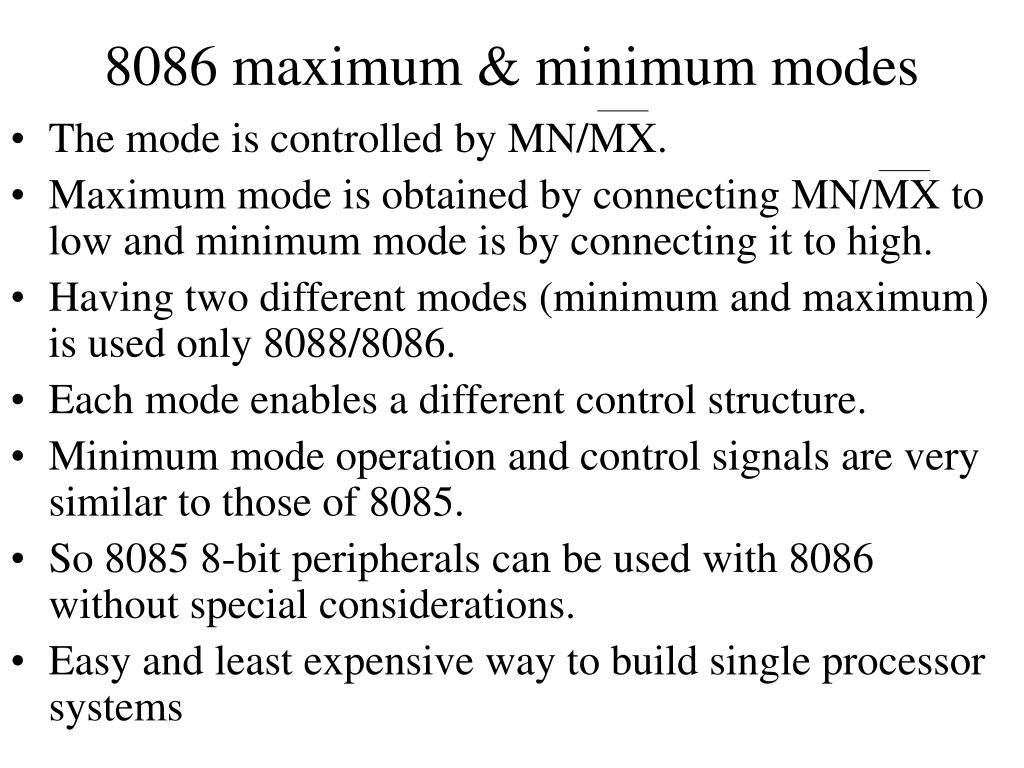

  1. 8086 maximum & minimum modes • The mode is controlled by MN/MX. • Maximum mode is obtained by connecting MN/MX to low and minimum mode is by connecting it to high. • Having two different modes (minimum and maximum) is used only 8088/8086. • Each mode enables a different control structure. • Minimum mode operation and control signals are very similar to those of 8085. • So 8085 8-bit peripherals can be used with 8086 without special considerations. • Easy and least expensive way to build single processor systems

  2. Maximum mode • Maximum mode is designed to be used with a coprocessor exists in the system. • All the control signals (except RD) are not generated by the microprocessor. • But we still need those control signals. • Solution: • 8288.

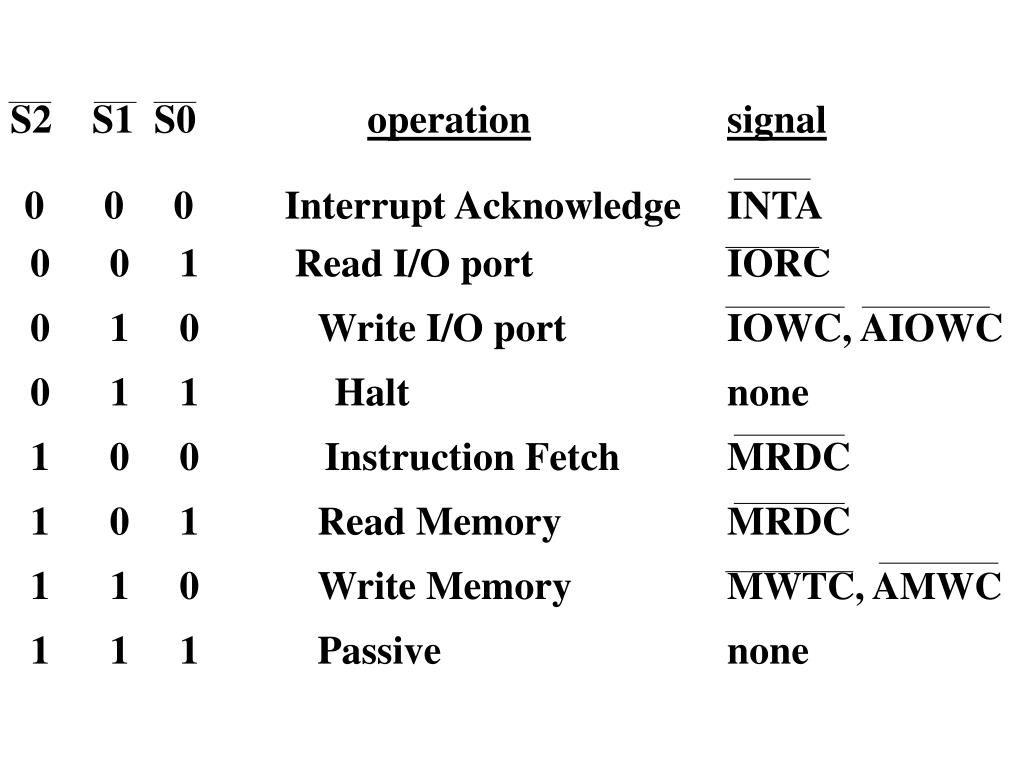

  3. S2 S1 S0 operationsignal 0 0 0 Interrupt Acknowledge INTA 0 0 1 Read I/O port IORC 0 1 0 Write I/O port IOWC, AIOWC 0 1 1 Halt none 1 0 0 Instruction Fetch MRDC 1 0 1 Read Memory MRDC 1 1 0 Write Memory MWTC, AMWC 1 1 1 Passive none
