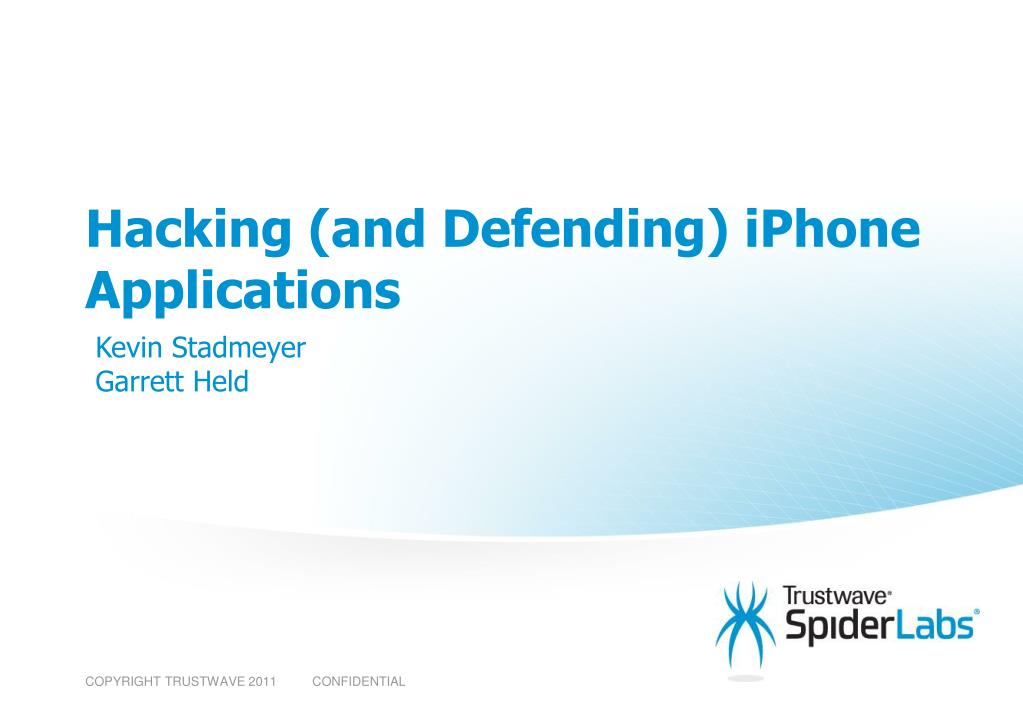

  1. Hacking (and Defending) iPhone Applications

  2. Garrett Held and Kevin Stadmeyer • Managing Consultants with Trustwave SpiderLabs • Have performed hundreds of application tests from mainframe to web to mobile • Who Are We?

  3. What we’ll cover – secure coding and beyond, what to look for when assessing an iPhone application • Agenda • The Basics • Setup For Testing • Secure Storage of Data And Credentials • Inadvertent Local Storage and Caching • Client Side Sanitization • Secure Coding • Push Notifications • Secure Communications

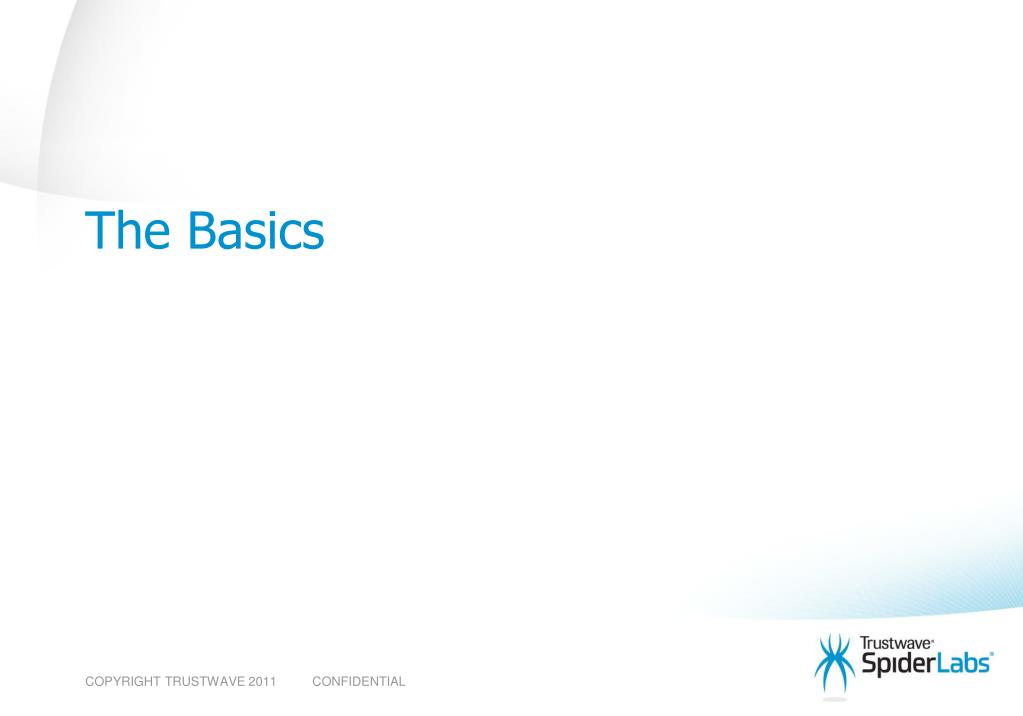

  4. The Basics

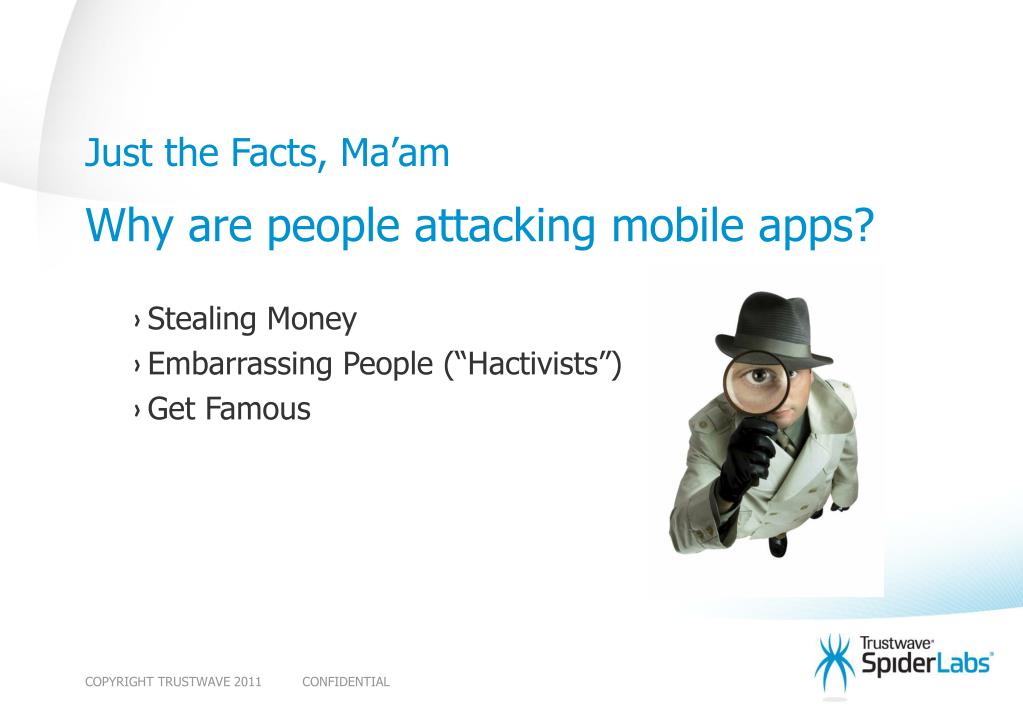

  5. Why are people attacking mobile apps? • Stealing Money • Embarrassing People (“Hactivists”) • Get Famous • Just the Facts, Ma’am

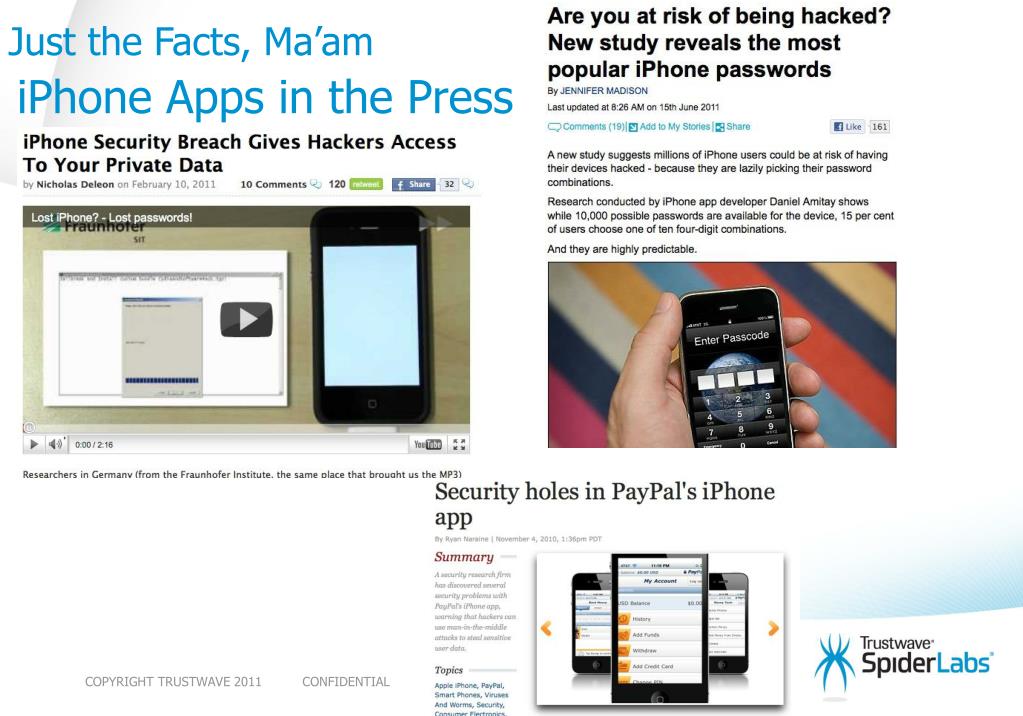

  6. iPhone Apps in the Press • Just the Facts, Ma’am

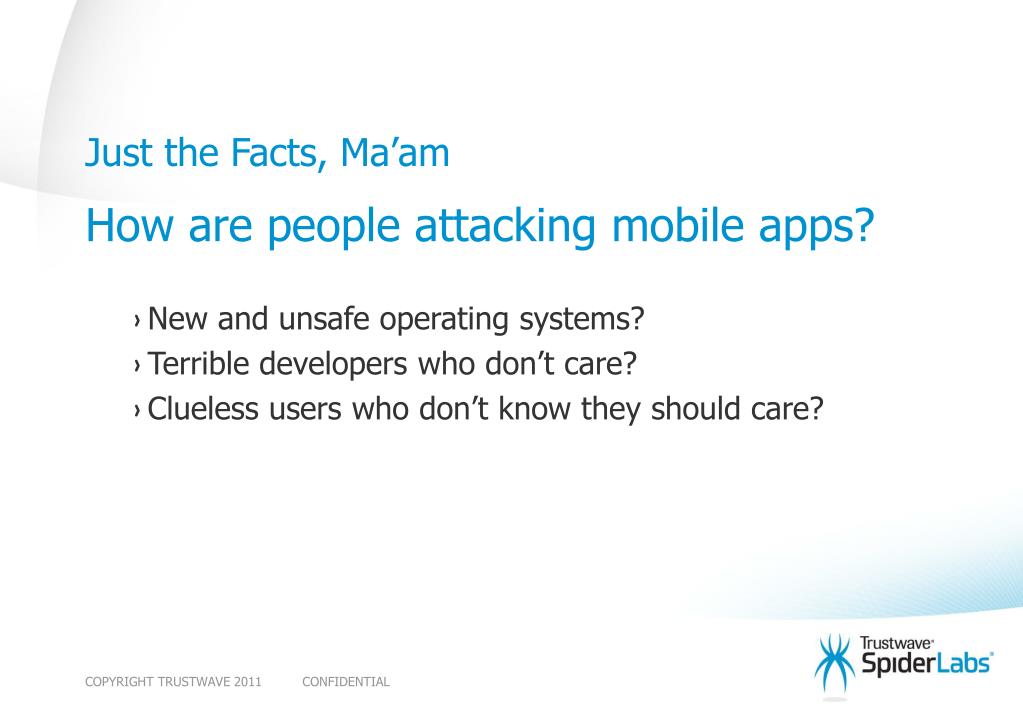

  7. How are people attacking mobile apps? • New and unsafe operating systems? • Terrible developers who don’t care? • Clueless users who don’t know they should care? • Just the Facts, Ma’am

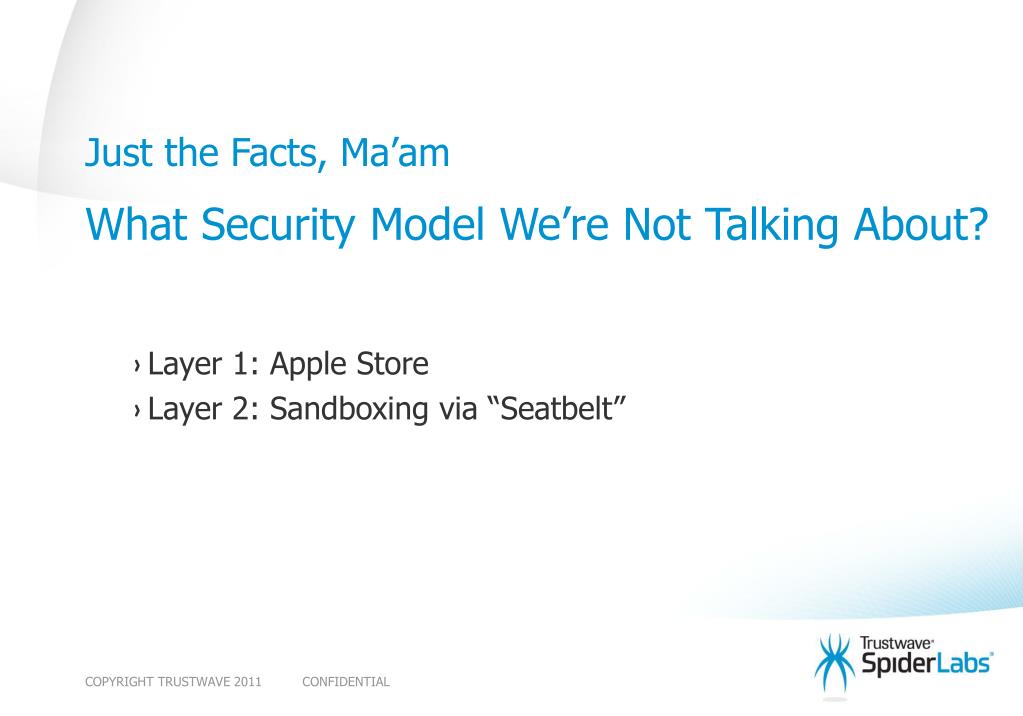

  8. What Security Model We’re Not Talking About? • Layer 1: Apple Store • Layer 2: Sandboxing via “Seatbelt” • Just the Facts, Ma’am

  9. Just the Facts, Ma’am

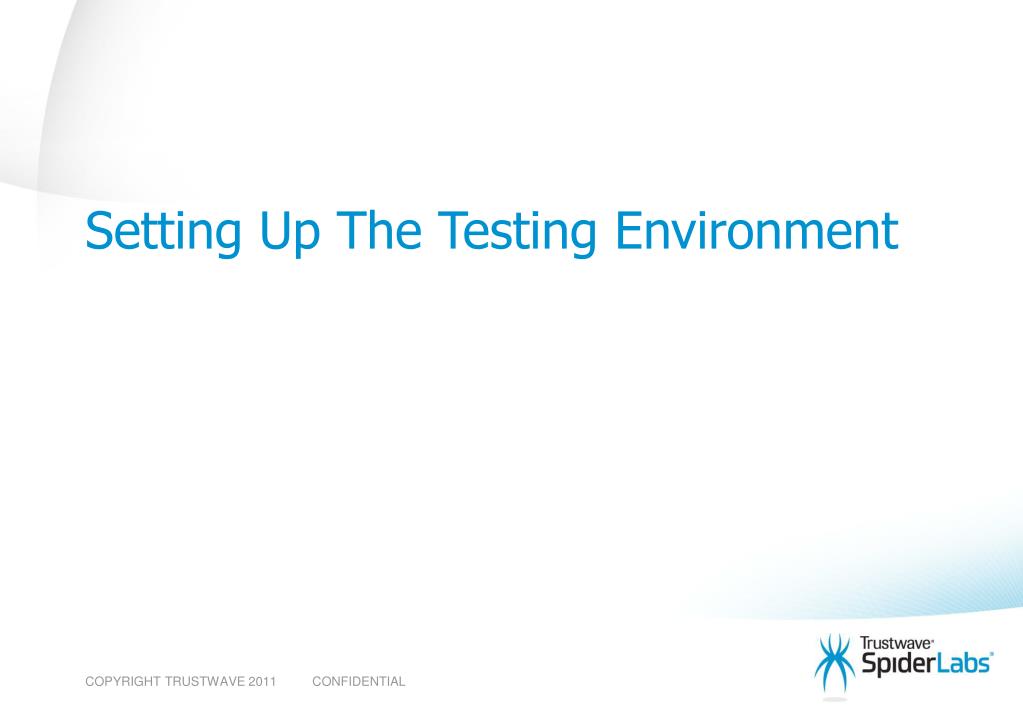

  10. Setting Up The Testing Environment

  11. Don’t you mean setting up the decompiler? • No • Setting Up The Testing Environment

  12. On das metal – Step 1: get your proxy right • We Built This City

  13. On das metal – Step 2: Get ya certs heard! • We Built This City

  14. On das metal – Step 3: Roll It Up • We Built This City

  15. On das metal – Step 4: Mail it! • We Built This City

  16. On das metal – Step 5: Install It • We Built This City

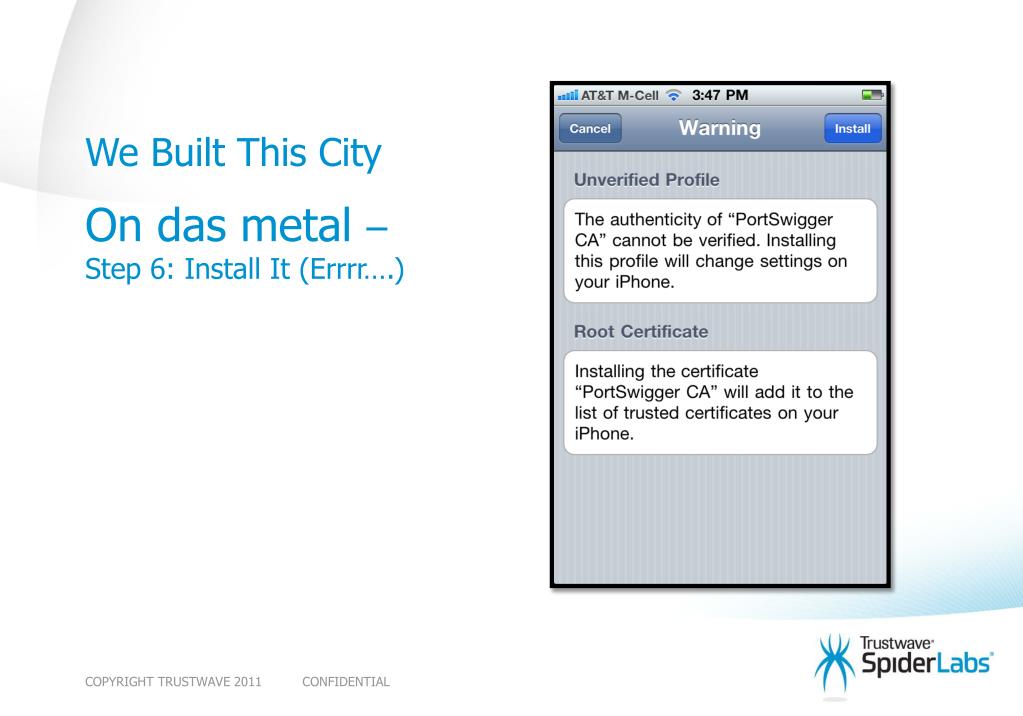

  17. On das metal – Step 6: Install It (Errrr….) • We Built This City

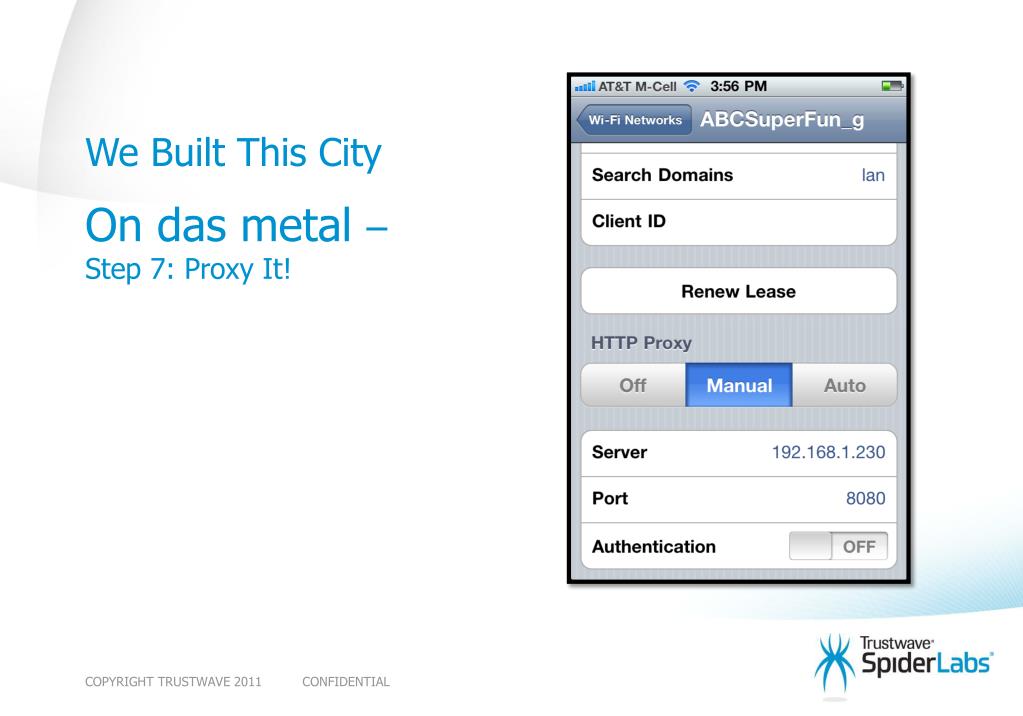

  18. On das metal – Step 7: Proxy It! • We Built This City

  19. On das metal – Step 8: Victory! • We Built This City

  20. On The Computer Machine – Step 6: Install It! • We Built This City

  21. On The Computer Machine – Step 7: Install It! • We Built This City

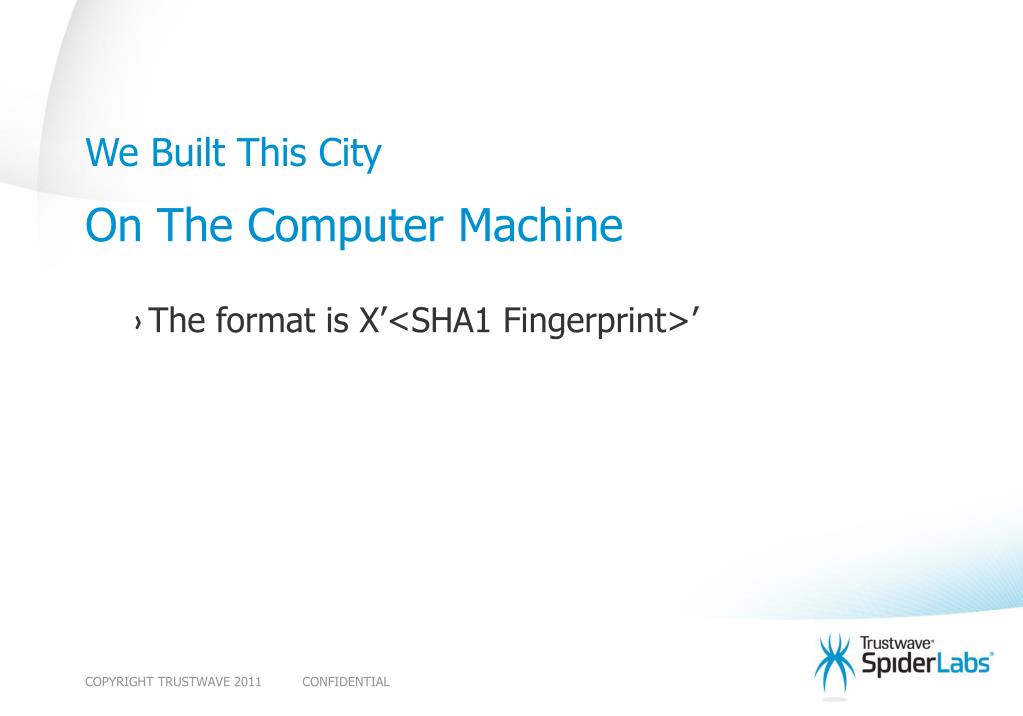

  22. On The Computer Machine • We Built This City • The format is X’<SHA1 Fingerprint>’

  23. Now What? • We Built This City

  24. Now What? • We Built This City

  25. Now What? • We Built This City

  26. Secure Storage Of Data

  27. The Keychain • Indefinite Storage • Can you store credentials securely without the keychain? • Don’t let the feature make you lazy • Don’t store credentials in the keychain unless you don’t care about certain things • Storing Credentials

  28. Keychain Compromise via Jailbreaking • Through a series of steps, retrieves passwords stored in the keychain [1] • Researchers compromised keychain passwords only, not other protected classes such as passwords for websites • Jailbreak stolen iPhone (requires physical access), gain SSH access • Copy scripts that will compromise the keychain • Scripts output the victims passwords • Storing Credentials [1] http://www.sit.fraunhofer.de/en/Images/sc_iPhone%20Passwords_tcm502-80443.pdf

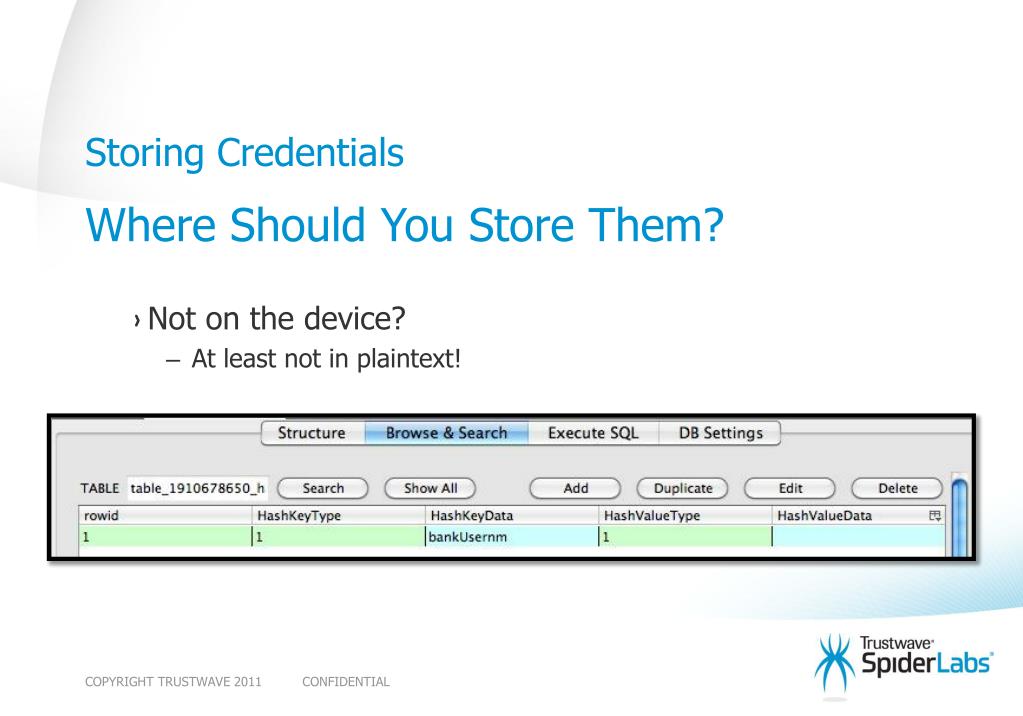

  29. Where Should You Store Them? • Not on the device? • At least not in plaintext! • Storing Credentials

  30. Securely Storing Data At Rest – things to look for • Database calls? • Injection Possible? • Using Core Data? • Does the application trust the integrity of the data? • Remember trust boundaries! • Storing Credentials

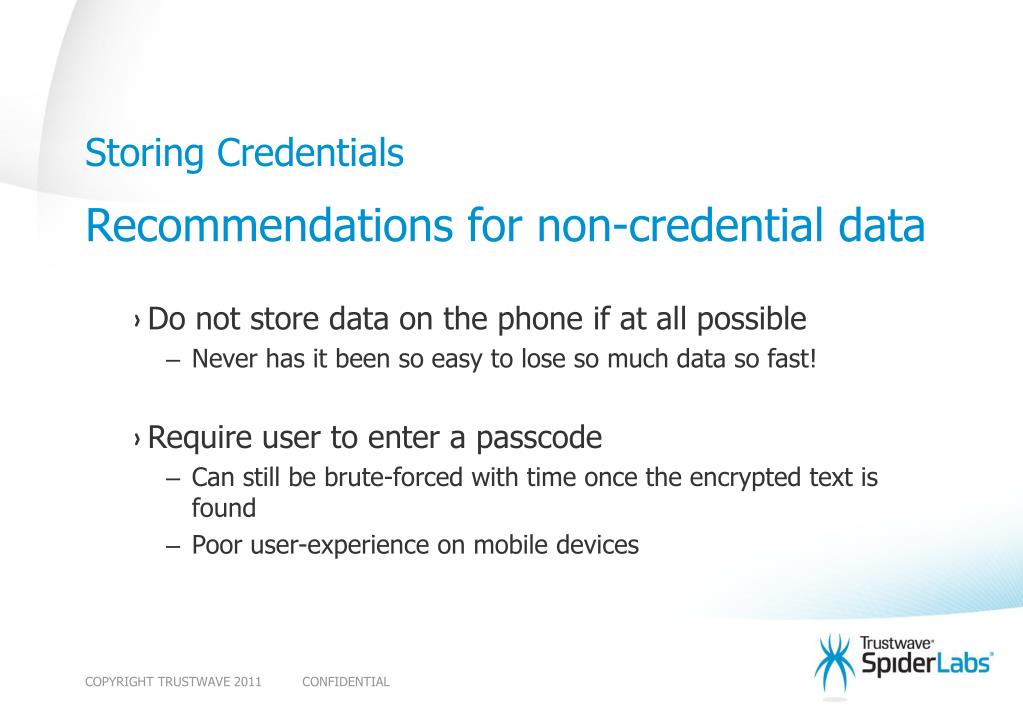

  31. Recommendations for non-credential data • Do not store data on the phone if at all possible • Never has it been so easy to lose so much data so fast! • Require user to enter a passcode • Can still be brute-forced with time once the encrypted text is found • Poor user-experience on mobile devices • Storing Credentials

  32. Recommendations for non-credential data • Store decryption key on a server and require credentials (non-stored) to access key • Only works for applications that do not require offline access • Increases data usage • Revocable though • Data not “stored” in the cloud • Storing Credentials

  33. B-b-b-but kSecAttrAccessibleWhenUnlocked! • By default iOS writes information to the keychain with this attribute • By default most user’s passwords suck • Storing Credentials

  34. Look Familiar? • Storing Credentials

  35. Most Users Pick Simple PINS 10,000 possibilities ~.1 second to crack (100k a second is pretty standard) • Storing Credentials

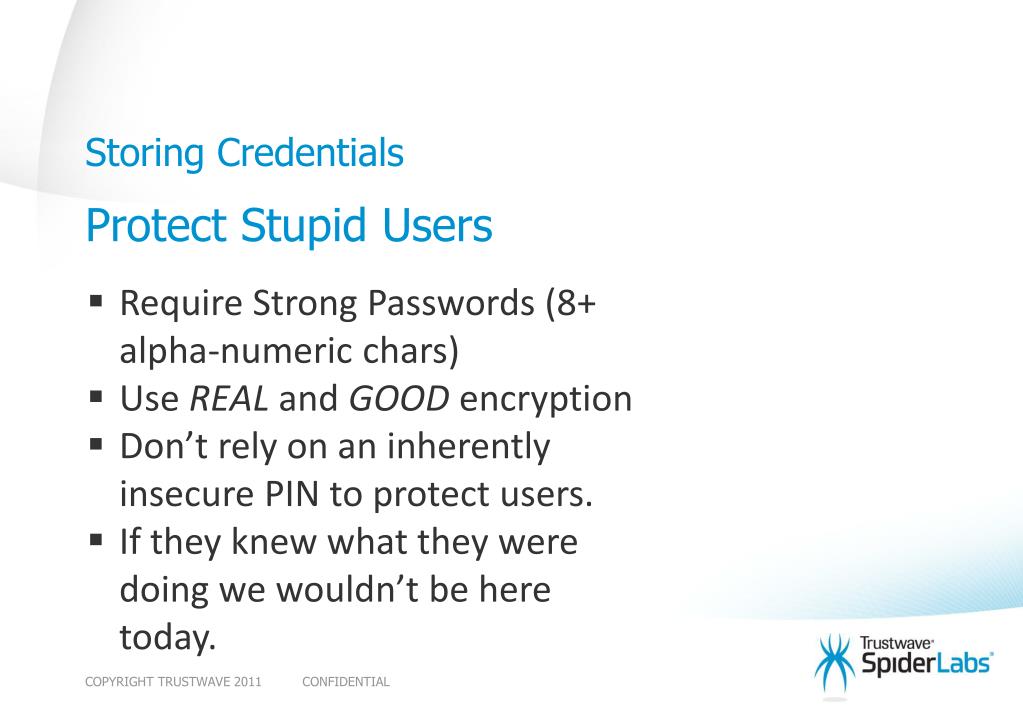

  36. Protect Stupid Users • Require Strong Passwords (8+ alpha-numeric chars) • Use REAL and GOOD encryption • Don’t rely on an inherently insecure PIN to protect users. • If they knew what they were doing we wouldn’t be here today. • Storing Credentials

  37. Inadvertent Local Storage and Caching

  38. Screenshots • Where are they stored? • When are they taken? • Who can access them! • I Accidently Your Data…

  39. Screenshots • I Accidently Your Data…

  40. Screenshot Protection • I Accidently Your Data…

  41. Other Storage Of Information • Autocomplete, etc. • I Accidently Your Data…

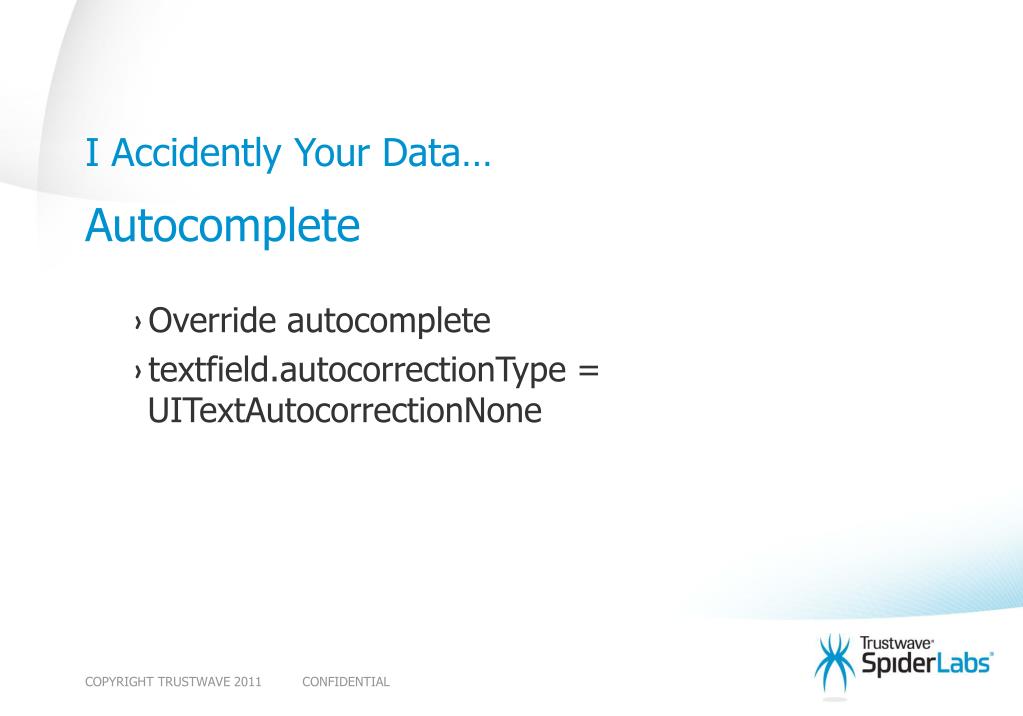

  42. Autocomplete • Override autocomplete • textfield.autocorrectionType = UITextAutocorrectionNone • I Accidently Your Data…

  43. Client Side Sanitization

  44. It’s bad… • Less burden on server • Critical bypasses (yay!) • Client Side? More like Bad side, amirite?

  45. It’s bad… • Some classic Web Application faults translate well into the iPhone. • Web developers relied on: • JavaScript controls • Hidden fields • JSON responses • Information stored in Flash objects • Client Side? More like Bad side, amirite?

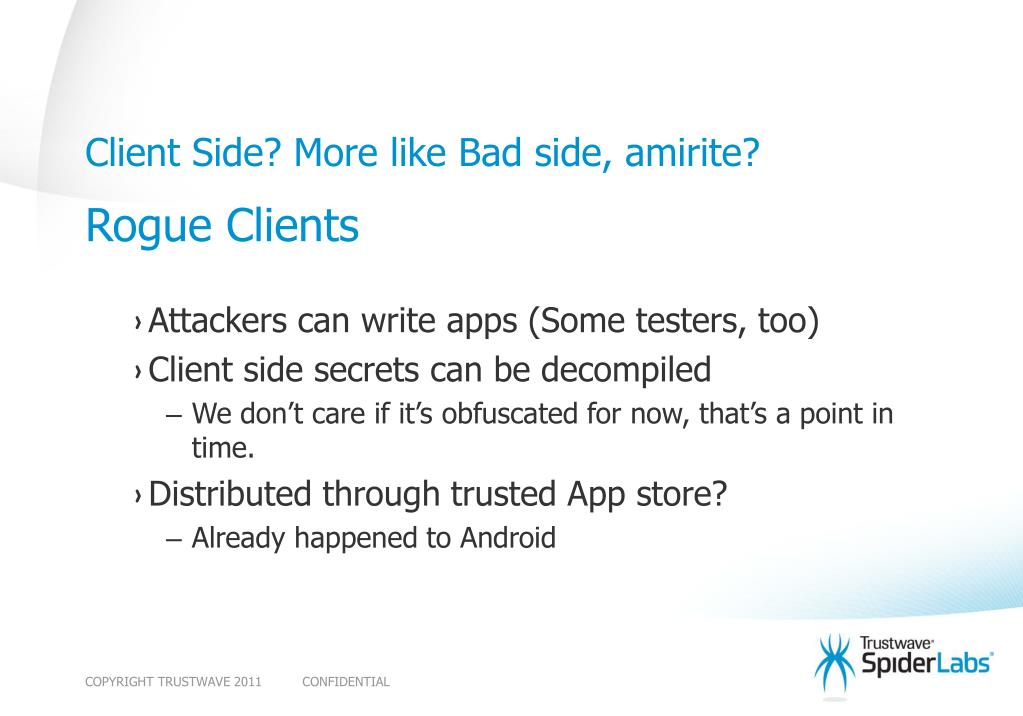

  46. Rogue Clients • Attackers can write apps (Some testers, too) • Client side secrets can be decompiled • We don’t care if it’s obfuscated for now, that’s a point in time. • Distributed through trusted App store? • Already happened to Android • Client Side? More like Bad side, amirite?

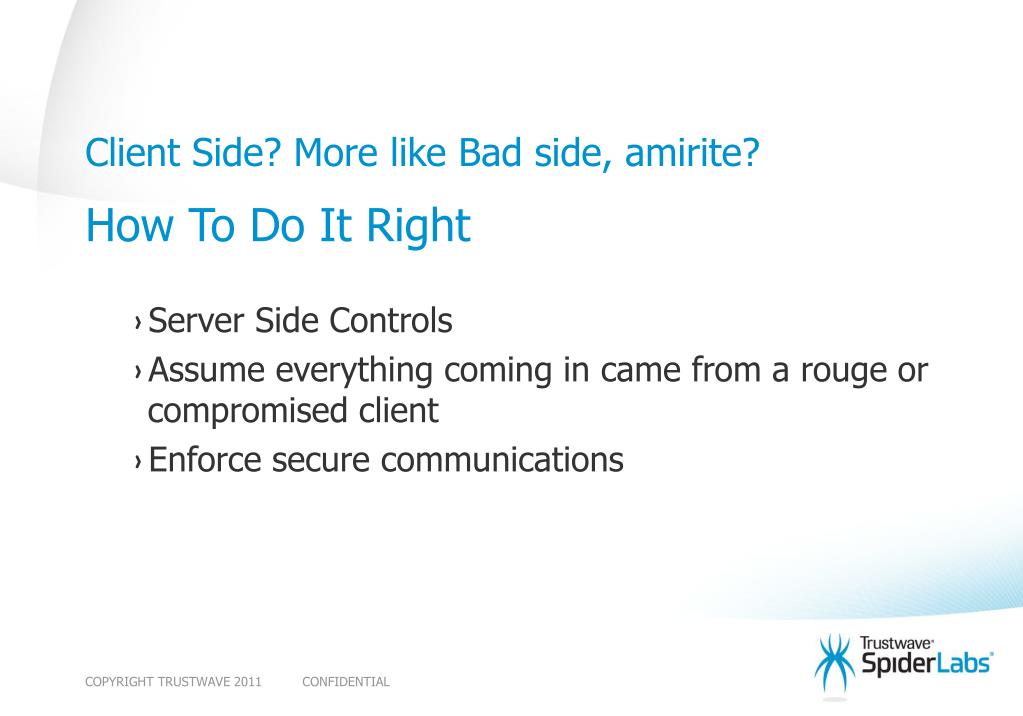

  47. How To Do It Right • Server Side Controls • Assume everything coming in came from a rouge or compromised client • Enforce secure communications • Client Side? More like Bad side, amirite?

  48. What Applies in the iOS world? • Client Side? More like Bad side, amirite?

  49. CSRF and XSS In Apps? • Calls to browser • Recent Android Issue [1] • Loads javascript:alert(document.cookie) • Embedded browser shares web app issues • Rogue applications and rogue users • Client Side? More like Bad side, amirite? ]1] http://www.crn.com.au/News/265931,video-details-android-browser-intercept-flaw.aspx

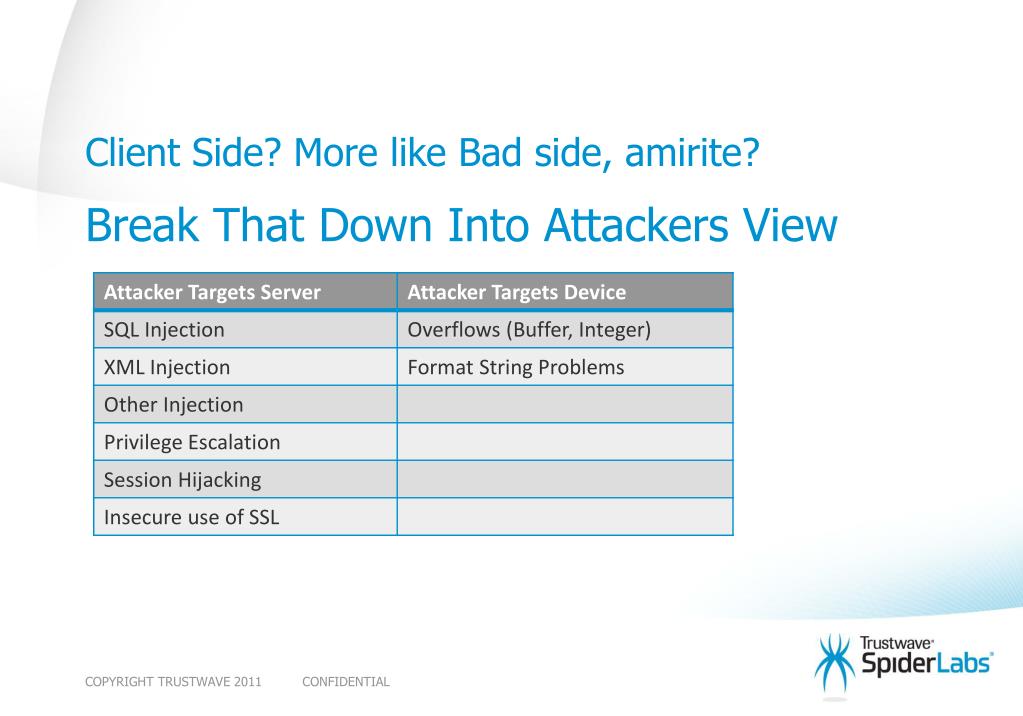

  50. Break That Down Into Attackers View • Client Side? More like Bad side, amirite?
