  1. Software Modelling of IFU Spectrometers Nuria P. F. Lorente UK Astronomy Technology Centre Royal Observatory, Edinburgh, UK Alistair C. H. Glasse, Gillian S. Wright (UK ATC, JWST-MIRI), Suzanne Ramsay Howat (UK ATC, KMOS), Chris J. Evans (UK ATC, EELT) ADASS XVII - September, 2007

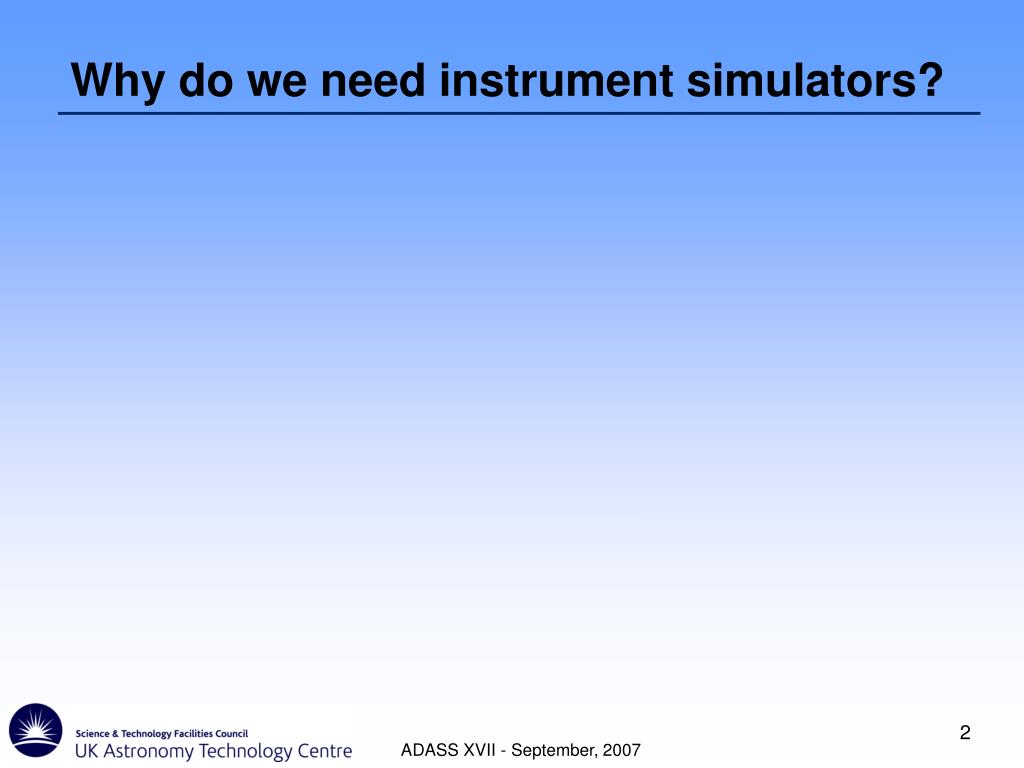

  2. Why do we need instrument simulators? ADASS XVII - September, 2007

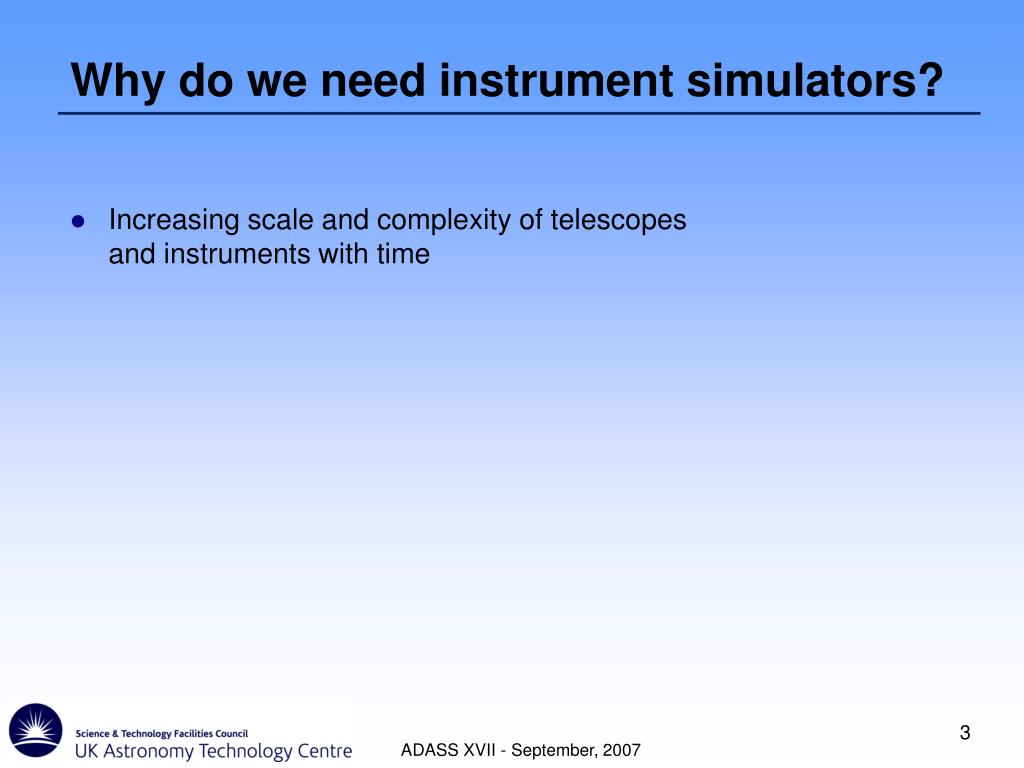

  3. Why do we need instrument simulators? • Increasing scale and complexity of telescopes and instruments with time ADASS XVII - September, 2007

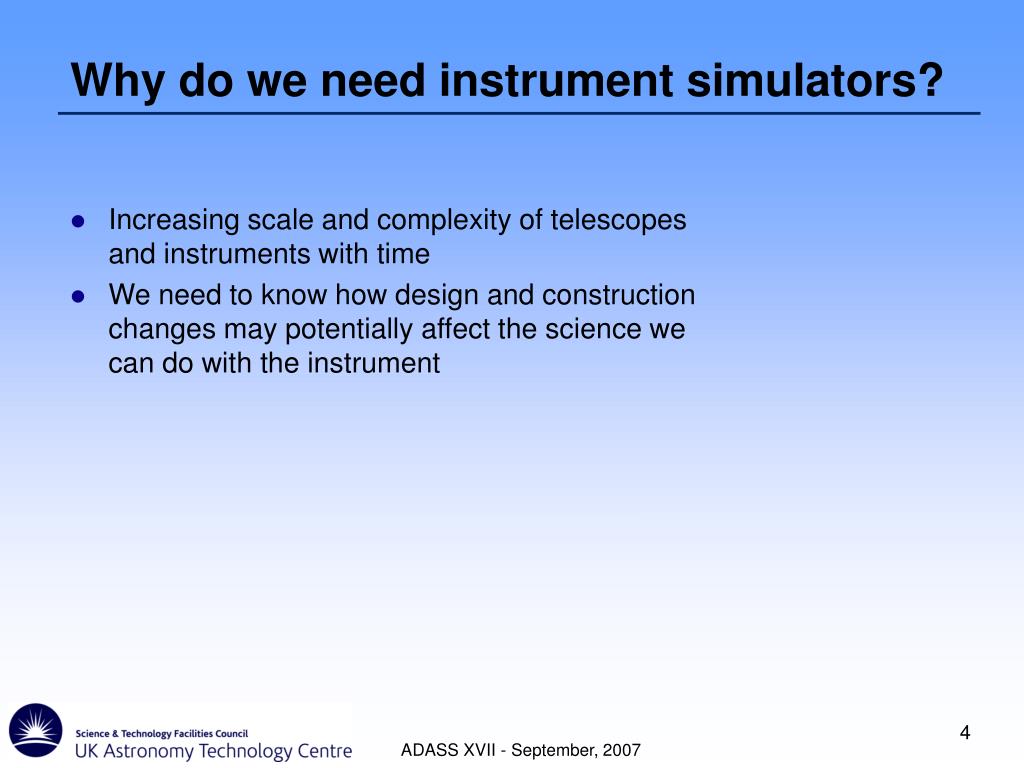

  4. Why do we need instrument simulators? • Increasing scale and complexity of telescopes and instruments with time • We need to know how design and construction changes may potentially affect the science we can do with the instrument ADASS XVII - September, 2007

  5. Why do we need instrument simulators? • Increasing scale and complexity of telescopes and instruments with time • We need to know how design and construction changes may potentially affect the science we can do with the instrument • Development of data reduction and analysis software requires test data ADASS XVII - September, 2007

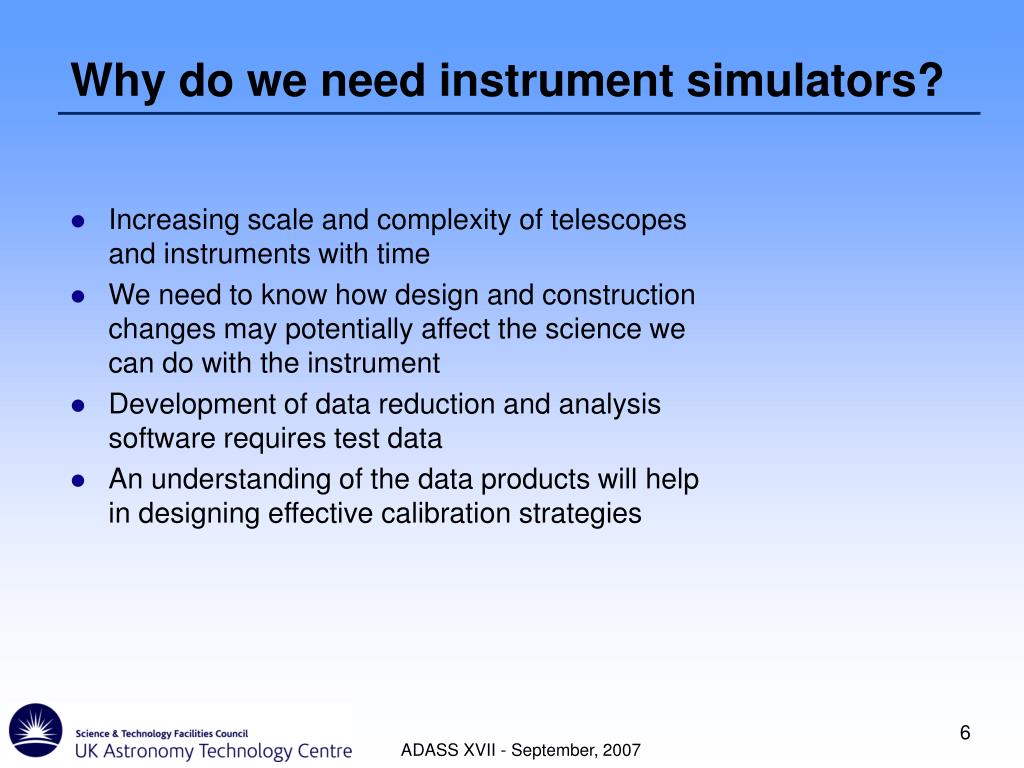

  6. Why do we need instrument simulators? • Increasing scale and complexity of telescopes and instruments with time • We need to know how design and construction changes may potentially affect the science we can do with the instrument • Development of data reduction and analysis software requires test data • An understanding of the data products will help in designing effective calibration strategies ADASS XVII - September, 2007

  7. Why do we need instrument simulators? • Increasing scale and complexity of telescopes and instruments with time • We need to know how design and construction changes may potentially affect the science we can do with the instrument • Development of data reduction and analysis software requires test data • An understanding of the data products will help in designing effective calibration strategies • Synthetic data products are an effective communication tool in a distributed scientific and engineering environment ADASS XVII - September, 2007

  8. JWST-MIRI MRS • Launch in 2013 • Positioned at L2 • 4 instruments on board ADASS XVII - September, 2007

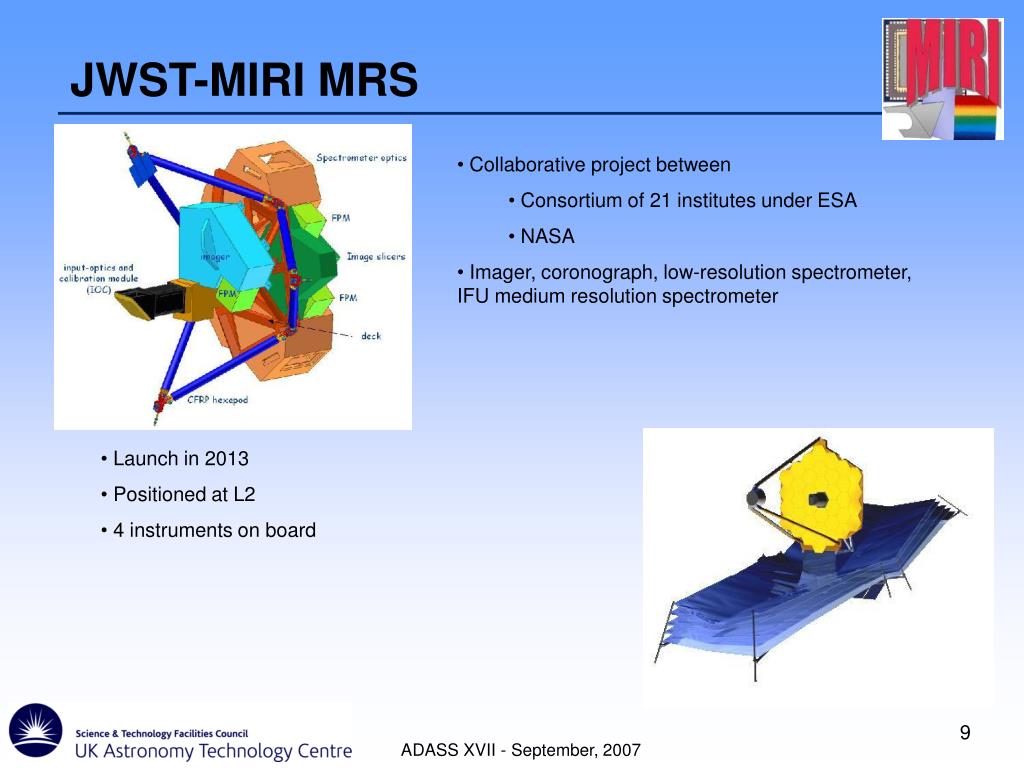

  9. JWST-MIRI MRS • Collaborative project between • Consortium of 21 institutes under ESA • NASA • Imager, coronograph, low-resolution spectrometer, IFU medium resolution spectrometer • Launch in 2013 • Positioned at L2 • 4 instruments on board ADASS XVII - September, 2007

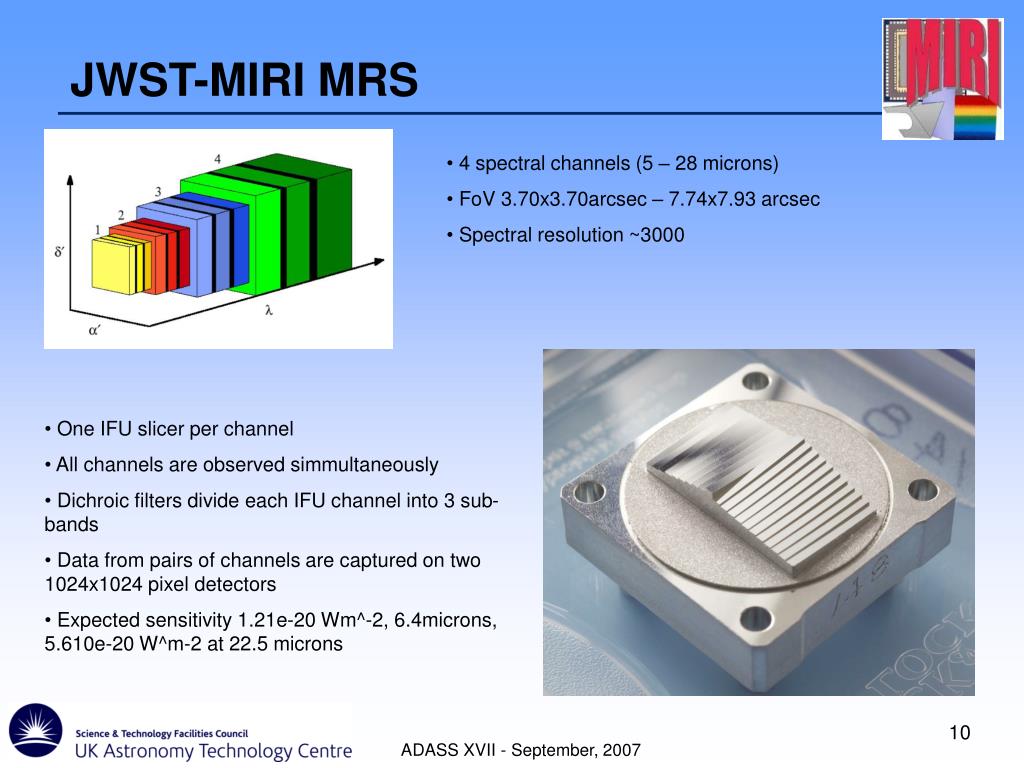

  10. JWST-MIRI MRS • 4 spectral channels (5 – 28 microns) • FoV 3.70x3.70arcsec – 7.74x7.93 arcsec • Spectral resolution ~3000 • One IFU slicer per channel • All channels are observed simmultaneously • Dichroic filters divide each IFU channel into 3 sub-bands • Data from pairs of channels are captured on two 1024x1024 pixel detectors • Expected sensitivity 1.21e-20 Wm^-2, 6.4microns, 5.610e-20 W^m-2 at 22.5 microns ADASS XVII - September, 2007

  11. Specsim: Modelling the Field of View Specsim GUI ADASS XVII - September, 2007

  12. Specsim: Modelling the Field of View Specsim GUI Sky Background ADASS XVII - September, 2007

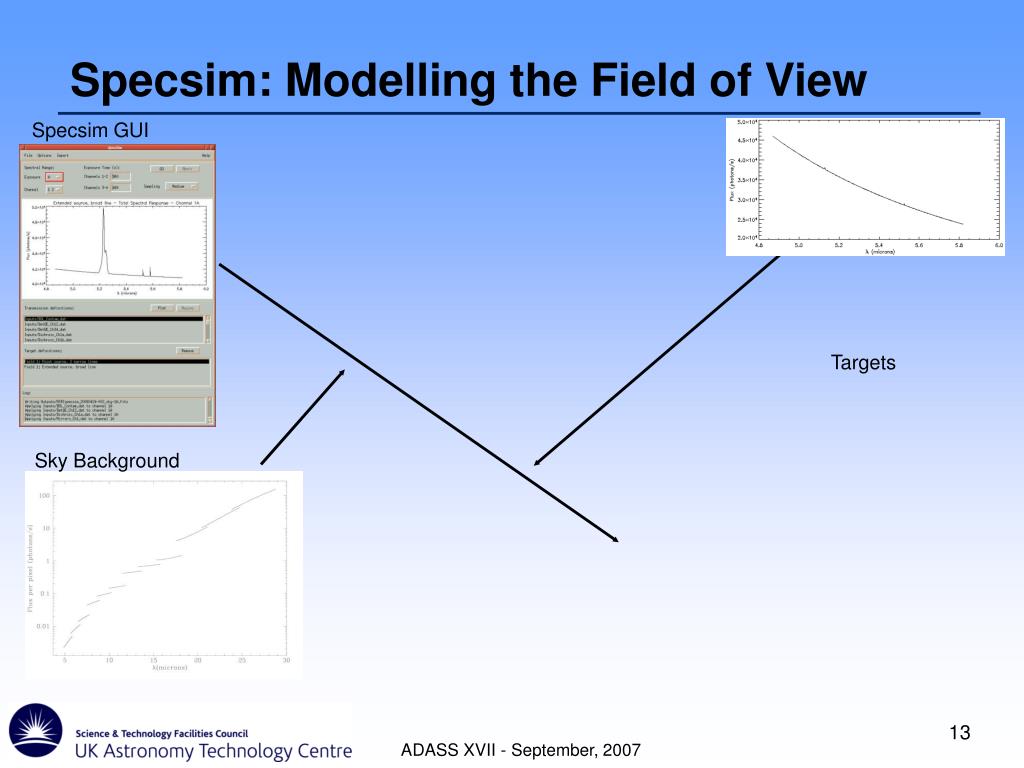

  13. Specsim: Modelling the Field of View Specsim GUI Targets Sky Background ADASS XVII - September, 2007

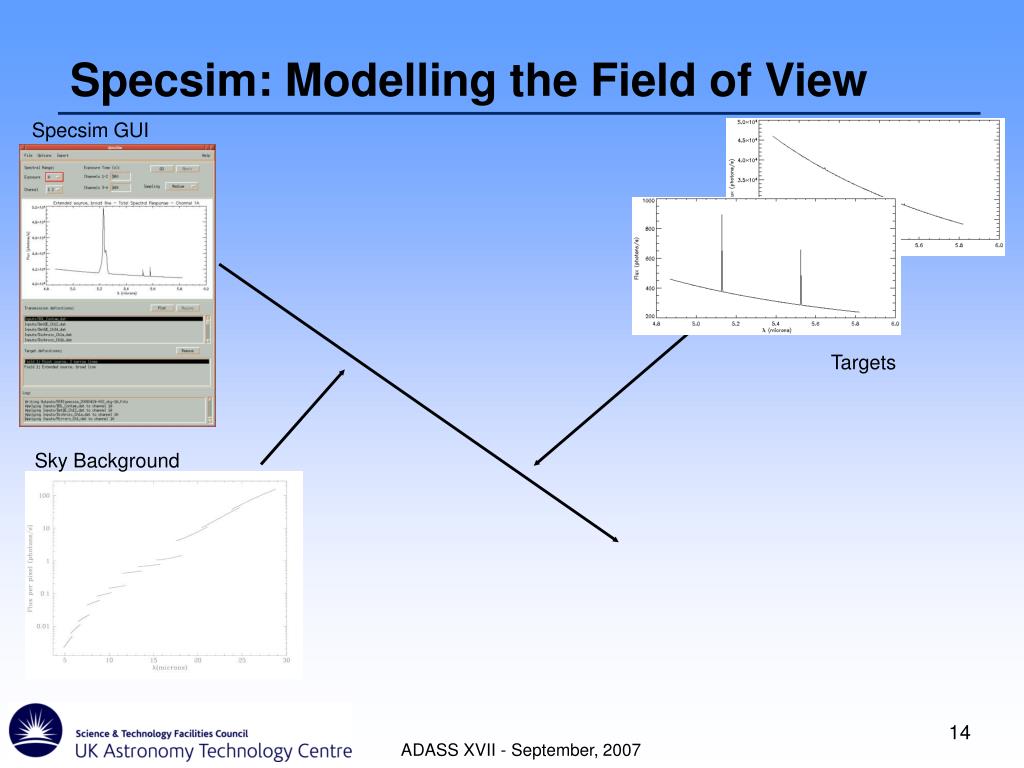

  14. Specsim: Modelling the Field of View Specsim GUI Targets Sky Background ADASS XVII - September, 2007

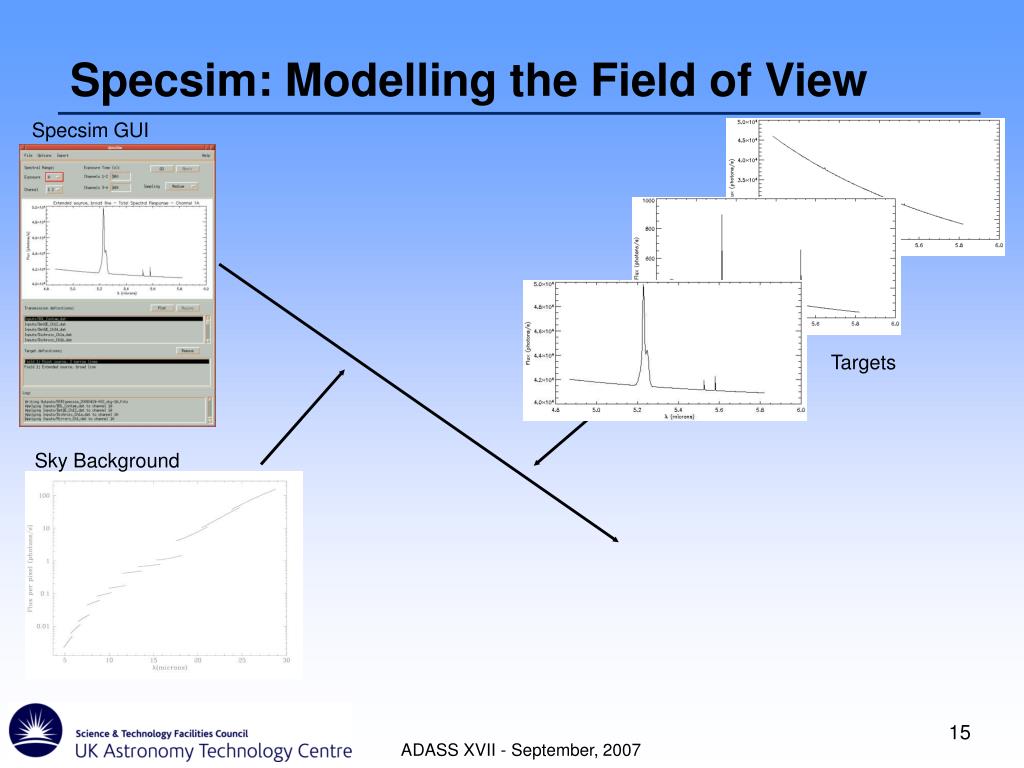

  15. Specsim: Modelling the Field of View Specsim GUI Targets Sky Background ADASS XVII - September, 2007

  16. Specsim: Modelling the Field of View Specsim GUI Targets Sky Background Sky Model ADASS XVII - September, 2007

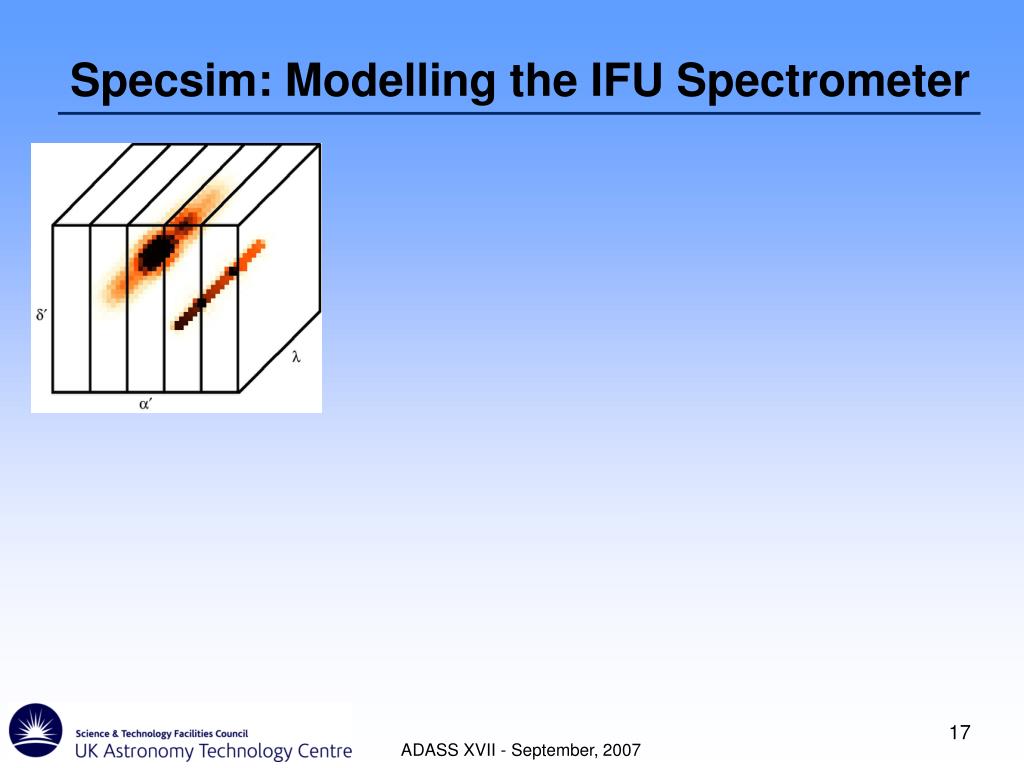

  17. Specsim: Modelling the IFU Spectrometer ADASS XVII - September, 2007

  18. Specsim: Modelling the IFU Spectrometer Transmission Function Definitions ADASS XVII - September, 2007

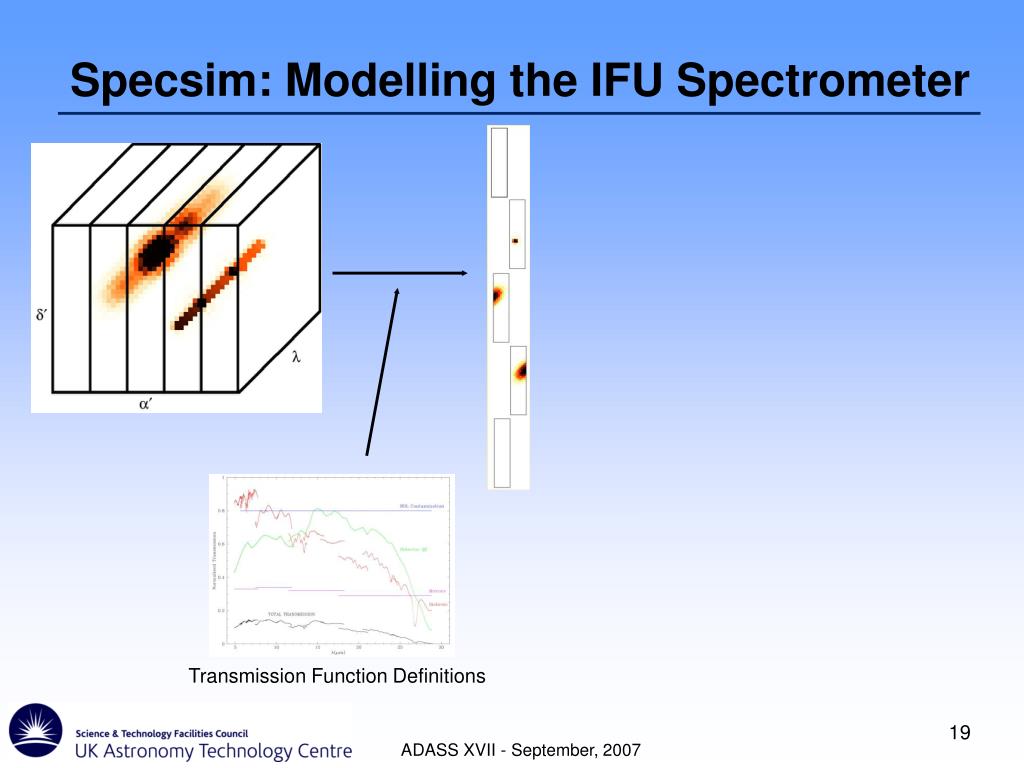

  19. Specsim: Modelling the IFU Spectrometer Transmission Function Definitions ADASS XVII - September, 2007

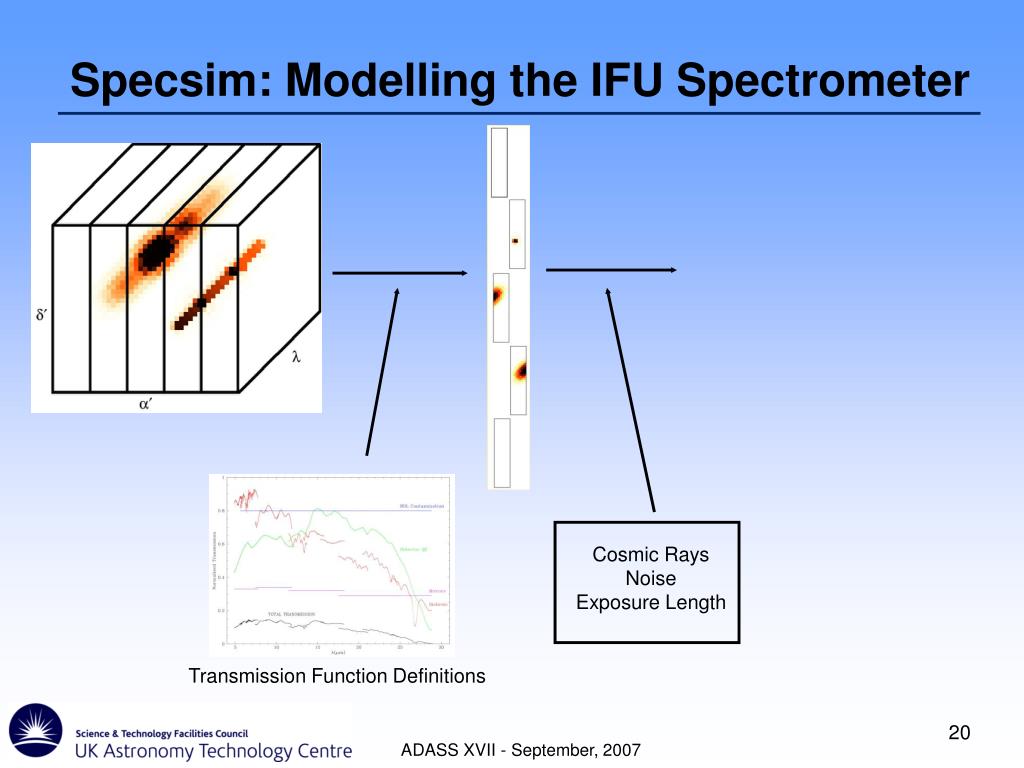

  20. Specsim: Modelling the IFU Spectrometer Cosmic Rays Noise Exposure Length Transmission Function Definitions ADASS XVII - September, 2007

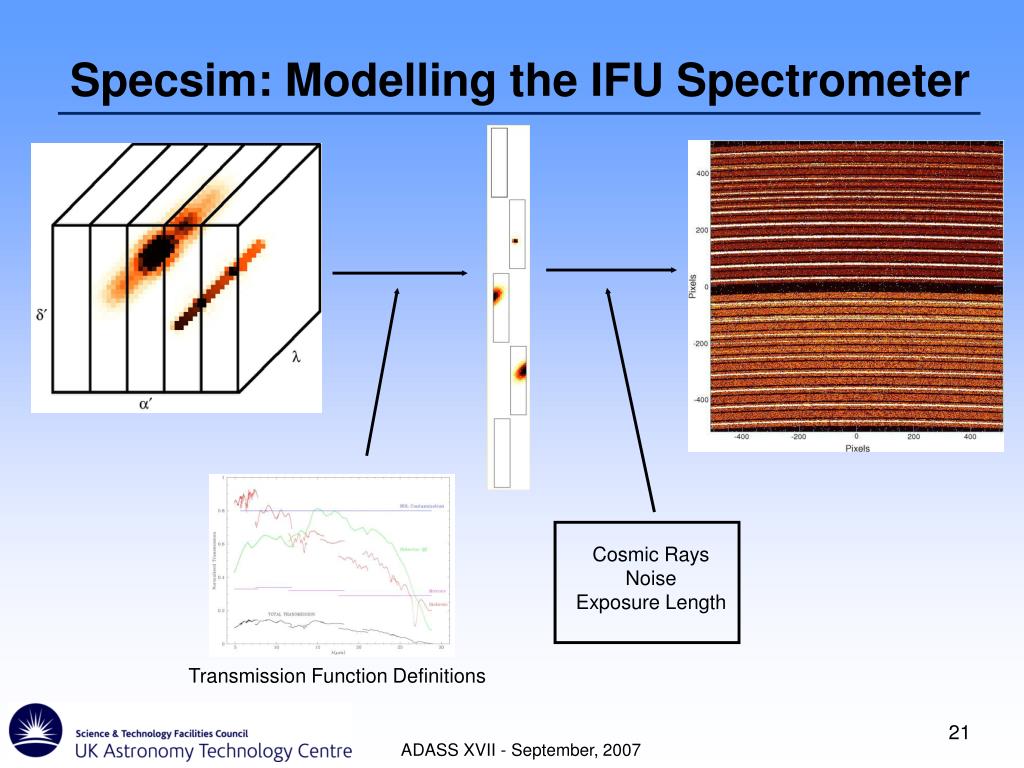

  21. Specsim: Modelling the IFU Spectrometer Cosmic Rays Noise Exposure Length Transmission Function Definitions ADASS XVII - September, 2007

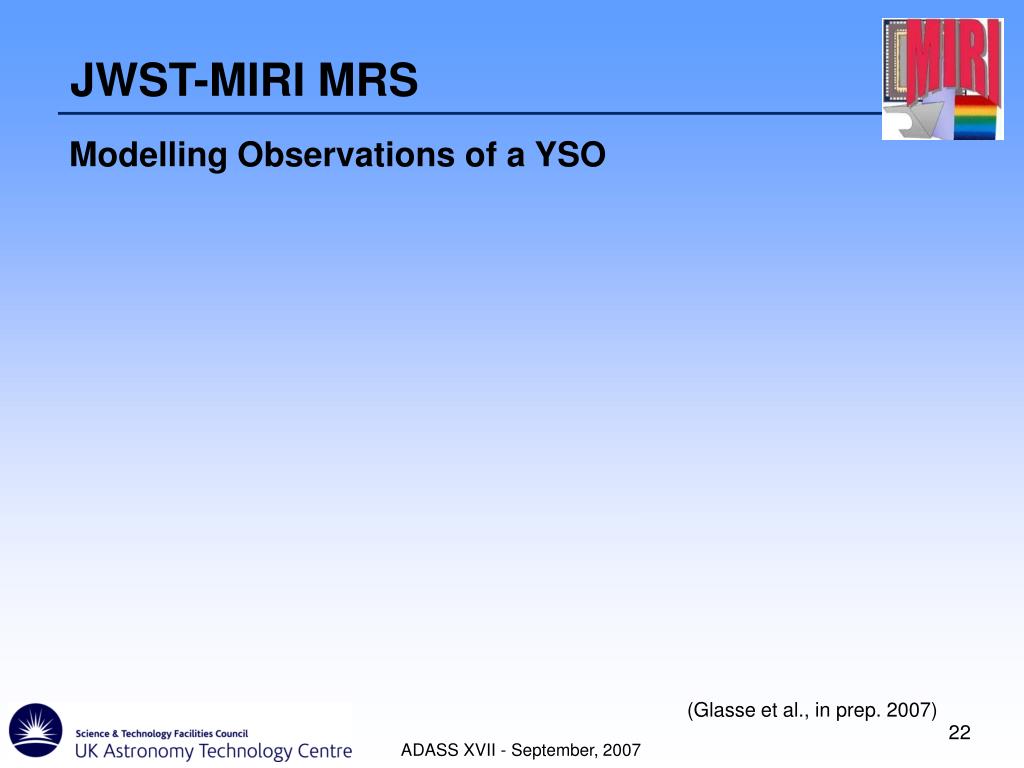

  22. JWST-MIRI MRS Modelling Observations of a YSO (Glasse et al., in prep. 2007) ADASS XVII - September, 2007

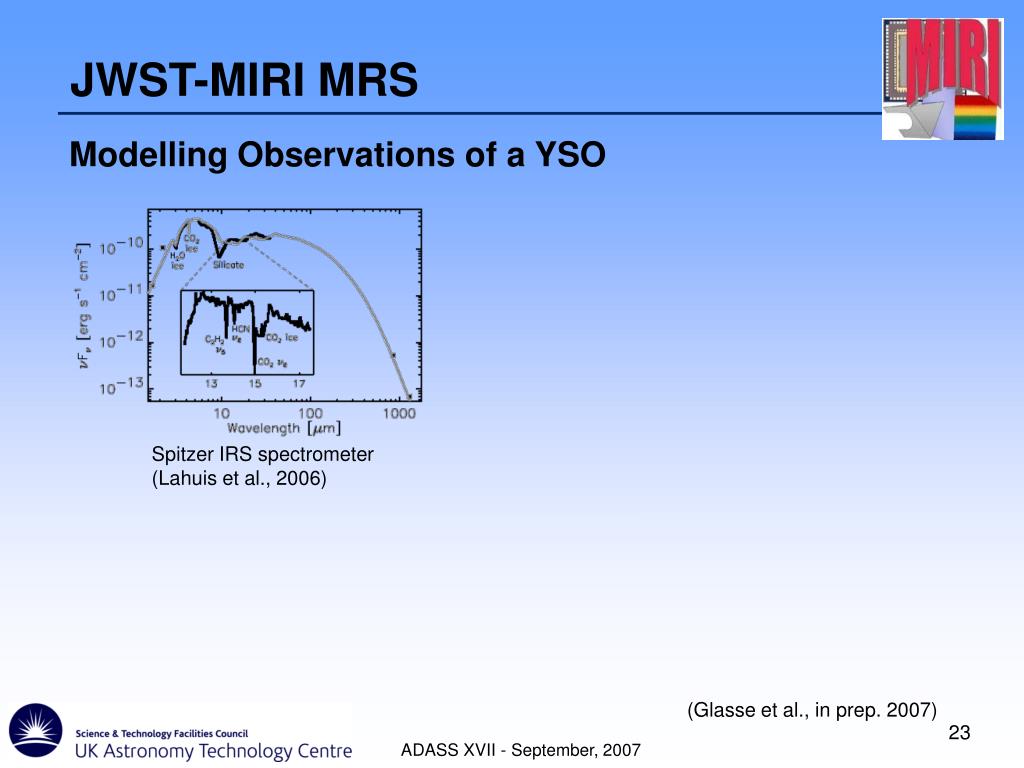

  23. JWST-MIRI MRS Modelling Observations of a YSO Spitzer IRS spectrometer (Lahuis et al., 2006) (Glasse et al., in prep. 2007) ADASS XVII - September, 2007

  24. JWST-MIRI MRS Modelling Observations of a YSO Spitzer IRS spectrometer (Lahuis et al., 2006) "IRS46 at 875 pc" N_TARGETS 1 { "Dither_A" 0 0.485 1.01 N_CONT 2 0 0.015 700.0 0 0.002 160.0 N_BROAD 2 0 -0.001 15.2 0.30 1 -0.014 N_NARROW 360 12.02300 -0.245 “NL1" 12.03510 -0.023 “NL2" ... } (Glasse et al., in prep. 2007) ADASS XVII - September, 2007

  25. JWST-MIRI MRS Modelling Observations of a YSO Spitzer IRS spectrometer (Lahuis et al., 2006) "IRS46 at 875 pc" N_TARGETS 1 { "Dither_A" 0 0.485 1.01 N_CONT 2 0 0.015 700.0 0 0.002 160.0 N_BROAD 2 0 -0.001 15.2 0.30 1 -0.014 N_NARROW 360 12.02300 -0.245 “NL1" 12.03510 -0.023 “NL2" ... } Point source Black-body continuum CO2 Gaussian absorption feature, and silicate spectrum 360 narrow absorption lines (HCN etc.) (Glasse et al., in prep. 2007) ADASS XVII - September, 2007

  26. JWST-MIRI MRS Modelling Observations of a YSO Spitzer IRS spectrometer (Lahuis et al., 2006) Specsim synthetic spectrum "IRS46 at 875 pc" N_TARGETS 1 { "Dither_A" 0 0.485 1.01 N_CONT 2 0 0.015 700.0 0 0.002 160.0 N_BROAD 2 0 -0.001 15.2 0.30 1 -0.014 N_NARROW 360 12.02300 -0.245 “NL1" 12.03510 -0.023 “NL2" ... } Point source Black-body continuum CO2 Gaussian absorption feature, and silicate spectrum 360 narrow absorption lines (HCN etc.) (Glasse et al., in prep. 2007) ADASS XVII - September, 2007

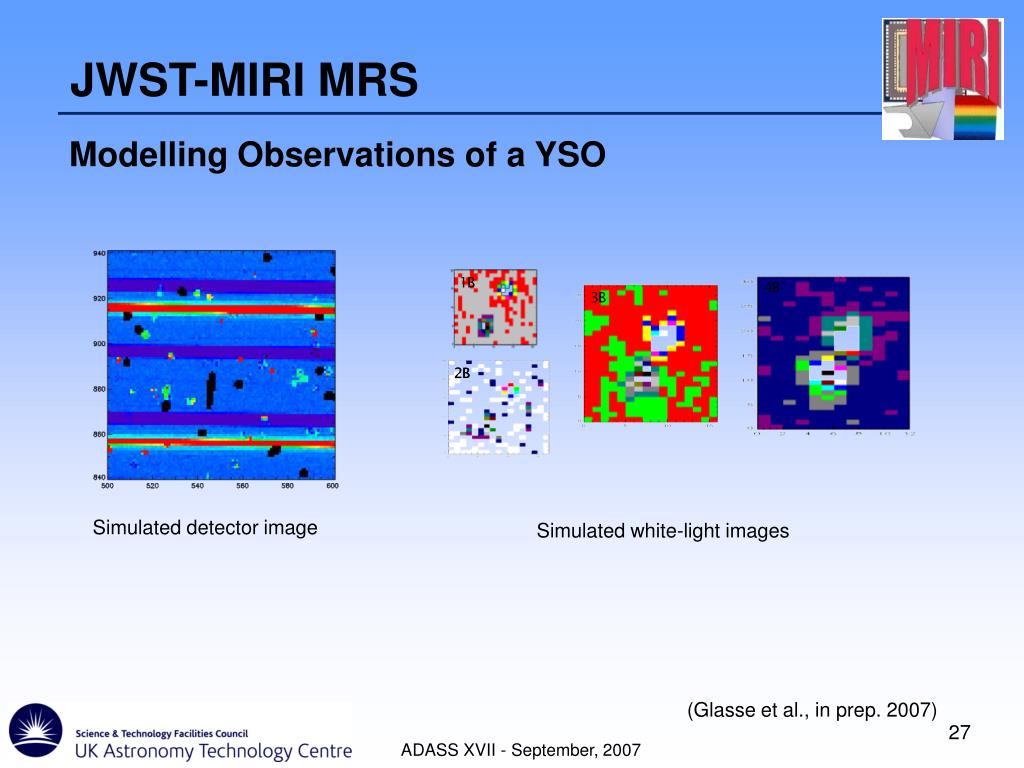

  27. JWST-MIRI MRS Modelling Observations of a YSO Simulated detector image Simulated white-light images (Glasse et al., in prep. 2007) ADASS XVII - September, 2007

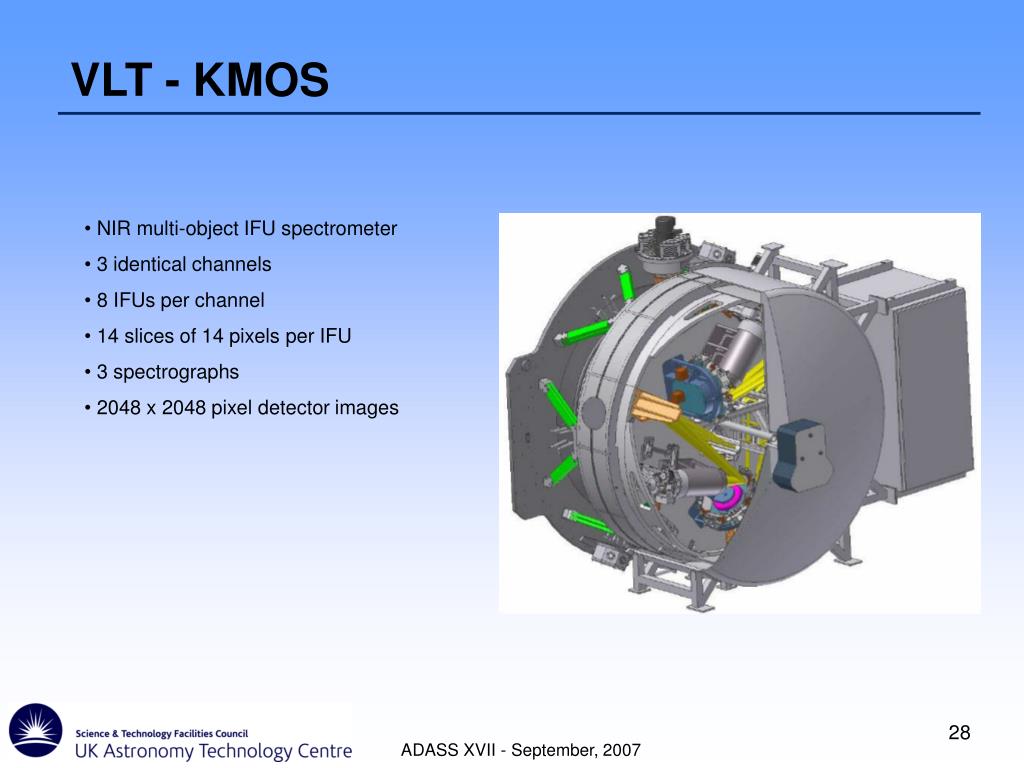

  28. VLT - KMOS • NIR multi-object IFU spectrometer • 3 identical channels • 8 IFUs per channel • 14 slices of 14 pixels per IFU • 3 spectrographs • 2048 x 2048 pixel detector images ADASS XVII - September, 2007

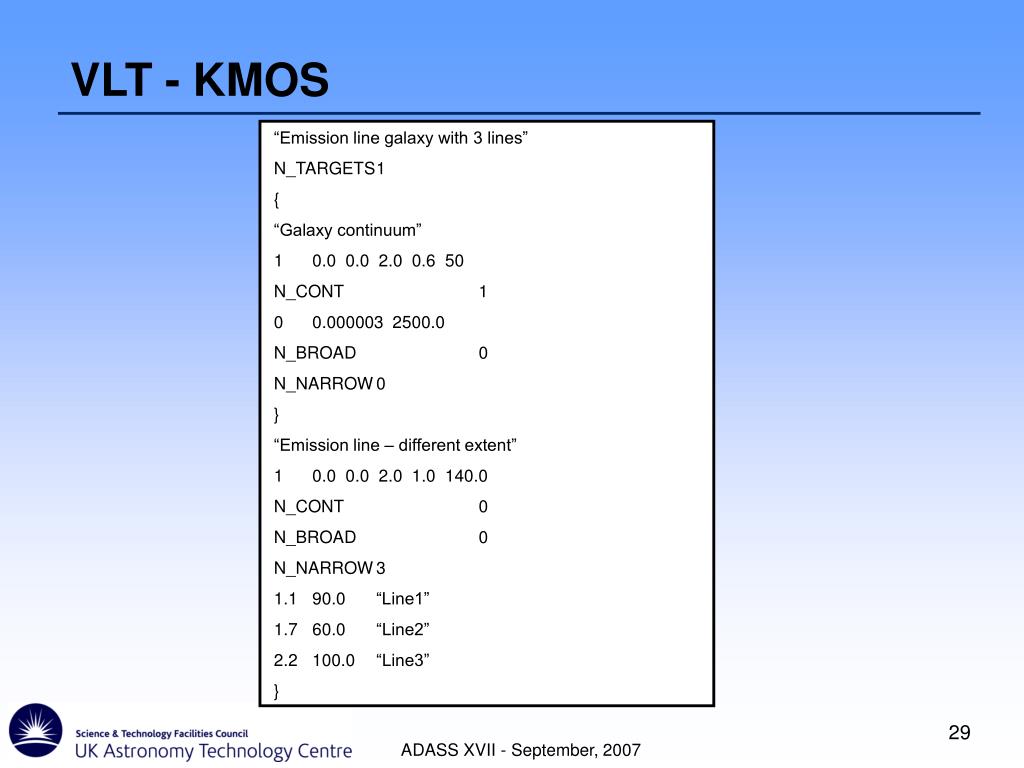

  29. “Emission line galaxy with 3 lines” • N_TARGETS 1 • { • “Galaxy continuum” • 0.0 0.0 2.0 0.6 50 • N_CONT 1 • 0 0.000003 2500.0 • N_BROAD 0 • N_NARROW 0 • } • “Emission line – different extent” • 0.0 0.0 2.0 1.0 140.0 • N_CONT 0 • N_BROAD 0 • N_NARROW 3 • 1.1 90.0 “Line1” • 1.7 60.0 “Line2” • 2.2 100.0 “Line3” • } VLT - KMOS ADASS XVII - September, 2007

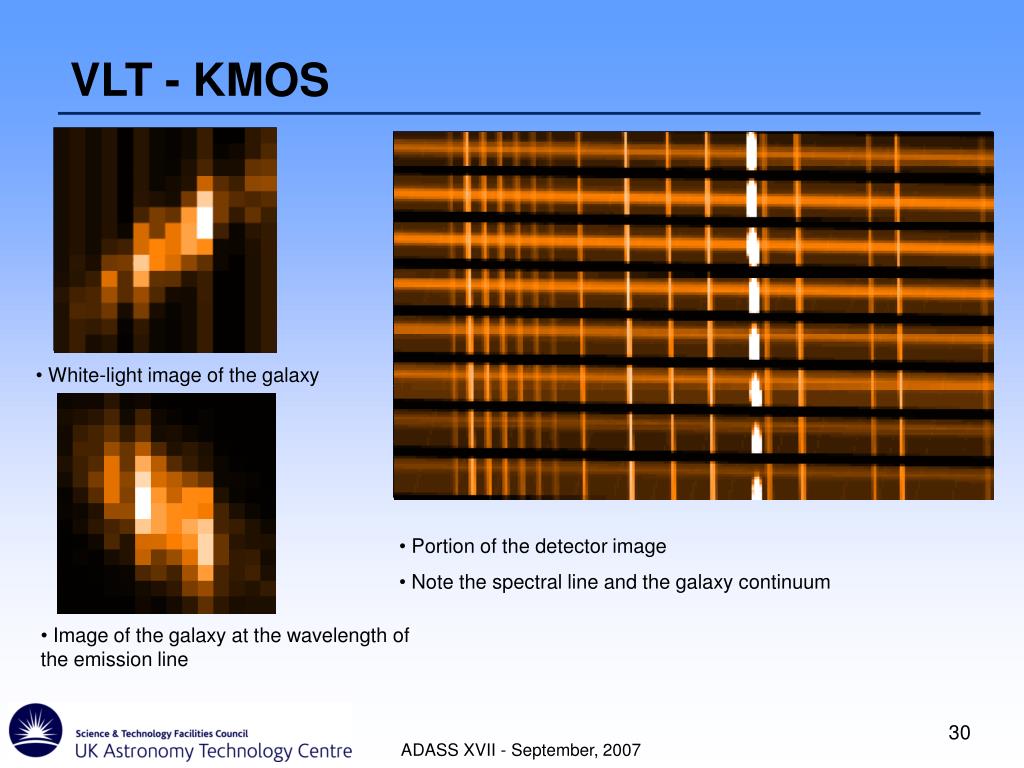

  30. VLT - KMOS • White-light image of the galaxy • Portion of the detector image • Note the spectral line and the galaxy continuum • Image of the galaxy at the wavelength of the emission line ADASS XVII - September, 2007

  31. E-ELT Investigating the effect of adaptive optics on image quality Simulated field of view ADASS XVII - September, 2007

  32. E-ELT Investigating the effect of adaptive optics on image quality Seeing-limited PSF Simulated field of view ADASS XVII - September, 2007

  33. E-ELT Investigating the effect of adaptive optics on image quality Seeing-limited PSF Simulated white-light image, with no AO correction ADASS XVII - September, 2007

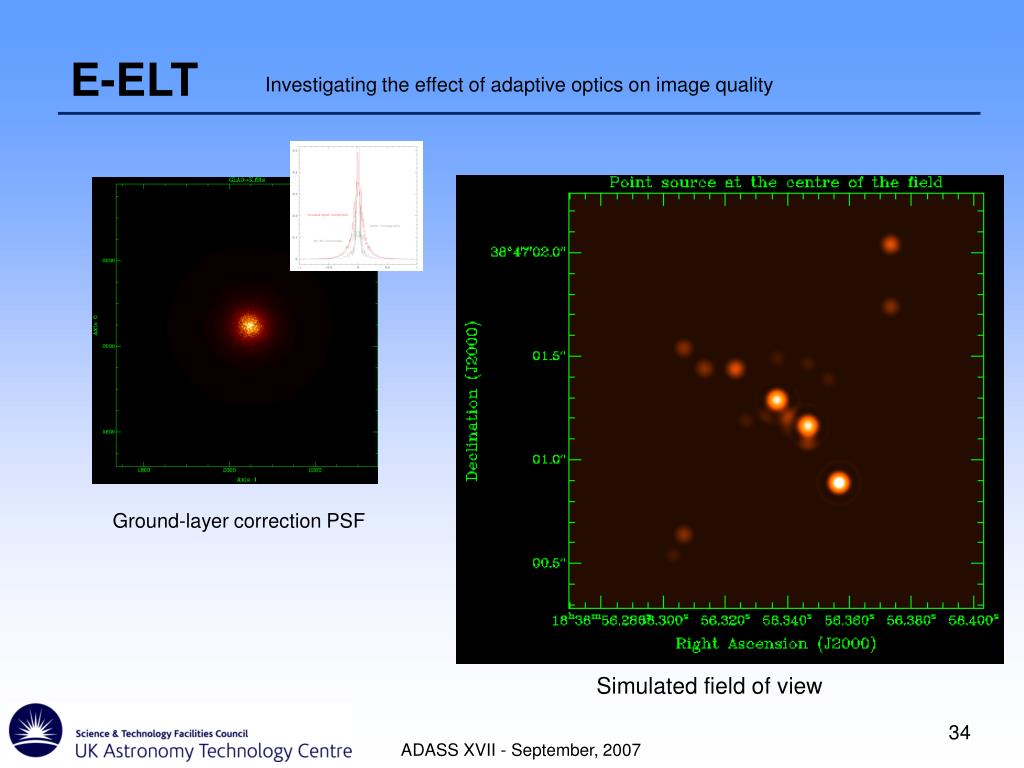

  34. E-ELT Investigating the effect of adaptive optics on image quality Ground-layer correction PSF Simulated field of view ADASS XVII - September, 2007

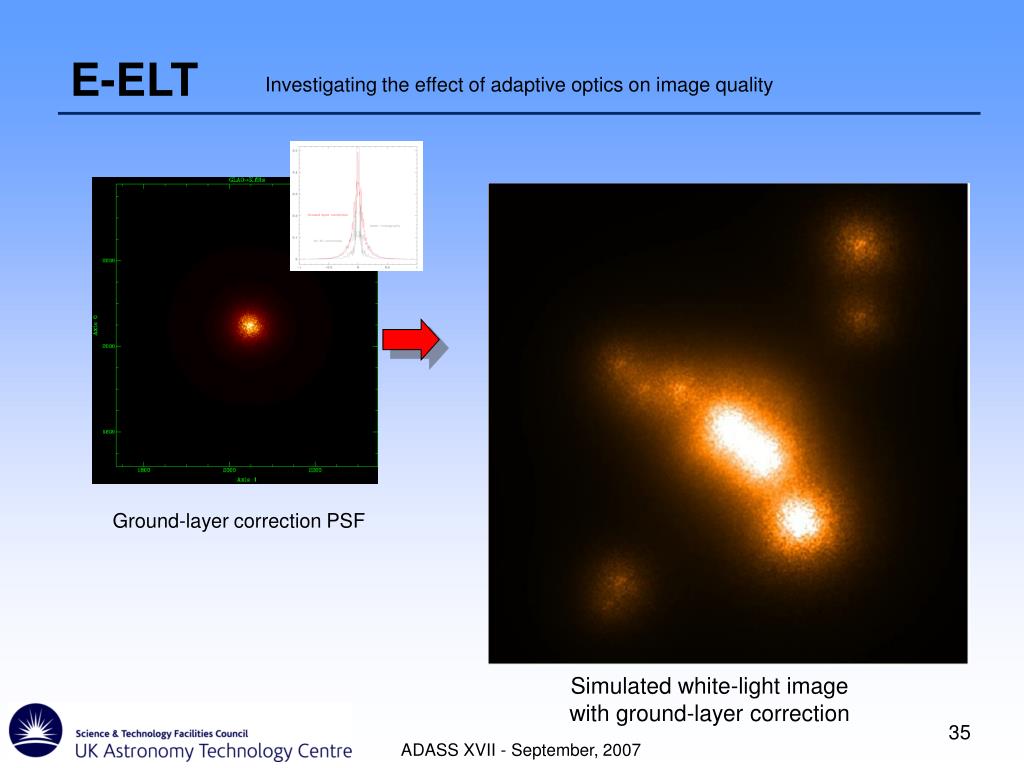

  35. E-ELT Investigating the effect of adaptive optics on image quality Ground-layer correction PSF Simulated white-light image with ground-layer correction ADASS XVII - September, 2007

  36. E-ELT Investigating the effect of adaptive optics on image quality Laser Tomography PSF Simulated field of view ADASS XVII - September, 2007

  37. E-ELT Investigating the effect of adaptive optics on image quality Laser Tomography PSF Simulated white-light image with laser-tomography correction ADASS XVII - September, 2007

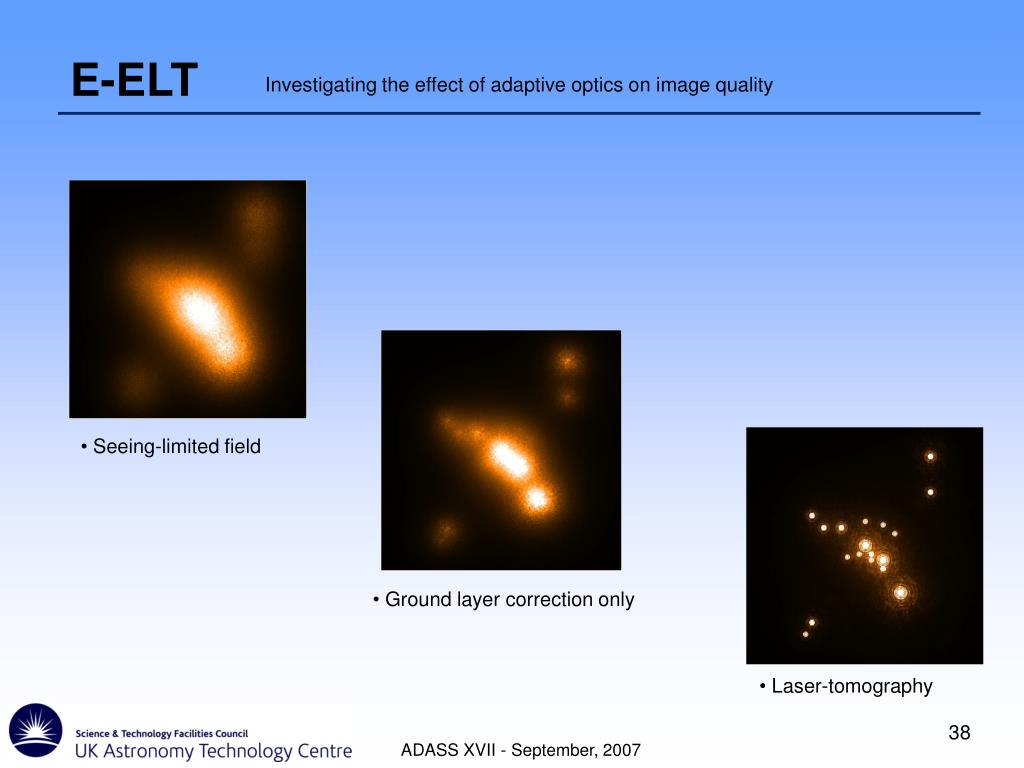

  38. E-ELT Investigating the effect of adaptive optics on image quality • Seeing-limited field • Ground layer correction only • Laser-tomography ADASS XVII - September, 2007
