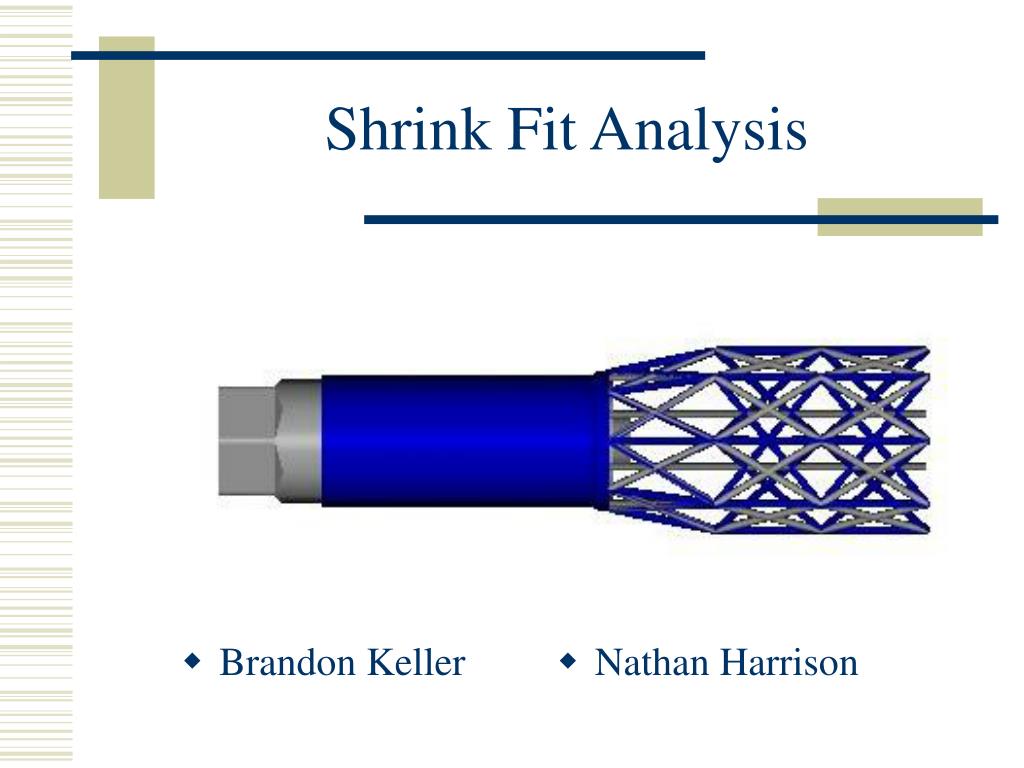

  1. Shrink Fit Analysis • Brandon Keller • Nathan Harrison

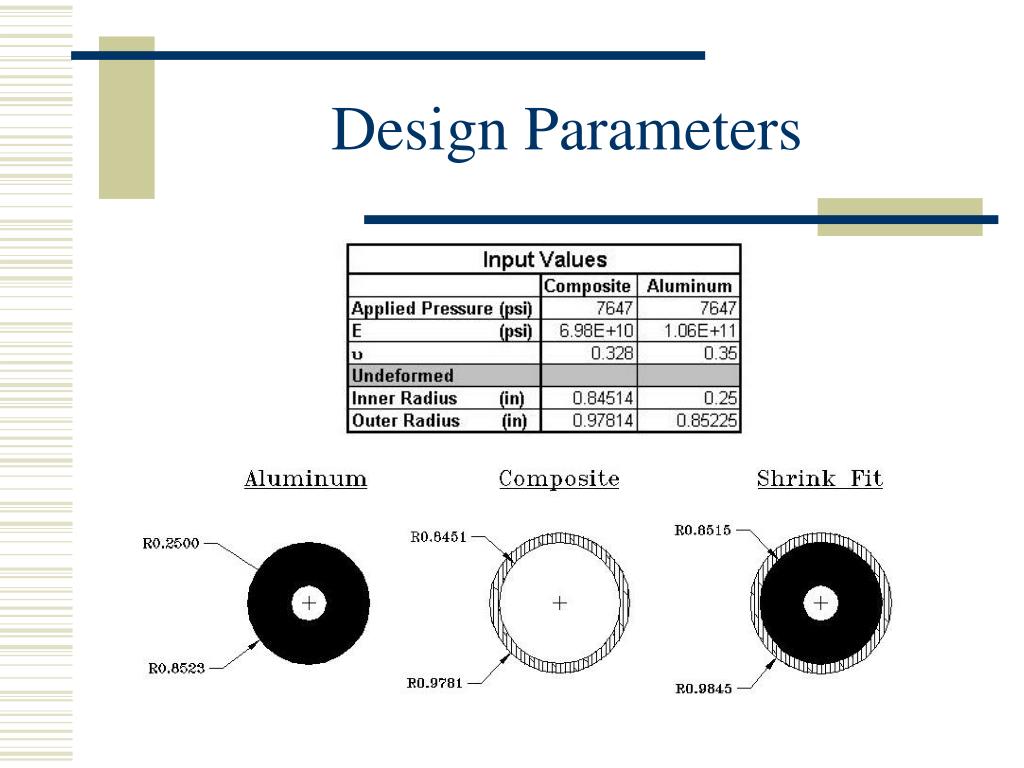

  2. Design Parameters

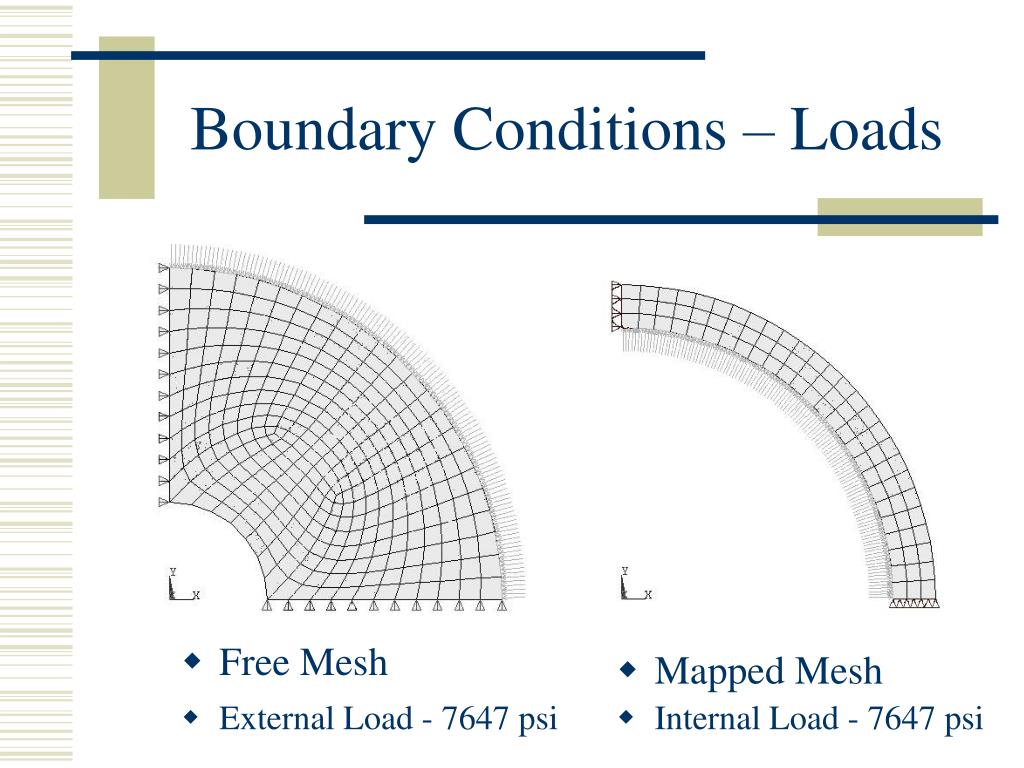

  3. Boundary Conditions – Loads • Free Mesh • Mapped Mesh • External Load - 7647 psi • Internal Load - 7647 psi

  4. Displacements

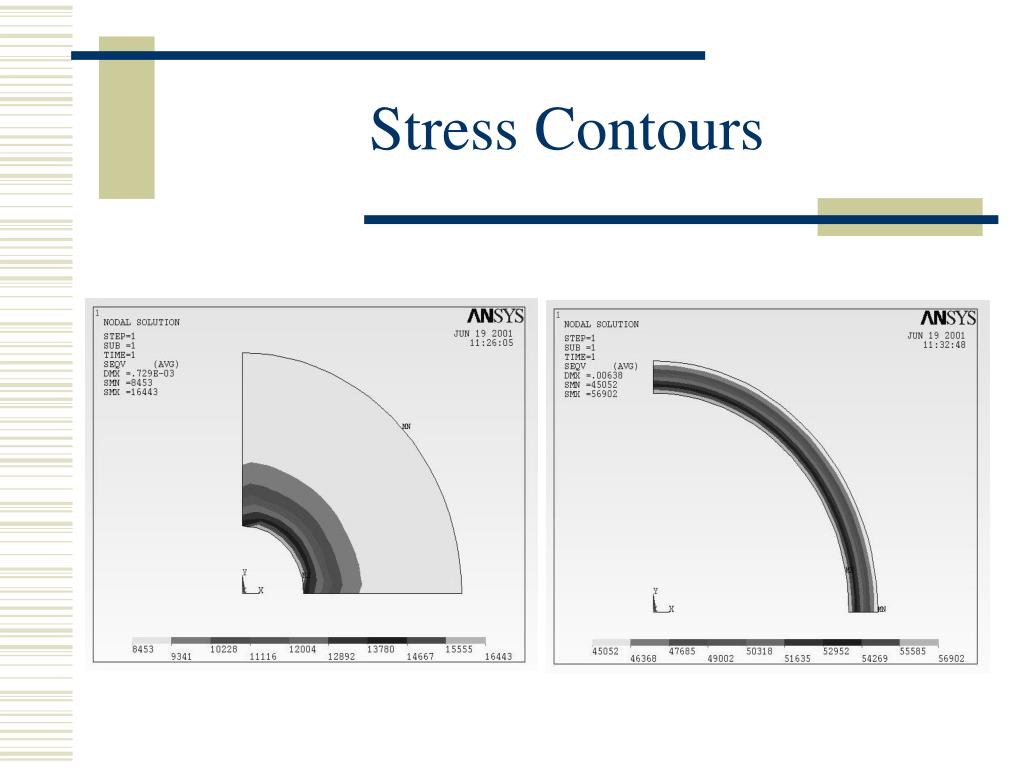

  5. Stress Contours

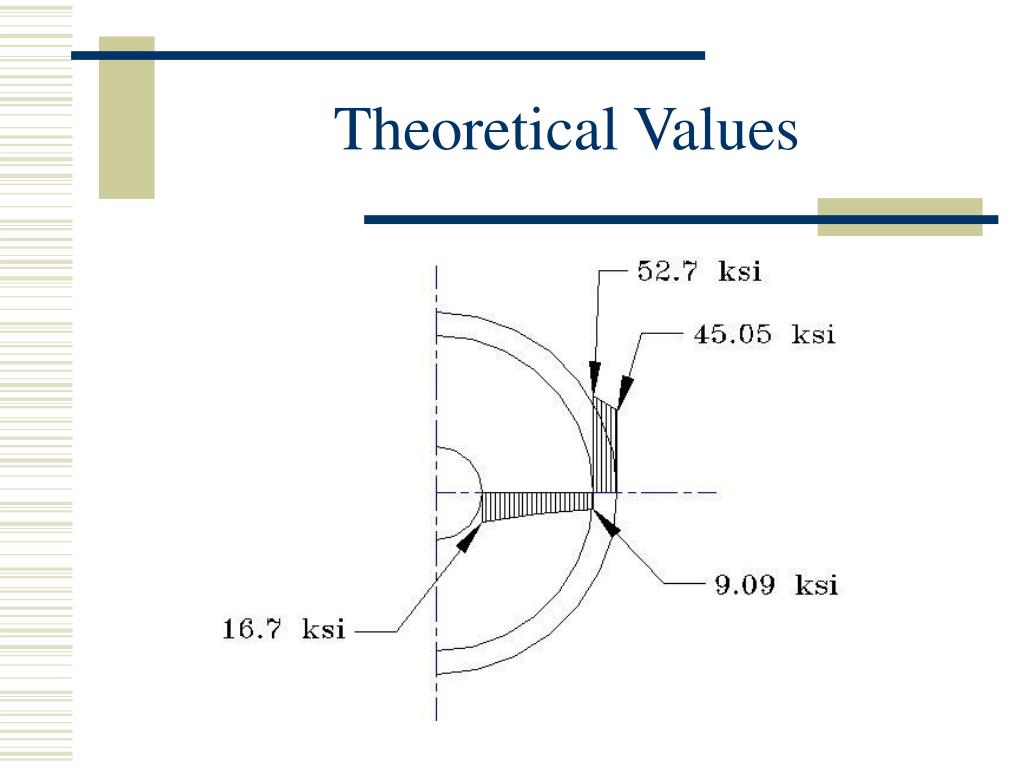

  6. Theoretical Values

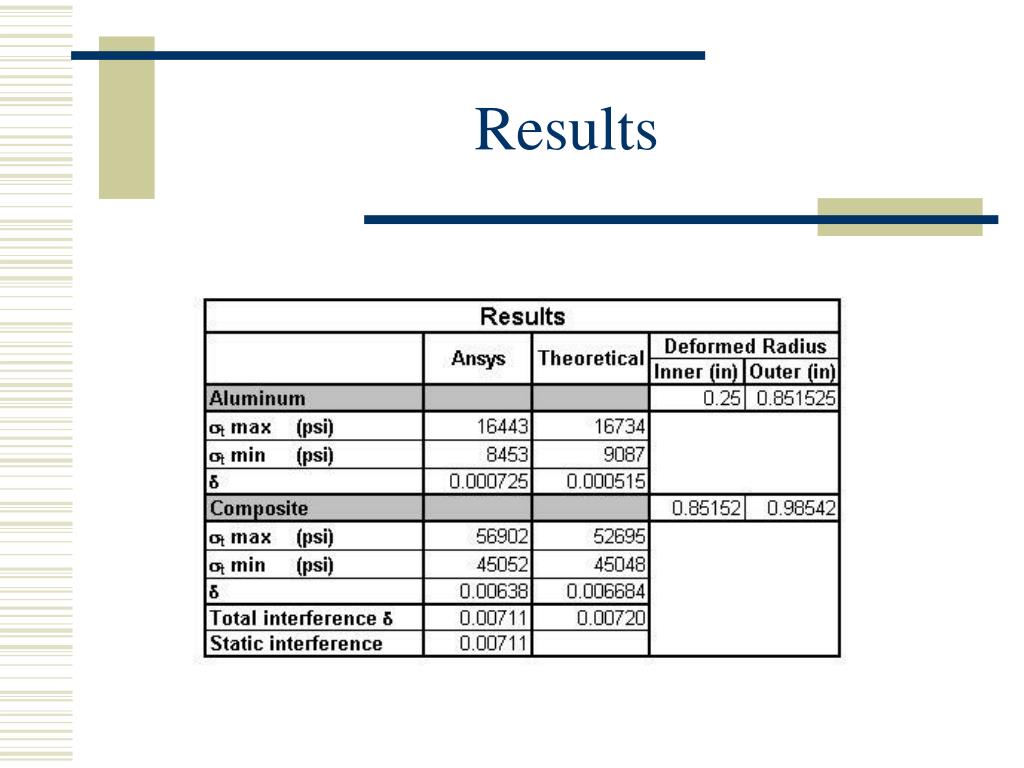

  7. Results

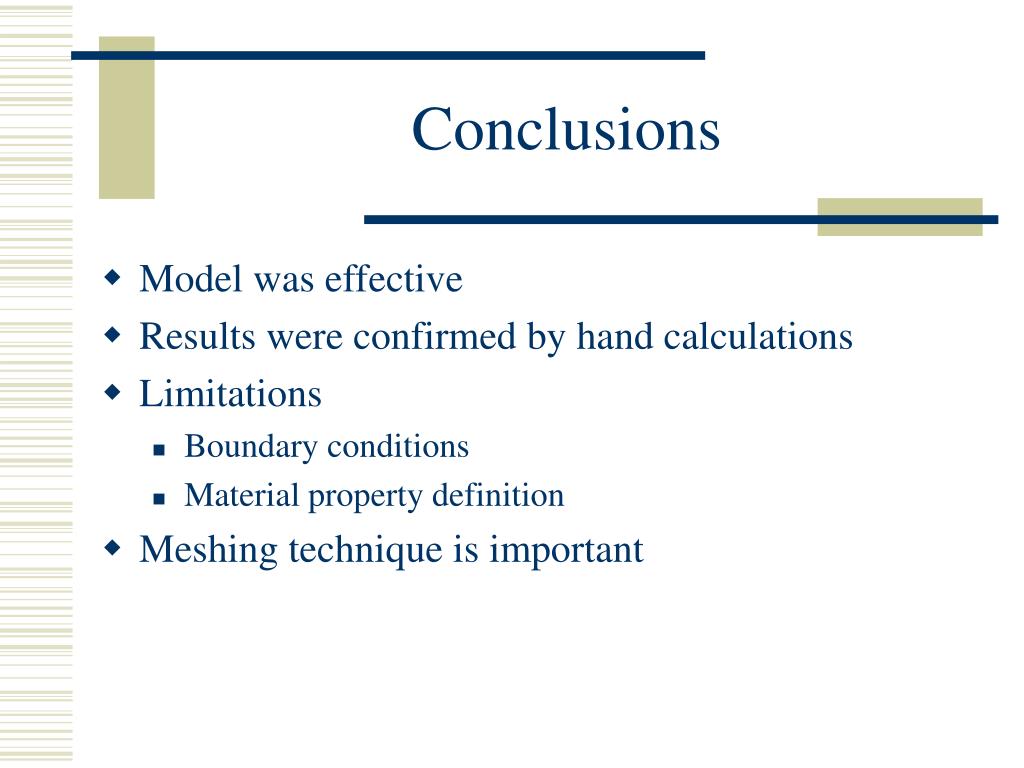

  8. Conclusions • Model was effective • Results were confirmed by hand calculations • Limitations • Boundary conditions • Material property definition • Meshing technique is important
