  1. New Optimization Methods in Geometric Computing By Paul Zimmons CS 258 Fall 2000

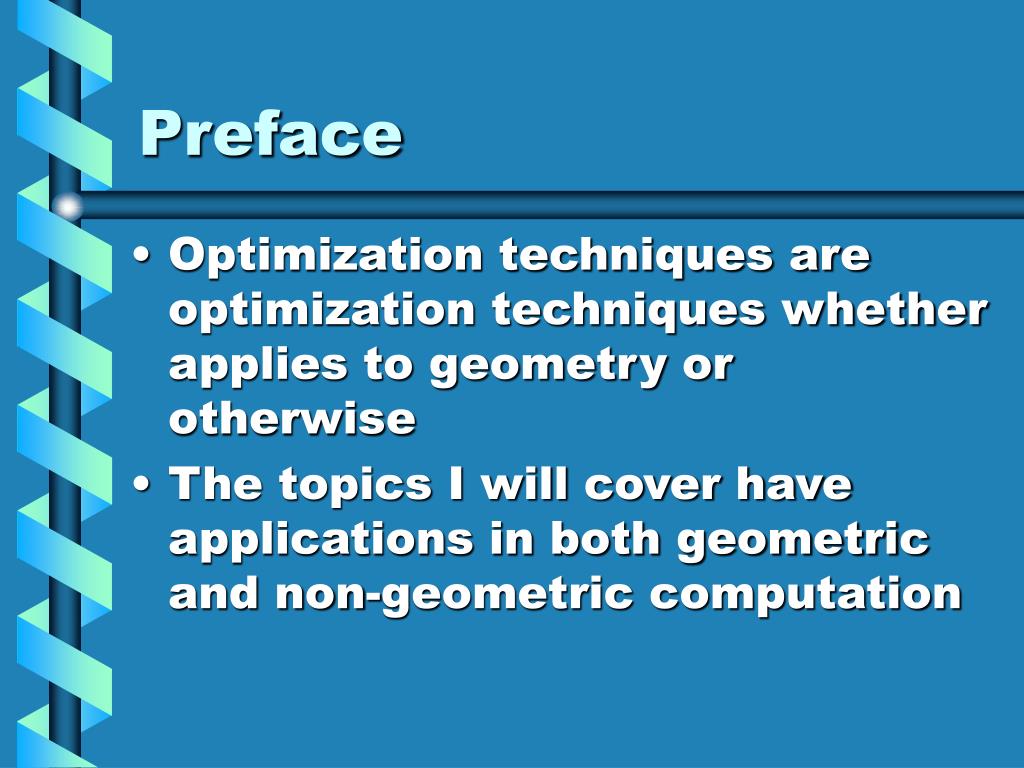

  2. Preface • Optimization techniques are optimization techniques whether applies to geometry or otherwise • The topics I will cover have applications in both geometric and non-geometric computation

  3. Basis for this Talk • The basis for this talk was the book New Ideas in Optimization by David Corne, Marco Dorigo, and Fred Glover (UK book)

  4. Overview • Current Optimization • Ant Colony Methods • Differential Evolution • Immune System Methods • Swarm Method

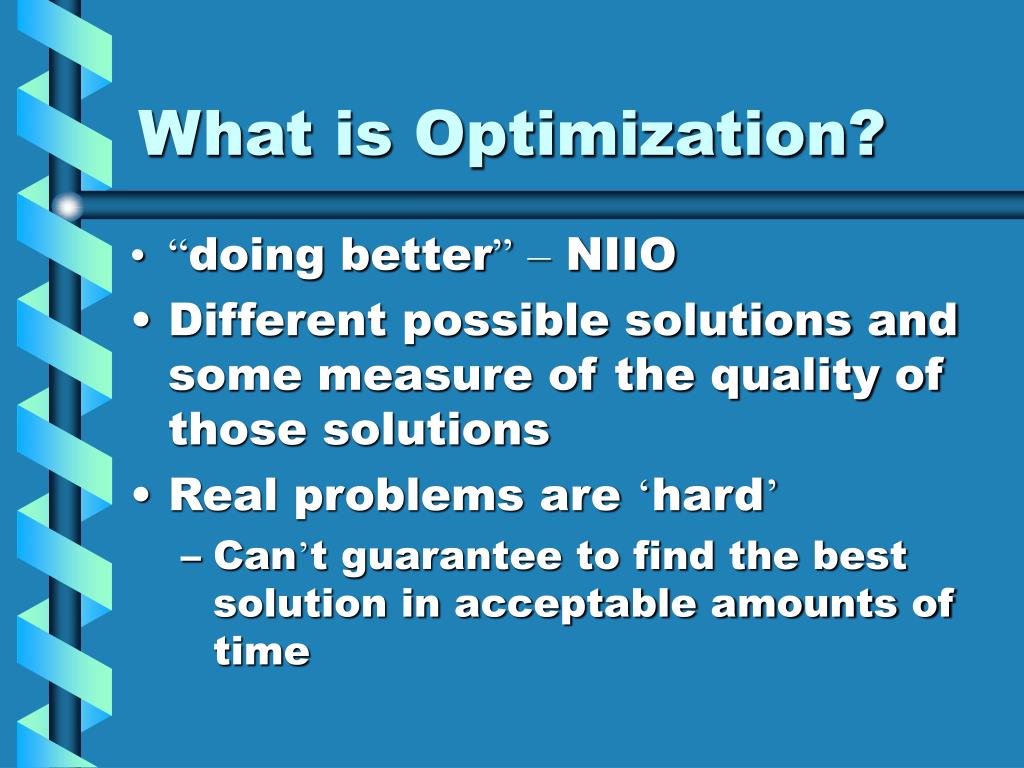

  5. What is Optimization? • “doing better”– NIIO • Different possible solutions and some measure of the quality of those solutions • Real problems are ‘hard’ • Can’t guarantee to find the best solution in acceptable amounts of time

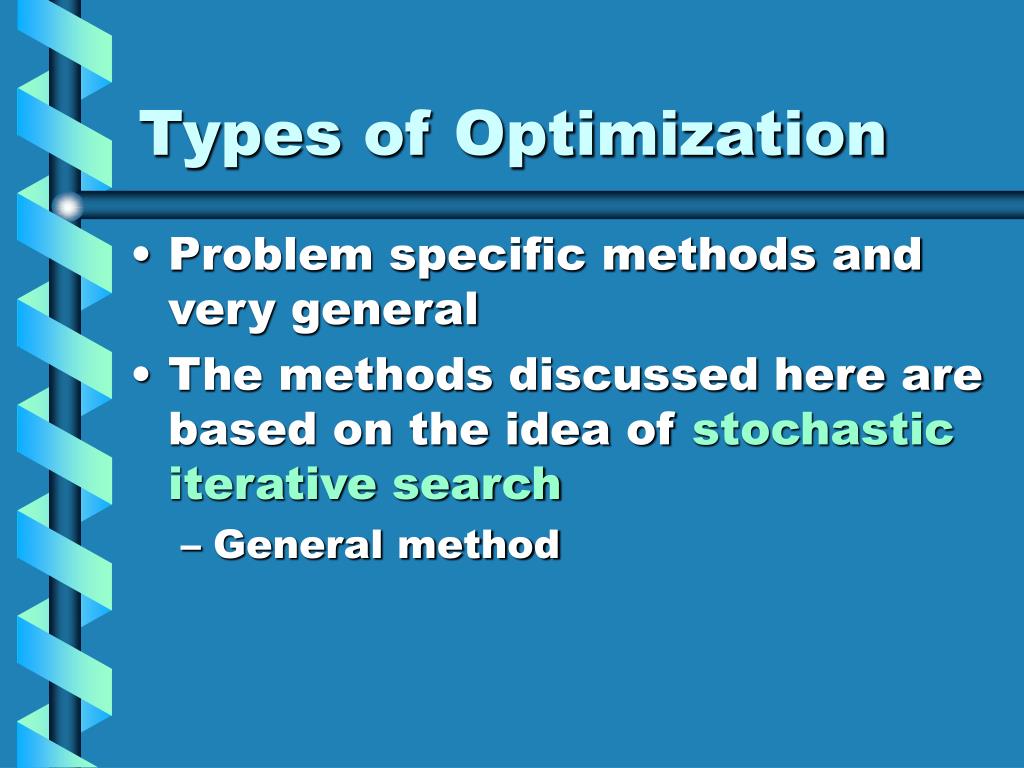

  6. Types of Optimization • Problem specific methods and very general • The methods discussed here are based on the idea of stochastic iterative search • General method

  7. General Method • 1. Generate and evaluate an initial collection of candidate solutions S • 2. Produce and evaluate a collection of new candidate solution S’ by making random changes to selected members of S • 3. Replace some members of S with some of the members of S’ and then back to 2

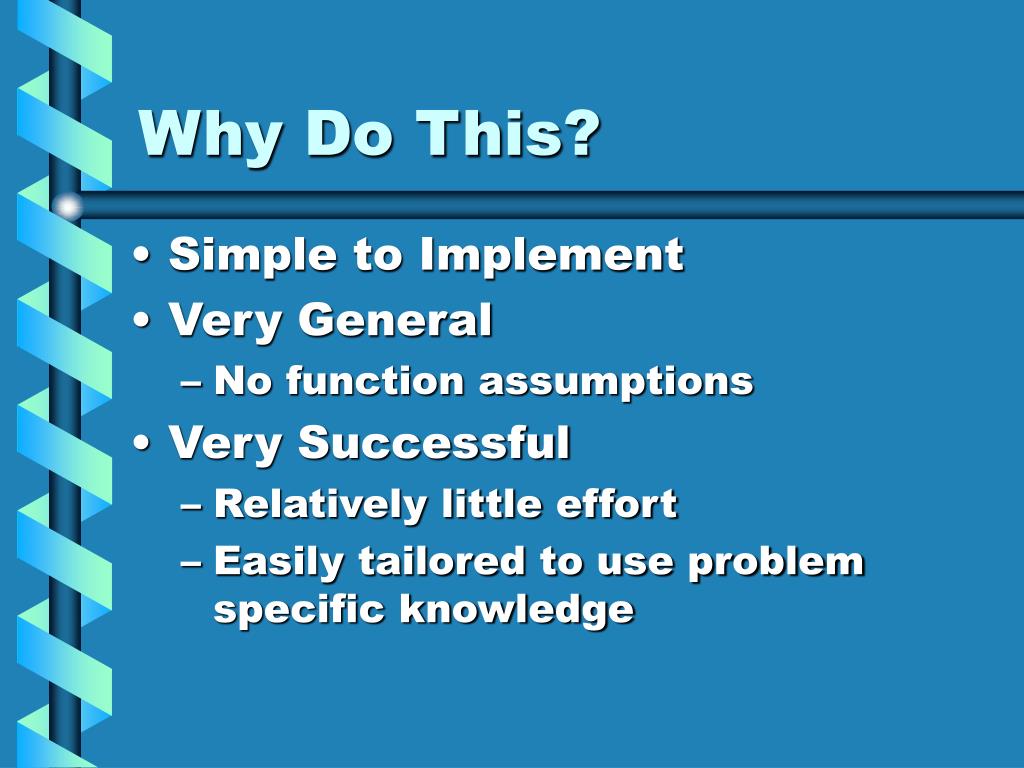

  8. Why Do This? • Simple to Implement • Very General • No function assumptions • Very Successful • Relatively little effort • Easily tailored to use problem specific knowledge

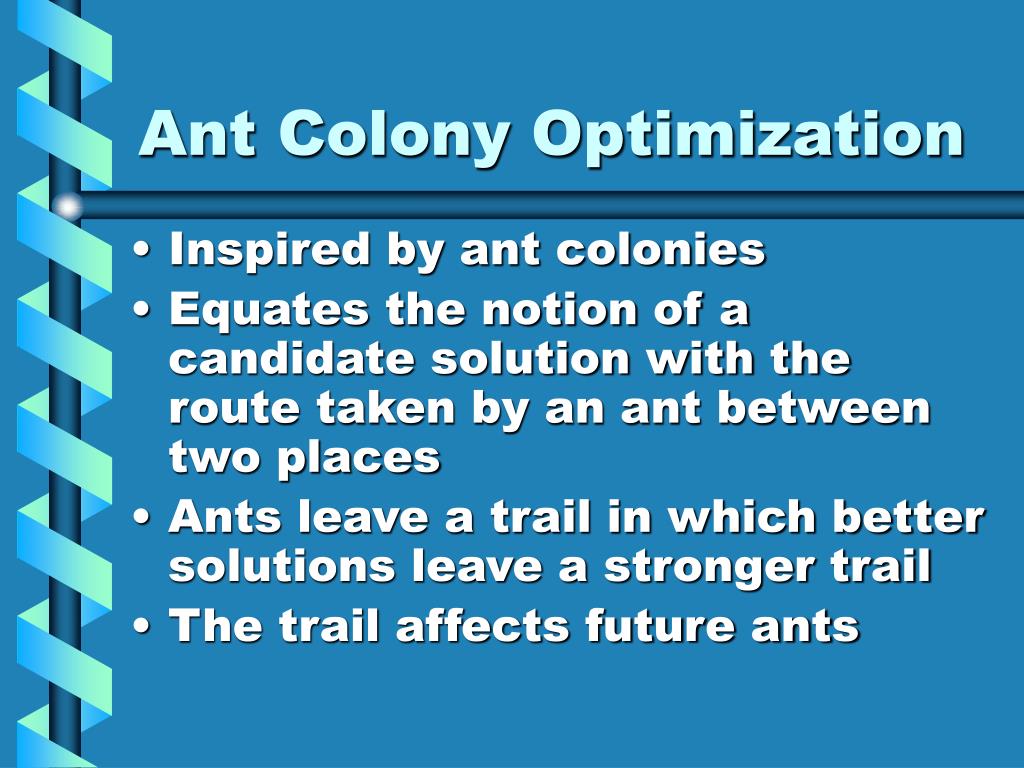

  9. Ant Colony Optimization • Inspired by ant colonies • Equates the notion of a candidate solution with the route taken by an ant between two places • Ants leave a trail in which better solutions leave a stronger trail • The trail affects future ants

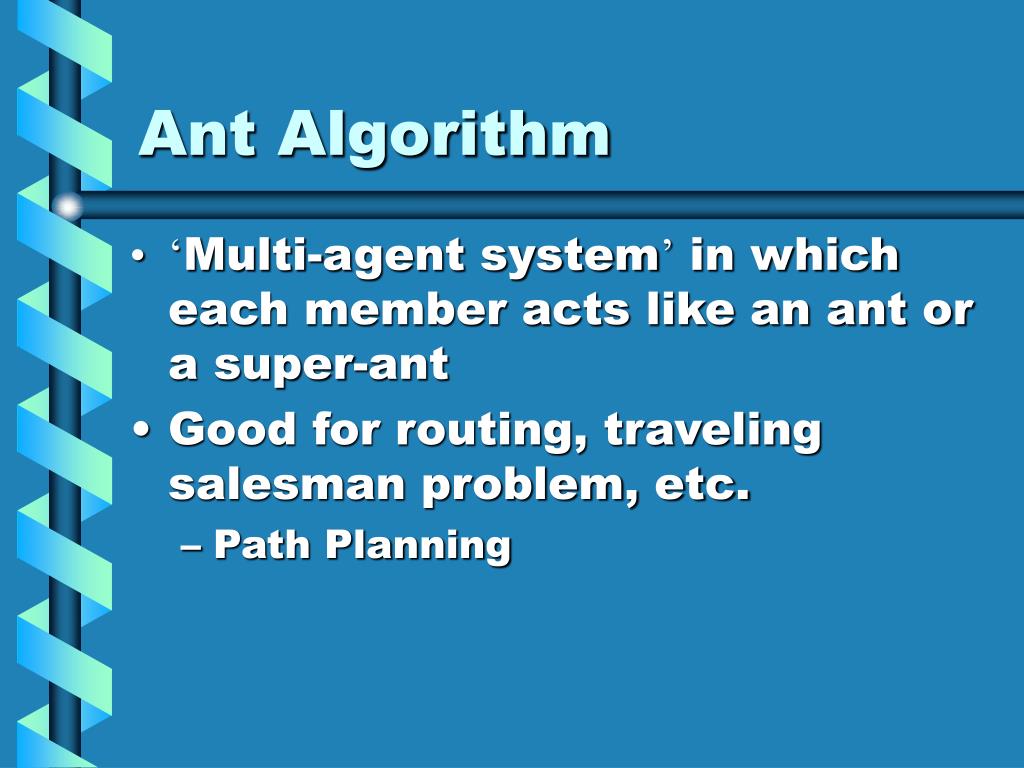

  10. Ant Algorithm • ‘Multi-agent system’ in which each member acts like an ant or a super-ant • Good for routing, traveling salesman problem, etc. • Path Planning

  11. History • Goss et al (1989) studied ants in a laboratory • Ant colony was given access to food linked to the nest by two bridges of different lengths • Ants must choose one way or the other • Ants converged on the smaller path

  12. Experimental Setup Nest Food

  13. More History • Autocatalytic effect • Indirect communication and differential path length • Ants deposit pheromones on the ground • When they reach a decision, they are biased by the amount of pheromone

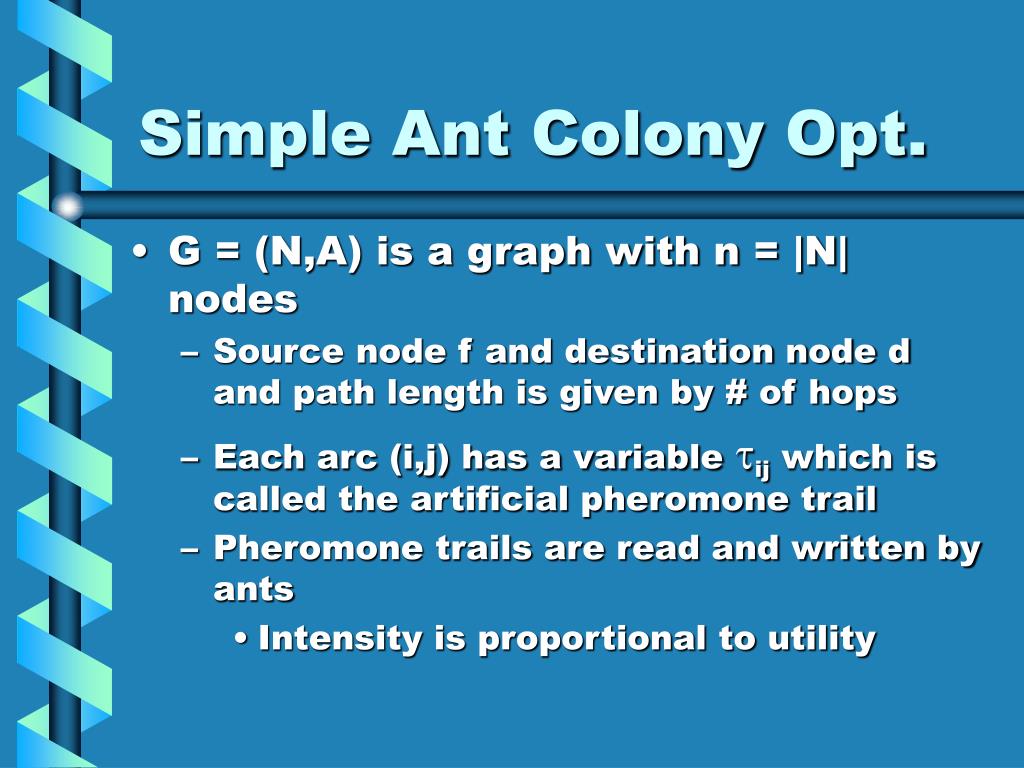

  14. Simple Ant Colony Opt. • G = (N,A) is a graph with n = |N| nodes • Source node f and destination node d and path length is given by # of hops • Each arc (i,j) has a variable ij which is called the artificial pheromone trail • Pheromone trails are read and written by ants • Intensity is proportional to utility

  15. More S-ACO • At each node, information on the node or the outgoing arcs are used stochastically to decide the next move • For ant k at node i uses pheromone trails ij to compute the probability of moving to node jNi as the next move

  16. More S-ACO • Ants deposit pheromone on the arcs they use • ij(t)  ij(t) +   • Autocatalysis and differential path length will again favor the smaller path • BUT this can converge inappropriately to a suboptimal path

  17. Better Pheromone Model • Similar to real pheromones, artificial pheromone trails can evaporate • Decrease the pheromone trails exponentially •   (1-) , (0,1] • Multiply for each iteration of the algorithm • Pheromone trails encode a long-term memory about the whole search process

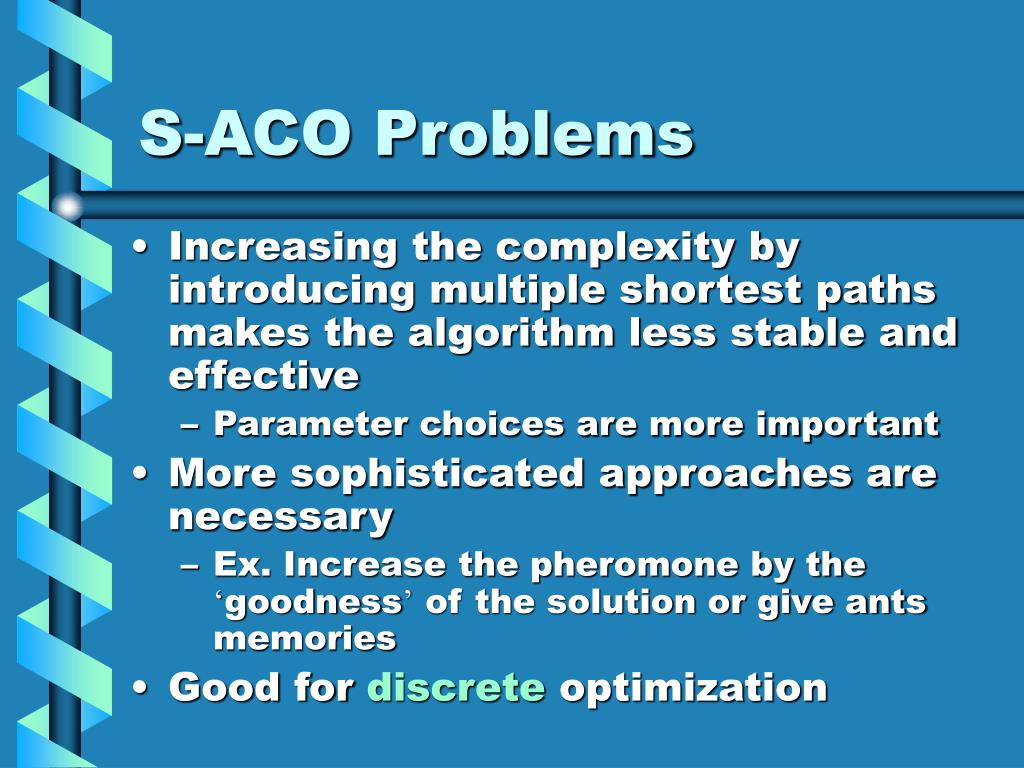

  18. S-ACO Problems • Increasing the complexity by introducing multiple shortest paths makes the algorithm less stable and effective • Parameter choices are more important • More sophisticated approaches are necessary • Ex. Increase the pheromone by the ‘goodness’ of the solution or give ants memories • Good for discrete optimization

  19. S-ACO Notes • Good quality solutions can usually only emerge from collective interaction among the ants • Each ant makes use only of private information and local information about the node it is visiting • Ants do not adapt, they adaptively modify the way the problem is represented and perceived by other ants

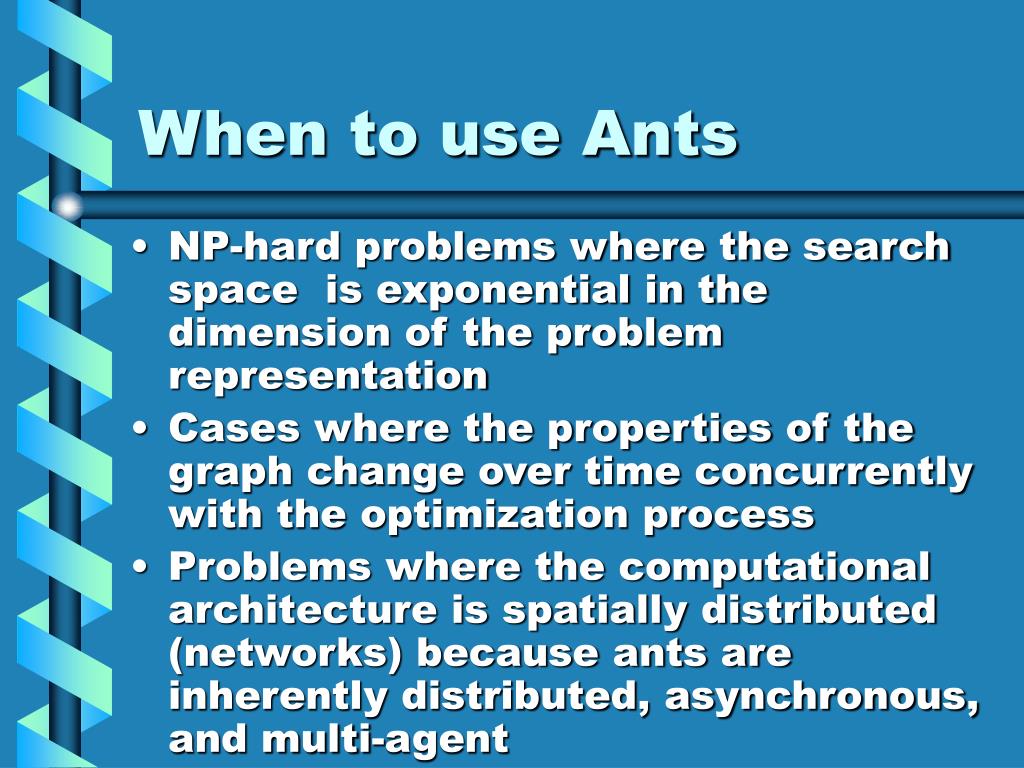

  20. When to use Ants • NP-hard problems where the search space is exponential in the dimension of the problem representation • Cases where the properties of the graph change over time concurrently with the optimization process • Problems where the computational architecture is spatially distributed (networks) because ants are inherently distributed, asynchronous, and multi-agent

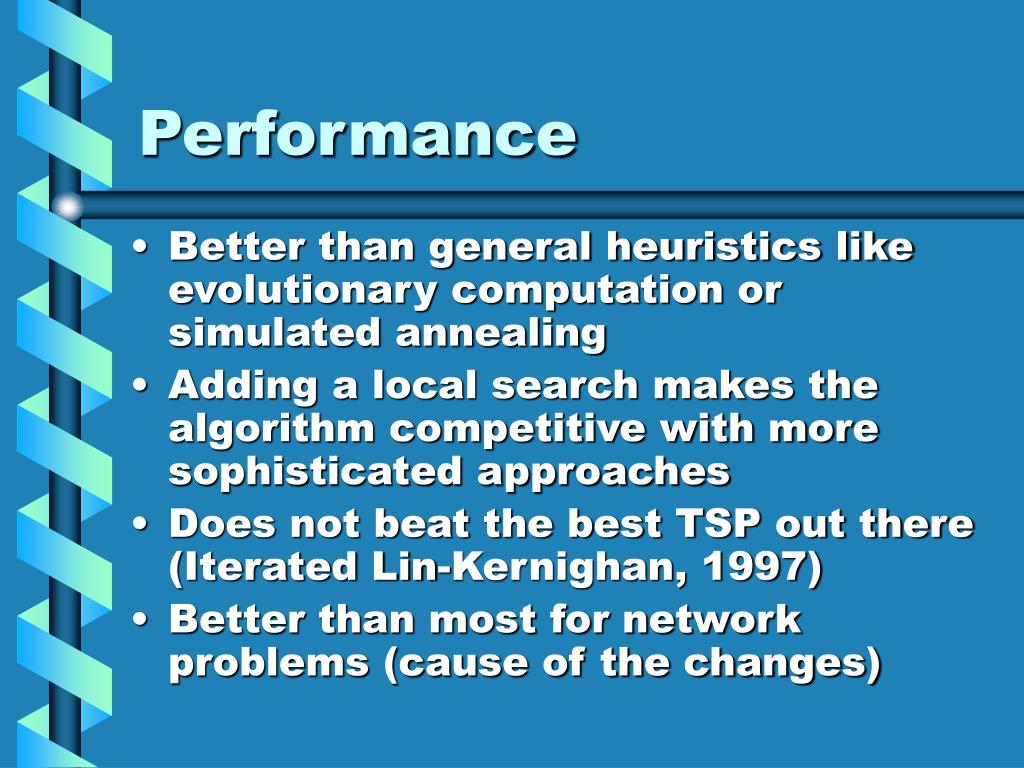

  21. Performance • Better than general heuristics like evolutionary computation or simulated annealing • Adding a local search makes the algorithm competitive with more sophisticated approaches • Does not beat the best TSP out there (Iterated Lin-Kernighan, 1997) • Better than most for network problems (cause of the changes)

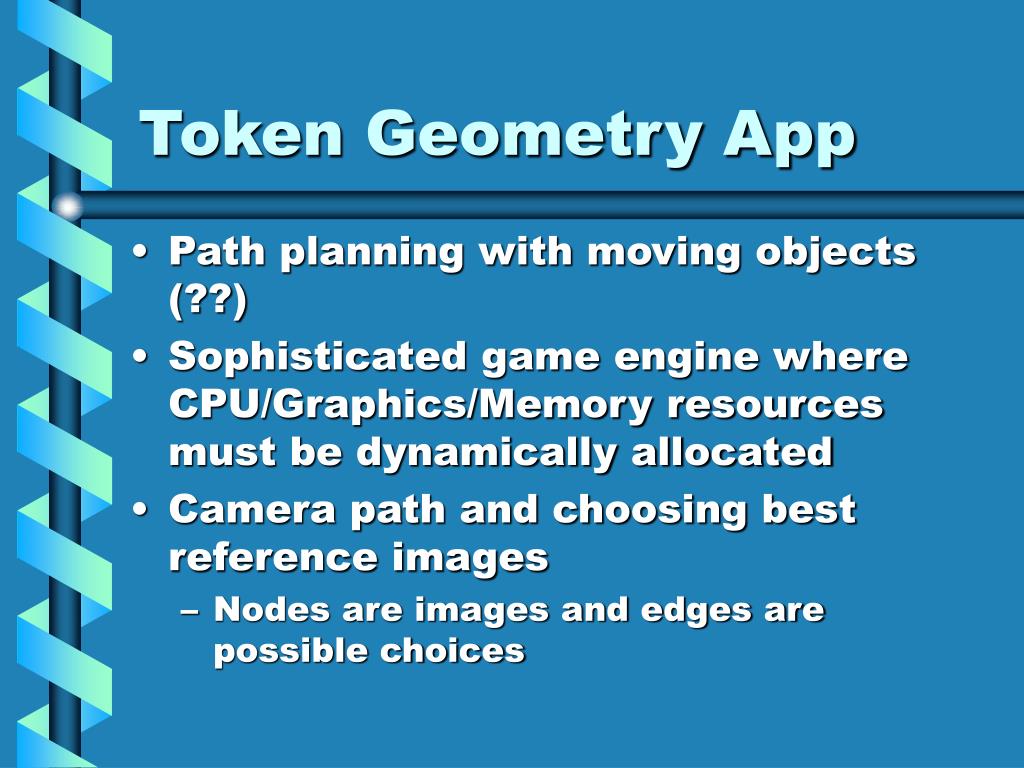

  22. Token Geometry App • Path planning with moving objects (??) • Sophisticated game engine where CPU/Graphics/Memory resources must be dynamically allocated • Camera path and choosing best reference images • Nodes are images and edges are possible choices

  23. Differential Evolution • “Differential Evolution (DE) is a simple yet powerful population-based, direct-search algorithm for globally optimizing functions defined on totally ordered spaces, including especially functions with real-valued parameters.”

  24. When to Use DE • Problem specific methods will usually do better when compared to general methods • But no deterministic algorithm does well with functional pathologies

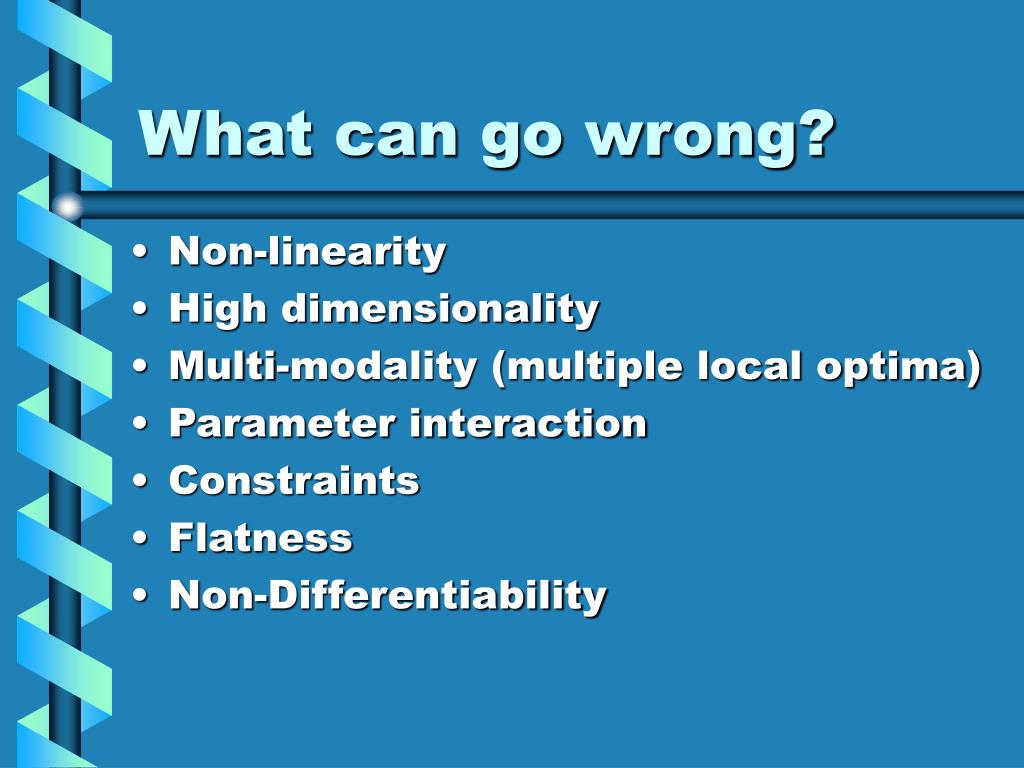

  25. What can go wrong? • Non-linearity • High dimensionality • Multi-modality (multiple local optima) • Parameter interaction • Constraints • Flatness • Non-Differentiability

  26. Generic Evol. Alg. • Initialize population • Evaluate fitness • Do(until we win or are tired) • Mutate the population • Recombine the mutants to keep the population size down • Evaluate fitness • Select successors

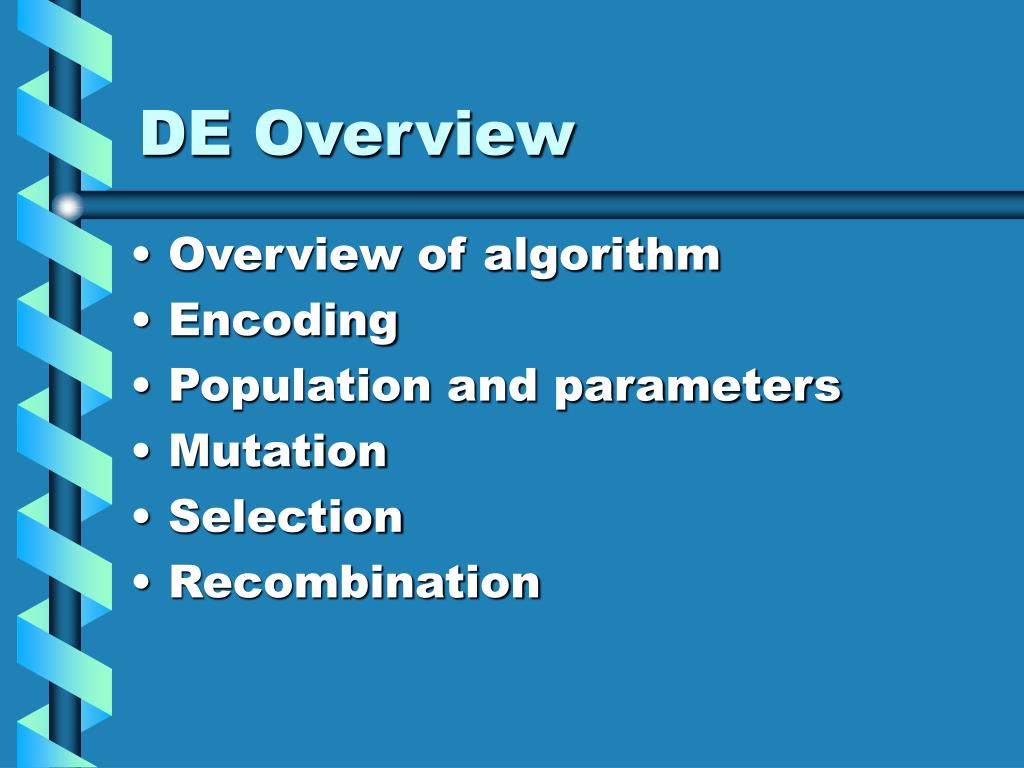

  27. DE Overview • Overview of algorithm • Encoding • Population and parameters • Mutation • Selection • Recombination

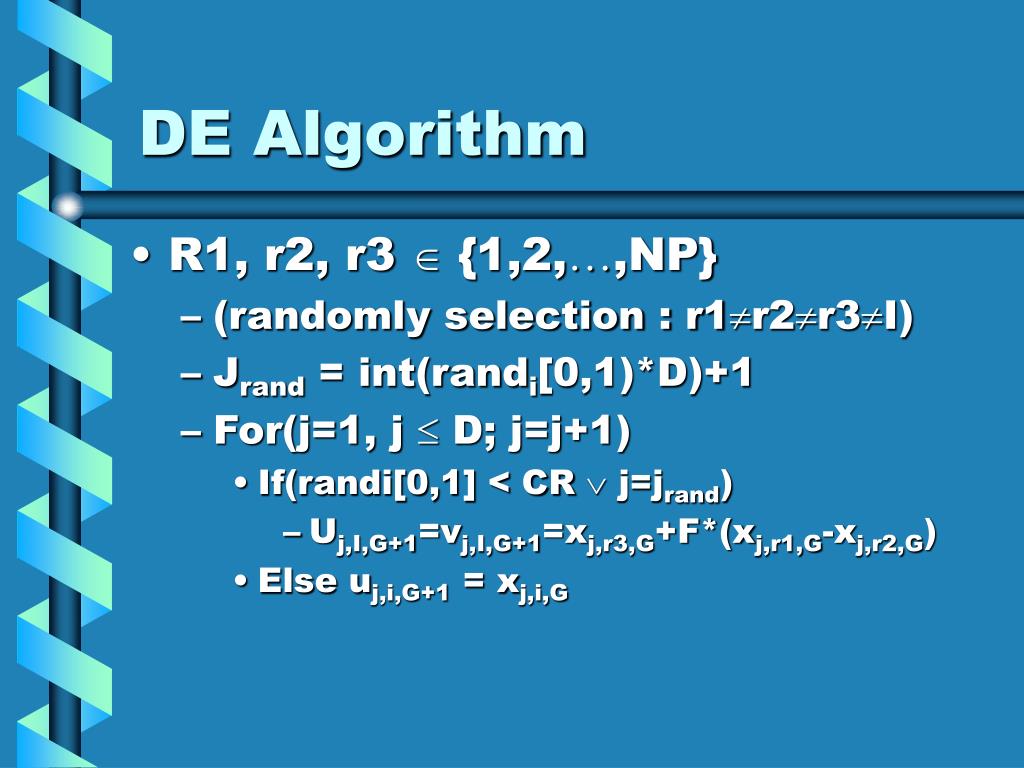

  28. DE Algorithm • R1, r2, r3  {1,2,…,NP} • (randomly selection : r1r2r3I) • Jrand = int(randi[0,1)*D)+1 • For(j=1, j  D; j=j+1) • If(randi[0,1] < CR  j=jrand) • Uj,I,G+1=vj,I,G+1=xj,r3,G+F*(xj,r1,G-xj,r2,G) • Else uj,i,G+1 = xj,i,G

  29. Pictorially

  30. Evaluating a Vector Vi,G+1=Xr3,G+F*(Xr1,G- Xr2,G) = potential child F*(Xr1,G- Xr2,G) Ui,G+1 Ui,G+1 Xr3,G Ui,G+1 Xi,G Vi,G+1 Xr1,G- Xr2,G Xr1,G Xr2,G

  31. Ex. Ellipse Again

  32. Global Mutations • Say two ellipsoids • Usually a search will converge on one of them and ignore the other • In DE since all the object vectors are mutated by the same distribution, if object vectors occupy both ellipsoids then the distribution will contain a mixture • Inclusion of large scale mutations from vectors form both ellipses give some form of globally correlated mutation

  33. Pictorially

  34. DE Results • Telescope design with DE and ray tracer • DE chooses curvature, number of lenses, type of lenses • Mechanical problems • Discrete and continuous solutions used the same parameter choices • Function approximation, curve constraints, surface constraints, inverse problems

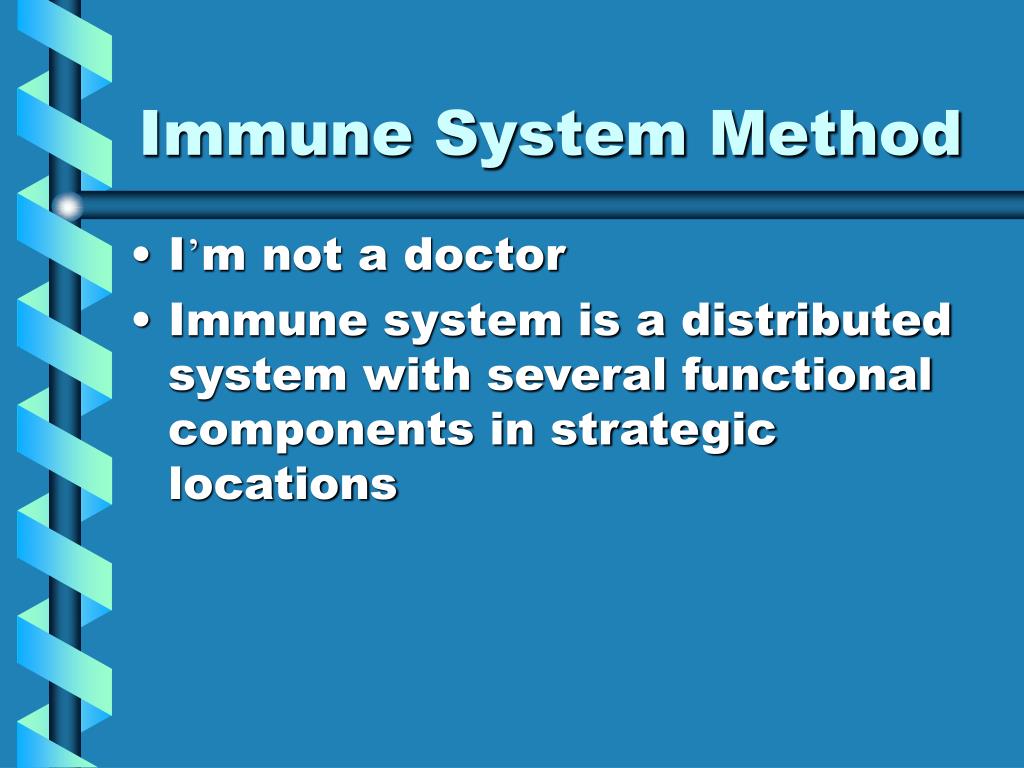

  35. Immune System Method • I’m not a doctor • Immune system is a distributed system with several functional components in strategic locations

  36. Artificial Immune Sys. • Emulate some facet of the immune system • Learning classifier • Recruitment mechanism • Similar to biological evolution • Feedback • Discover and maintain coverage of diverse patterns • Solutions are drawn from a library of separate gene segements (put the pieces together)

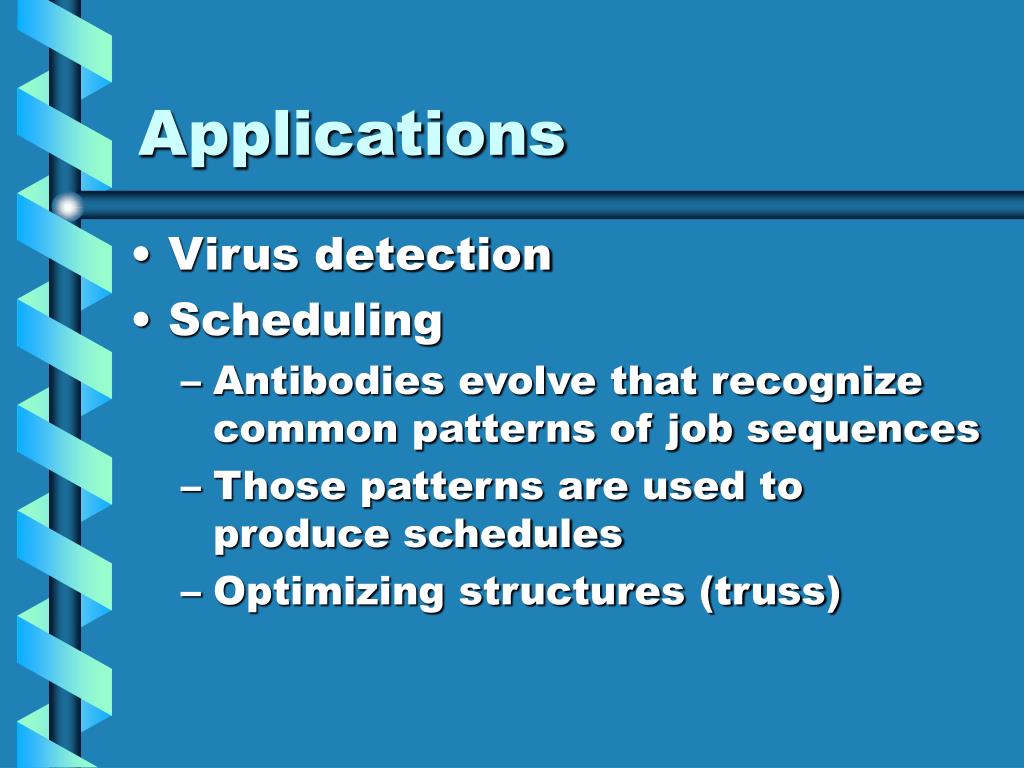

  37. Applications • Virus detection • Scheduling • Antibodies evolve that recognize common patterns of job sequences • Those patterns are used to produce schedules • Optimizing structures (truss)

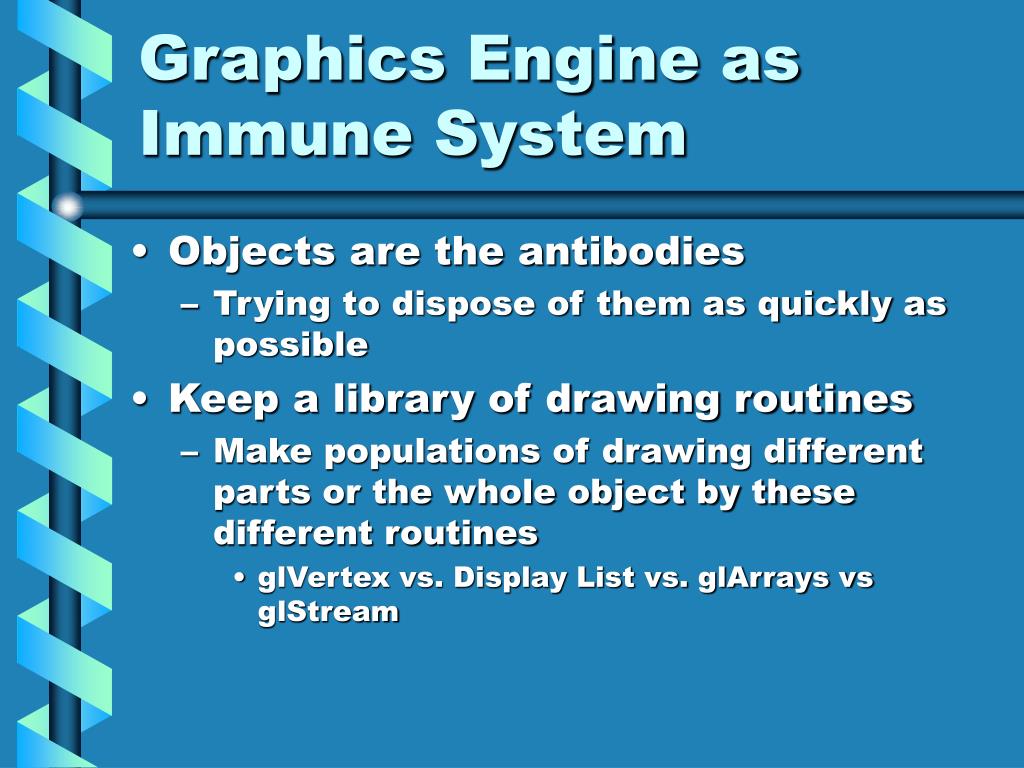

  38. Graphics Engine as Immune System • Objects are the antibodies • Trying to dispose of them as quickly as possible • Keep a library of drawing routines • Make populations of drawing different parts or the whole object by these different routines • glVertex vs. Display List vs. glArrays vs glStream

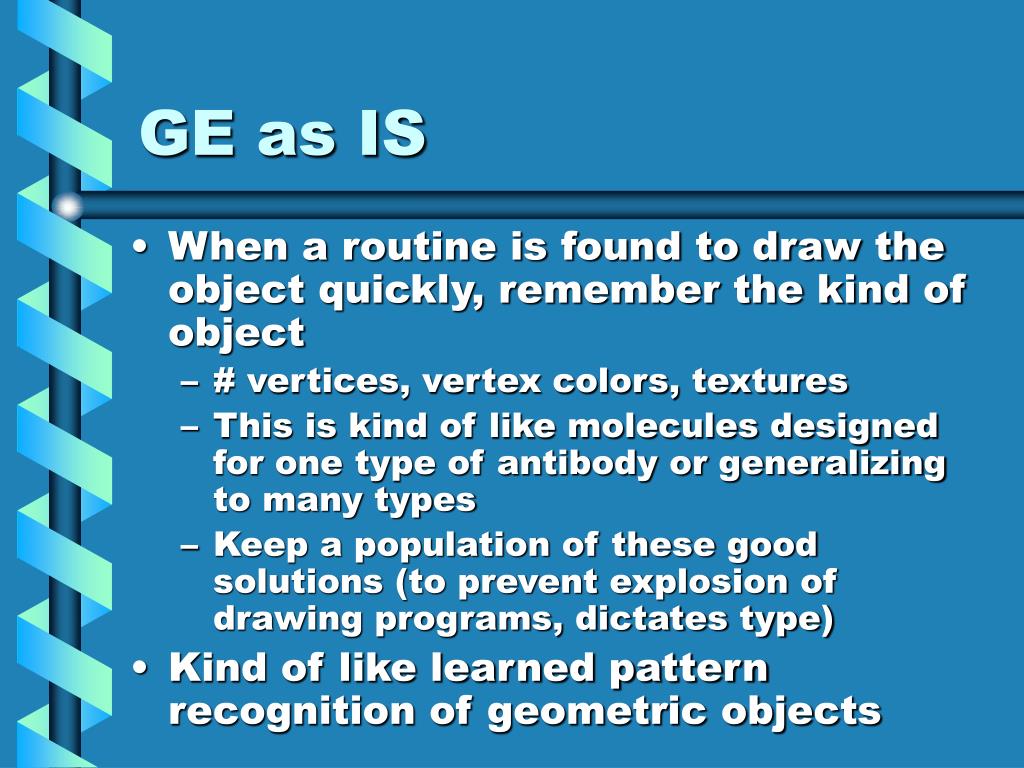

  39. GE as IS • When a routine is found to draw the object quickly, remember the kind of object • # vertices, vertex colors, textures • This is kind of like molecules designed for one type of antibody or generalizing to many types • Keep a population of these good solutions (to prevent explosion of drawing programs, dictates type) • Kind of like learned pattern recognition of geometric objects

  40. Particle Swarm (1995) • Social interaction is crucial to human cognition • PS models the exploration of problem space by a population • Individual’s successes influence the searches of their peers

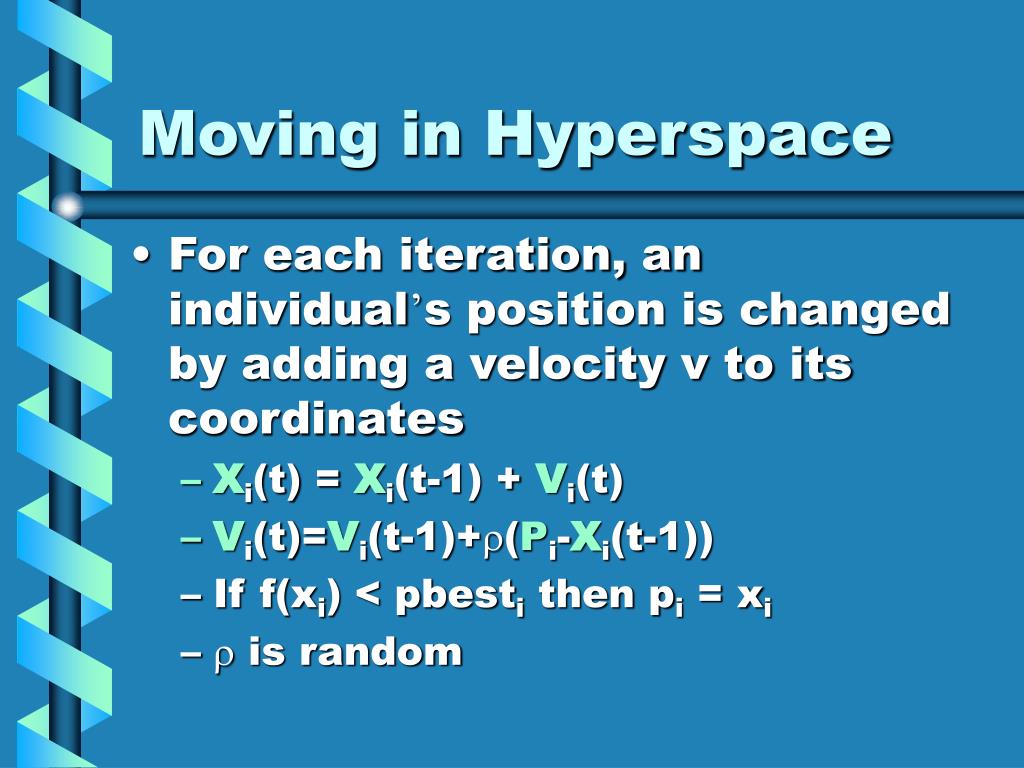

  41. Moving in Hyperspace • For each iteration, an individual’s position is changed by adding a velocity v to its coordinates • Xi(t) = Xi(t-1) + Vi(t) • Vi(t)=Vi(t-1)+(Pi-Xi(t-1)) • If f(xi) < pbesti then pi = xi •  is random

  42. On To Groups • A neighborhood is defined for an individual • Can use whole population (gbest) or a subset (lbest) • An individual looks at the best solution so far pg • (pg-xi) is the distance from individual to best (vector of social influence)

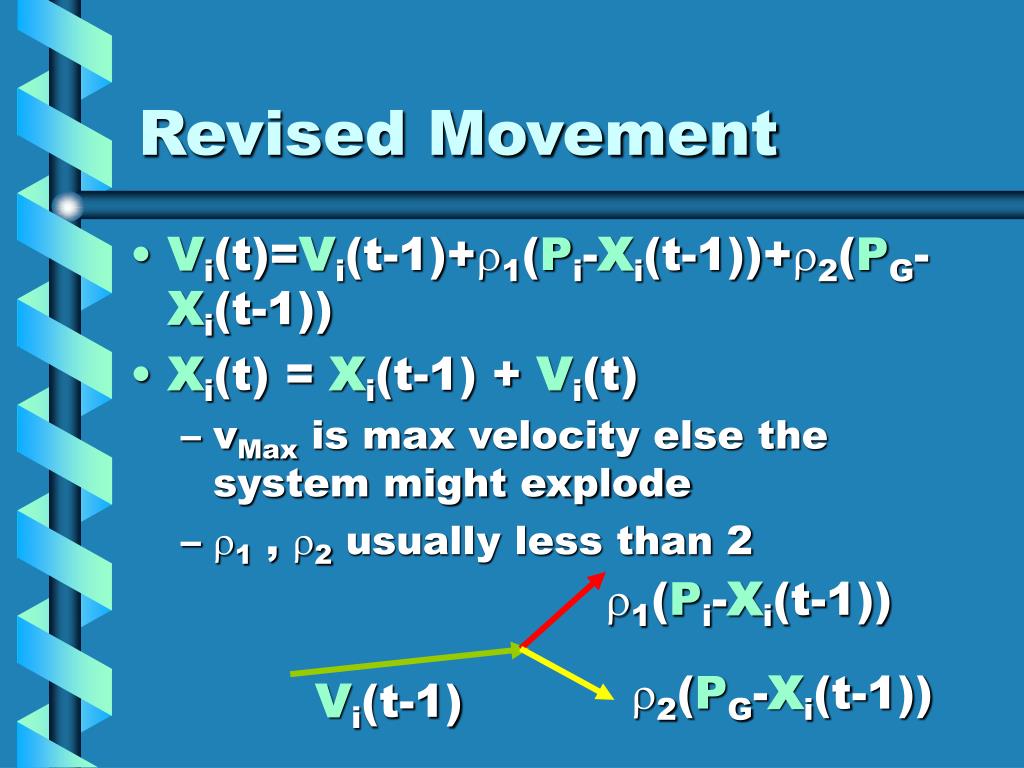

  43. Revised Movement • Vi(t)=Vi(t-1)+1(Pi-Xi(t-1))+2(PG-Xi(t-1)) • Xi(t) = Xi(t-1) + Vi(t) • vMax is max velocity else the system might explode • 1 , 2 usually less than 2 1(Pi-Xi(t-1)) 2(PG-Xi(t-1)) Vi(t-1)

  44. Parameters • Dimensionality • Works better on high than low • Number of Individuals • Inverse relationship between the size of the population and the number of iterations • i should be < 2 • VMAX– might be able to eliminate

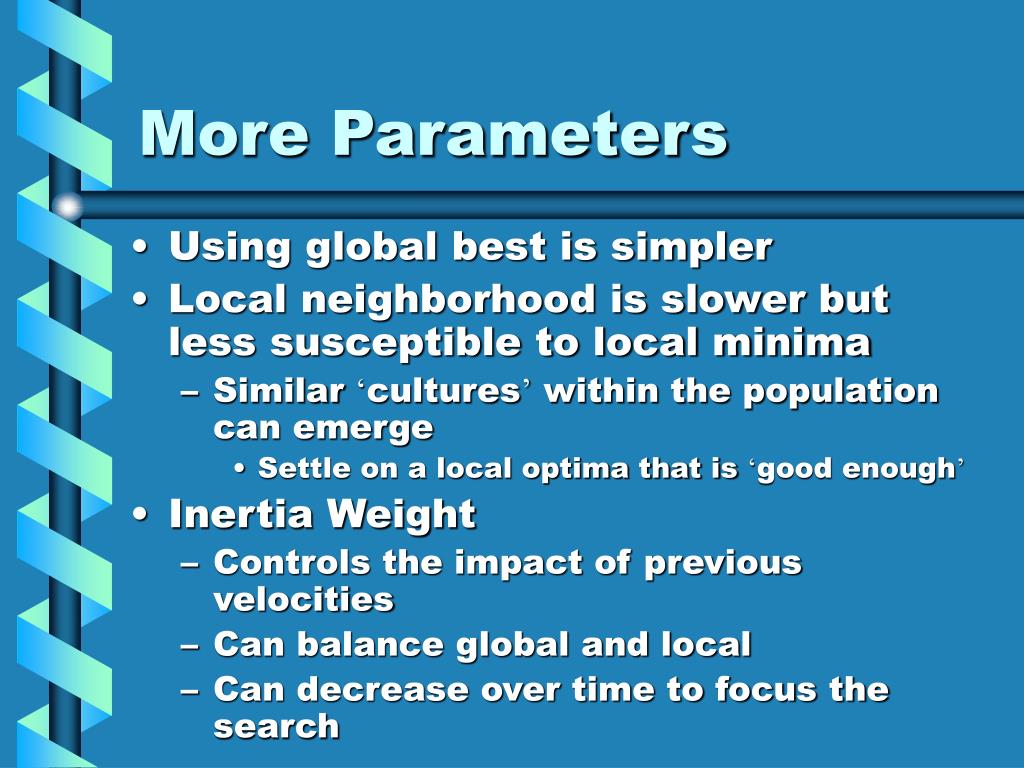

  45. More Parameters • Using global best is simpler • Local neighborhood is slower but less susceptible to local minima • Similar ‘cultures’ within the population can emerge • Settle on a local optima that is ‘good enough’ • Inertia Weight • Controls the impact of previous velocities • Can balance global and local • Can decrease over time to focus the search

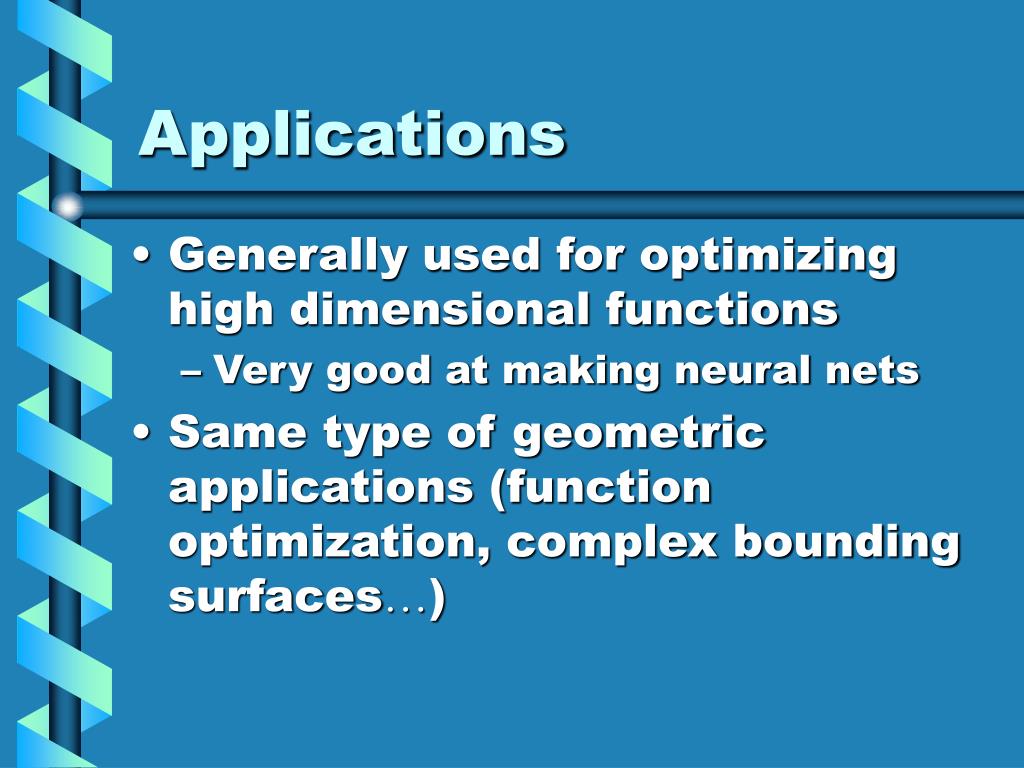

  46. Applications • Generally used for optimizing high dimensional functions • Very good at making neural nets • Same type of geometric applications (function optimization, complex bounding surfaces…)

  47. Conclusion • We have seen 4 different approaches to the same task of optimization using stochastic methods • Randomness can be  smart • The theory behind these methods is still immature • The application to graphics is still open to debate
