## Uniform Circular Motion

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

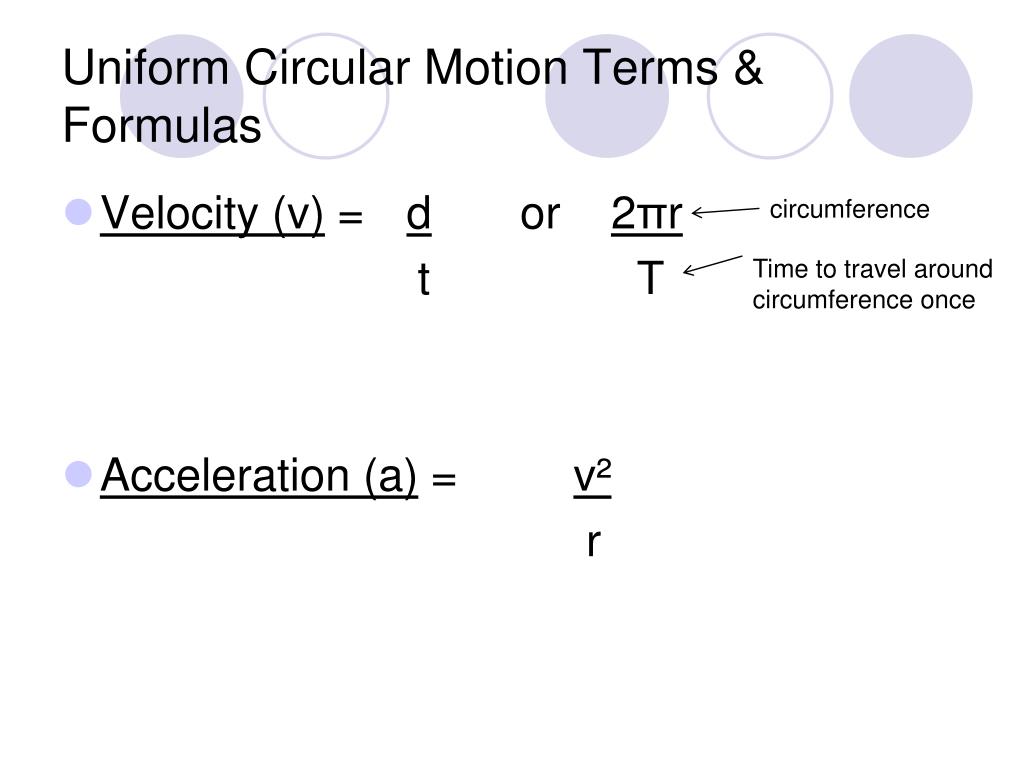

**Uniform Circular Motion**Basic Principles & Formulas**Uniform Circular Motion Principles**• Object moves at a constant speed (speed = scalar quantity) • Object’s velocity is constantly changing (velocity = vector quantity) due to a continuous change in direction • Velocity is tangent to circular motion • While in motion, there is a force and an acceleration being applied to the object**Uniform Circular Motion Terms & Formulas**• Period (T) = time it takes to make 1 revolution (time to travel circumference). • Period may be given, obvious or determined by time/revolutions ex. 25 rev. in 10 sec. T = 10/25 .4 sec (T = 1/f) • Frequency (f) = number of revolutions made in 1 sec. (f = 1/T) units = Hz (Period & Frequency are Inversely Related)**Uniform Circular Motion Diagram**Acceleration & Force = Parallel to Radius / Velocity = Perpendicular to Radius v a r F**Uniform Circular Motion Questions**• Q = While moving in a circular path, if string breaks, in what direction will the object travel? • A = In a straight line, perp. to radius (Law of Inertia; resistance to change) • Q = In what direction is the force? • A = Inward • Q = In what direction is the acceleration? • A = Inward**Uniform Circular Motion Terms & Formulas**• Velocity (v) = d or 2πr t T • Acceleration (a) = v² r circumference Time to travel around circumference once**Uniform Circular Motion Terms & Formulas**• Force (F) = ma or mv² r Remember, mass must be in Kg!**UCM Example Problem**• A 615 kg race car completes 1.00 lap in 14.3 sec around a circular track with a radius of 50.0 m. What is the car’s T, f, v, a, F (on tires)? • T = 14.3/1.00 = 14.3 • f = 1.00/14.3 = 0.0699 Hz**UCM Example Problem (cont.)**• V = (2)(π)(50.0) 14.3 = 22.0 m/s • a = (22.0 m/s)² 50.0 = 9.68 m/s²**UCM Example Problem (cont.)**• F (on tires) = (615 kg)(22.0 m/s)² 50.0 m = 5,950 N
