  1. Automatic software deployment using user-level virtualization for cloud-computing Future Generation Computer System (2013) Youhui Zhang, Yanhua Li, Weimin Zheng

  2. Outline • Introduction • The framework • Performance test • Conclusion

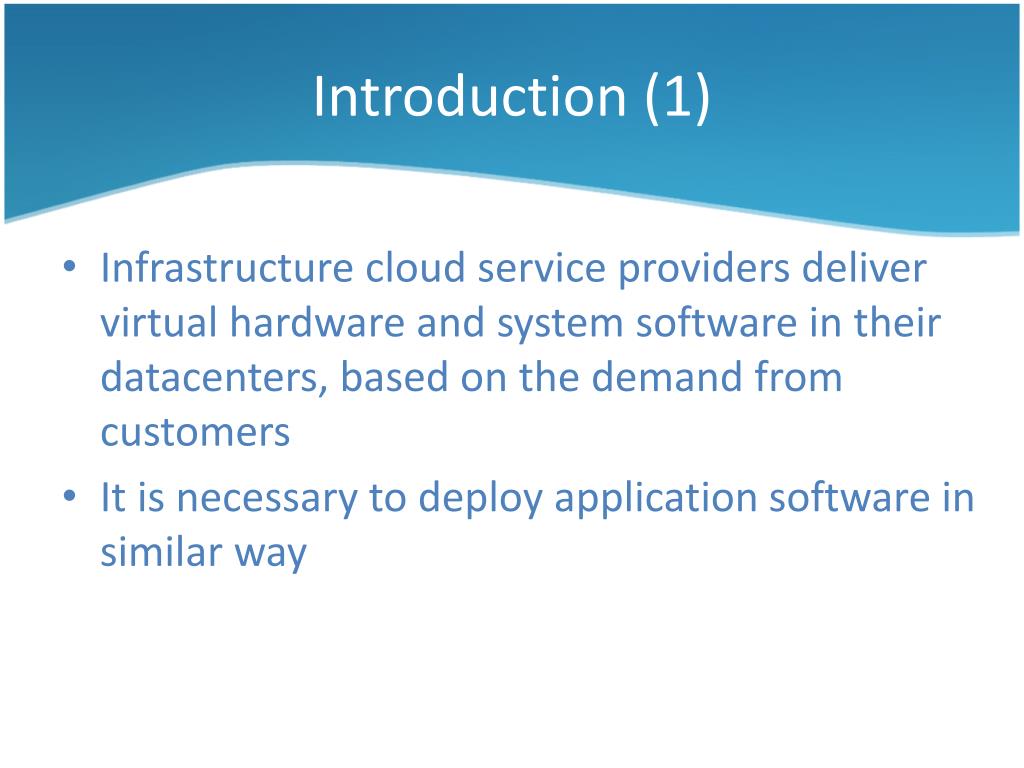

  3. Introduction (1) • Infrastructure cloud service providers deliver virtual hardware and system software in their datacenters, based on the demand from customers • It is necessary to deploy application software in similar way

  4. Virtual Appliances (VAs) • It is a pre-built software • VA-based method can reduce time and expenses

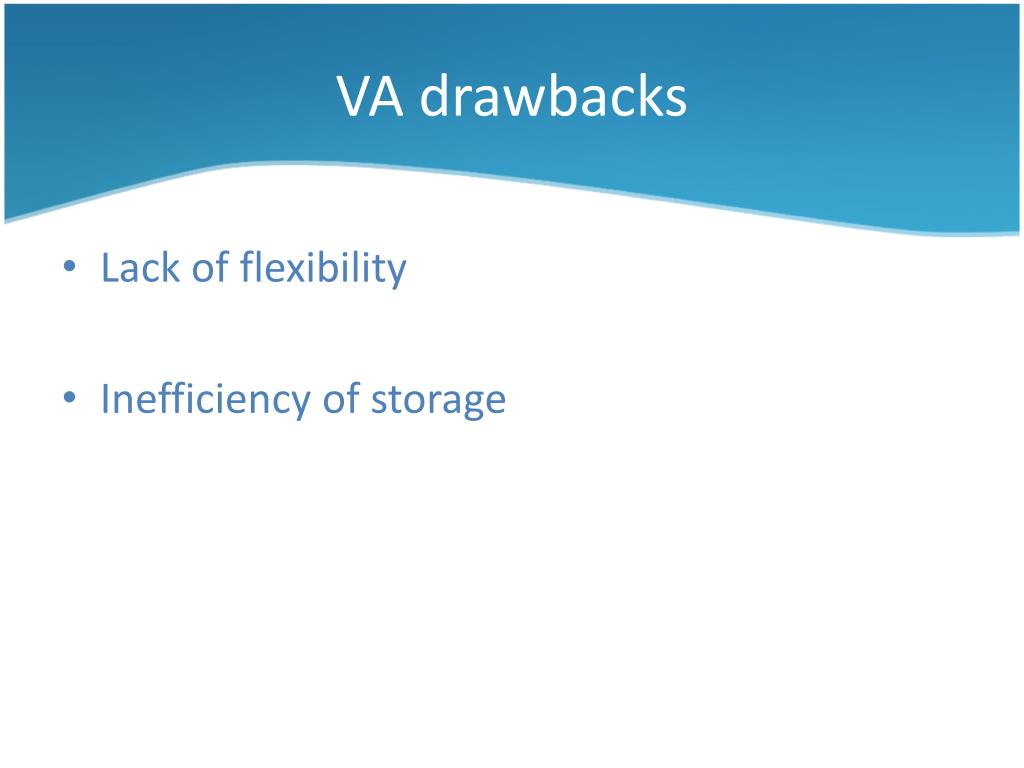

  5. VA drawbacks • Lack of flexibility • Inefficiency of storage

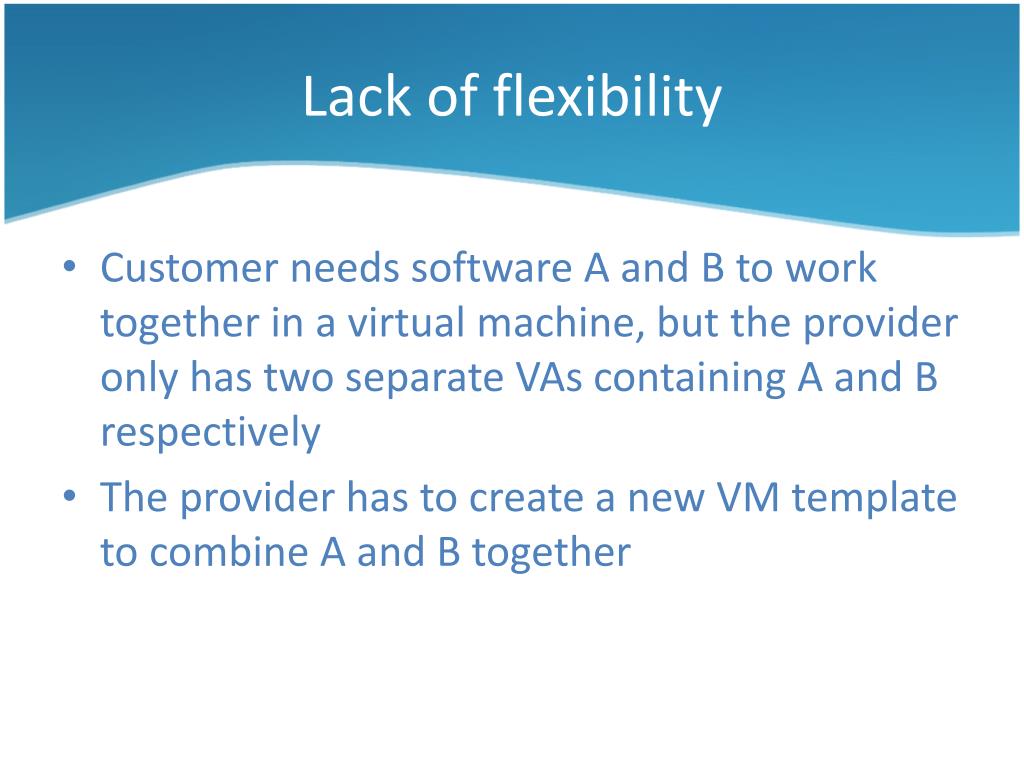

  6. Lack of flexibility • Customer needs software Aand B to work together in a virtual machine, but the provideronly has two separate VAs containing A and B respectively • The provider has to create a new VM template to combine A and Btogether

  7. Inefficiency of storage • OS has to be combined. Therefore, the storage overhead

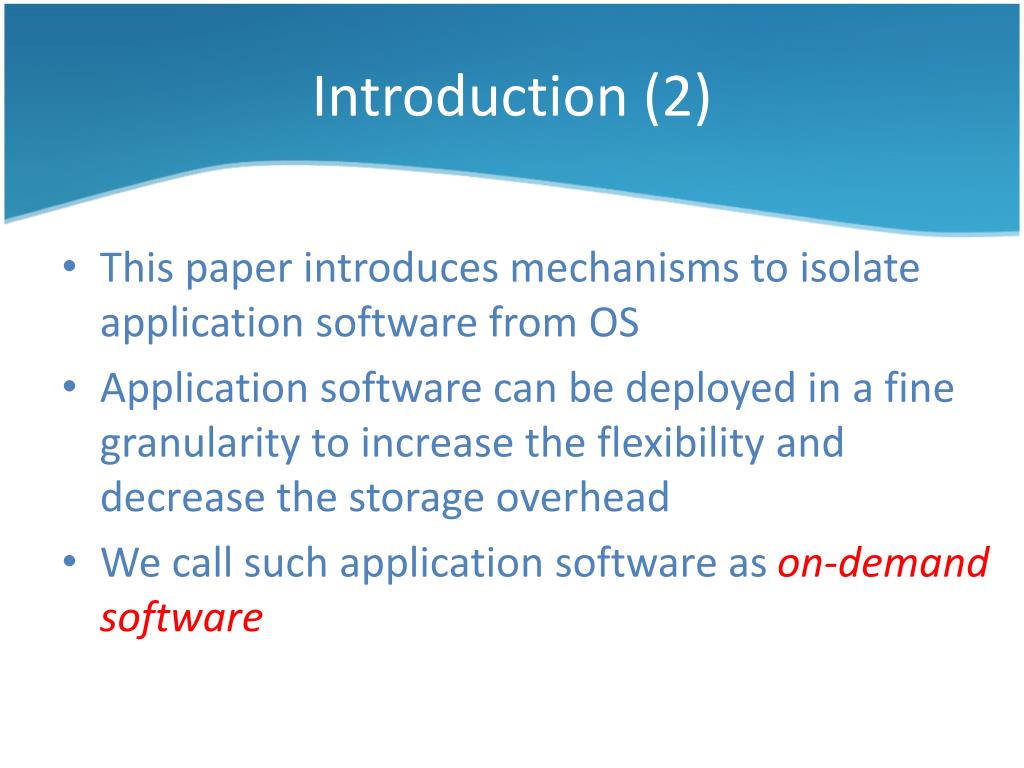

  8. Introduction (2) • This paper introduces mechanisms to isolate application software from OS • Application software can be deployed in a fine granularity to increase the flexibility and decrease the storage overhead • We call such application software as on-demand software

  9. Function1 - Software preparation • Cover software into the on-demand mode • On-demand software is stored in the software depository for users’ selection

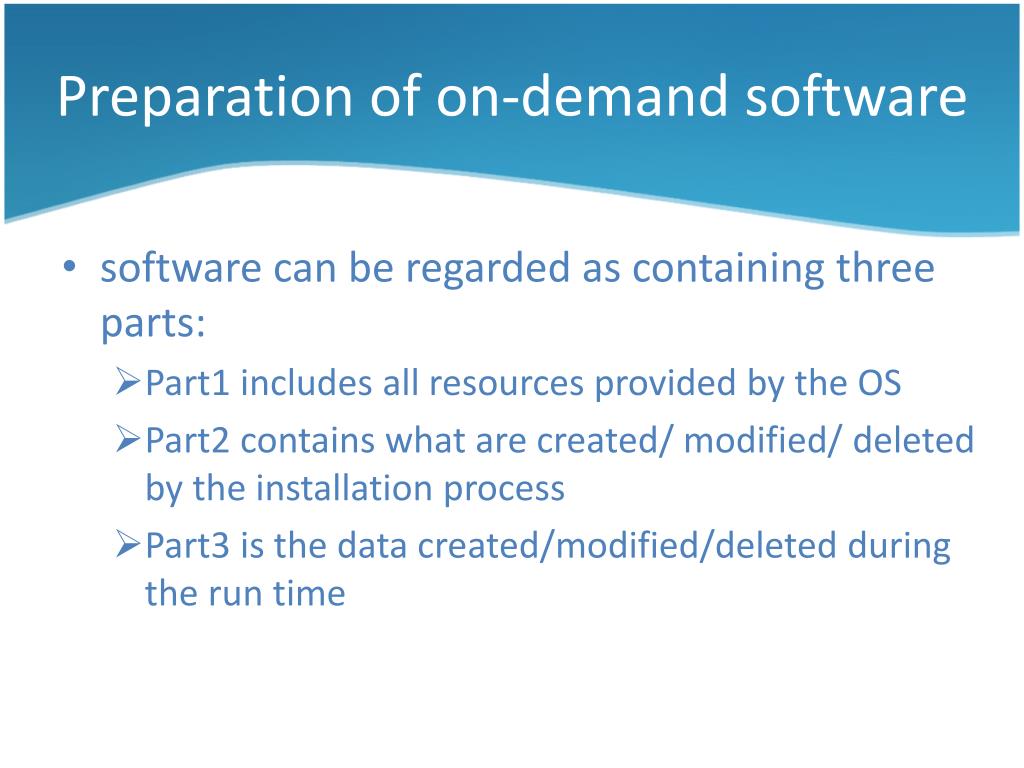

  10. Preparation of on-demand software • software can be regarded as containing three parts: • Part1 includes all resources provided by the OS • Part2 contains what are created/ modified/ deleted by the installation process • Part3 is the data created/modified/deleted during the run time

  11. Preparation of on-demand software(cont’ d)

  12. Preparation of on-demand software(cont’ d) • Snapshot is taken to build the on-demand software

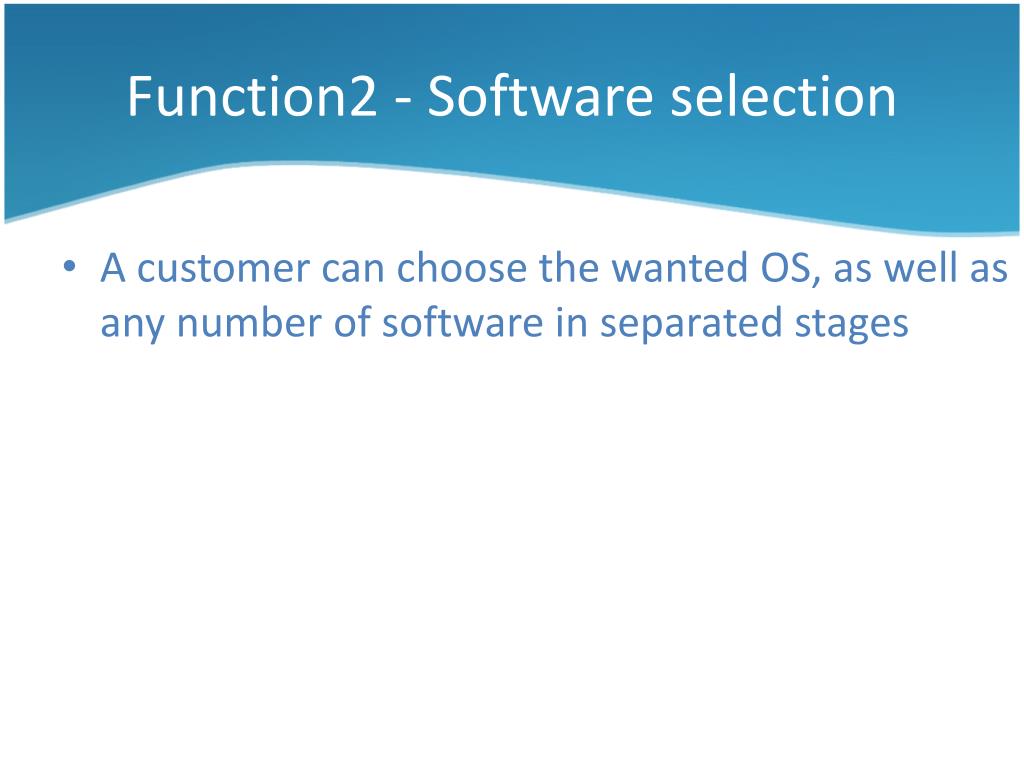

  13. Function2 - Software selection • A customer can choose the wanted OS, as well as any number of software in separated stages

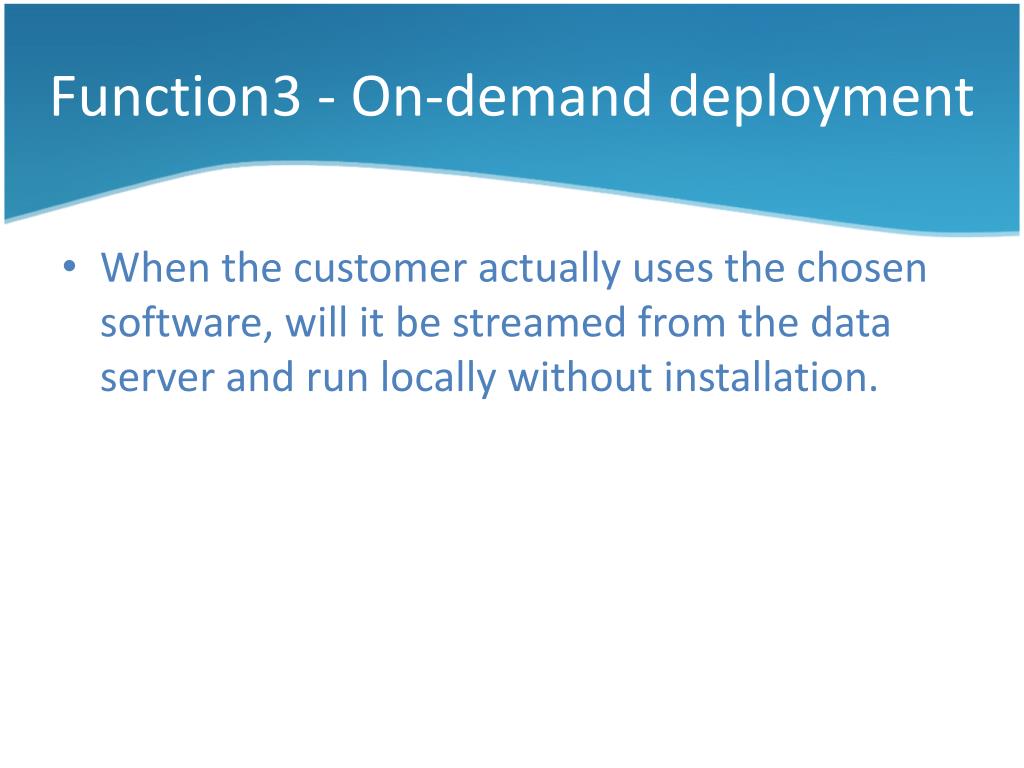

  14. Function3 - On-demand deployment • When the customer actually uses the chosen software, will it be streamed from the data server and run locally without installation.

  15. The runtime environment of on-demand software (cont’ d) • The resource modified will be moved into Part 3

  16. The runtime environment of on-demand software • Construct a runtime environment where software can locate and access any necessary resources • Runtime environment redirects all accesses for Parts 2 and 3 to the actual storage positions and guides other visits (for Part 1) to the local OS

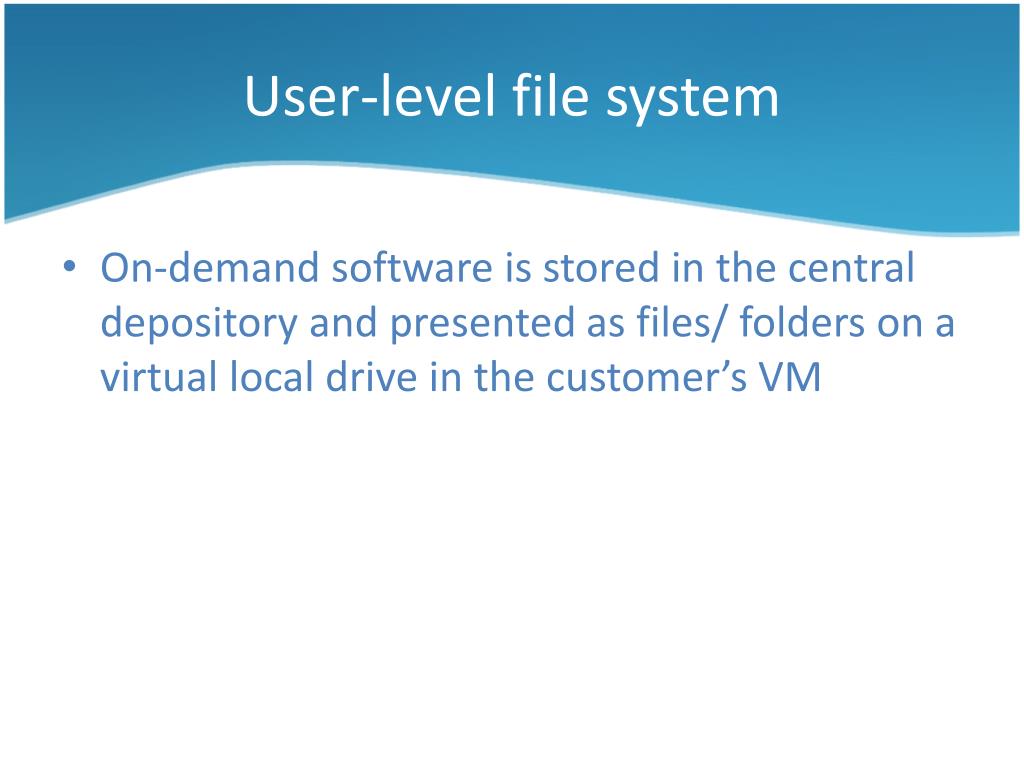

  17. User-level file system • On-demand software is stored in the central depository and presented as files/ folders on a virtual local drive in the customer’s VM

  18. Function4 - Software customization • The VA-based solution, it is difficult to implement this function efficiently

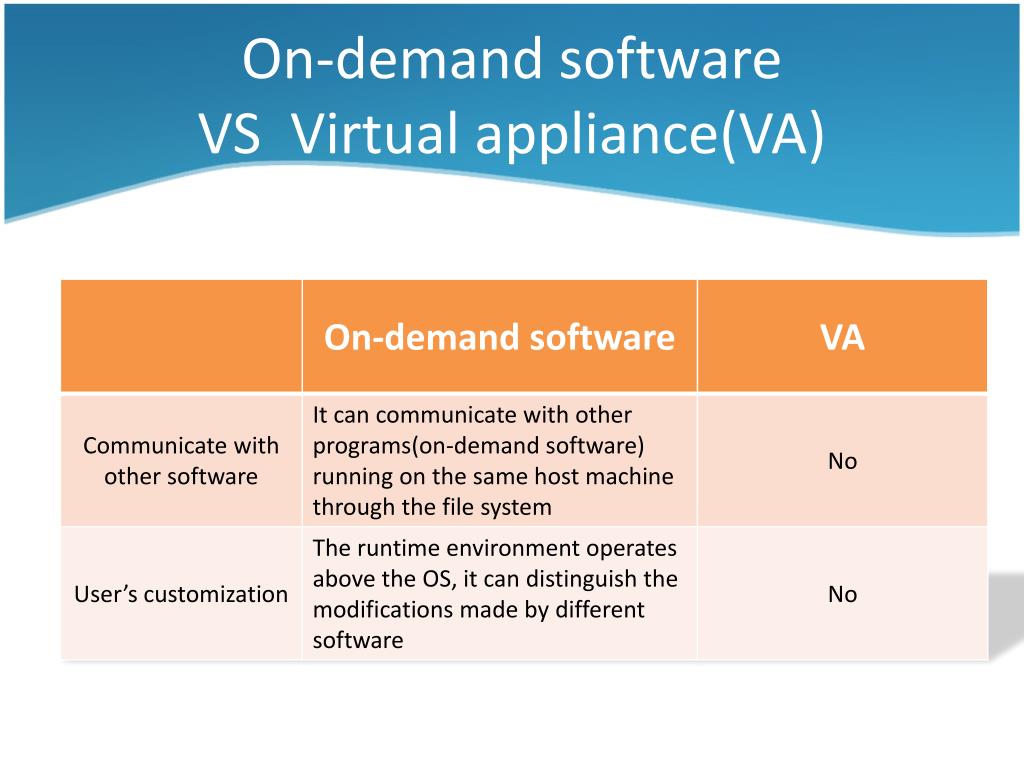

  19. On-demand software VS Virtual appliance(VA)

  20. System overview

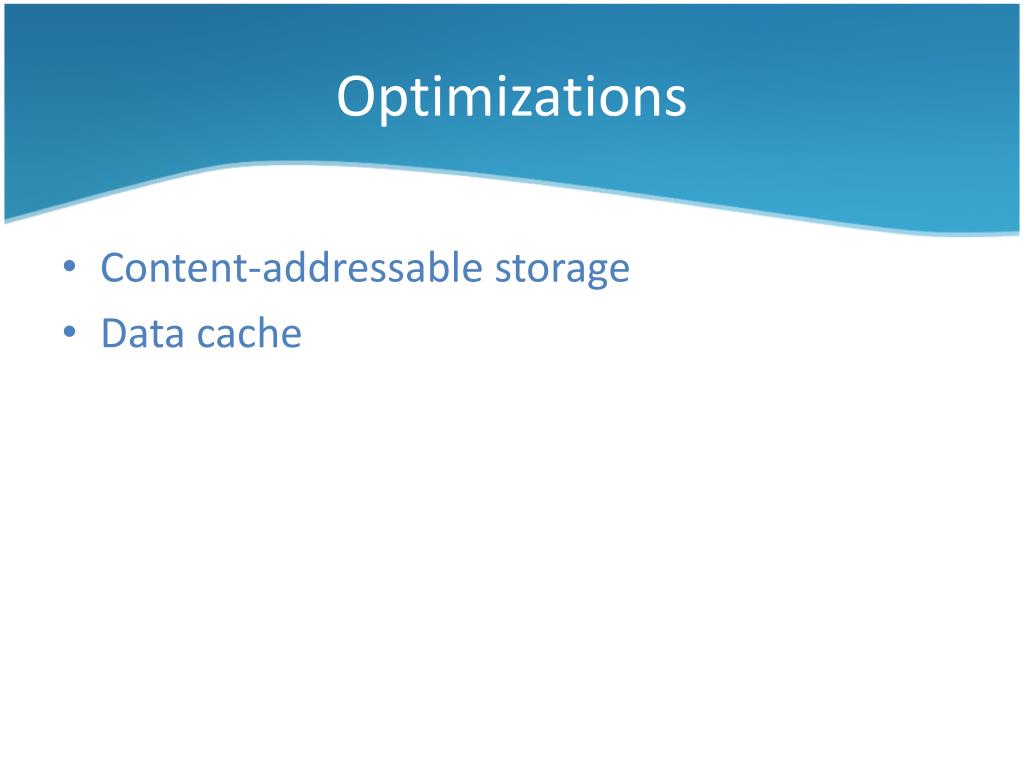

  21. Optimizations • Content-addressable storage • Data cache

  22. Content-addressable storage • On-demandsoftware is partitioned into shards • Compute the hash valueof every shard, and the same values mean the corresponding shardsare identical.

  23. Data cache • The replace strategy is based on the usagefrequency

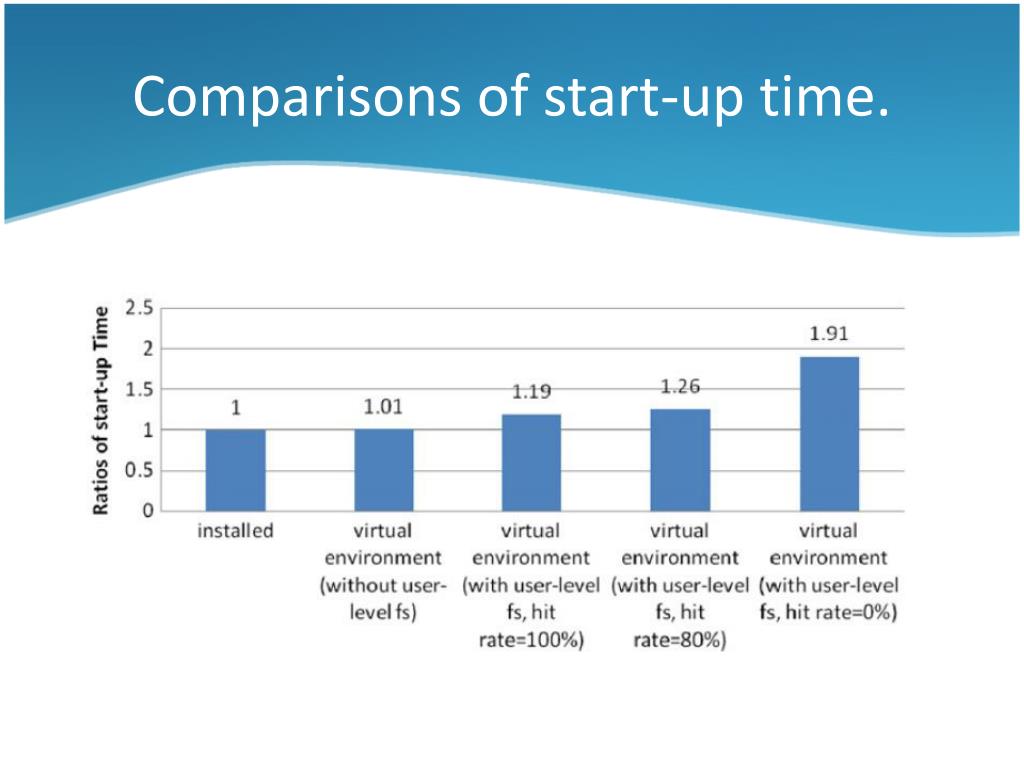

  24. Comparisons of start-up time.

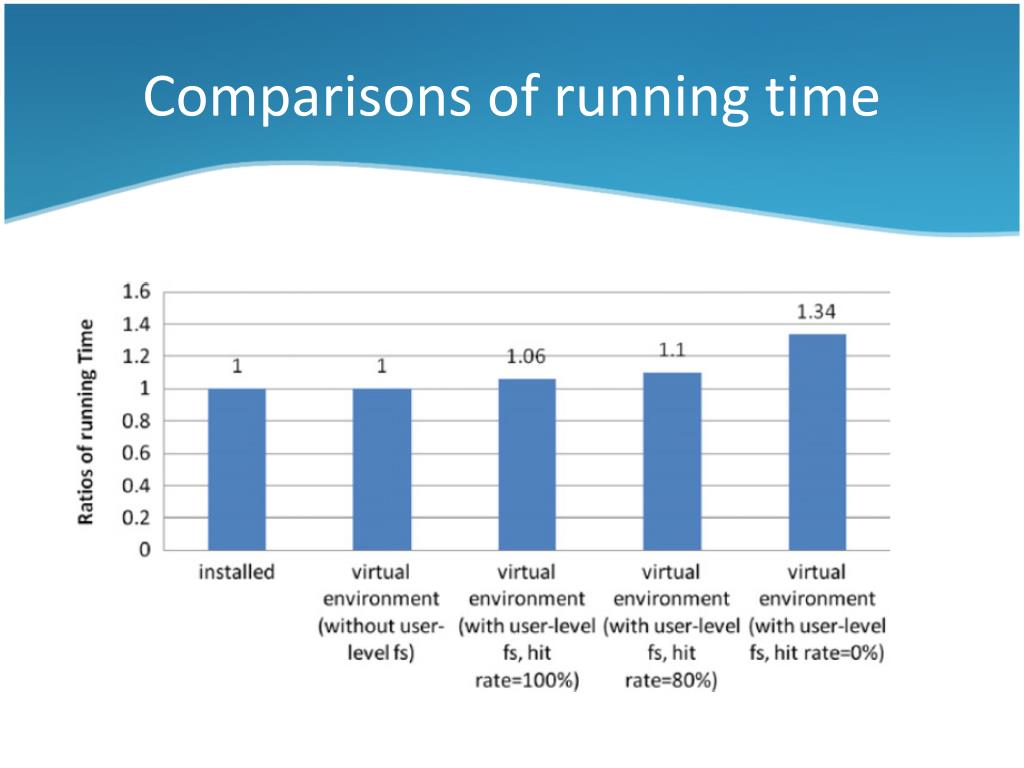

  25. Comparisons of running time

  26. Conclusion • This paper provides a framework to decouple application software from VM images to improve the deployment flexibility for cloud computing • Compared with VA-based solutions, it also improves the storage efficiency • Users’ customization can been separated inherently and efficiently for reuse
