  1. The New Appliance Architecture for the Service Driven Network Sun Microsystems, Inc.

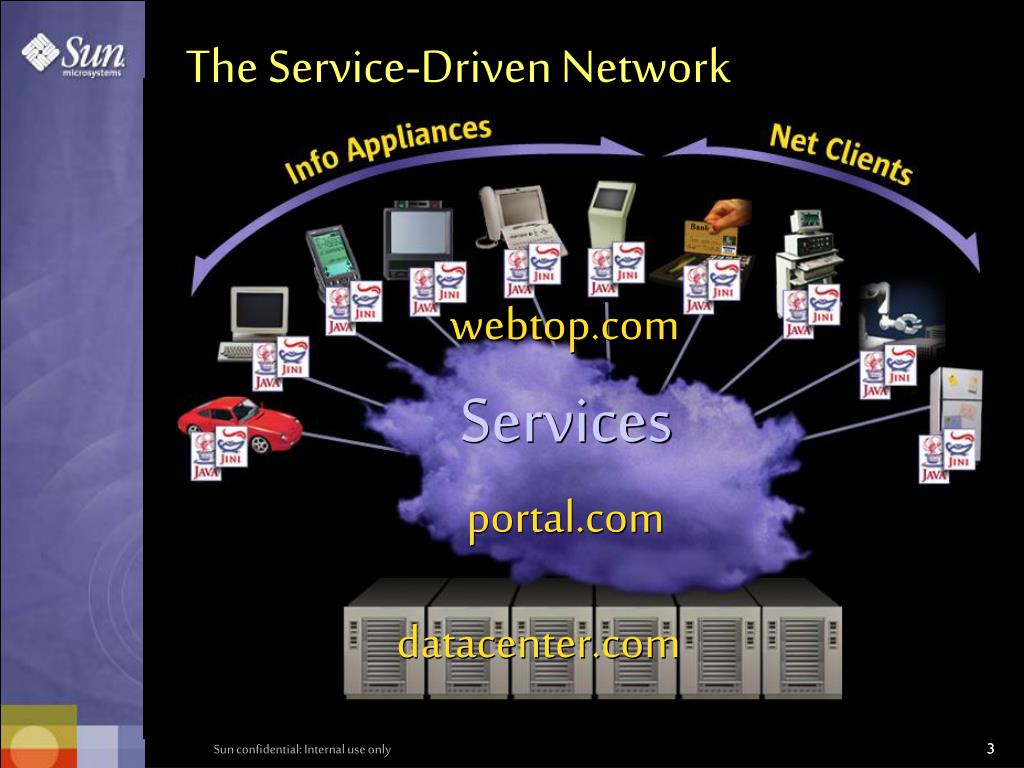

  2. The Service-Driven Network webtop.com Services portal.com datacenter.com 3

  3. The Phone Utility Model • Instant • Constant • Simple • Centrally managed • Never HAS to be upgraded + • Rich • High performance • No changes to applications • Preserve backend Investment

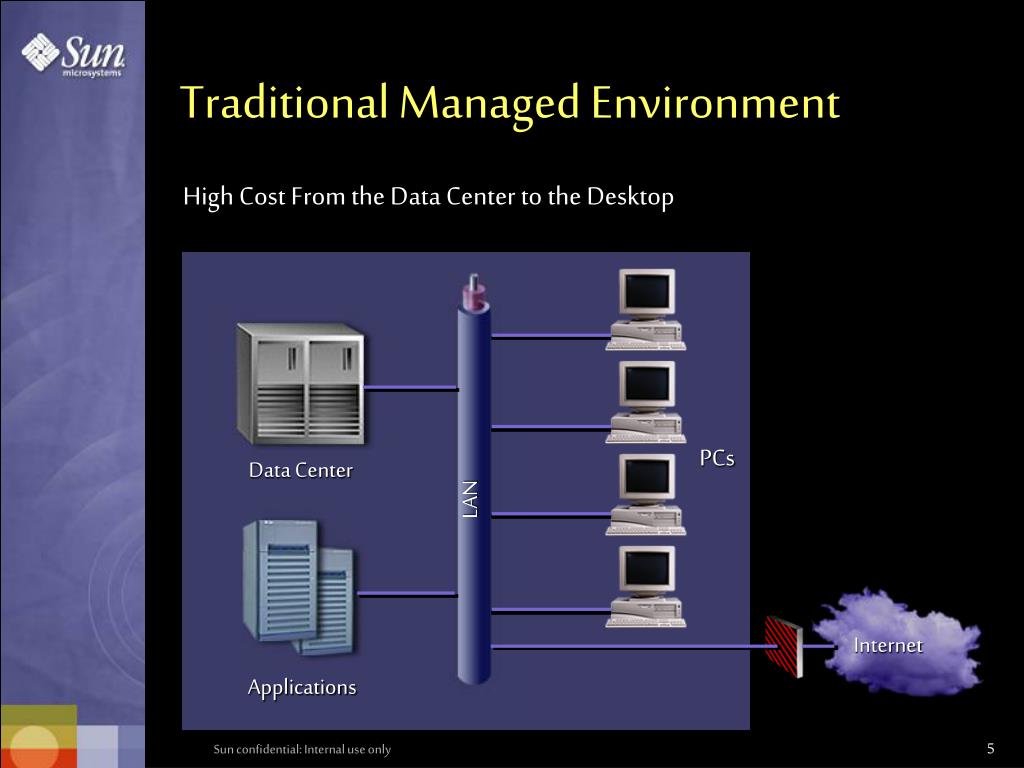

  4. Internet Traditional Managed Environment High Cost From the Data Center to the Desktop PCs Data Center LAN Applications

  5. Internet The SunRay Hot Desk Architecture Everything Managed Centrally! EthernetSwitch Data Center Sun RayEnterprise ServerSoftware LAN Sun Ray EnterpriseAppliances Applications

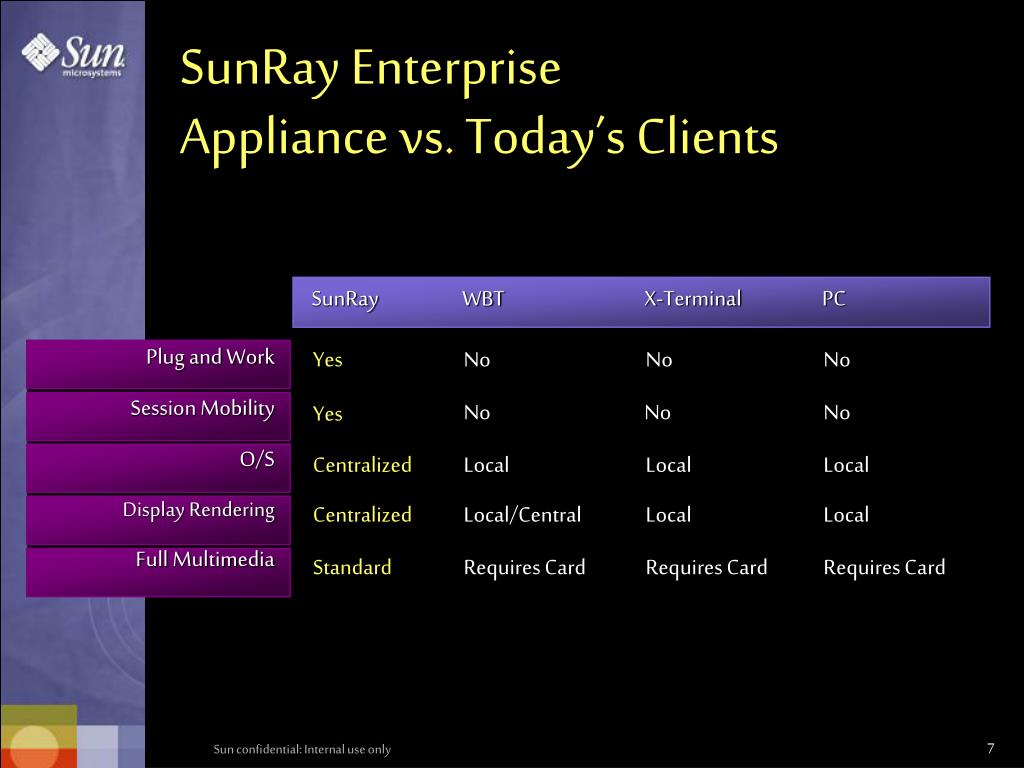

  6. SunRay WBT X-Terminal PC Yes No No No No No No Yes Centralized Local Local Local Centralized Local/Central Local Local Standard Requires Card Requires Card Requires Card SunRay EnterpriseAppliance vs. Today’s Clients Plug and Work Session Mobility O/S Display Rendering Full Multimedia

  7. Key Differentiators of theSunRay Hot Desk Architecture • Hot Desking • No-Upgrade Appliance • Solaris™ RAS • Power of the Server on your Desktop

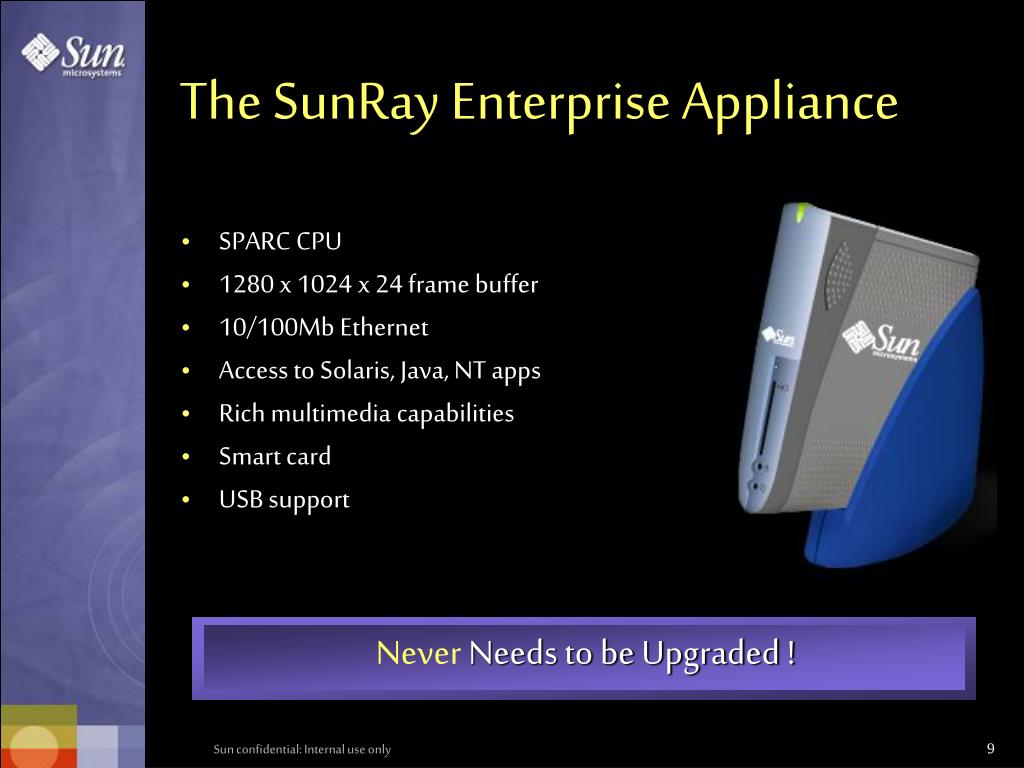

  8. Never Needs to be Upgraded ! The SunRay Enterprise Appliance • SPARC CPU • 1280 x 1024 x 24 frame buffer • 10/100Mb Ethernet • Access to Solaris, Java, NT apps • Rich multimedia capabilities • Smart card • USB support

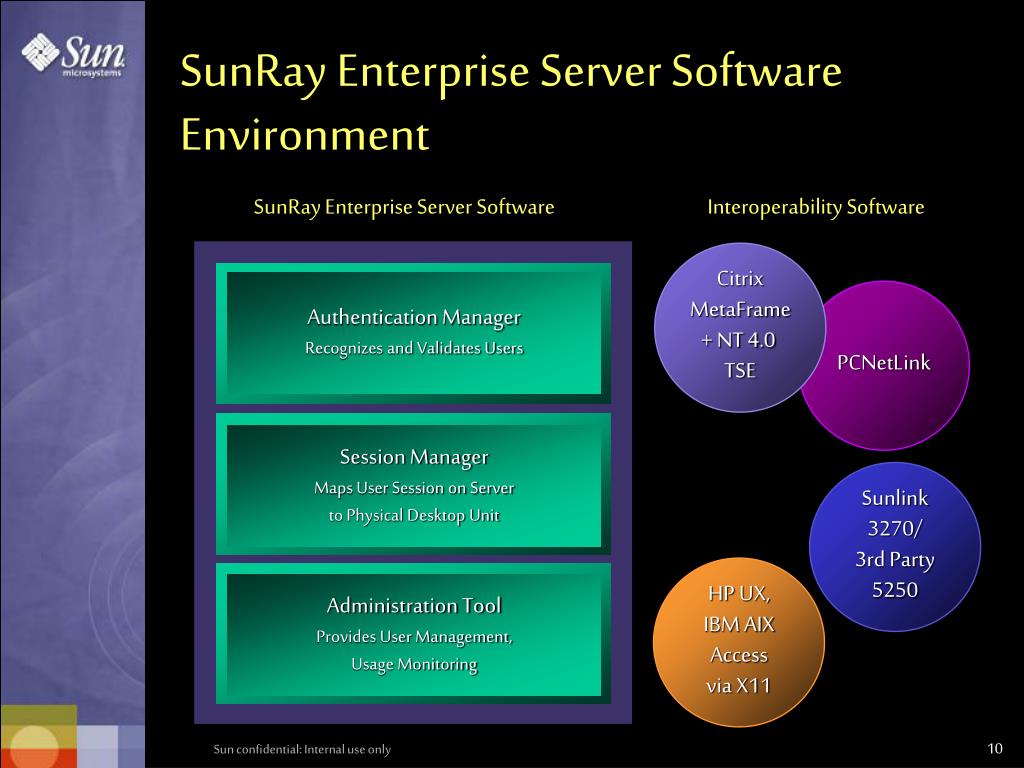

  9. Interoperability Software Authentication Manager Recognizes and Validates Users Citrix MetaFrame + NT 4.0 TSE Session Manager Maps User Session on Server to Physical Desktop Unit Administration Tool Provides User Management, Usage Monitoring SunRay Enterprise Server Software Environment SunRay Enterprise Server Software PCNetLink Sunlink 3270/ 3rd Party 5250 HP UX,IBM AIXAccess via X11

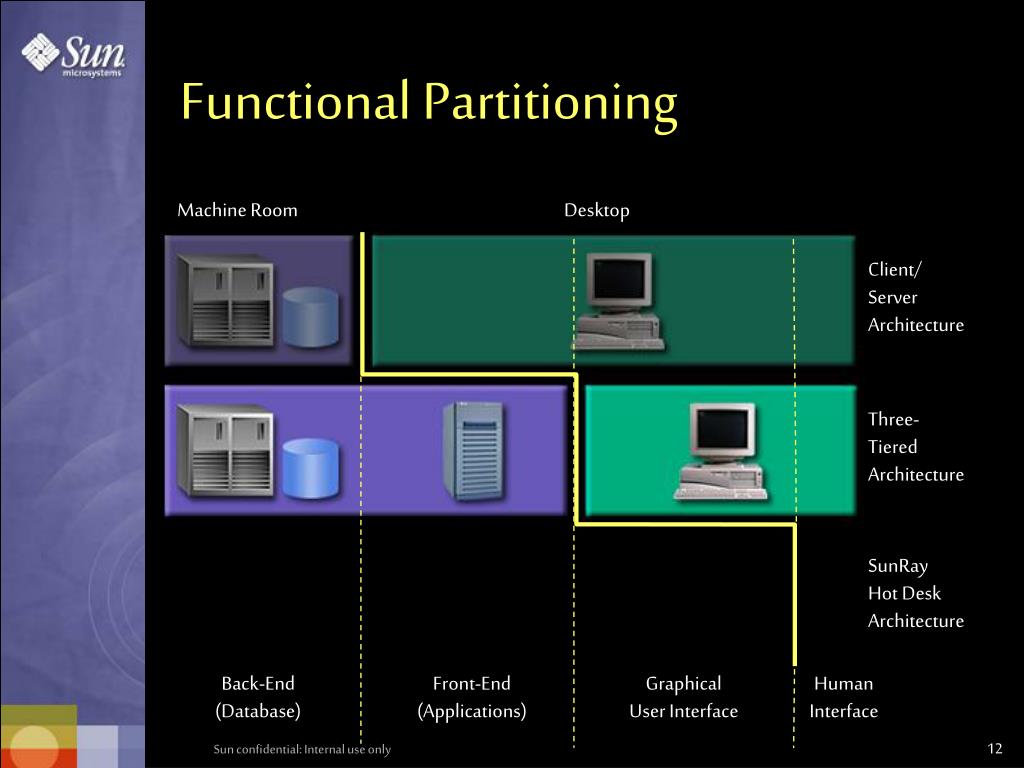

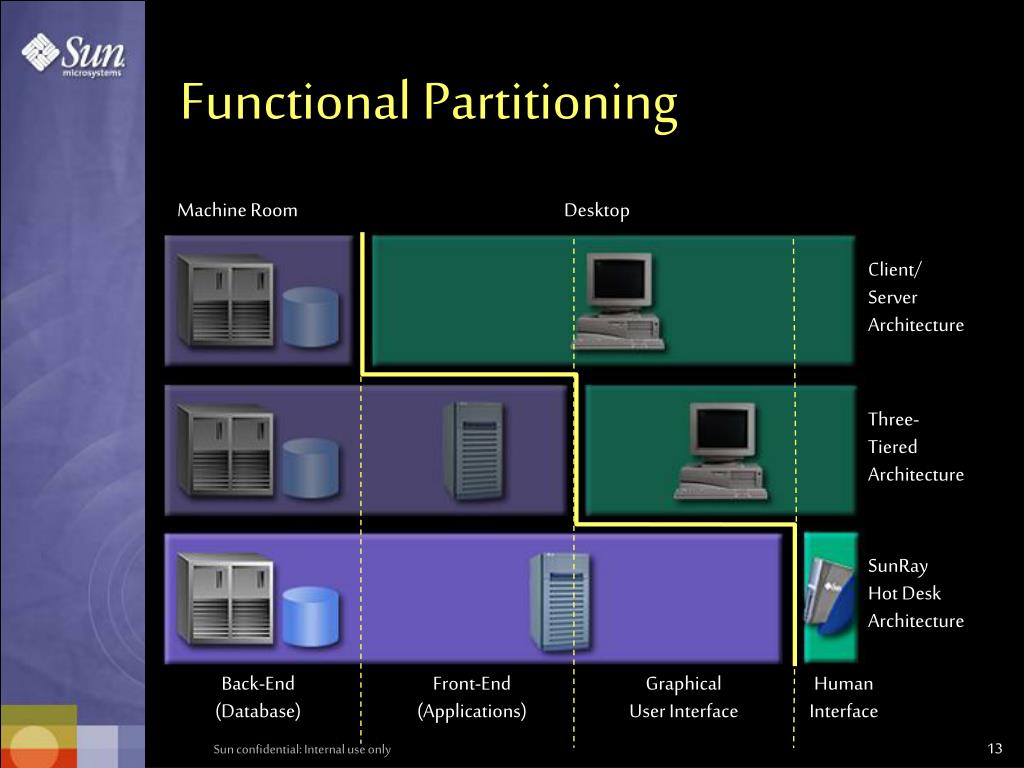

  10. Functional Partitioning Machine Room Desktop Client/ServerArchitecture Three-TieredArchitecture SunRayHot DeskArchitecture Back-End (Database) Front-End (Applications) GraphicalUser Interface HumanInterface

  11. Functional Partitioning Machine Room Desktop Client/ServerArchitecture Three-TieredArchitecture SunRayHot DeskArchitecture Back-End (Database) Front-End (Applications) GraphicalUser Interface HumanInterface

  12. Functional Partitioning Machine Room Desktop Client/ServerArchitecture Three-TieredArchitecture SunRayHot DeskArchitecture Back-End (Database) Front-End (Applications) GraphicalUser Interface HumanInterface

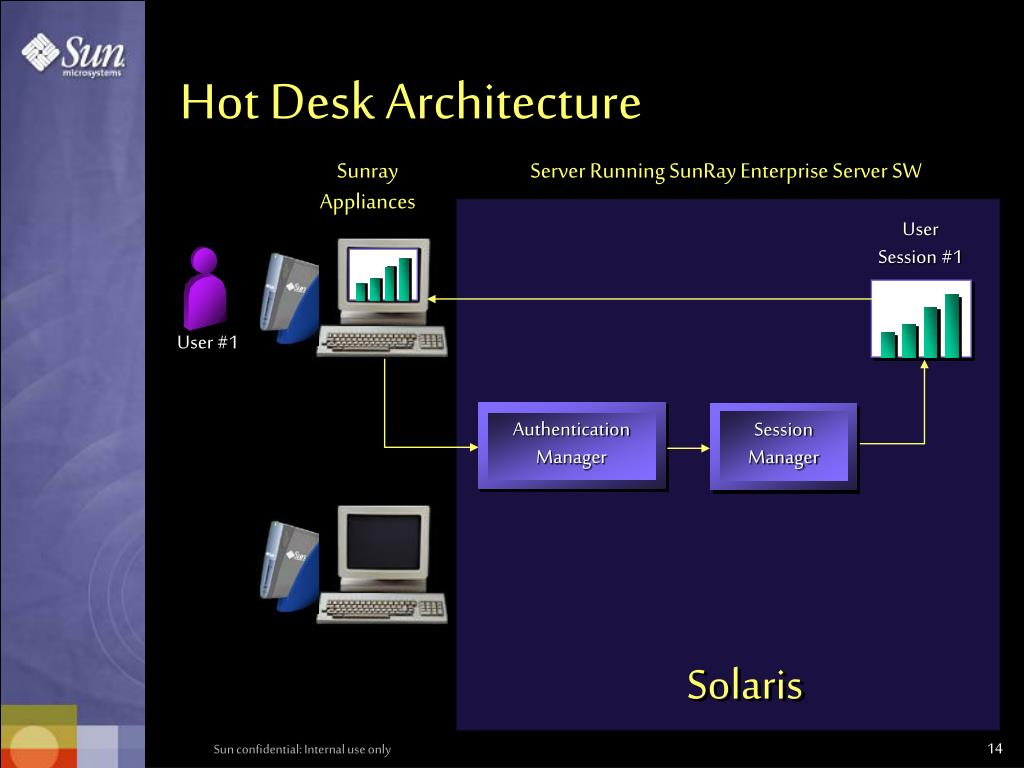

  13. AuthenticationManager SessionManager Hot Desk Architecture Sunray Appliances Server Running SunRay Enterprise Server SW UserSession #1 User #1 Solaris

  14. AuthenticationManager SessionManager Hot Desk Architecture SunRayAppliances Server Running SunRay Enterprise Server SW UserSession #1 User #1 Solaris

  15. AuthenticationManager SessionManager Hot Desk Architecture SunRayAppliances Server Running SunRay Enterprise Server SW UserSession #1 User #1 User #2 UserSession #2 Solaris

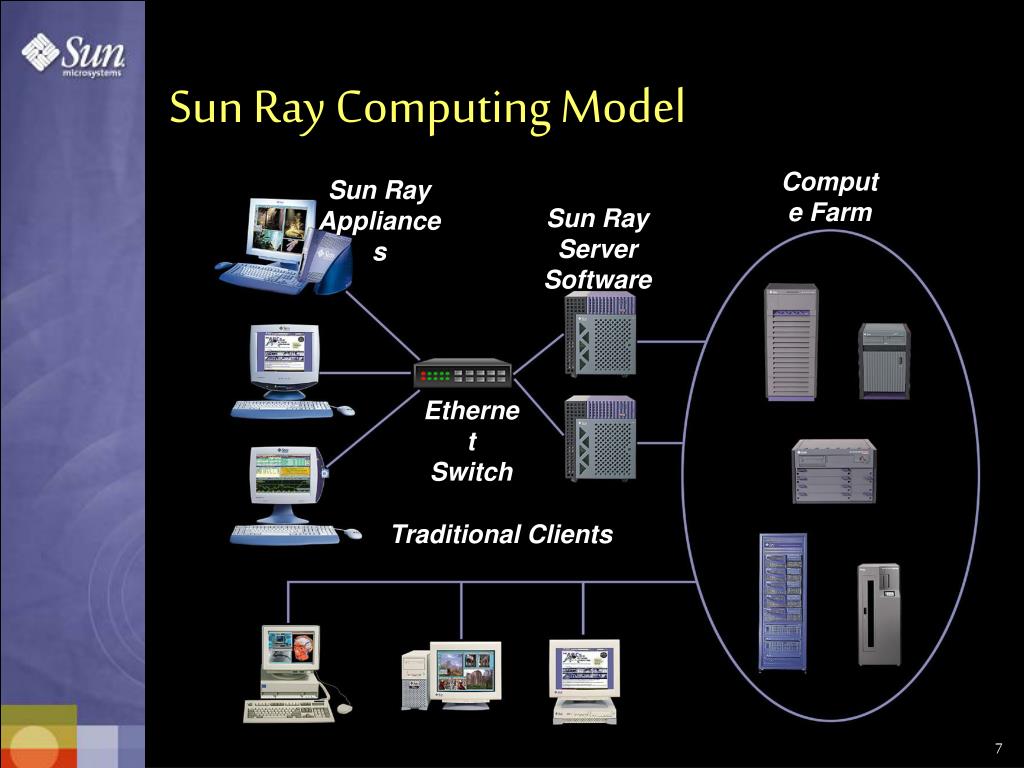

  16. Sun Ray Computing Model Compute Farm Sun Ray Appliances Sun Ray Server Software Ethernet Switch Traditional Clients

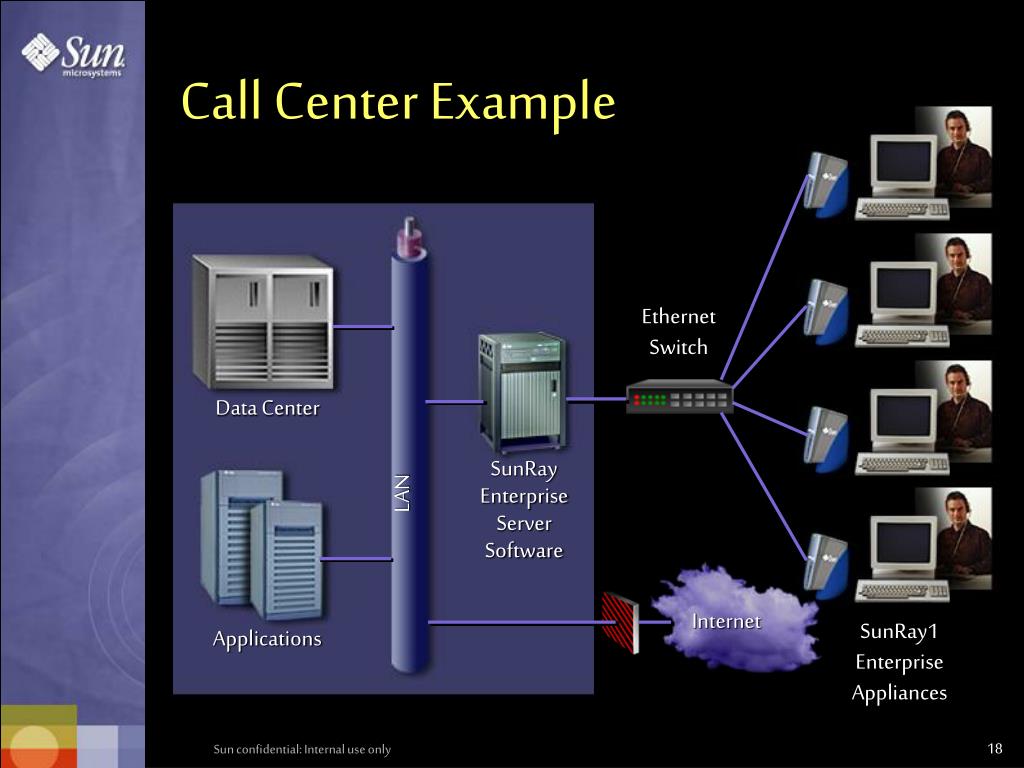

  17. Internet Call Center Example EthernetSwitch Data Center SunRayEnterprise ServerSoftware LAN SunRay1 EnterpriseAppliances Applications

  18. Administration E-Mail Lab Libraries Media Lab Classroom Java Dev. Lab Internet University Example Data Center EthernetSwitch LAN CoronaEnterprise ServerSoftware Video Library Dorms Applications

  19. Network Diagram • Portal Server • Wireless Server • Web Server Internet • Cluster Admin • SMC Console • Java 2D/3D demo • SMC Server • ShowMeTV • Forte Router Netra t1 • SunScreen • Messaging Server • Directory Server • Calendar Server • Certificate Management Ultra 5 Ultra 10 Ultra 60 Sun Blad 1000 Netra t1 Netra t1 Switch • ECXpert • TradingXpert • BillerXpert • Instant Image • Component Manager • Application Server • Oracle 8i • Citrix Server SNDR Cluster PC E450 E220R E220R E220R • Sun Ray Server E220R SANbox Ultra 80 StorEdge D1000 StorEdge MultiPack StorEdge T3 Sun Ray Appliance
