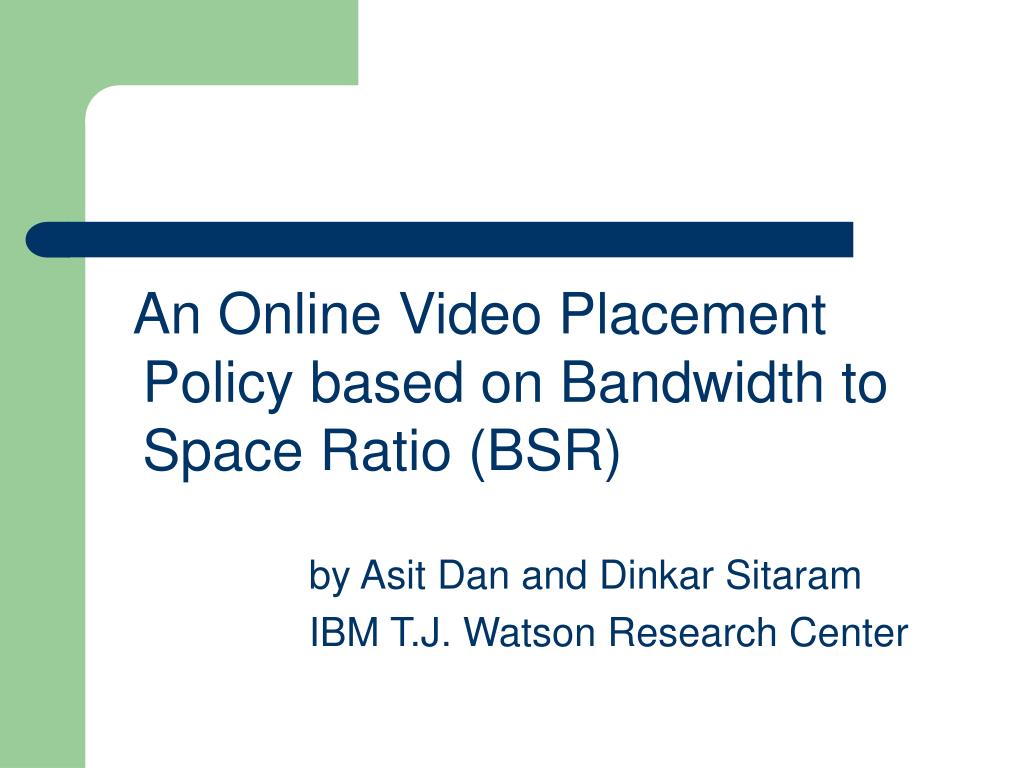

  1. An Online Video Placement Policy based on Bandwidth to Space Ratio (BSR) by Asit Dan and Dinkar Sitaram IBM T.J. Watson Research Center

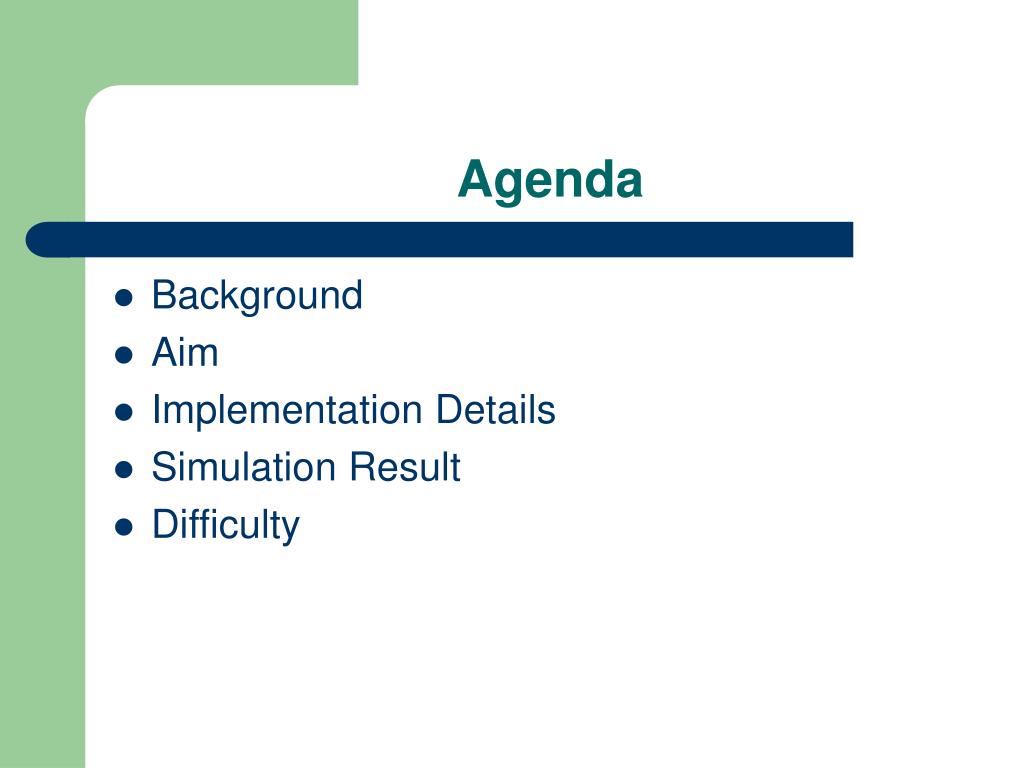

  2. Agenda • Background • Aim • Implementation Details • Simulation Result • Difficulty

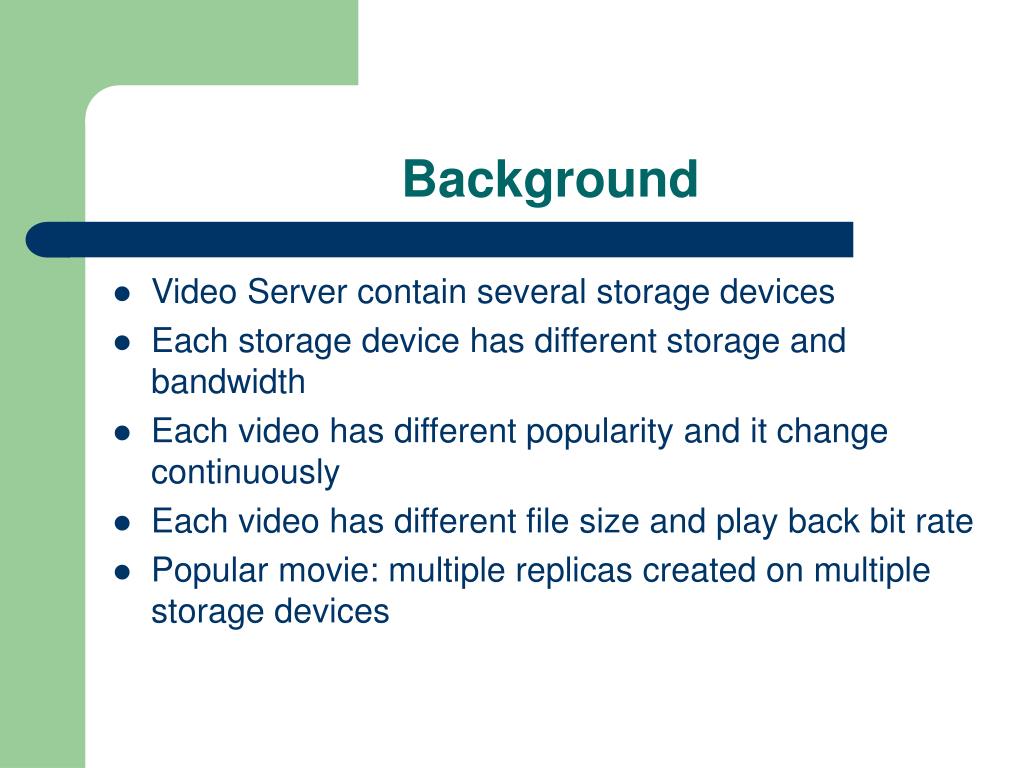

  3. Background • Video Server contain several storage devices • Each storage device has different storage and bandwidth • Each video has different popularity and it change continuously • Each video has different file size and play back bit rate • Popular movie: multiple replicas created on multiple storage devices

  4. Aim • Balance the load • Make the best use of bandwidth and space of the storage device

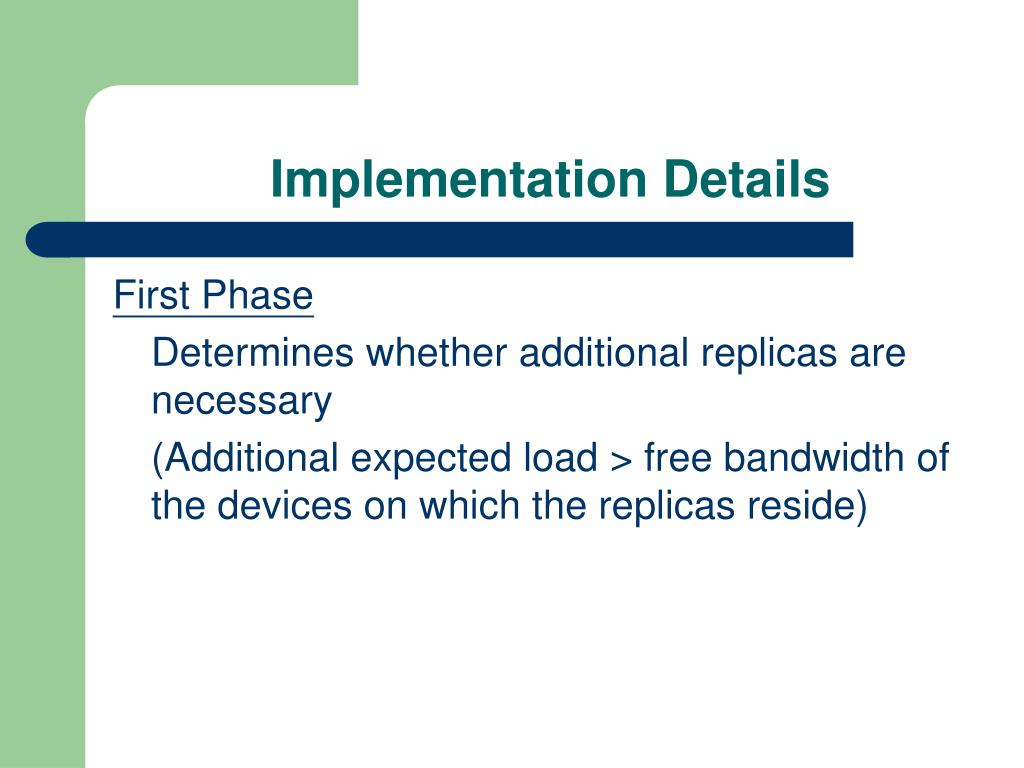

  5. Implementation Details First Phase Determines whether additional replicas are necessary (Additional expected load > free bandwidth of the devices on which the replicas reside)

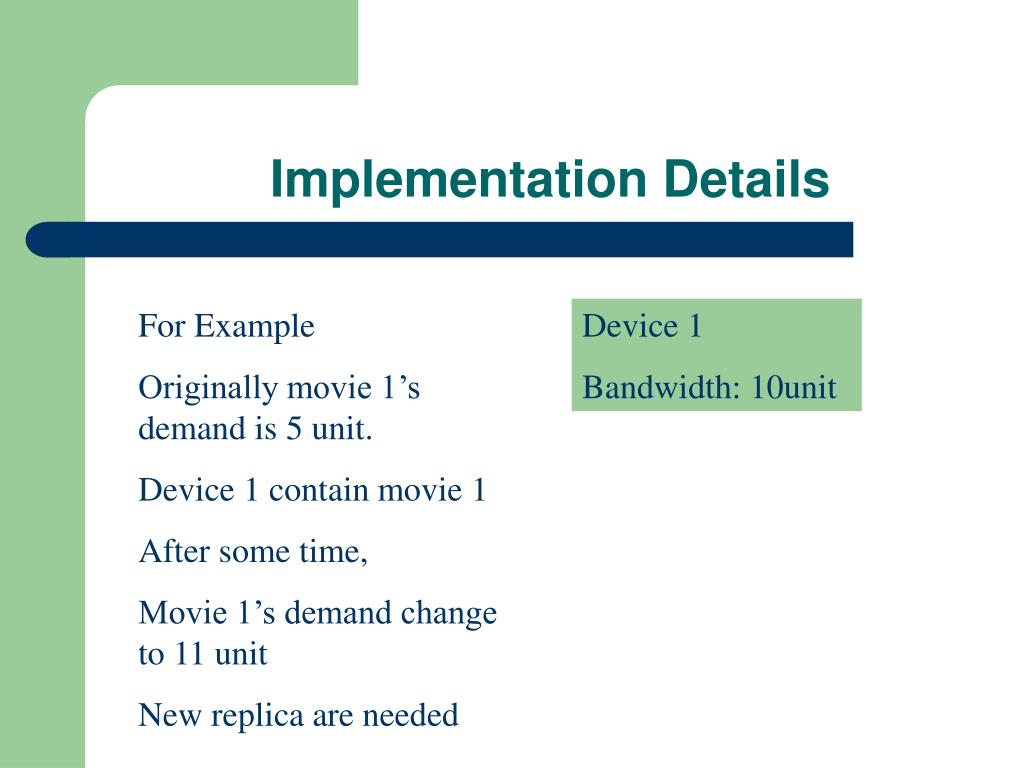

  6. Implementation Details For Example Originally movie 1’s demand is 5 unit. Device 1 contain movie 1 After some time, Movie 1’s demand change to 11 unit New replica are needed Device 1 Bandwidth: 10unit

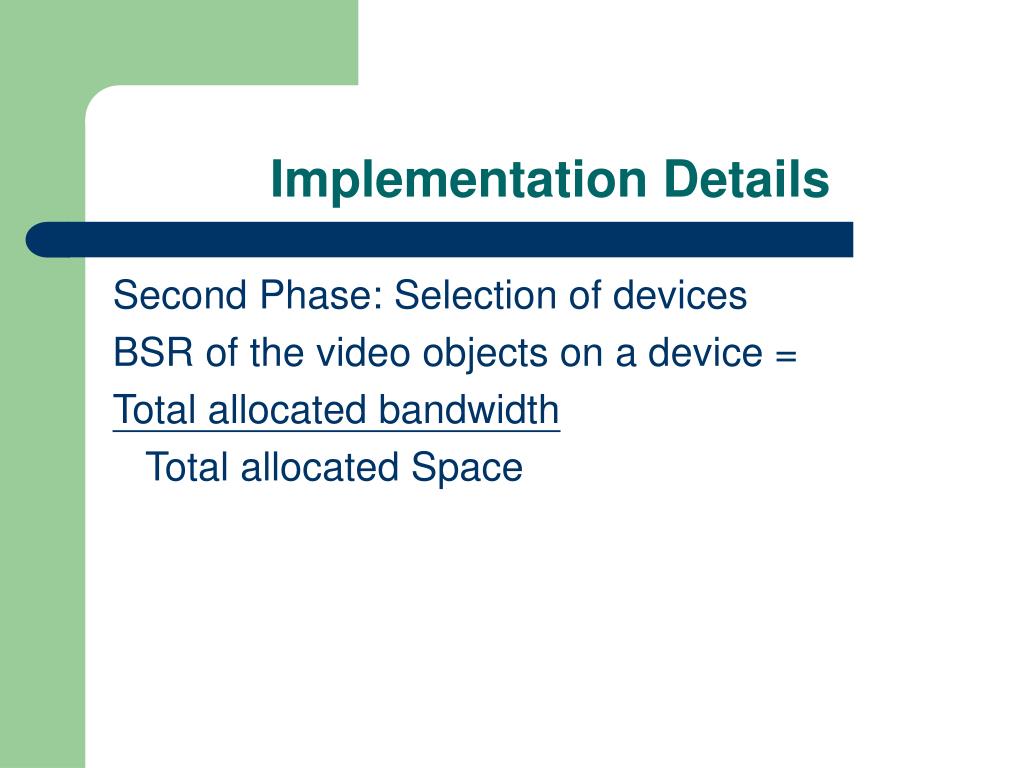

  7. Implementation Details Second Phase: Selection of devices BSR of the video objects on a device = Total allocated bandwidth Total allocated Space

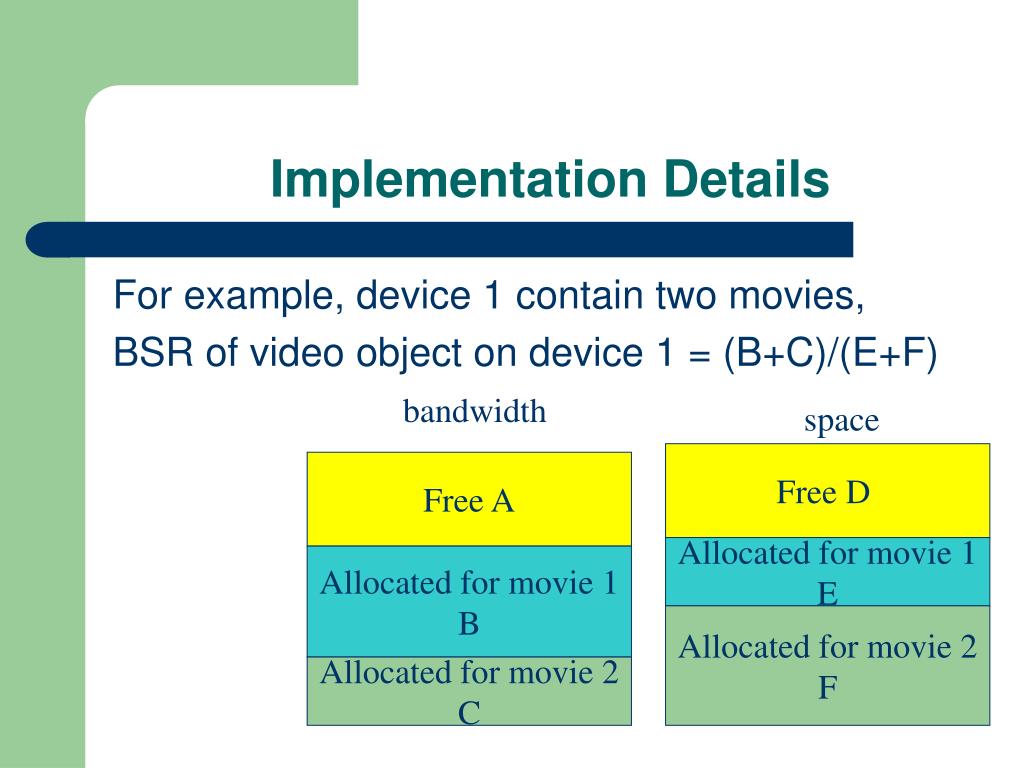

  8. Implementation Details For example, device 1 contain two movies, BSR of video object on device 1 = (B+C)/(E+F) bandwidth space Free D Free A Allocated for movie 1 E Allocated for movie 1 B Allocated for movie 2 F Allocated for movie 2 C

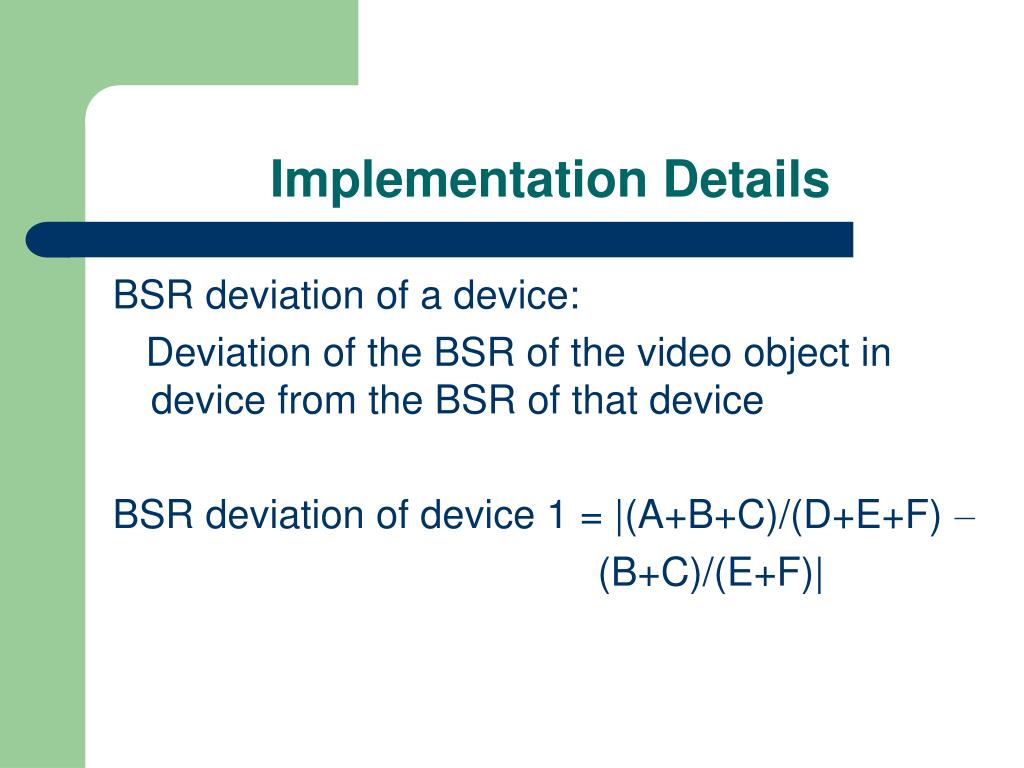

  9. Implementation Details BSR deviation of a device: Deviation of the BSR of the video object in device from the BSR of that device BSR deviation of device 1 = |(A+B+C)/(D+E+F) – (B+C)/(E+F)|

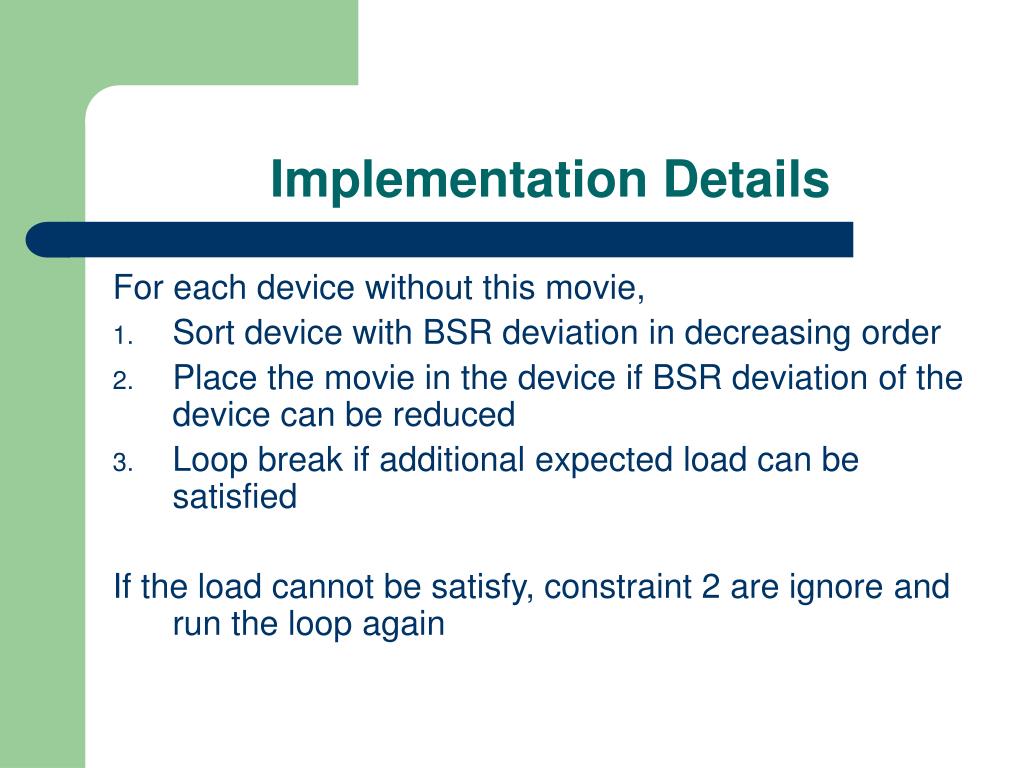

  10. Implementation Details For each device without this movie, • Sort device with BSR deviation in decreasing order • Place the movie in the device if BSR deviation of the device can be reduced • Loop break if additional expected load can be satisfied If the load cannot be satisfy, constraint 2 are ignore and run the loop again

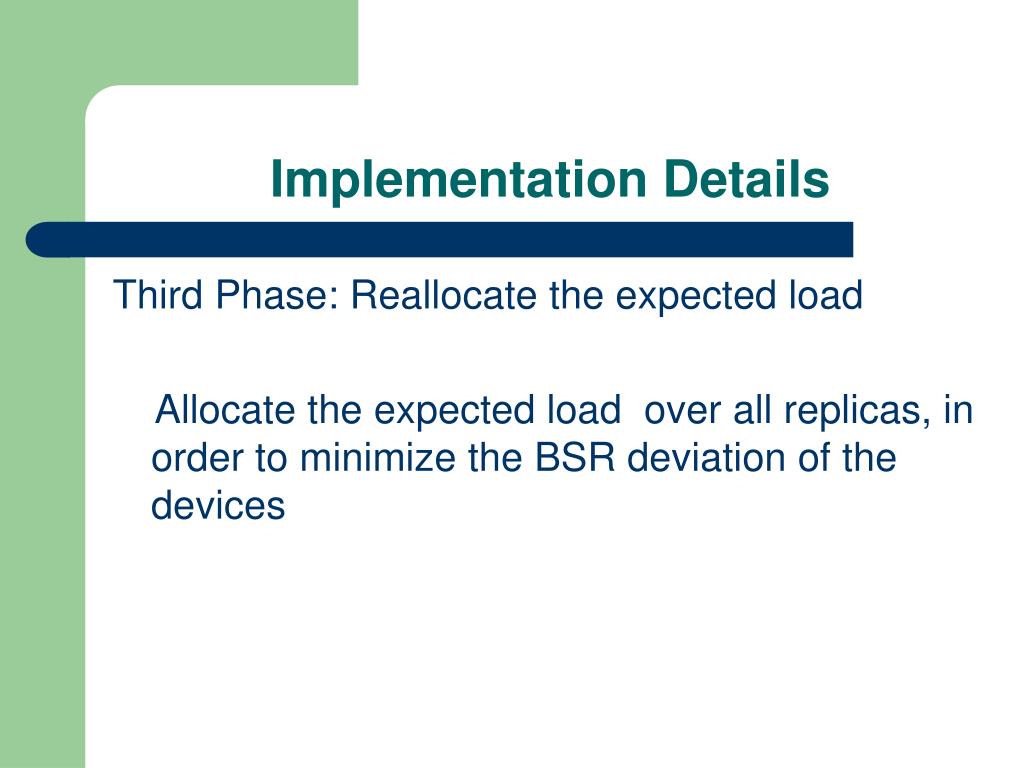

  11. Implementation Details Third Phase: Reallocate the expected load Allocate the expected load over all replicas, in order to minimize the BSR deviation of the devices

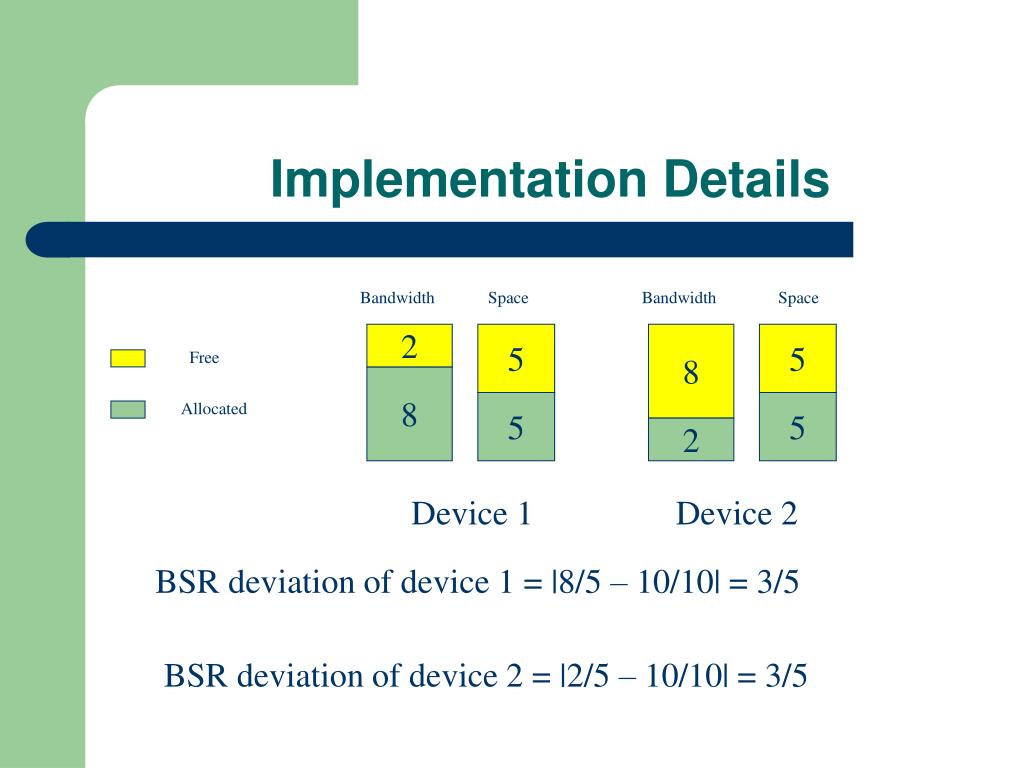

  12. Implementation Details Bandwidth Space Bandwidth Space 2 5 8 5 Free 8 Allocated 5 5 2 Device 1 Device 2 BSR deviation of device 1 = |8/5 – 10/10| = 3/5 BSR deviation of device 2 = |2/5 – 10/10| = 3/5

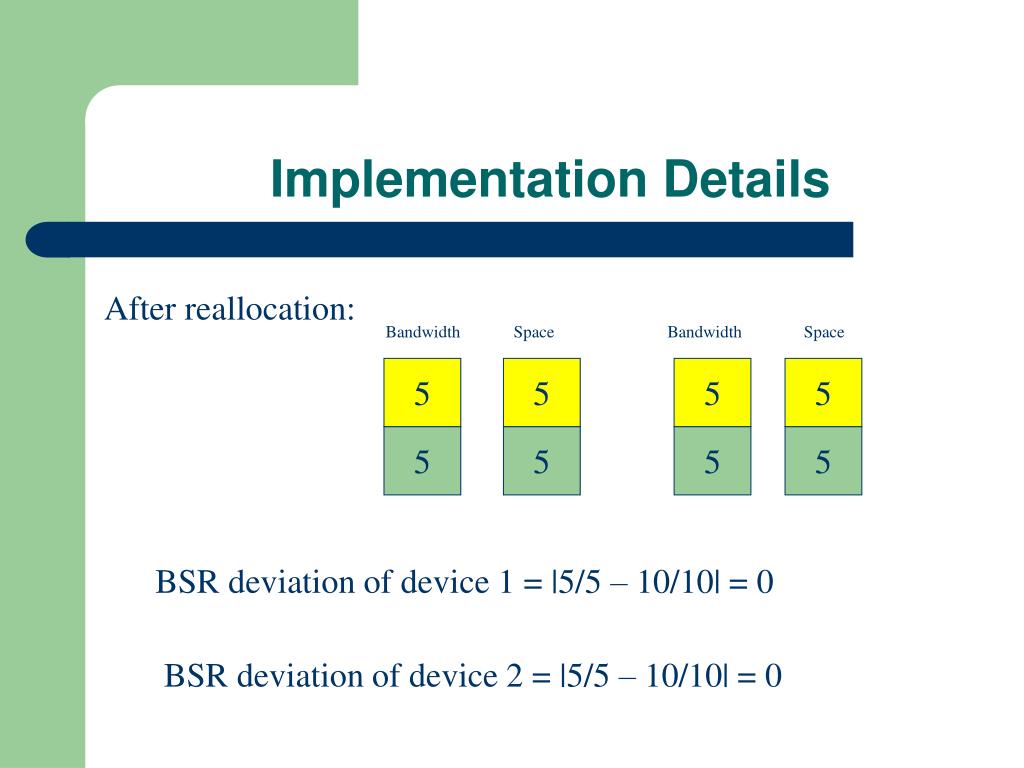

  13. Implementation Details After reallocation: Bandwidth Space Bandwidth Space 5 5 5 5 5 5 5 5 BSR deviation of device 1 = |5/5 – 10/10| = 0 BSR deviation of device 2 = |5/5 – 10/10| = 0

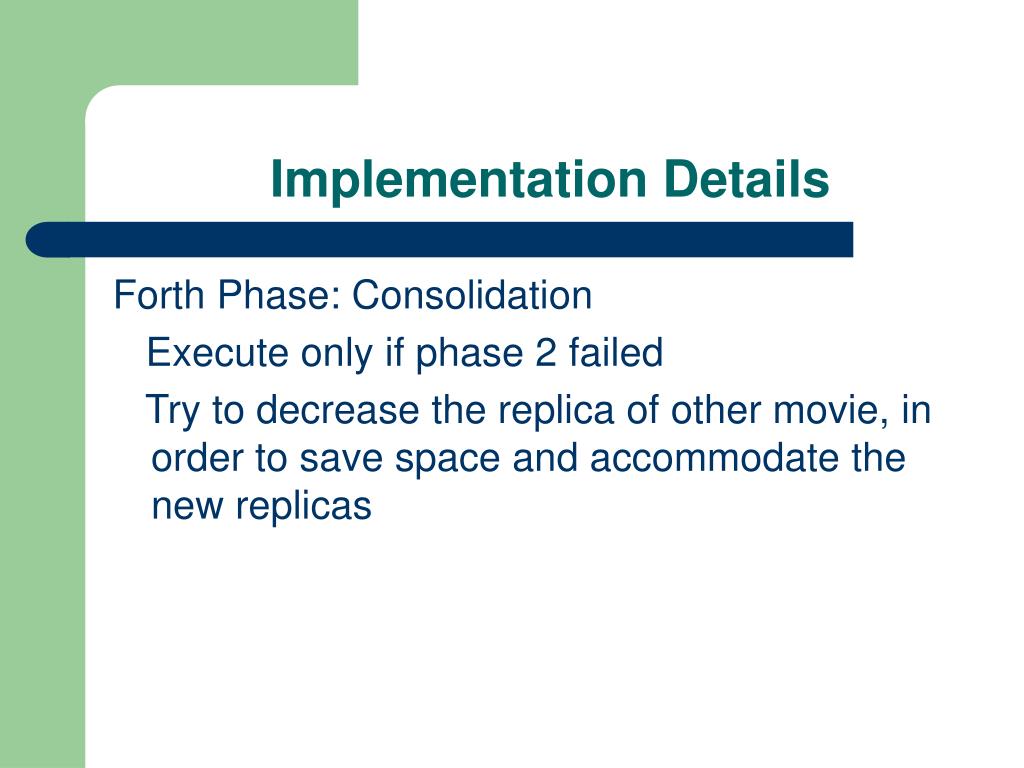

  14. Implementation Details Forth Phase: Consolidation Execute only if phase 2 failed Try to decrease the replica of other movie, in order to save space and accommodate the new replicas

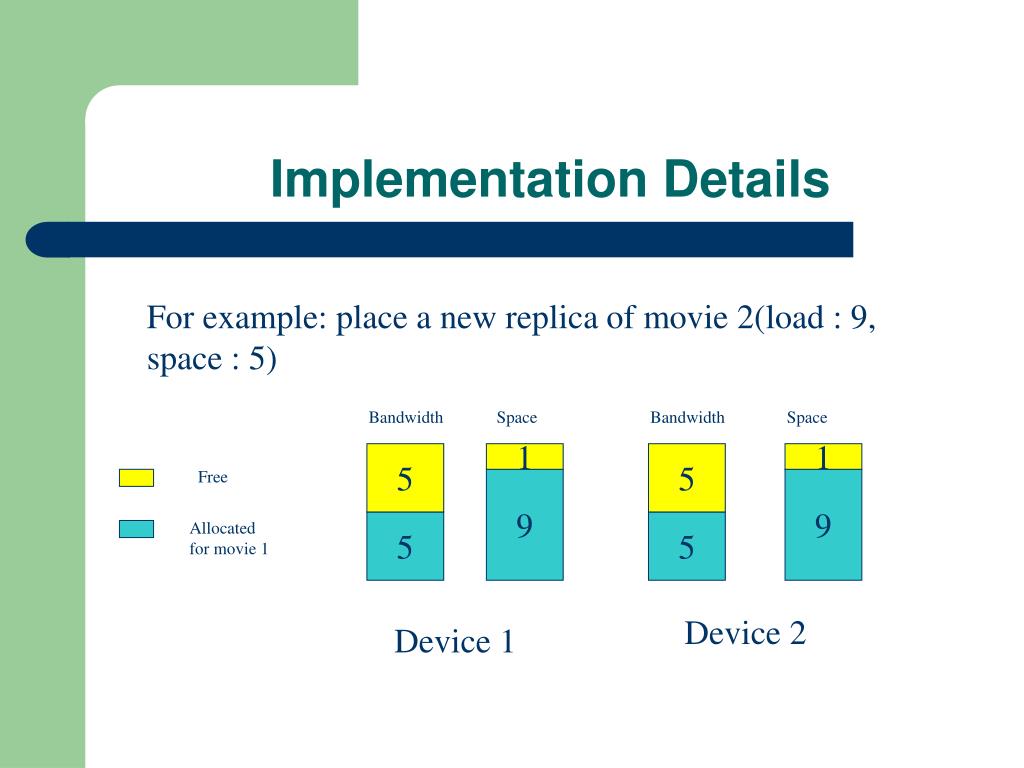

  15. Implementation Details For example: place a new replica of movie 2(load : 9, space : 5) Bandwidth Space Bandwidth Space 5 1 5 1 Free 9 9 Allocated for movie 1 5 5 Device 2 Device 1

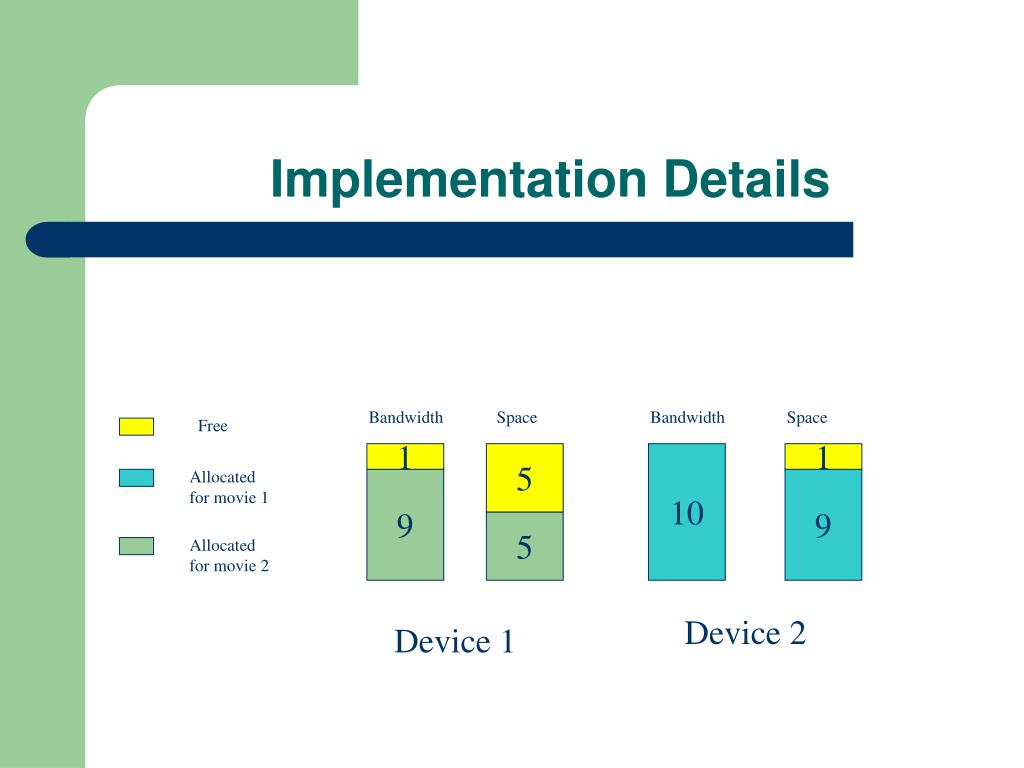

  16. Implementation Details Bandwidth Space Bandwidth Space Free 1 5 10 1 Allocated for movie 1 9 9 5 Allocated for movie 2 Device 2 Device 1

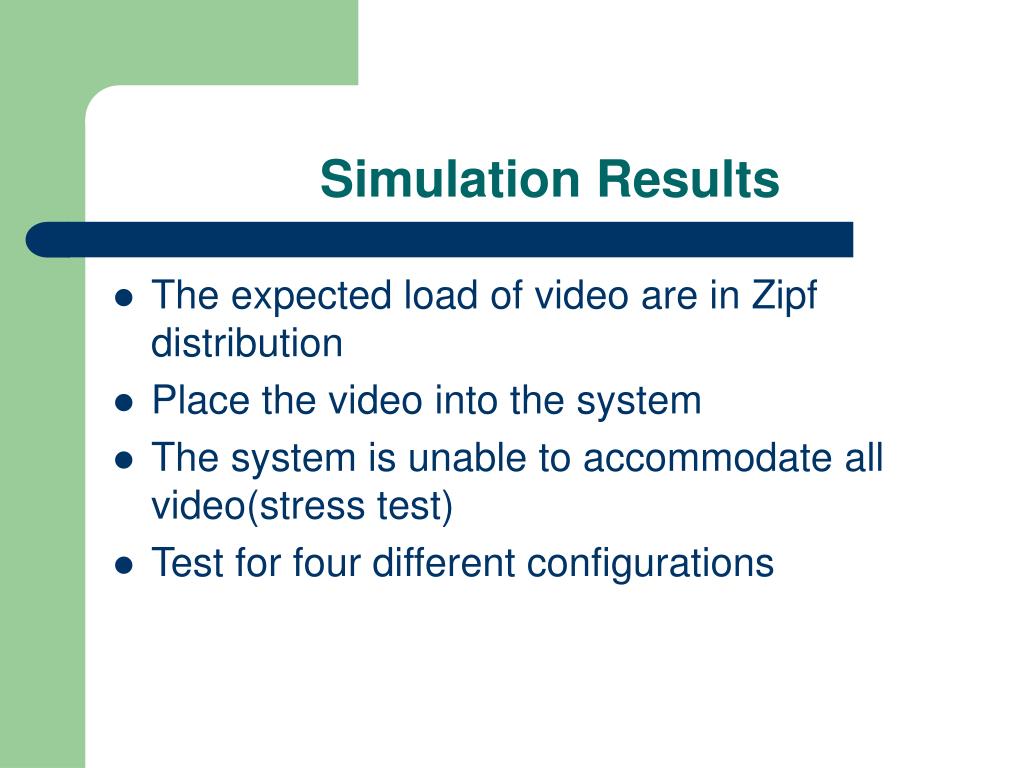

  17. Simulation Results • The expected load of video are in Zipf distribution • Place the video into the system • The system is unable to accommodate all video(stress test) • Test for four different configurations

  18. Simulation Results • Each configuration contain 4 storage device • Total Bandwidth of all configurations are the same • Total Storage of all configurations are the same

  19. Simulation Results (bandwidth,storage)

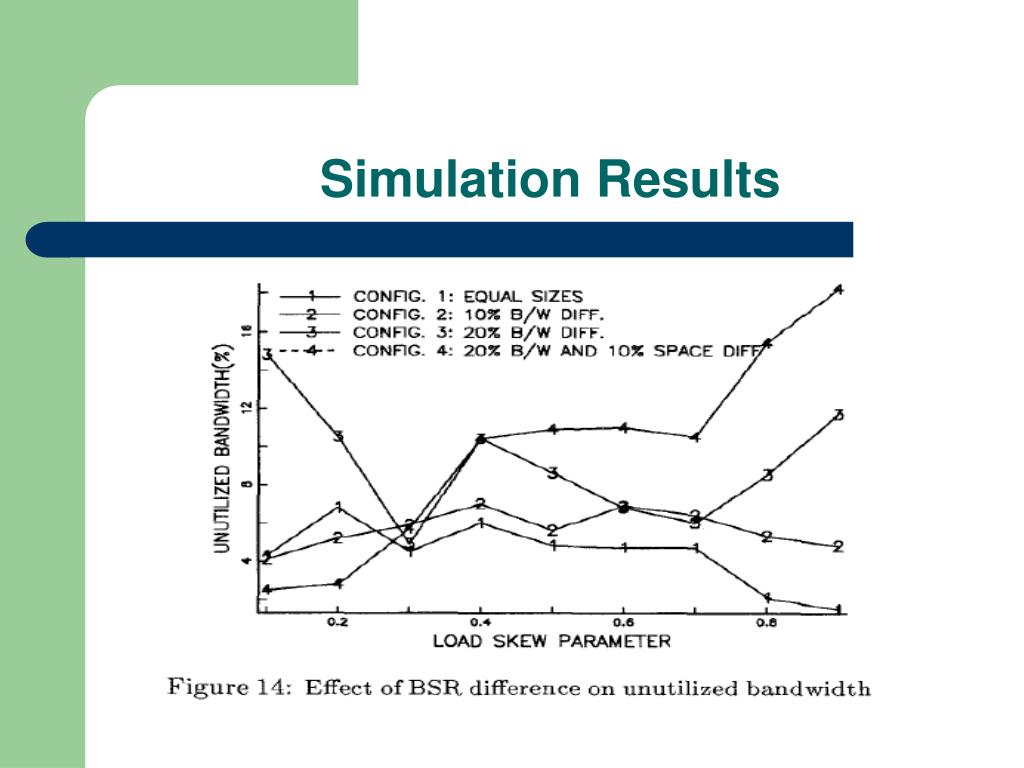

  20. Simulation Results

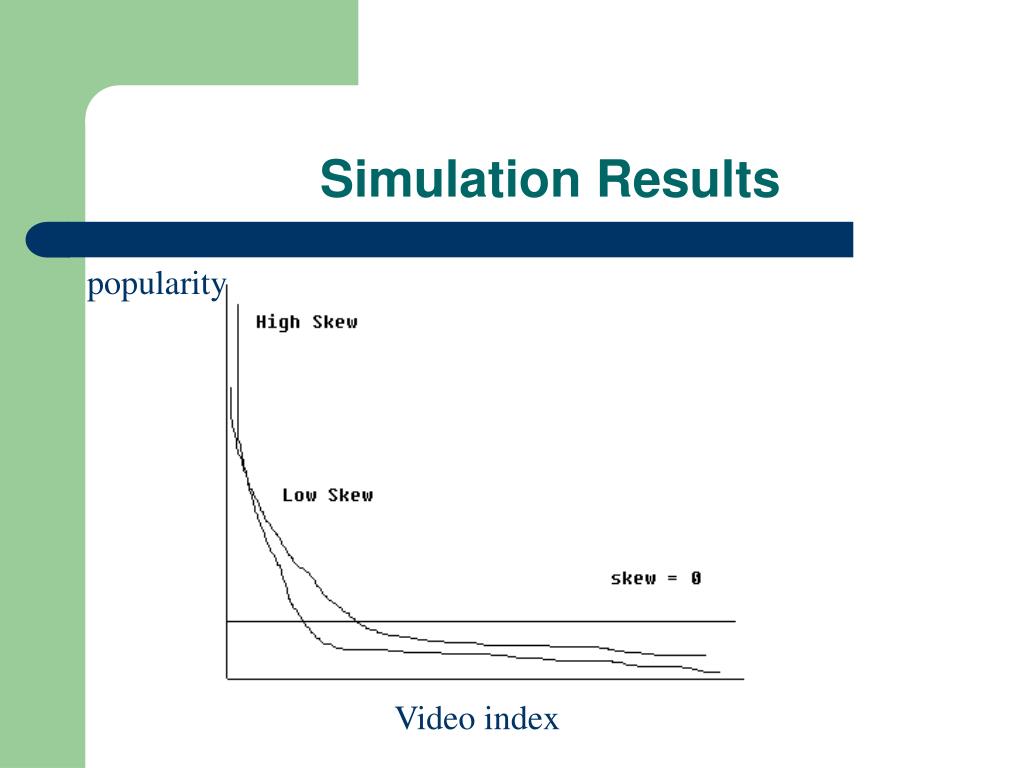

  21. Simulation Results popularity Video index

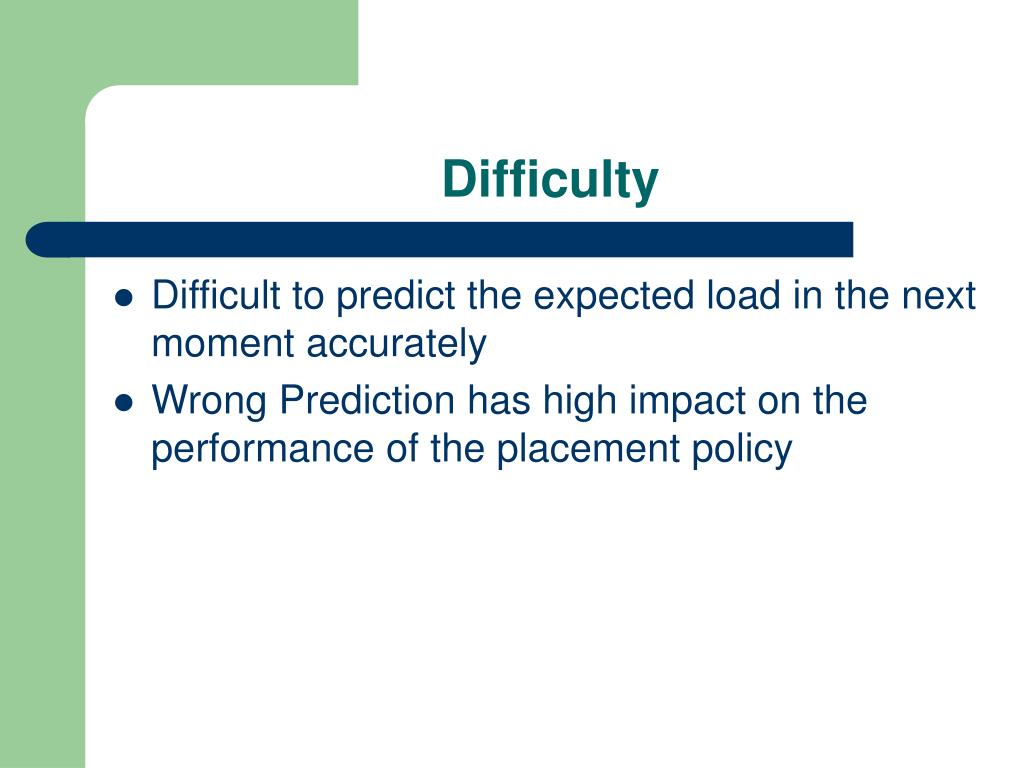

  22. Difficulty • Difficult to predict the expected load in the next moment accurately • Wrong Prediction has high impact on the performance of the placement policy
