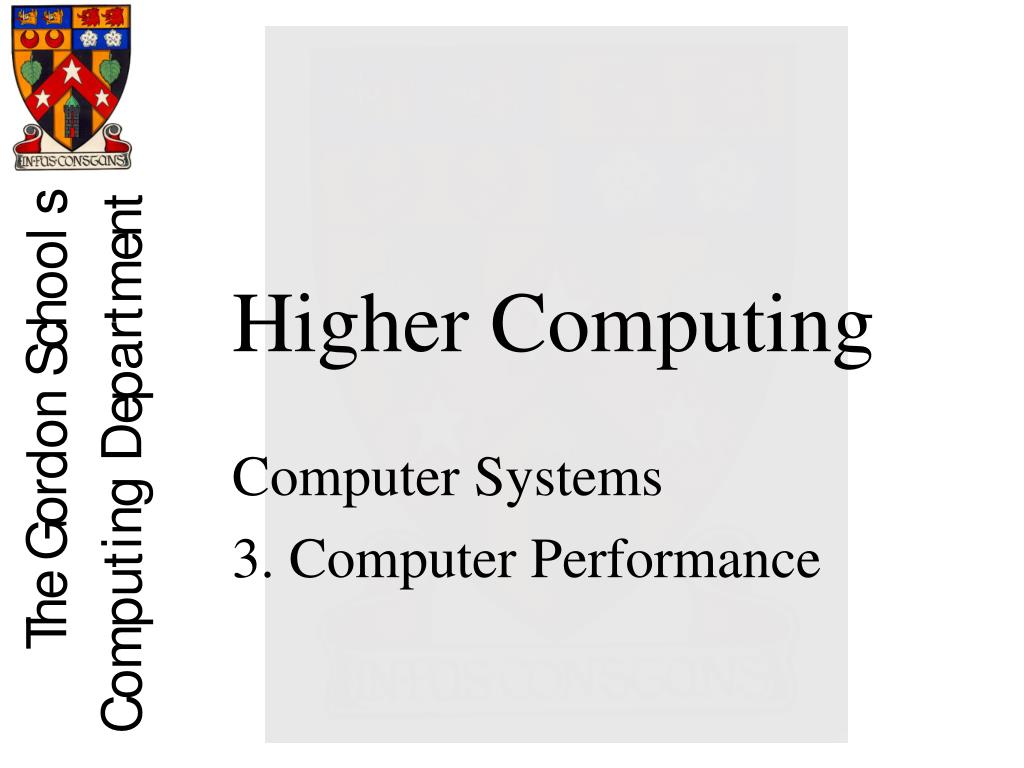

Higher Computing Computer Systems 3. Computer Performance

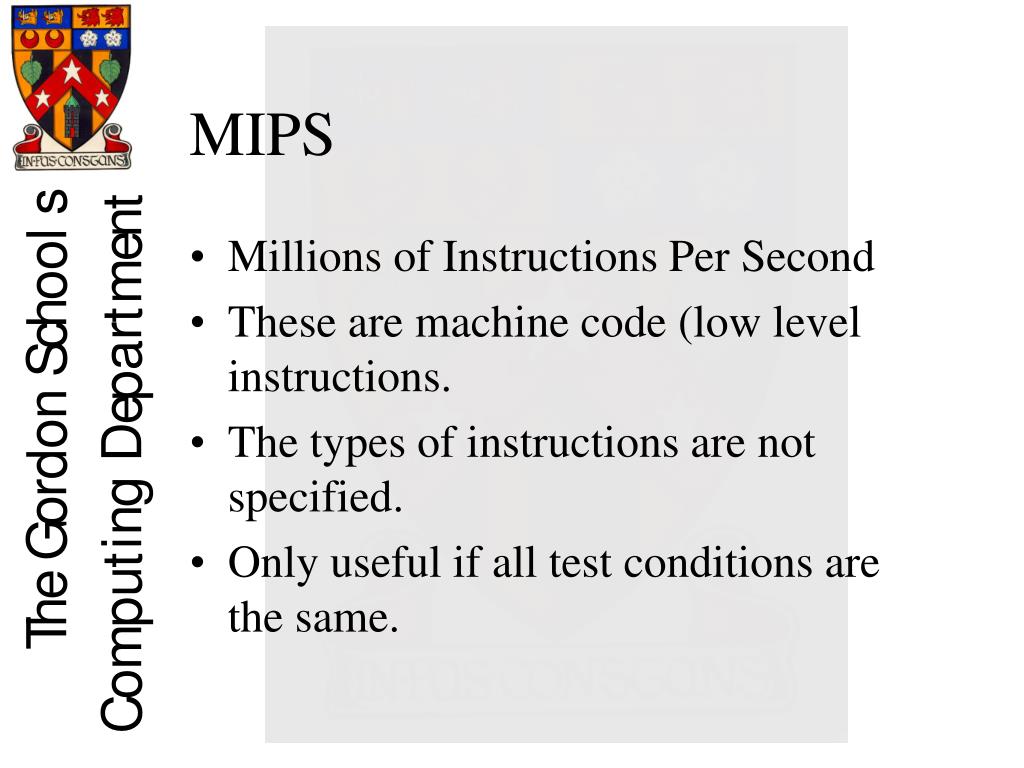

MIPS • Millions of Instructions Per Second • These are machine code (low level instructions. • The types of instructions are not specified. • Only useful if all test conditions are the same.
MIPS continued • Wikipedia says: • Critics of the term refer to it as "Meaningless Indication of Processor Speed“ • MIPS are certainly not comparable between CPU architectures. • See table for MIPS performance down the years. • Remember: All improvements have a cost. When deciding how to improve a system the ratio of cost to best performance will always be considered.
Clock Speed • The clock is controlled by an internal crystal and pulses at a regular rate. • All activities start on the pulse of the clock. • Cycle time- the time between pulses. • Not reliable – some instructions take several cycles and some computers can perform several tasks per cycle.
FLOPS • Floating Point Operations Per Second • Measures arithmetical calculation speed. • More reliable than MIPS. • A supercomputer is defined as a computer that operates at 1 or more gigaFLOPS.

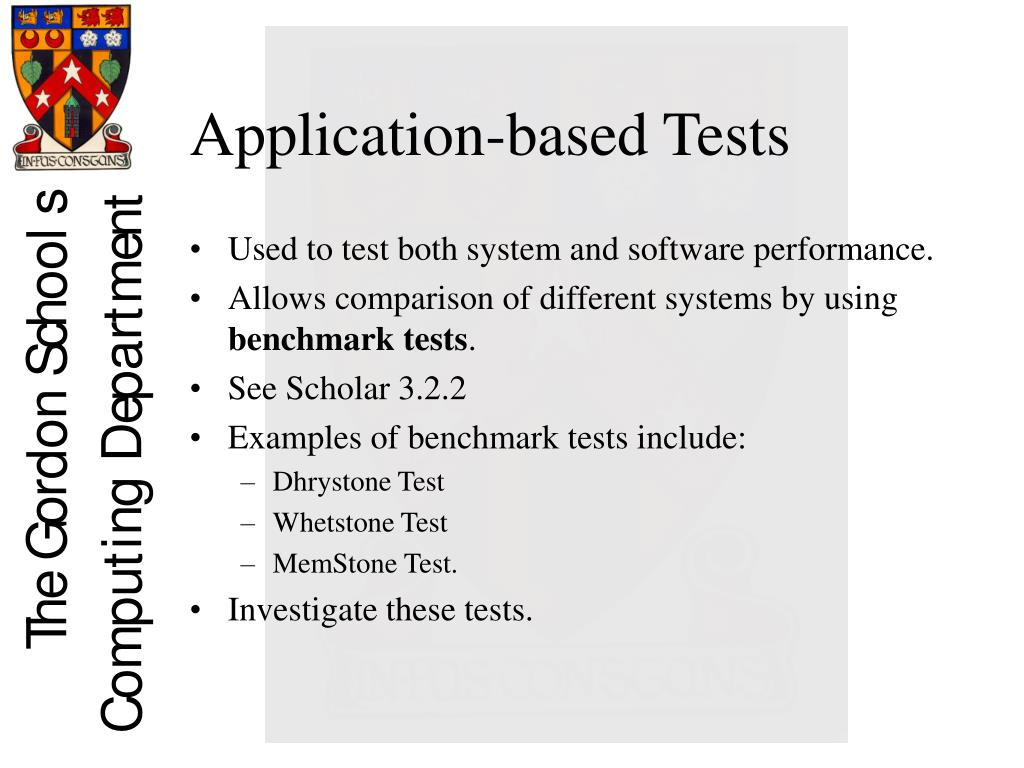

Application-based Tests • Used to test both system and software performance. • Allows comparison of different systems by using benchmark tests. • See Scholar 3.2.2 • Examples of benchmark tests include: • Dhrystone Test • Whetstone Test • MemStone Test. • Investigate these tests.

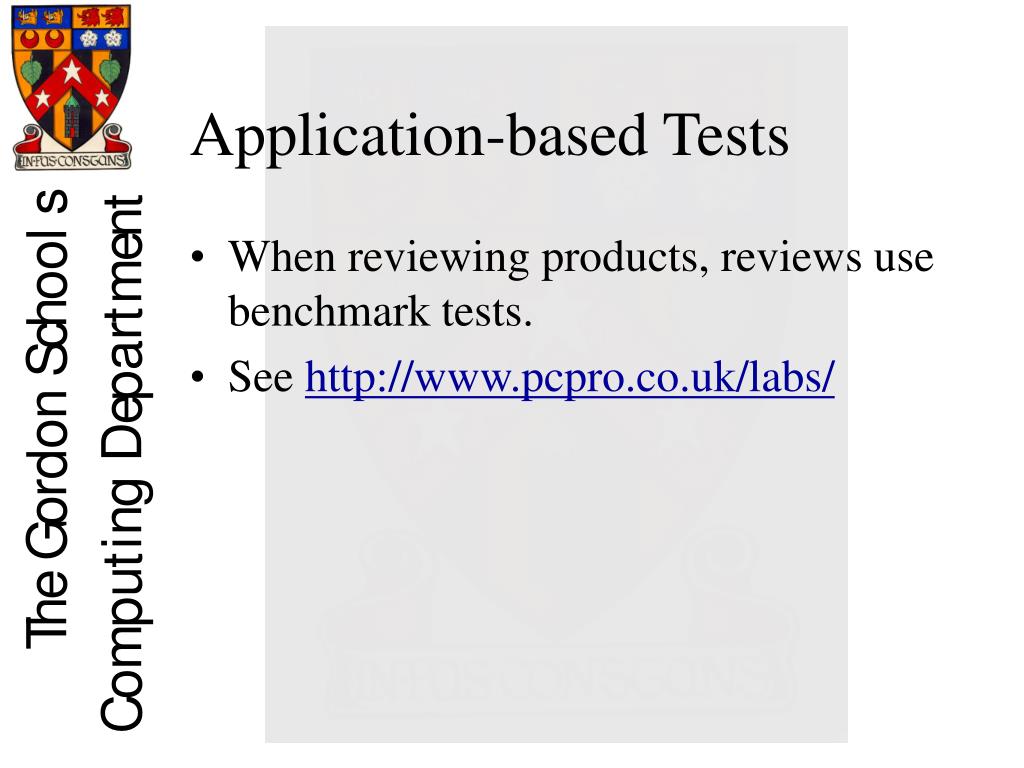

Application-based Tests • When reviewing products, reviews use benchmark tests. • See http://www.pcpro.co.uk/labs/
Factors Effecting Performance • Data Bus Width • The wider the data bus, the greater the word size. • Investigate data bus widths on current PCs. • What effect would adding a wire have to the data bus?
Factors Effecting Performance • Use of Cache Memory • Cache is connected to the processor by its own bus that is wider than the data bus. • Cache memory is made up of SRAM.
Factors Effecting Performance • Data Transfer to and from Peripherals • Depends on the interface. • Task: • Find the data transfer rates of the following interfaces: • USB1 • USB2 • Firewire • Note: using a faster interface with a peripheral designed for an older one will not improve performance.

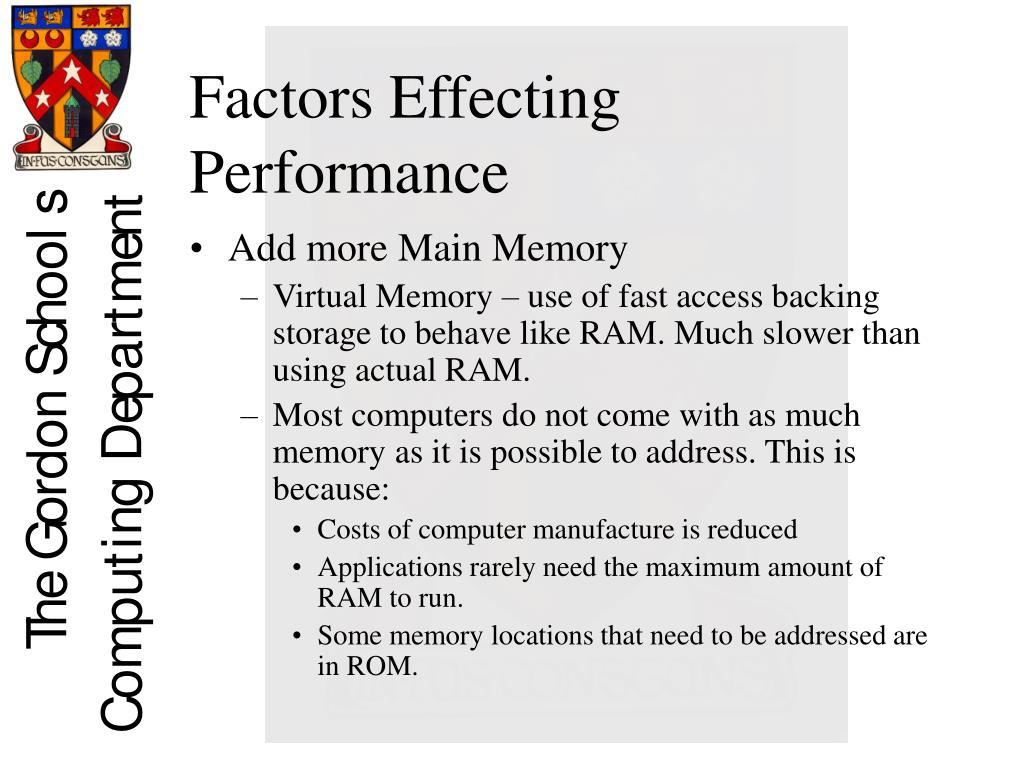

Factors Effecting Performance • Add more Main Memory • Virtual Memory – use of fast access backing storage to behave like RAM. Much slower than using actual RAM. • Most computers do not come with as much memory as it is possible to address. This is because: • Costs of computer manufacture is reduced • Applications rarely need the maximum amount of RAM to run. • Some memory locations that need to be addressed are in ROM.

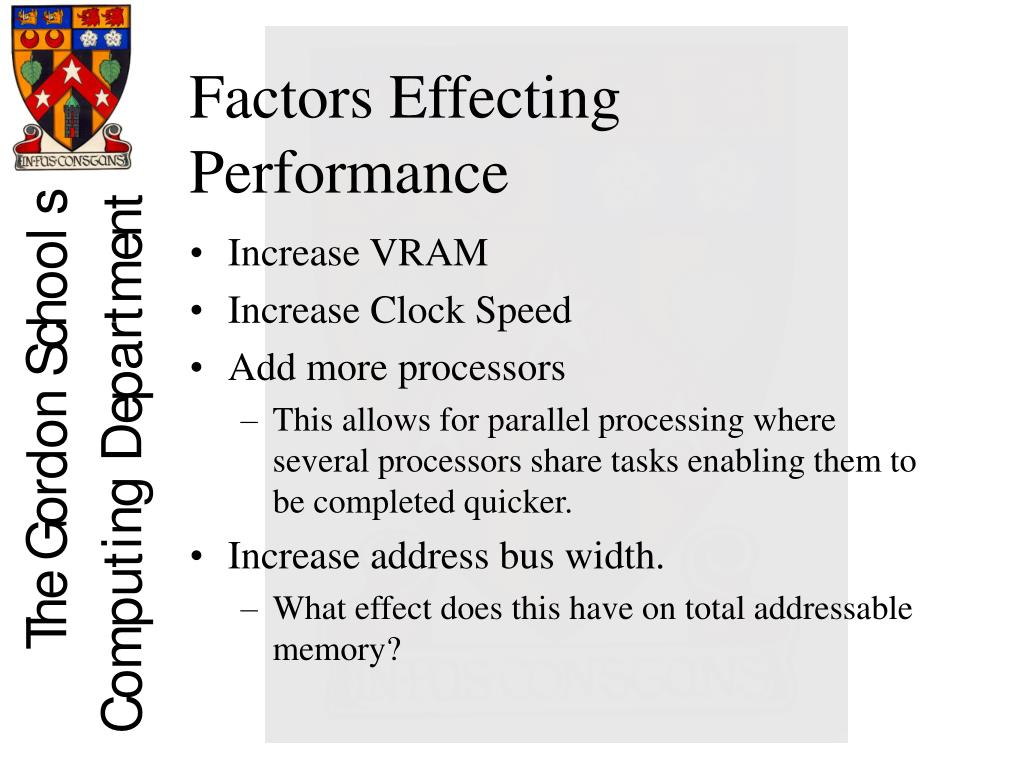

Factors Effecting Performance • Increase VRAM • Increase Clock Speed • Add more processors • This allows for parallel processing where several processors share tasks enabling them to be completed quicker. • Increase address bus width. • What effect does this have on total addressable memory?

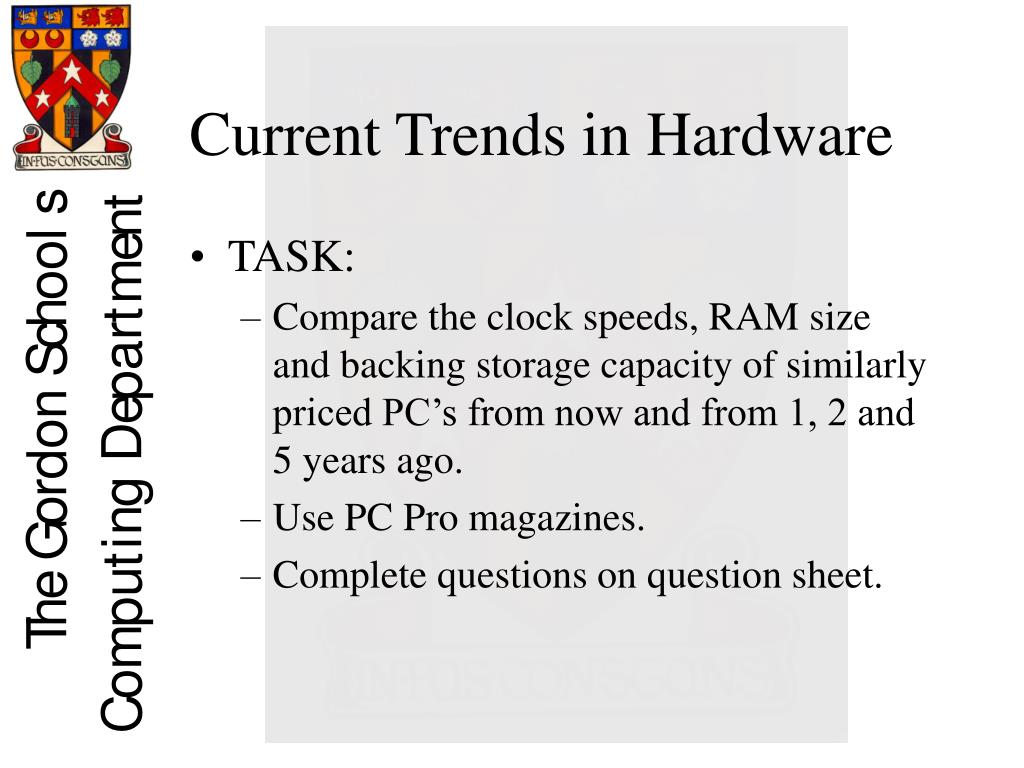

Current Trends in Hardware • TASK: • Compare the clock speeds, RAM size and backing storage capacity of similarly priced PC’s from now and from 1, 2 and 5 years ago. • Use PC Pro magazines. • Complete questions on question sheet.
