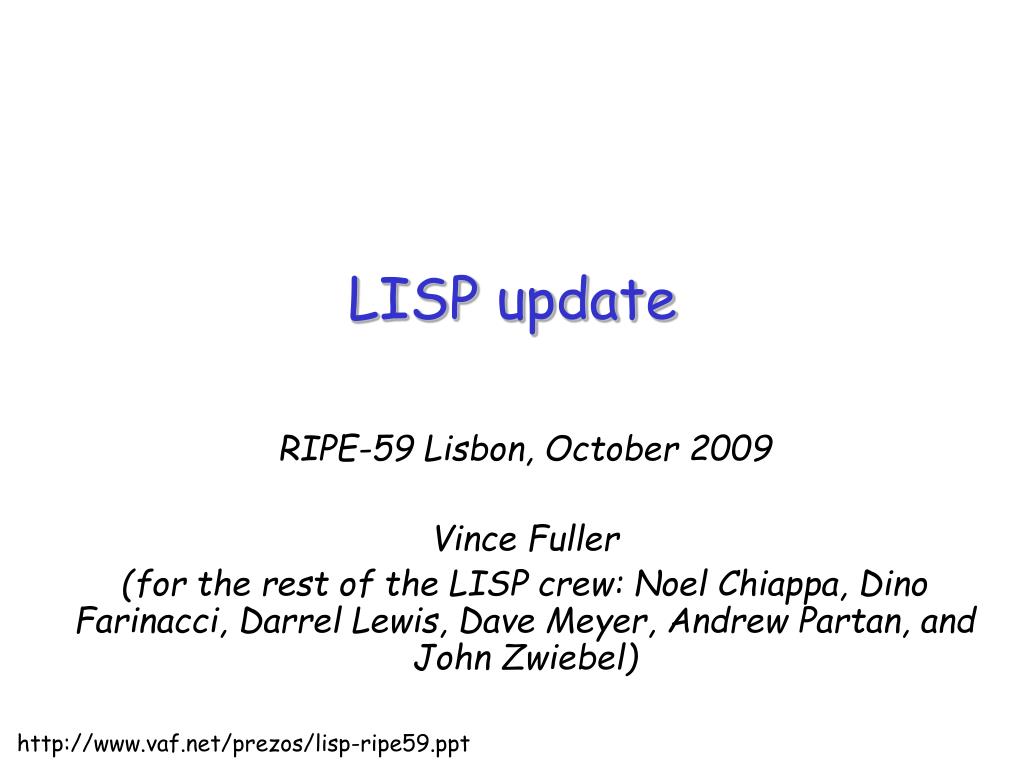

  1. LISP update RIPE-59 Lisbon, October 2009 Vince Fuller (for the rest of the LISP crew: Noel Chiappa, Dino Farinacci, Darrel Lewis, Dave Meyer, Andrew Partan, and John Zwiebel) http://www.vaf.net/prezos/lisp-ripe59.ppt

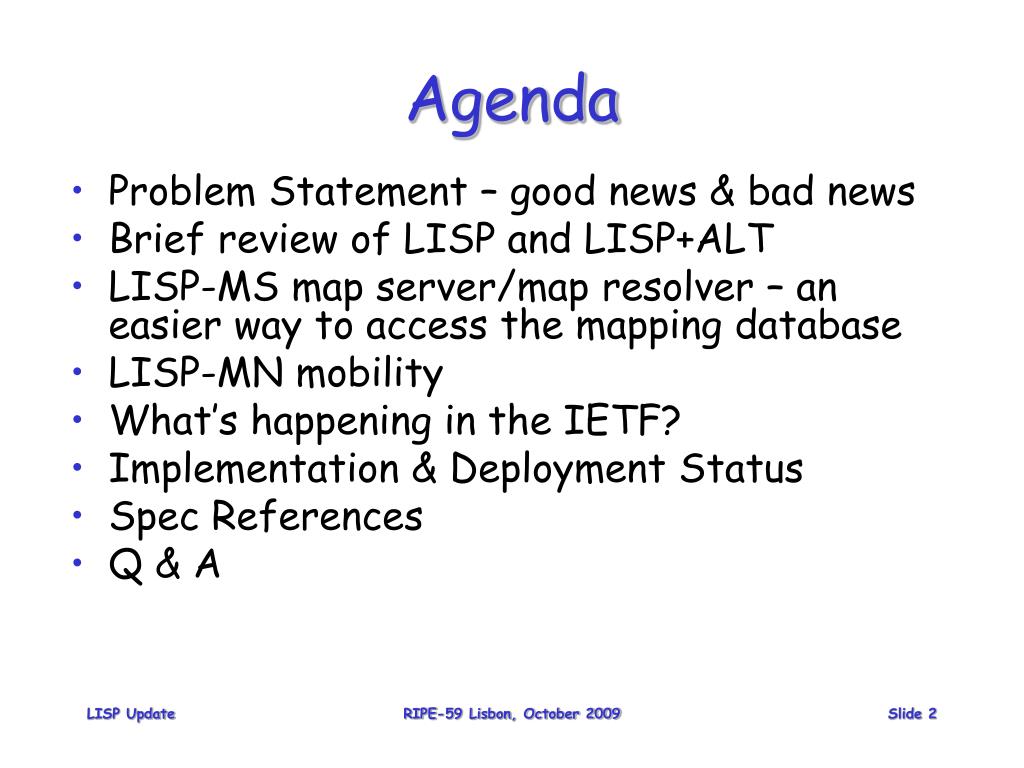

  2. Agenda • Problem Statement – good news & bad news • Brief review of LISP and LISP+ALT • LISP-MS map server/map resolver – an easier way to access the mapping database • LISP-MN mobility • What’s happening in the IETF? • Implementation & Deployment Status • Spec References • Q & A RIPE-59 Lisbon, October 2009

  3. Review: Problem Statement • What provoked this? • Stimulated by problem statement effort at the Amsterdam IAB Routing Workshop on October 2006 • RFC 4984 • More info on problem statement: • http://www.vaf.net/~vaf/apricot-plenary.pdf • First and foremost - scale the Internet • Growth trends in global routing system state RIPE-59 Lisbon, October 2009

  4. Internet Routing State RIPE-59 Lisbon, October 2009

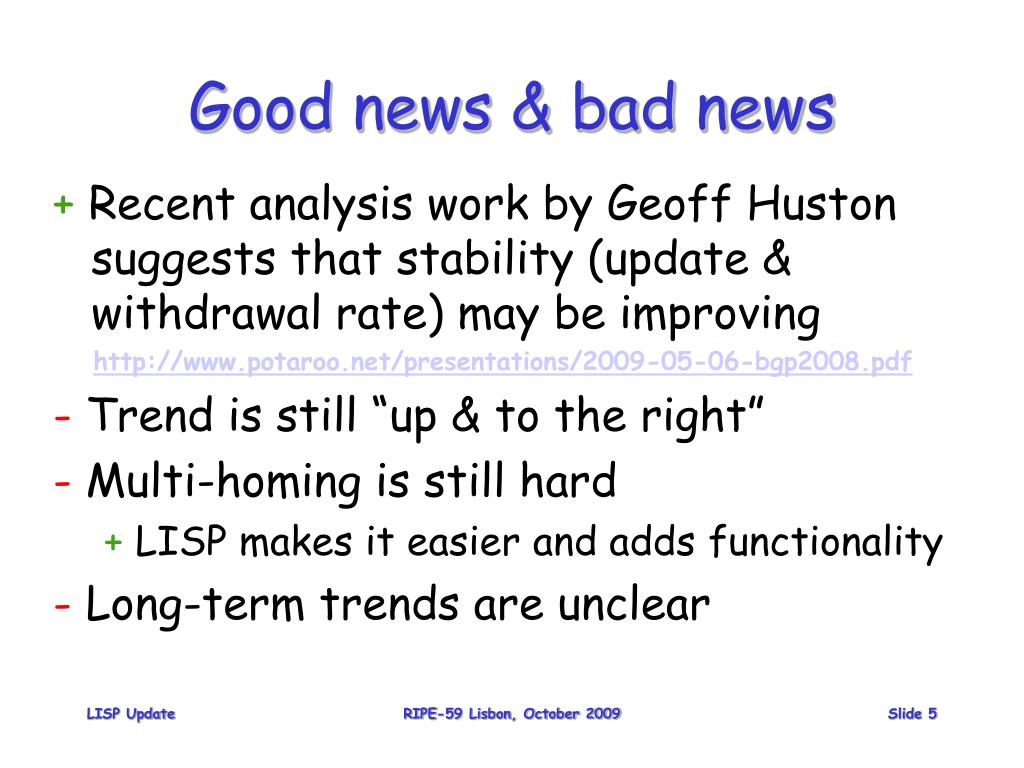

  5. Good news & bad news + Recent analysis work by Geoff Huston suggests that stability (update & withdrawal rate) may be improving http://www.potaroo.net/presentations/2009-05-06-bgp2008.pdf - Trend is still “up & to the right” - Multi-homing is still hard + LISP makes it easier and adds functionality - Long-term trends are unclear RIPE-59 Lisbon, October 2009

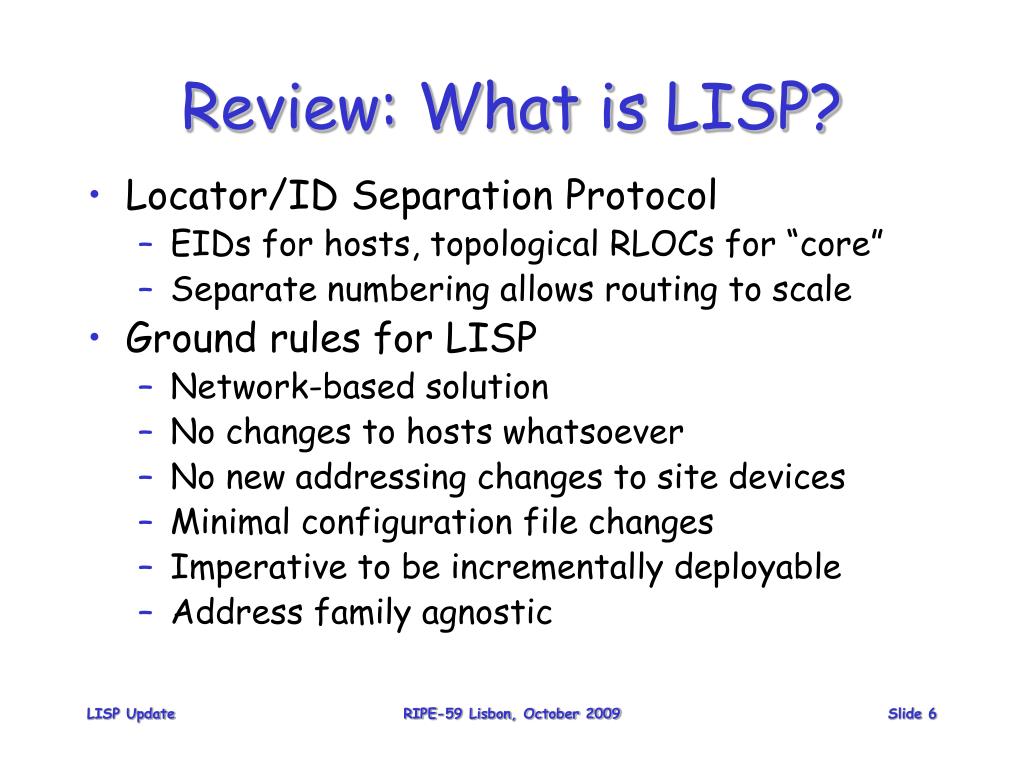

  6. Review: What is LISP? • Locator/ID Separation Protocol • EIDs for hosts, topological RLOCs for “core” • Separate numbering allows routing to scale • Ground rules for LISP • Network-based solution • No changes to hosts whatsoever • No new addressing changes to site devices • Minimal configuration file changes • Imperative to be incrementally deployable • Address family agnostic RIPE-59 Lisbon, October 2009

  7. S D 11.0.0.1 -> 12.0.0.2 11.0.0.1 -> 12.0.0.2 EID-prefix: 2.0.0.0/8 Locator-set: 12.0.0.2, priority: 1, weight: 50 (D1) 13.0.0.2, priority: 1, weight: 50 (D2) Mapping Entry 1.0.0.1 -> 2.0.0.2 1.0.0.1 -> 2.0.0.2 1.0.0.1 -> 2.0.0.2 1.0.0.1 -> 2.0.0.2 S1 S2 D1 D2 Policy controlled by destination site Unicast Packet Forwarding PI EID-prefix 1.0.0.0/8 PI EID-prefix 2.0.0.0/8 ETR ITR Provider A 10.0.0.0/8 Provider X 12.0.0.0/8 12.0.0.2 10.0.0.1 ITR ETR 11.0.0.1 13.0.0.2 Provider B 11.0.0.0/8 Provider Y 13.0.0.0/8 DNS entry: D.abc.com A2.0.0.2 Legend: EIDs -> Green Locators -> Red RIPE-59 Lisbon, October 2009

  8. Review: What is LISP+ALT? • Mechanism for an ITR to find the ETR for an EID • Advertise EID-prefixes in BGP on an alternate topology of GRE tunnels • An ALT Device is: • An xTR configured with GRE tunnels • A Map-Server (new) • A Map-Resolver (new) • A pure ALT-only router for aggregating other ALT peering connections • An ALT-only device can be off-the-shelf gear: • Router hardware, commodity Linux host, etc. • Just needs to run BGP and GRE RIPE-59 Lisbon, October 2009

  9. 11.0.0.1 -> 240.1.1.1 11.0.0.1 -> 240.1.1.1 <- 240.1.1.0/24 < - 240.1.0.0/16 <- 240.1.2.0/24 240.0.0.1 -> 240.1.1.1 ITR ITR ETR ETR ETR 11.0.0.1 -> 1.1.1.1 ? ? ? ? 1.1.1.1 -> 11.0.0.1 240.0.0.1 -> 240.1.1.1 ALT-rtr ALT-rtr ALT-rtr ALT-rtr ALT-rtr ALT-rtr Using ALT to find an ETR Original way: extend ALT to xTRs for policy control EID-prefix 240.1.1.0/24 EID-prefix 240.0.0.0/24 1.1.1.1 11.0.0.1 EID-prefix 240.1.2.0/24 2.2.2.2 12.0.0.1 Legend: EIDs -> Green Locators -> Red GRE Tunnel Physical link Map-Request Map-Reply 3.3.3.3 ALT EID-prefix 240.2.1.0/24 RIPE-59 Lisbon, October 2009

  10. New: LISP Map Server • ETRs register site EID-prefixes with Map-Servers • Securely with pair-wise trust model (no PKI needed) • Policy can be applied on Map-Servers before EID-prefix accepted into mapping service • ETR is still authoritative for its database mappings • Map-Servers advertise EID-prefixes in to the ALT on behalf of their client ETRs • ITRs send encapsulated Map-Requests to Map-Resolvers instead of connecting to ALT • Map-Server/Map-Resolver functionality may be in existing ALT router (most likely) or separate box • draft-ietf-lisp-ms-03.txt RIPE-59 Lisbon, October 2009

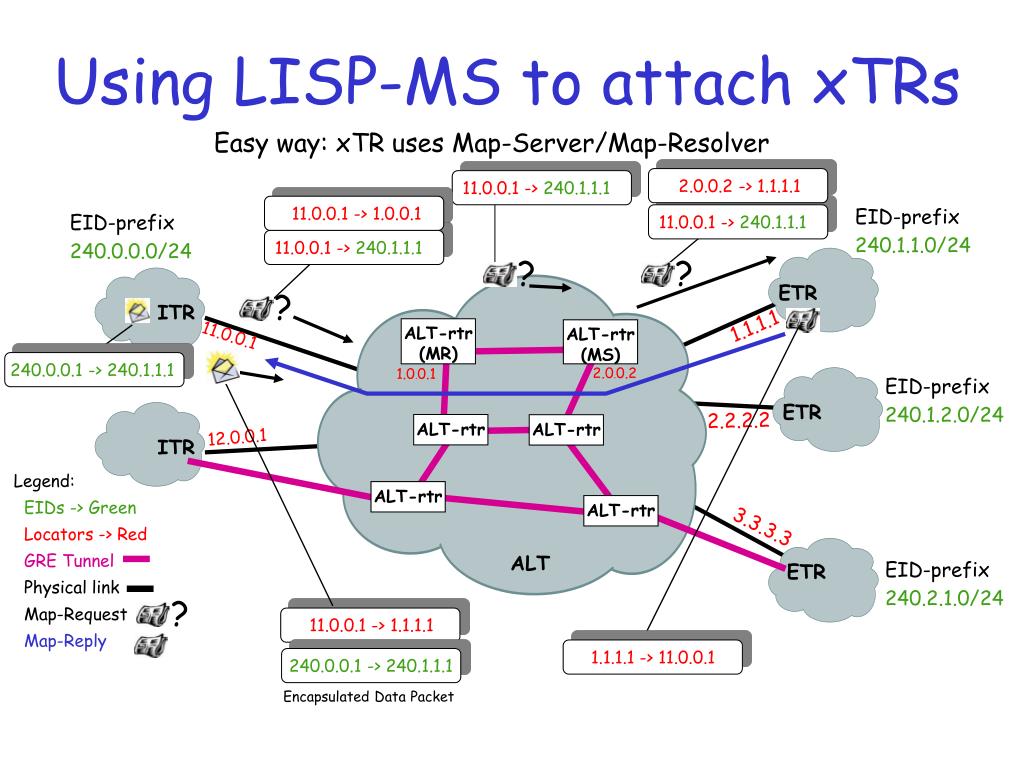

  11. 2.0.0.2 -> 1.1.1.1 11.0.0.1 -> 240.1.1.1 11.0.0.1 -> 240.1.1.1 11.0.0.1 -> 1.0.0.1 11.0.0.1 -> 240.1.1.1 ? 240.0.0.1 -> 240.1.1.1 ITR ITR ETR ETR ETR 11.0.0.1 -> 1.1.1.1 ? ? ? 1.1.1.1 -> 11.0.0.1 240.0.0.1 -> 240.1.1.1 ALT-rtr ALT-rtr ALT-rtr ALT-rtr ALT-rtr (MS) ALT-rtr (MR) Encapsulated Data Packet Using LISP-MS to attach xTRs Easy way: xTR uses Map-Server/Map-Resolver EID-prefix 240.1.1.0/24 EID-prefix 240.0.0.0/24 1.1.1.1 11.0.0.1 2.0.0.2 1.0.0.1 EID-prefix 240.1.2.0/24 2.2.2.2 12.0.0.1 Legend: EIDs -> Green Locators -> Red GRE Tunnel Physical link Map-Request Map-Reply 3.3.3.3 ALT EID-prefix 240.2.1.0/24

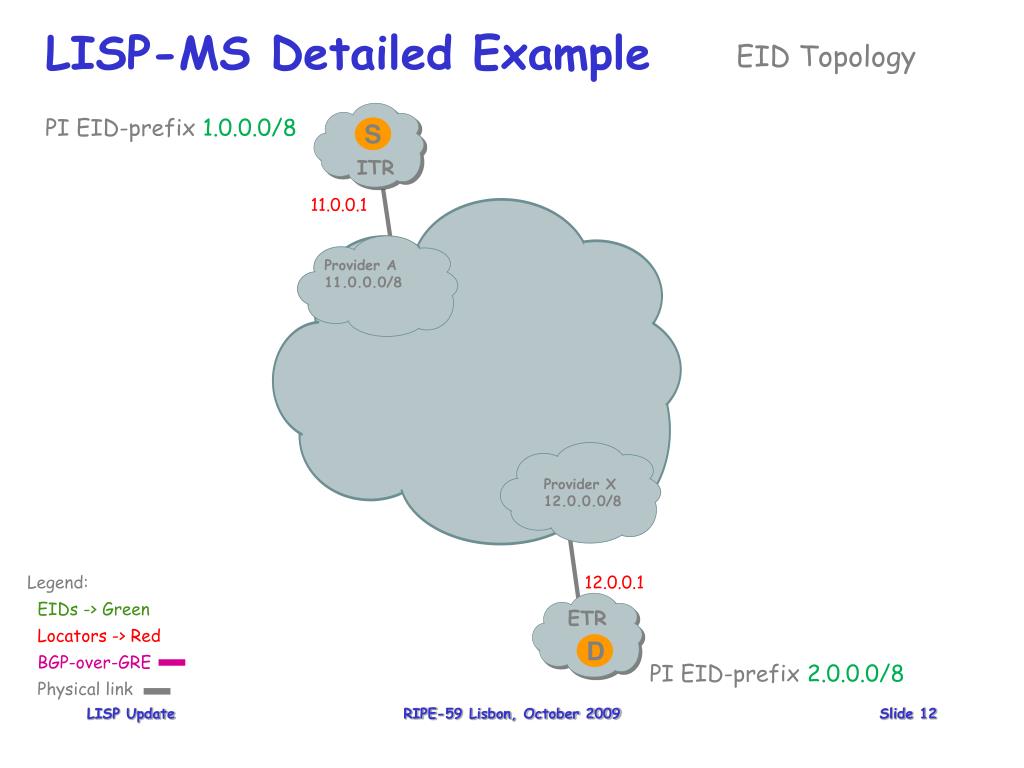

  12. S D LISP-MS Detailed Example EID Topology PI EID-prefix 1.0.0.0/8 ITR 11.0.0.1 Provider A 11.0.0.0/8 Provider X 12.0.0.0/8 Legend: EIDs -> Green Locators -> Red BGP-over-GRE Physical link 12.0.0.1 ETR PI EID-prefix 2.0.0.0/8 RIPE-59 Lisbon, October 2009

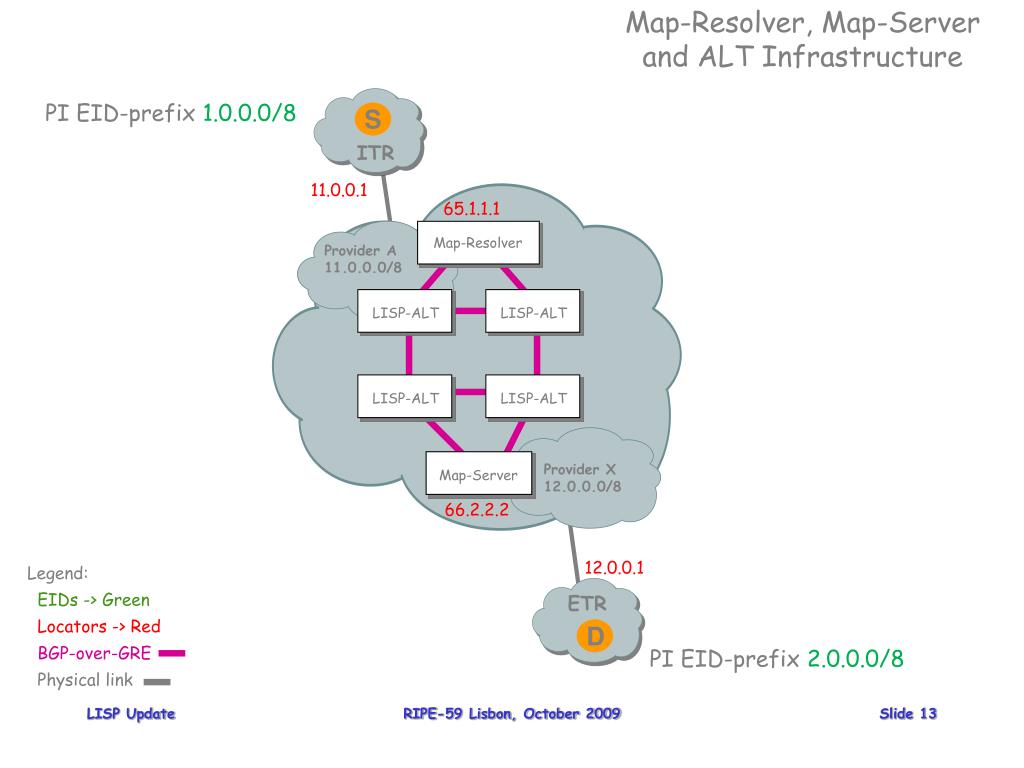

  13. Map-Resolver, Map-Server and ALT Infrastructure LISP-ALT LISP-ALT LISP-ALT LISP-ALT Map-Server S D Map-Resolver PI EID-prefix 1.0.0.0/8 ITR 11.0.0.1 Provider A 11.0.0.0/8 65.1.1.1 Provider X 12.0.0.0/8 66.2.2.2 12.0.0.1 Legend: EIDs -> Green Locators -> Red BGP-over-GRE Physical link ETR PI EID-prefix 2.0.0.0/8 RIPE-59 Lisbon, October 2009

  14. LISP Map-Register LISP-ALT LISP-ALT LISP-ALT LISP-ALT Map-Server S D 12.0.0.1 -> 66.2.2.2 Map-Resolver (3) (2) (4) 2.0.0.0/8 2.0.0.0/8 2.0.0.0/8 (1) [1] Map-Server Registration PI EID-prefix 1.0.0.0/8 ITR 11.0.0.1 65.1.1.1 Provider A 11.0.0.0/8 Provider X 12.0.0.0/8 66.2.2.2 12.0.0.1 Legend: EIDs -> Green Locators -> Red BGP-over-GRE Physical link ETR PI EID-prefix 2.0.0.0/8 RIPE-59 Lisbon, October 2009

  15. LISP-ALT LISP-ALT LISP-ALT LISP-ALT Map-Request UDP 4342 Map-Request UDP 4342 LISP Packet UDP 4342 LISP Packet UDP 4342 Map-Server Map-Request UDP 4342 D S 11.0.0.1-> 2.0.0.1 11.0.0.1-> 2.0.0.1 11.0.0.1-> 2.0.0.1 66.2.2.2-> 12.0.0.1 11.0.0.1-> 65.1.1.1 Map-Resolver 1.0.0.1 -> 2.0.0.1 ? ? ? ? ? [2] Data request Triggers Map-Request PI EID-prefix 1.0.0.0/8 ITR 11.0.0.1 How do I get to 2.0.0.1? (1) (5) 65.1.1.1 Provider A 11.0.0.0/8 (4) (2) (3) Provider X 12.0.0.0/8 66.2.2.2 12.0.0.1 Legend: EIDs -> Green Locators -> Red BGP-over-GRE Physical link ETR PI EID-prefix 2.0.0.0/8 RIPE-59 Lisbon, October 2009

  16. LISP-ALT LISP-ALT LISP-ALT LISP-ALT Map-Request UDP 4342 Map-Request UDP 4342 LISP Packet UDP 4342 LISP Packet UDP 4342 Map-Reply UDP 4342 Map-Server Map-Request UDP 4342 S D 11.0.0.1-> 2.0.0.1 1.0.0.1-> 2.0.0.1 11.0.0.1-> 2.0.0.1 12.0.0.1 -> 11.0.0.1 66.2.2.2-> 12.0.0.1 11.0.0.1-> 65.1.1.1 Map-Resolver 1.0.0.1 -> 2.0.0.1 ? ? ? ? ? [3] Map-Request Evokes Map-Reply PI EID-prefix 1.0.0.0/8 ITR 11.0.0.1 How do I get to 2.0.0.1? (5) (1) 65.1.1.1 Provider A 11.0.0.0/8 (4) (2) (3) Provider X 12.0.0.0/8 66.2.2.2 12.0.0.1 Legend: EIDs -> Green Locators -> Red BGP-over-GRE Physical link ETR (6) PI EID-prefix 2.0.0.0/8 RIPE-59 Lisbon, October 2009

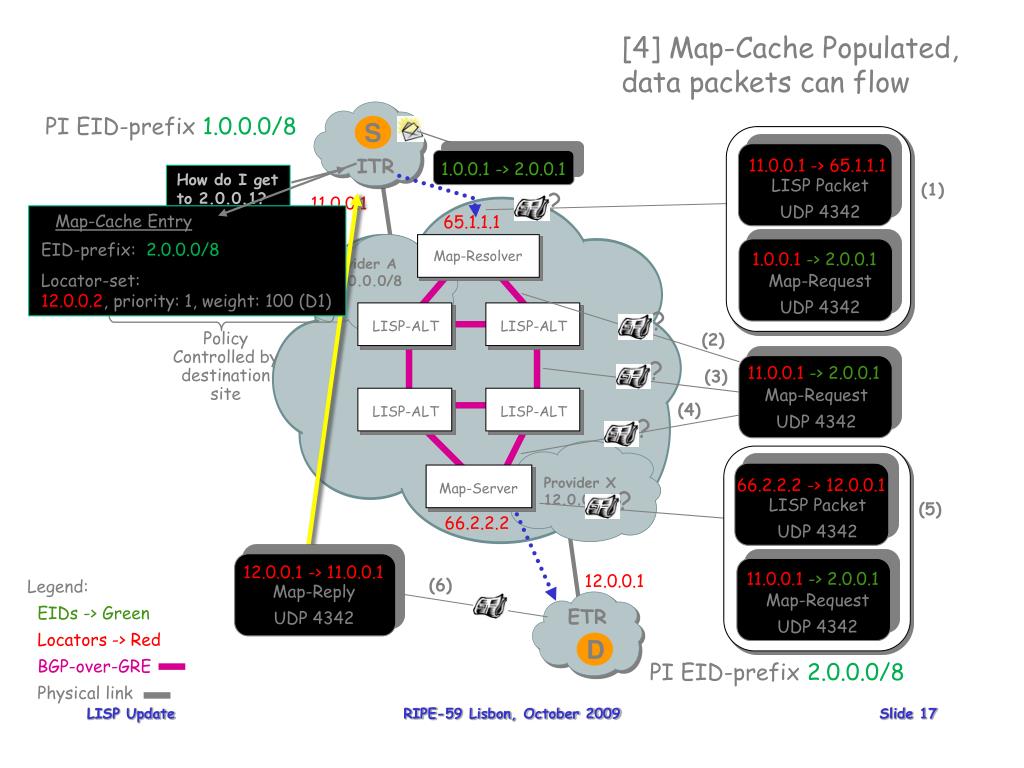

  17. LISP-ALT LISP-ALT LISP-ALT LISP-ALT Map-Request UDP 4342 Map-Request UDP 4342 LISP Packet UDP 4342 LISP Packet UDP 4342 Map-Reply UDP 4342 Map-Server Map-Request UDP 4342 D S 11.0.0.1-> 2.0.0.1 1.0.0.1-> 2.0.0.1 11.0.0.1-> 2.0.0.1 12.0.0.1 -> 11.0.0.1 66.2.2.2-> 12.0.0.1 11.0.0.1-> 65.1.1.1 Map-Resolver 1.0.0.1 -> 2.0.0.1 Map-Cache Entry EID-prefix: 2.0.0.0/8 Locator-set: 12.0.0.2, priority: 1, weight: 100 (D1) ? ? ? ? ? [4] Map-Cache Populated, data packets can flow PI EID-prefix 1.0.0.0/8 ITR 11.0.0.1 How do I get to 2.0.0.1? (1) (5) 65.1.1.1 Provider A 11.0.0.0/8 (4) (2) Policy Controlled by destination site (3) Provider X 12.0.0.0/8 66.2.2.2 12.0.0.1 Legend: EIDs -> Green Locators -> Red BGP-over-GRE Physical link ETR (6) PI EID-prefix 2.0.0.0/8 RIPE-59 Lisbon, October 2009

  18. New: LISP Mobile Node Simple host ITR/ETR implementation for mobile node MN registers with “home” Map-Server for assigned EID Map-Server will “proxy” answer Map-Requssts MN uses Map-Resolver at its current location (roaming) MN encapsulates all traffic using LISP Use of Map-Server/Map-Resolver service interface Enables scalable roaming with same LISP infrastructure used for multi-homing and route scaling Map-Request flows to “home” Map-Server User data flows to RLOCs, so no “stretch” latency Map cache management slightly different for MN Shorter TTLs, use of Solicit Map Requests, etc. See: draft-meyer-lisp-mn-00.txt (future WG document) RIPE-59 Lisbon, October 2009 Slide 18

  19. Roaming - Control Plane LISP-ALT LISP-ALT LISP-ALT LISP-ALT Map-Server Map-Resolver Map-Resolver Map-Resolver EID: 153.16.1.1 3.3.3.3 -> 65.1.1.1 LISP Map-Register 153.16.1.1 -> (3.3.3.3, 4.4.4.4) MN1 MN2 EID: 153.16.2.1 EID: 153.16.3.1 153.16.1.0./24 65.1.1.1 MN3 Legend: EIDs -> Green, RLOCs -> Red 3G network -> 3.0.0.0/8 4G network -> 4.0.0.0/8 BGP-over-GRE Map-Register BGP update (1) No matter where MN3 roams, MN1 and MN2 can find it’s locator by using the database mapping system. (2) Only the Map-Server will store 153.16.1.1/32 state with the latest set of RLOCs. (3) Data always travels on shortest path to and from MN. RIPE-59 Lisbon, October 2009 Slide 19

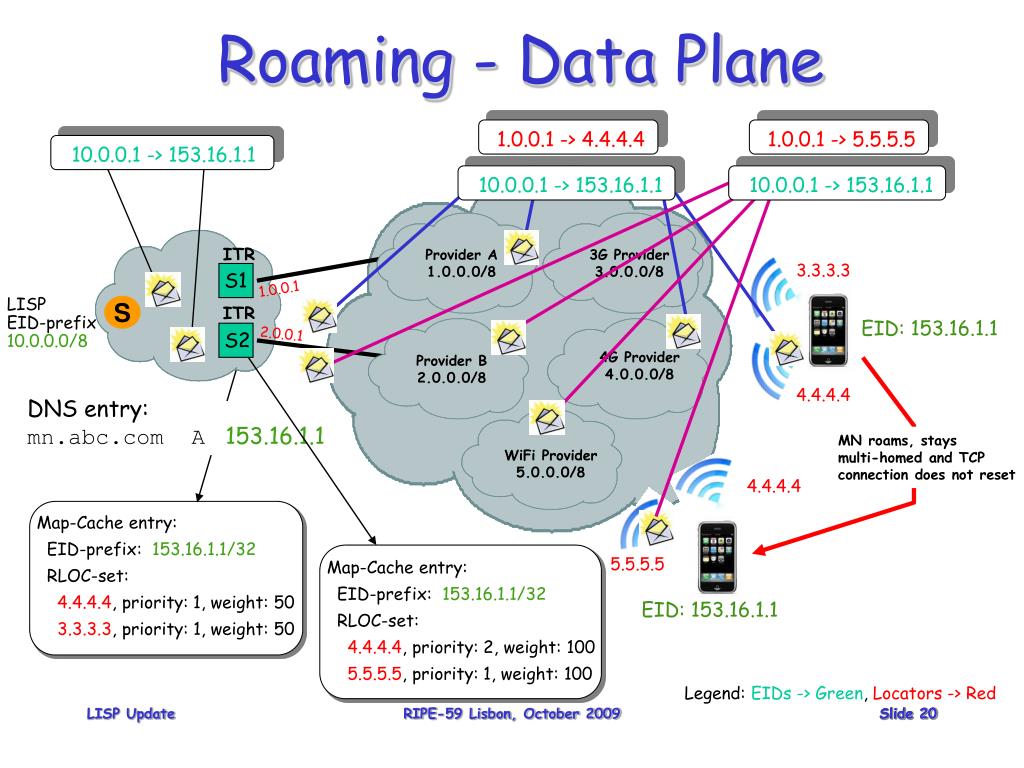

  20. Roaming - Data Plane 1.0.0.1 -> 5.5.5.5 1.0.0.1 -> 4.4.4.4 S MN roams, stays multi-homed and TCP connection does not reset 4.4.4.4 Map-Cache entry: EID-prefix: 153.16.1.1/32 RLOC-set: 4.4.4.4, priority: 1, weight: 50 3.3.3.3, priority: 1, weight: 50 10.0.0.1 -> 153.16.1.1 10.0.0.1 -> 153.16.1.1 10.0.0.1 -> 153.16.1.1 5.5.5.5 Map-Cache entry: EID-prefix: 153.16.1.1/32 RLOC-set: 4.4.4.4, priority: 2, weight: 100 5.5.5.5, priority: 1, weight: 100 S1 S2 EID: 153.16.1.1 ITR Provider A 1.0.0.0/8 3G Provider 3.0.0.0/8 3.3.3.3 1.0.0.1 ITR LISP EID-prefix 10.0.0.0/8 EID: 153.16.1.1 2.0.0.1 4G Provider 4.0.0.0/8 Provider B 2.0.0.0/8 4.4.4.4 DNS entry: mn.abc.com A153.16.1.1 WiFi Provider 5.0.0.0/8 Legend: EIDs -> Green, Locators -> Red RIPE-59 Lisbon, October 2009 Slide 20

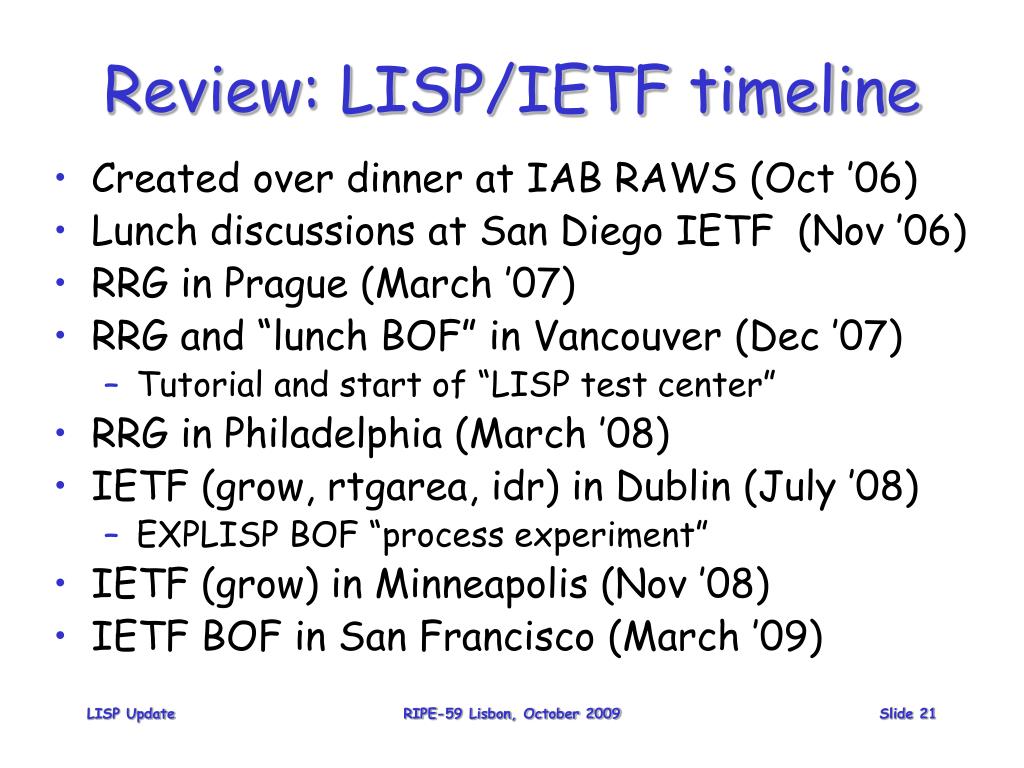

  21. Review: LISP/IETF timeline • Created over dinner at IAB RAWS (Oct ’06) • Lunch discussions at San Diego IETF (Nov ’06) • RRG in Prague (March ’07) • RRG and “lunch BOF” in Vancouver (Dec ’07) • Tutorial and start of “LISP test center” • RRG in Philadelphia (March ’08) • IETF (grow, rtgarea, idr) in Dublin (July ’08) • EXPLISP BOF “process experiment” • IETF (grow) in Minneapolis (Nov ’08) • IETF BOF in San Francisco (March ’09) RIPE-59 Lisbon, October 2009

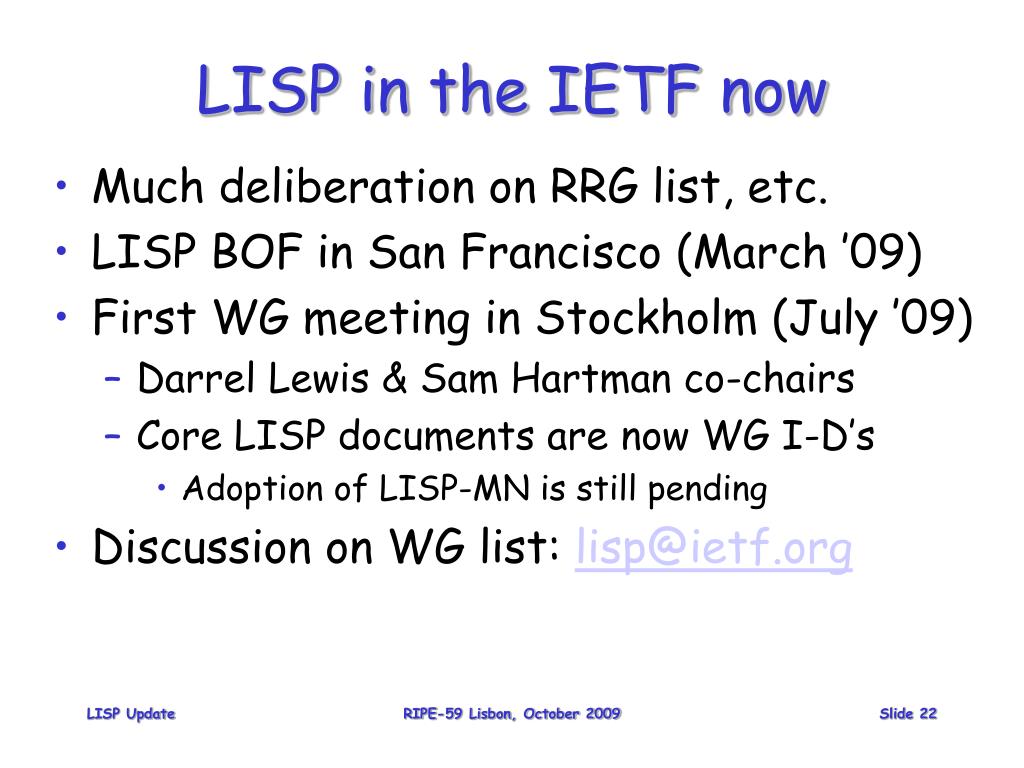

  22. LISP in the IETF now • Much deliberation on RRG list, etc. • LISP BOF in San Francisco (March ’09) • First WG meeting in Stockholm (July ’09) • Darrel Lewis & Sam Hartman co-chairs • Core LISP documents are now WG I-D’s • Adoption of LISP-MN is still pending • Discussion on WG list: lisp@ietf.org RIPE-59 Lisbon, October 2009

  23. Prototype Implementation • Cisco NXOS, on NX7000 and Titanium • Underlying Linux code base • Includes LISP, ALT, Interworking, and Map-Server/Map-Resolver functionality • “lig” diagnostic tool • Software switching only • Supports LISP for both IPv4 and IPv6 • ITR, ETR, and PTR • LISP-NAT for IPv4 only RIPE-59 Lisbon, October 2009

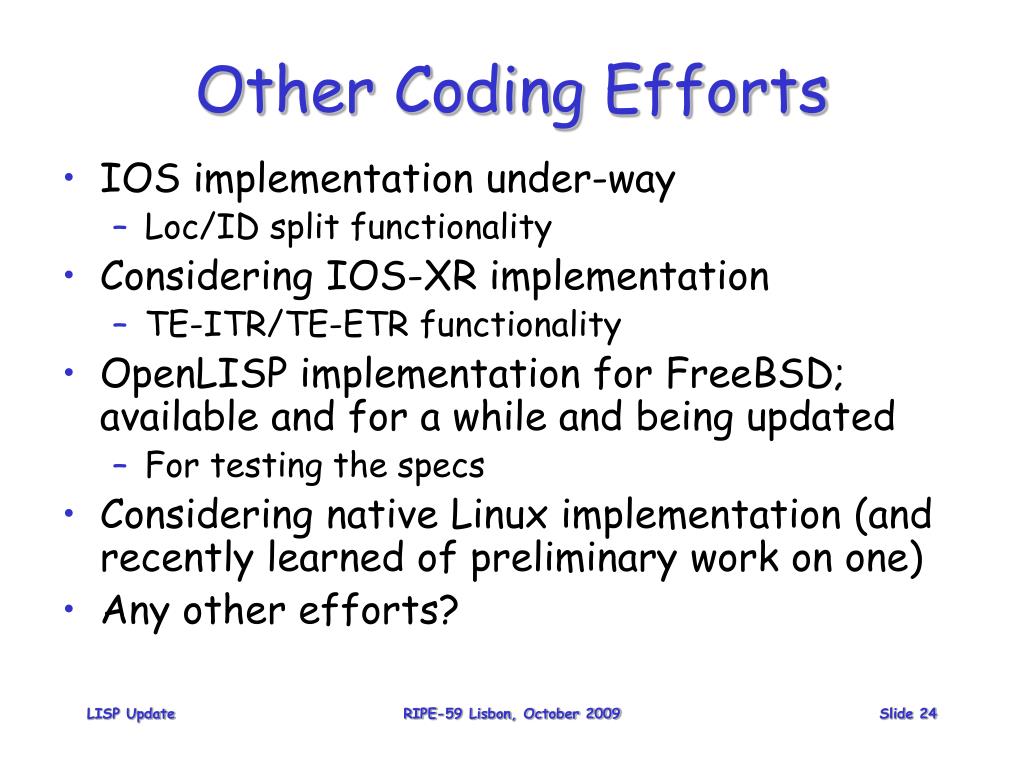

  24. Other Coding Efforts • IOS implementation under-way • Loc/ID split functionality • Considering IOS-XR implementation • TE-ITR/TE-ETR functionality • OpenLISP implementation for FreeBSD; available and for a while and being updated • For testing the specs • Considering native Linux implementation (and recently learned of preliminary work on one) • Any other efforts? RIPE-59 Lisbon, October 2009

  25. LISP Deployment • LISP Pilot Network Operational • Incrementally deployed during the last 2 years • 30+ sites across 7 countries • US, UK, BE, JP, UY, AU, DE • Uses the NX-OS Titanium Platform • IOS and OpenLISP platforms to be added • EID-Prefixes used • 153.16.0.0/16 and 2610:00d0::/32 • GRE tunnels out of 240.0.0.0/4, 32-bit ASNs • RLOCs used • Current site attachment points to the Internet RIPE-59 Lisbon, October 2009

  26. RIPE-59 Lisbon, October 2009

  27. LISP Deployment • LISP Interworking Deployed • Have LISP 1-to-1 address translation working • http://www.translate.lisp4.net • Proxy Tunnel Router (PTR) • IPv4 PTRs: • Andrew, ISC, and UY • IPv6 PTRs: • Dave (UofO), ISC, and UY • http://www.lisp6.net reachable through IPv6 PTR • http://www.ptr.lisp4.net reachable through IPv4 PTR RIPE-59 Lisbon, October 2009

  28. Open Policy for LISP • It’s been almost 3 years since the IAB Routing & Addressing Workshop • This is not a Cisco only effort • We have approached and recruited others • There are no patents (cisco has no IPR on this) • All documents are Internet Drafts • We need and seek designers, implementors, testers, and researchers • As always, please let us know if you are interested RIPE-59 Lisbon, October 2009

  29. Internet Drafts draft-ietf-lisp-05.txt draft-ietf-lisp-multicast-02.txt draft-ietf-lisp-alt-01.txt draft-ietf-lisp-ms-03.txt draft-ietf-lisp-interworking-00.txt draft-meyer-lisp-eid-block-01.txt draft-meyer-loc-id-implications-01.txt draft-meyer-lisp-mobility-00.txt draft-farinacci-lisp-lig-00.txt draft-mathy-lisp-dht-00.txt draft-iannone-openlisp-implementation-02.txt draft-brim-lisp-analysis-00.txt draft-meyer-lisp-cons-04.txt draft-lear-lisp-nerd-04.txt draft-curran-lisp-emacs-00.txt RIPE-59 Lisbon, October 2009

  30. References • Public mailing list: lisp@ietf.org • Core LISP team: lispers@cisco.com • More info at: http://www.lisp4.net http://www.lisp6.net RIPE-59 Lisbon, October 2009
