  1. The Geospatial Catalogue and Database Repository (GCDR) and the Knowledge Management System (KMS) Shane Reschke – Technical Manager (Rheinmetall Simulation Australia)

  2. Agenda 1 Motivation – General Data Management Issues and Solutions 2 Example – Simulation DM Systems: KMS and GCDR 3 Core Functions 4 Summary

  3. Definition Data Management“… is the development, execution and supervision of plans, policies, programs and practices that control, protect, deliver and enhance the value of data and information assets.” • — Data Management Association (DAMA) • Data Management“… is a set of processes and technologies for ensuring the accuracy, completeness, timeliness and consistency of multiple domains of enterprise data - across applications, systems and databases and across multiple business processes, functional areas, organisations, geographies and channels.” • — Hub Designs Consulting

  4. Motivation: General Data Management Issues • What are the problems and issues? • No centralisation and duplicated data • Independently managed • Poor Data Quality • Lack of Data Integrity • What is important? • Centralisation and Integration • Security & Privacy • High Data Quality • Trusted Information • Mission: “To standardise and reuse accurate data”

  5. Simulation Problems • Different manufacturers • Different data formats & structures • Local data storage Simulator A Simulator B • 3D Models • Platform Data • Behavioural Models • 3D Models • Platform Data • Behavioural Models • Terrain • Terrain DIS / HLA • Reusability • Interoperability • Fair Fight

  6. General Solution/Approach • Service Oriented Architecture (SOA) • Cloud Computing • SOA + Cloud

  7. Agenda 1 Motivation – General Data Management Issues and Solutions 2 Example – Simulation DM Systems: KMS and GCDR 3 Core Functions 4 Summary

  8. Mission of the KMS and GCDR • Mission: “To provide a capability to capture, manage, reuse and share simulation data enterprise wide” • Solutions: • Knowledge Management System (KMS) and • Geospatial Catalogue and Database Repository (GCDR) 1. Training Sharing 4. Capability Development Support 2. Decision Support 5. Mission Support 3. Analysis and Experimentation Acquisition Utilisation

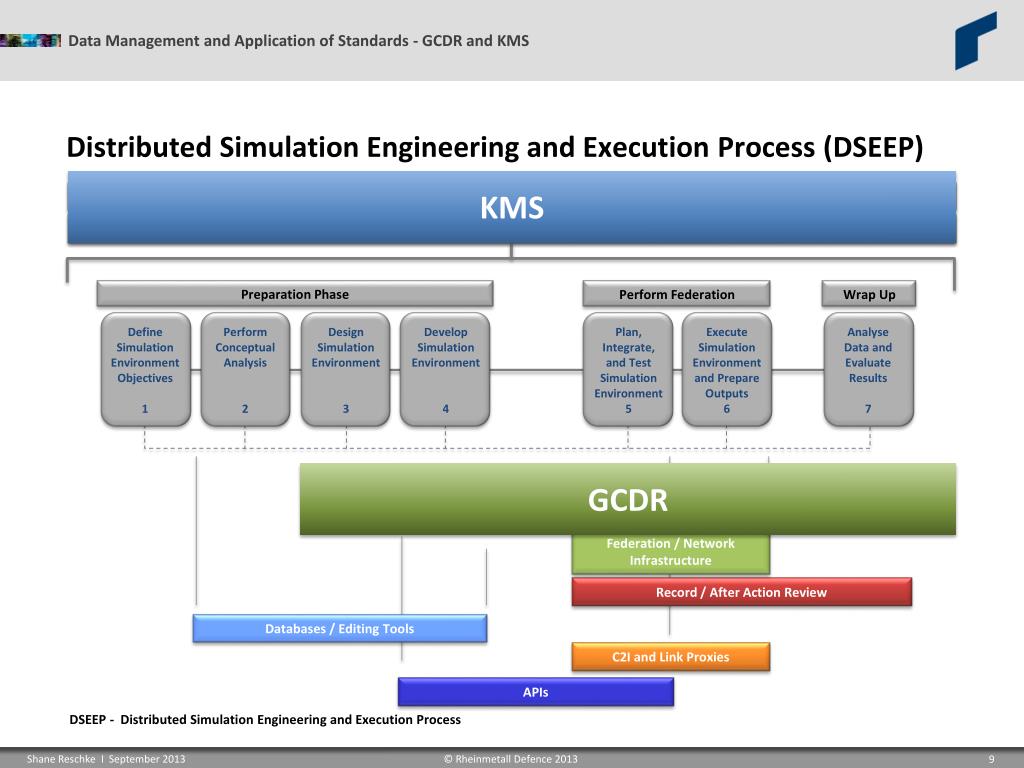

  9. Distributed Simulation Engineering and Execution Process (DSEEP) KMS Management Tools Collaboration Tools Preparation Phase Perform Federation Wrap Up ExecuteSimulationEnvironmentand PrepareOutputs 6 AnalyseData andEvaluateResults 7 DefineSimulationEnvironment Objectives 1 PerformConceptualAnalysis 2 Design Simulation Environment 3 Develop Simulation Environment 4 Plan,Integrate,and TestSimulationEnvironment 5 GCDR FederationControl Tools Synthtic Environment Services Federation / Network Infrastructure Record / After Action Review Databases / Editing Tools C2I and Link Proxies APIs DSEEP -Distributed Simulation Engineering and Execution Process

  10. KMS and GCDR Architecture Simulation Management Tools 2D/3D Viewer GeospatialPortlets GCDR-DMS GeospatialPortlets GCDR-DMS Knowledge Management System (KMS-DMS) Knowledge Management System (KMS-DMS) … other DMS Portlets … other DMS Portlets … Upload … Upload Simulation Workflow Service /User Help Desk 2D/3D MapViewer Spatial Data Import andVerification Spatial Data Import andVerification 2D/3D MapViewer andSearch 2D/3D MapViewer andSearch Enterprise Search Enterprise Search Collaboration Collaboration Security Management Security Management Presentation/Application Layer … Import … Import RequirementsManagement ConfigurationManagement Data Properties/ Parameters Spatial Data Import Spatial Data Import Spatial System Admin Spatial System Admin Content Management Content Management PortletManagement PortletManagement User Management User Management … Export … Export … And More … And More Spatial Data Export Spatial Data Export Task Management Task Management Workflow Management Workflow Management Instant Messaging Instant Messaging DocumentManagement DocumentManagement … other Services … other Services Data Manipulation andProcesses Geospatial Services Search Engine … … Import Workflow Data Validation Data Transformation Web Mapping Services (WMS) Catalogue Service (CSW) Data Indexing Service Layer … … Export Workflow Orchestrationand Routing Data Conversion Export Workflow AdvancedSearch … other Databases … other Databases Environmental Objects andEntities Geospatial (GCDR) KMS Content Data … … Environment Database Objects Database Geospatial Database File Storage KMS Database Data Layer KMS Components GCDR Components Potential KMS Components Potential Future Functionality

  11. GCDR User Dialogue

  12. Agenda 1 Motivation – General Data Management Issues and Solutions 2 Example – Simulation DM Systems: KMS and GCDR 3 Core Functions 4 Summary

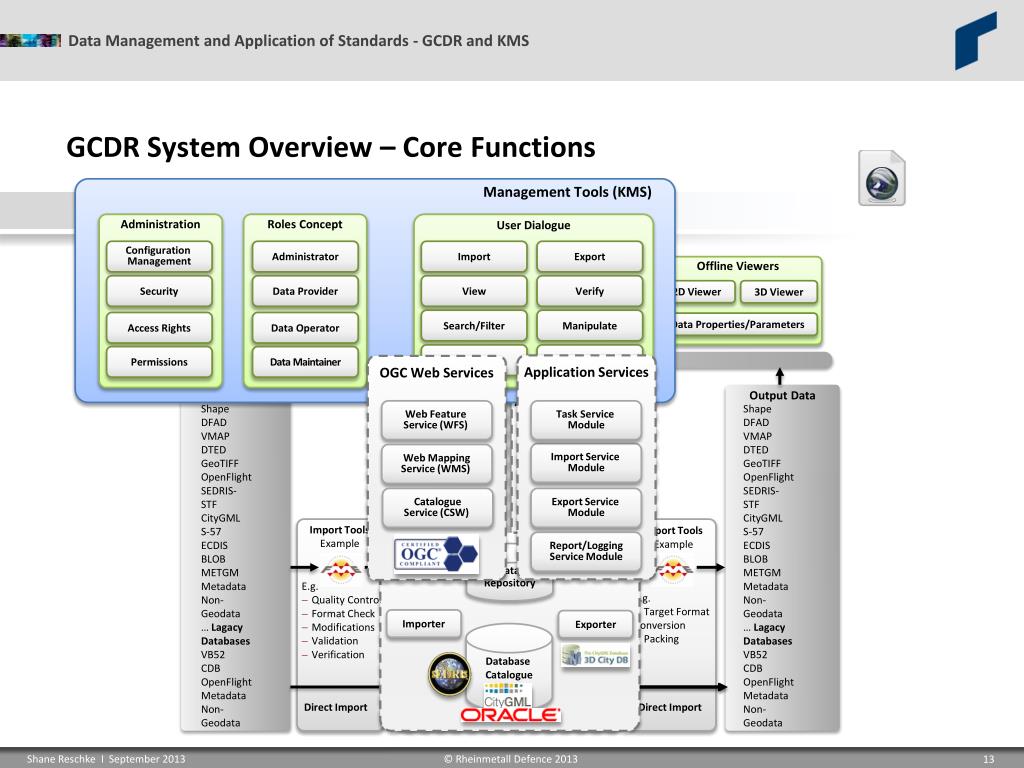

  13. GCDR System Overview – Core Functions Management Tools (KMS) Management Tools (KMS) Administration Administration RolesConcept RolesConcept User Dialogue User Dialogue Export Export ConfigurationManagement ConfigurationManagement Administrator Administrator Import Import Export Export Verify Verify Security Security Data Provider Data Provider View View Verify Verify Offline Viewers Manipulate Manipulate Search/Filter Search/Filter Manipulate Manipulate Access Rights Access Rights Data Operator Data Operator 2D Viewer 3D Viewer 3D Viewer 3D Viewer 2D Viewer 2D Viewer 3D Viewer 3D Viewer Permissions Permissions Data Maintainer Data Maintainer Data Properties/Parameters Network Application Services Application Services OGC Web Services OGC Web Services Input Data Output Data Shape DFAD VMAP DTED GeoTIFF OpenFlight SEDRIS- STF CityGML S-57 ECDIS BLOB METGM Metadata Non- Geodata … Lagacy Databases VB52 CDB OpenFlight Metadata Non-Geodata Shape DFAD VMAP DTED GeoTIFF OpenFlight SEDRIS- STF CityGML S-57 ECDIS BLOB METGM Metadata Non- Geodata … Lagacy Databases VB52 CDB OpenFlight Metadata Non-Geodata Export Export Web Feature Service (WFS) Web Feature Service (WFS) Task Service Module Task Service Module Verify Verify Import Service Module Import Service Module Web MappingService (WMS) Web MappingService (WMS) Manipulate Manipulate CatalogueService (CSW) CatalogueService (CSW) Export Service Module Export Service Module 3D Viewer 3D Viewer Report/LoggingService Module Report/LoggingService Module Import Tools Example Export Tools Example Data Repository Data Repository • E.g. • Quality Control • Format Check • Modifications • Validation • Verification • E.g. • Target Format • Conversion • Packing Importer Importer Exporter Exporter Database Catalogue Database Catalogue Direct Import Direct Import

  14. An ISO/OGC - Compliant Data Management System (DMS) • ISO-/OGC- • compliant • Synthetic • Environment • Service (SES) based on COTS DBMS Standards Standards Standards Service Architecture Web-based Services

  15. Agenda 1 Motivation – General Data Management Issues and Solutions 2 Example – Simulation DM Systems: KMS and GCDR 3 Core Functions 4 Summary

  16. Take Away Information • Importance of Data Management within an Enterprise • Well designed holistic Architecture • Importance of Open Standards and Data Formats • Information Sharing through Collaborative Tools • What's Next… Integration of Simulation Processes
