Android Augmented-Reality SDK

1. Android Augmented-RealitySDK Presented By Kalaiselvi

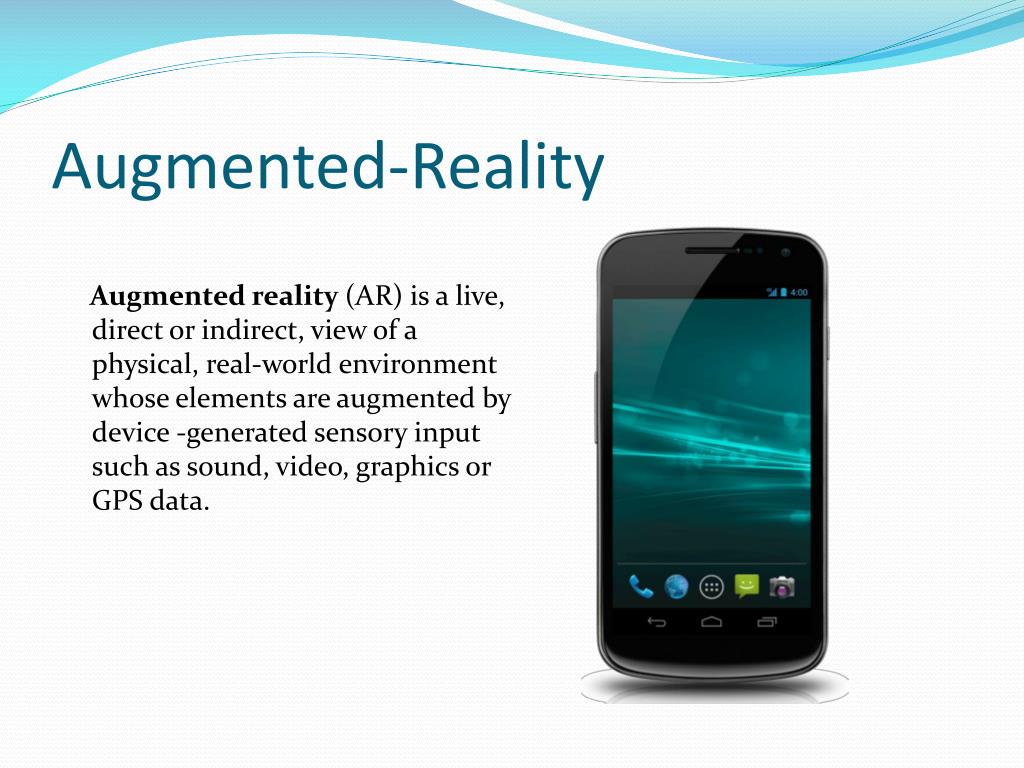

2. Augmented-Reality Augmented reality (AR) is a live, direct or indirect, view of a physical, real-world environment whose elements are augmented by device -generated sensory input such as sound, video, graphics or GPS data.

3. Augmented Reality • Augmented Reality is a growing area in virtual reality. • An Augmented Reality system generates a composite view for the user. It’s a combination of the real scene viewed by the user and a virtual scene generated by the device that augments the scene generated by the device with additional information.

4. Usage of AR Technology Augmented reality can be used in many applications, and many areas can benefit from the usage of AR technology.

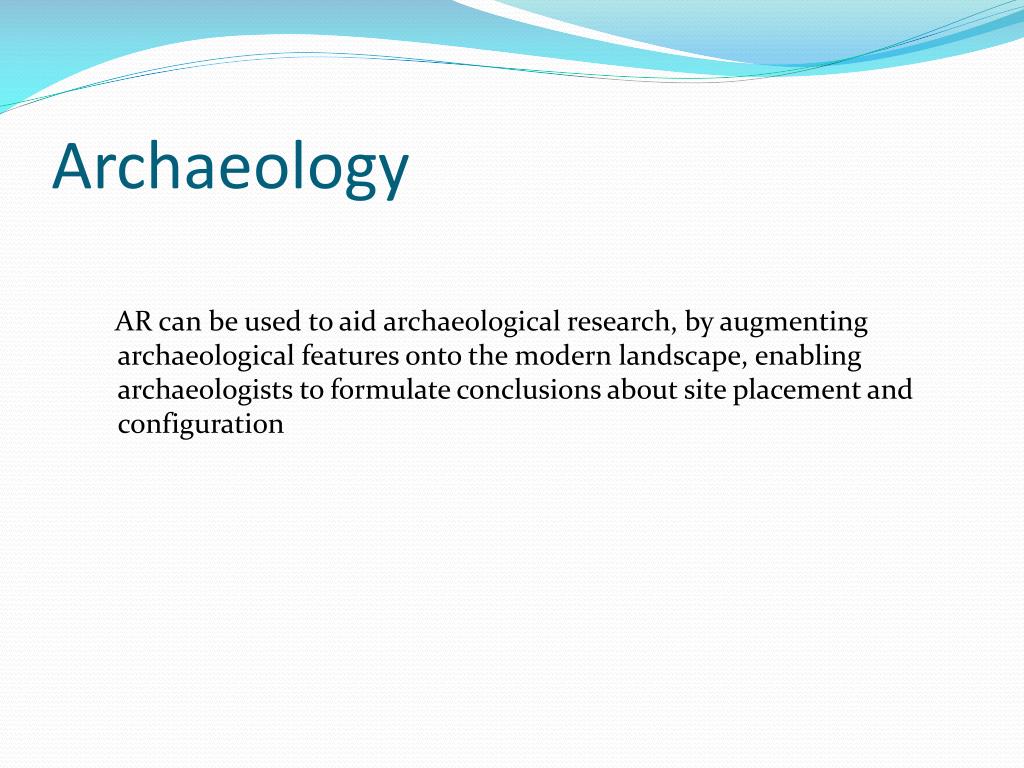

5. Archaeology AR can be used to aid archaeological research, by augmenting archaeological features onto the modern landscape, enabling archaeologists to formulate conclusions about site placement and configuration

6. Architecture AR can aid in visualizing building projects. Device generated images of a structure can be superimposed into a real life local view of a property before the physical building is constructed there. AR can also be employed within an architect's work space, rendering into their view animated 3D visualizations of their 2D drawings. Architecture sight-seeing can be enhanced with AR applications allowing users viewing a building's exterior to virtually see through its walls viewing it's interior objects and layout.

7. Art AR technology has helped disabled individuals create art by using eye tracking to translate a user's eye movements into drawings on a screen. An item such as a commemorative coin can be designed so that when scanned by an AR enabled device it displays additional objects and layers of information that were not visible in a real world view of it.

8. Commerce • AR can enhance product previews such as allowing a customer to view what's inside a product's packaging without opening it. • AR can also be used as an aid in selecting products from a catalog or through a kiosk. Scanned images of products can activate views of additional content such as customization options and additional images of the product in its use. • AR is used to integrate print and video marketing. Printed marketing material can be designed with certain "trigger" images that, when scanned by an AR enabled device using image recognition, activate a video version of the promotional material.

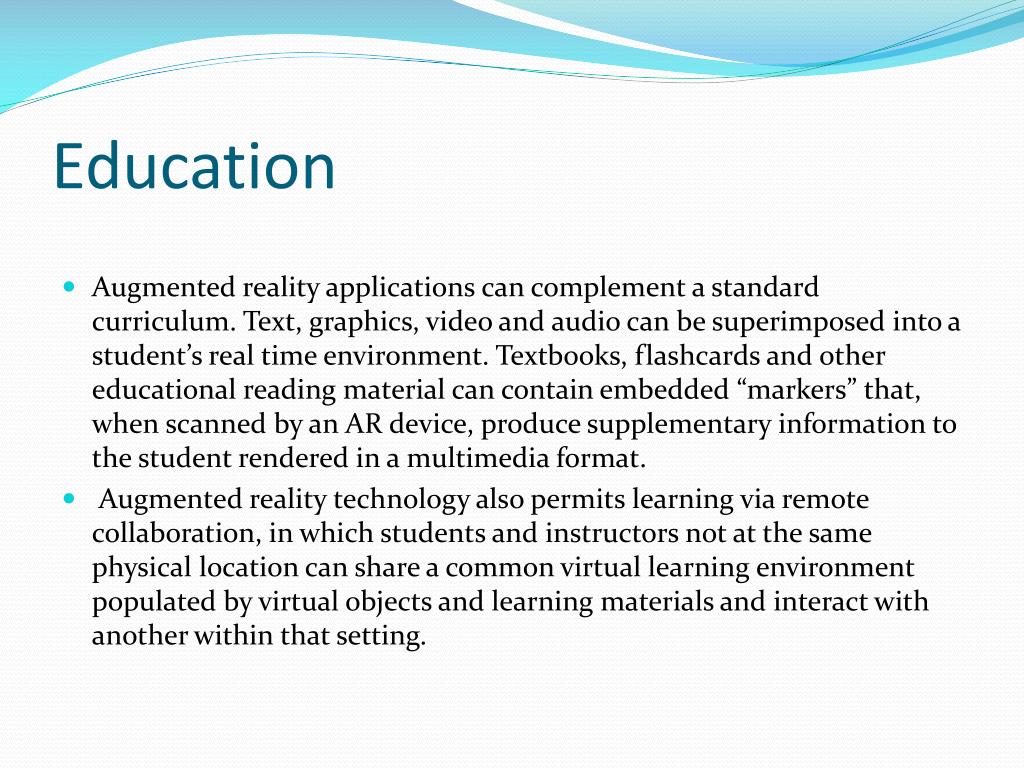

9. Education • Augmented reality applications can complement a standard curriculum. Text, graphics, video and audio can be superimposed into a student’s real time environment. Textbooks, flashcards and other educational reading material can contain embedded “markers” that, when scanned by an AR device, produce supplementary information to the student rendered in a multimedia format. • Augmented reality technology also permits learning via remote collaboration, in which students and instructors not at the same physical location can share a common virtual learning environment populated by virtual objects and learning materials and interact with another within that setting.

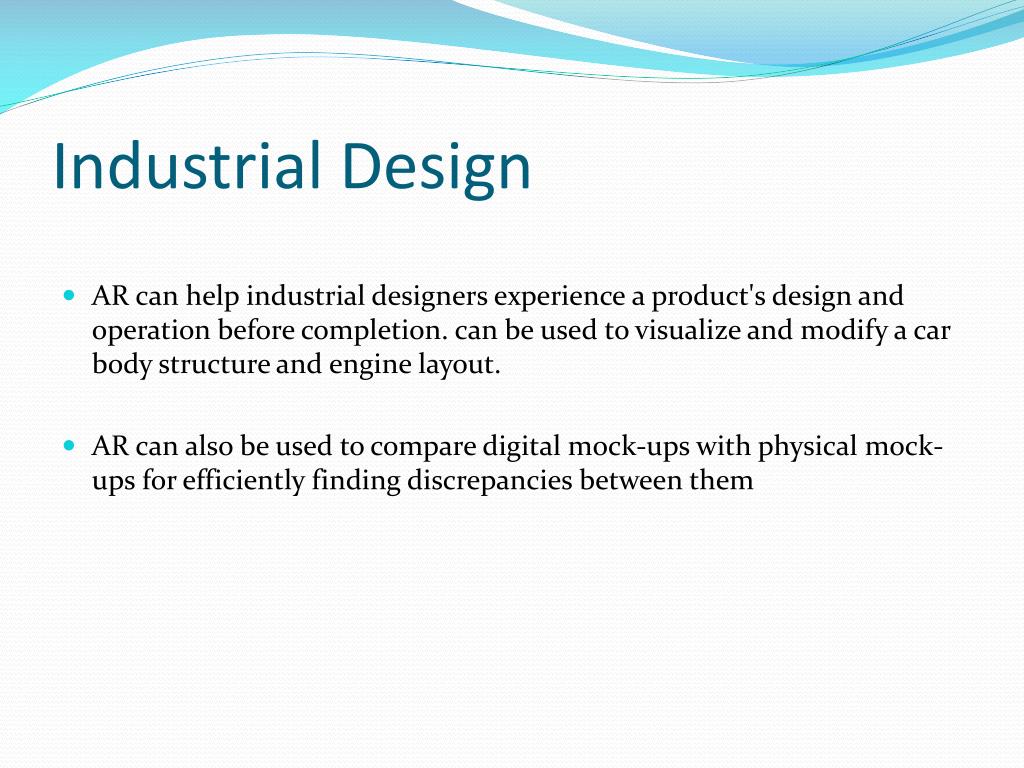

10. Industrial Design • AR can help industrial designers experience a product's design and operation before completion. can be used to visualize and modify a car body structure and engine layout. • AR can also be used to compare digital mock-ups with physical mock-ups for efficiently finding discrepancies between them

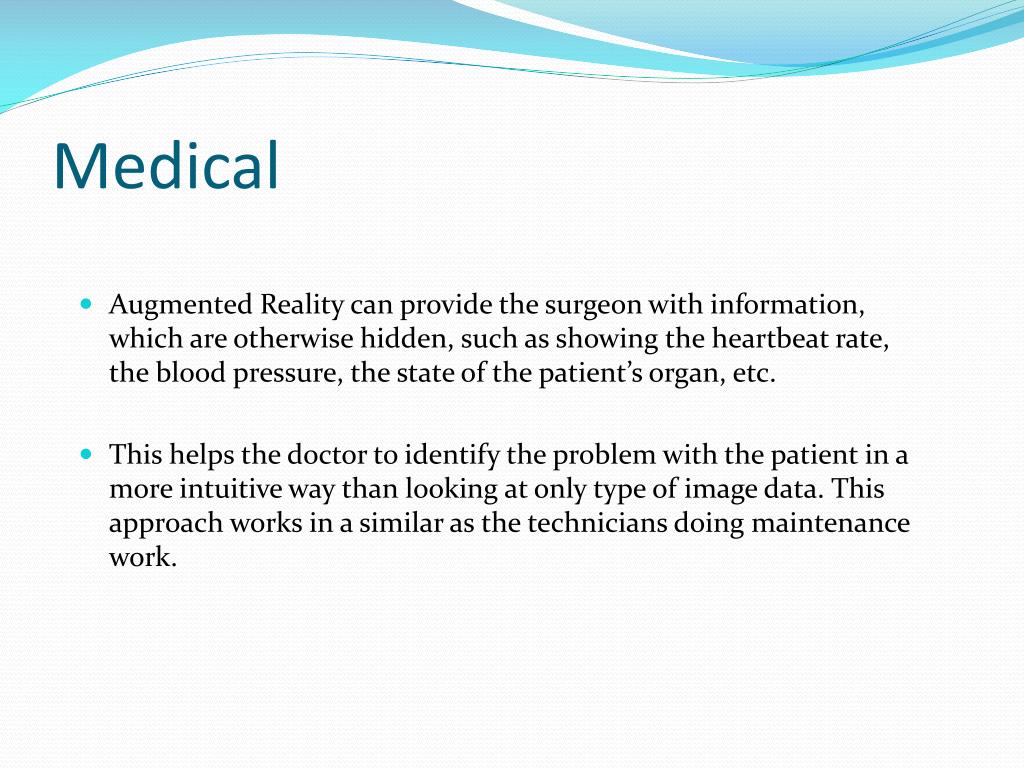

11. Medical • Augmented Reality can provide the surgeon with information, which are otherwise hidden, such as showing the heartbeat rate, the blood pressure, the state of the patient’s organ, etc. • This helps the doctor to identify the problem with the patient in a more intuitive way than looking at only type of image data. This approach works in a similar as the technicians doing maintenance work.

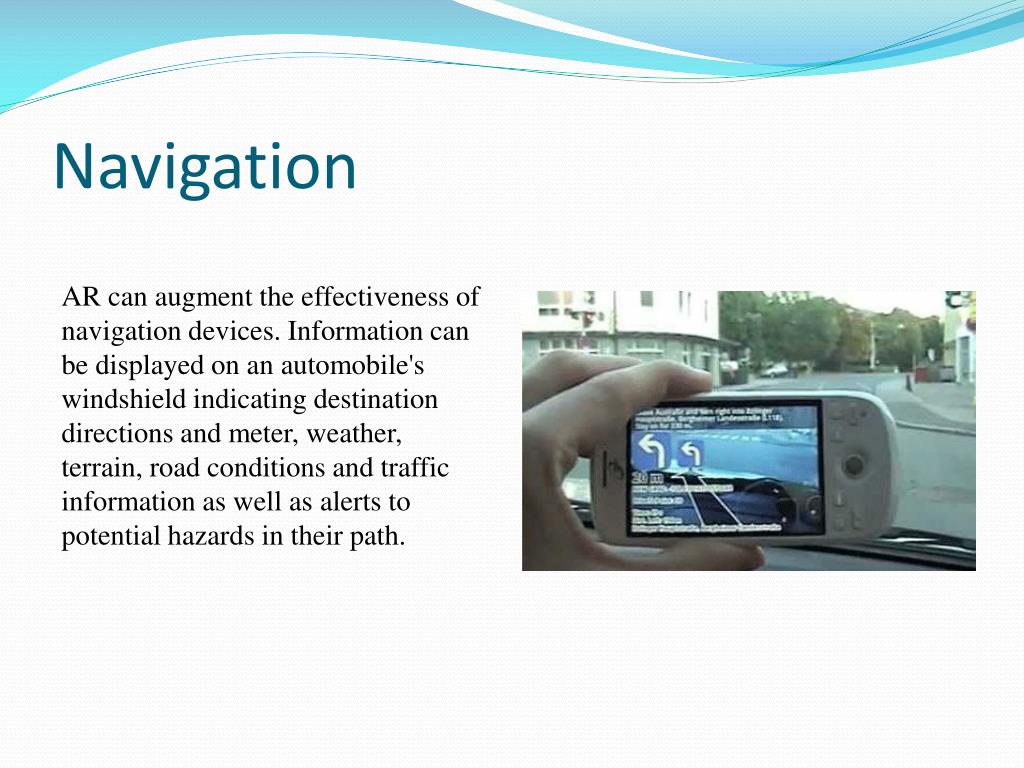

12. Navigation AR can augment the effectiveness of navigation devices. Information can be displayed on an automobile's windshield indicating destination directions and meter, weather, terrain, road conditions and traffic information as well as alerts to potential hazards in their path.

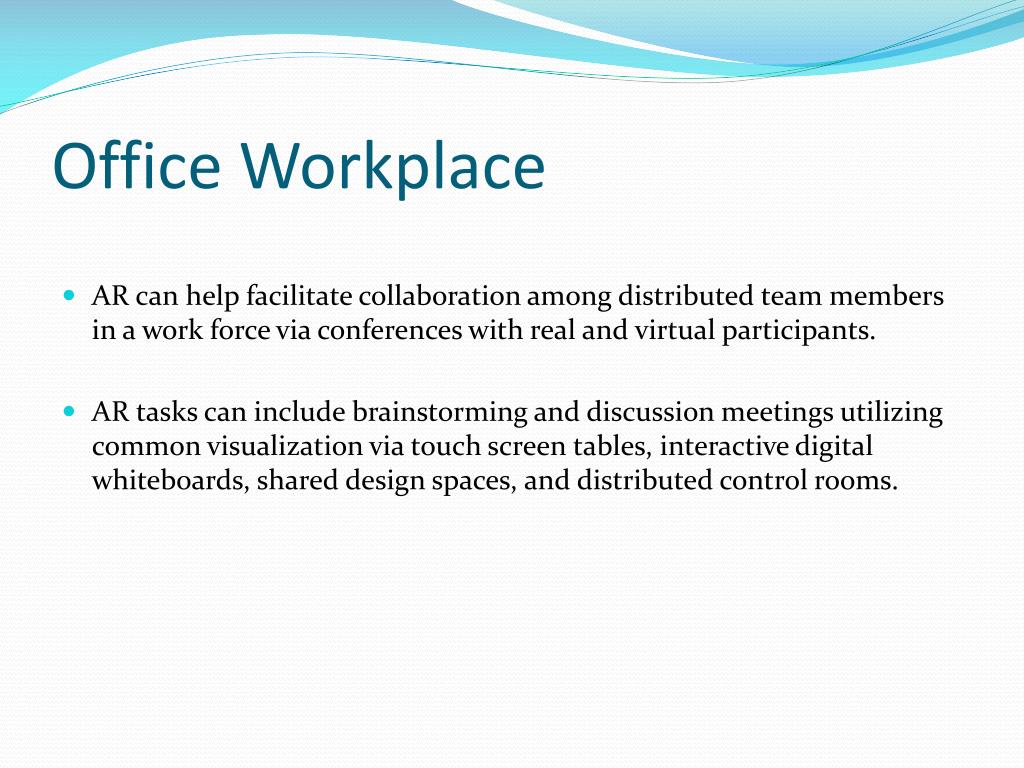

13. Office Workplace • AR can help facilitate collaboration among distributed team members in a work force via conferences with real and virtual participants. • AR tasks can include brainstorming and discussion meetings utilizing common visualization via touch screen tables, interactive digital whiteboards, shared design spaces, and distributed control rooms.

14. Tourism and Sightseeing • AR can enhance a user's experience when traveling by providing real time informational displays regarding a location and it's features, including comments made by previous visitors of the site. • AR allow tourists to experience simulations of historical events, places and objects by rendering them into their current view of a landscape. • AR can also present location information by audio, announcing features of interest at a particular site as they become visible to the user.

15. Translation AR systems can interpret foreign text on signs and menus and, in a user's augmented view, re-display the text in the user's language. Spoken words of a foreign language can be translated and displayed in a user's view as printed subtitles.

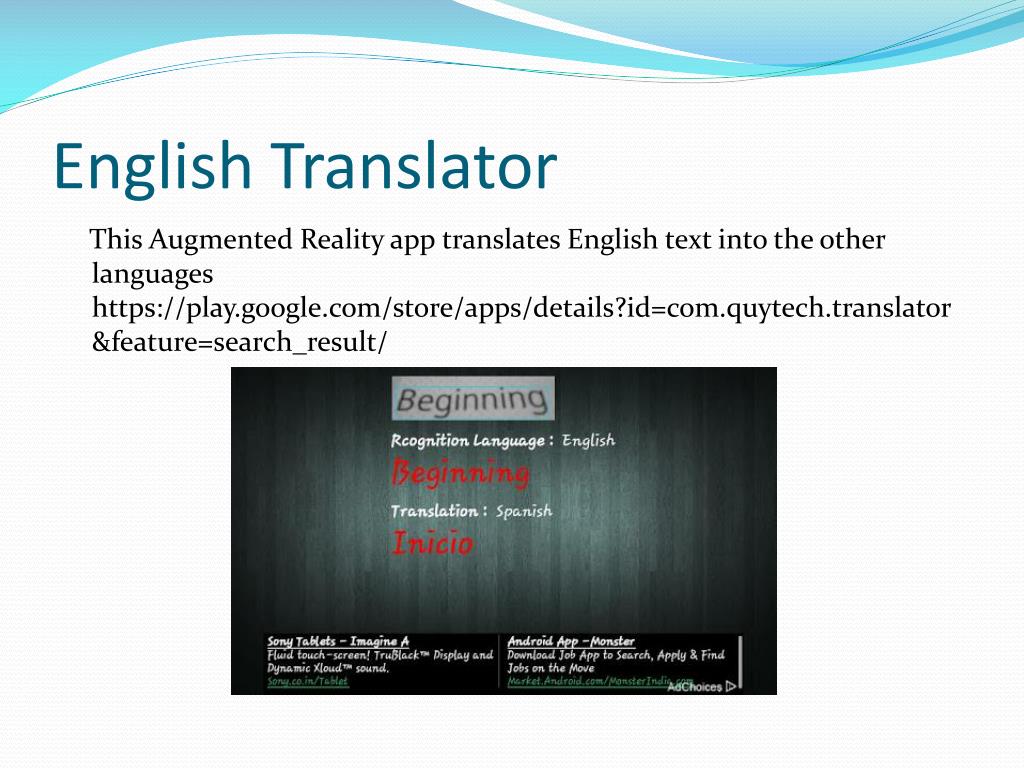

16. English Translator This Augmented Reality app translates English text into the other languages https://play.google.com/store/apps/details?id=com.quytech.translator&feature=search_result/

17. Augmented-reality in Android SDK Version 2.1 and above • If you’re building a really impressive next-generation augmented-reality app, your app won’t function at all without a camera. However, if you’re building a shopping app that only uses the camera for barcode scanning, users without cameras might still find it useful even if they can’t scan barcodes. While both apps need to acquire the permission to access the camera, only the first app needs to state that it requires a camera. • <uses-permission android:name="android.permission.CAMERA" /> • <uses-feature android:name="android.hardware.camera" /> <uses-feature android:name="android.hardware.camera.autofocus" />

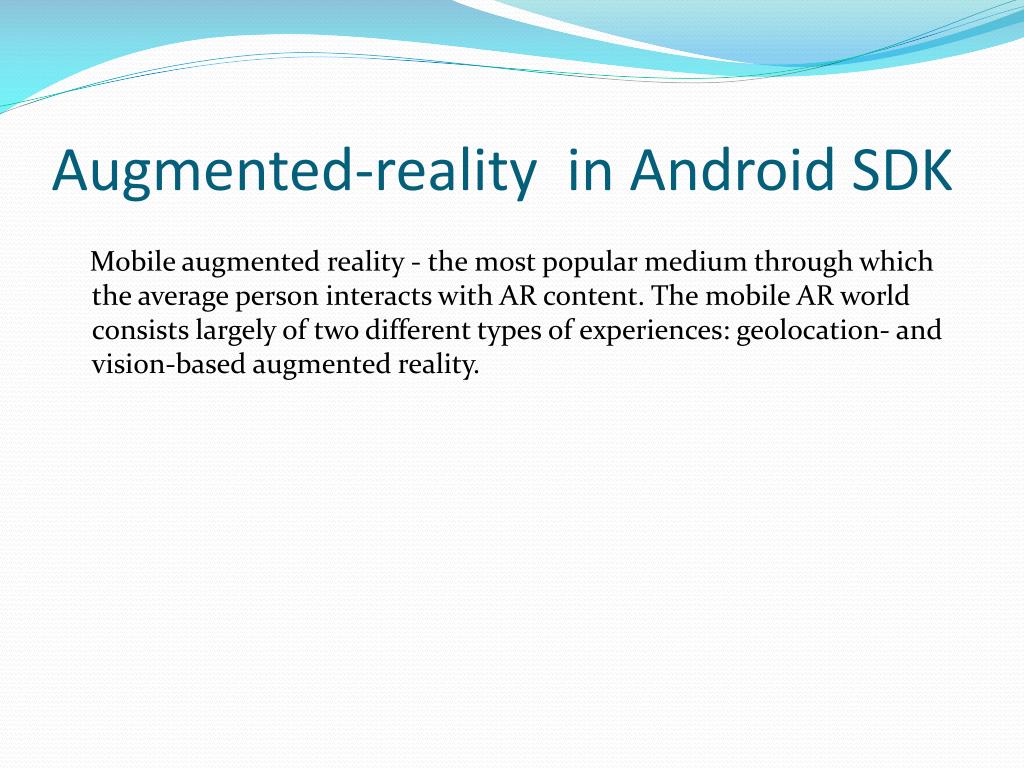

18. Augmented-reality in Android SDK Mobile augmented reality - the most popular medium through which the average person interacts with AR content. The mobile AR world consists largely of two different types of experiences: geolocation- and vision-based augmented reality.

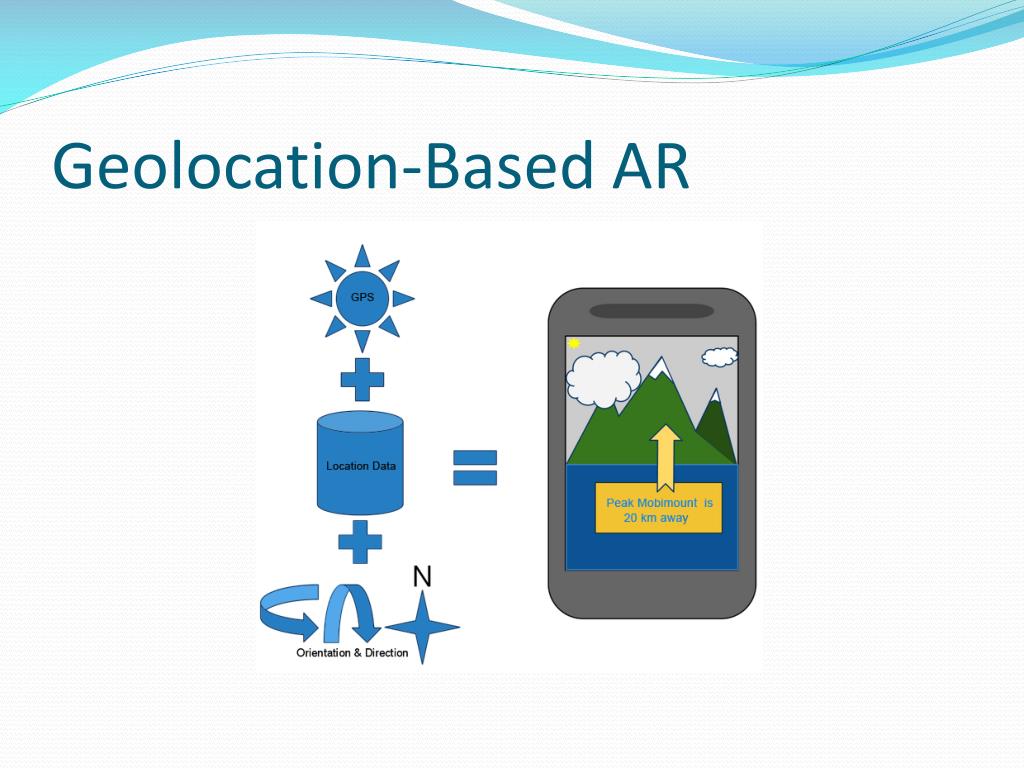

19. Geolocation-Based AR • Geolocation-based AR uses GPS, compass and other sensors in a user’s mobile phone to provide a “heads-up” display of various geolocated points-of-interest. • The basic architecture of a location-based application involves a camera view, the user’s location, the phone’s orientation compared to the real world, and a list of locations for items that we want to show on the display – the data with which we augment the camera’s vision of the world.

20. Geolocation-Based AR

21. Vision-based AR • Vision-based AR uses many of these same sensors to virtually display digital content in context with real-world objects - like magazines, postcards or product packaging - by tracking the visual features of these objects.

22. App Requirements • AR application requires access to the following device features: • Access to the camera view • Access to the user’s location • Access to other device sensors, especially a compass (accelerometer and gyroscope can also be useful) • The application may also require other services and permissions, such as network access, but these are not central to the AR aspects of the application.

23. Configure the Manifest File On the Manifest Tab, add • android.hardware.camera (Required=true) • android.hardware.camera.autofocus (Required=false) • android.hardware.location.gps (Required=true) • android.hardware.sensor.compass (Required=true) • android.hardware.sensor.gyroscope (Required=true) • android.hardware.sensor.accelerometer (Required=true) On the Permissions Tab, add • android.permission.CAMERA • android.permission.FINE_LOCATION

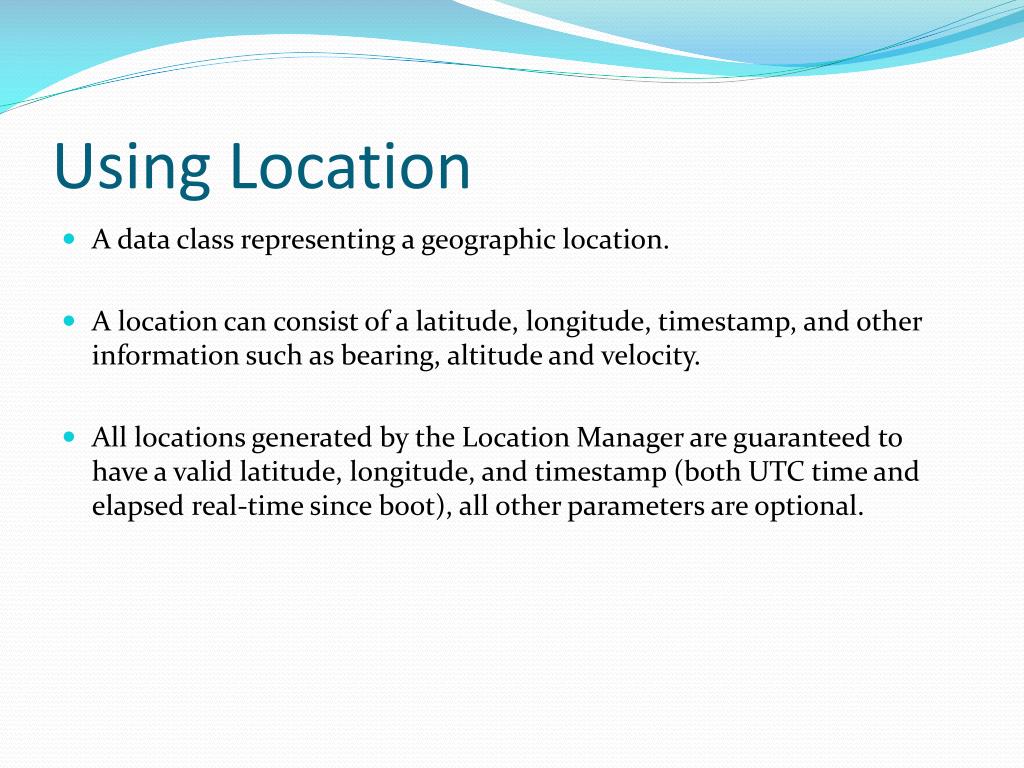

24. Using Location • A data class representing a geographic location. • A location can consist of a latitude, longitude, timestamp, and other information such as bearing, altitude and velocity. • All locations generated by the Location Manager are guaranteed to have a valid latitude, longitude, and timestamp (both UTC time and elapsed real-time since boot), all other parameters are optional.

25. Using Location Manager These services allow applications to obtain periodic updates of the device's geographical location, or to fire an application-specified Intent when the device enters the proximity of a given geographical location.

26. Using Sensor Manager • Using the camera (Y axis along the camera's axis) for an augmented reality application where the rotation angles are needed: • remapCoordinateSystem(inR, AXIS_X, AXIS_Z, outR);

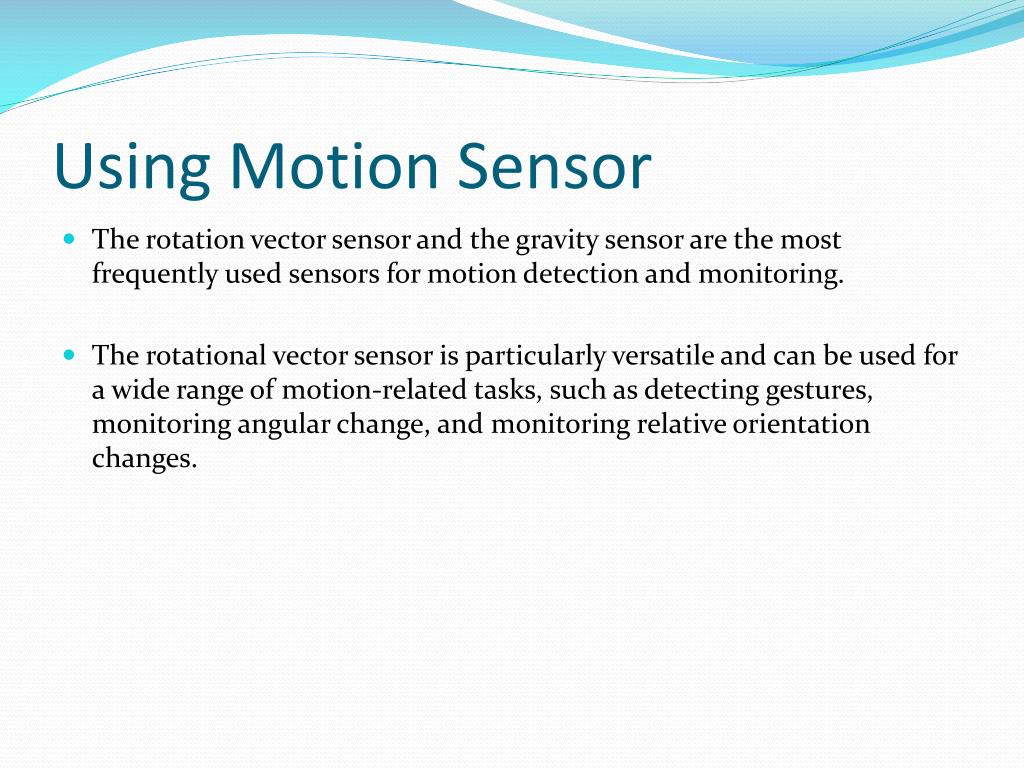

27. Using Motion Sensor • The rotation vector sensor and the gravity sensor are the most frequently used sensors for motion detection and monitoring. • The rotational vector sensor is particularly versatile and can be used for a wide range of motion-related tasks, such as detecting gestures, monitoring angular change, and monitoring relative orientation changes.

28. Using the Gravity Sensor • The gravity sensor provides a three dimensional vector indicating the direction and magnitude of gravity. The following code shows you how to get an instance of the default gravity sensor: • private SensorManagermSensorManager; • private Sensor mSensor; ... • mSensorManager = (SensorManager) getSystemService(Context.SENSOR_SERVICE); • mSensor = mSensorManager.getDefaultSensor(Sensor.TYPE_GRAVITY);

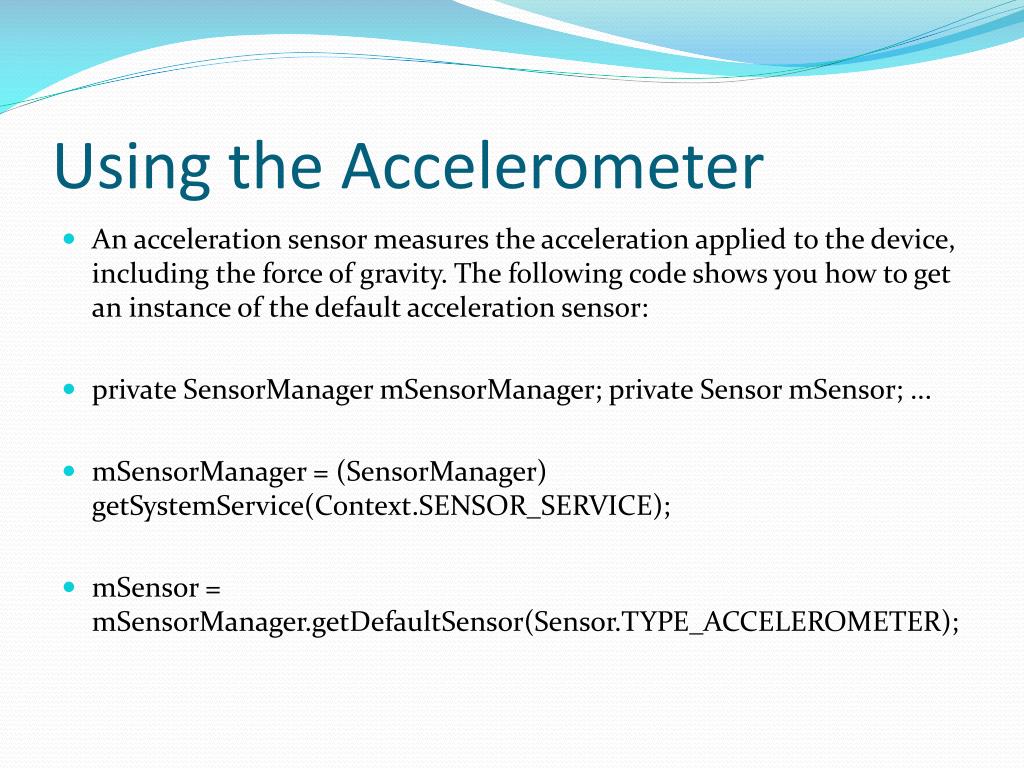

29. Using the Accelerometer • An acceleration sensor measures the acceleration applied to the device, including the force of gravity. The following code shows you how to get an instance of the default acceleration sensor: • private SensorManager mSensorManager; private Sensor mSensor; ... • mSensorManager = (SensorManager) getSystemService(Context.SENSOR_SERVICE); • mSensor = mSensorManager.getDefaultSensor(Sensor.TYPE_ACCELEROMETER);

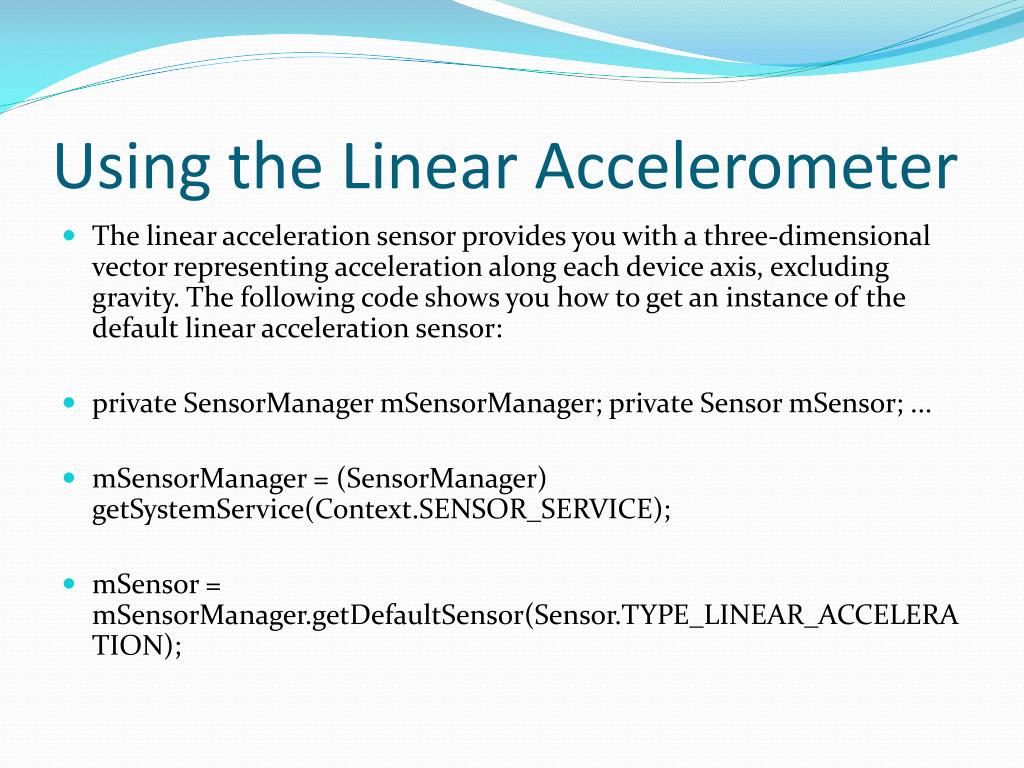

30. Using the Linear Accelerometer • The linear acceleration sensor provides you with a three-dimensional vector representing acceleration along each device axis, excluding gravity. The following code shows you how to get an instance of the default linear acceleration sensor: • private SensorManagermSensorManager; private Sensor mSensor; ... • mSensorManager = (SensorManager) getSystemService(Context.SENSOR_SERVICE); • mSensor = mSensorManager.getDefaultSensor(Sensor.TYPE_LINEAR_ACCELERATION);

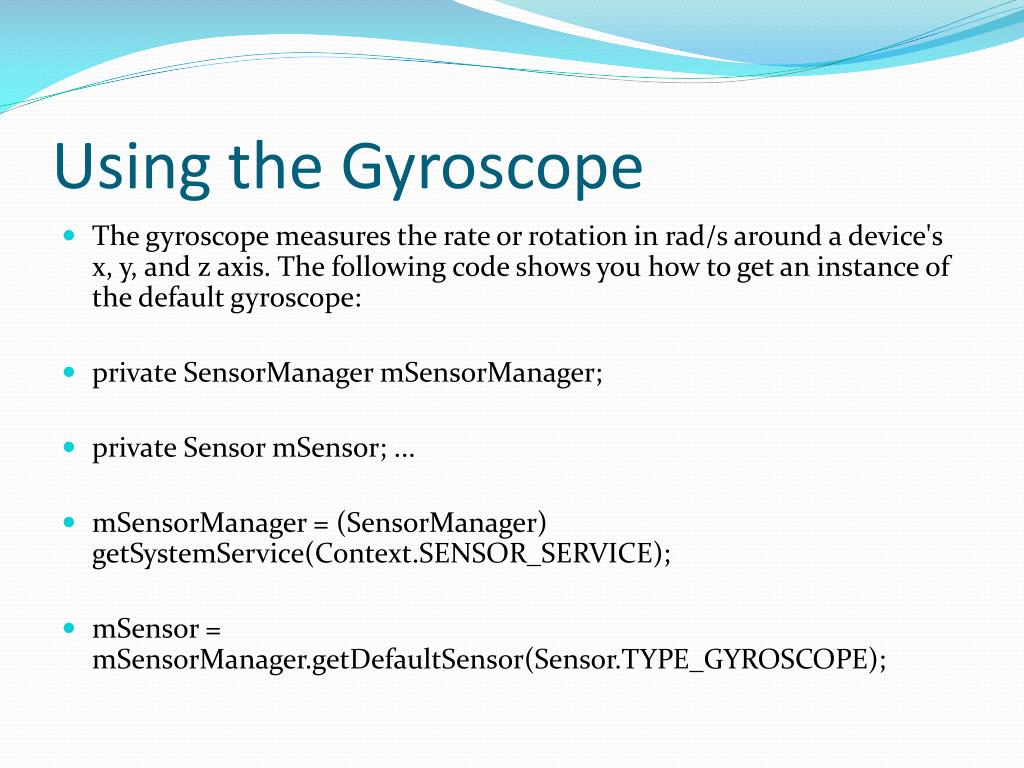

31. Using the Gyroscope • The gyroscope measures the rate or rotation in rad/s around a device's x, y, and z axis. The following code shows you how to get an instance of the default gyroscope: • private SensorManagermSensorManager; • private Sensor mSensor; ... • mSensorManager = (SensorManager) getSystemService(Context.SENSOR_SERVICE); • mSensor = mSensorManager.getDefaultSensor(Sensor.TYPE_GYROSCOPE);

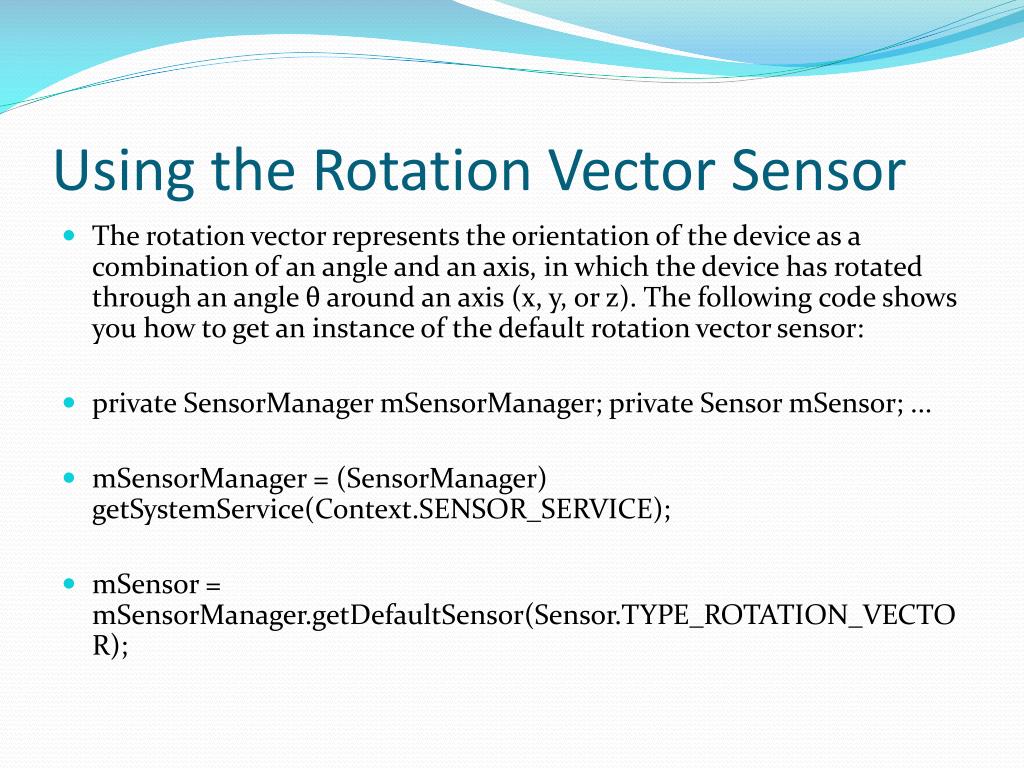

32. Using the Rotation Vector Sensor • The rotation vector represents the orientation of the device as a combination of an angle and an axis, in which the device has rotated through an angle θ around an axis (x, y, or z). The following code shows you how to get an instance of the default rotation vector sensor: • private SensorManagermSensorManager; private Sensor mSensor; ... • mSensorManager = (SensorManager) getSystemService(Context.SENSOR_SERVICE); • mSensor = mSensorManager.getDefaultSensor(Sensor.TYPE_ROTATION_VECTOR);

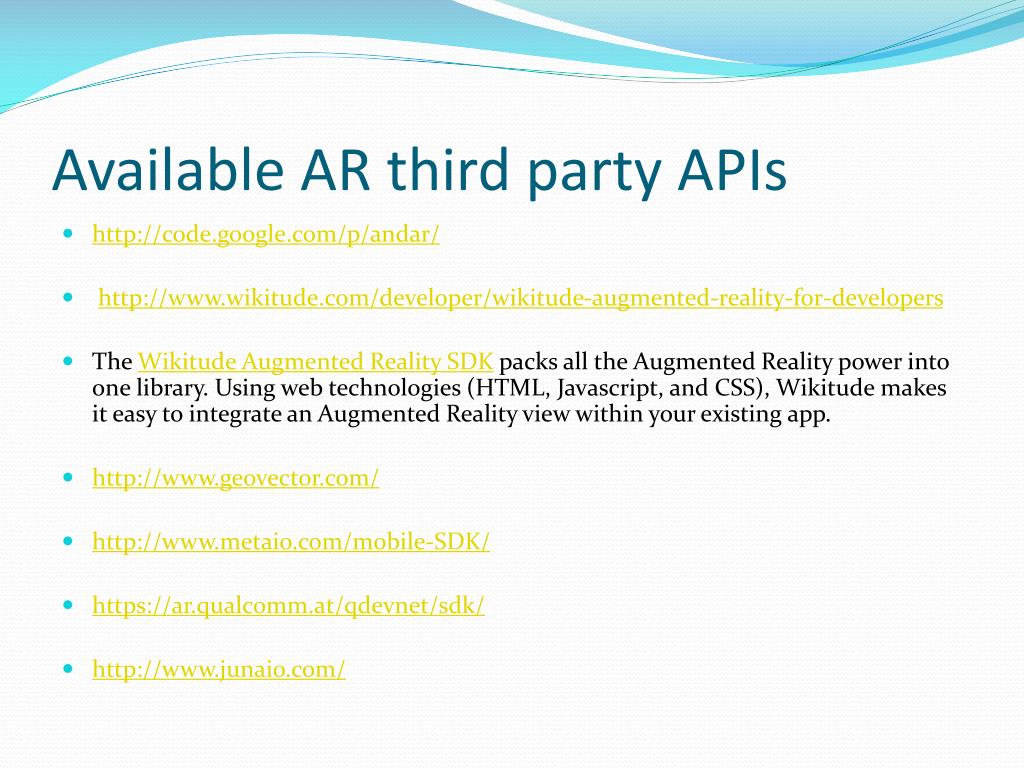

33. Available AR third party APIs • http://code.google.com/p/andar/ • http://www.wikitude.com/developer/wikitude-augmented-reality-for-developers • The Wikitude Augmented Reality SDK packs all the Augmented Reality power into one library. Using web technologies (HTML, Javascript, and CSS), Wikitude makes it easy to integrate an Augmented Reality view within your existing app. • http://www.geovector.com/ • http://www.metaio.com/mobile-SDK/ • https://ar.qualcomm.at/qdevnet/sdk/ • http://www.junaio.com/

34. Augmented-reality Android apps Junaio is an AR browser, using which you have the ability of viewing various things depending on your preferences. If you are out and want to know where the nearest fast food restaurant is, then this app can help you as it can tell you that via your camera viewer. This app also boasts a comprehensive bar code scanner and also provides you with the ability to save favourites. Junaio has many amazing features, for instance, giving you a virtual tour of Valencia in Spain

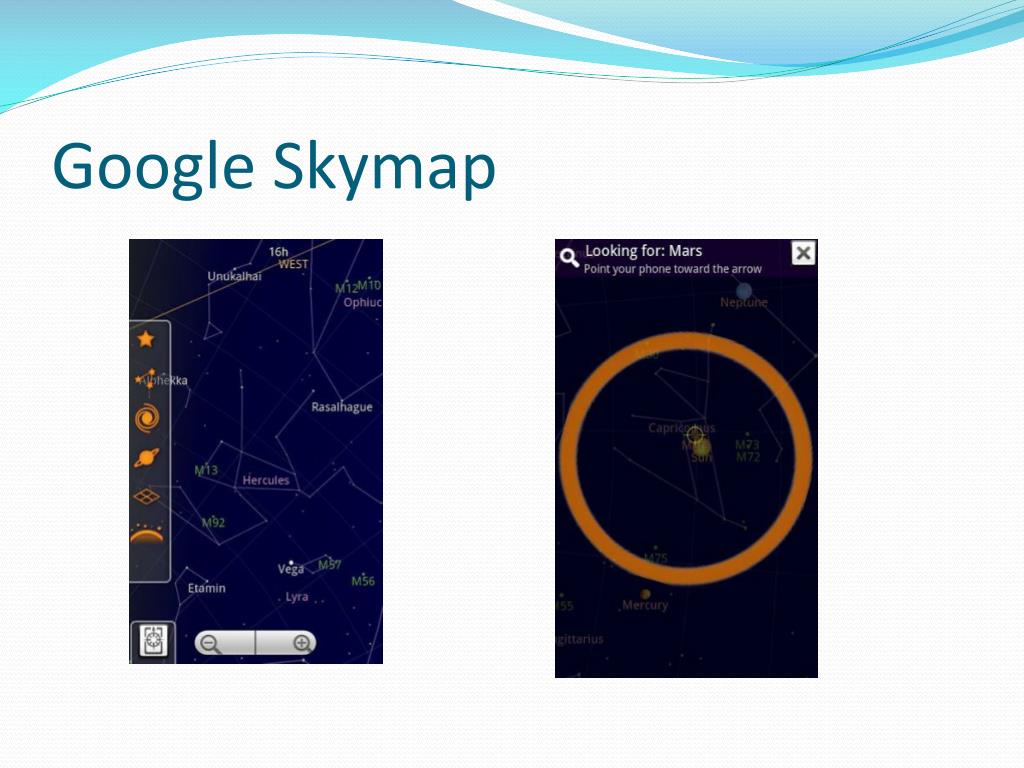

35. Google Skymap

36. Color blindness The rotation vector represents the orientation of the device as a combination of an angle and an axis, in which the device has rotated through an angle θ around an axis (x, y, or z). The following code shows you how to get an instance of the default rotation vector sensor:

37. Kafkara Kafkara - talking avatars in augmented reality Create talking avatars from people's faces shown in augmented reality at locations you visit. Avatars can be created using the camera or from Facebook or Twitter profile images to have them speak their latest updates using text-to-speech or from a voice recording.

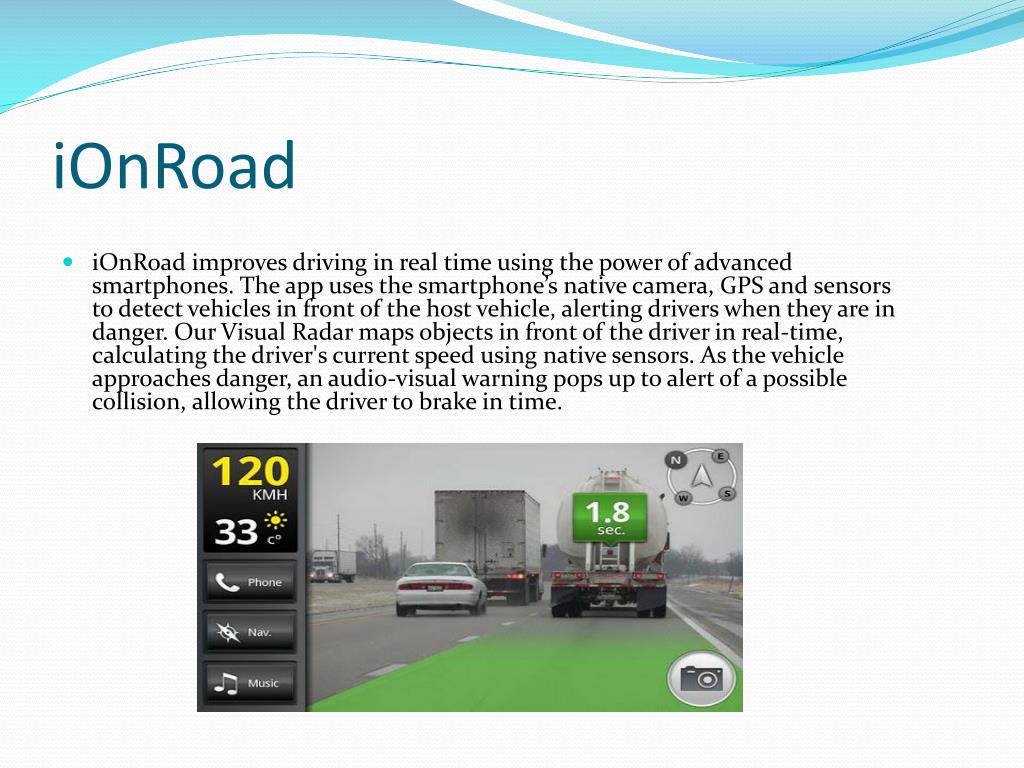

38. iOnRoad • iOnRoad improves driving in real time using the power of advanced smartphones. The app uses the smartphone’s native camera, GPS and sensors to detect vehicles in front of the host vehicle, alerting drivers when they are in danger. Our Visual Radar maps objects in front of the driver in real-time, calculating the driver's current speed using native sensors. As the vehicle approaches danger, an audio-visual warning pops up to alert of a possible collision, allowing the driver to brake in time.
