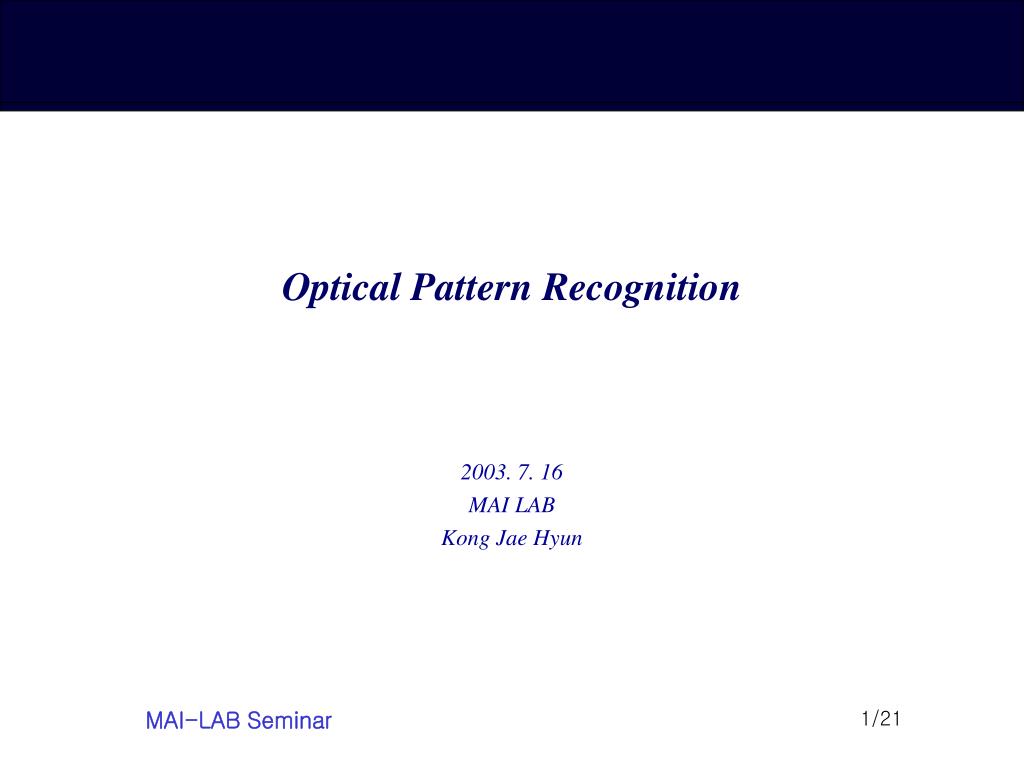

  1. Optical Pattern Recognition 2003. 7. 16 MAI LAB Kong Jae Hyun MAI-LAB Seminar

  2. Contents • Introduction • Overview • Optical processors • Paper review • Consider MAI-LAB Seminar

  3. Introduction • Pattern recognition is the classification of the observed data into one of previously determined classes. • Three major paradigms for pattern recognition • Statistical • Syntactic • Neural • Pattern recognition is usually a computationally demanding problem • Optical processing can be an ideal tool for implementing some of the necessary operation MAI-LAB Seminar

  4. Overview The typical pattern recognition system Feature Extraction Feature Compression Classification Test Input Class Decision Training or Learning Training Inputs MAI-LAB Seminar

  5. Practical processors • Two distinct approach • Optical pattern recognition using fourier transforms • Diffraction pattern sampling • Geometric moments • Hough transform-based pattern recognition • Correlation-based optical pattern recognition • Matched Spatial Filters • Partial Information Filters • Synthetic discriminant functions (SDFs) MAI-LAB Seminar

  6. Practical processors • Diffraction pattern Sampling • 2-D FT(2-dimensional fourier transform)에서 input image의 shift, scale change, rotation 영향을 줄이기 위해서 • Wedge-ring detector 제안 MAI-LAB Seminar

  7. Practical processors • Geometric moments • Invariant moments • Monomial method • Moment from fourier transform Invariant moments Geometric moments Central moments MAI-LAB Seminar

  8. Practical processors Invariant moments Invariant moments MAI-LAB Seminar

  9. Practical processors Moment from fourier transform MAI-LAB Seminar

  10. Practical processors • Hough transform-based pattern recognition MAI-LAB Seminar

  11. Practical processors • Matched spatial filters • Basic Theory • Threshold T에 따라 H1, 또는 H0선택 • Signal to noise ratio 계산 • 가능한 한 높은 SNR을 얻기 위한 Transfer function H(u)를 구한다. MAI-LAB Seminar

  12. Practical processors • Matched spatial filters • Optical correlators • The 2-D correlation of observed image r(x, y) and reference image s(x, y) is given by MAI-LAB Seminar

  13. Practical processors • Matched spatial filters • Joint transform correlator MAI-LAB Seminar

  14. Practical processors • Matched spatial filters • Performance measure • Peak-to-correlation energy(PCE)를 performance measure로 이용 MAI-LAB Seminar

  15. Paper review Optical pattern recognition with adjustable sensitivity to shape and texture Elisabet Perez*, Maria Sagrario Millan*, Katarzyna Chalasinska-Macukow** *Department of Optics and Optometry, University Plitecnica de Catalunya, 08222 Terrassa, Spain **Division of Information Opics, Institute of Geophysics, Warsaw University, 02-093, Poland Opics Communications 202 (2002) 239-255 MAI-LAB Seminar

  16. Paper review • Dual nonlinear correlation(DNC) model을 이용한 Optical pattern recognition • DNC model • 다음과 같이 정의된 power-law nonlinear operater를 이용한 모델 • DNC는 다음과 같이 정의된다. MAI-LAB Seminar

  17. Paper review • fs(x), fr(x)를 respected shape로 gs(x), gr(x)를 texture로 정의하면 s(x)와 r(x)는 다음과 같이 나타낼 수 있다. • Convolution Theorem에 따라 Forier Transform은 다음과 같이 되고 • DNC는 다음과 같이 나타낼 수 있게 된다. MAI-LAB Seminar

  18. Paper review • DNC model을 바탕으로 image의 DC를 구한다. 여기서, CC는 cross correlation, AC는 autocorrelation이고, DC는 discrimination capability를 의미한다. • 실험 환경 MAI-LAB Seminar

  19. Paper review • 실험 결과 • Shape recognition MAI-LAB Seminar

  20. Paper review • Texture recognition MAI-LAB Seminar

  21. Consider • 적당한 feature를 찾아내고, 유용한 filter를 선택하는 과정에서 사람의 직관을 배제할 수는 없는가? • Feature나 filter 선택에 대한 A priori는 존재하지 않는가? • Sampling을 통한 pattern recognition에서 정보의 왜곡을 줄일 수 있는 방법은 없는가? MAI-LAB Seminar
