WinFassade

The WinFassade program by Sommer Informatik computes verifiable calculation facade profiles. After inputting necessary conditions like material properties and wind loads, the software generates a scannable static certificate for facade profiles, including vertical poles with various fastening options and horizontal bars. Users can assess vertical reactions at windows based on selected calculations, ensuring compliance with structural requirements. The software provides detailed outputs only when the resisting torque passes stress analysis, making it an essential tool for facade engineering.

grace
Télécharger la présentation

WinFassade

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. WinFassade www.sommer-informatik.de Program to generate verifiable calculation facade profiles

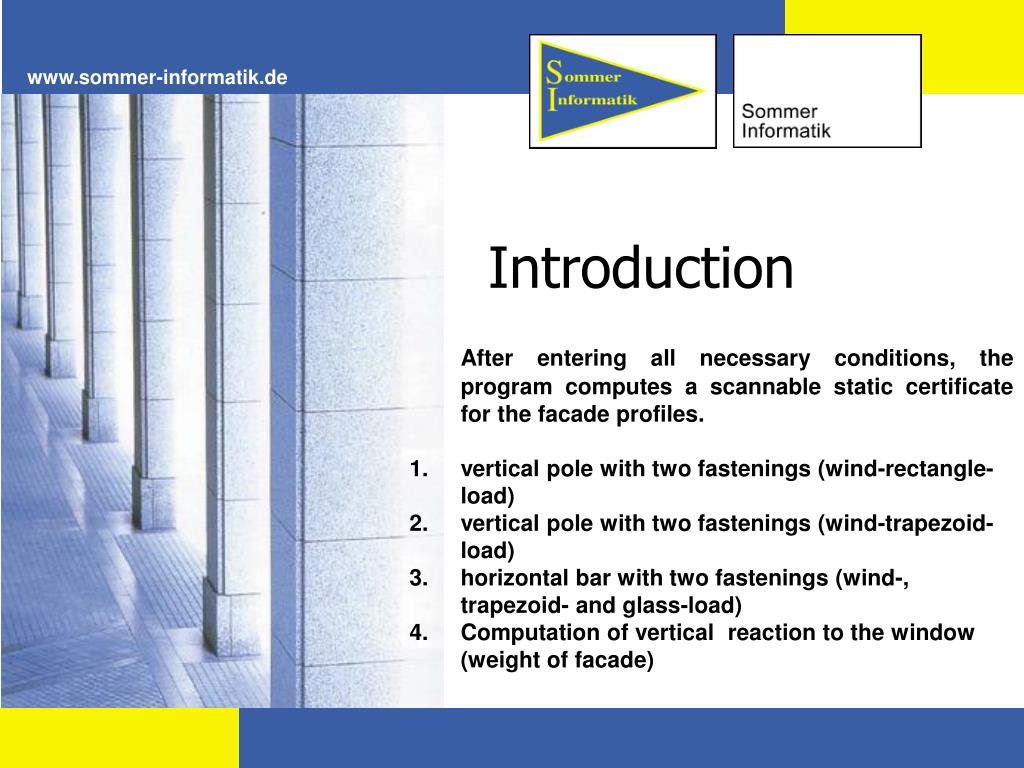

  2. Introduction www.sommer-informatik.de • After entering all necessary conditions, the program computes a scannable static certificate for the facade profiles. • vertical pole with two fastenings (wind-rectangle-load) • vertical pole with two fastenings (wind-trapezoid-load) • horizontal bar with two fastenings (wind-, trapezoid- and glass-load) • Computation of vertical  reaction to the window (weight of facade)

  3. www.sommer-informatik.de Main view

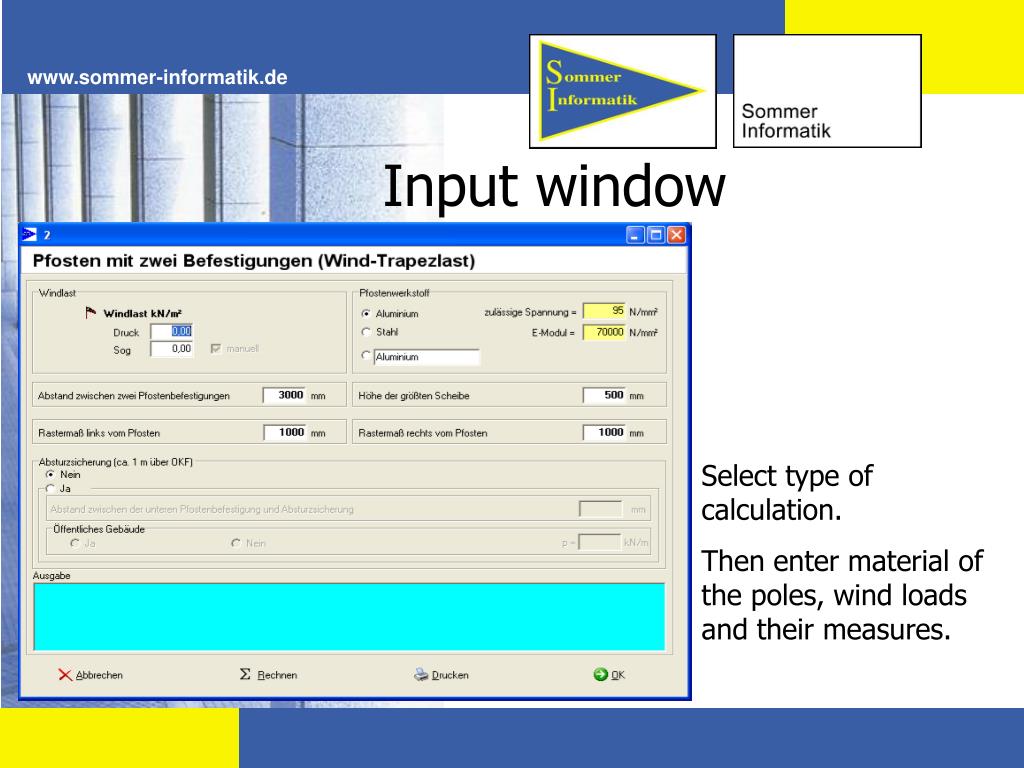

  4. www.sommer-informatik.de Input window Select type of calculation. Then enter material of the poles, wind loads and their measures.

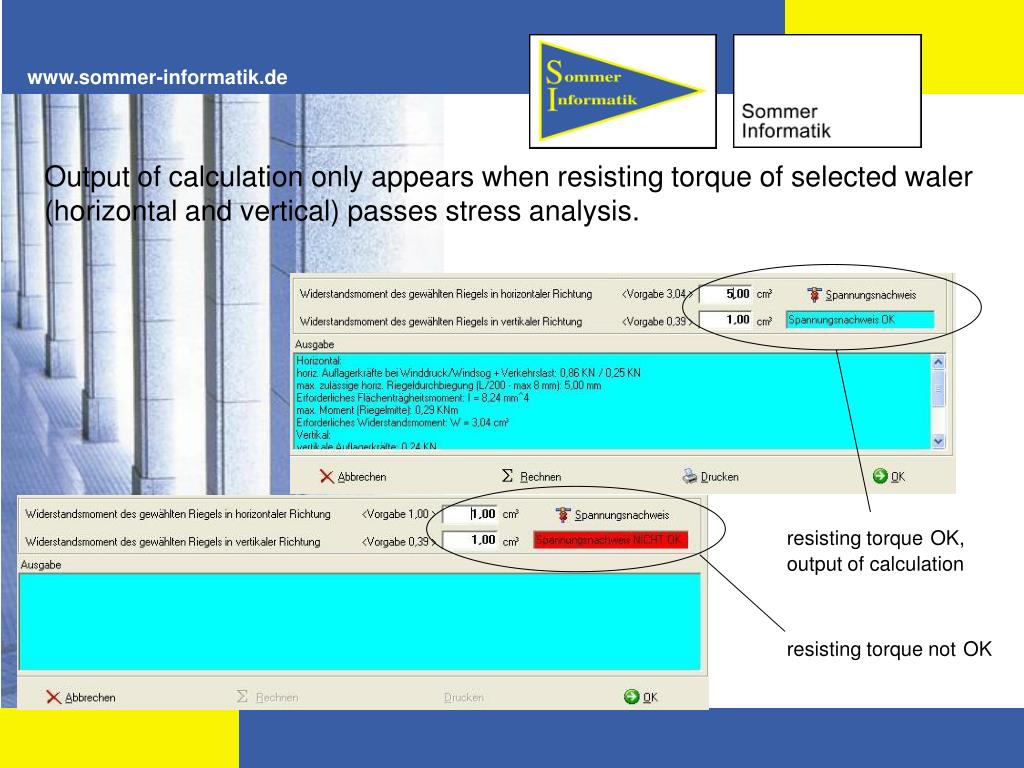

  5. www.sommer-informatik.de Output of calculation only appears when resisting torque of selected waler (horizontal and vertical) passes stress analysis. resisting torqueOK, output of calculation resisting torque notOK

  6. www.sommer-informatik.de Calculation of vertical reaction force at windows occures after entering the necessary variables

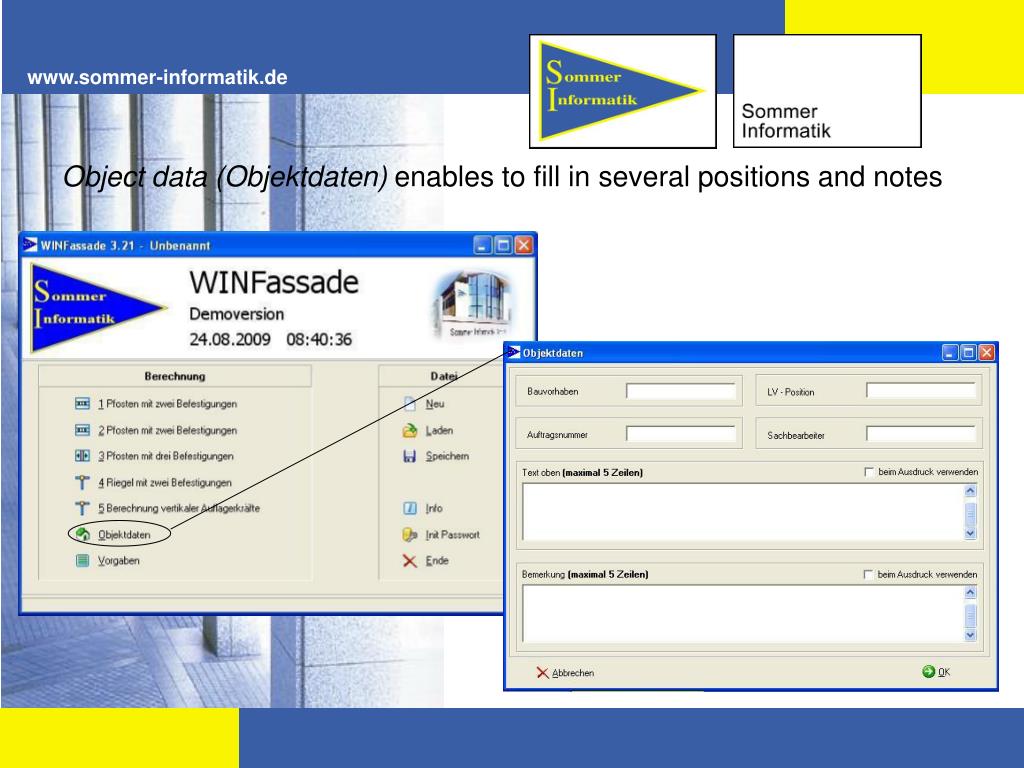

  7. www.sommer-informatik.de Object data (Objektdaten) enables to fill in several positions and notes

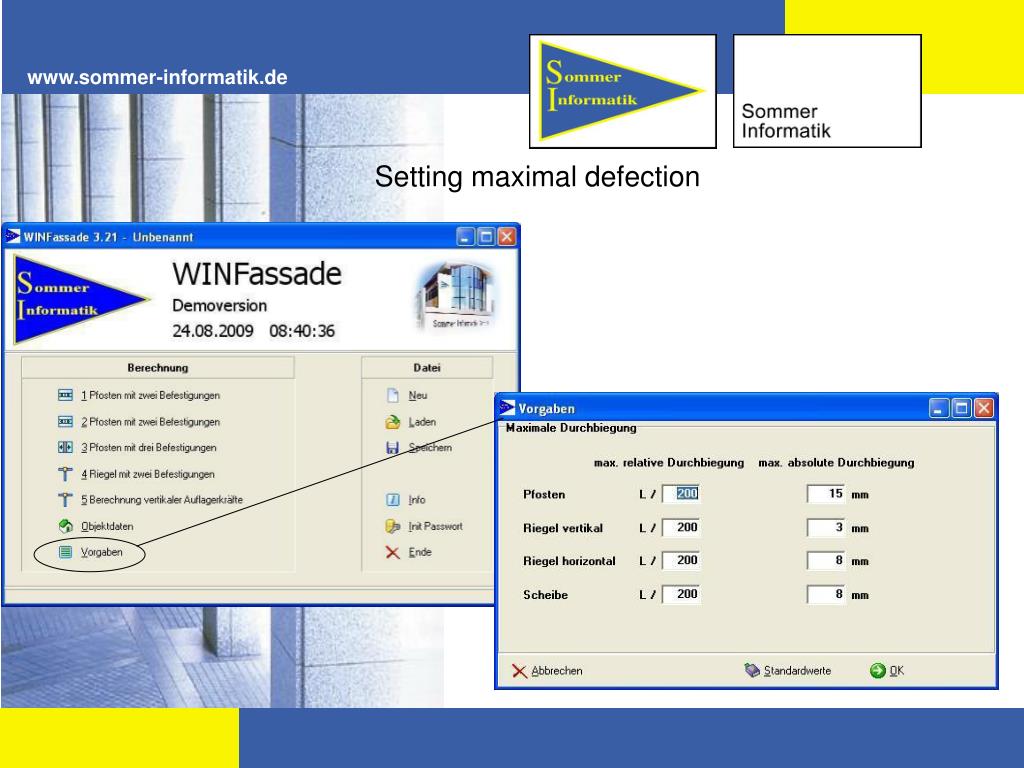

  8. www.sommer-informatik.de Setting maximal defection

  9. www.sommer-informatik.de Sommer Informatik GmbHSepp-Heindl-Str. 5D-83026 RosenheimTel.: +49(0)8031 – 24881Fax: +49(0)8031 – 24882info@sommer-informatik.dewww.sommer-informatik.de For further information, please hav a look at www.winfassade.de
