Cell Structure & Function

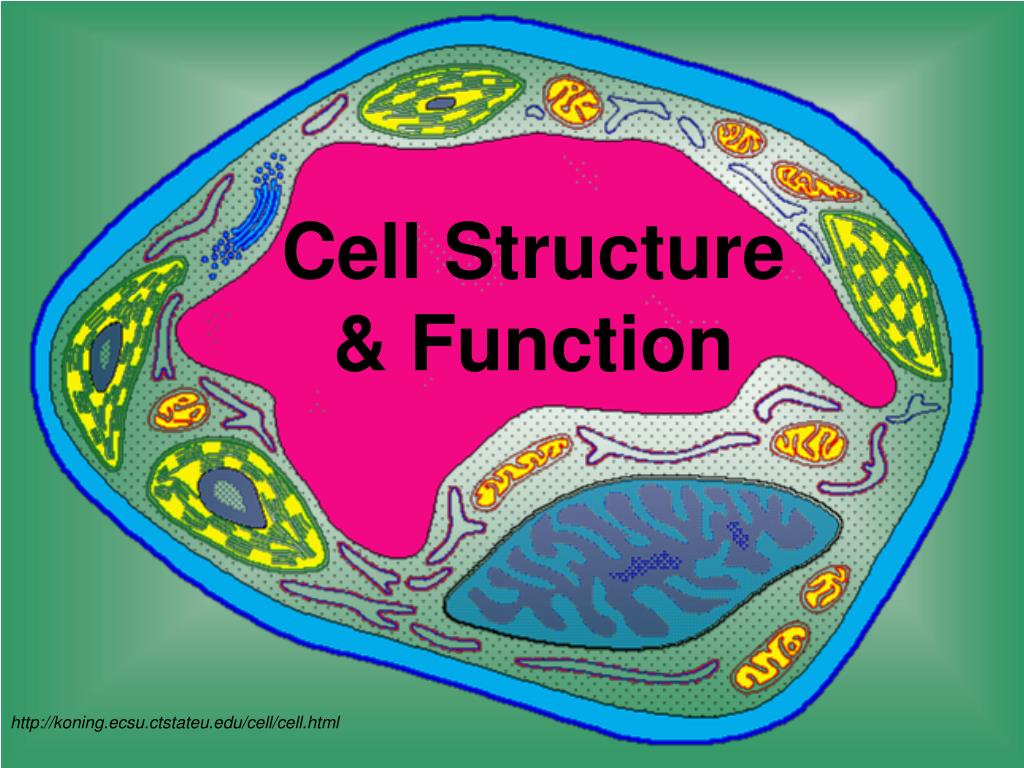

1. Cell Structure & Function http://koning.ecsu.ctstateu.edu/cell/cell.html

2. Cell Theory • All living things are made up of cells. • Cells are the smallest working units of all living things. • All cells come from preexisting cells through cell division.

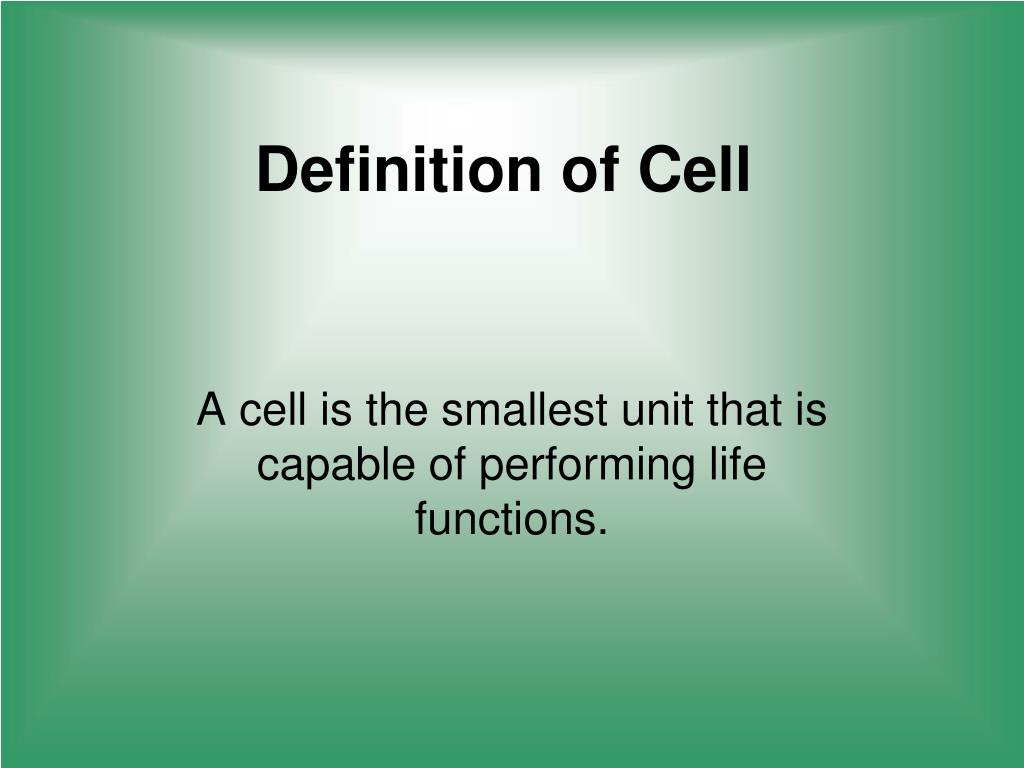

3. Definition of Cell A cell is the smallest unit that is capable of performing life functions.

4. Examples of Cells Amoeba Proteus Plant Stem Bacteria Red Blood Cell Nerve Cell

5. Two Types of Cells Prokaryotic Eukaryotic

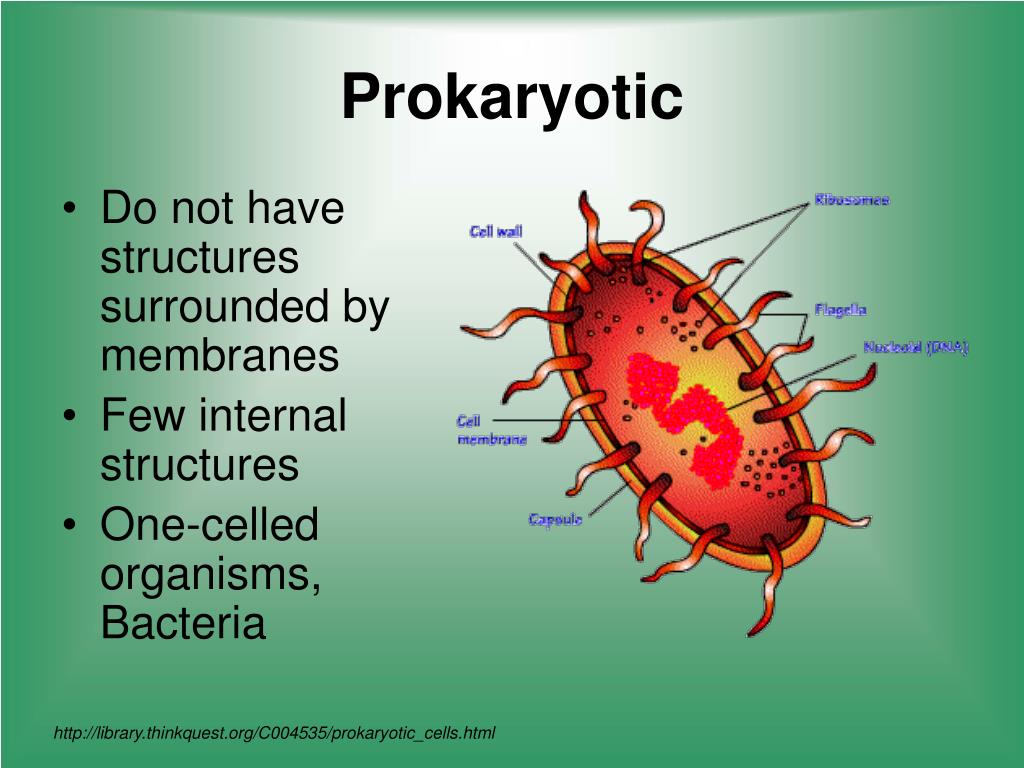

6. Prokaryotic • Do not have structures surrounded by membranes • Few internal structures • One-celled organisms, Bacteria http://library.thinkquest.org/C004535/prokaryotic_cells.html

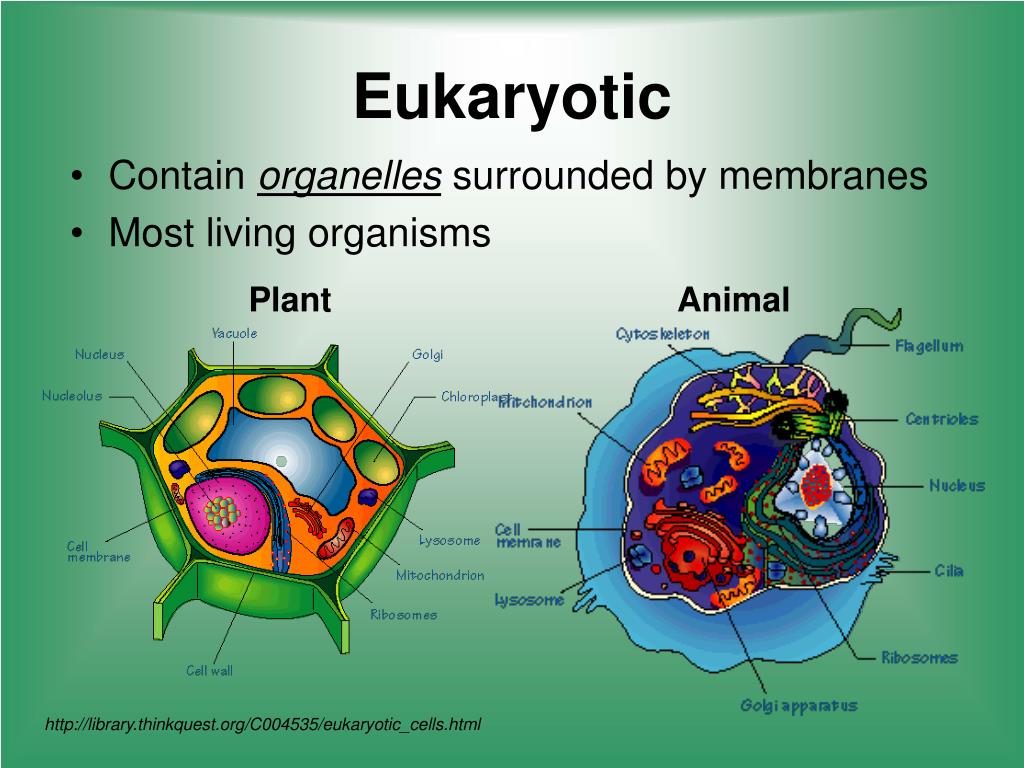

8. Eukaryotic • Contain organelles surrounded by membranes • Most living organisms Plant Animal http://library.thinkquest.org/C004535/eukaryotic_cells.html

9. “Typical” Animal Cell http://web.jjay.cuny.edu/~acarpi/NSC/images/cell.gif

10. “Typical” Plant Cell http://waynesword.palomar.edu/images/plant3.gif

11. Cell Parts Organelles

12. Cell Membrane • Outer membrane of cell • Contains the cell contents • Controls what gets in and out of the cell • Is selectively permeable http://library.thinkquest.org/12413/structures.html

13. Nucleus • Directs cell activities- the “Control Center” • Contains genetic material – DNA • Usually the easiest organelle to see under a microscope

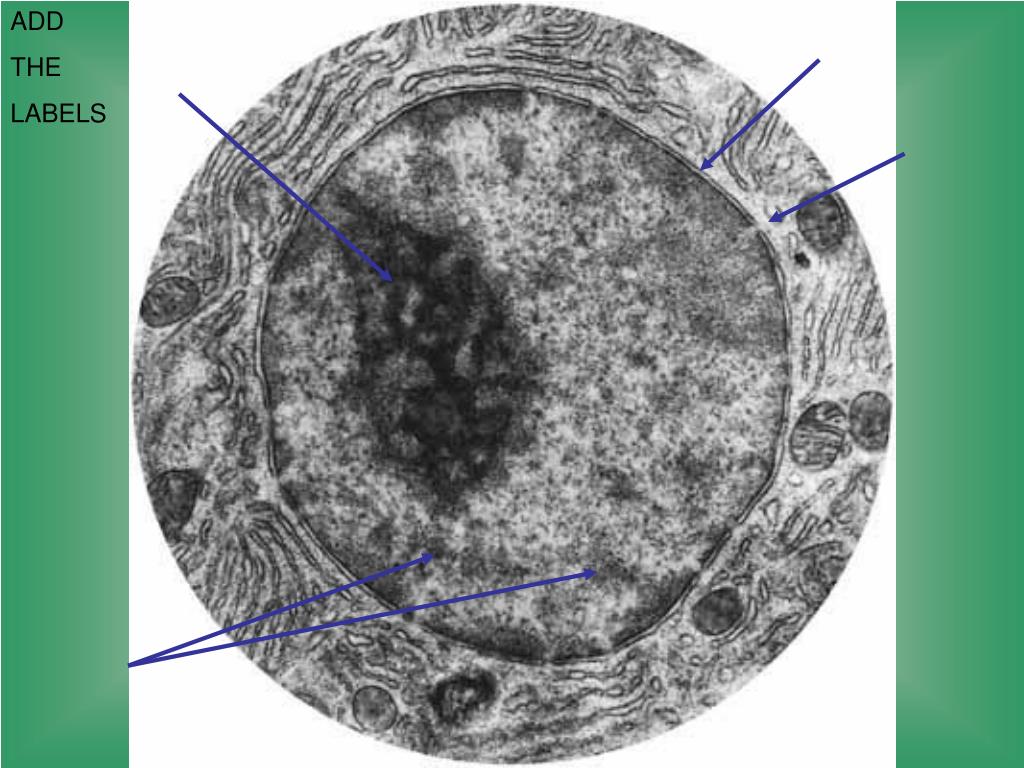

14. ADD THE LABELS

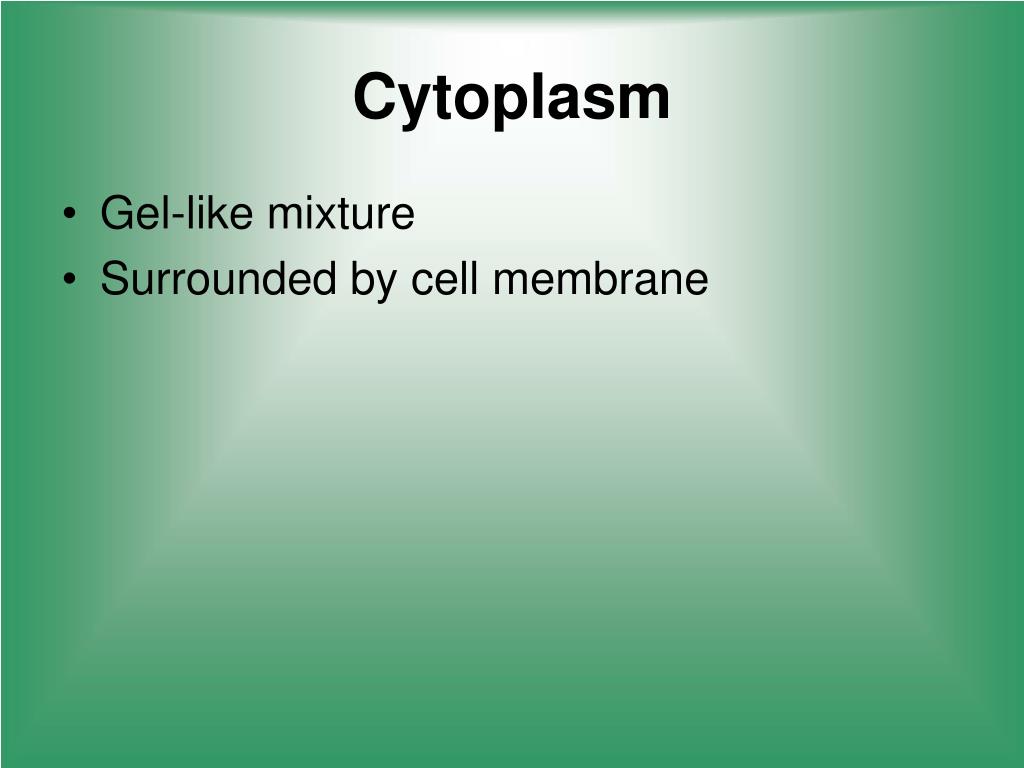

15. Cytoplasm • Gel-like mixture • Surrounded by cell membrane

16. Endoplasmic Reticulum • Moves materials around in cell- the “Assembly line or Roads” • Smooth type: lacks ribosomes • Rough type (pictured): ribosomes attached to surface http://library.thinkquest.org/12413/structures.html

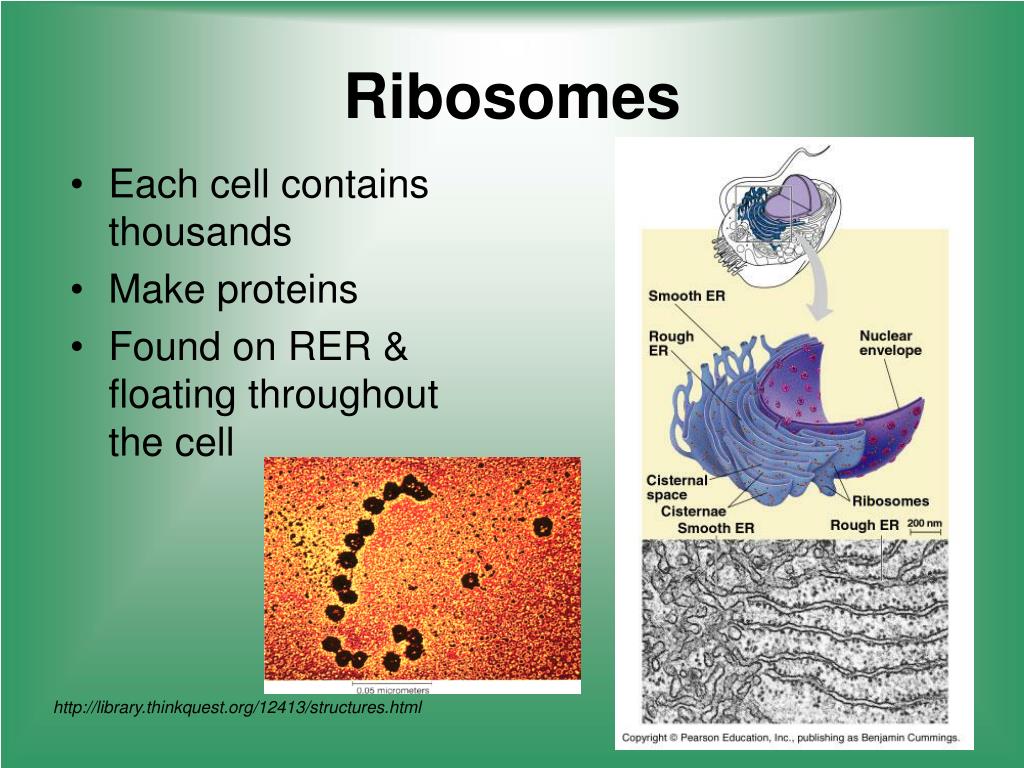

18. Ribosomes • Each cell contains thousands • Make proteins • Found on RER & floating throughout the cell http://library.thinkquest.org/12413/structures.html

19. Mitochondria • Cellular respiration occurs here to release energy for the cell to use • “Power plant” of the cell http://library.thinkquest.org/12413/structures.html

23. Golgi Bodies • Protein “packaging plant” or “shippers” • Coats proteins and other materials so they can move different location inside/outside of cell http://library.thinkquest.org/12413/structures.html

25. Golgi Apparatus

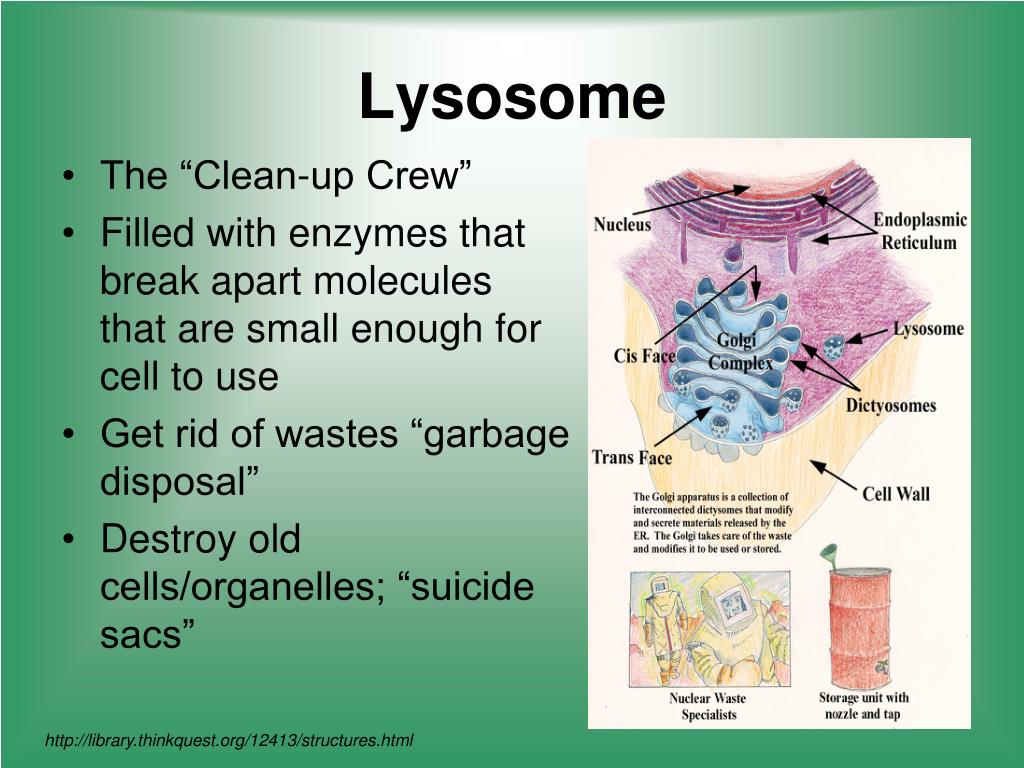

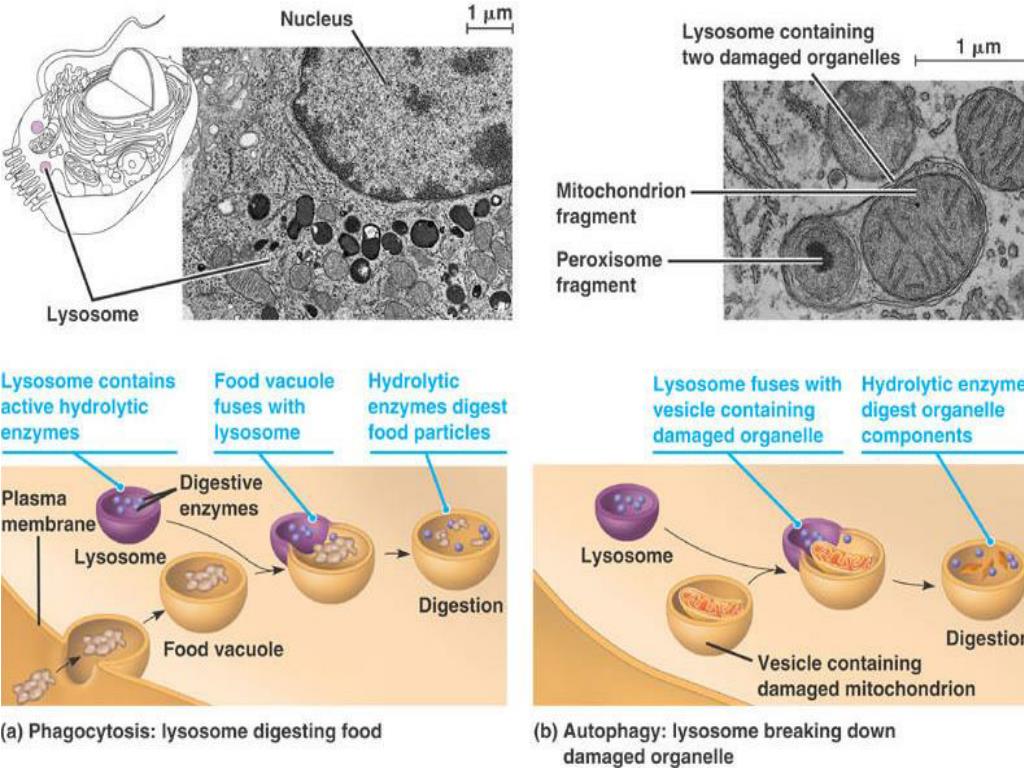

26. Lysosome • The “Clean-up Crew” • Filled with enzymes that break apart molecules that are small enough for cell to use • Get rid of wastes “garbage disposal” • Destroy old cells/organelles; “suicide sacs” http://library.thinkquest.org/12413/structures.html

27. Lysosomes • Tay-Sachs disease occurs when the lysosome is missing the enzyme needed to digest a lipid found in nerve cells. • As a result the lipid accumulates and nerve cells are damaged as the lysosome swells with undigested lipid.

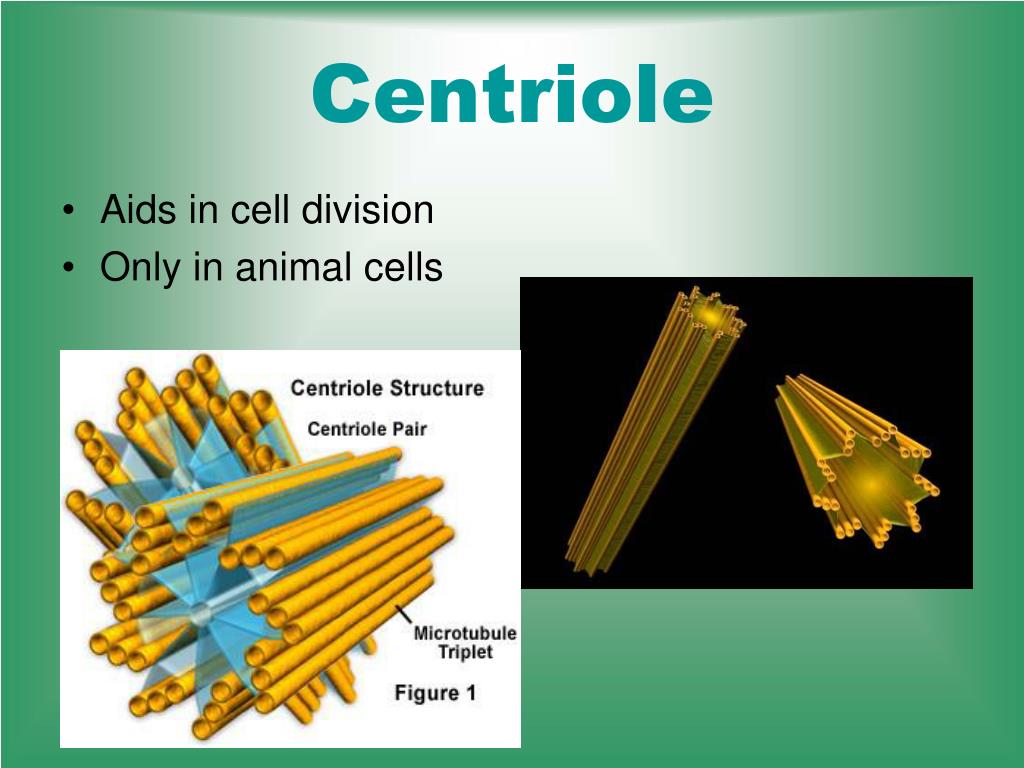

28. Centriole • Aids in cell division • Only in animal cells

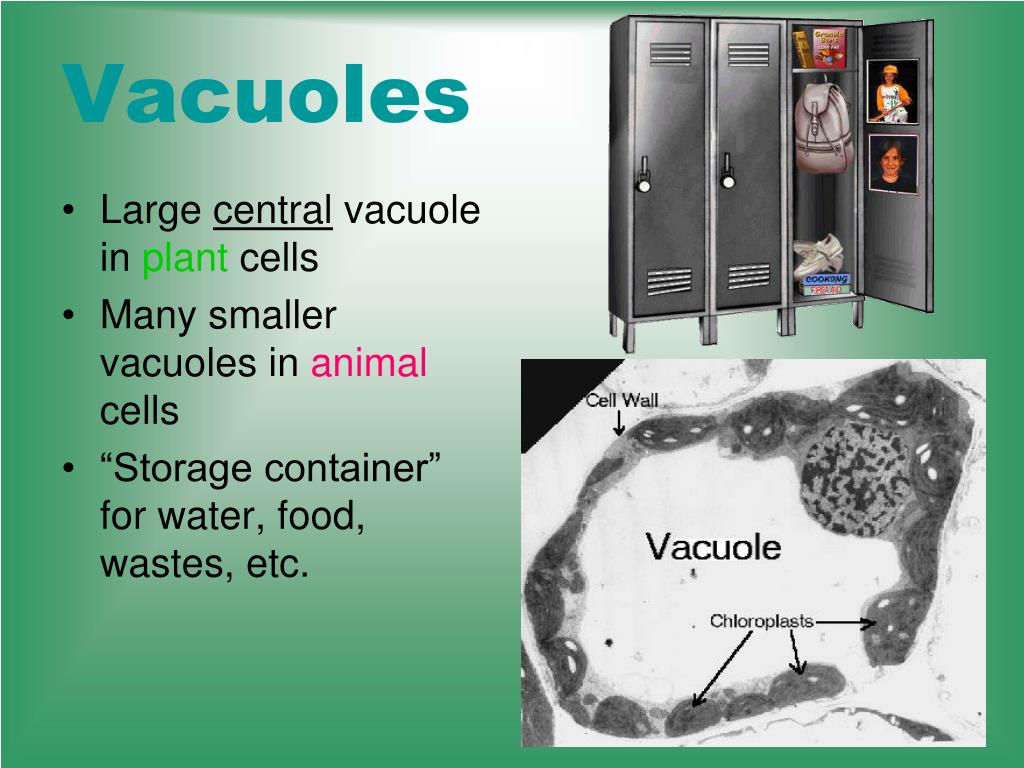

29. Vacuoles • Large central vacuole in plant cells • Many smaller vacuoles in animal cells • “Storage container” for water, food, wastes, etc.

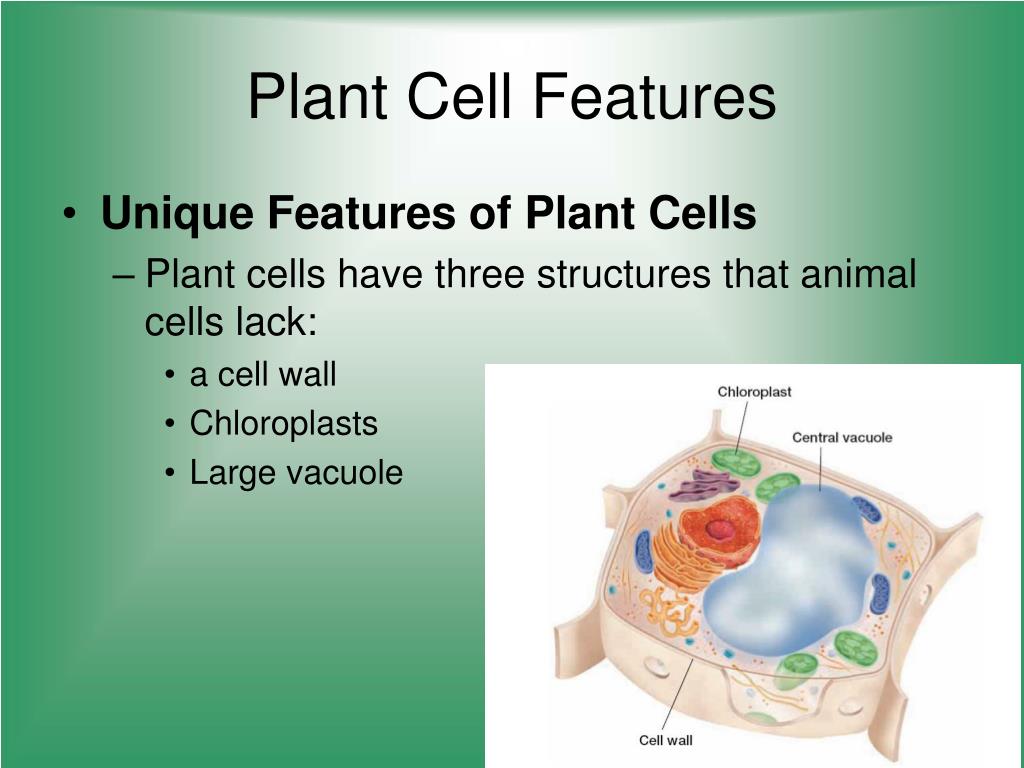

30. Plant Cell Features • Unique Features of Plant Cells • Plant cells have three structures that animal cells lack: • a cell wall • Chloroplasts • Large vacuole

31. Chloroplast • Found in plant cells • Capture energy from the sunlight and convert it into chemical energy…PHOTOSYNTHESIS! • Green in color because of chlorophyll, a green pigment http://library.thinkquest.org/12413/structures.html

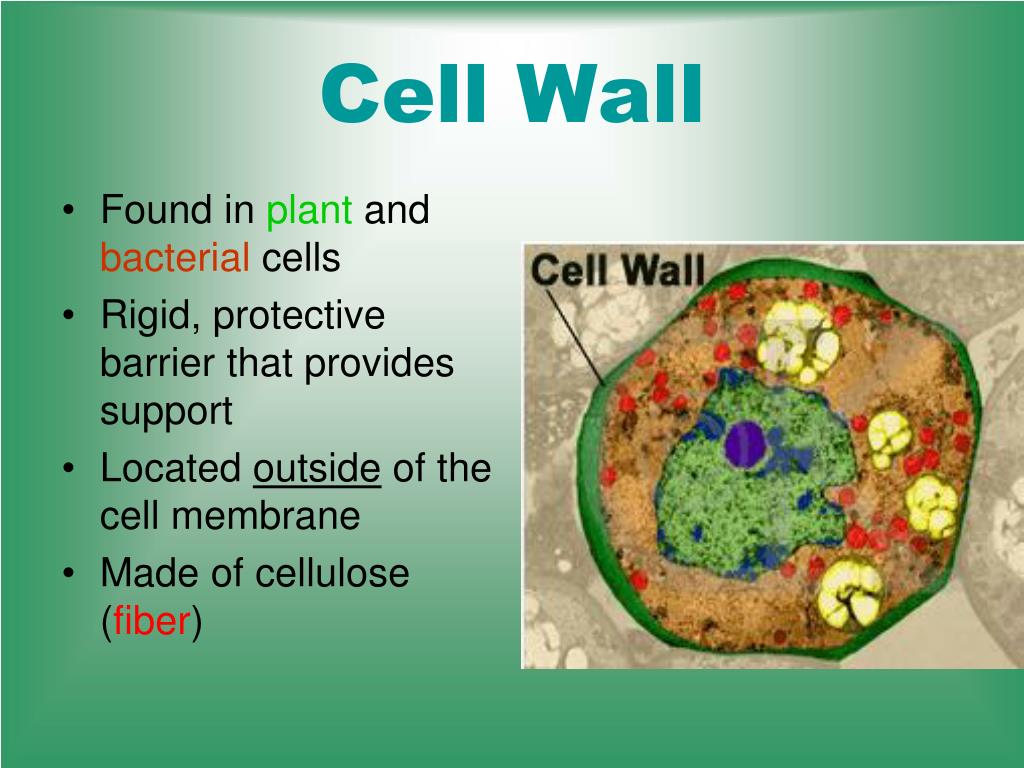

34. Cell Wall • Found in plant and bacterial cells • Rigid, protective barrier that provides support • Located outside of the cell membrane • Made of cellulose (fiber)

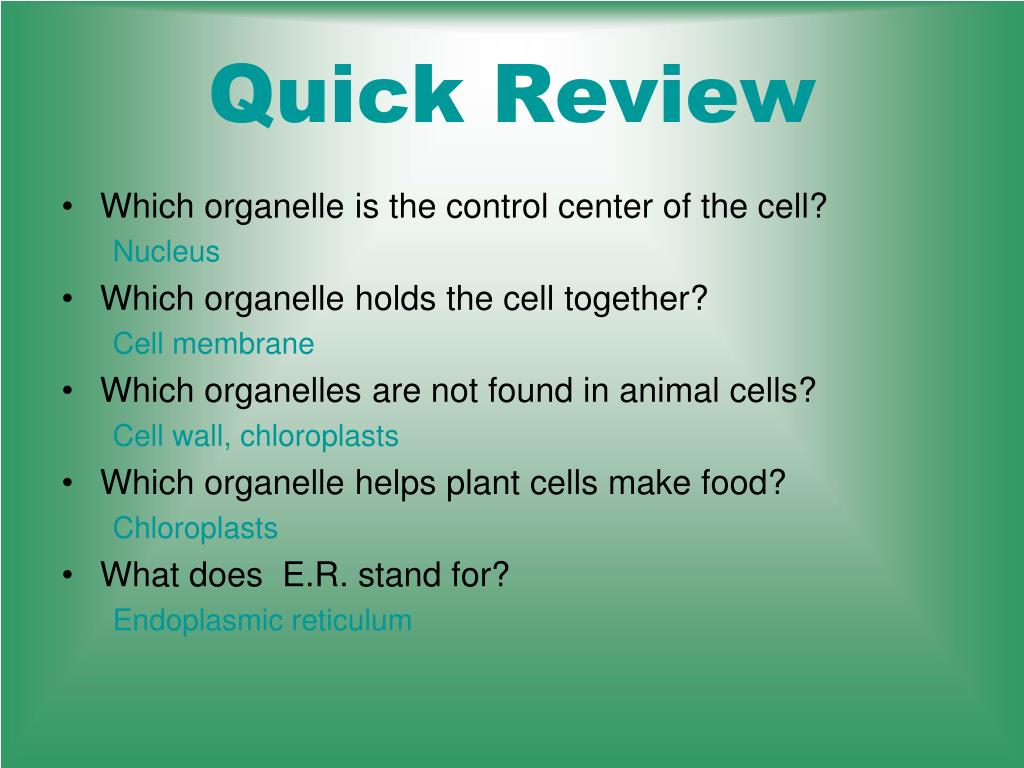

36. Quick Review • Which organelle is the control center of the cell? Nucleus • Which organelle holds the cell together? Cell membrane • Which organelles are not found in animal cells? Cell wall, chloroplasts • Which organelle helps plant cells make food? Chloroplasts • What does E.R. stand for? Endoplasmic reticulum

37. Elodea Cells http://carnegieinstitution.org/first_light_case/horn/lessons/images/chlorop.jpg

38. Cheek Cells Stained with Methyl Blue Plasma Membrane Nucleus Cytoplasm http://faculty.kutztown.edu/friehauf/science_outreach/cheek_cells_005.jpg
