  1. Verilog HDL

  2. Hardware Description Language • HDL – a “language” for describing hardware • Two industry IEEE standards: • Verilog • VHDL (Very High Speed Integrated Circuit HDL) • Verilog • Originally designed for simulation and verification • Gateway Design Automation, 1983 • Functionality later added for synthesis

  3. Design conception DESIGN ENTRY Schematic capture Truth table Verilog Simple synthesis Translation Merge INITIAL SYNTHESIS TOOLS Boolean equations Functional simulation No Design correct? Yes Logic synthesis, physical design, timing simulation • CAD Design Process

  4. Synthesis Using Verilog • There are two ways to describe circuits in Verilog • Structural • Use Verilog “gate” constructs to represent logic gates • Write Verilog code that connects these parts together • Behavioral flow • Use procedural and “assign” constructs to indicate what actions to take • The Verilog “compiler” converts to the schematic for you

  5. Verilog Miscellanea • Comments: just like C++ • // this is a single line comment • /* this is a multi-line comment */ • White space (spaces, tabs, blank lines) is ignored • Identifier names • Letters, digits, _, $ • Can’t start with a digit • Case-sensitive! • There are also reserved words  can’t be one of these

  6. Verilog Types • There are NO user-defined types • There are only two data types: • wire • Represents a physical connection between structural elements (think of this as a wire connecting various gates) • This is the most common type for structural style • wire is a net type and is the default if you don’t specify a type • reg • Represents an abstract storage element (think of this as an unsigned integer variable) • This is used in the behavioral style only

  7. Verilog Modules and Ports • Circuits and sub-circuits are described in modules • module … endmodule • The arguments to the module are called ports • Ports are of type • input • output • inout  bidirectional port; of limited use to us • Ports can be scalar (single bit) or vector (multi-bit) • Ports are a scalar wire type unless you specify otherwise • Example: input [3:0] A; // a 4 bit (vector) input port (wire) called A

  8. Verilog Structural Synthesis • The half-adder (sum part only): module halfAdder(S,A,B);input A, B;output S;wire AC, BC, X, Y;not(AC,A); // AC  ~Anot(BC,B); // BC  ~Band(X,A,BC); // X  A & BCand(Y,B,AC); // Y  B & ACor(S,X,Y); // S  X | Y endmodule

  9. Verilog Primitive Gates • and(f,a,b,…) f = (a ∙ b …) • or(f,a,b,…) f = (a + b + …) • not(f,a) f = a' • nand(f,a,b,…) f = (a ∙ b …)' • nor(f,a,b,…) f = (a + b + …)' • xor(f,a,b,…) f = (a  b  …) • xnor(f,a,b,…) f = (a b …) • You can also “name” the gates if you like … • and And1(z1,x,y); // this gate is named And1

  10. Comments on Structural Design • Order of statements in structural style is irrelevant • This is NOT like a typical programming language • Everything operates concurrently (in parallel) • Primitive gates can have any number of inputs (called fan in) • The Verilog compiler will decide what the practical limit is and build the circuit accordingly (by cascading the gates) • All structural elements are connected with wires • Wire is the default type, so sometimes the “declarations” are omitted

  11. Example: 3 Way Light Control • Example: 3 way light control • 1 light L • 3 light switches (A, B, C) • A is a master on/off: • If A = off, then light L is always off • If A = on, the behavior depends on B and C only • Let 0 represent “off” • Let 1 represent “on” • SOP Equation? SOP: L = ABC’ + AB’C

  12. Example: 3 Way Light Control • The SOP implementation of the 3 way light control with gates: with Verilog: module light3Way(L,A,B,C); input A, B, C; output L; not Not1(BC,B), Not2(CC,C); and And1(f,A,B,CC), And2(g,A,BC,C); or Or1(L,f,g);endmodule

  13. Behavioral Synthesis Using Verilog • Behavioral style uses Boolean algebra to express the behavior of the circuit • L = (A B' C)+(A B C') for the 3 way light control module light3Way(L,A,B,C); input A, B, C; output L; assign L = (A & ~B & C) | (A & B & ~C);endmodule

  14. Continuous Assignment • The assign statement is key in data flow synthesis • The RHS is recomputed when a value in the RHS changes • The new value of the RHS is assigned to the LHS after the propagation delay (default delay is 0) • The LHS must be a net (i.e. wire) type • Example: assign L = (A & ~B & C) | (A & B & ~C); • If A or B or C changes, then L is reassigned • The Verilog compiler will construct the schematic for you

  15. Boolean Operators

  16. Behavioral Style for Full-Adder module fullAdder(S,Cout,A,B,Cin);input A,B,Cin;output S,Cout;assign S = A ^ B ^ Cin;assign Cout = (A & B) | (A & Cin) | (B & Cin); endmodule

  17. Another Behavioral Style for Full-Adder module fullAdder(S,Cout,A,B,Cin);input A,B,C;output S,Cout;assign {Cout,S} = A+B+Cin; // + means addition endmodule • Verilog also supports arithmetic operations! • compiles them down to library versions of the circuit

  18. Gate Delays • Gates may be specified with a delay – optional not #3 Not1(x,A); or #5 Or1(F,B,x); • The propagation delay is in “units” which can be set independently from the code • Propagation delays have no meaning for synthesis, only for simulation • Hence, we won’t use them

  19. Typical Design Process Graphical Entry Waveform/Timing Diagram Compiler Timing Analysis HDL Entry UP2 Board Program the FPGA

  20. CAD and Synthesis

  21. Analysis vs Synthesis (1) • Analysis process • Determine the function performed by an existing circuit • What does this do? • Synthesis process • Design a new circuit that implements a desired function f = A ∙ B' + A' ∙ B aka A  B

  22. Analysis vs Synthesis (2) • Analysis is usually pretty easy • Synthesis is more complicated • Most of digital design is about synthesis • Synthesis can be done by hand • For large systems, this is not reasonable to expect • At least if you want good quality circuits • Synthesis can also be done with CAD tools • Using schematic capture • Using a Hardware Description Language (HDL) • Verilog • VHDL (Very High Speed Integrated Circuit HDL)

  23. Synthesis (1) • Given the table of combinations: • What is the circuit?

  24. Synthesis (2) • The same function can be done more simply as • How do you get the “minimum cost” design? • There are a few different techniques • Boolean algebra: a mathematical technique • Karnaugh maps: a visual technique • Quine-McClusky: an algorithmic technique

  25. What Does Minimum Cost Mean? • One example of Cost: Cost = #gates + #input “pins” to each gate • Cost = 2 + 3 = 5 • Cost = 6 + 11 = 17

  26. Other Examples of Cost • # of gates • Area of circuit • Estimated routing cost (for wires) • Shortest Critical Path Delay • can be measured in many different ways • Best Average Case Path

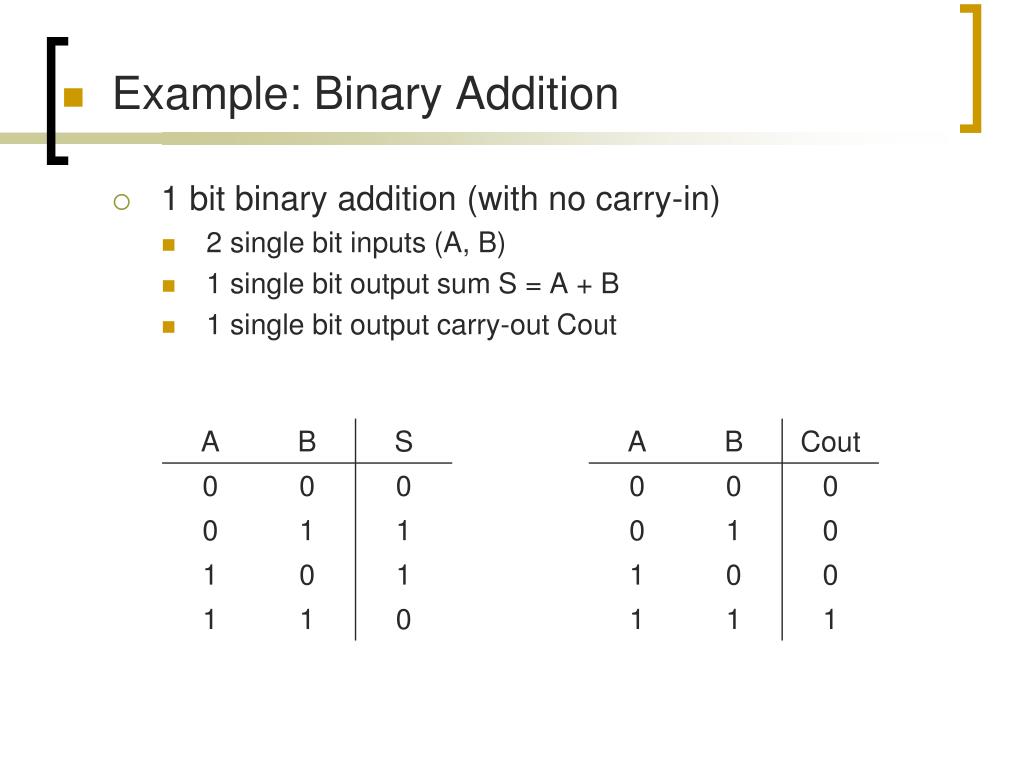

  27. Example: Binary Addition • 1 bit binary addition (with no carry-in) • 2 single bit inputs (A, B) • 1 single bit output sum S = A + B • 1 single bit output carry-out Cout

  28. 0 0 1 0 1 0 0 1 1 0 0 1 0 1 1 1 • Example: Binary Addition with Carry-in • 1 bit binary addition with carry-in • 3 single bit inputs (A, B, Cin) • 1 single bit output sum S = A + B + Cin • 1 single bit output carry-out Cout A B Cin S Cout 0 0 0 0 0 1 0 1 0 0 1 1 1 0 0 1 0 1 1 1 0 1 1 1

  29. 1 1 x y x y F F x y x y 0 0 More Gates • NAND: Opposite of AND (“NOT AND”) • NOR: Opposite of OR (“NOT OR”) • XOR: Exactly 1 input is 1, for 2-input XOR. (For more inputs -- odd number of 1s) • XNOR: Opposite of XOR (“NOT XOR”) NAND NOR NAND NOR XOR XNOR x x F F y y x y F x y F x y F x y F 0 0 1 0 0 1 0 0 0 0 0 1 0 1 1 0 1 0 0 1 1 0 1 0 1 0 1 1 0 0 1 0 1 1 0 0 1 1 0 1 1 0 1 1 0 1 1 1 • NAND same as AND with power & ground switched • Why? nMOS conducts 0s well, but not 1s (reasons beyond our scope) -- so NAND more efficient • Likewise, NOR same as OR with power/ground switched • AND in CMOS: NAND with NOT • OR in CMOS: NOR with NOT • So NAND/NOR more common

  30. a0 b0 0 a1 A=B 0 1 b1 0 a2 b2 More Gates: Example Uses • Aircraft lavatory sign example • S = (abc)’ • Detecting all 0s • Use NOR • Detecting equality • Use XNOR • Detecting odd # of 1s • Use XOR • Useful for generating “parity” bit common for detecting errors Circuit a S b c

  31. Circuit Simplification • Two circuits are functionally equivalent if the circuit behavior is the same for all inputs • Simplification is the process of finding a functionally equivalent circuit that costs less • Boolean algebraic simplification is rarely done much in practice, but all other techniques are based on this process

  32. Binary Addition with Carry-in … Again • We had determined the SOP: • S = (A' B' Cin)+(A' B Cin')+(A B' Cin')+(A B Cin) • Cout = (A' B Cin)+(A B' Cin)+(A B Cin')+(A B Cin) • These can be greatly simplified • Using Boolean algebra often results in a non-SOP form  not even two-level logic

  33. Simplification of S and Cout • S = Cin'A'B + Cin'A B' + Cin A' B' + Cin A B = Cin'(A' B + A B') + Cin (A' B' + A B) = Cin' (A  B) + Cin (A  B)' = Cin  (A  B) = Cin  A  B • Cout = Cin' A B + Cin A' B + Cin A B' + Cin A B= Cin(A  B) + A B … or equivalently … = A B + B Cin + A Cin (the “majority” function)

  34. Gate Level Implementation: Full-Adder • A gate level implementation (not SOP) for S is • A (multi-level) gate level implementation for Cout is • The result is called a “full-adder”:

  35. Summary of Algebraic Simplification • Using Boolean algebra to simplify expressions can be quite challenging • There are easier ways • Karnaugh maps • Algorithmic methods • We’ll do both soon

  36. Comments on SOP and POS • Neither the SOP nor the POS forms guarantee a minimum cost implementation • Sometimes a multi-level form does better! • Most practical devices use only NAND or NOR gates anyway • So, how is all of this helpful? • Circuit minimization methods can be developed from this basis • Converting SOP and POS to NAND/NOR circuits is easy
