MM60 PCIe Interface Connectors

MM60 PCIe Interface Connectors. GENERAL SPECIFICATIONS Contacts: 52 pos. Dielectric withstand voltage: AC 300Vr.m.s (per minute) Operating Temperature: -40 ~ 80 deg. C Rated Current: 0.5 Amps per pin Contact Resistance:55m ohm max Durability: 50 times

gram
Télécharger la présentation

MM60 PCIe Interface Connectors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. MM60 PCIe Interface Connectors GENERAL SPECIFICATIONS Contacts: 52 pos. Dielectric withstand voltage: AC 300Vr.m.s (per minute) Operating Temperature: -40 ~ 80 deg. C Rated Current: 0.5 Amps per pin Contact Resistance:55m ohm max Durability: 50 times Insertion loss: -1dB min(1.25GHz max.) /-5dB min(3.75GHz max) Return loss:-12dBmax(1.35GHz max.)/-7dB max.(2GHz max)/-4dB(3.75GHz max) Cross talk (near end): -32dB max(1.25GHz max)/-26dB max(3.75GHz max) 2 stack heights: 4.0mm and 5.9mm FEATURES MM60 series has been widely adopted as the wireless module connector for portable devices, such as 3G/4G wireless notebook and ebook. It also can be used as High Speed Network, Modems, Bluetooth, and Ethernet Adapters interfaces. Compatible to PCI Express Mini Card Electromechanical SPEC and can be used for connection with PCI Express modules for USB or wireless transmission. Latch type standoff and Screw type standoff are available.

  2. Focus Product of the Quarter MM60 Series – PCI Express Mini Card • Available in 3 mounted height versions • 2.125mm height mid-mount • 4.0mm mounted height • 5.9mm mounted height One of JAE’s fastest growing and highest customer base products

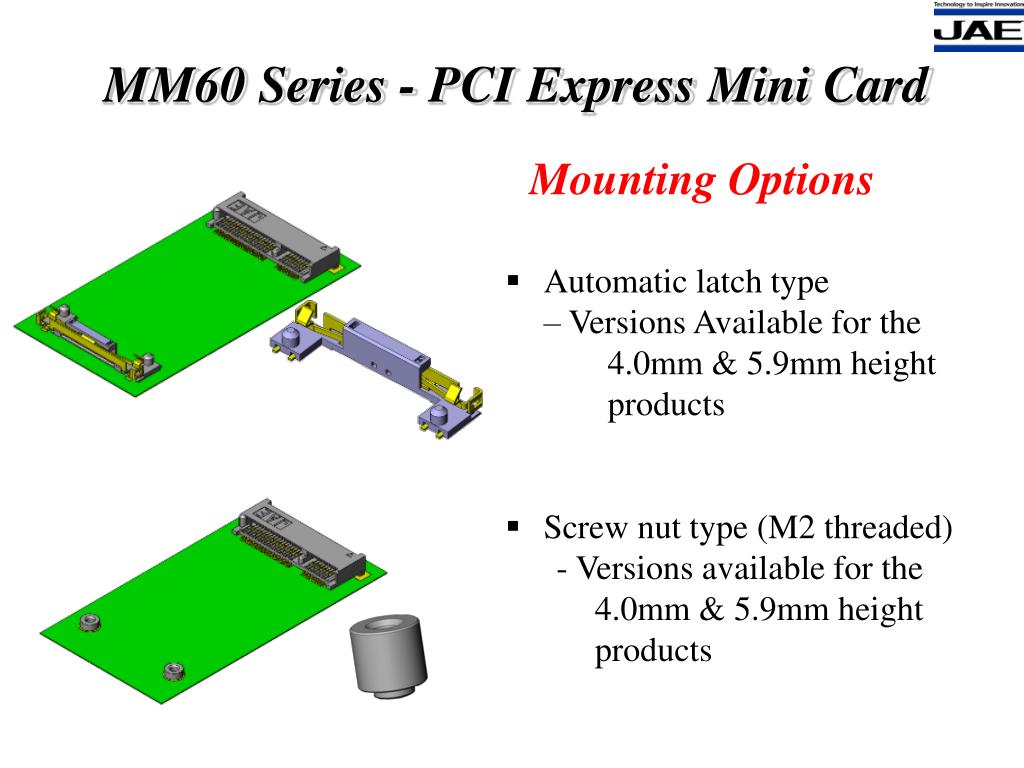

  3. MM60 Series - PCI Express Mini Card Mounting Options • Automatic latch type • – Versions Available for the 4.0mm & 5.9mm height products • Screw nut type (M2 threaded) • - Versions available for the 4.0mm & 5.9mm height products

  4. MM60 Series - PCI Express Mini Card Applications • Integrated Wireless Network Interface Controller Card (WNIC) Interface • PC and Server internal communication transmission interface • Internal integrated GPS card interface • USB transmission interface • SIM card for GSM and WCDMA applications • Solid State Hard-Drive (SSD) applications
