Week #2 Slides

1. Week #2 Slides Diving Into Spartan 3

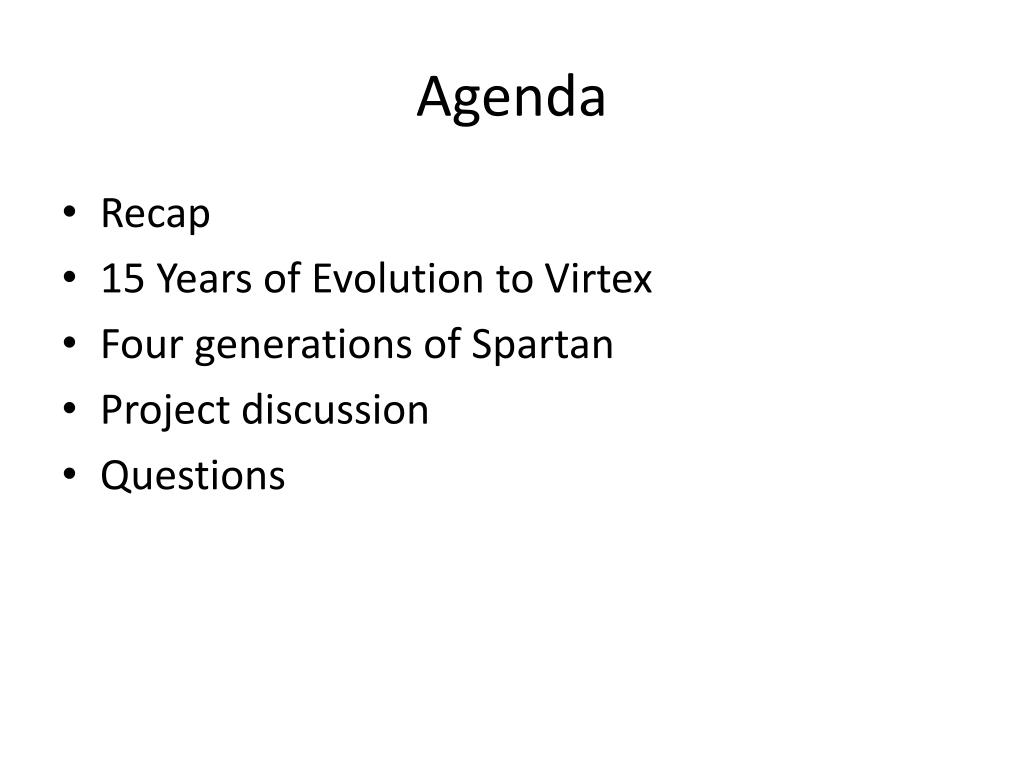

2. Agenda • Recap • 15 Years of Evolution to Virtex • Four generations of Spartan • Project discussion • Questions

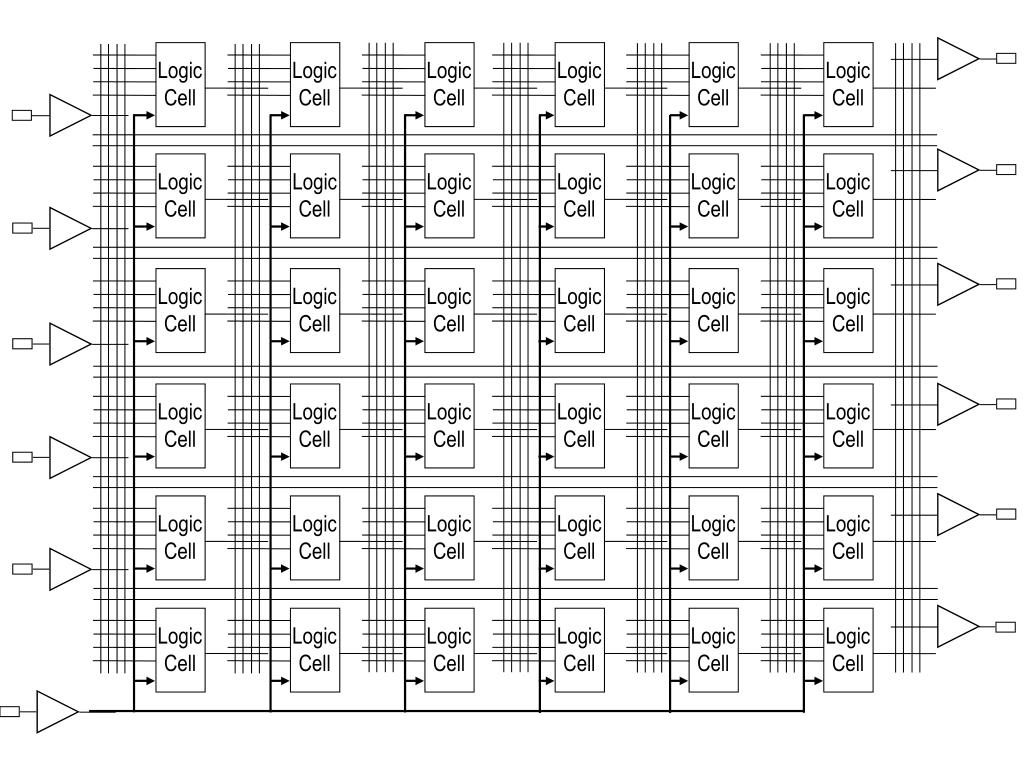

3. Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell Logic Cell

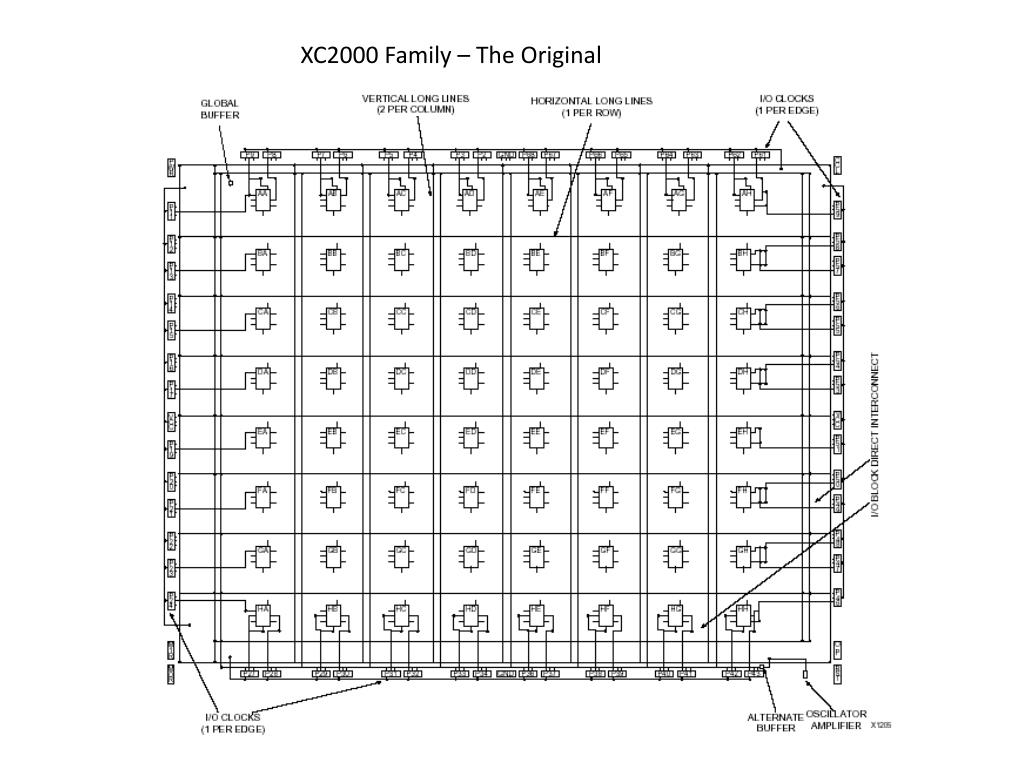

4. XC2000 Family – The Original

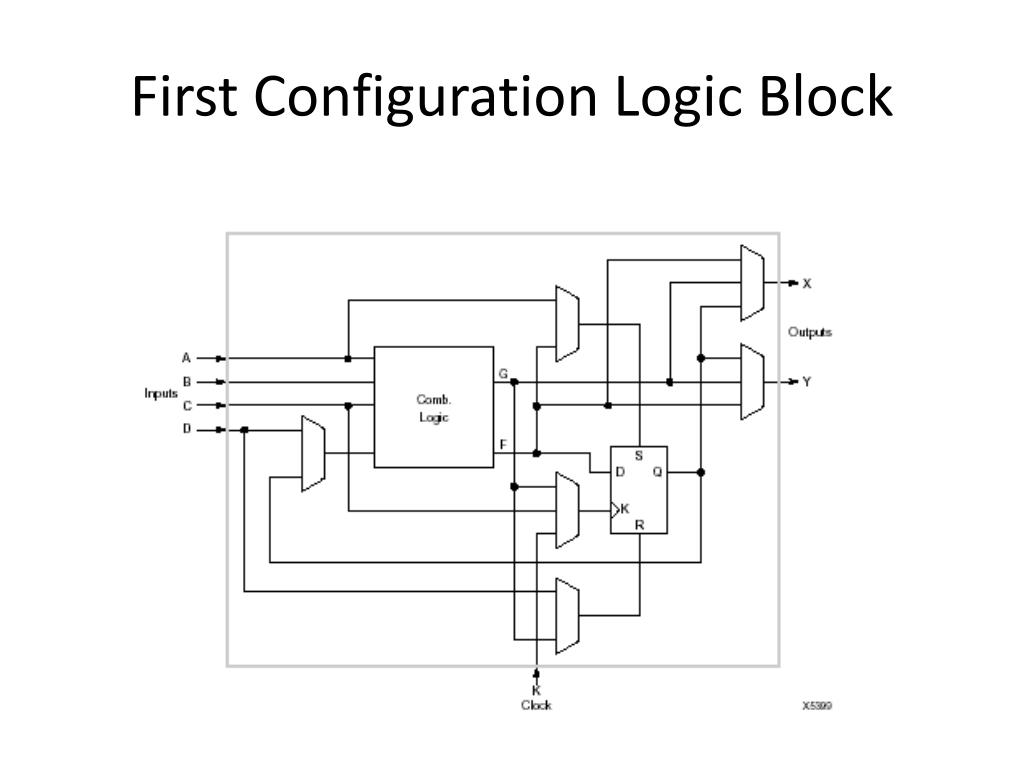

5. First Configuration Logic Block

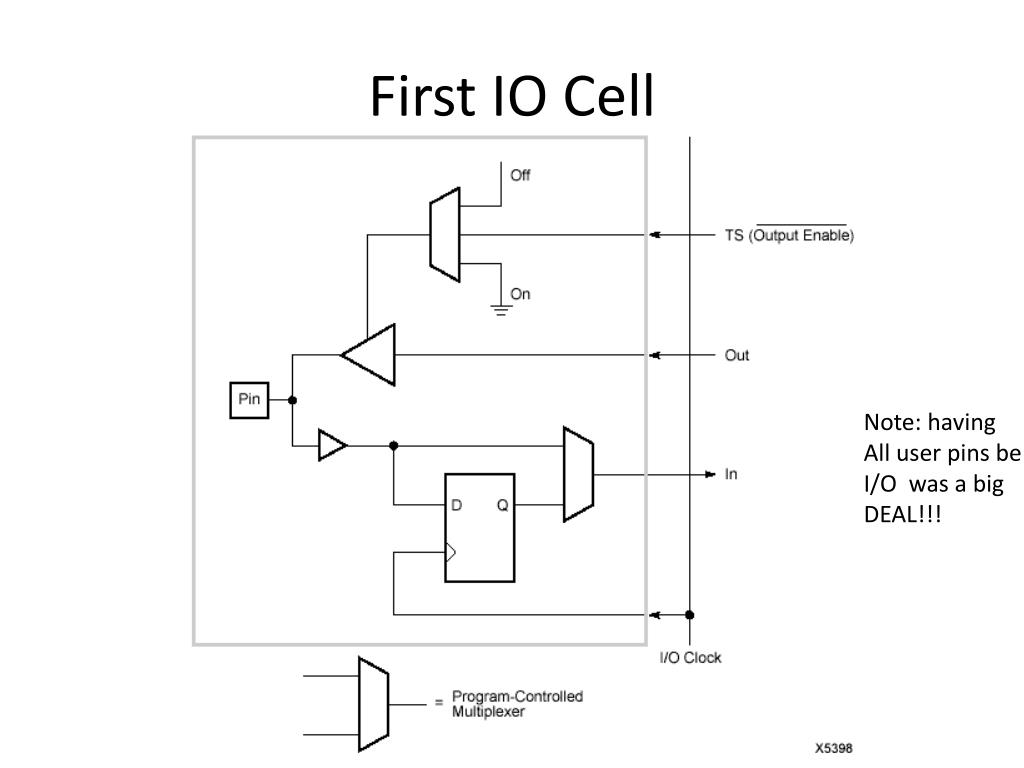

6. First IO Cell Note: having All user pins be I/O was a big DEAL!!!

7. XC3000 Family CLB Second Generation

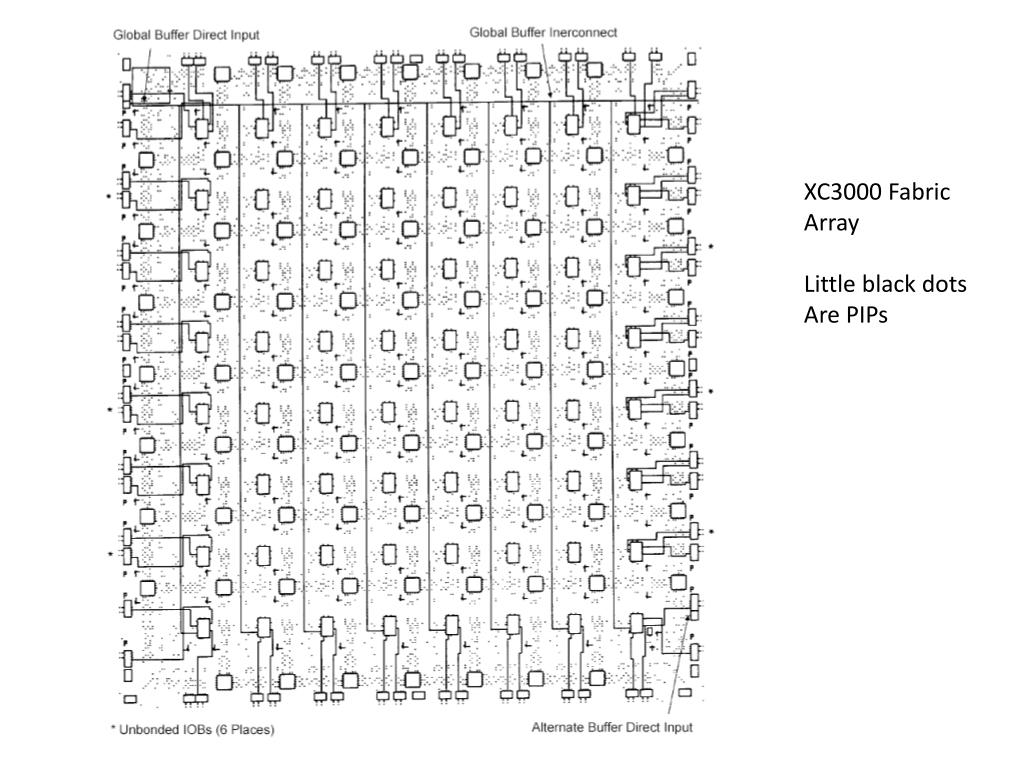

8. XC3000 Fabric Array Little black dots Are PIPs

9. XC3000 IO Cell

10. XC4000 CLB Third Generation

11. XC4000 IO Cell Note

12. VIRTEX The Fourth Generation NOTE: VIRTEX Equated with Having hard Fixed blocks Embedded in The fabric

13. VirtexSLICE

14. … which brings us to Spartan 3(uh, we did skip a bunch of stuff, but the progression for our needs works out . . .)

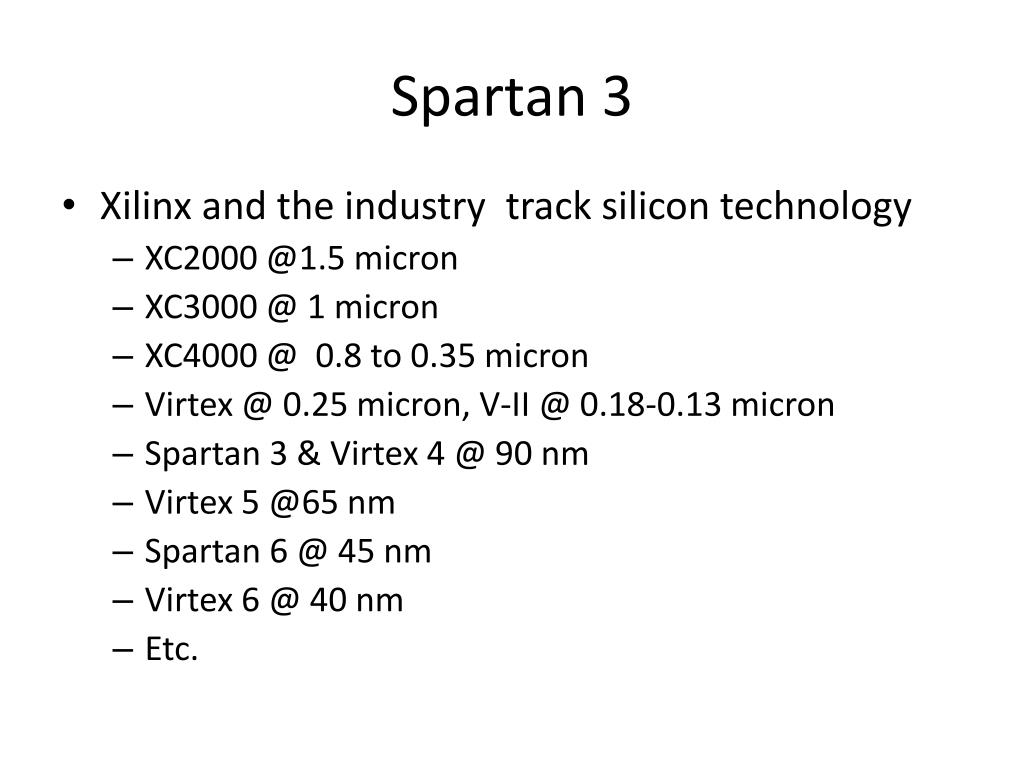

15. Spartan 3 • Xilinx and the industry track silicon technology • XC2000 @1.5 micron • XC3000 @ 1 micron • XC4000 @ 0.8 to 0.35 micron • Virtex @ 0.25 micron, V-II @ 0.18-0.13 micron • Spartan 3 & Virtex 4 @ 90 nm • Virtex 5 @65 nm • Spartan 6 @ 45 nm • Virtex 6 @ 40 nm • Etc.

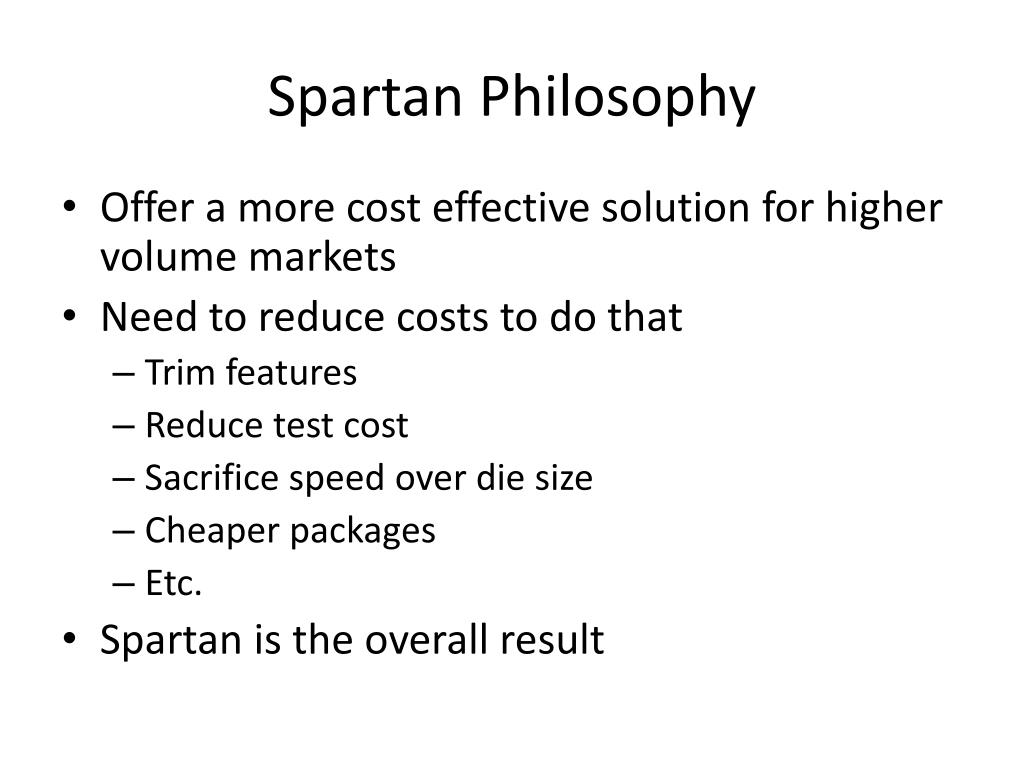

16. Spartan Philosophy • Offer a more cost effective solution for higher volume markets • Need to reduce costs to do that • Trim features • Reduce test cost • Sacrifice speed over die size • Cheaper packages • Etc. • Spartan is the overall result

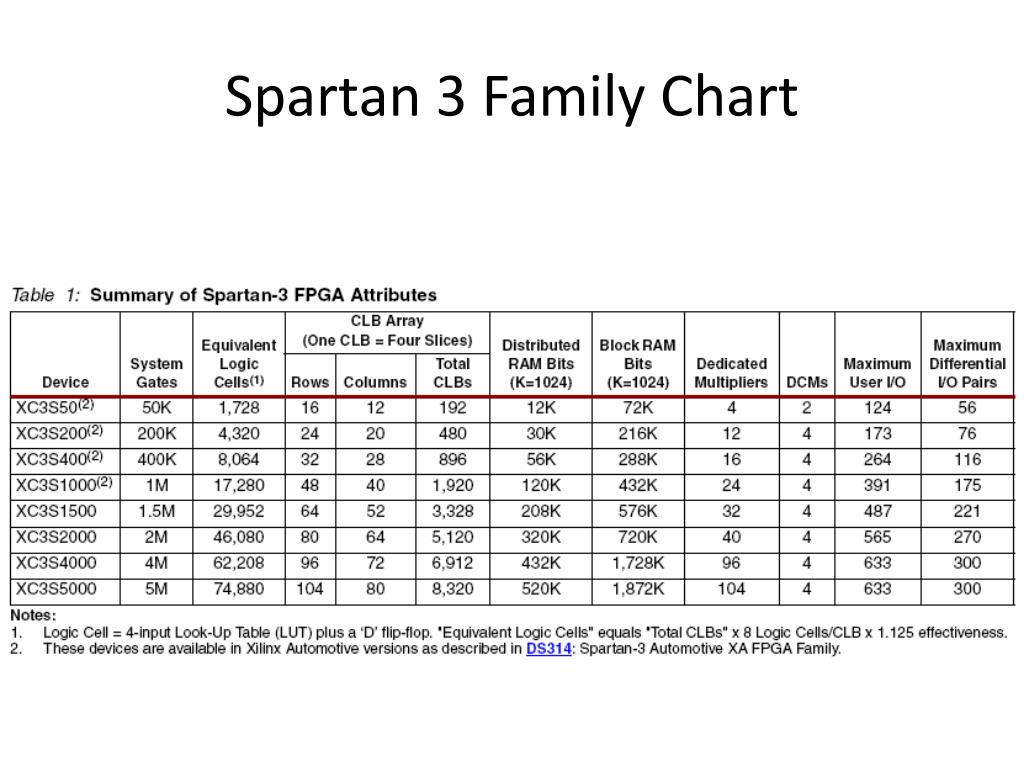

17. Spartan 3 Family Chart

18. General Architecture

19. Package Migration

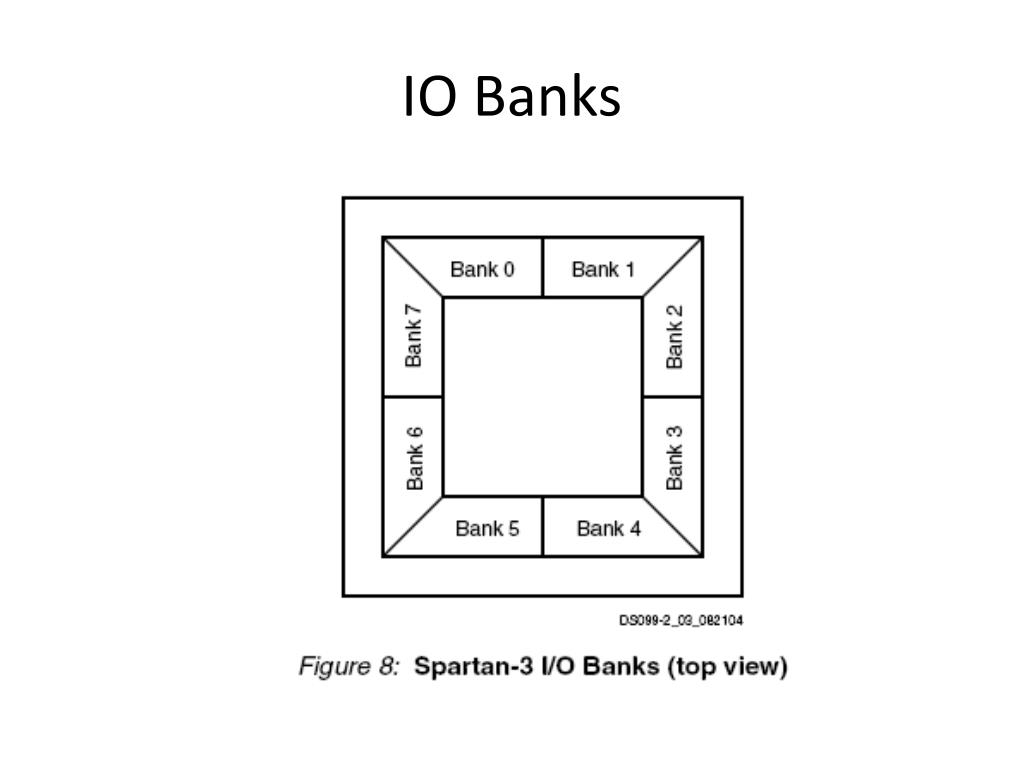

20. IO Banks

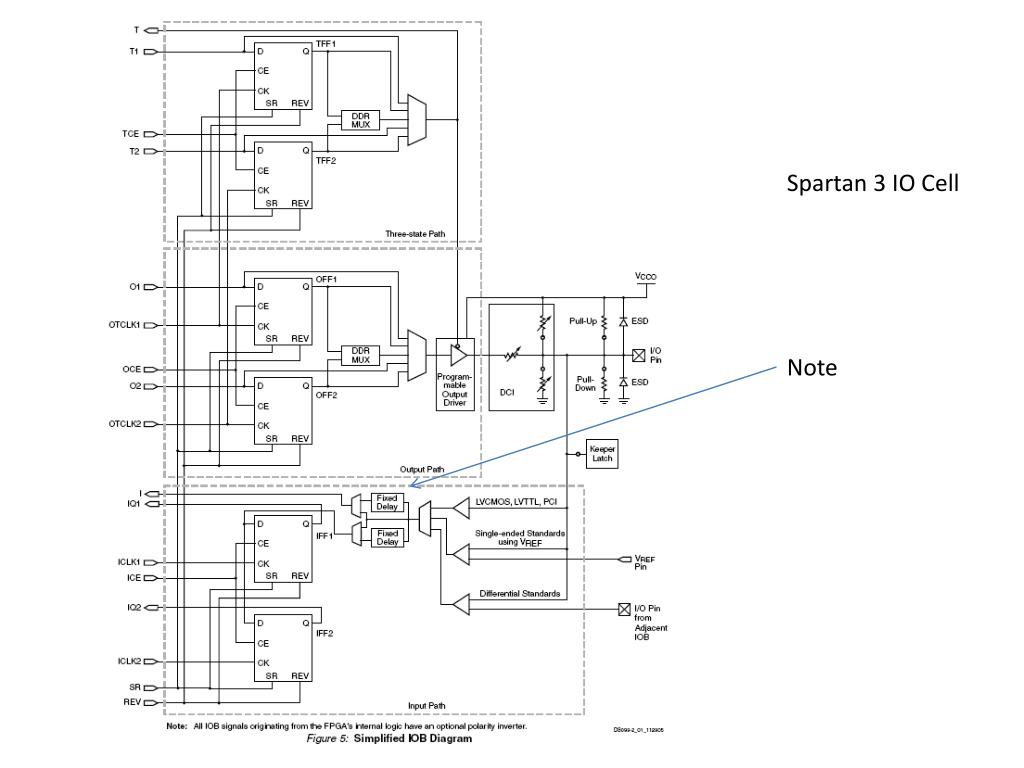

21. Spartan 3 IO Cell Note

22. Heterogeneous Logic Cells

23. Stuff in Black & Grey Common to SliceL & sliceM Blue stuff in SliceM only

24. Some Block RAM Detail

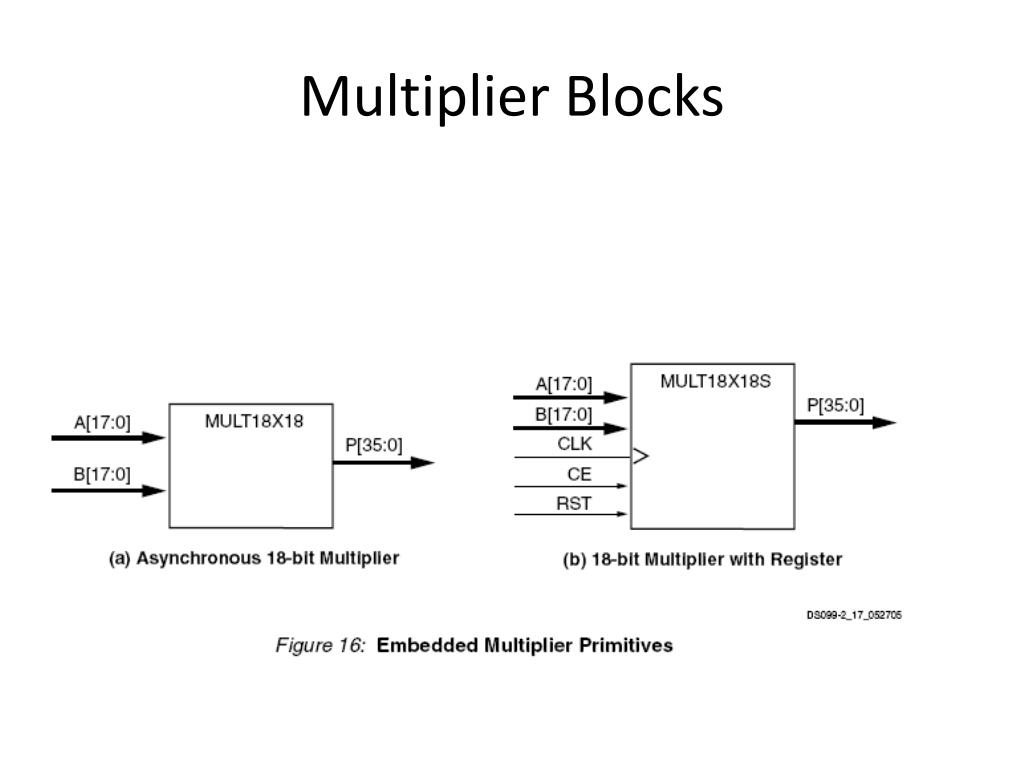

25. Multiplier Blocks

26. Digital Clock Managers

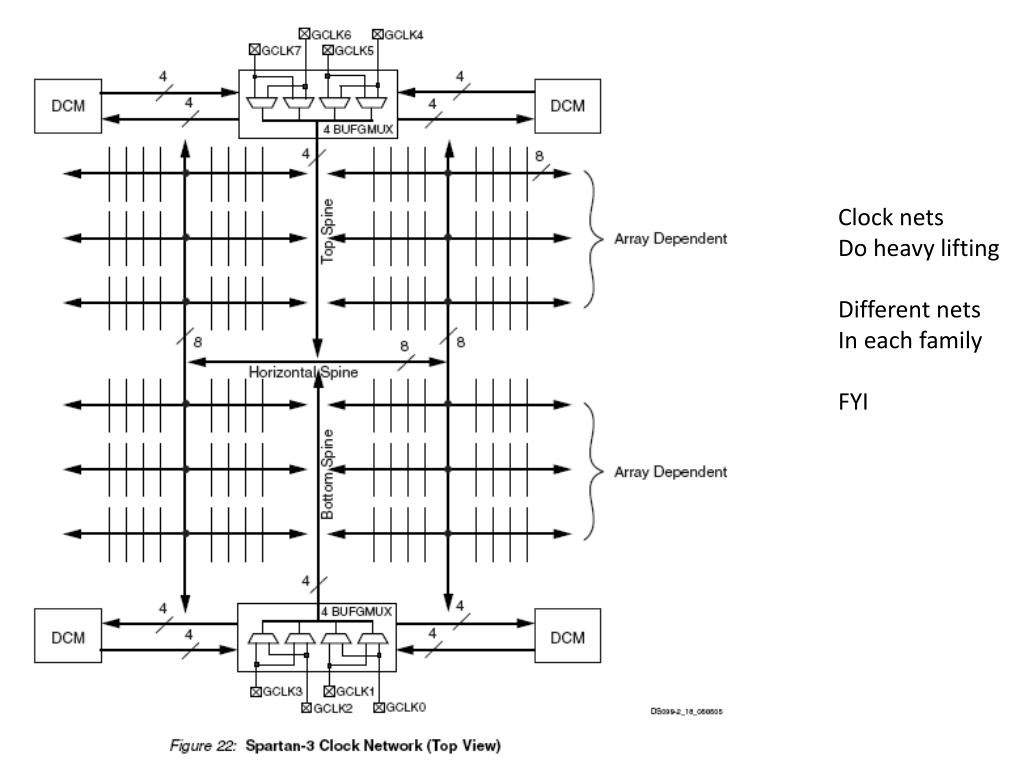

27. Clock nets Do heavy lifting Different nets In each family FYI

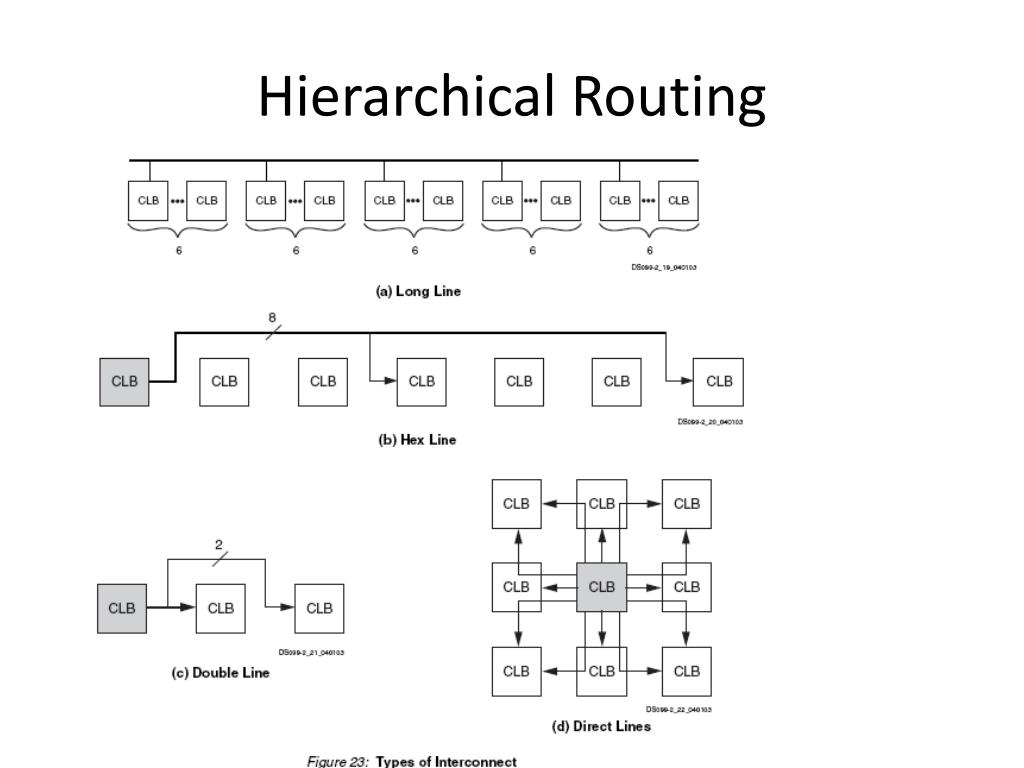

28. Hierarchical Routing

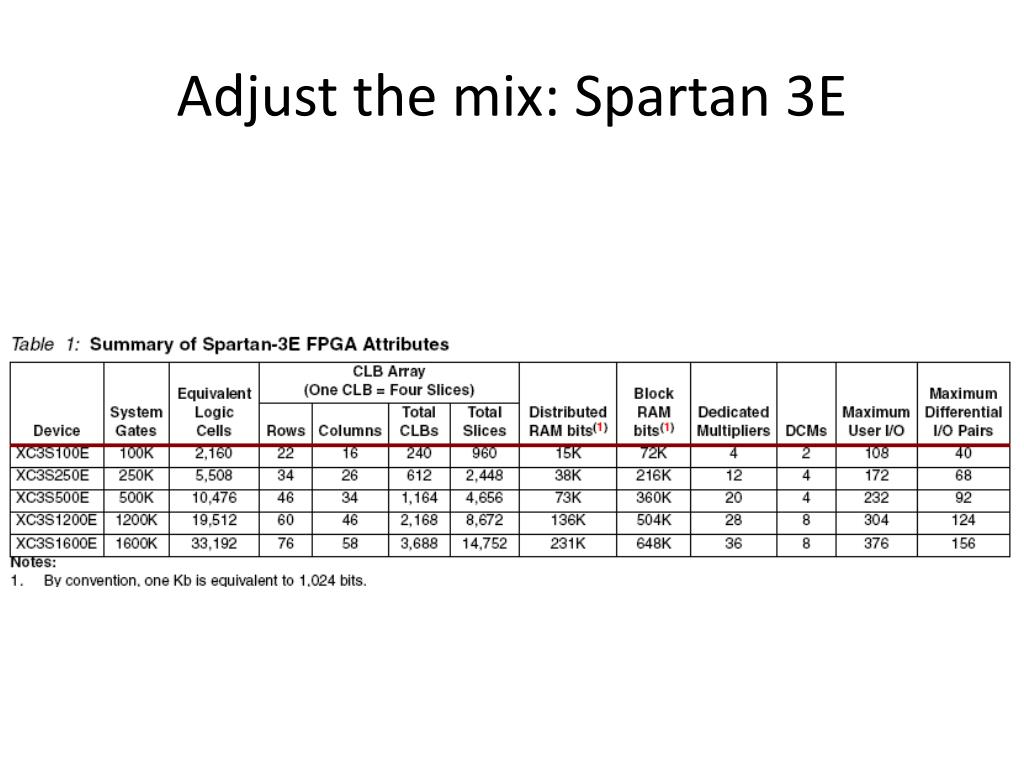

29. Adjust the mix: Spartan 3E

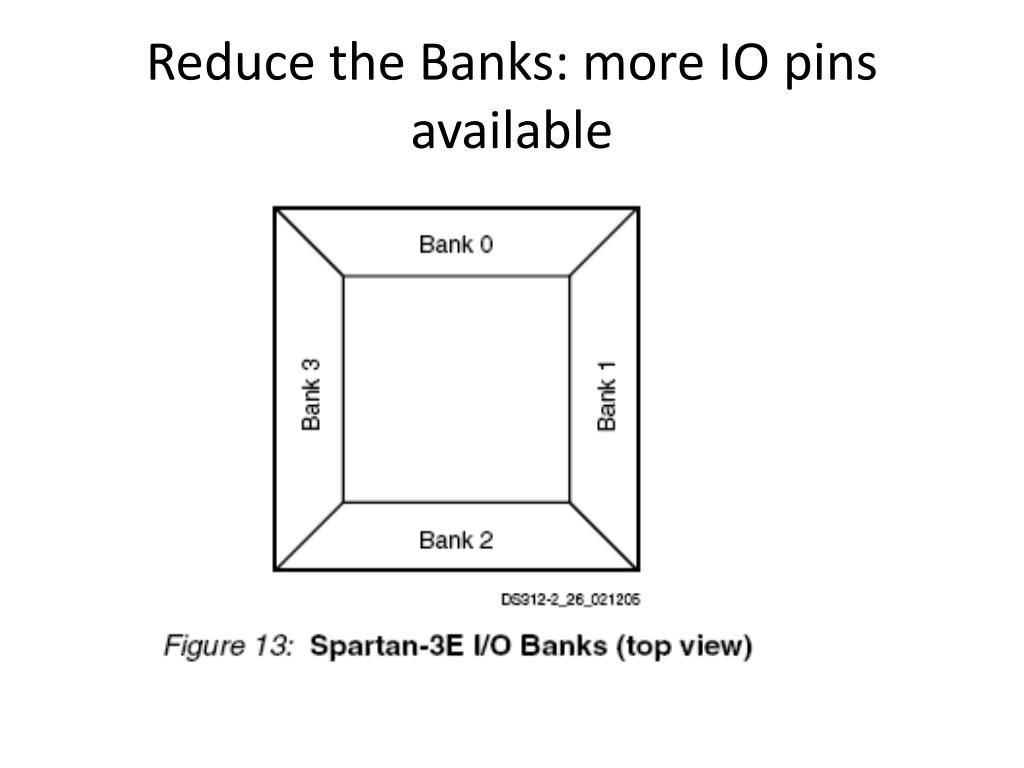

30. Reduce the Banks: more IO pins available

31. Spartan 3E IO Cell Note

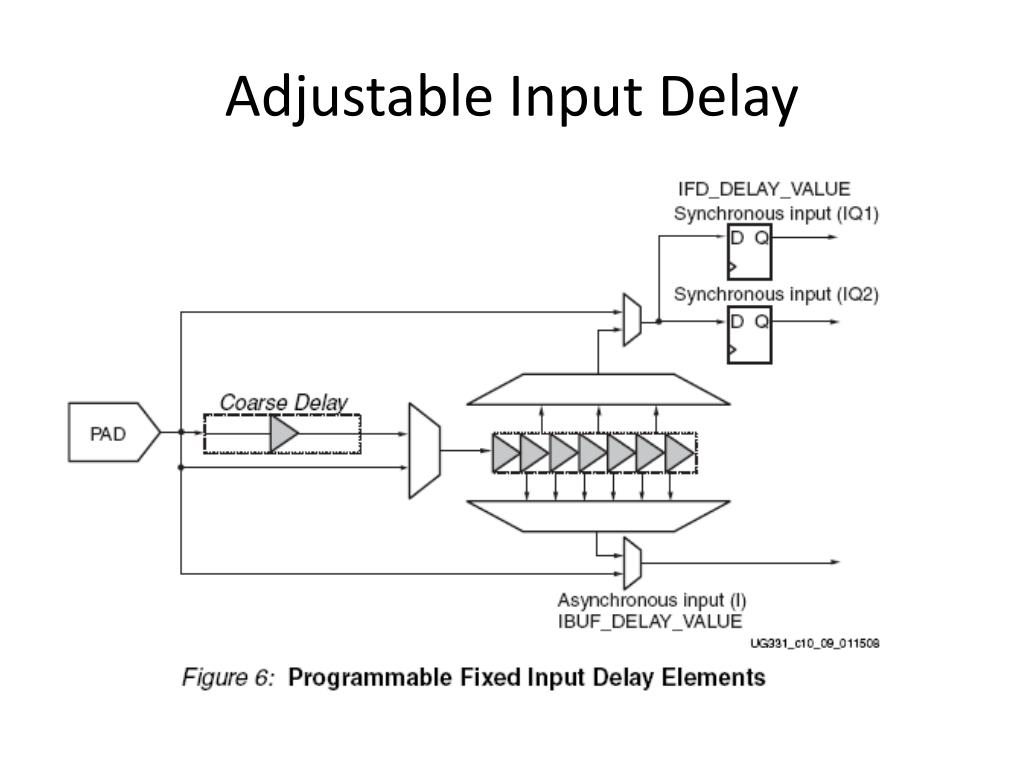

32. Adjustable Input Delay

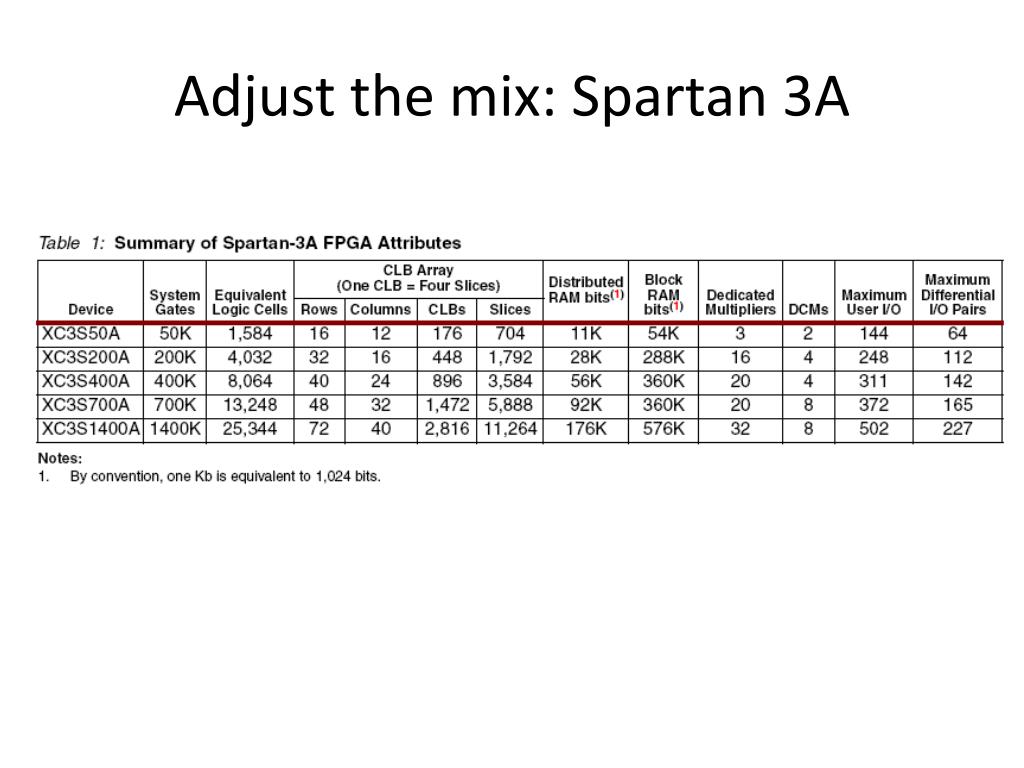

33. Adjust the mix: Spartan 3A

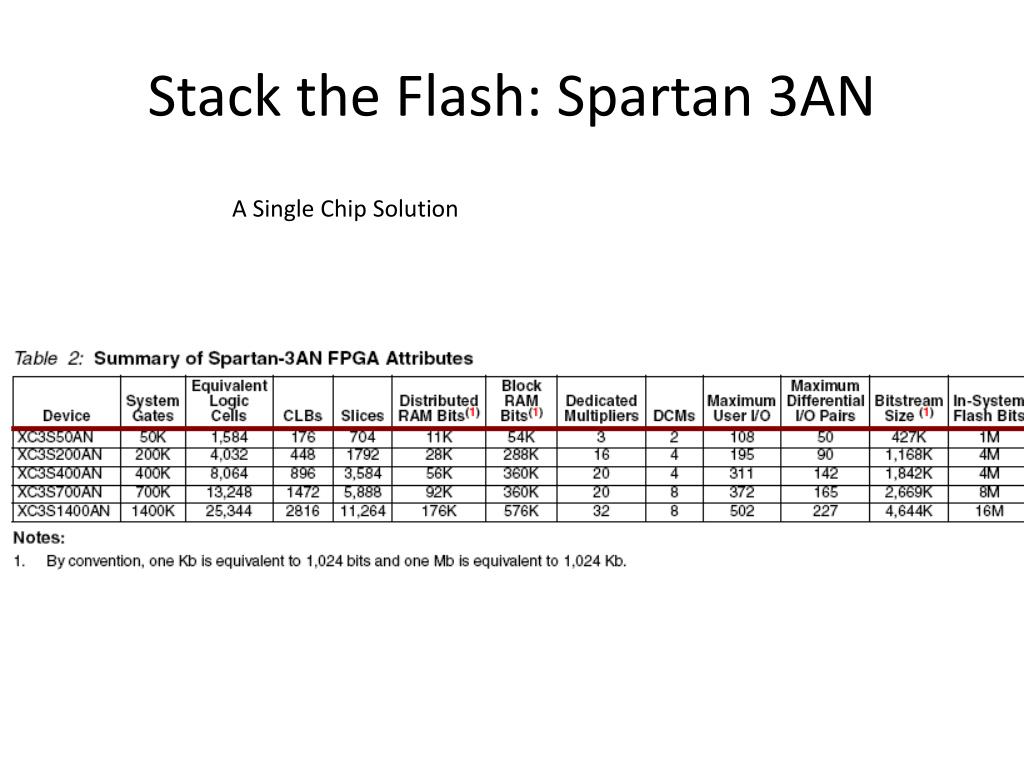

34. Stack the Flash: Spartan 3AN A Single Chip Solution

35. Internal SPI Flash

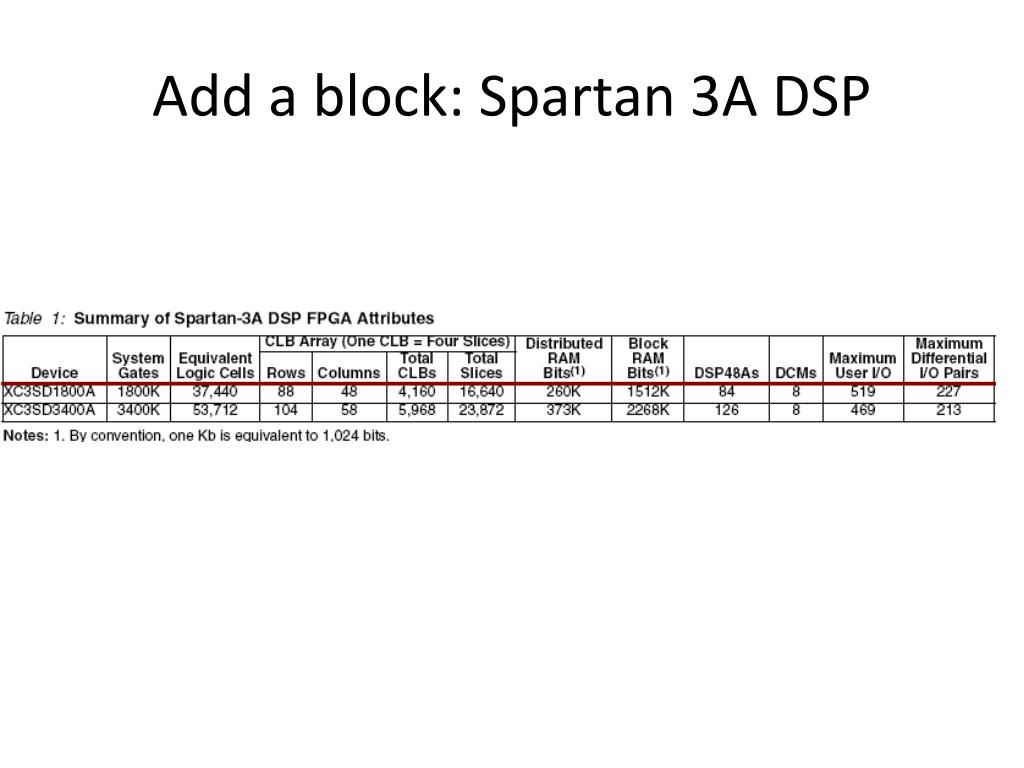

36. Add a block: Spartan 3A DSP

37. Spartan 3A DSP Architecture

38. DSP48 with a Pre-Adder

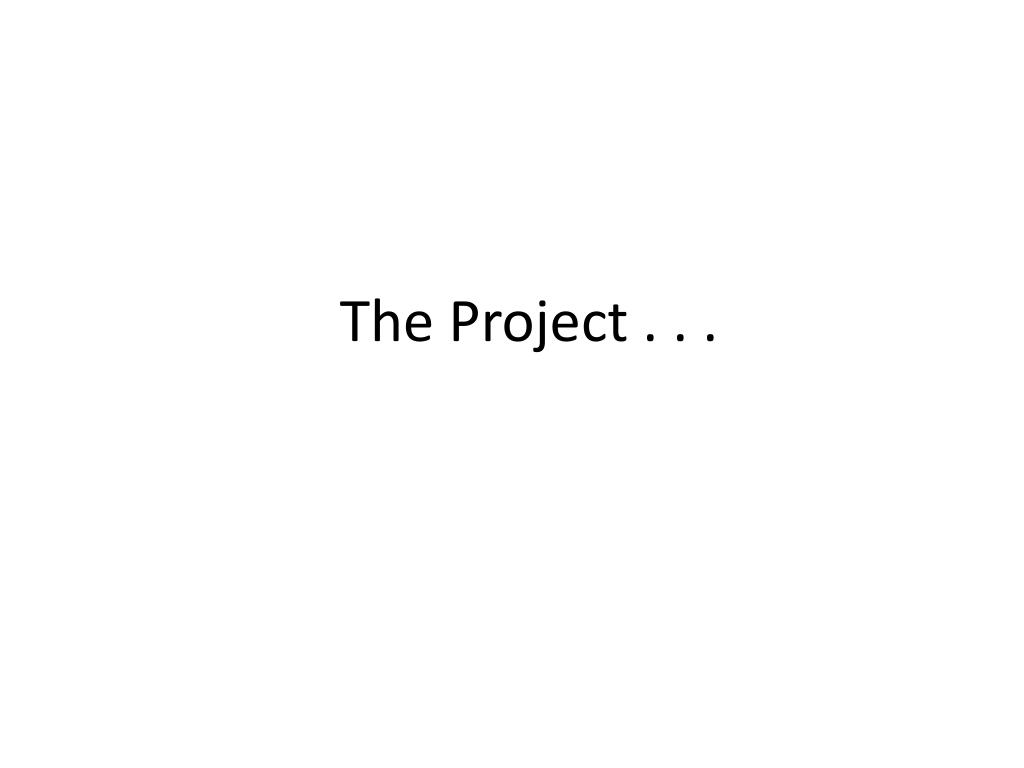

39. The Project . . .

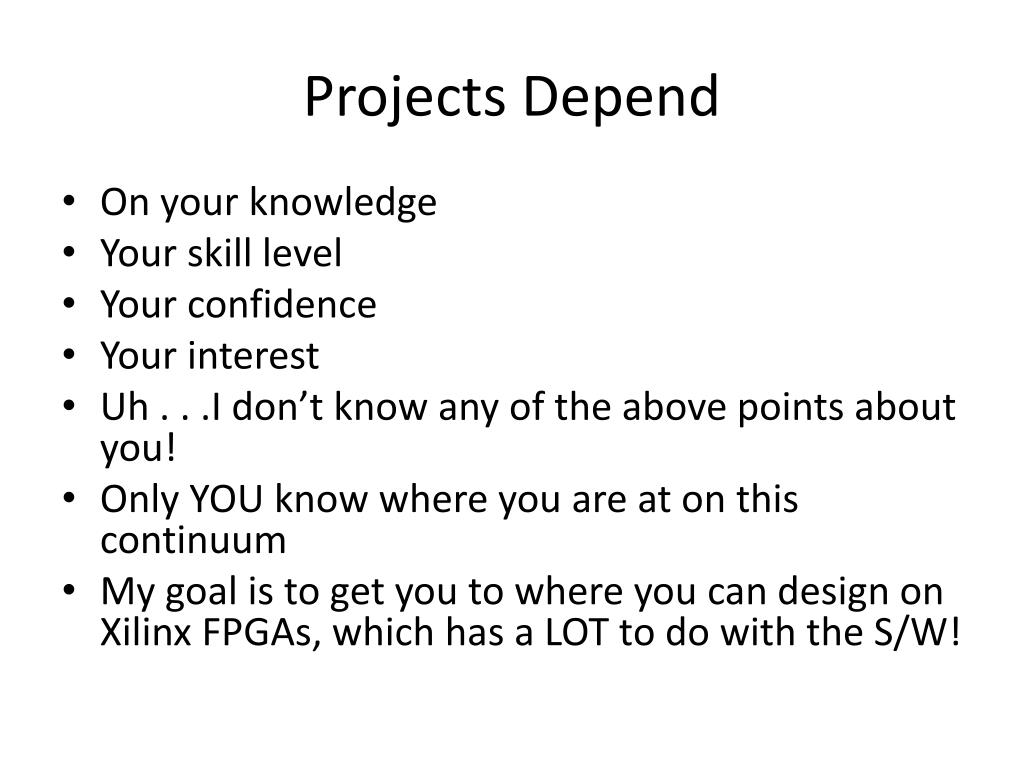

40. Projects Depend • On your knowledge • Your skill level • Your confidence • Your interest • Uh . . .I don’t know any of the above points about you! • Only YOU know where you are at on this continuum • My goal is to get you to where you can design on Xilinx FPGAs, which has a LOT to do with the S/W!

41. Some Ideas • Interfaces • MIX & MATCH things • Buses and memories • Peripherals & memories • Buses & peripherals • Processors & the above • Systems • Build single function items • Combine two or more items • Invent something new

42. Ahh, the Good Old Days . . . Basic idea: Create useful, correct standard functions then . . . HOOK ‘EM UP!

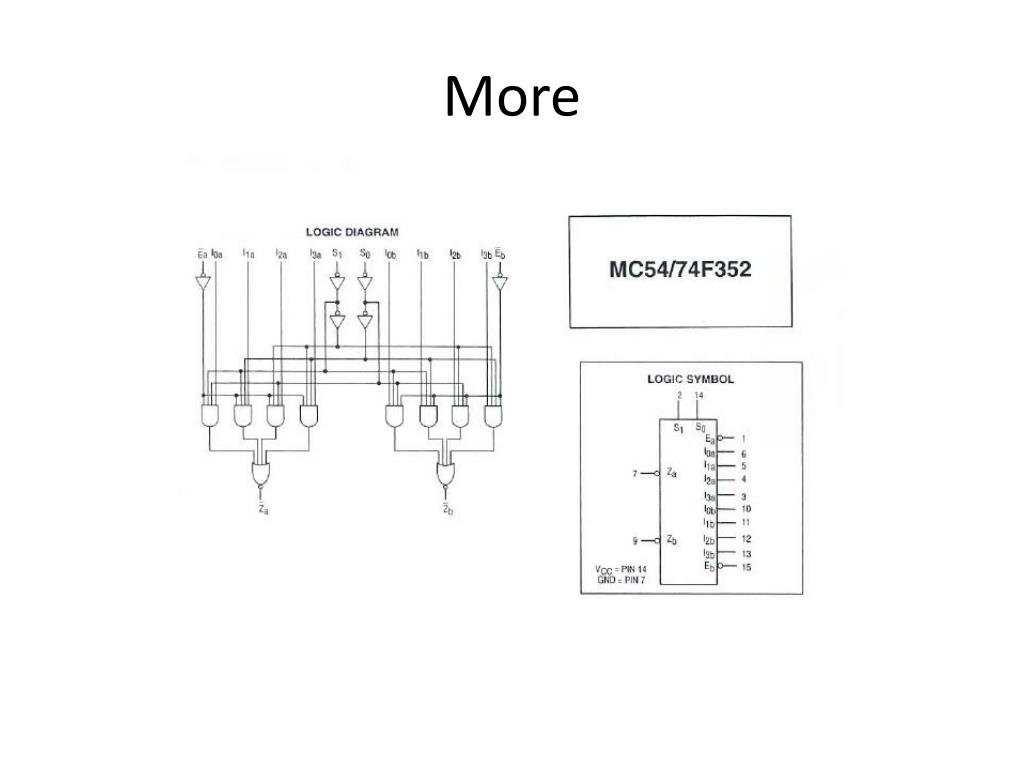

43. More

44. More

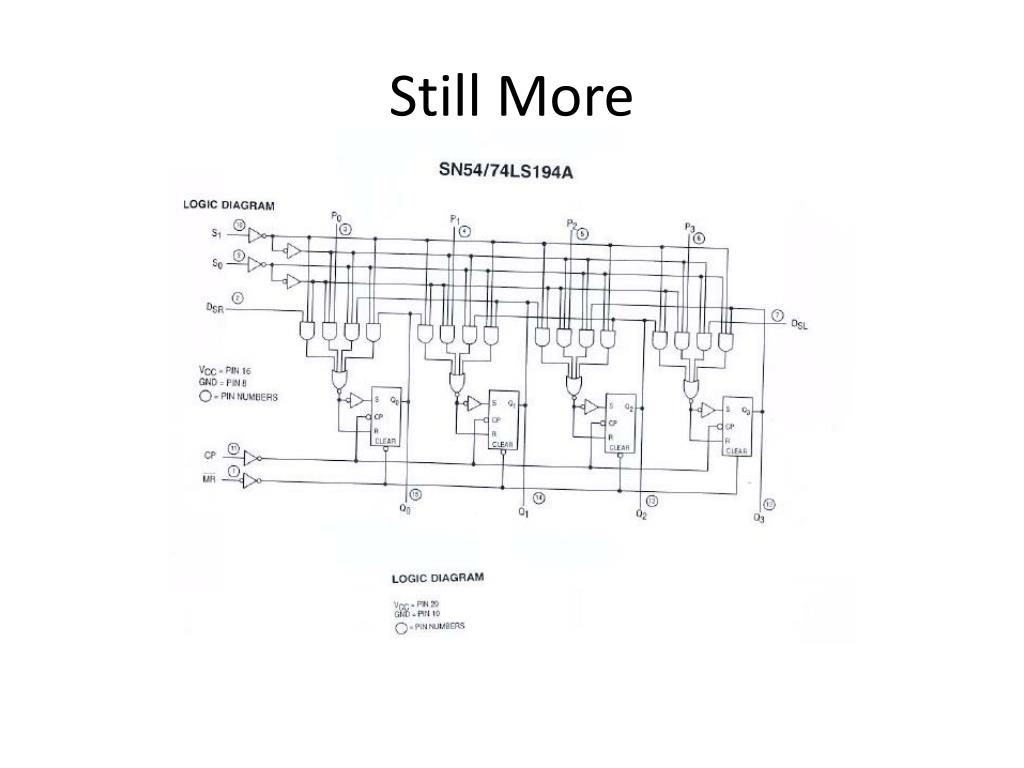

45. Still More

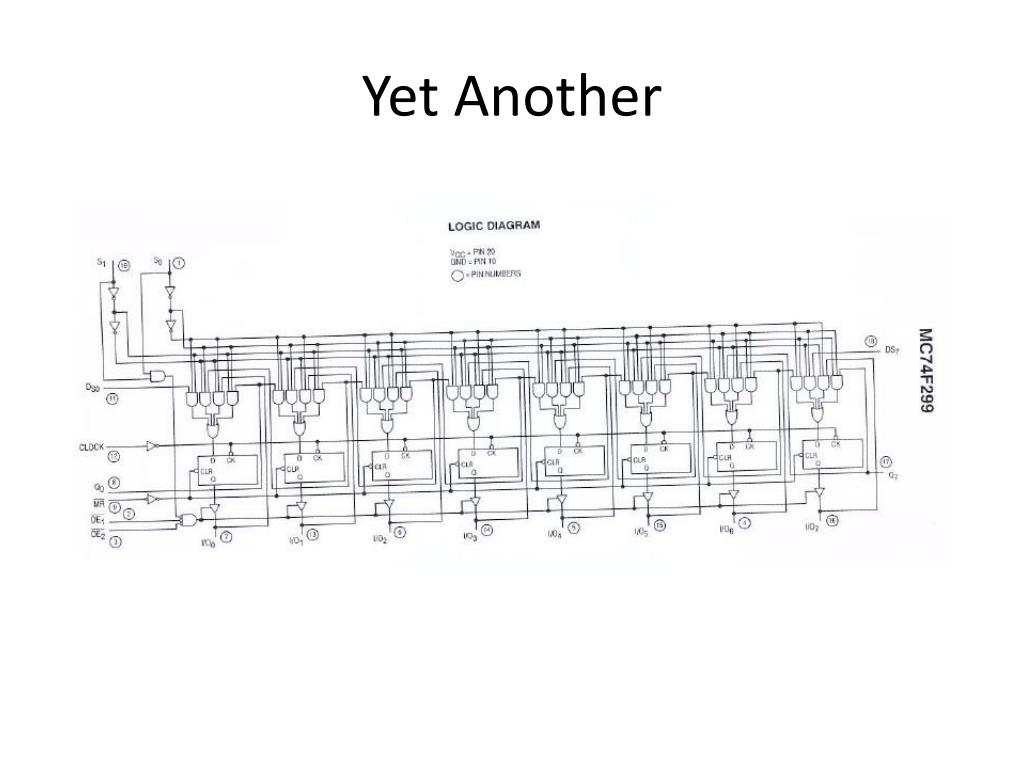

46. Yet Another

47. My All Time Favorite Part

48. Ahh, the Good NEW Days!

49. Graphic stolen from Doug Smith’s Book cover . . .I’m looking for the CD that was optional

50. Stolen From Smith Like Old TTL Manual
