Architecture Support for Secure Computing

1. Architecture Support for Secure Computing Mikel Bezdek Chun Yee Yu CprE 585 Survey Project 12/10/04

2. Presentation Outline • Motivation • Assumptions • Attacks • Proposed Solutions • Pending questions and future research

3. Motivation • Currently piracy of software and digital media is a huge problem • Attempts to solve with software solutions have proven easy to foil • Adding support at the hardware level is a promising solution

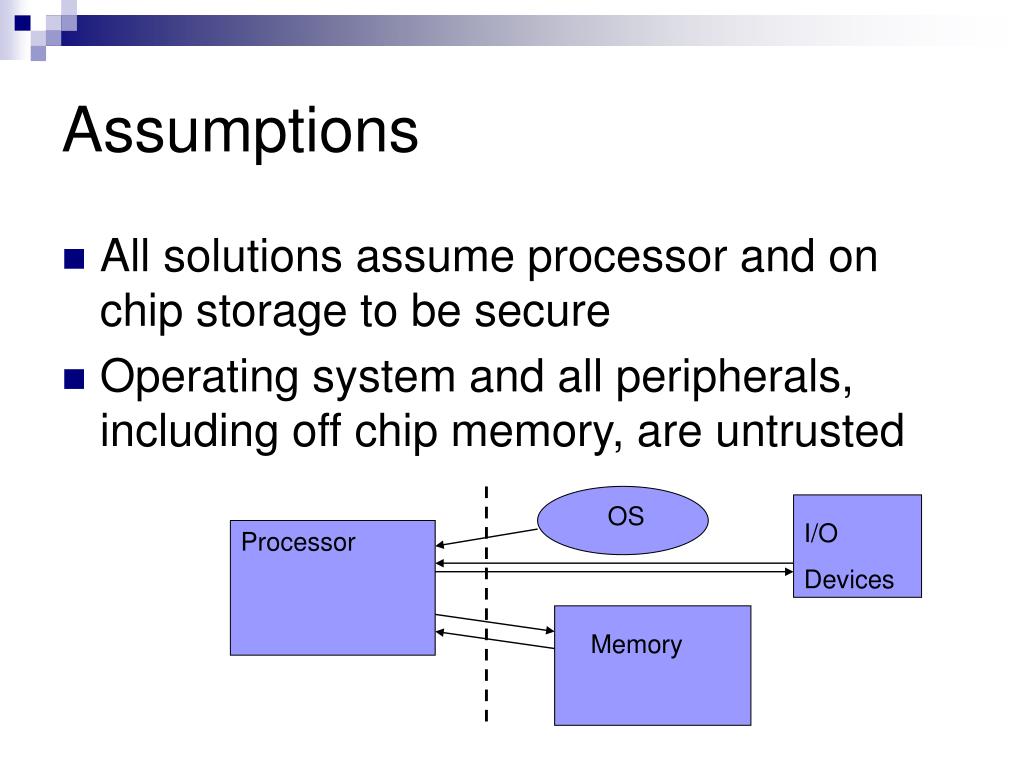

4. Assumptions • All solutions assume processor and on chip storage to be secure • Operating system and all peripherals, including off chip memory, are untrusted OS I/O Devices Processor Memory

5. Points of Attack • Because of untrusted memory attacks can occur on any transfers to or from external memory • Because of untrusted OS, attacks could occur at context switches, when OS takes control of operation

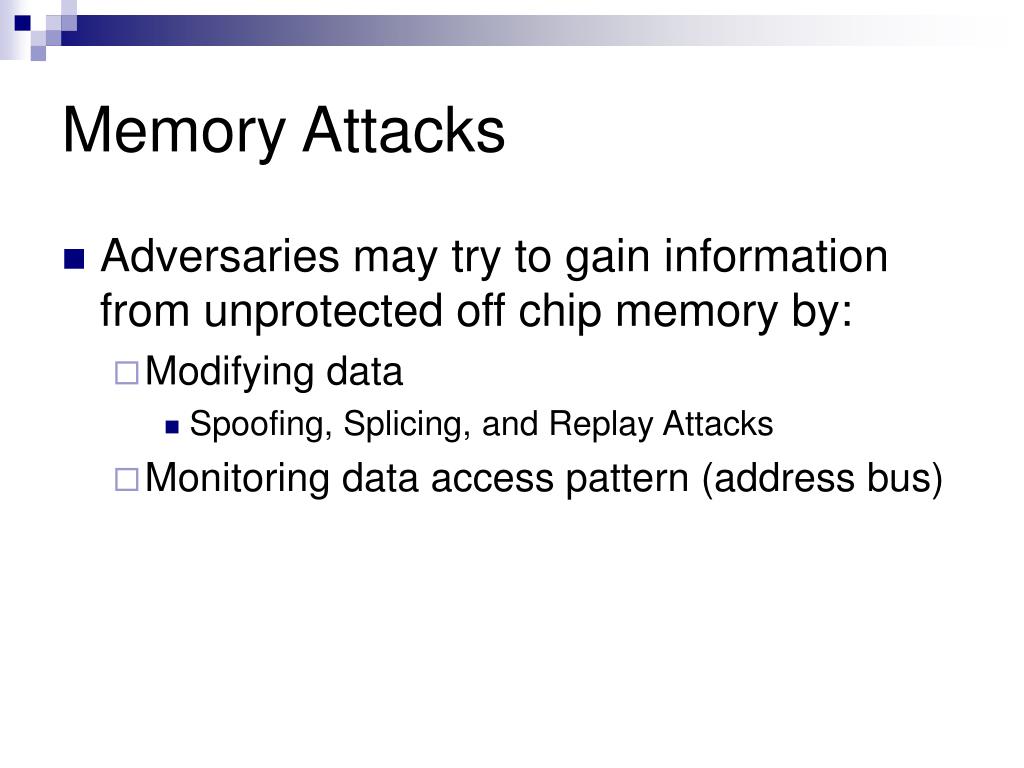

6. Memory Attacks • Adversaries may try to gain information from unprotected off chip memory by: • Modifying data • Spoofing, Splicing, and Replay Attacks • Monitoring data access pattern (address bus)

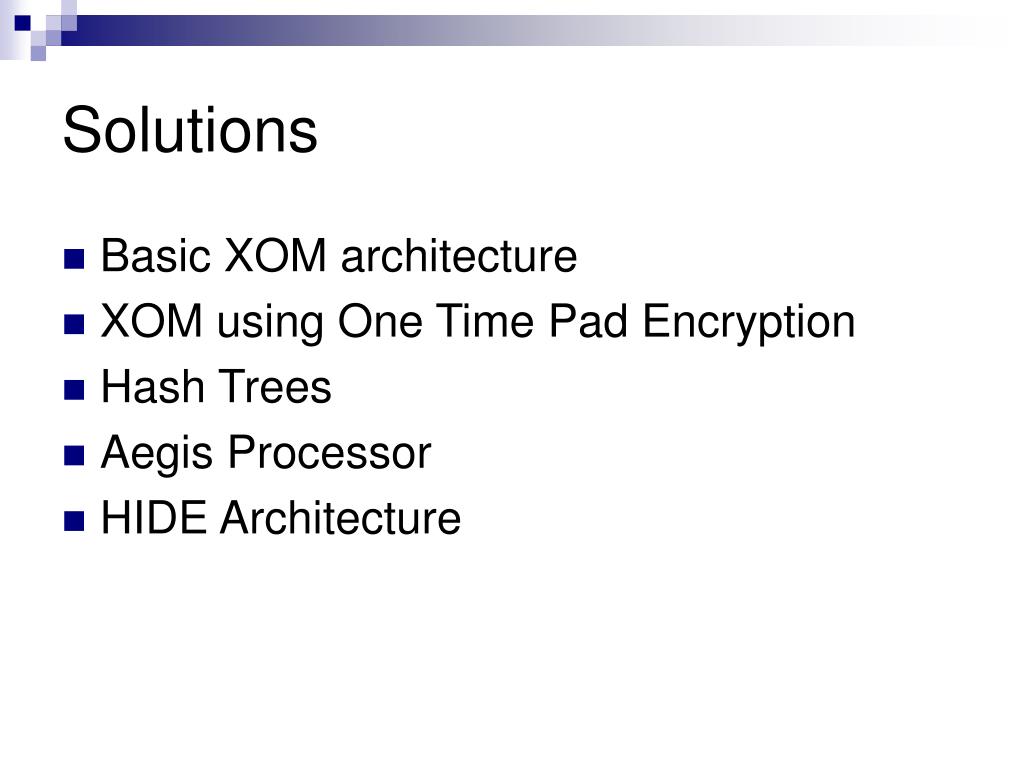

7. Solutions • Basic XOM architecture • XOM using One Time Pad Encryption • Hash Trees • Aegis Processor • HIDE Architecture

8. XOM (Execute-Only Memory) • Tamper Resistant Software • Software is encrypted using symmetric encryption, its key is encrypted using asymmetric encryption • Asymmetric Encryption - public key used by vendor, private key used by XOM chip • Symmetric Encryption - the private key is unique to each program, also called the XOM ID • Secured Computing • Enforces access restrictions using tagged and encrypted storage • Encrypted code execution using on-chip decryption

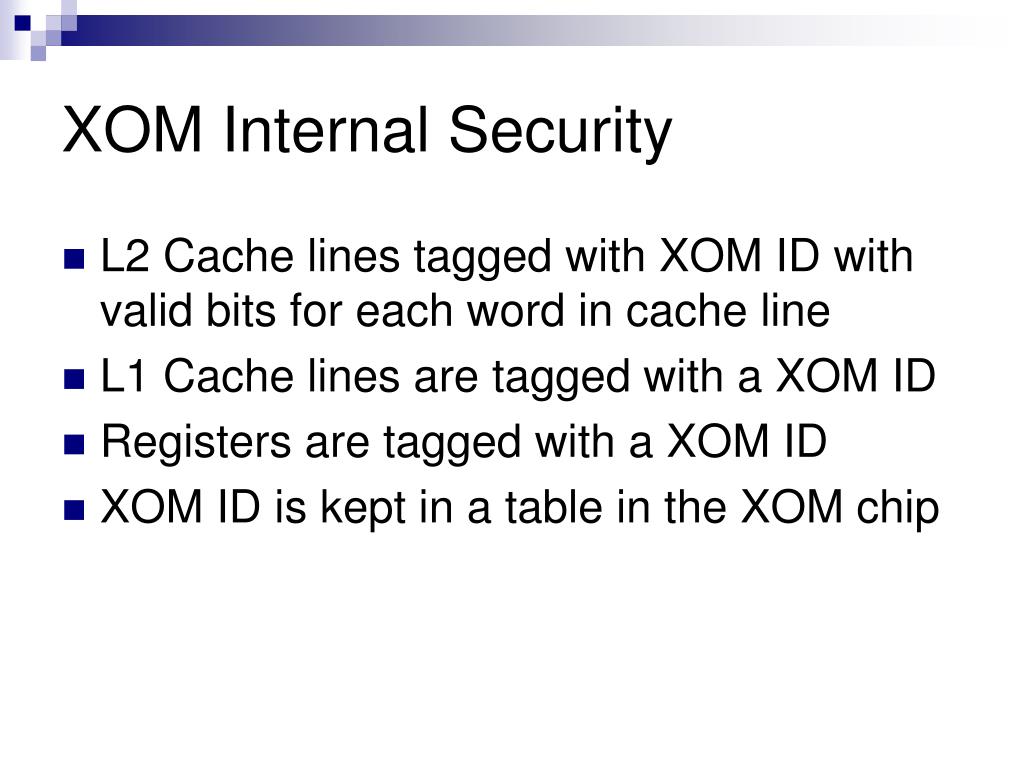

9. XOM Internal Security • L2 Cache lines tagged with XOM ID with valid bits for each word in cache line • L1 Cache lines are tagged with a XOM ID • Registers are tagged with a XOM ID • XOM ID is kept in a table in the XOM chip

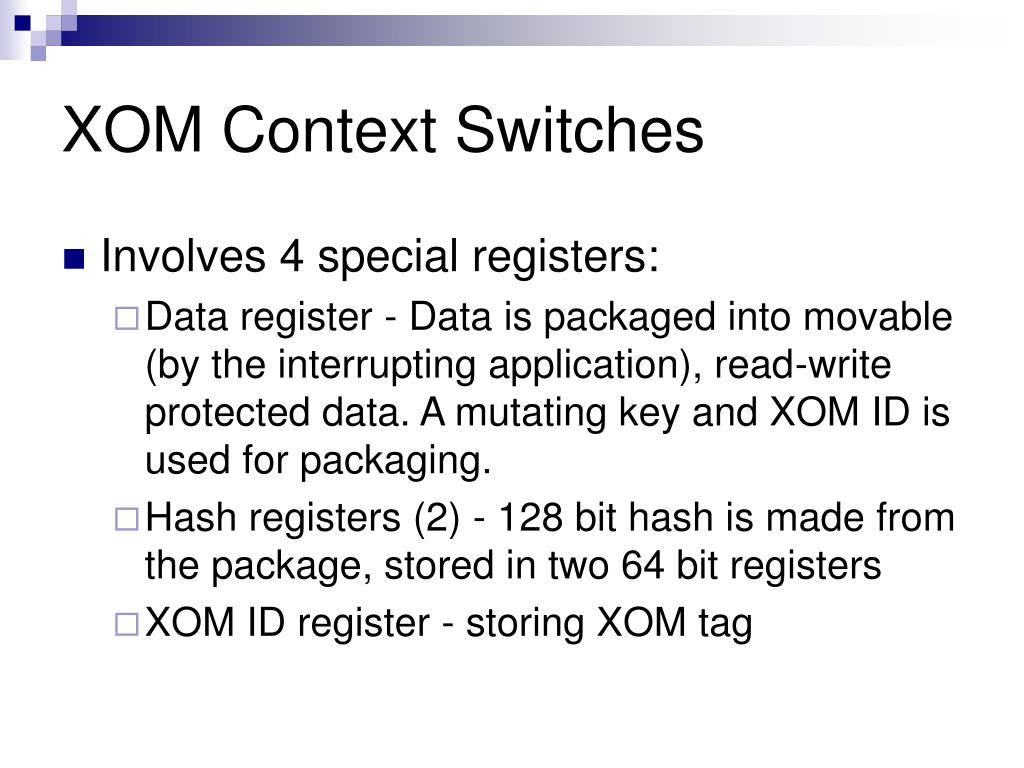

10. XOM Context Switches • Involves 4 special registers: • Data register - Data is packaged into movable (by the interrupting application), read-write protected data. A mutating key and XOM ID is used for packaging. • Hash registers (2) - 128 bit hash is made from the package, stored in two 64 bit registers • XOM ID register - storing XOM tag

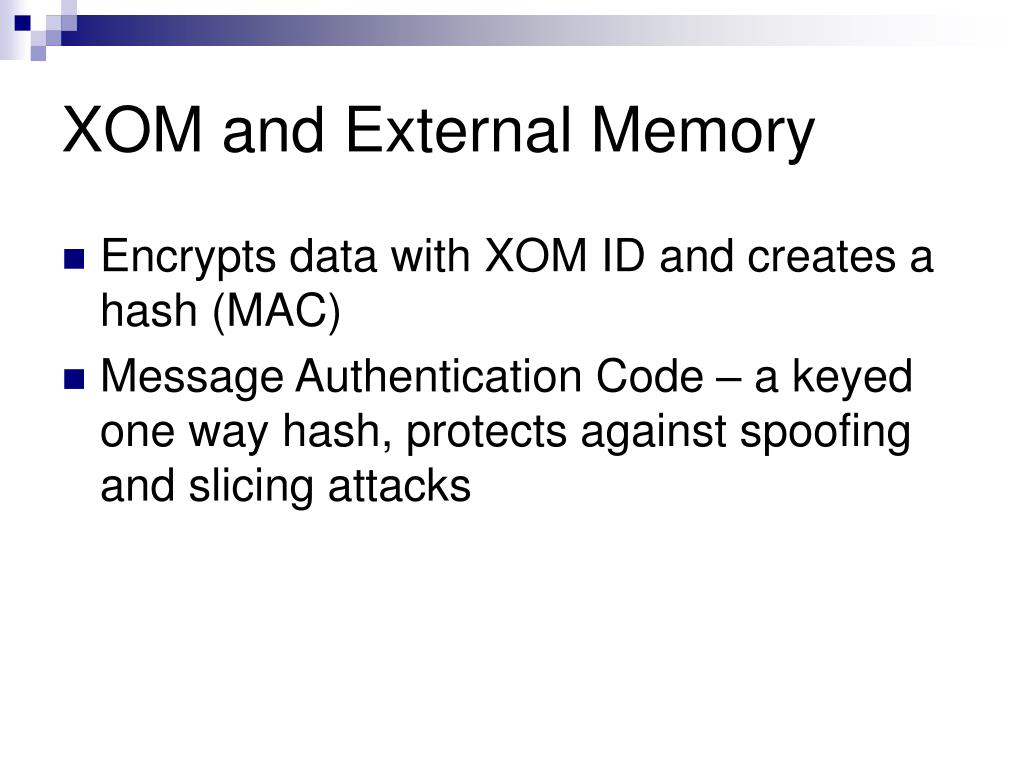

11. XOM and External Memory • Encrypts data with XOM ID and creates a hash (MAC) • Message Authentication Code – a keyed one way hash, protects against spoofing and slicing attacks

12. XOM Performance Issues • Optimizations: • Use a reversible CRC instead of MAC • Dedicated, pipelined DES encryption/decryption hardware. • Max of 50% slowdown assuming a 48 cycle Triple DES implementation and 100 cycle memory access latency.

13. XOM with One-Time Pad • Average XOM slowdown is 16.7% on SPEC 2000 benchmarks • Around 30% slowdown on memory intensive programs • One-Time Pad encryption can be used to remove encryption/decryption from critical path

14. XOM with OTP • Proposed OTP solution • Cipher = plain Å encryptedkey(address + seq) • Plain = cipher Å encryptedkey(address + seq) • key = XOM ID • address = virtual address of data/instruction • seq = mutating sequence number • encryptedkey(address + seq) is concurrent with memory access • Encryption/decryption requires a one cycle XOR operation

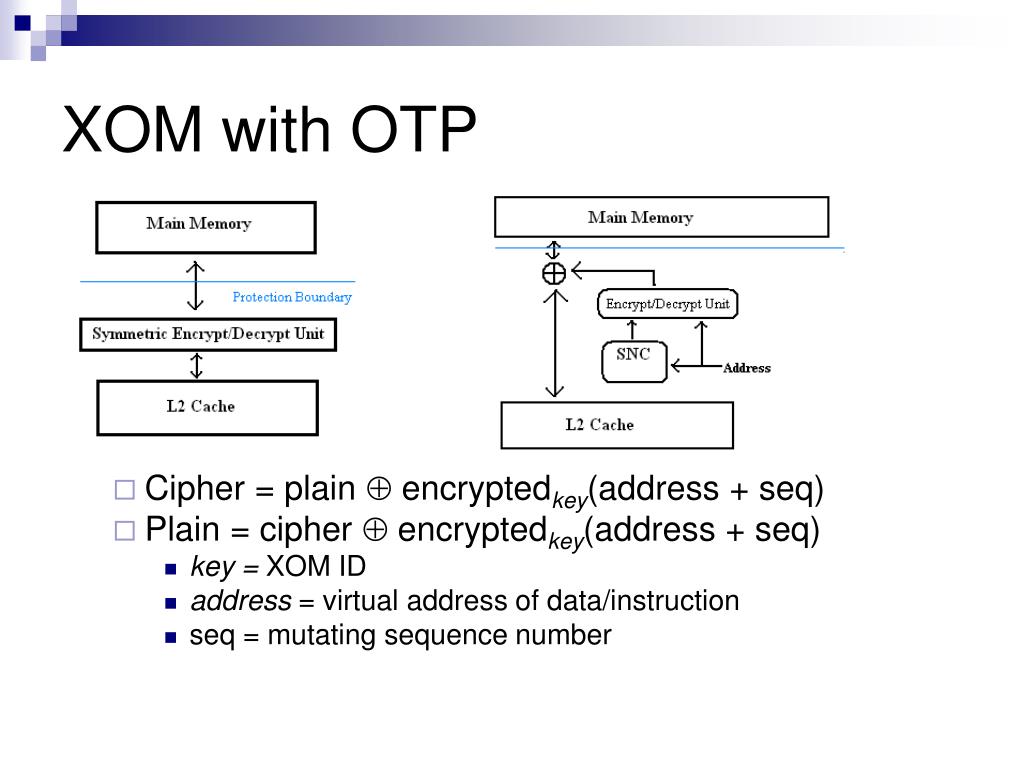

15. XOM with OTP • Cipher = plain Å encryptedkey(address + seq) • Plain = cipher Å encryptedkey(address + seq) • key = XOM ID • address = virtual address of data/instruction • seq = mutating sequence number

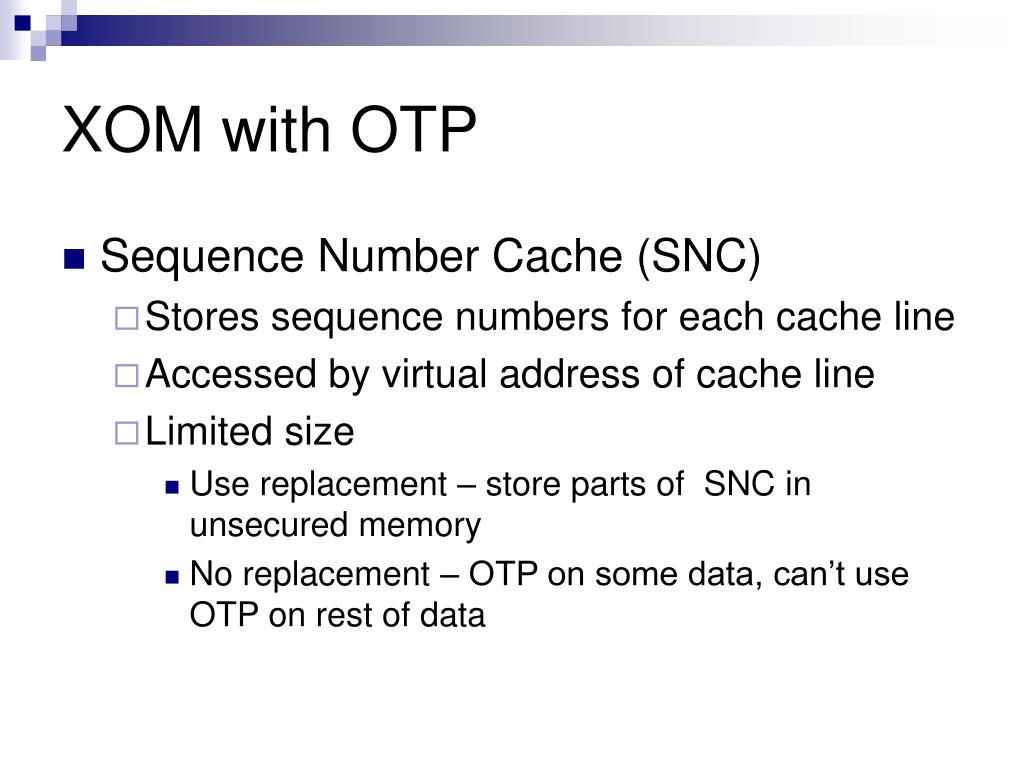

16. XOM with OTP • Sequence Number Cache (SNC) • Stores sequence numbers for each cache line • Accessed by virtual address of cache line • Limited size • Use replacement – store parts of SNC in unsecured memory • No replacement – OTP on some data, can’t use OTP on rest of data

17. XOM with OTP • Sequence Number Cache operation • Hits – sequence number is accessed and passed on to the encryption unit • Misses • No replacement – default back to original XOM, where encryption is performed after memory access. Costs 100 + 50 cycles • With replacement – fetch sequence number memory, then perform encryption

18. XOM with OTP • SNC and Context Switching • Dump to memory with encryption • Tag SNC entries with XOM ID

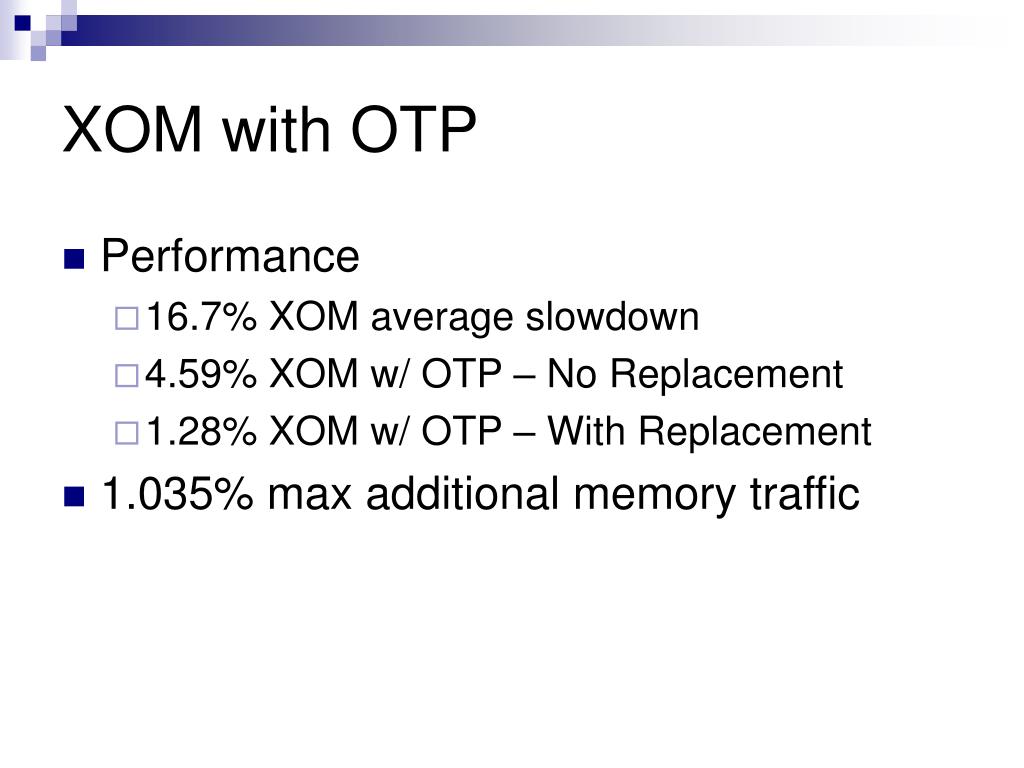

19. XOM with OTP • Performance • 16.7% XOM average slowdown • 4.59% XOM w/ OTP – No Replacement • 1.28% XOM w/ OTP – With Replacement • 1.035% max additional memory traffic

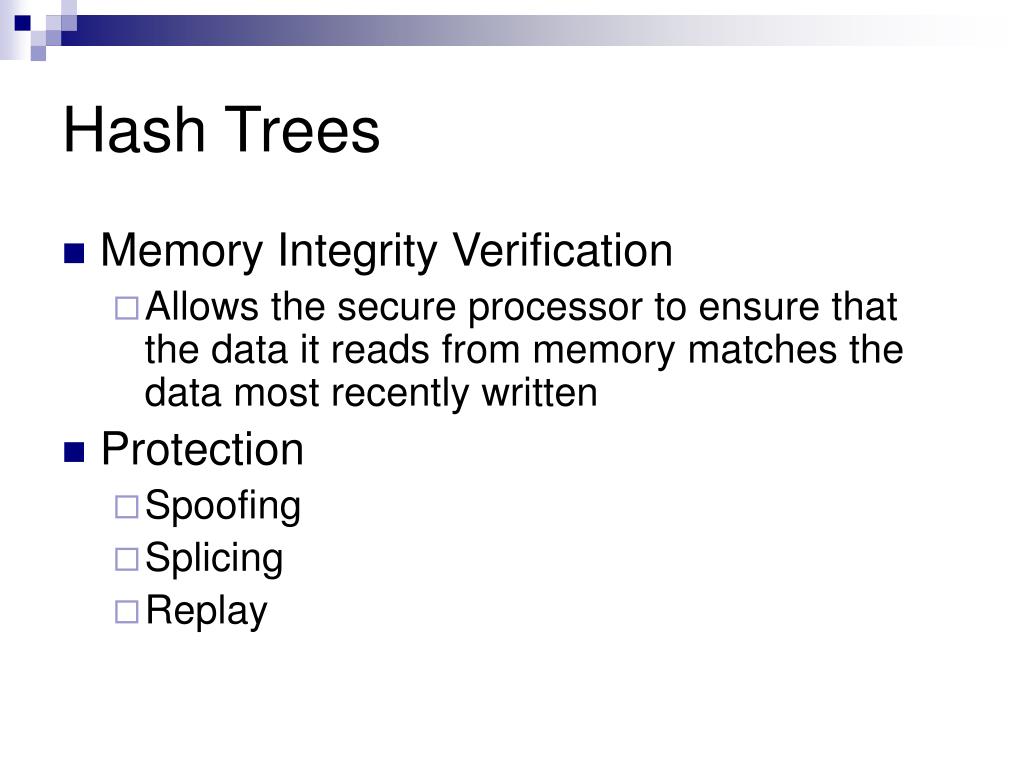

20. Hash Trees • Memory Integrity Verification • Allows the secure processor to ensure that the data it reads from memory matches the data most recently written • Protection • Spoofing • Splicing • Replay

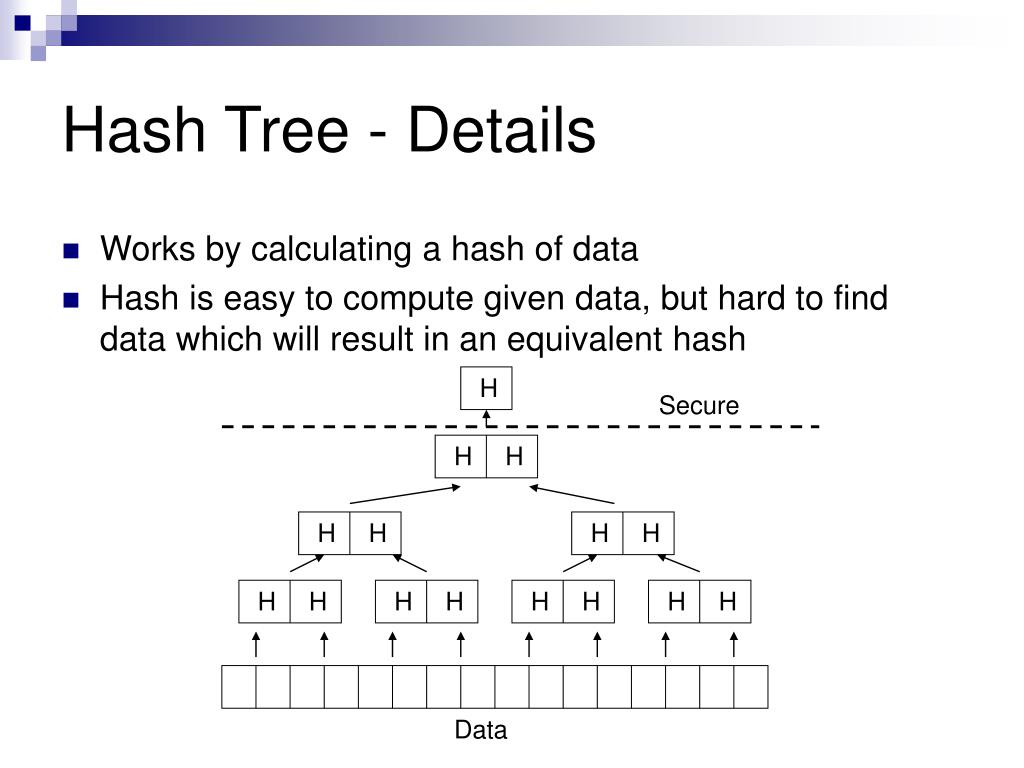

21. H H H H H H H Hash Tree - Details • Works by calculating a hash of data • Hash is easy to compute given data, but hard to find data which will result in an equivalent hash Secure H H H H H H H H Data

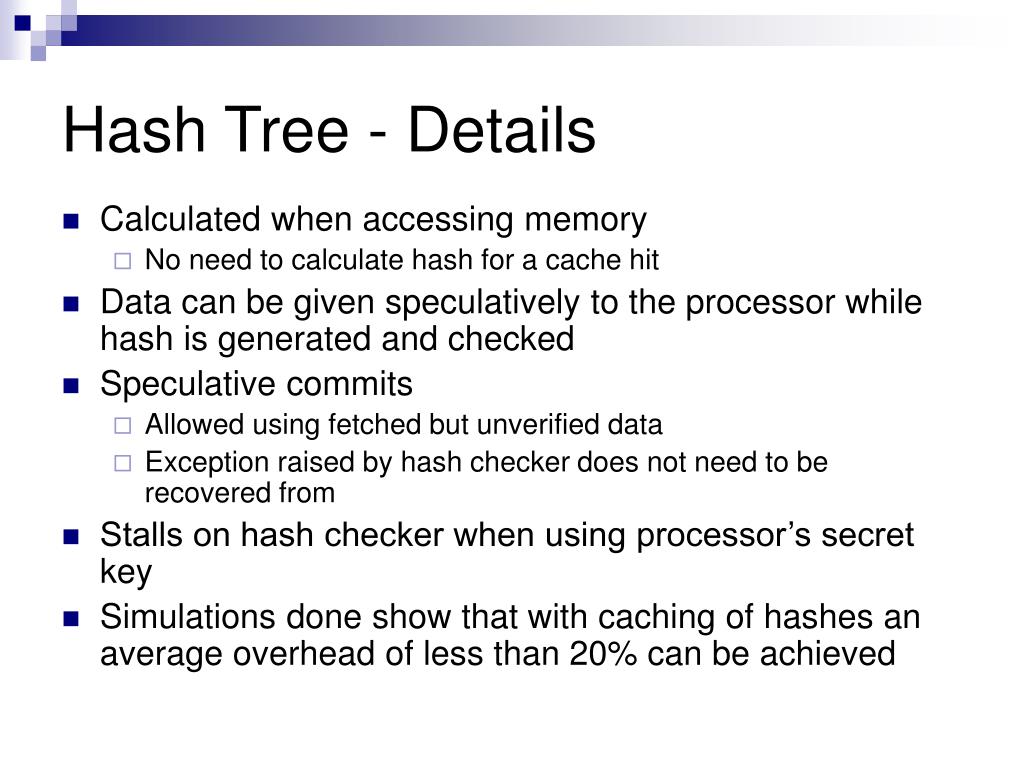

22. Hash Tree - Details • Calculated when accessing memory • No need to calculate hash for a cache hit • Data can be given speculatively to the processor while hash is generated and checked • Speculative commits • Allowed using fetched but unverified data • Exception raised by hash checker does not need to be recovered from • Stalls on hash checker when using processor’s secret key • Simulations done show that with caching of hashes an average overhead of less than 20% can be achieved

23. Aegis Architecture • Uses concepts from XOM and hash trees to create a “private and authenticated tamper-resistant environment” for the processor to run in • This means that data is private from any observers and that any tampering will be detected

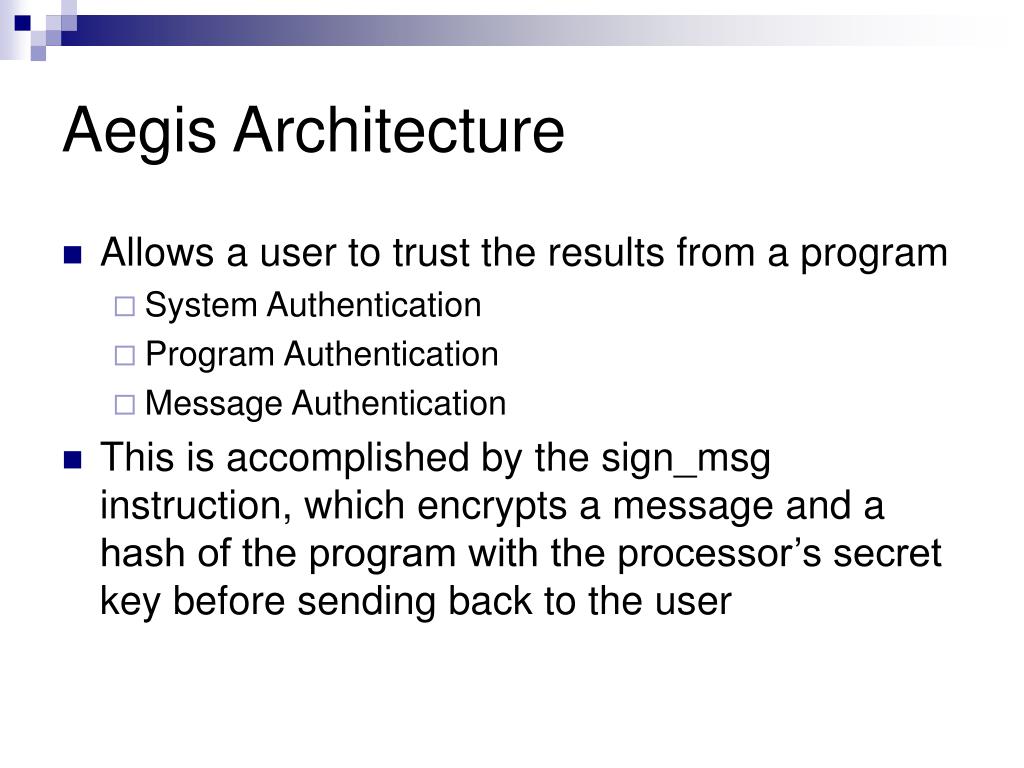

24. Aegis Architecture • Allows a user to trust the results from a program • System Authentication • Program Authentication • Message Authentication • This is accomplished by the sign_msg instruction, which encrypts a message and a hash of the program with the processor’s secret key before sending back to the user

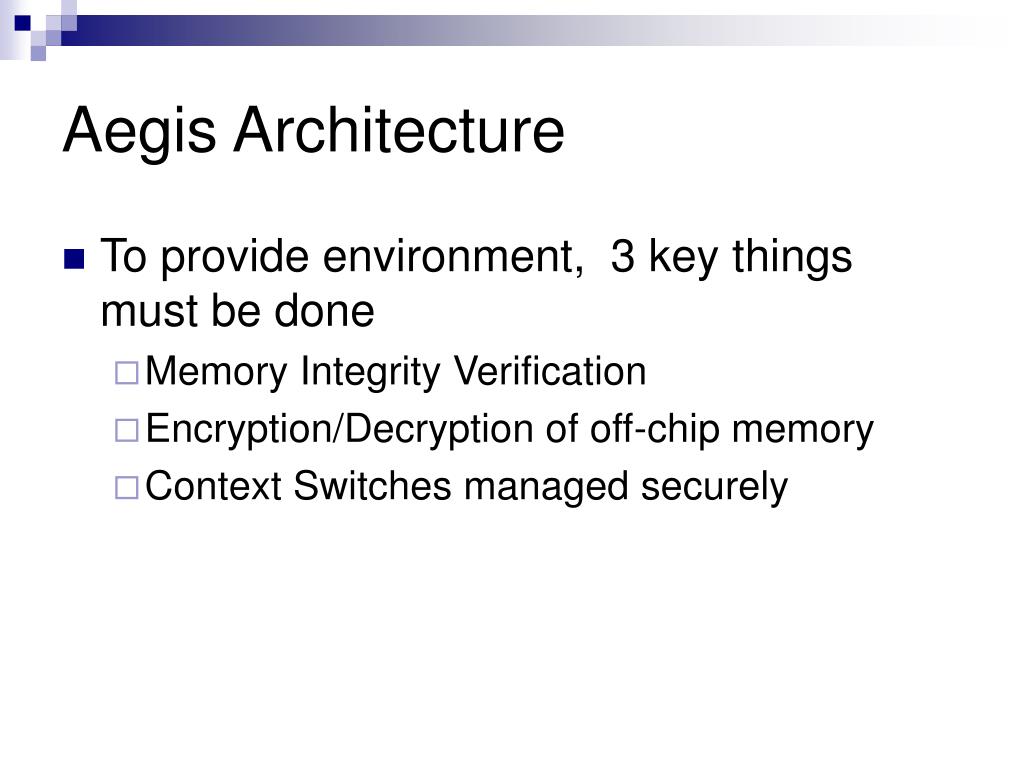

25. Aegis Architecture • To provide environment, 3 key things must be done • Memory Integrity Verification • Encryption/Decryption of off-chip memory • Context Switches managed securely

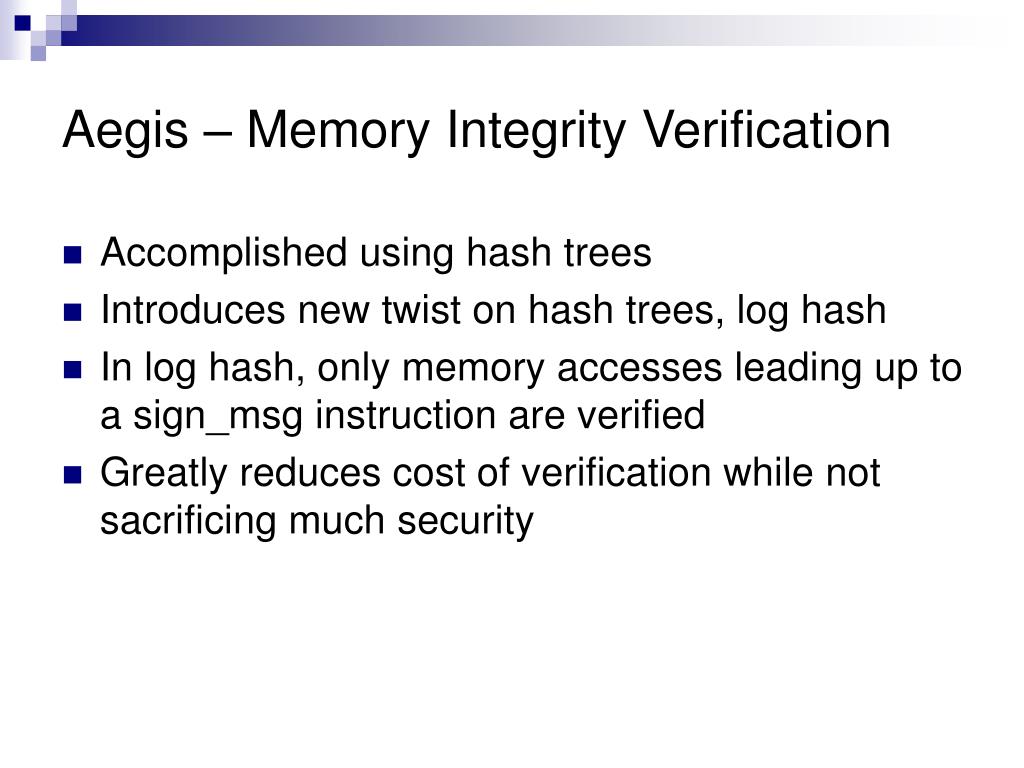

26. Aegis – Memory Integrity Verification • Accomplished using hash trees • Introduces new twist on hash trees, log hash • In log hash, only memory accesses leading up to a sign_msg instruction are verified • Greatly reduces cost of verification while not sacrificing much security

27. Aegis – Off chip memory • Data stored in the off chip memory is encrypted and decrypted using the one time pad xom scheme to hide latency • Pads are generated using the address of the data combined with a time stamp, incremented at every write-back • Time stamps are needed before calculation of pad can begin, so caching of timestamps is a good idea

28. Aegis – secure context switches • Uses a Secure Context Manager • Maintains a table of all processes • Table entry contains: secure process ID (SPID), program hash, register values, and hash for off-chip memory verification • Table stored in memory, but can be cached for recent processes • In addition, cache entries are tagged with SPID to ensure a process cannot gain access to another process’s data

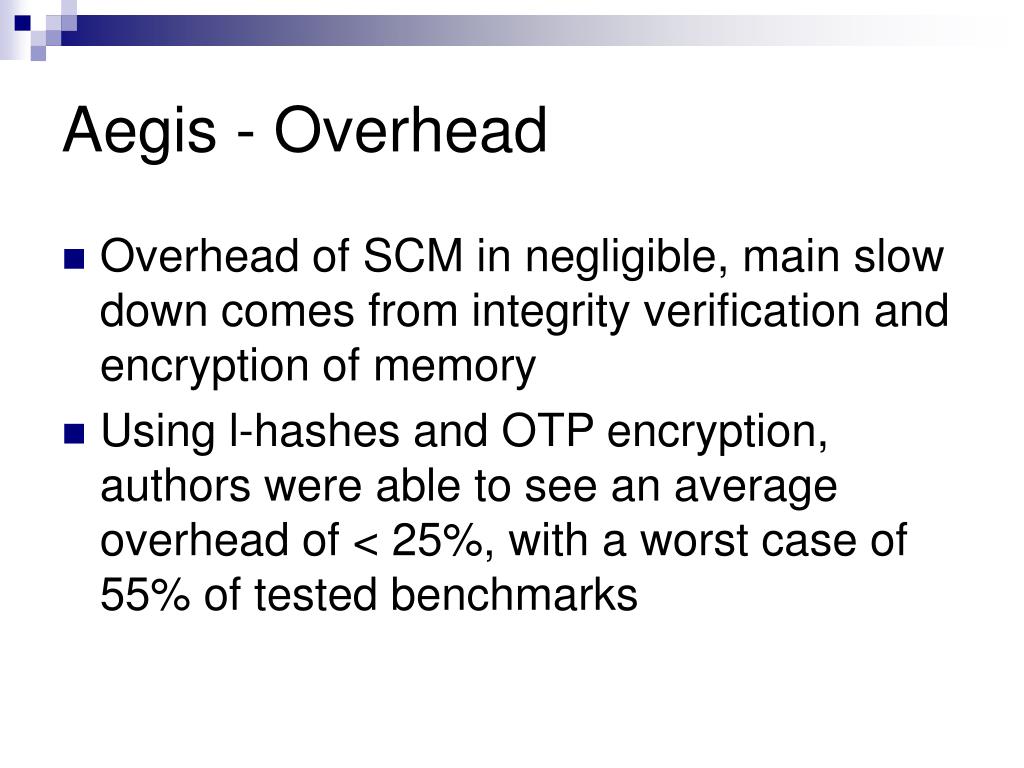

29. Aegis - Overhead • Overhead of SCM in negligible, main slow down comes from integrity verification and encryption of memory • Using l-hashes and OTP encryption, authors were able to see an average overhead of < 25%, with a worst case of 55% of tested benchmarks

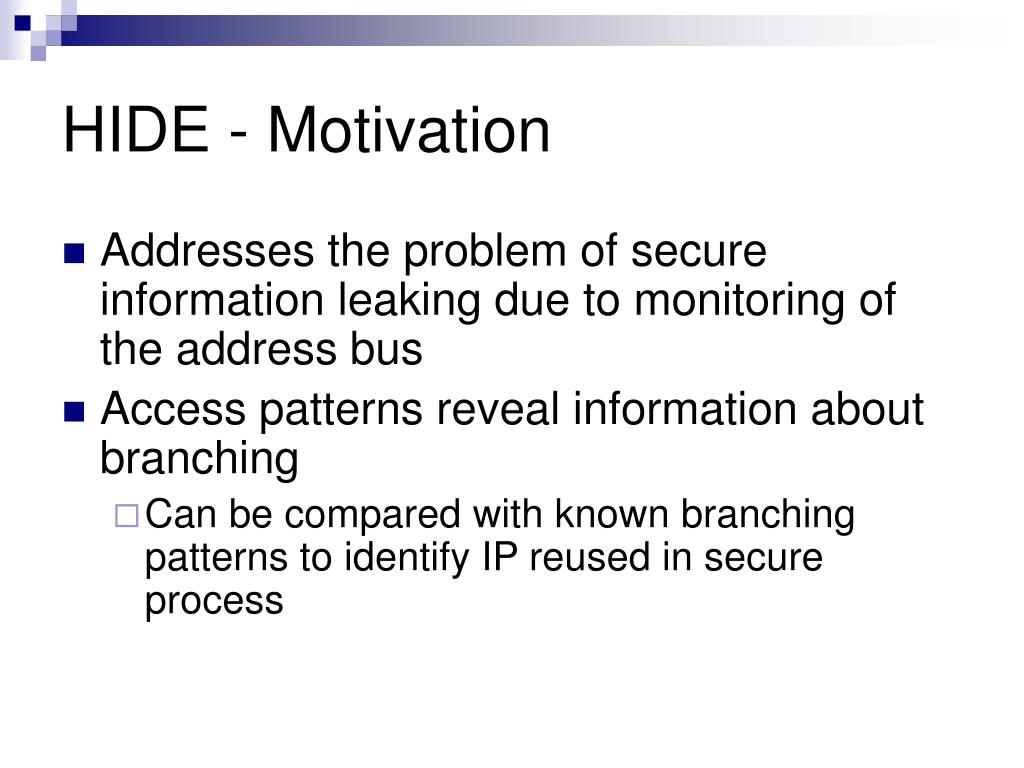

30. HIDE - Motivation • Addresses the problem of secure information leaking due to monitoring of the address bus • Access patterns reveal information about branching • Can be compared with known branching patterns to identify IP reused in secure process

31. HIDE – Critical Idea • Addresses from the processor are remapped before being sent to memory • Mapping is done using a permutation function to ensure a random mapping • Current mapping (permutation vector) must be stored on chip

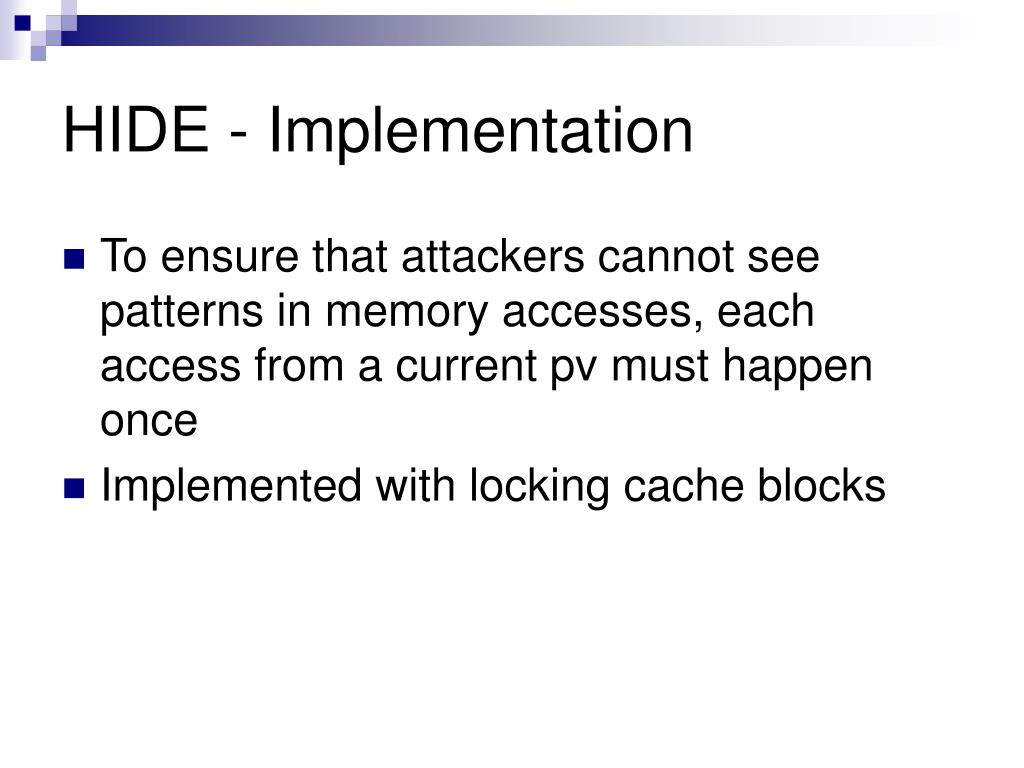

32. HIDE - Implementation • To ensure that attackers cannot see patterns in memory accesses, each access from a current pv must happen once • Implemented with locking cache blocks

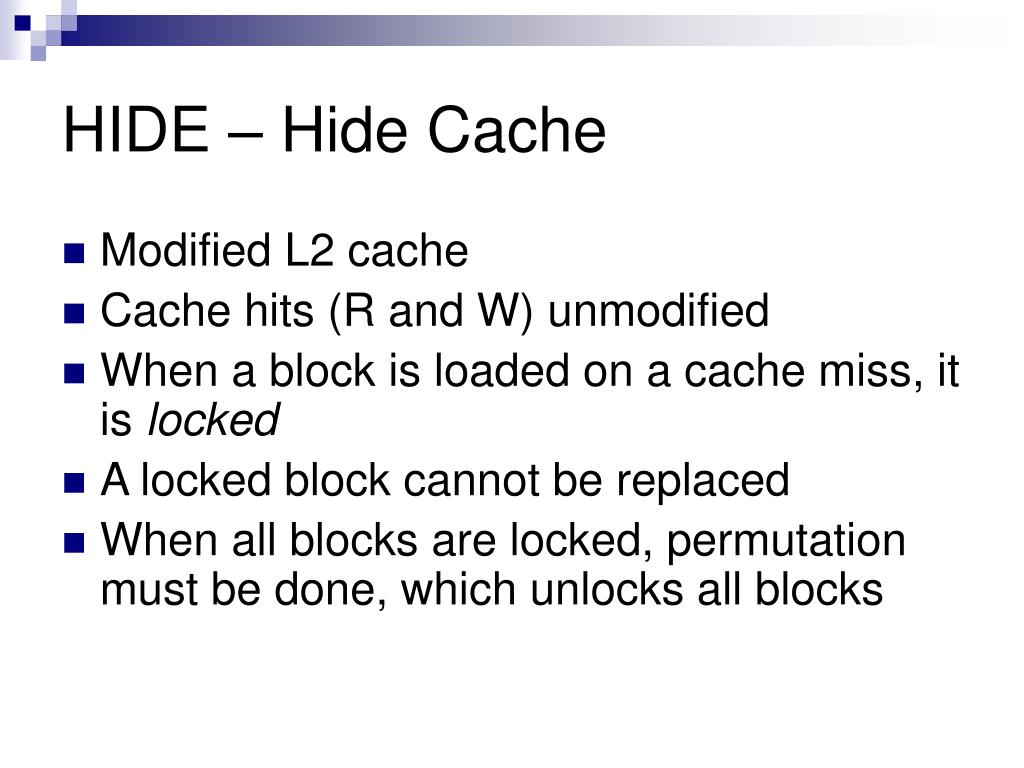

33. HIDE – Hide Cache • Modified L2 cache • Cache hits (R and W) unmodified • When a block is loaded on a cache miss, it is locked • A locked block cannot be replaced • When all blocks are locked, permutation must be done, which unlocks all blocks

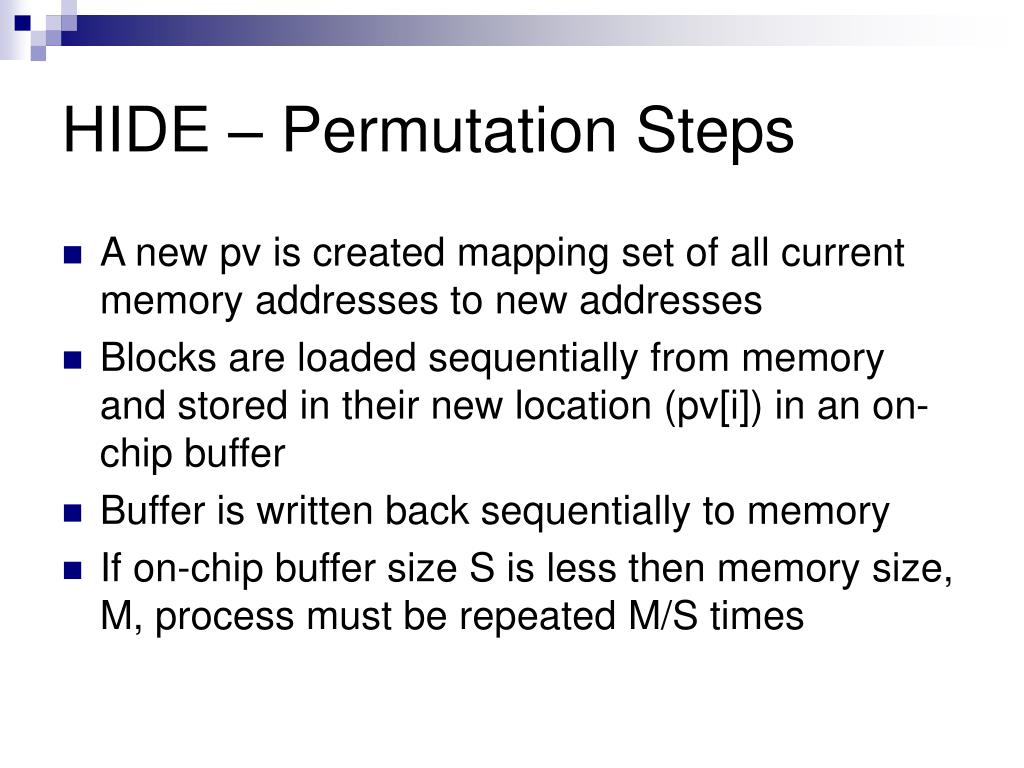

34. HIDE – Permutation Steps • A new pv is created mapping set of all current memory addresses to new addresses • Blocks are loaded sequentially from memory and stored in their new location (pv[i]) in an on-chip buffer • Buffer is written back sequentially to memory • If on-chip buffer size S is less then memory size, M, process must be repeated M/S times

35. HIDE - Improvements • Since permutation is a lengthy operation, don’t want to wait until all cache blocks are locked • Idea of pre-permutation – start permutation when half of cache blocks are locked

36. HIDE - Improvements • Instead of permuting entire memory at once, permute chunks at a time • Chunk size is one or more pages • Memory accesses within a chunk preserve security, only accesses across chunks leak information. Reduce by: • Larger chunk size • Store code to minimize inter-chunk access • Requires maintaining info about each page

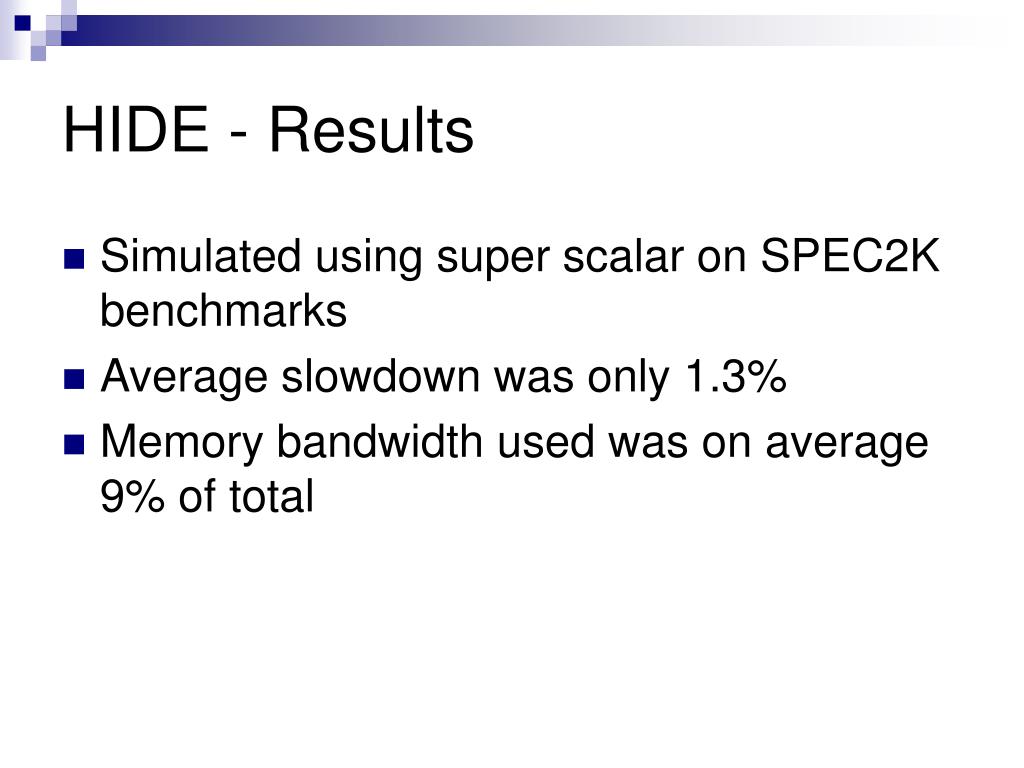

37. HIDE - Results • Simulated using super scalar on SPEC2K benchmarks • Average slowdown was only 1.3% • Memory bandwidth used was on average 9% of total

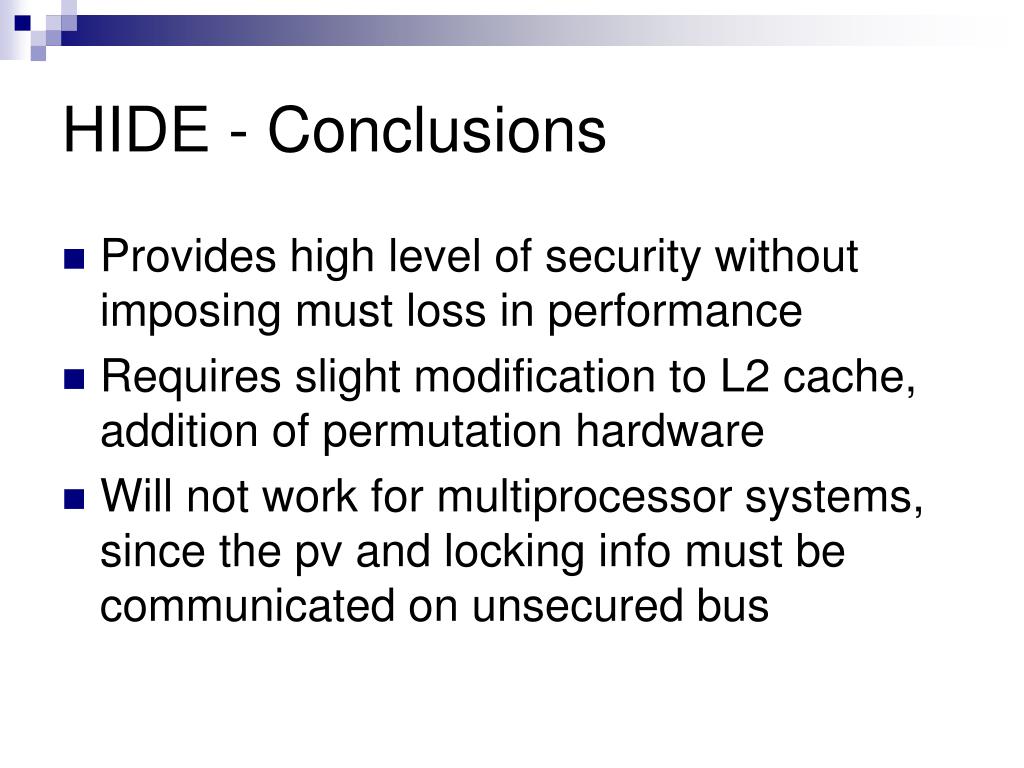

38. HIDE - Conclusions • Provides high level of security without imposing must loss in performance • Requires slight modification to L2 cache, addition of permutation hardware • Will not work for multiprocessor systems, since the pv and locking info must be communicated on unsecured bus

39. In Summary • Supporting software security with hardware is a developing field • Assumes basic model of secure processor with private half of public-private key pair • XOM with OTP keeps memory private, hashes ensure memory is tamper free, and permutation scheme can be used to secure address bus • When combined, allows users to trust results from a secure processor and software developers to create copy-proof software

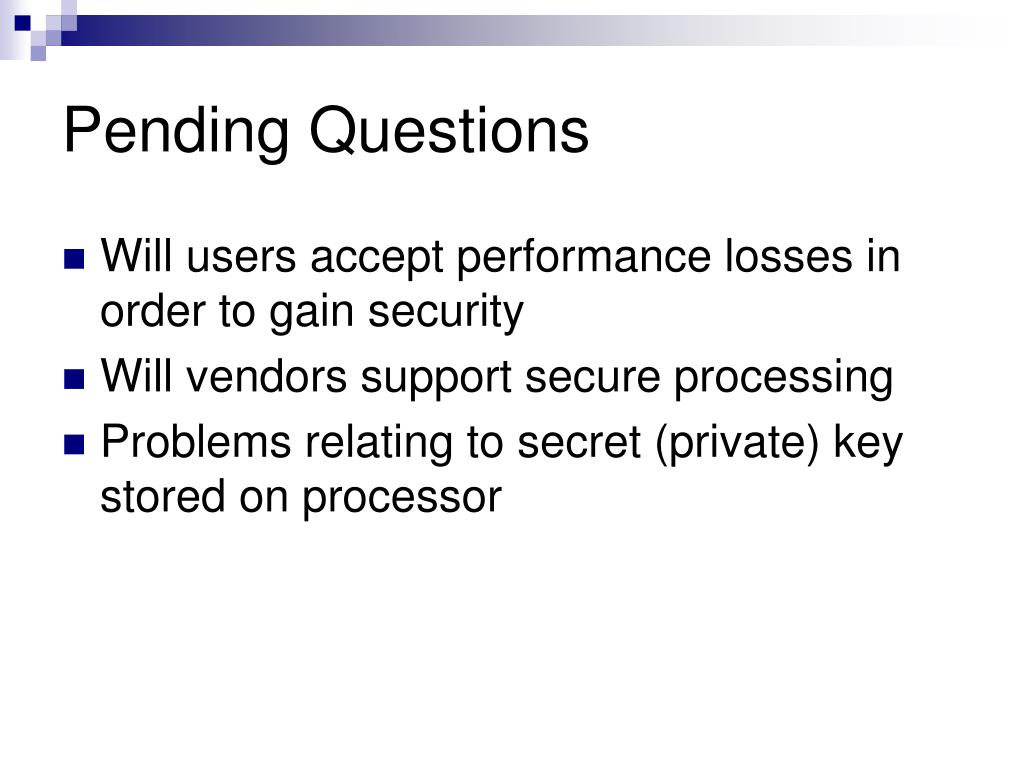

40. Pending Questions • Will users accept performance losses in order to gain security • Will vendors support secure processing • Problems relating to secret (private) key stored on processor
