Section 2.1: The Derivative and the Tangent Line Problem

1. Section 2.1: The Derivative and the Tangent Line Problem

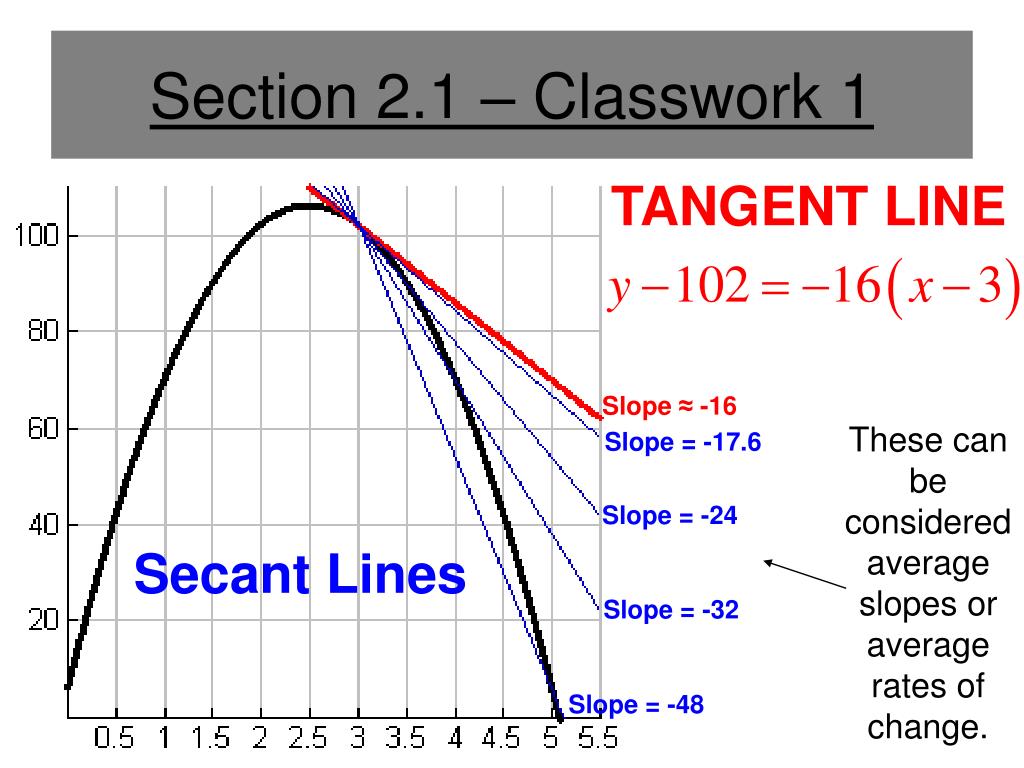

2. Section 2.1 – Classwork 1 TANGENT LINE Slope ≈ -16 These can be considered average slopes or average rates of change. Slope = -17.6 Slope = -24 Secant Lines Slope = -32 Slope = -48

3. Secant Line A line that passes through two points on a curve.

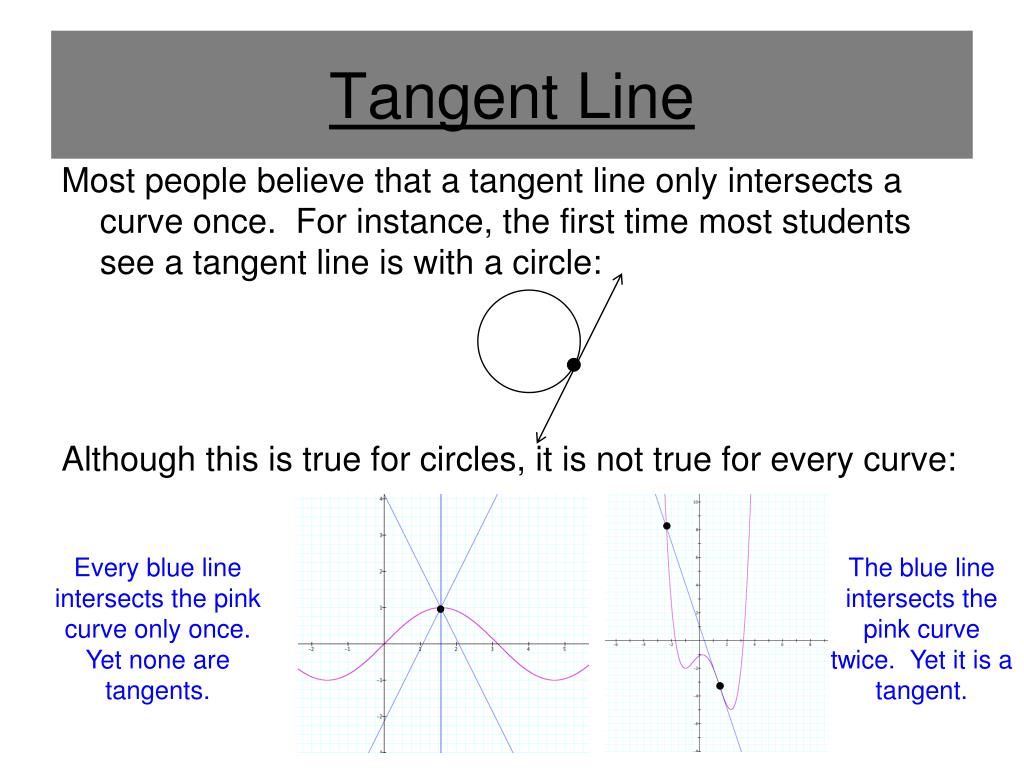

4. Tangent Line Every blue line intersects the pink curve only once. Yet none are tangents. The blue line intersects the pink curve twice. Yet it is a tangent. Most people believe that a tangent line only intersects a curve once. For instance, the first time most students see a tangent line is with a circle: Although this is true for circles, it is not true for every curve:

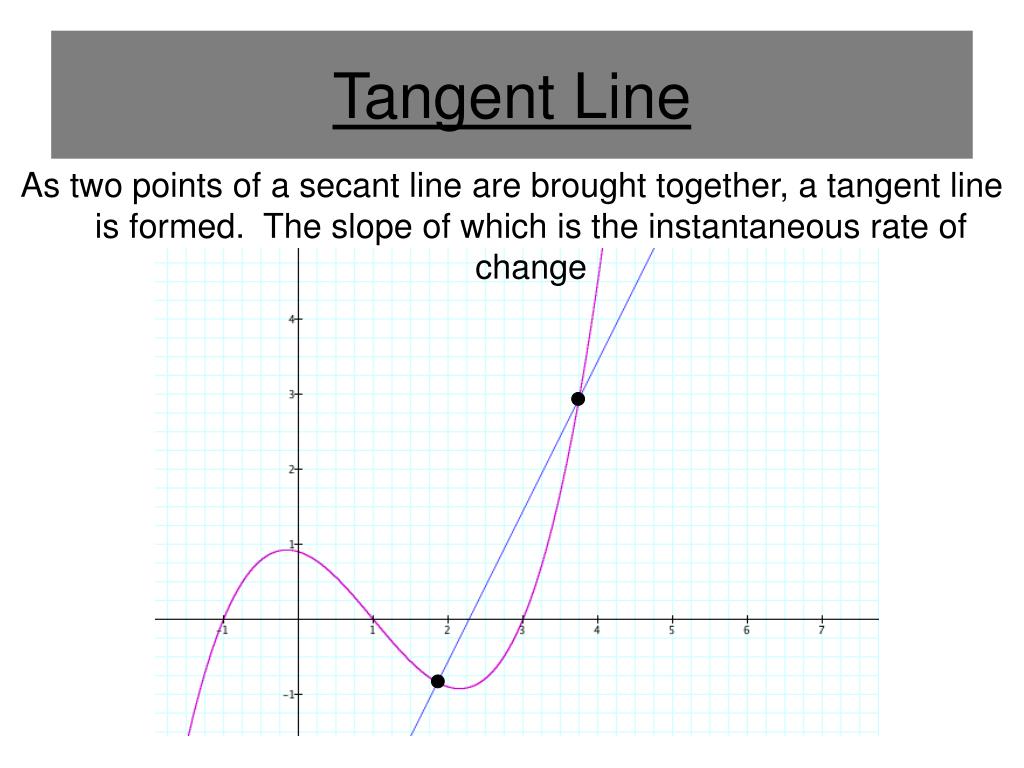

5. Tangent Line As two points of a secant line are brought together, a tangent line is formed. The slope of which is the instantaneous rate of change

6. Tangent Line As two points of a secant line are brought together, a tangent line is formed. The slope of which is the instantaneous rate of change

7. Tangent Line As two points of a secant line are brought together, a tangent line is formed. The slope of which is the instantaneous rate of change

8. Tangent Line As two points of a secant line are brought together, a tangent line is formed. The slope of which is the instantaneous rate of change

9. Tangent Line As two points of a secant line are brought together, a tangent line is formed. The slope of which is the instantaneous rate of change

10. Tangent Line As two points of a secant line are brought together, a tangent line is formed. The slope of which is the instantaneous rate of change

11. Slope of a Tangent Line (x2,y2) Δx (x1,y1) In order to find the slope of the tangent line, the change in x needs to be as small as possible. In order to find a formula for the slope of a tangent line, first look at the slope of a secant line that contains (x1,y1) and (x2,y2):

12. Instantaneous Rate of Change f(x) m (c,f(c)) Tangent Line with Slope m If f is defined on an open interval containing c, and if the limit exists, then the line passing through (c,f(c)) with slope m is the tangent line to the graph of f at the point (c, f(c)).

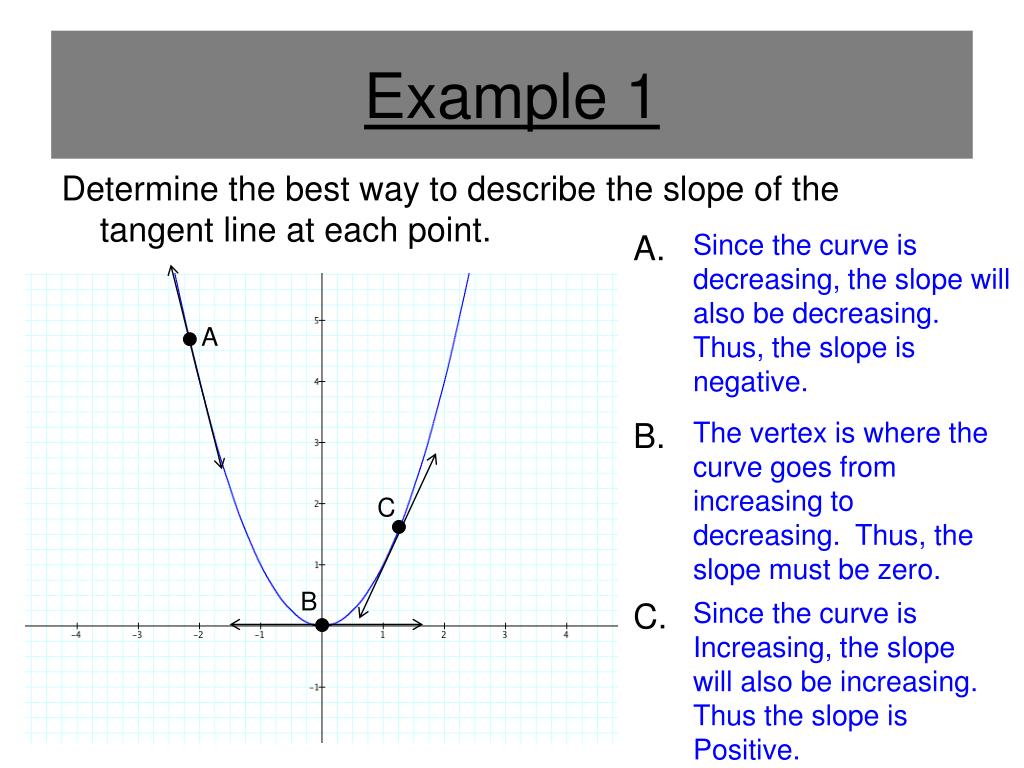

13. Example 1 A. Since the curve is decreasing, the slope will also be decreasing. Thus, the slope is negative. A B. The vertex is where the curve goes from increasing to decreasing. Thus, the slope must be zero. C B C. Since the curve is Increasing, the slope will also be increasing. Thus the slope is Positive. Determine the best way to describe the slope of the tangent line at each point.

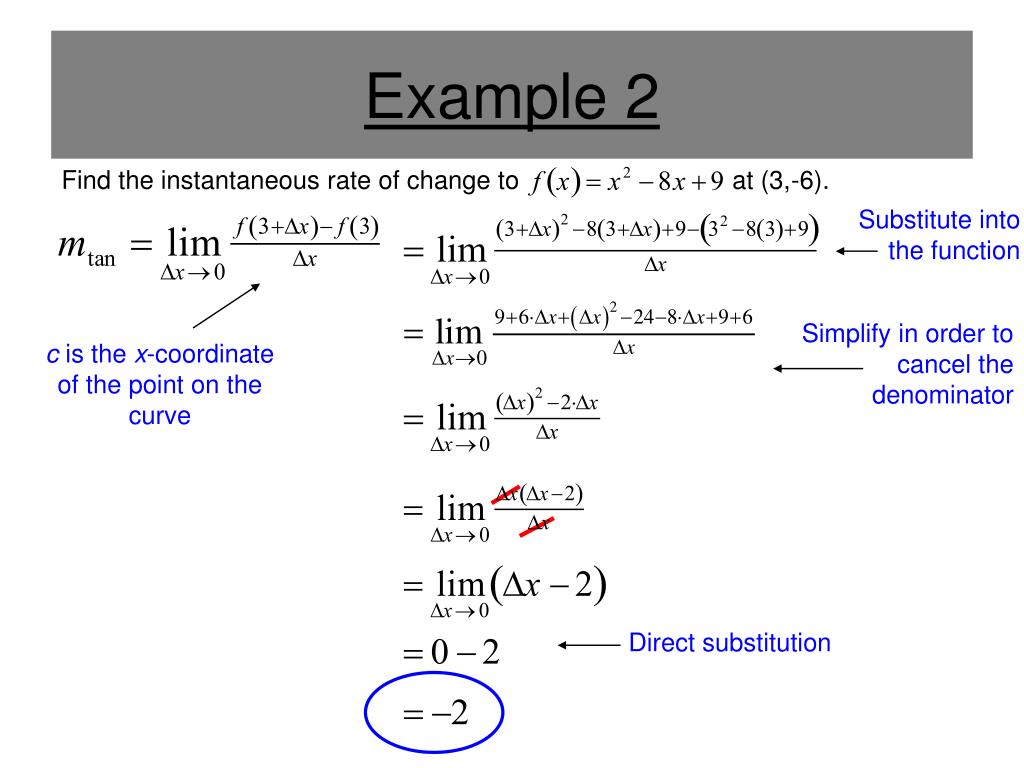

14. Example 2 Find the instantaneous rate of change to at (3,-6). Substitute into the function Simplify in order to cancel the denominator c is the x-coordinate of the point on the curve Direct substitution

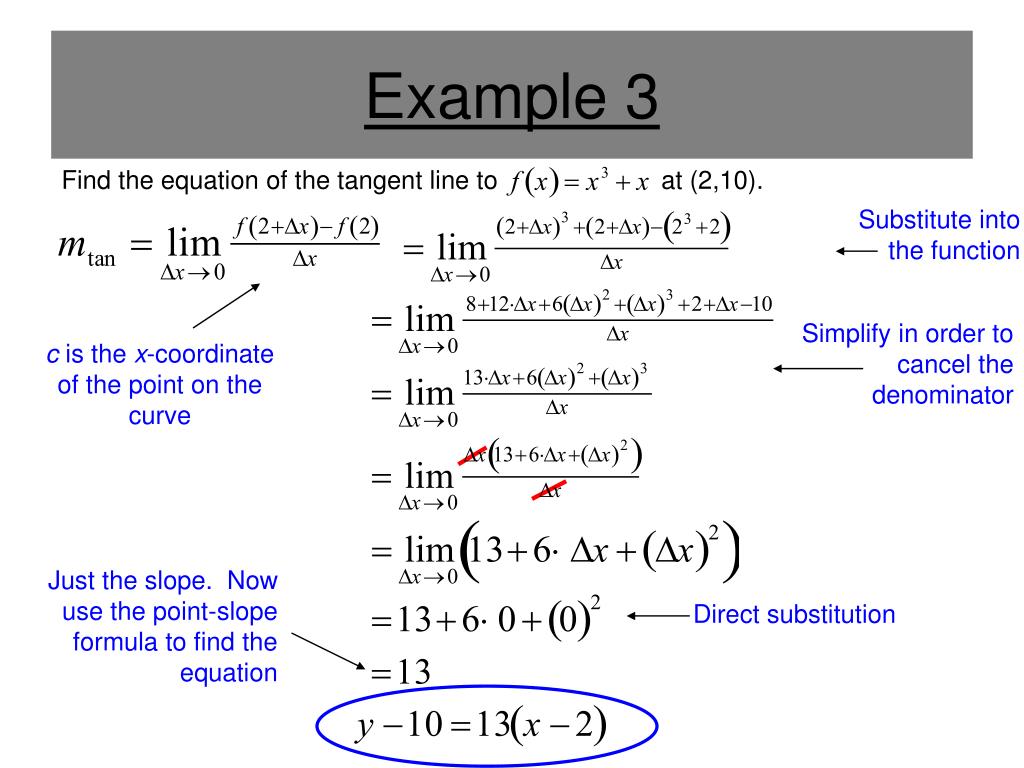

15. Example 3 Find the equation of the tangent line to at (2,10). Substitute into the function Simplify in order to cancel the denominator c is the x-coordinate of the point on the curve Just the slope. Now use the point-slope formula to find the equation Direct substitution

16. A Function to Describe Slope A variable. A constant. A function whose output is the slope of a tangent line at any x. The slope of a tangent line at the point x = c. In the preceding notes, we considered the slope of a tangent line of a function f at a number c. Now, we change our point of view and let the number c vary by replacing it with x.

17. Example Derive a formula for the slope of the tangent line to the graph of . Multiply by a common denominator Simplify in order to cancel the denominator Substitute into the function A formula to find the slope of any tangent line at x. Direct substitution

18. The Derivative of a Function READ: “f prime of x.” Other Notations for a Derivative: The limit used to define the slope of a tangent line is also used to define one of the two fundamental operations of calculus: The derivative of f at x is given by Provided the limit exists. For all x for which this limit exists, f’ is a function of x.

19. Example 1 Differentiate . Simplify in order to cancel the denominator Substitute into the function Make the problem easier by factoring out common constants Direct substitution

20. Example 2 Find the tangent line equation(s) for such that the tangent line has a slope of 12. Find when the derivative equals 12 Find the derivative first since the derivative finds the slope for an x value Find the output of the function for every input Use the point-slope formula to find the equations

21. How Do the Function and Derivative Function compare? f is not differentiable at x = -½ Domain: Domain:

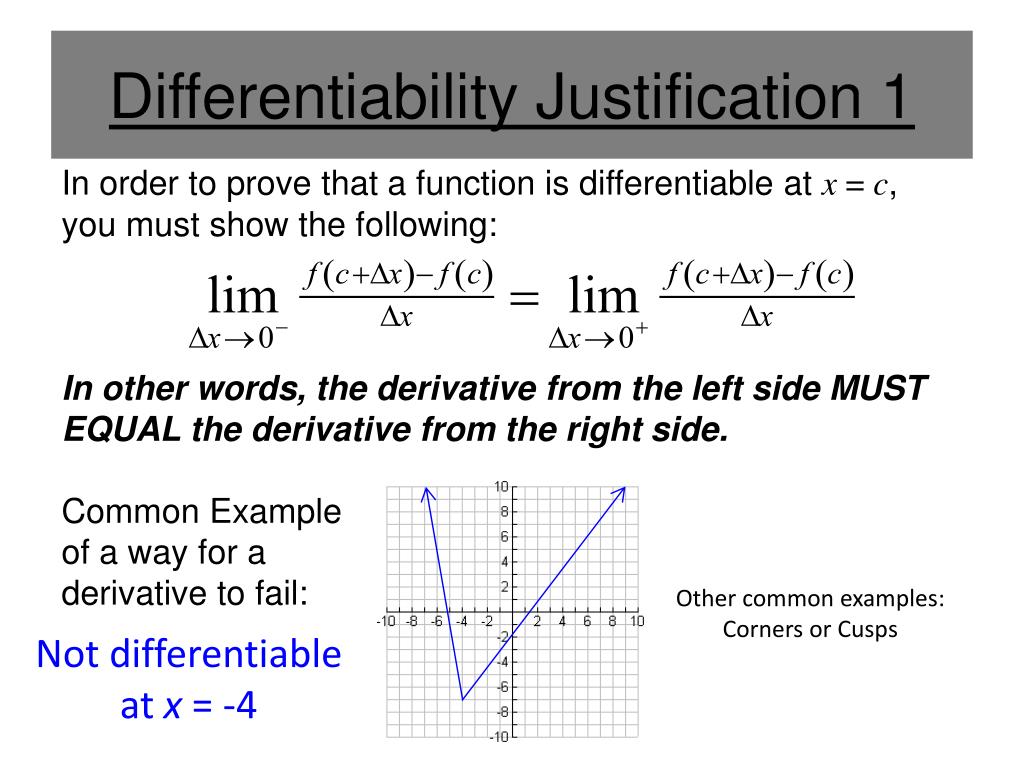

22. Differentiability Justification 1 In order to prove that a function is differentiable at x = c, you must show the following: In other words, the derivative from the left side MUST EQUAL the derivative from the right side. Common Example of a way for a derivative to fail: Other common examples: Corners or Cusps Not differentiable at x = -4

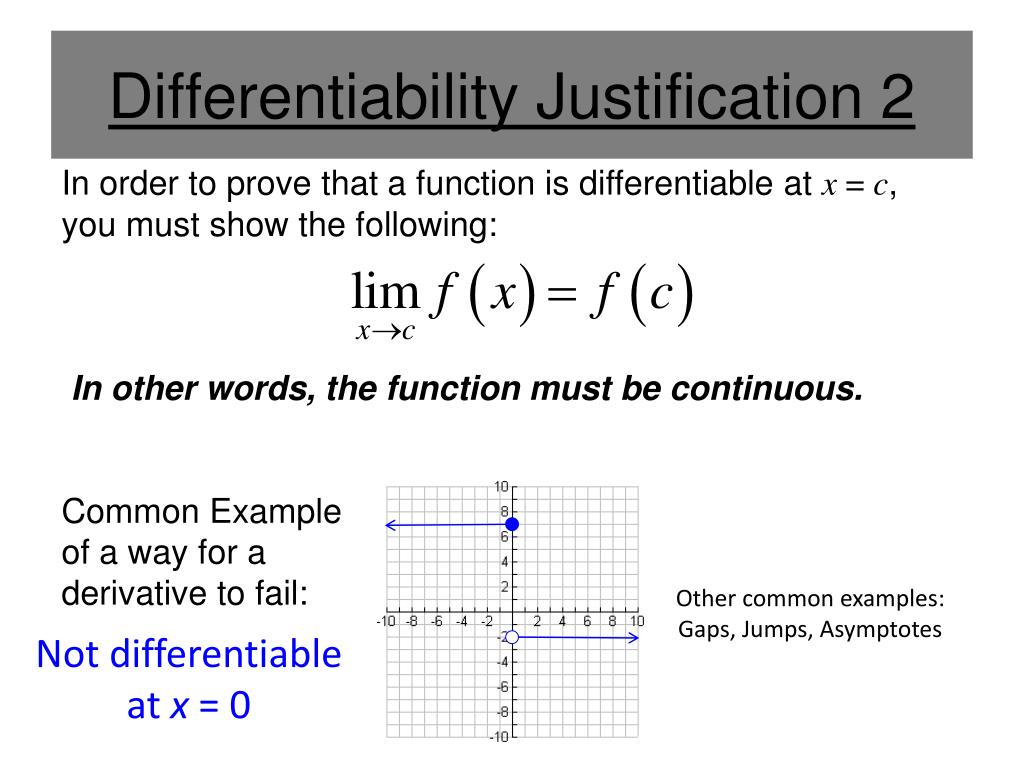

23. Differentiability Justification 2 In order to prove that a function is differentiable at x = c, you must show the following: In other words, the function must be continuous. Common Example of a way for a derivative to fail: Other common examples: Gaps, Jumps, Asymptotes Not differentiable at x = 0

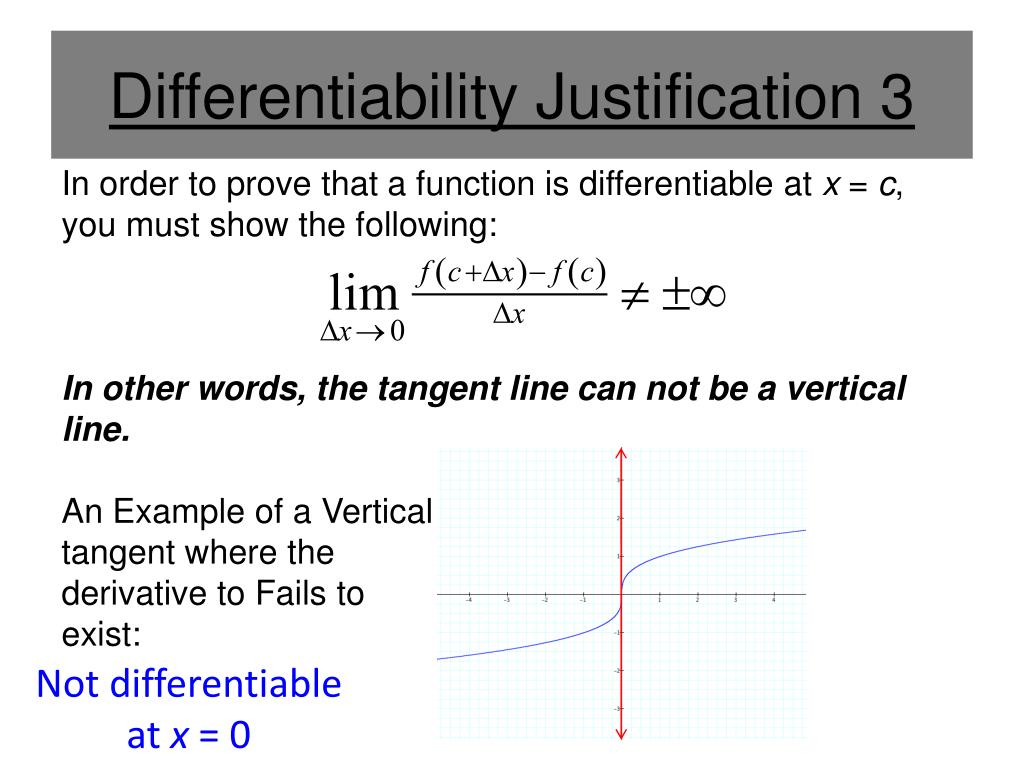

24. Differentiability Justification 3 In order to prove that a function is differentiable at x = c, you must show the following: In other words, the tangent line can not be a vertical line. An Example of a Vertical tangent where the derivative to Fails to exist: Not differentiable at x = 0

25. Example Determine whether the following derivatives exist for the graph of the function.

26. Example 2 Sketch a graph of the function with the following characteristics: The derivative does not exist at x = -2. The function is continuous on (-6,3) The Range is (-7,-1]

27. Example 3 First rewrite the absolute value function as a piecewise function Find the Left Hand Derivative Find the Right Hand Derivative Since the one-sided limits are not equal, the derivative does not exist Show that does not exist if .

28. Function v Derivative Compare and contrast the function and its derivative. Positive Slopes x-intercept -5 Vertex Negative Slopes Decreasing Increasing -5 FUNCTION DERIVATIVE

29. Function v Derivative Compare and contrast the function and its derivative. Local Max Decreasing Positive Derivatives Positive Derivatives Increasing Increasing x-intercept x-intercept 5 5 -5 -5 Negative Derivatives Local Min FUNCTION DERIVATIVE

30. Example 1 Make sure the x-value does not have a derivative The Derivative does not exist at a corner. The slope from -∞ to -7 is -2 The slope from 2 to ∞ is 1 The slope from -7 to 2 is 0 Accurately graph the derivative of the function graphed below at left.

31. Example 2 Negative Negative Increasing Increasing Increasing Decreasing Decreasing Positive Positive Positive 1. Find the x values where the slope of the tangent line is zero (max, mins, twists) Sketch a graph of the derivative of the function graphed below at left. 2. Determine whether the function is increasing or decreasing on each interval

32. Example 3 Positive Negative Increasing Decreasing Increasing Positive 1. Find the x values where the slope of the tangent line is zero (max, mins, twists) Sketch a graph of the derivative of the function graphed below at left. 2. Determine whether the function is increasing or decreasing on each interval

33. Example 4 (-3,0) (0,0) (3,0) (-2.2,-4) (2.2,-4) Sketch a graph of the derivative of the function graphed below.

34. Example 5 Sketch a graph of the function with the following characteristics: The derivative is only positive for -6<x<-3 and 5<x<10. The function is differentiable on (-6,10)

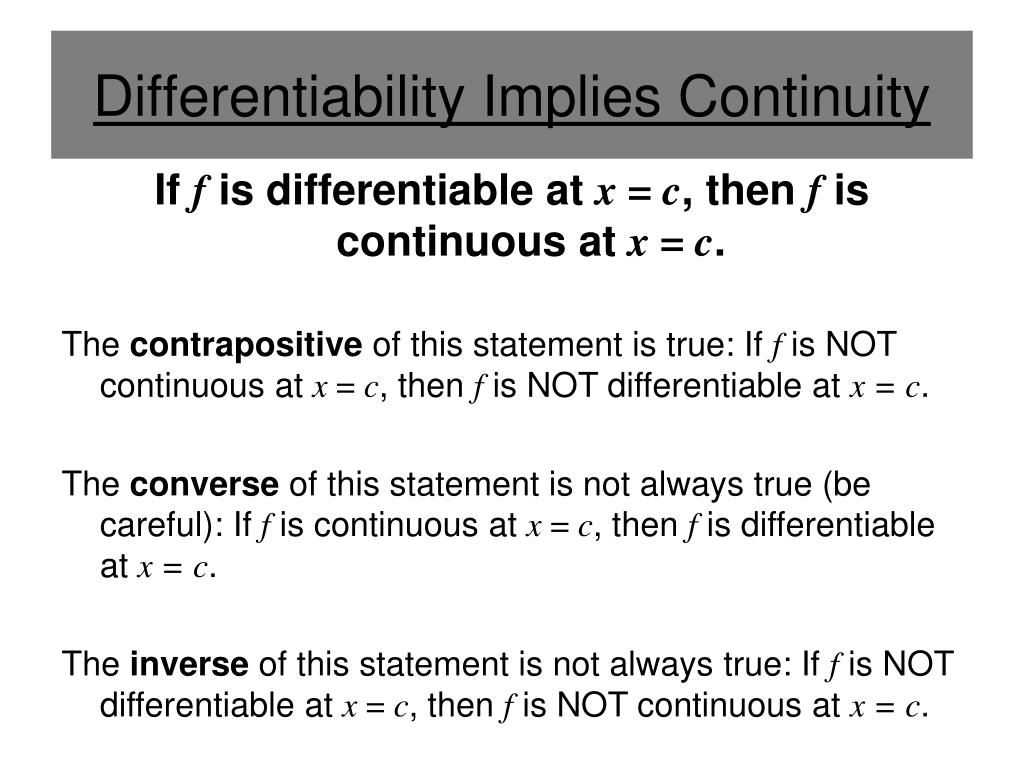

35. Differentiability Implies Continuity If f is differentiable at x = c, then f is continuous at x = c. The contrapositive of this statement is true: If f is NOT continuous at x = c, then f is NOT differentiable at x = c. The converse of this statement is not always true (be careful): If f is continuous at x = c, then f is differentiable at x = c. The inverse of this statement is not always true: If f is NOT differentiable at x = c, then f is NOT continuous at x = c.

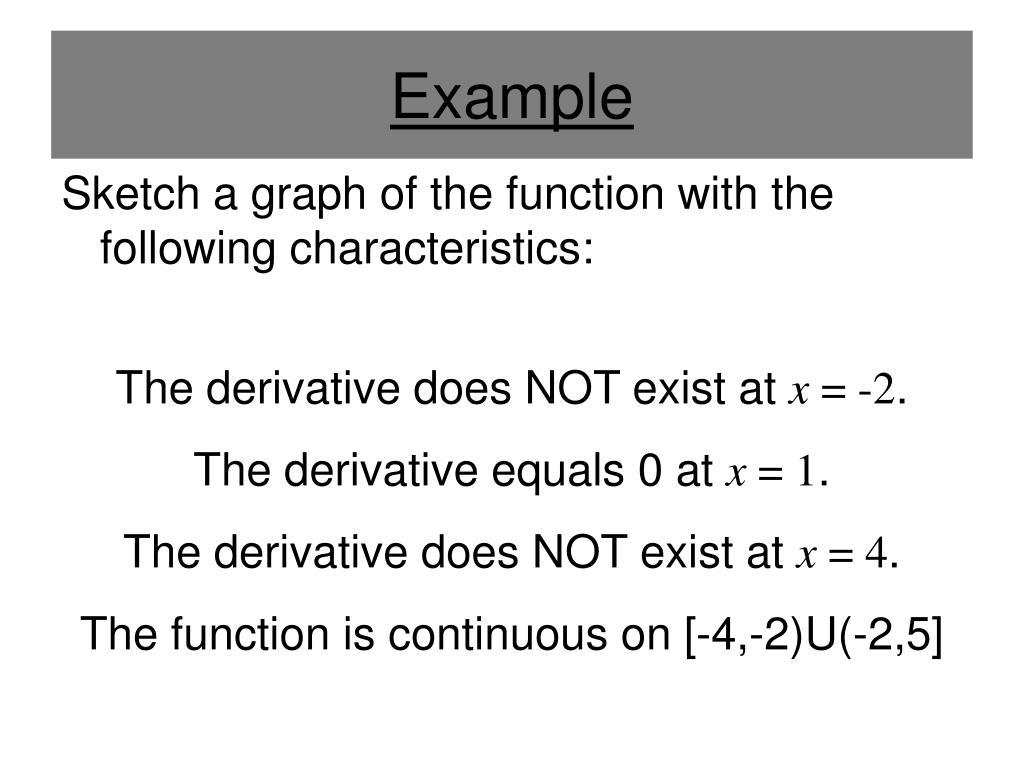

36. Example Sketch a graph of the function with the following characteristics: The derivative does NOT exist at x = -2. The derivative equals 0 at x = 1. The derivative does NOT exist at x = 4. The function is continuous on [-4,-2)U(-2,5]
