BIOS (Basic Input Output System)

BIOS (Basic Input Output System). Software program burnt into ROM chips Operating system communicates with BIOS Contains computer settings Hard drives, RAM speeds, boot order, etc. BIOS Components. Motherboard BIOS Adapter Card BIOS Drivers loaded from disk (non component) CMOS.

griffith
Télécharger la présentation

BIOS (Basic Input Output System)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. BIOS (Basic Input Output System) • Software program burnt into ROM chips • Operating system communicates with BIOS • Contains computer settings • Hard drives, RAM speeds, boot order, etc

  2. BIOS Components • Motherboard BIOS • Adapter Card BIOS • Drivers loaded from disk • (non component) CMOS

  3. Types of ROM Chips • ROM (Read Only Memory) • PROM (Programmable ROM) • EPROM (Erasable PROM) • EEPROM (Electrically EEPROM/Flash ROM)

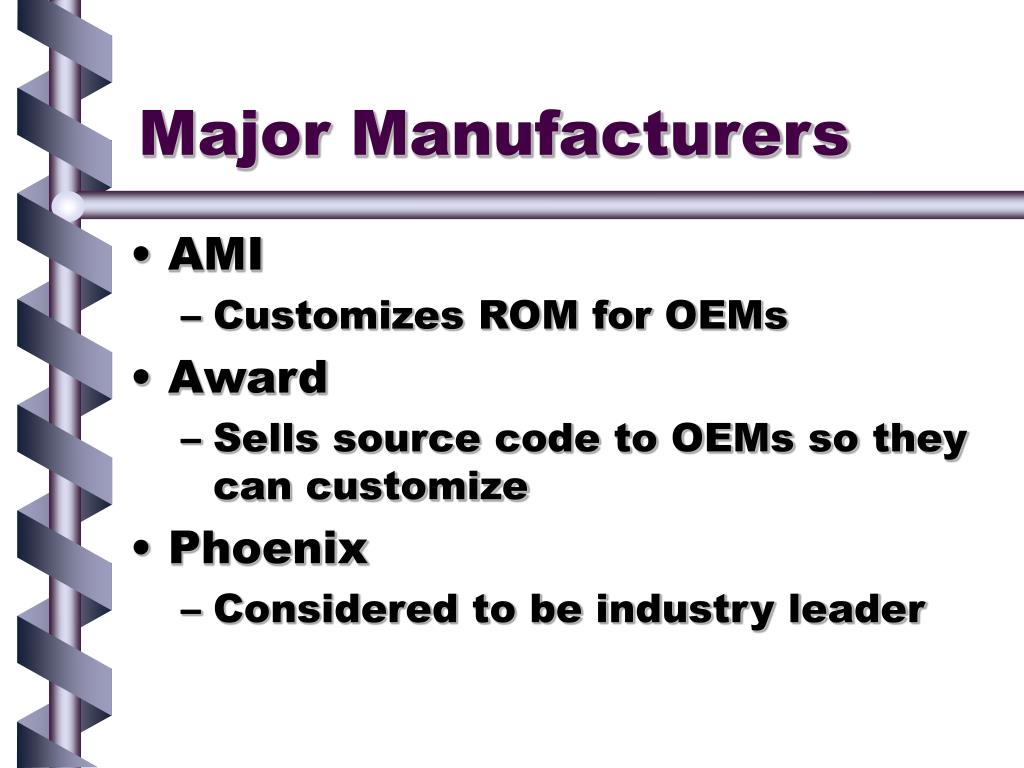

  4. Major Manufacturers • AMI • Customizes ROM for OEMs • Award • Sells source code to OEMs so they can customize • Phoenix • Considered to be industry leader

  5. BIOS Configuration • Enter by pressing key combination during boot process • Esc, Del, Cntrl-Alt-Esc, etc • Some are menu driven, some have GUI w/ mouse driver

  6. BIOS Configuration • Hard disk settings • Can use “User Defined” and manually enter in configuration information • “Autodetect” feature will read drives configuration and automatically enter • Advanced settings • Virus detection • Password • Cache settings
