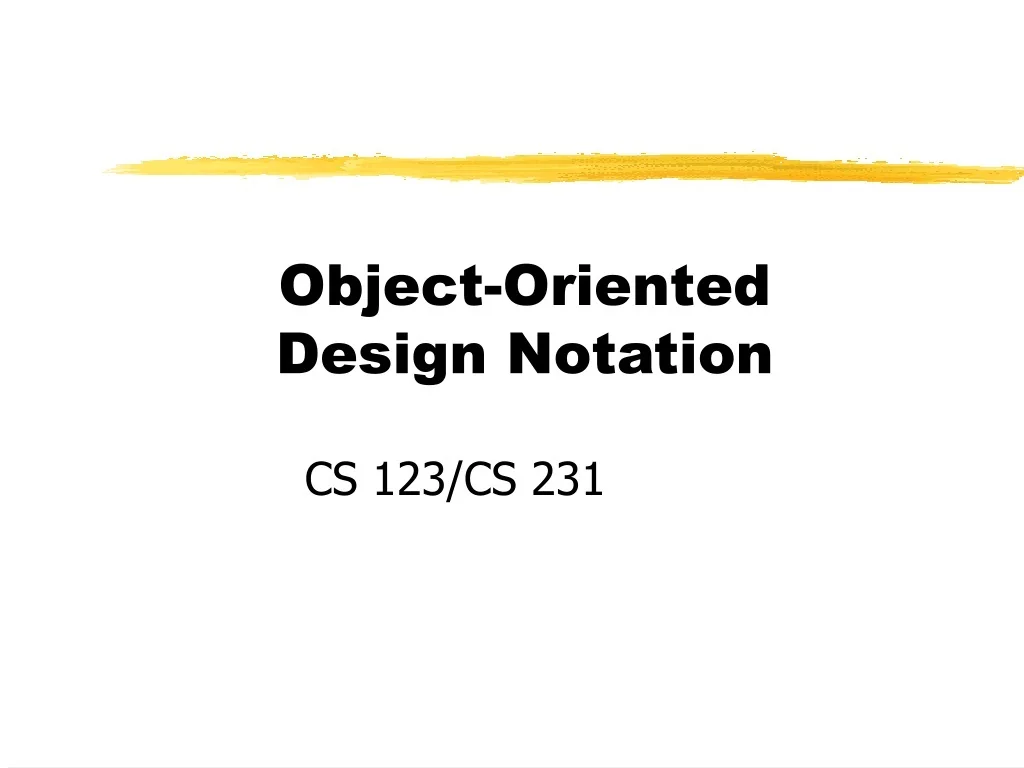

  1. Object-OrientedDesign Notation CS 123/CS 231

  2. References • Main Reference: UML Distilled, by Martin Fowler • Chapters 3, 4, 6, and 8 • Supplementary References: • Chapter 14 of Sommerville • Chapter 22 of Pressman

  3. Component Design and Detailed Design • Component Design • For each subsystem determine components, and services/interface per component • OO Design: components are classes • Detailed Design • Determine attributes of classes and relationships between the classes • Determine functionality of each class and interactions between classes

  4. Object-Oriented Modeling • UML: Unified Modeling Language • OO Modeling Standard • Booch, Jacobson, Rumbaugh • What is depicted? • Class details and static relationships • System functionality • Object interaction • State transition within an object

  5. Some UML Modeling Techniques • Class Diagrams • Use Cases/Use Case Diagrams • Interaction Diagrams • State Diagrams

  6. Example:Class Diagram FastFoodCounter totalcash totalorders PriceChecker getPrice() pc counters 5 FastFood (Restaurant)

  7. Example:Use Case Diagram LIBRARY SYSTEM Facilitate Checkout Search for Book Borrower Librarian Facilitate Return

  8. Example:Interaction Diagram 2: checkIfAvailable() Checkout Screen :Book 1: checkIfDelinquent() 3: borrowBook() 4: setBorrower() :Borrower

  9. Example:State Diagram (Book) start Reserved Borrowed New Librarian activates book as available Borrower returns book Available

  10. Object-Oriented Design Models • Static Model • Class Diagrams • Dynamic Model • Use Cases, Interaction Diagrams, State Diagrams, others

  11. OO Static Model • Classes and Class Diagrams • Relationships • Association • Aggregation/Composition • Inheritance • Dependencies • Attribute and Method names

  12. OO Dynamic Model • Goal: Represent • Object behavior • Object interaction • Traditional/Procedural Dynamic Modeling • Data Flow Diagrams (DFDs) • Problem: Processes separate from data • Need modeling notation that highlight tight relationship between data & processes

  13. DFD Example(Inventory Management) Accept and Post Delivery Delivery info Transaction Item Master

  14. OO Counterpart:Object Interaction new (delivery info) Encoder :Transaction post (item count) :Item Master

  15. Building anOO Dynamic Model • Identify use cases • Describe each use case through an interaction diagram • For more complex objects, provide a state diagram per class • Derive implied methods (and attributes)

  16. What’s Next? • Need to understand the notation • Make sure it helps the software development process • When to use the UML techniques • Primarily when specifying OO design • Formal means of communication across the different software development stages
