  1. HangZhou JLS Flame Retardants Chemical Co.,Ltd. Professional Flame Retardants

  2. Introduction Introduction HangZhou JLS Flame Retardants Chemical Co.,Ltd. is a special corporation for exploring and manufacturing non-halogenated flame retardants. We have explored a series of products to meet halogen free requirement.We are world leader in range of ammonium polyphosphate, non-halogenated flame retardants in polyolefine and melamine derivates. Our tenet : QUALITY, INNOVATION, SERVICE

  3. Advantages of JLS • Lower smoke,no halogen, environment friendly • Varied series of products,broad Application • Excellent water-proof,aging stability and low migration • Excellent process property • More attractive price/performance

  4. JLS Products Catalogue JLS-MC Series—Melamine Cyanurate Flame Retardant JLS-PNA—Non-Halogen Flame Retardant for Polyamide

  5. JLS-MC JLS-MC series Melamine Cyanurate JLS-MC15 JLS-MC25 JLS-MC50 JLS-MC810

  6. JLS-MC Character JLS-MC :Melamine CyanurateCAS No:37640-57-6EINECS:2535757

  7. JLS-MC series Advantages ◆Higher bulk density to reduce floating dust and increase mix uniformity. ◆Excellent particle distributing to ensure Nylon with JLS-MC better mechanism and a smoother surface. ◆Wellmixing with Nylon resin,so is easier to disperse during processing. ◆JLS-MC810 has even higher disperse property,which ensure Nylon a better mechanical property . ◆JLS-MC15, MC25 and MC50 is different diameter, which can suitable for different need. ◆The Nylon which contain JLS-MC is better than Br/Sb system in electricity isolation capability，it can be used widely in low piezoelectricity applications.

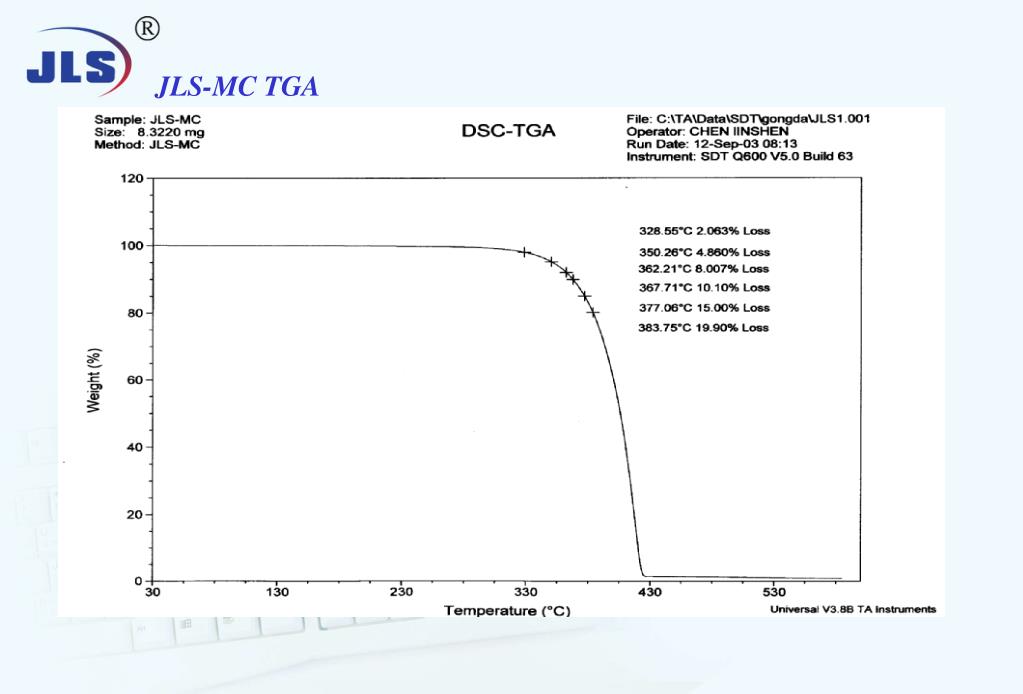

  8. JLS-MC TGA

  9. JLS-MC laser diameter distribution Contrast

  10. JLS-MC series laser diameter Contrast

  11. JLS-MC and Melapur MC laser diameter Contrast

  12. JLS-MC15 and Melapur MC15 laser diameter Contrast

  13. JLS-MC seriesApplications • JLS-MC series consists of JLS-MC15, MC25, MC50 and JLS-MC810 based on JLS-MC, which is mostly used in Nylon. • The series can also be used in a range of polyesters. • PC,thermoplastic polyurethane • Thermosets including epoxy resins, unsaturated polyesters and polyurethane foams.

  14. JLS-MC FR Mechanisms contrast

  15. JLS-MC FR Mechanism in PA Advantages • Salt Degradation: T > 300oC • Heat Sink: Endothermic decomposition to M and CA • Inert Gas Source: (M): Dilution of oxygen and fuel gases • Non-burning dripping (CA): Decrease of exposure to flame

  16. JLS-MC for Nylon • PA6, 66 un-reinforced: UL 94 V-0 at 6~12 wt%, PA6 need more addition than PA66 • PA6, 66 mineral filled: UL 94 V-0 at 13~15 wt.% • PA6, 66 glass fiber reinforced: 10~15% glass fiber, 15% MC • Properties: UL 94 V-2, Glow wire 960oC, CTI > 500 Volt

  17. JLS-MC Properties in Nylon66

  18. JLS-MC used in Nylon contain of Glass fiber

  19. JLS-MC processing instructions in Nylon

  20. JLS-PNA JLS-PNAis a non-halogenated and phosphorus/nitrogen flame retardant. It may be used in Nylon modified glass fiber. It is melamine polyphosphate.

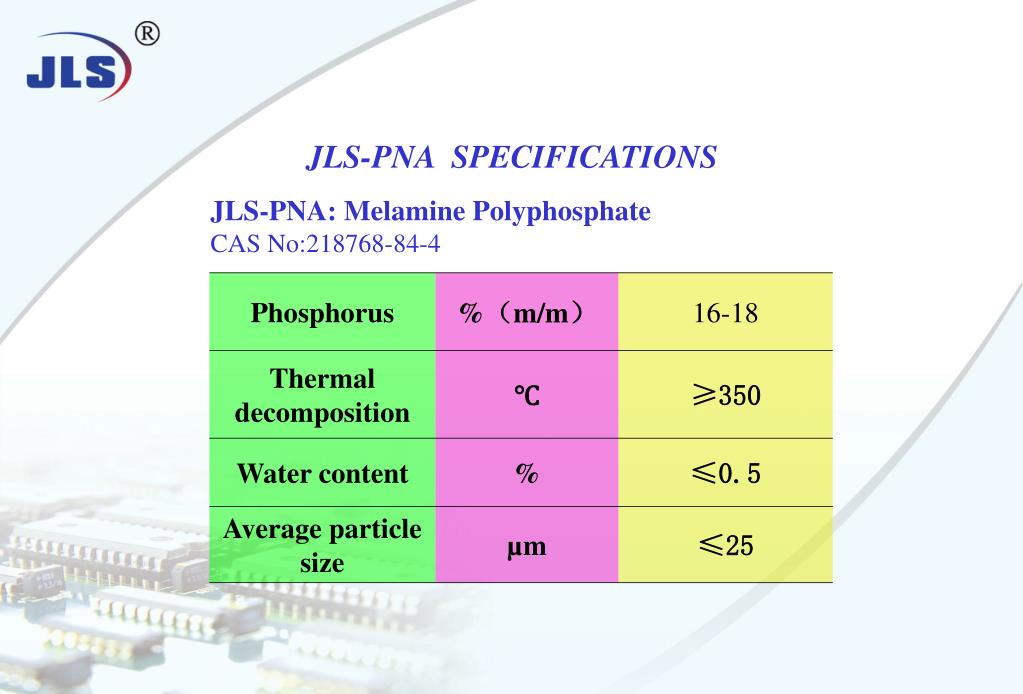

  21. JLS-PNA SPECIFICATIONS JLS-PNA: Melamine PolyphosphateCAS No:218768-84-4

  22. JLS-PNA Advantages ◆ Non-halogenated, lower smoke density and toxic ◆ Good processing capability，no need especial screw combination and especial specs glass fiber ◆ Excellent thermal stability , thermal decomposition≥350℃，very suitable for modified glass fiber Nylon ◆ White color，easy to make all kinds of colors ◆ Excellent electricity capability，CTI>450V，very suitable for E&E applications ,no recycle problem

  23. JLS -PNA APPLICATIONS • Mostly used in glass fiber modified PA66 and PA6, which is suitable for processing of sorts ,for example extrusion and injection moulding. • The compound consisted of JLS-PNA, glass fiber and Nylon provided with excellent flame resistance and mechanical performance

  24. JLS-PNA Laser Diameter

  25. JLS-PNA Application in PA66

  26. PNA processing instructions in Nylon66 modified glass fiber

  27. Thanks for attention
