  1. Physics

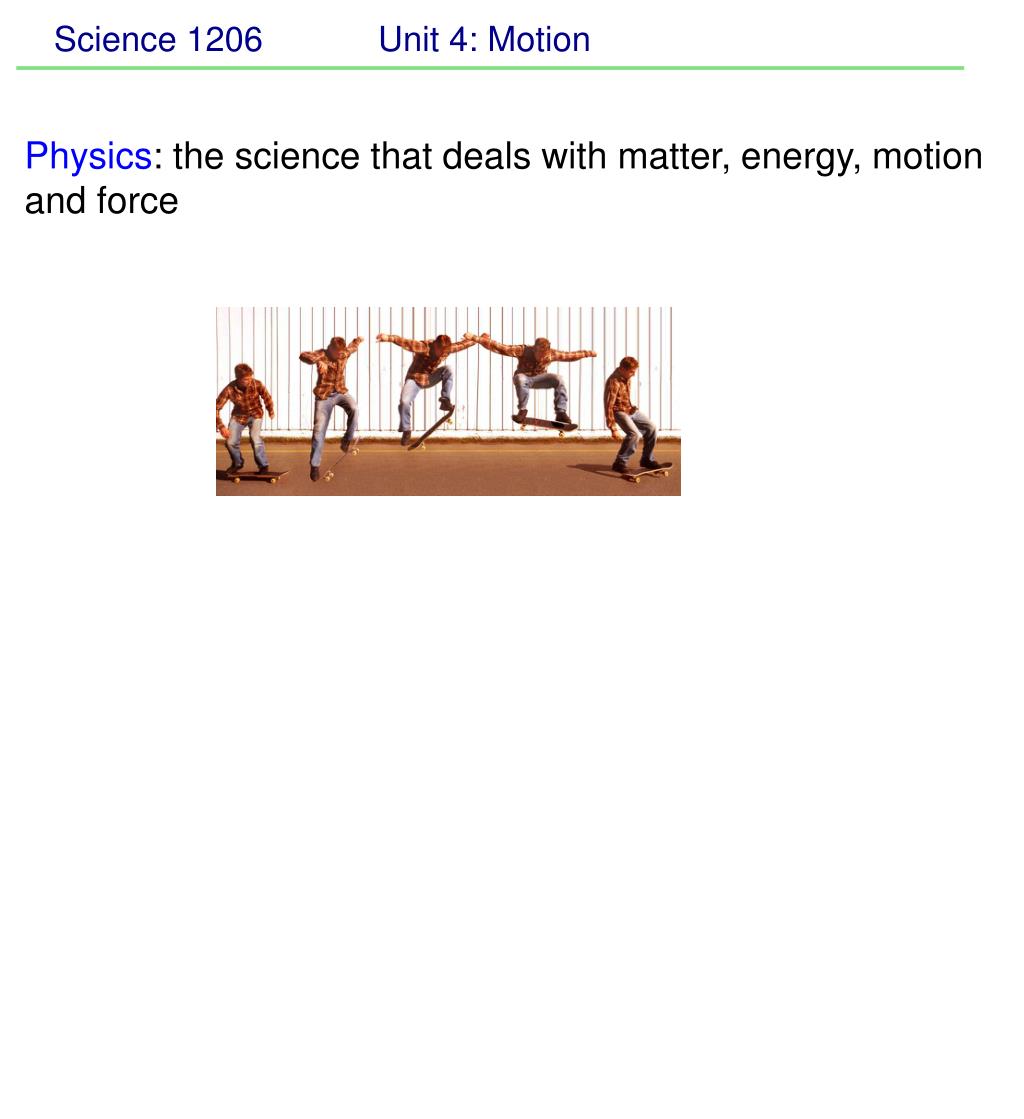

  2. Science 1206 Unit 4: Motion Physics: the science that deals with matter, energy, motion and force

  3. Measurement, Units, & Error How would you

describe this

motion?

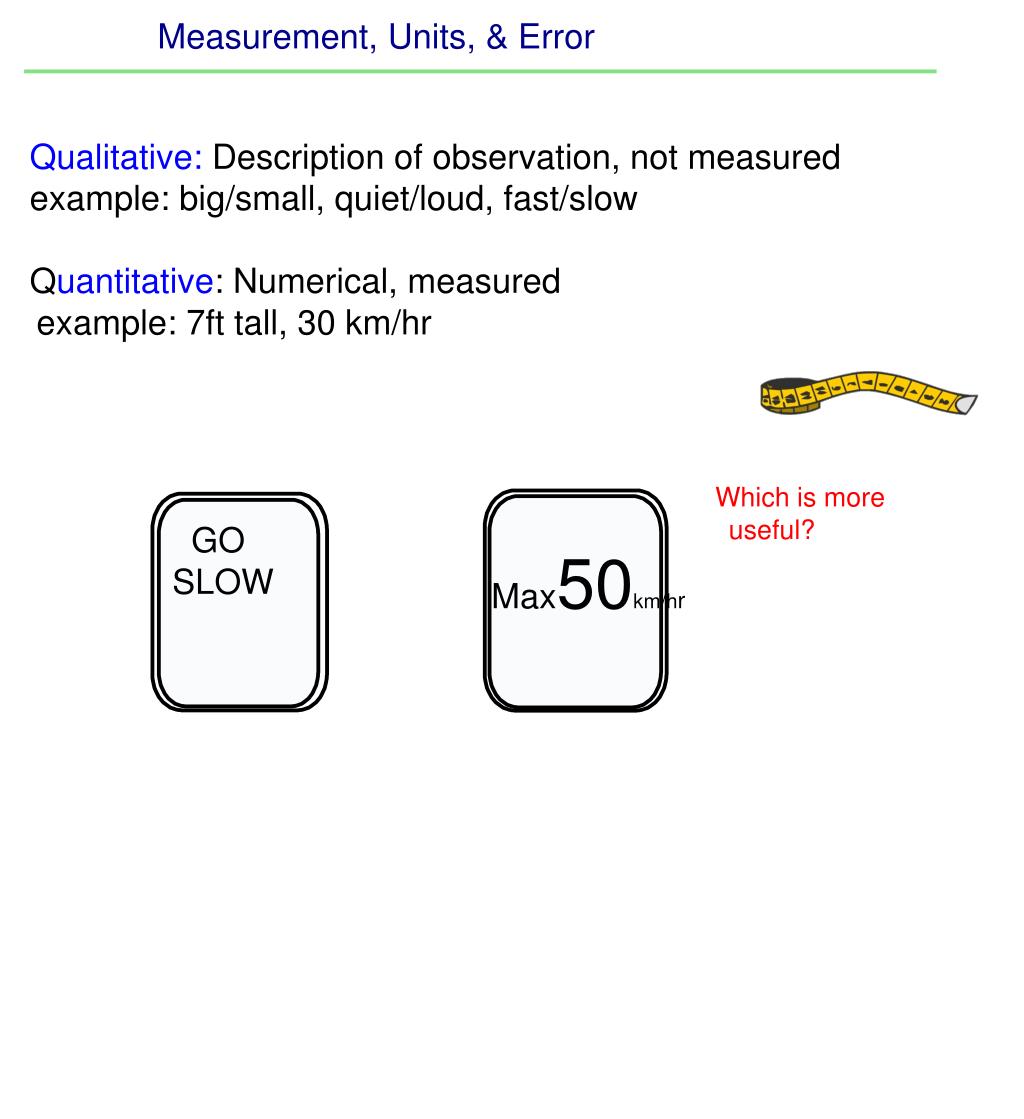

  4. Measurement, Units, & Error Qualitative: Description of observation, not measured example: big/small, quiet/loud, fast/slow Quantitative: Numerical, measured  example: 7ft tall, 30 km/hr Which is more
useful? Max50km/hr GO SLOW

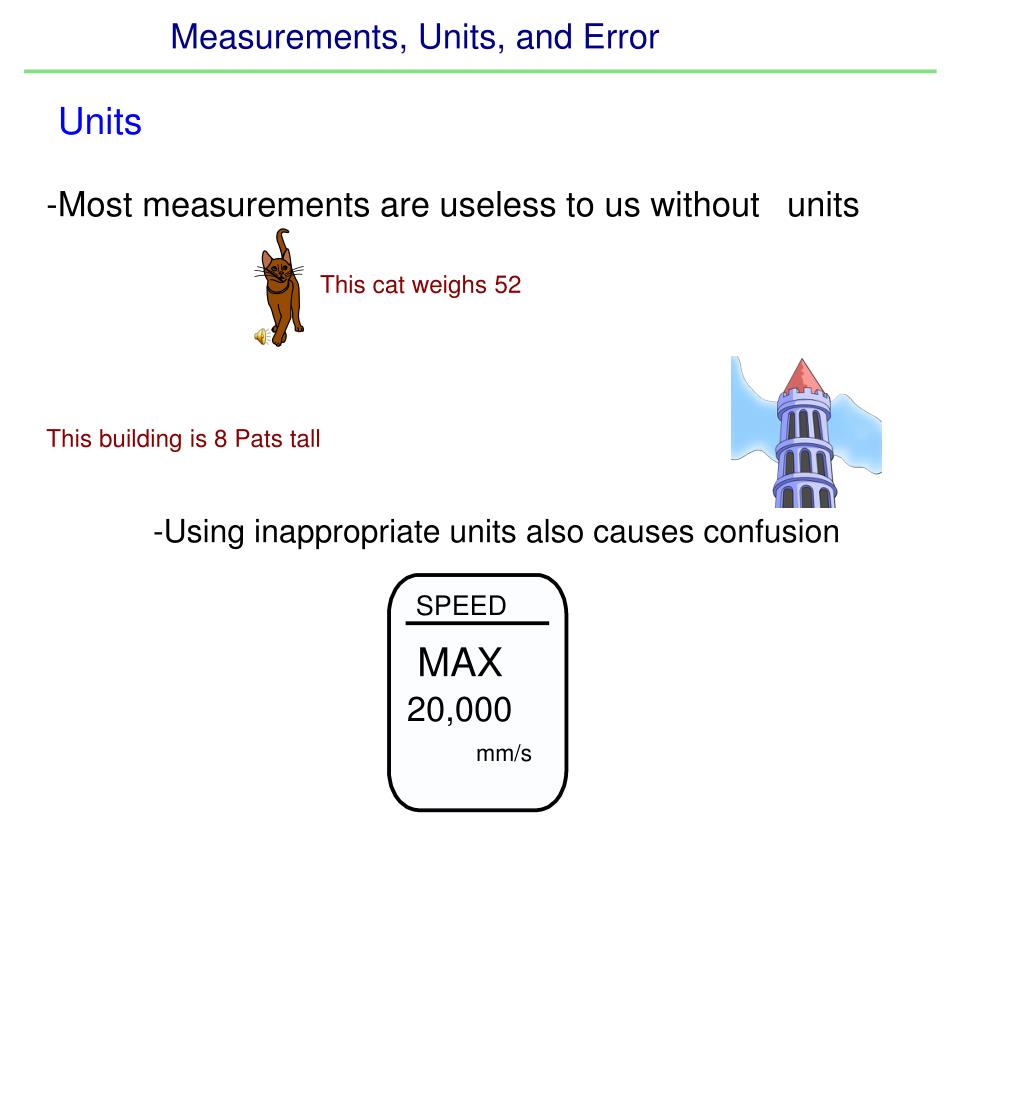

  5. Measurements, Units, and Error Units -Most measurements are useless to us without
units This building is 8 Pats tall This cat weighs 52 -Using inappropriate units also causes confusion SPEED MAX 20,000 mm/s

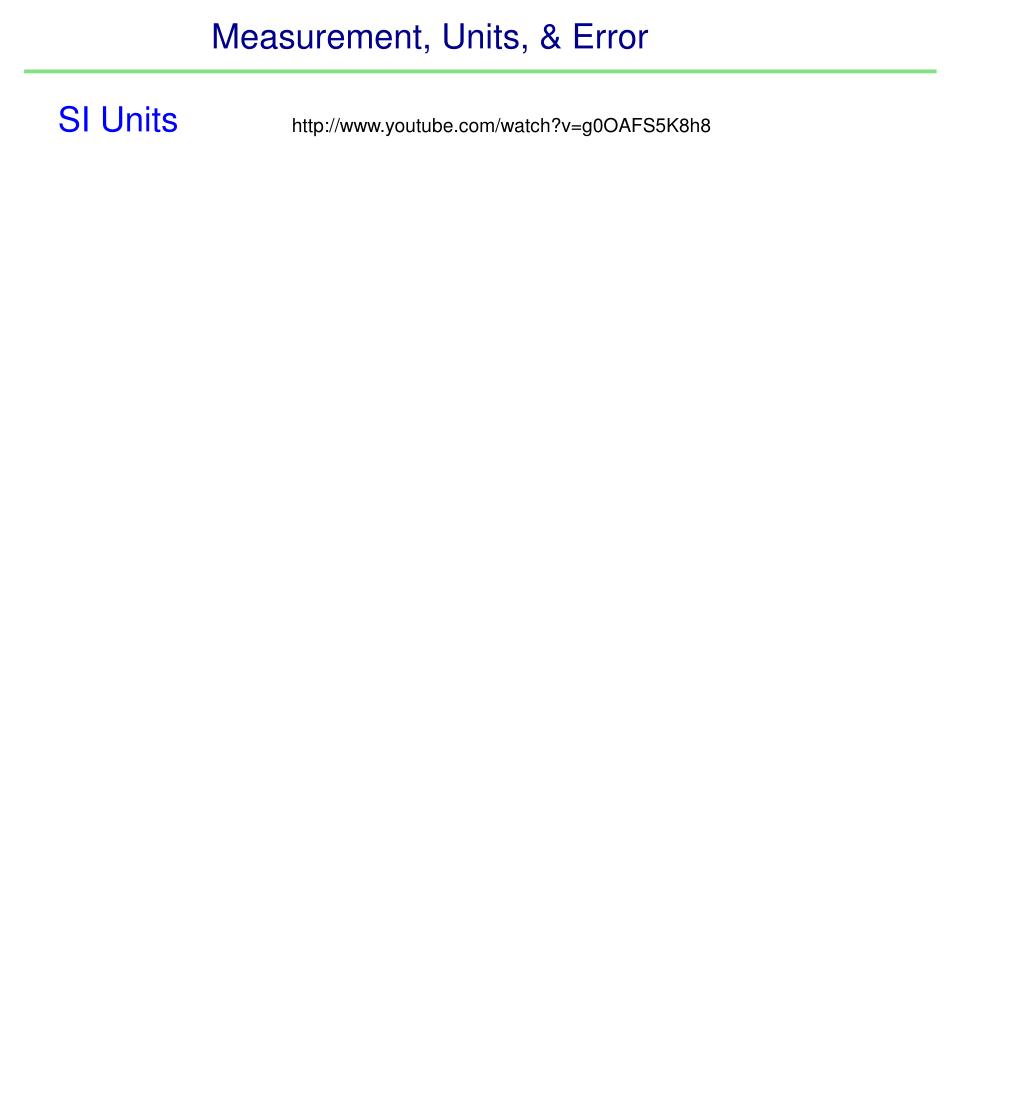

  6. Measurement, Units, & Error SI Units http://www.youtube.com/watch?v=g0OAFS5K8h8

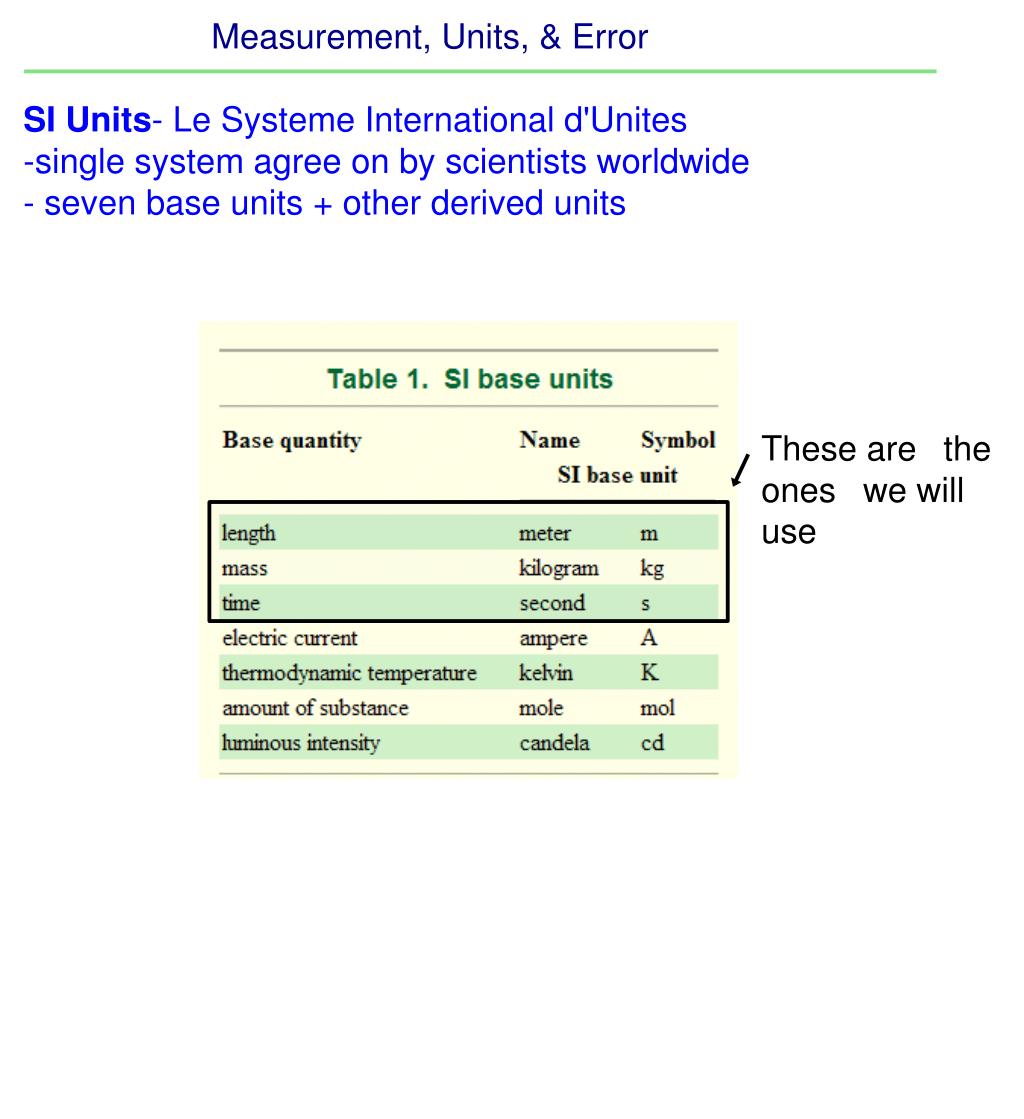

  7. Measurement, Units, & Error SI Units- Le Systeme International d'Unites -single system agree on by scientists worldwide - seven base units + other derived units These are
the ones
we will use

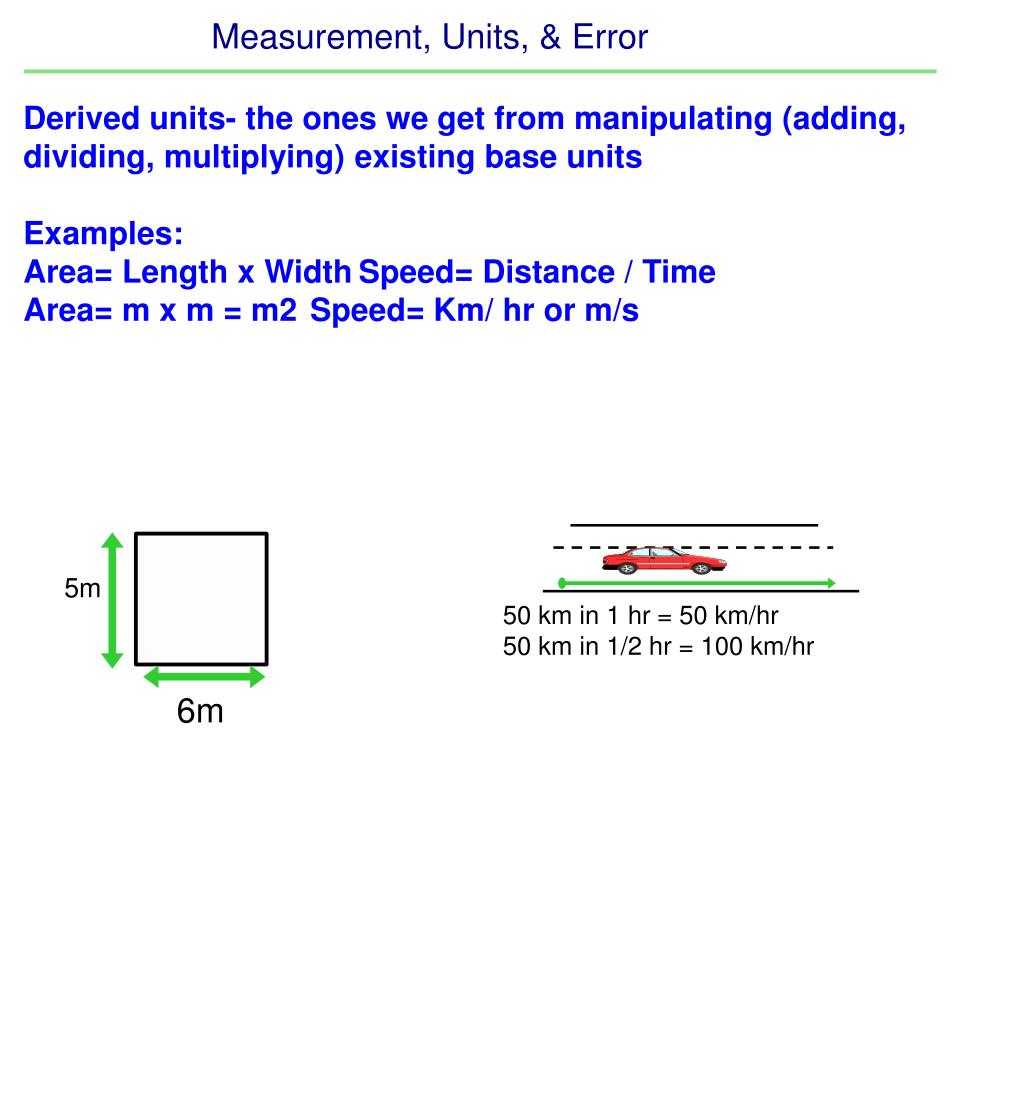

  8. Measurement, Units, & Error Derived units- the ones we get from manipulating (adding, dividing, multiplying) existing base units Examples: Area= Length x Width Speed= Distance / Time Area= m x m = m2  Speed= Km/ hr or m/s 5m 50 km in 1 hr = 50 km/hr 50 km in 1/2 hr = 100 km/hr 6m

  9. Measurement, Units, & Error k  h  da  Base  d  c  m

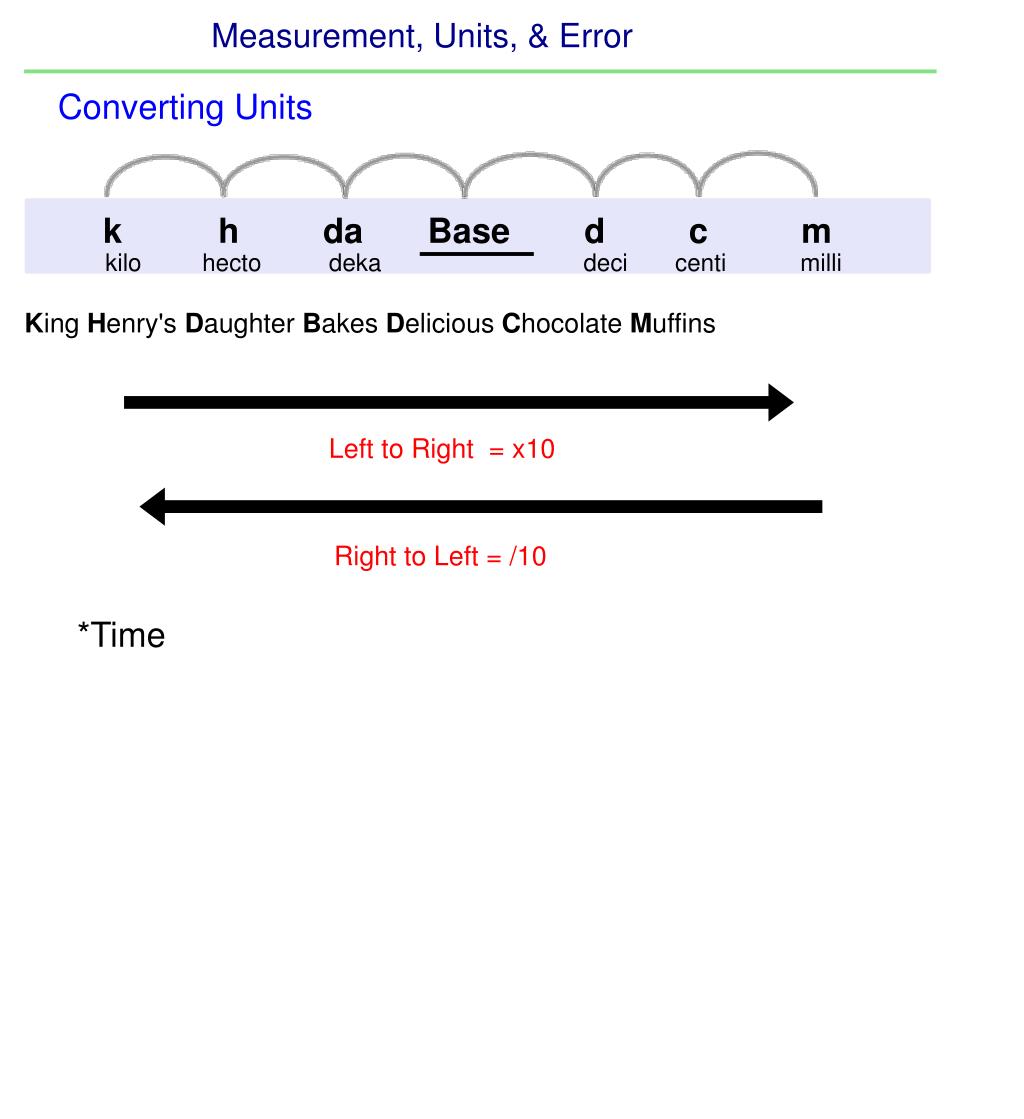

  10. Measurement, Units, & Error Converting Units k h   da  Base  d  c   m kilo hecto deka deci centi milli King Henry's Daughter Bakes Delicious Chocolate Muffins Left to Right = x10 Right to Left = /10 *Time

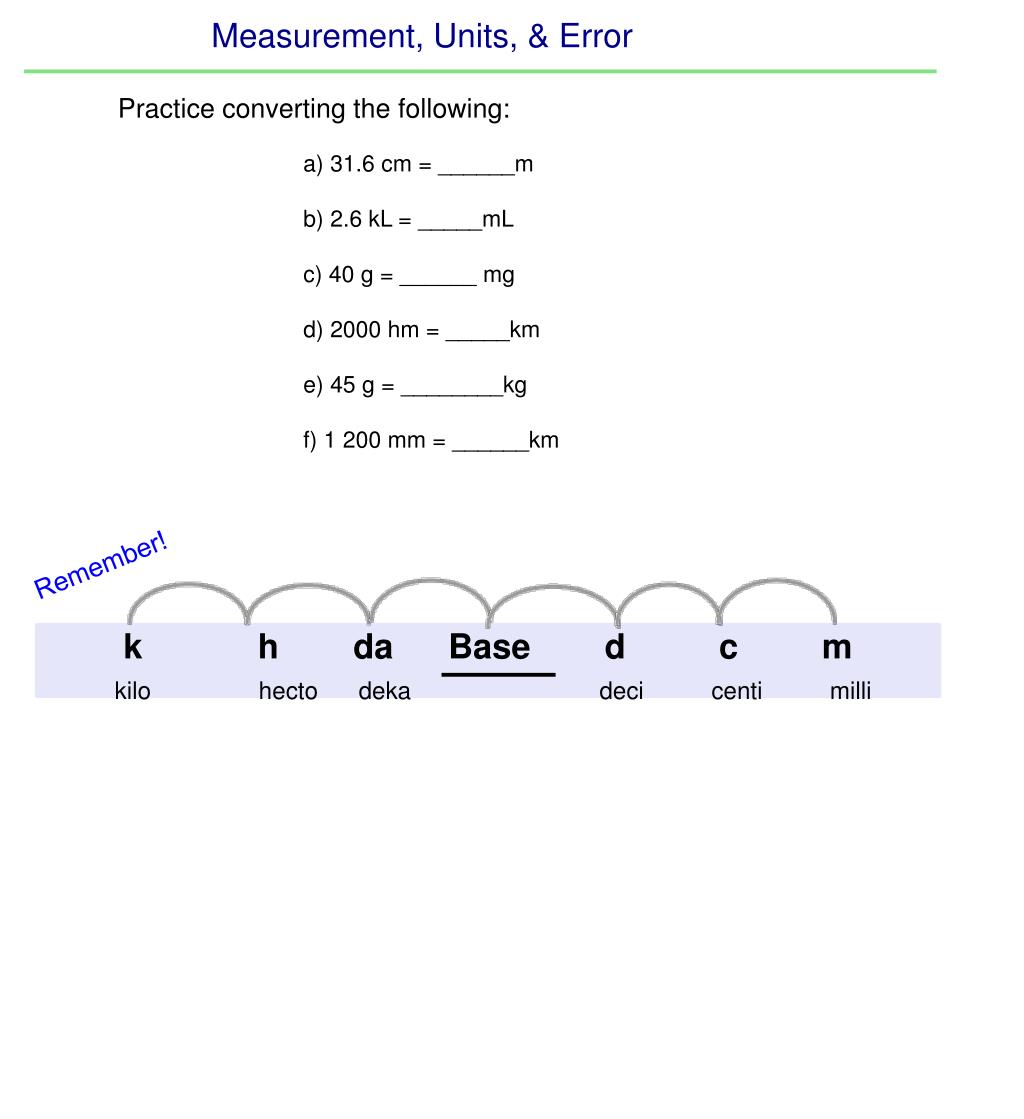

  11. Measurement, Units, & Error Practice converting the following: a) 31.6 cm = ______m b) 2.6 kL = _____mL c) 40 g = ______ mg d) 2000 hm = _____km e) 45 g = ________kg f) 1 200 mm = ______km Remember! k h   da  Base   d  c  m kilo hecto deka deci centi milli

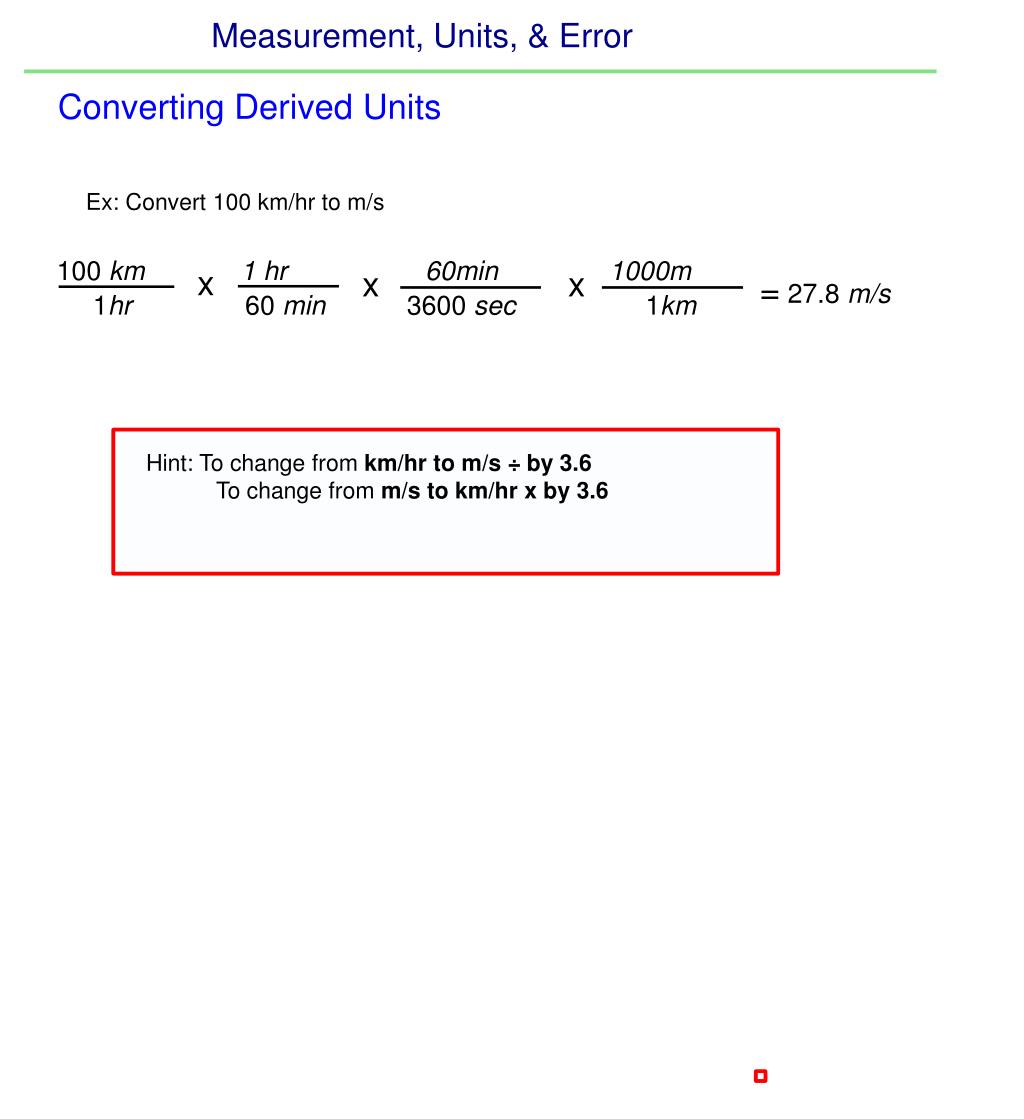

  12. Measurement, Units, & Error Converting Derived Units Ex: Convert 100 km/hr to m/s 100 km 1 hr 60min 1000m x x x = 27.8 m/s 1hr 60 min 3600 sec 1km Hint: To change from km/hr to m/s ÷ by 3.6 To change from m/s to km/hr x by 3.6

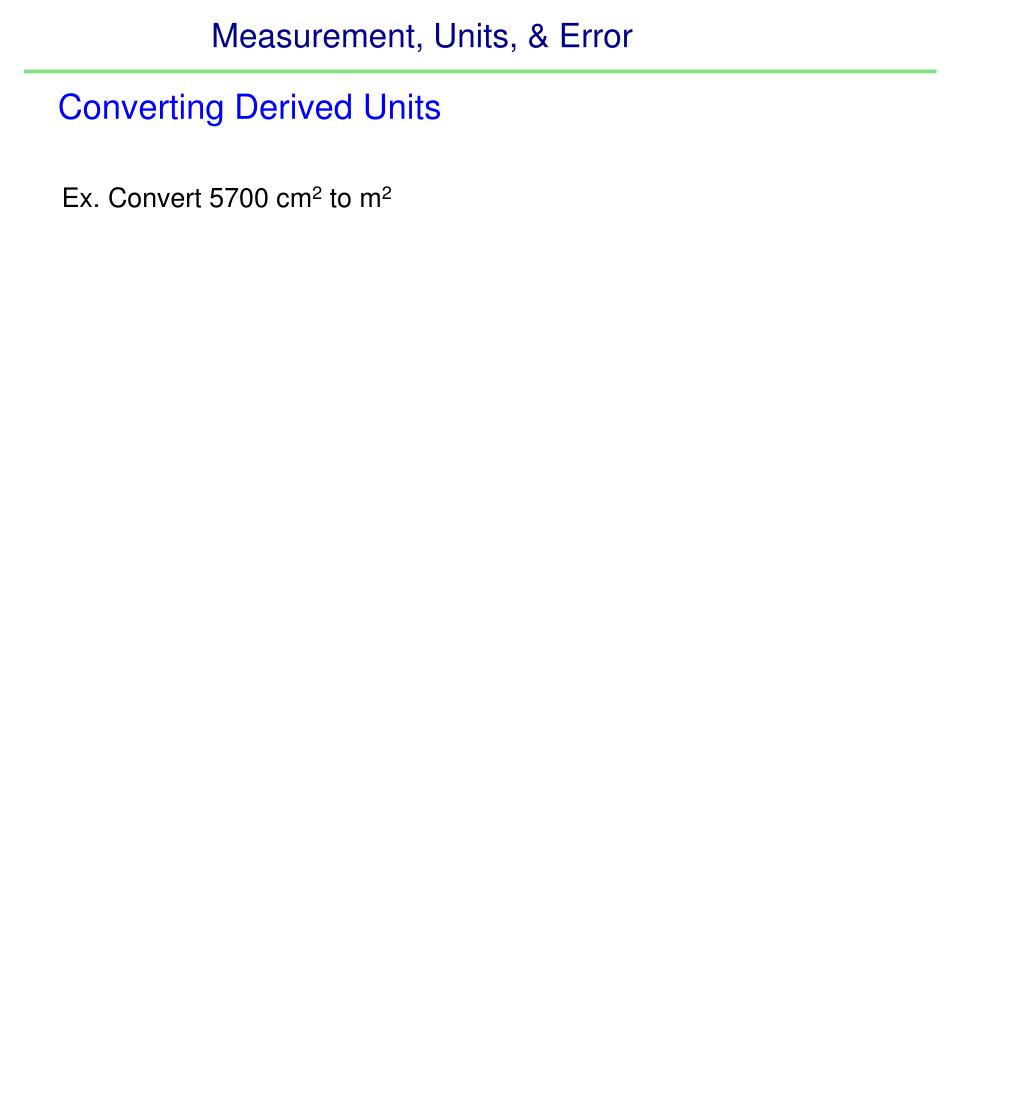

  13. Measurement, Units, & Error Converting Derived Units Ex. Convert 5700 cm2 to m2

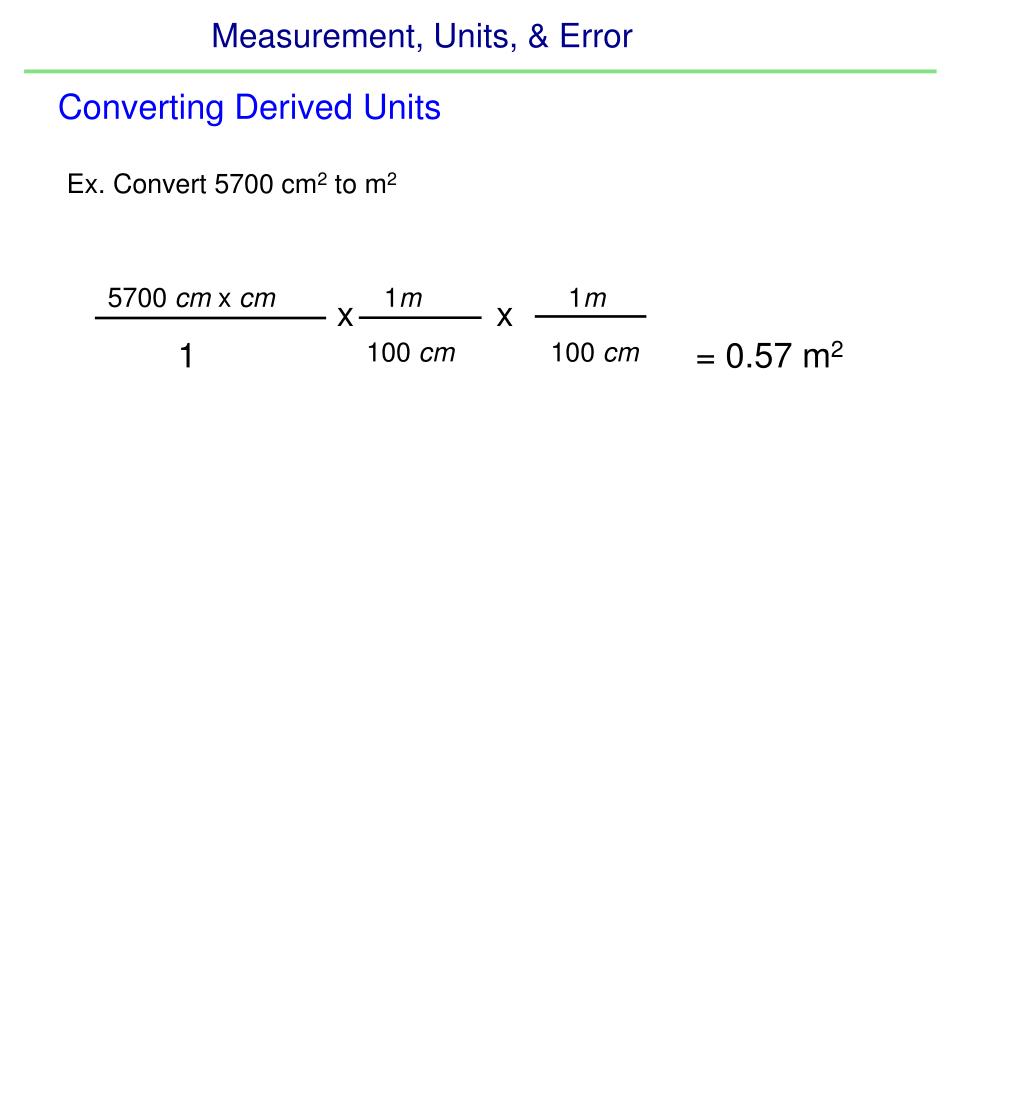

  14. Measurement, Units, & Error Converting Derived Units Ex. Convert 5700 cm2 to m2 5700 cm x cm 1m 1m x x 1 = 0.57 m2 100 cm 100 cm

  15. Measurement, Units, & Error Converting Derived Units Ex. Convert 5700 cm2 to m2 5700 cm x cm 1m 1m 1 100 cm 100 cm x x = 0.57 m2 -For a unit2 times the number of decimal places you otherwise move by 2 -For a unit3 times the number of decimal places you would otherwise move by 3

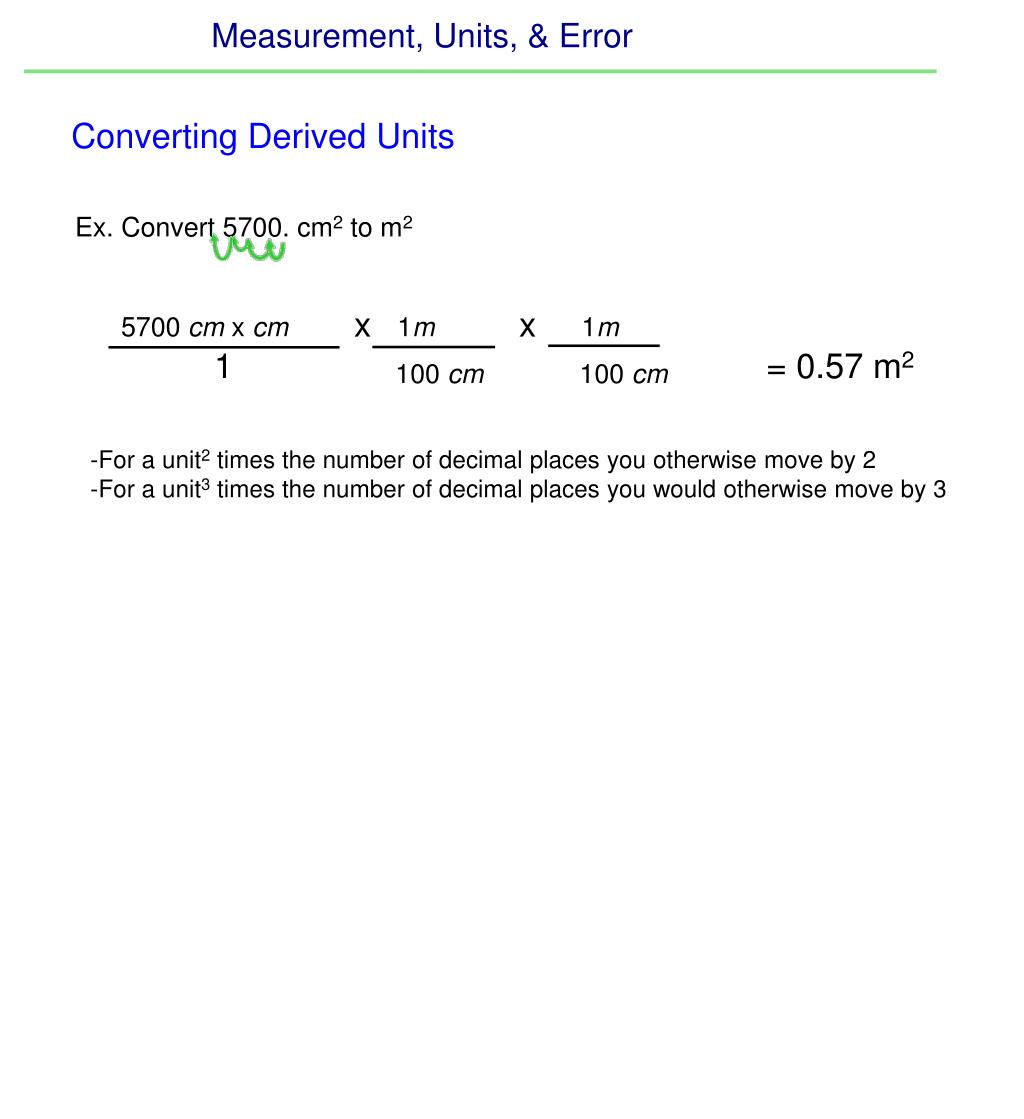

  16. Measurement, Units, & Error Converting Derived Units Ex. Convert 5700. cm2 to m2 x x 1 = 0.57 m2 5700 cm x cm 1m 1m 100 cm 100 cm -For a unit2 times the number of decimal places you otherwise move by 2 -For a unit3 times the number of decimal places you would otherwise move by 3

  17. Measurement, Units, & Error Converting Derived Units Ex. Convert 4300 mm3 to cm3 Remember! -For a unit2 times the number of decimal places you
otherwise move by 2 -For a unit3 times the number of decimal places you would
otherwise move by 3

  18. Measurement, Units, & Error Converting Derived Units Ex. Convert 4300 mm3 to cm3 - mm to cm is 1 decimal place to the left
- mm3 to cm3 should be 3 decimal places to the left 4300.0 mm3 = 4.3cm3

  19. Measurement, Units, & Error
