  1. Network Monitoring: A Practical Approach Philip Smith/IT Services University of Windsor March 21, 2003

  2. Agenda • Campus Structure • Benchmarking on Campus • Tools on Campus • Benchmarking off Campus • Tools off Campus • Questions and Answers

  3. Core Router (Nortel Networks Passport 8610) 60+ Building Subnets (student + faculty) Computer Science and Engineering have their own networks Have two external connections Internet (Telus) at 15Mb/s + over subscription CAnet*4 (AT&T) at 155Mb/s Both connections use ATM Campus Structure

  4. Campus Structure (Block Diagram)

  5. Campus Structure (Graphical)

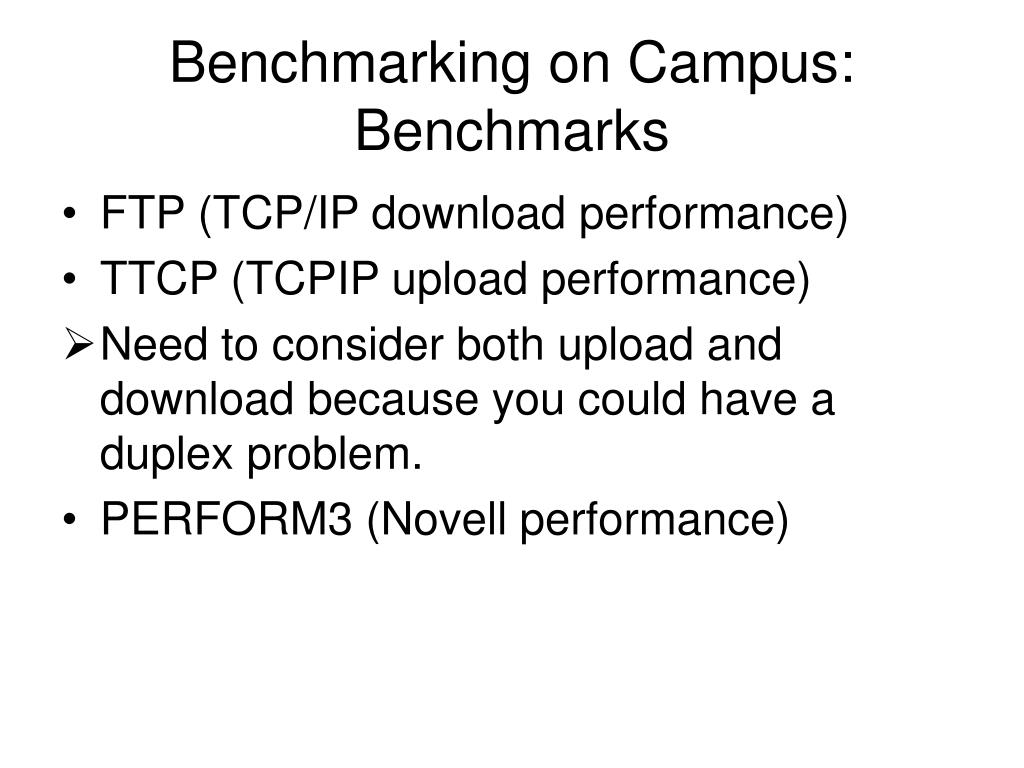

  6. Benchmarking on Campus: Benchmarks • FTP (TCP/IP download performance) • TTCP (TCPIP upload performance) • Need to consider both upload and download because you could have a duplex problem. • PERFORM3 (Novell performance)

  7. Benchmarking on Campus: FTP • FTP is a disk to disk transfer protocol • theoretically this could & does affect performance. • We drop the first FTP test to each server because the file is not cached. • FTP benchmark is run against 3 servers at or near the network core. • Key servers are: • Admin1 (administrative server/AIX-IBM UNIX) • Pdomain (campus FTP server/IRIX-SGI UNIX) • Zeus (Lotus Notes server/AIX)

  8. Benchmarking on Campus: TTCP • TTCP is a memory to memory transfer protocol • disk is NOT involved. • TTCP benchmark is run against 4 servers at or near the network core. • Key servers are: • Admin1 (administrative server/AIX-IBM UNIX) • Cronus (Lotus Notes server/NT) • Pdomain (campus FTP server/IRIX-SGI UNIX) • Zeus (Lotus Notes server/AIX)

  9. Benchmarking on Campus: PERFORM3 • PERFORM3 is Novell’s benchmark for networks that are 10Mb/s or more. • While Novell is not used very frequently in Computer Science it is used a great deal elsewhere on campus. • At one point (circa 2000) Novell traffic was 2/3 of our Network. • Modified PERFORM3 to run faster; limit is to twelve operations at 16K intervals instead of at each 4K interval. • Modified test takes 1-2 minutes compared to 5 minutes. • Run PERFORM3 benchmark against all available Novell servers.

  10. Benchmarks on Campus: Methodology • Using Work Study labour, annually run all three benchmarks from each subnet in each building using a common laptop. • Run 4 TTCP tests against each of the 4 TTCP server (4*4=16) • Run 3 FTP tests against each of the 3 FTP servers (3*3=9); remember first test is discarded • Run 2 PERFORM3 tests against each Novell server (2*~9=18)

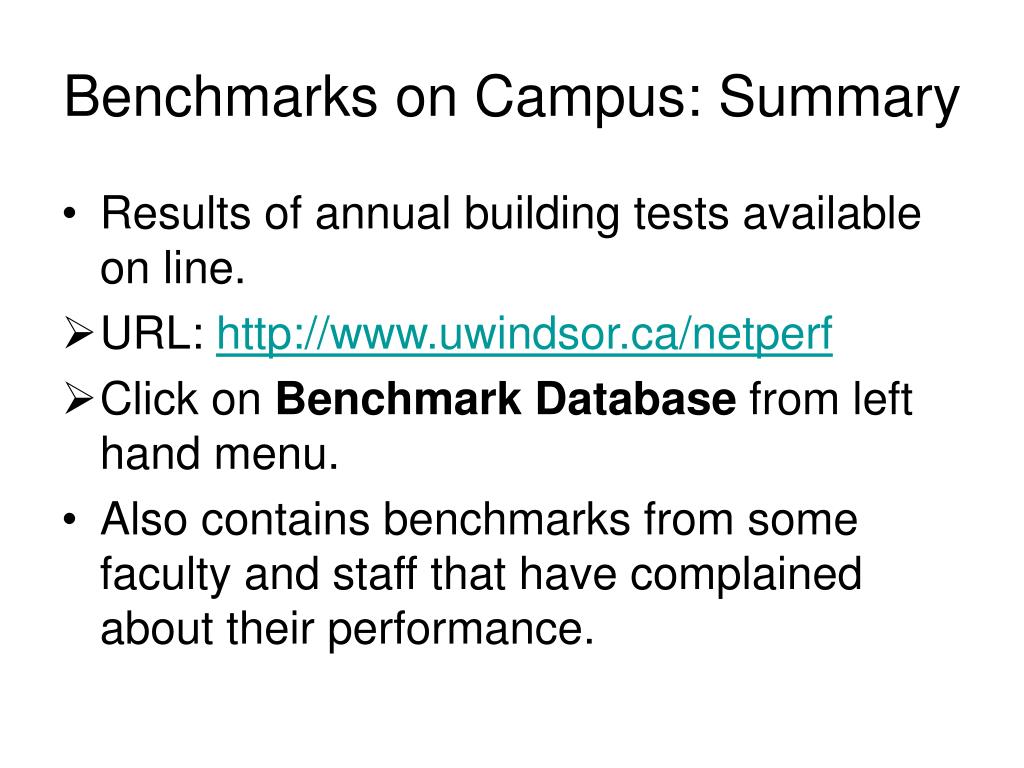

  11. Benchmarks on Campus: Summary • Results of annual building tests available on line. • URL: http://www.uwindsor.ca/netperf • Click on Benchmark Database from left hand menu. • Also contains benchmarks from some faculty and staff that have complained about their performance.

  12. Tools on Campus • Protocol Analyzer • WhatsUp • MRTG • MRTG-UFFE • NMS

  13. Tools on Campus: Protocol Analyzer • Device that lets you see packets on the wire • Our tool is a Network Associates’ Sniffer • Primarily a troubleshooting tool • However, by capturing the data on a connection (e.g. uplink) over time you can collect key network statistics • Flaw: It only does ONE connection at a time • Protocol Analyzer measures packets

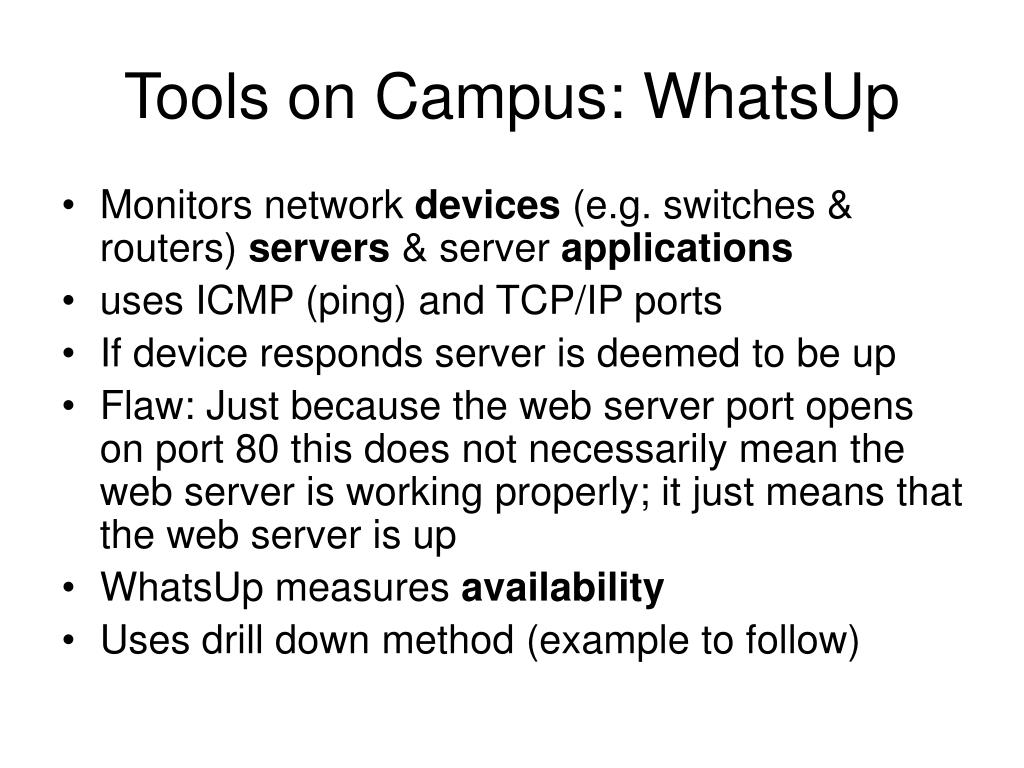

  14. Tools on Campus: WhatsUp • Monitors network devices (e.g. switches & routers) servers & server applications • uses ICMP (ping) and TCP/IP ports • If device responds server is deemed to be up • Flaw: Just because the web server port opens on port 80 this does not necessarily mean the web server is working properly; it just means that the web server is up • WhatsUp measures availability • Uses drill down method (example to follow)

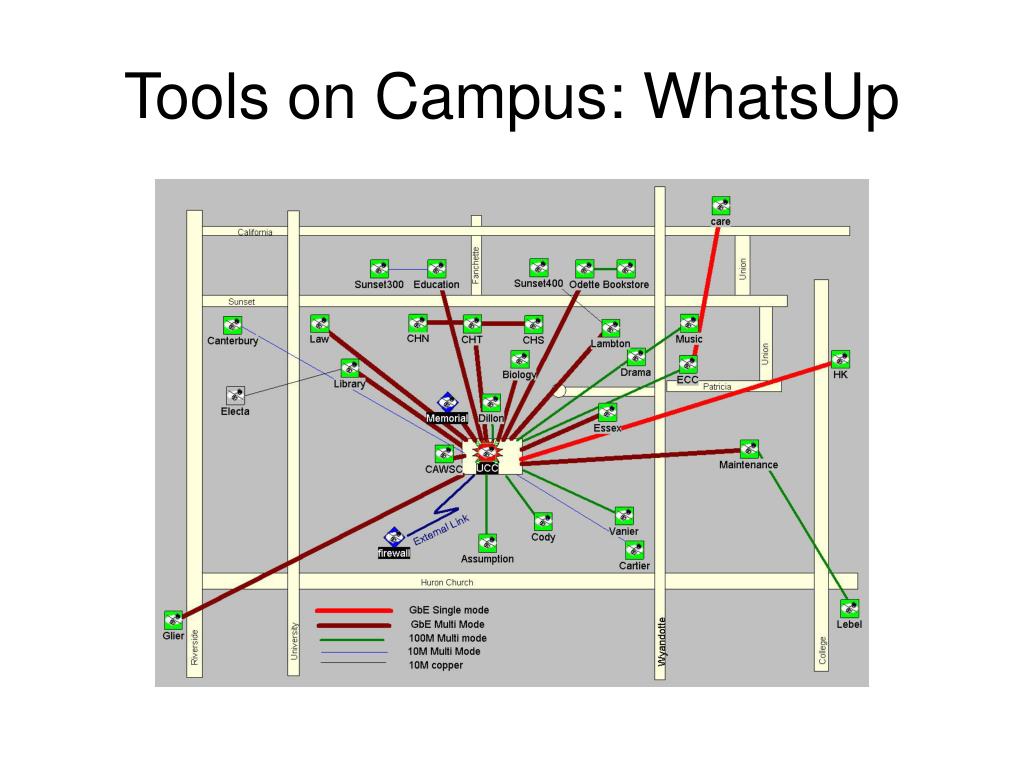

  15. Tools on Campus: WhatsUp

  16. Tools on Campus: WhatsUp • Drilling down into Memorial Hall, there is something wrong with the UPS (top diagram) • It looks like the UPS management is down (bottom diagram)

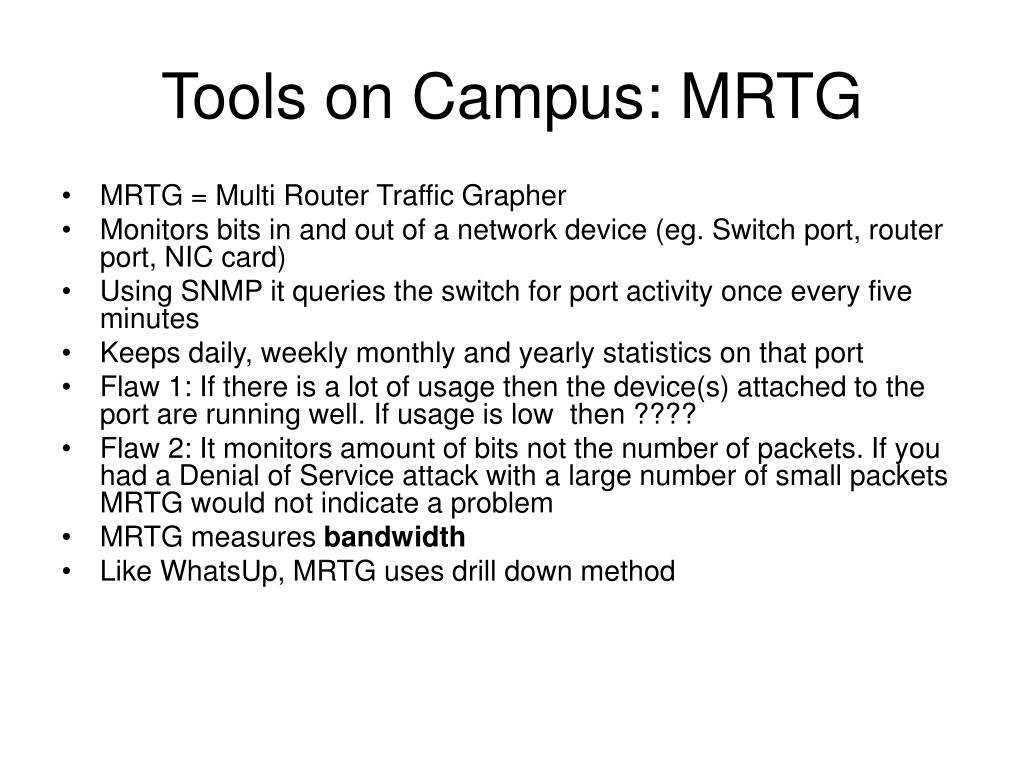

  17. Tools on Campus: MRTG • MRTG = Multi Router Traffic Grapher • Monitors bits in and out of a network device (eg. Switch port, router port, NIC card) • Using SNMP it queries the switch for port activity once every five minutes • Keeps daily, weekly monthly and yearly statistics on that port • Flaw 1: If there is a lot of usage then the device(s) attached to the port are running well. If usage is low then ???? • Flaw 2: It monitors amount of bits not the number of packets. If you had a Denial of Service attack with a large number of small packets MRTG would not indicate a problem • MRTG measures bandwidth • Like WhatsUp, MRTG uses drill down method

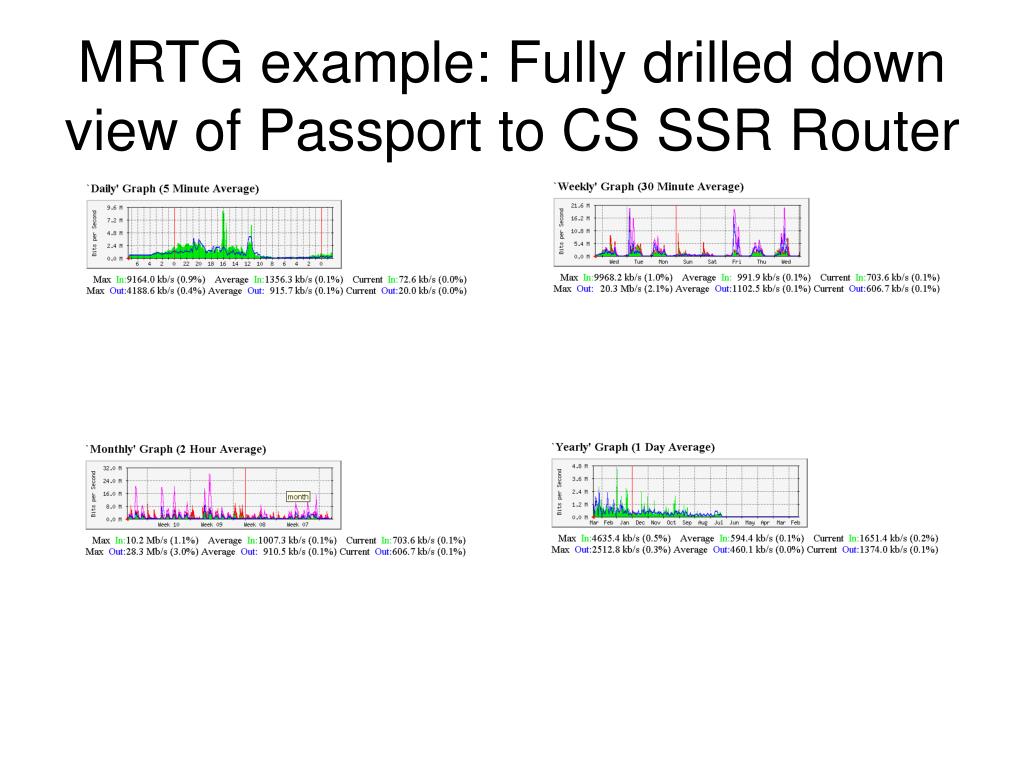

  18. MRTG example: Fully drilled down view of Passport to CS SSR Router

  19. Tools on Campus: MRTG-UFFE • MRTG-UFFE = MRTG’s User Friendly Front End • Add on to MRTG • Homegrown utility that documents the important (special, unusual, busy) connections on campus • Hyperlinks to MRTG • MRTG-UFFE measures connections

  20. Tools on Campus: NMS • NMS = Network Management System • MRTG only measures bits in (received) and out (transmitted) • Only 2 of 34 parameters on the switch port • Future Project

  21. Benchmarks off Campus • Mostly a new area of focus • Have been monitoring using Protocol Analyzer, WhatsUp & MRTG • Size of Internet Pipe growing yearly by about 2Mb. • Recently we have also been monitoring using BroadBandReports.com

  22. Benchmarks off Campus: WhatsUp

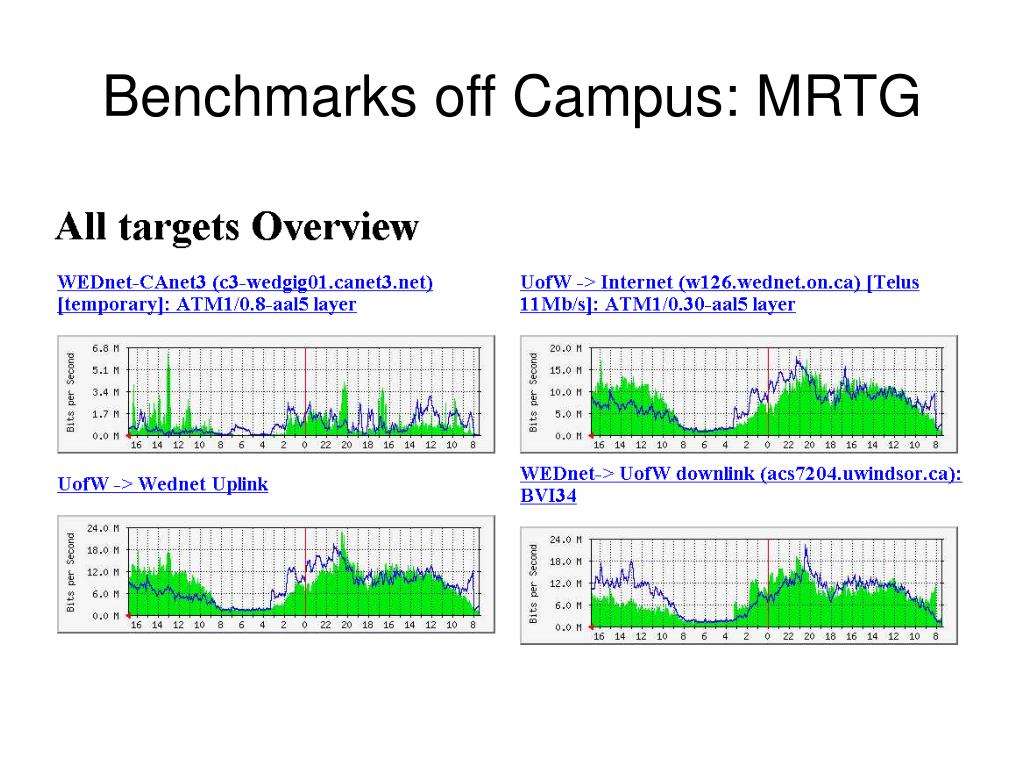

  23. Benchmarks off Campus: MRTG

  24. Benchmarks off Campus: BroadBandReports.Com

  25. Tools Off Campus • Protocol Analyzer • WhatsUp • MRTG • BroadBandReports.com • Internet Monitors

  26. Tools Off Campus: Internet Monitors • Internet Health Report • http://www.internethealthreport.com/ • Measures Latency (TCP Open) Between Major U.S. carriers. • Internet Traffic Report • http://www.internettrafficreport.com/ • Measures Latency (ICMP Echo) & Packet loss between selected routers world wide. • Internet Average • http://average.matrixnetsystems.com/ • Measures Latency, Packet Loss, and Reachability between thousands of servers and routers around the world. (Most Comprehensive)

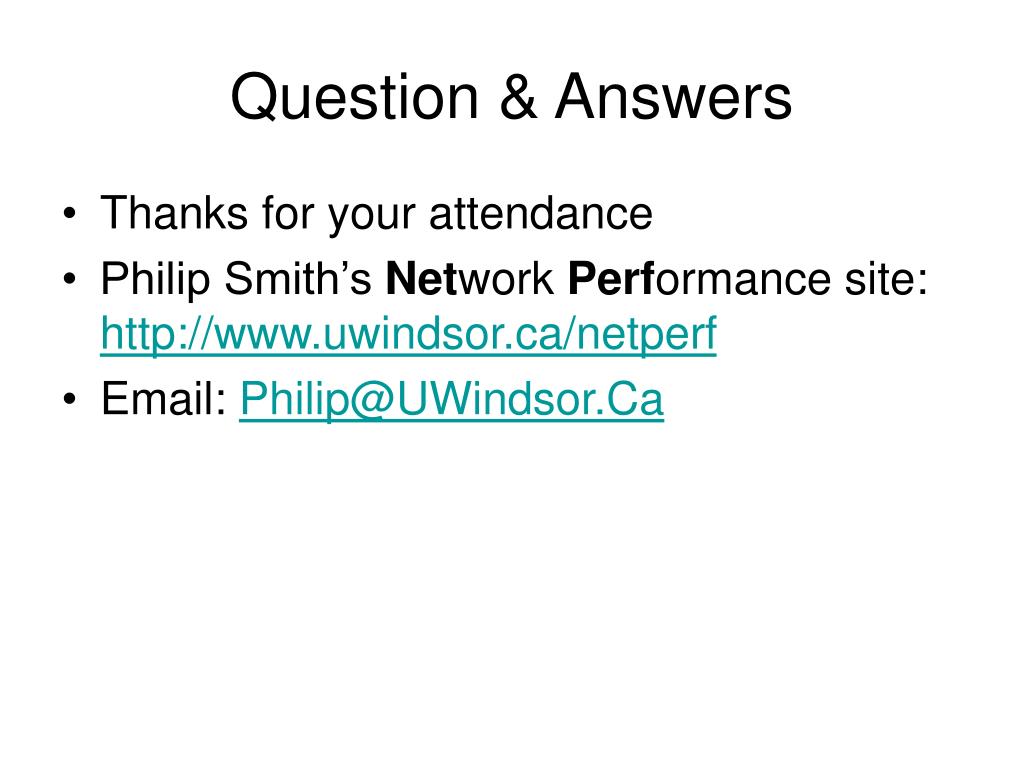

  27. Question & Answers • Thanks for your attendance • Philip Smith’s Network Performance site: http://www.uwindsor.ca/netperf • Email: Philip@UWindsor.Ca
