  1. 2.4 GHz SMART SPECTRUM WIRELESS SYSTEMS

  2. The State of Wireless Even the best conventional wireless mics present a challenge to the user…

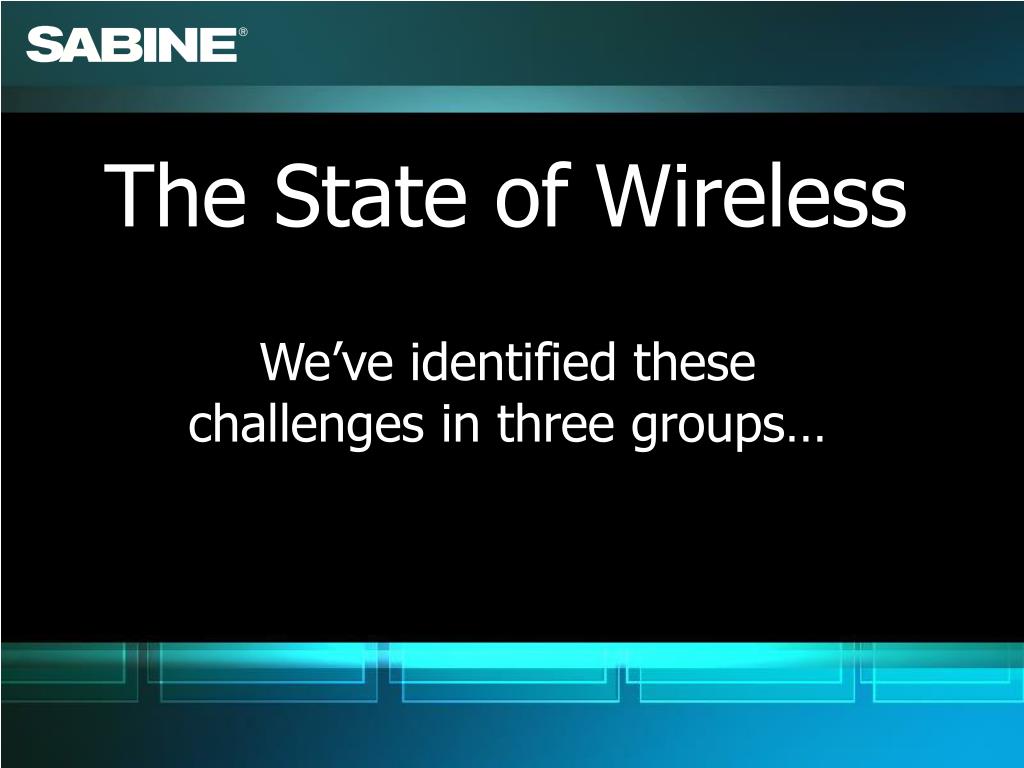

  3. The State of Wireless We’ve identified these challenges in three groups…

  4. RF Challenges • Interference from TV signals • Digital & HDTV signals • Lack of available channels • Limited number of co-located systems • Complex maze of groups to stock and sell 2.4 GHz SMART SPECTRUM

  5. Signal Processing Challenges • Feedback problems! • Need for variable sounds for each user and each application • Need for gain management and increased intelligibility 2.4 GHz SMART SPECTRUM

  6. Battery Challenges • Replacing batteries is costly • Yearly battery budgets are significant • The time needed to change all those batteries is significant • Need for longer battery life 2.4 GHz SMART SPECTRUM

  7. Sabine’s SWM7000 2.4 GHz Wireless offers innovative solutions to these challenges

  8. RF Solutions • The 2.4 GHz band: license-free and usable worldwide • Sell & stock only one frequency band • Immune from TV & DTV interference 2.4 GHz SMART SPECTRUM

  9. RF Solutions • 70 channels available • All 70 usable simultaneously • Co-locate with existing UHF or VHF wireless mics 2.4 GHz SMART SPECTRUM

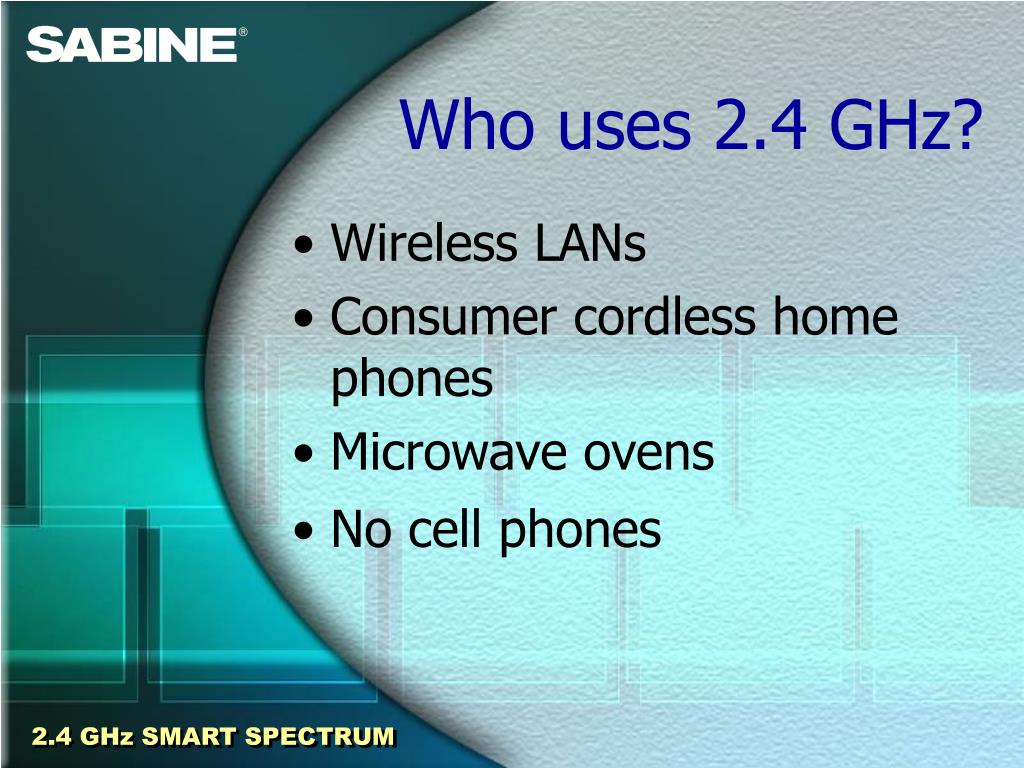

  10. Who uses 2.4 GHz? • Wireless LANs • Consumer cordless home phones • Microwave ovens • No cell phones 2.4 GHz SMART SPECTRUM

  11. Good news about the 2.4 GHz band • All devices are low-powered • Potential interference is easily managed, unlike TV stations • Higher frequency allows for many more channels 2.4 GHz SMART SPECTRUM

  12. Sabine RF Scanner • Shows RF environment • Blocks potential interference channels Sabine’s RF Scanner 2.4 GHz SMART SPECTRUM

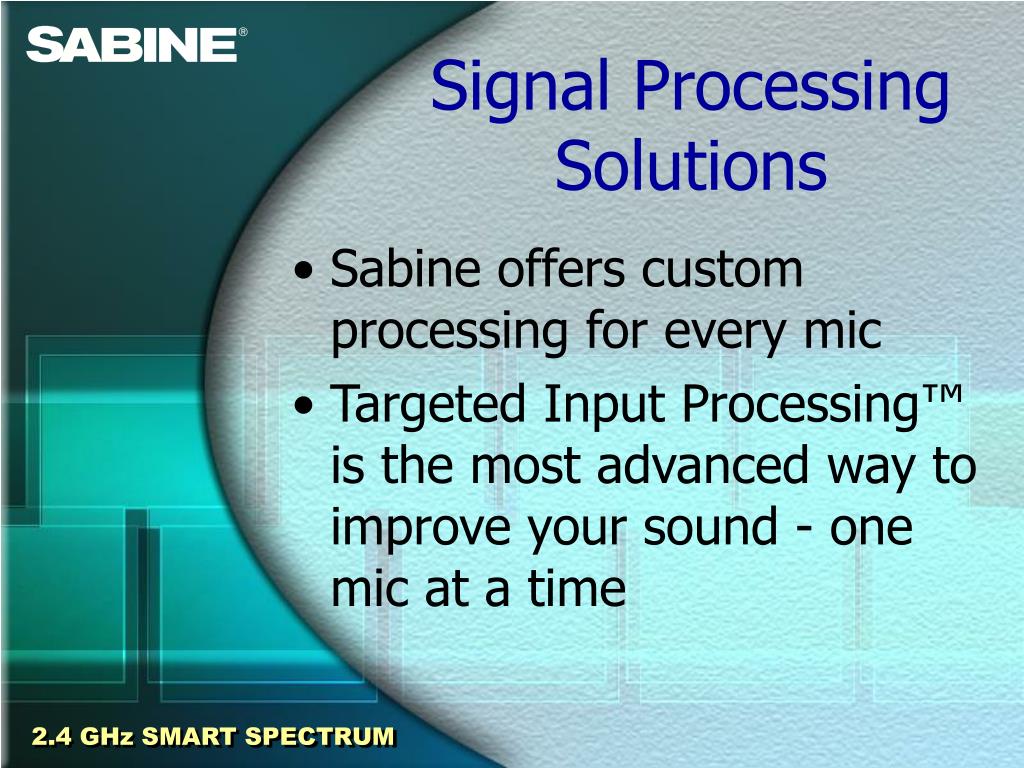

  13. Signal Processing Solutions • Sabine offers custom processing for every mic • Targeted Input Processing™ is the most advanced way to improve your sound - one mic at a time 2.4 GHz SMART SPECTRUM

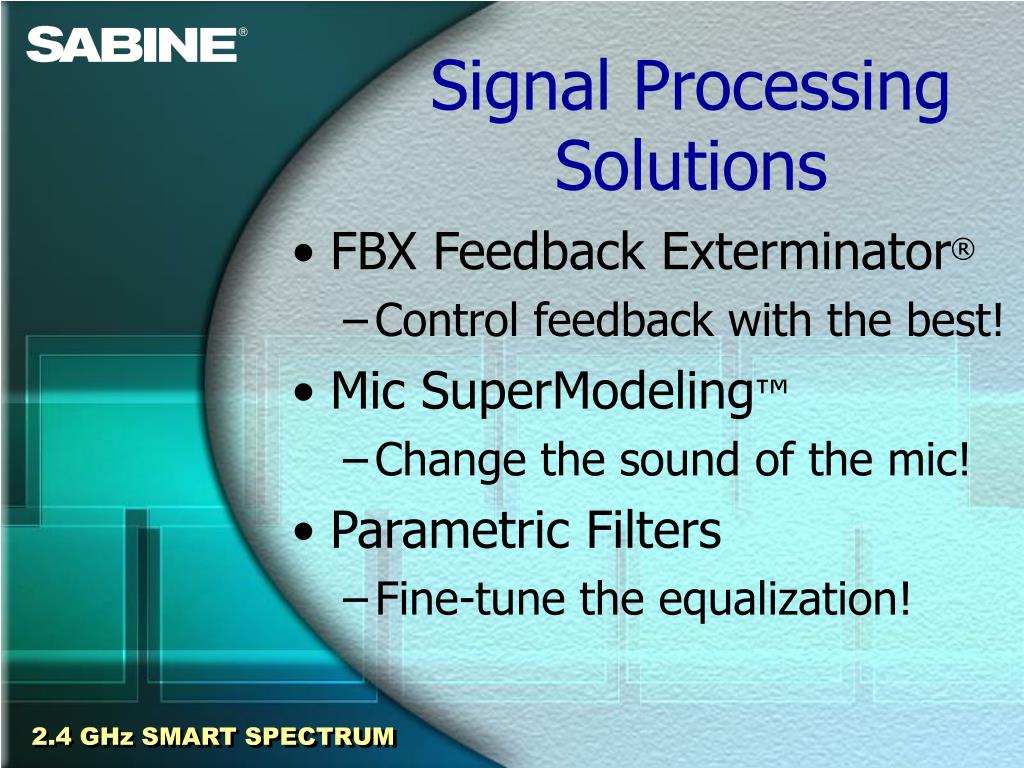

  14. Signal Processing Solutions • FBX Feedback Exterminator® • Control feedback with the best! • Mic SuperModeling™ • Change the sound of the mic! • Parametric Filters • Fine-tune the equalization! 2.4 GHz SMART SPECTRUM

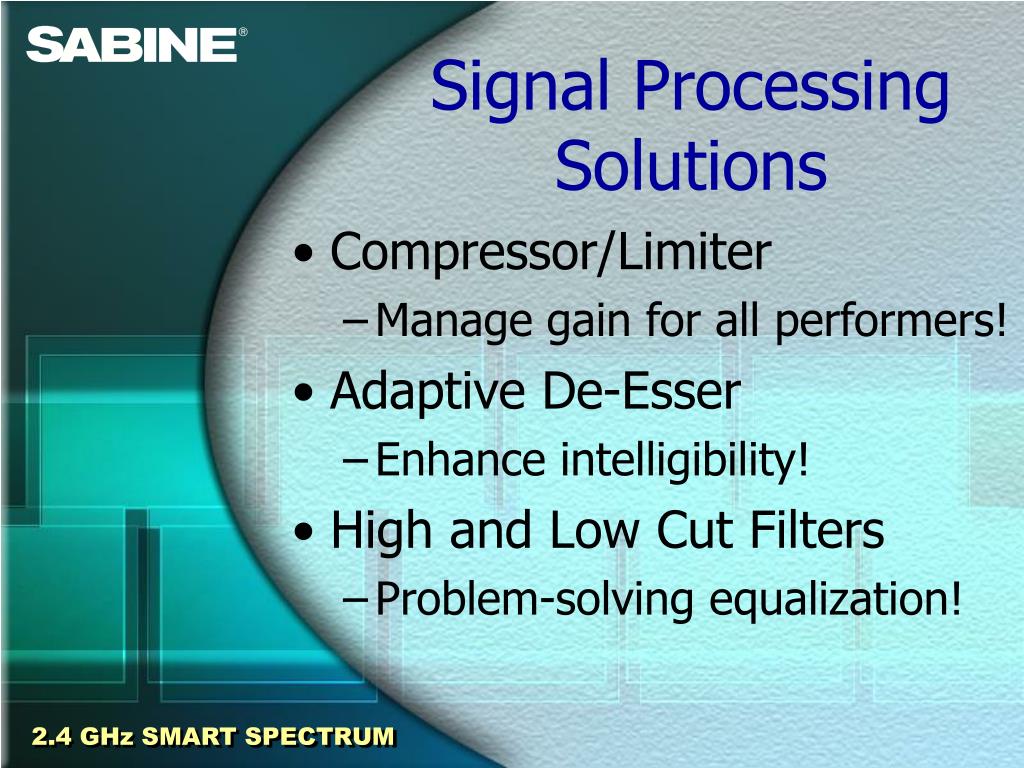

  15. Signal Processing Solutions • Compressor/Limiter • Manage gain for all performers! • Adaptive De-Esser • Enhance intelligibility! • High and Low Cut Filters • Problem-solving equalization! 2.4 GHz SMART SPECTRUM

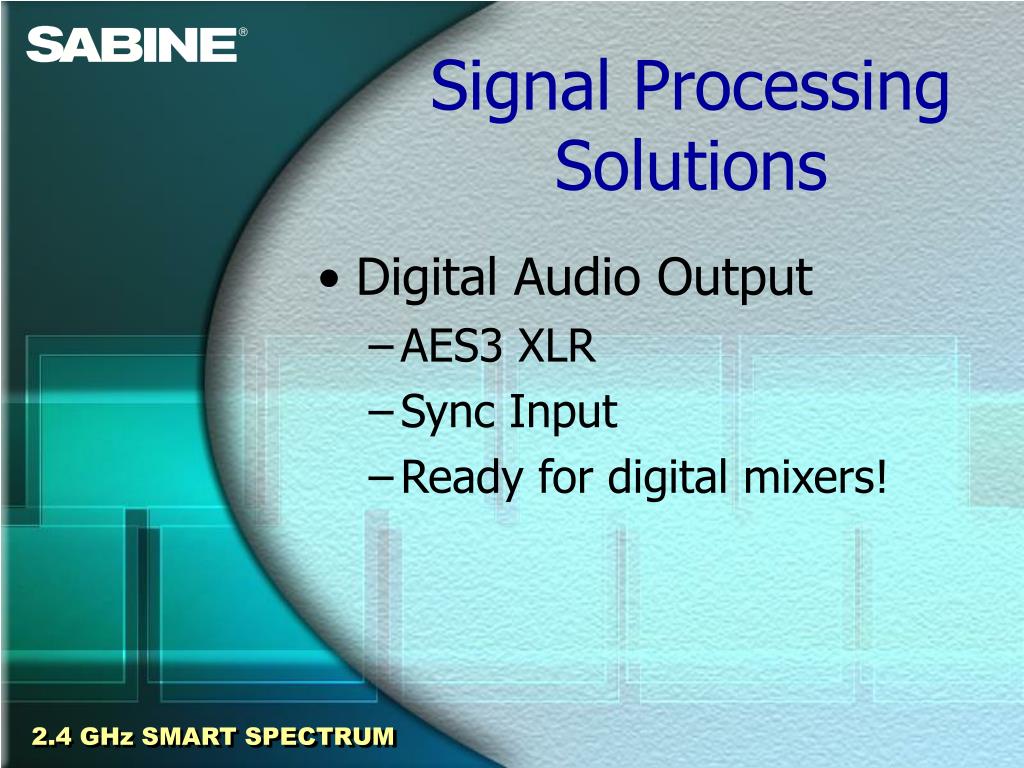

  16. Signal Processing Solutions • Digital Audio Output • AES3 XLR • Sync Input • Ready for digital mixers! 2.4 GHz SMART SPECTRUM

  17. Battery ManagementSolutions • Rechargeable NiMH batteries • Charge up just like a cell phone • Rechargeable battery life: • 11 hours for handheld • 9 hours for beltpack • Full recharge in only 4 hours 2.4 GHz SMART SPECTRUM

  18. Battery ManagementSolutions • Smart charger knows battery type • Mic clip has built-in charger • Telemetry reports battery voltage and run-time hours 2.4 GHz SMART SPECTRUM

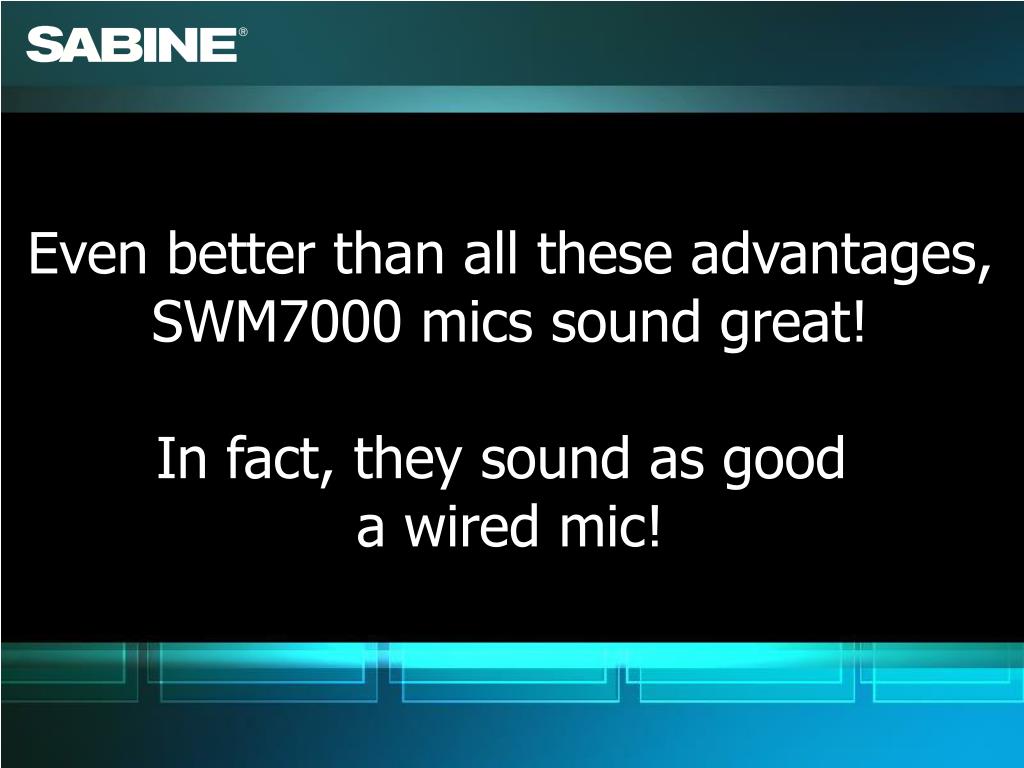

  19. Even better than all these advantages, SWM7000 mics sound great! In fact, they sound as good a wired mic!

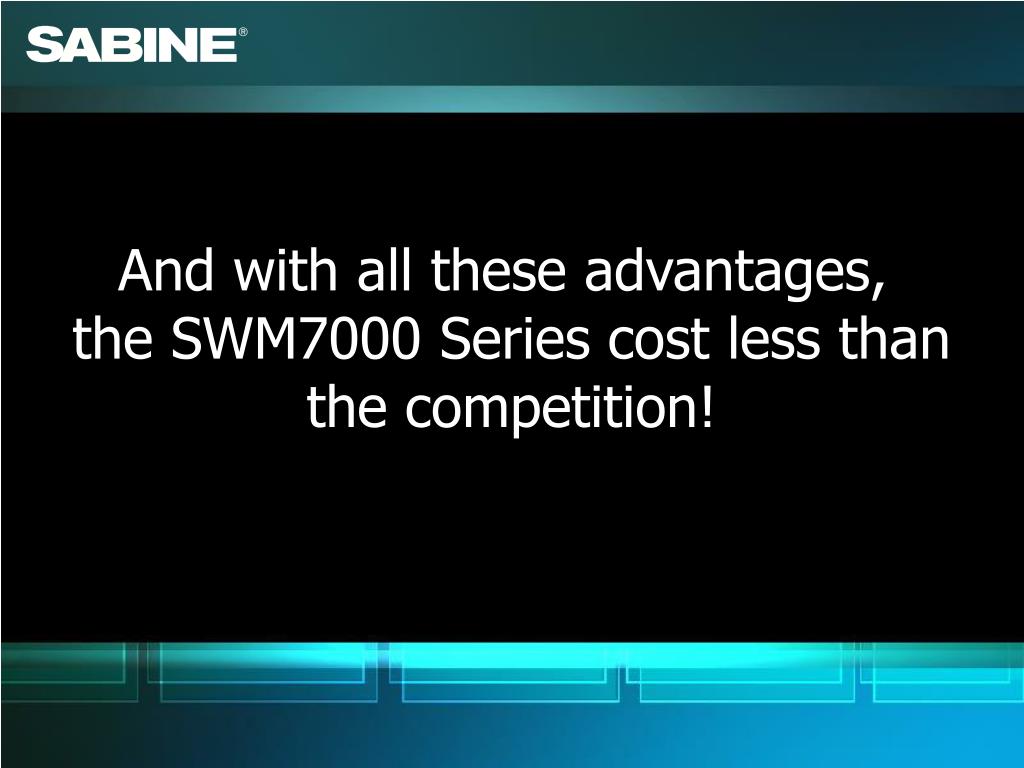

  20. And with all these advantages, the SWM7000 Series cost less than the competition!

  21. 14 reasons to buy Sabine 1. 2.4 GHz Band 2. Smart Spectrum™ 3. Up to 70 Simultaneous Systems 4. Tireless Wireless™ – 11 hours per charge 5. Mic SuperModeling™ 6. FBX Feedback Exterminator® 7. Parametric Filters 8. Compressor/Limiter 9. Adaptive De-Esser 10. Flat Frequency Response 11. Save and Recall up to 10 presets 12. Programmable on/off switch on transmitters 13. Computer Control of 70 channels* 14. Digital Audio Output* You can’t get them anywhere else! *ND Systems only
