  1. LSP 121 Normal Distributions

  2. What is a Normal Distribution? • Very common, very special type of distribution • Most data values are clustered near the mean (a single peak) • Distribution is symmetric • Tapering tales as you move away from the mean • Looks like a bell curve

  3. The 68-95-99.7 Rule • About 68% (68.3%), or just over 2/3, of the data points fall within 1 standard deviation (+ or -) of the mean • About 95% (95.4%) of the data points fall within 2 standard deviations of the mean • About 99.7% of the data points fall within 3 standard deviations of the mean

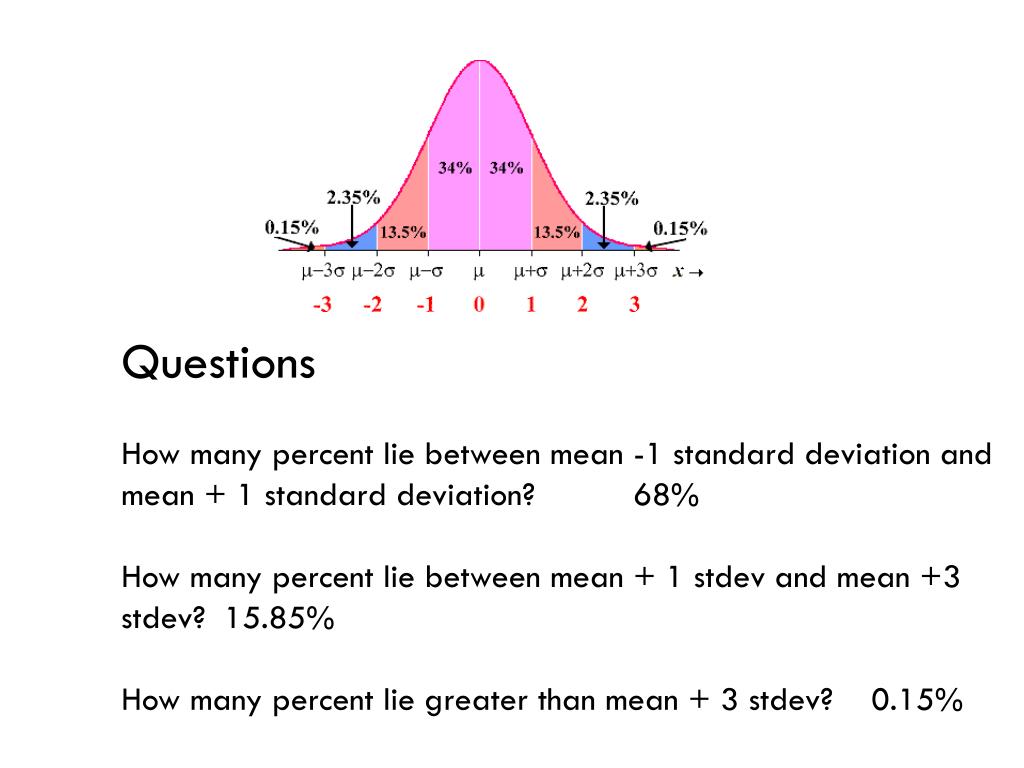

  4. Questions How many percent lie between mean -1 standard deviation and mean + 1 standard deviation? 68% How many percent lie between mean + 1 stdev and mean +3 stdev? 15.85% How many percent lie greater than mean + 3 stdev? 0.15%

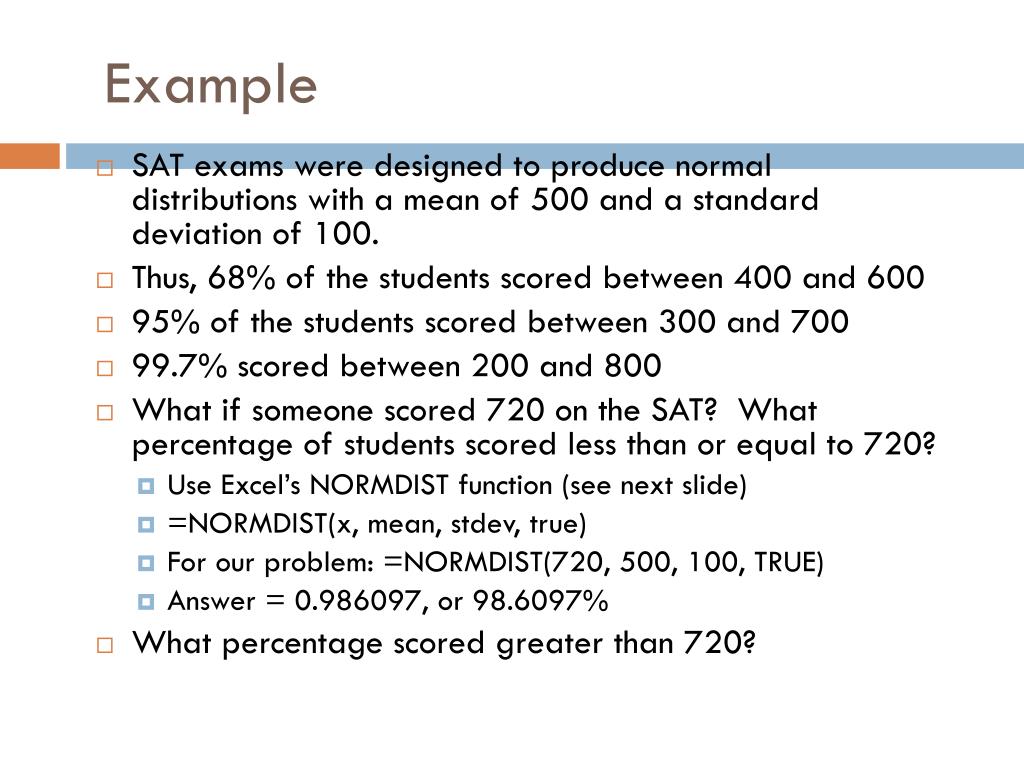

  5. Example • SAT exams were designed to produce normal distributions with a mean of 500 and a standard deviation of 100. • Thus, 68% of the students scored between 400 and 600 • 95% of the students scored between 300 and 700 • 99.7% scored between 200 and 800 • What if someone scored 720 on the SAT? What percentage of students scored less than or equal to 720? • Use Excel’s NORMDIST function (see next slide) • =NORMDIST(x, mean, stdev, true) • For our problem: =NORMDIST(720, 500, 100, TRUE) • Answer = 0.986097, or 98.6097% • What percentage scored greater than 720?

  6. Normal Dstn and its Inverse • In Excel, the normal distribution function is given by NORMDIST and takes four arguments:NORMDIST(x,mean,SD,true),where x is a value, mean is the average of all values, SD is the standard deviation of all values, and true is a constant. NORMDIST returns the cumulative probability that a value is ≤ x. • In Excel, the inverse of the normal distribution function is given by NORMINV and it takes three arguments:NORMINV(p,mean,SD),where p is a probability, mean and SD are as before. NORMINV returns a value x, with the property that p% of the values are ≤ x.

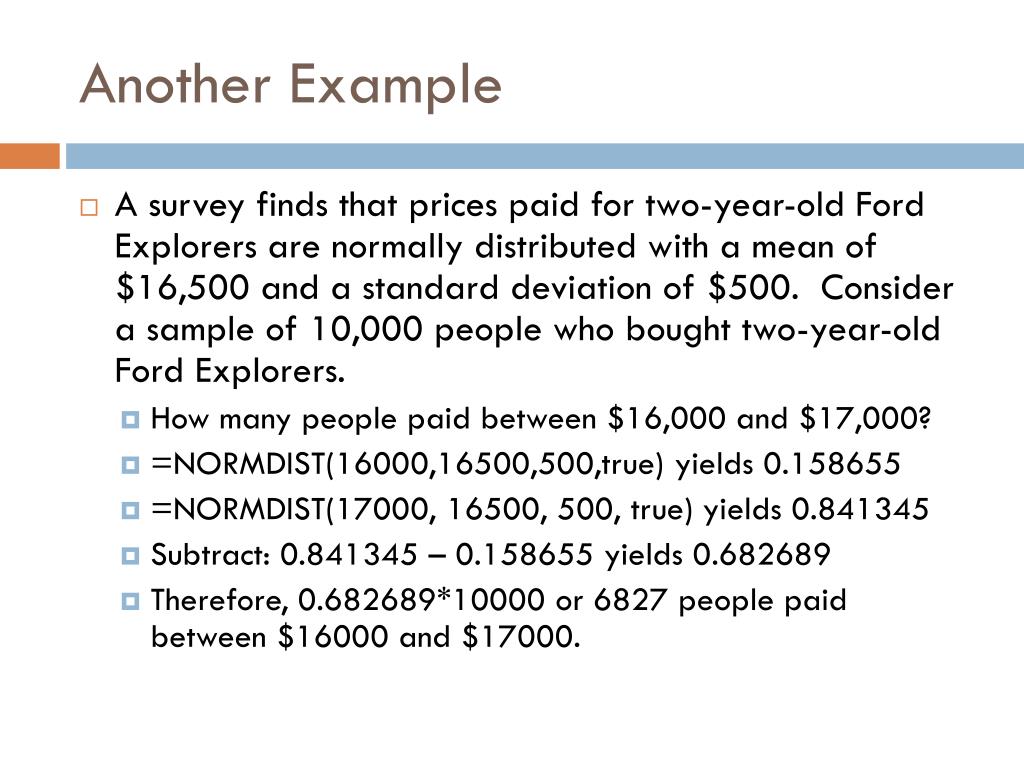

  7. Another Example • A survey finds that prices paid for two-year-old Ford Explorers are normally distributed with a mean of $16,500 and a standard deviation of $500. Consider a sample of 10,000 people who bought two-year-old Ford Explorers. • How many people paid between $16,000 and $17,000? • =NORMDIST(16000,16500,500,true) yields 0.158655 • =NORMDIST(17000, 16500, 500, true) yields 0.841345 • Subtract: 0.841345 – 0.158655 yields 0.682689 • Therefore, 0.682689*10000 or 6827 people paid between $16000 and $17000.

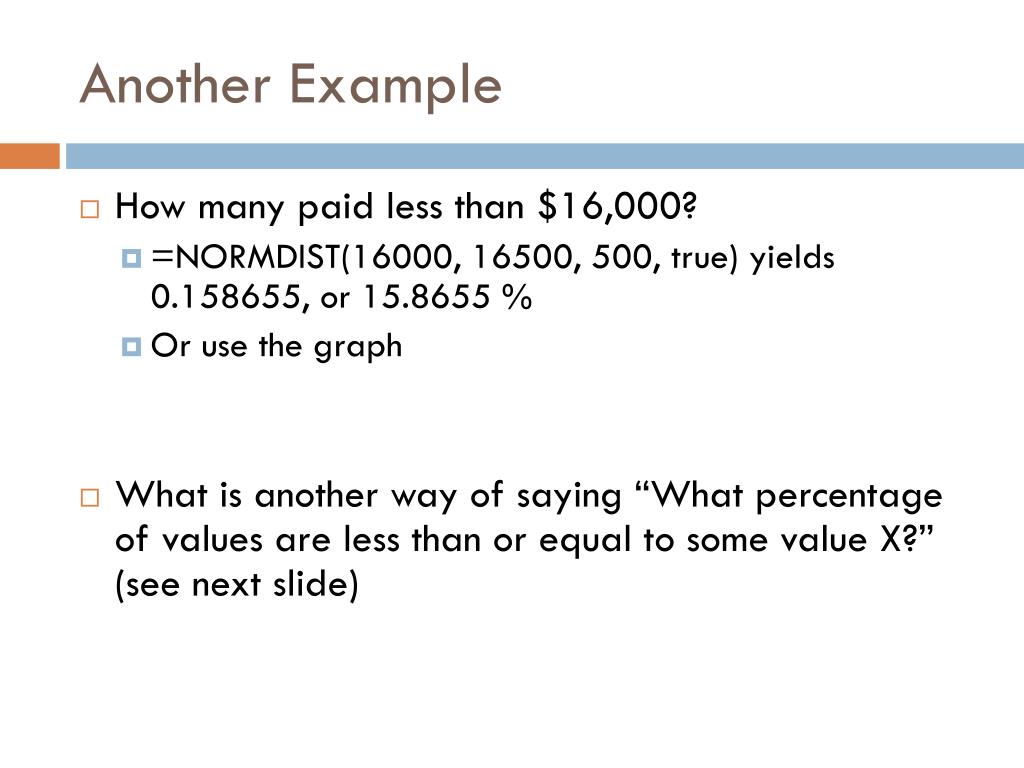

  8. Another Example • How many paid less than $16,000? • =NORMDIST(16000, 16500, 500, true) yields 0.158655, or 15.8655 % • Or use the graph • What is another way of saying “What percentage of values are less than or equal to some value X?” (see next slide)

  9. Percentiles • The pth percentile of a data set is the smallest value, x, in the set with the property that at least p% of the data values are less than or equal x. • In a normal distribution, a z score of 0 is the mean. At the mean, 50% (or 0.50) of all the values are less than or equal to the mean. The mean is the 50th percentile.

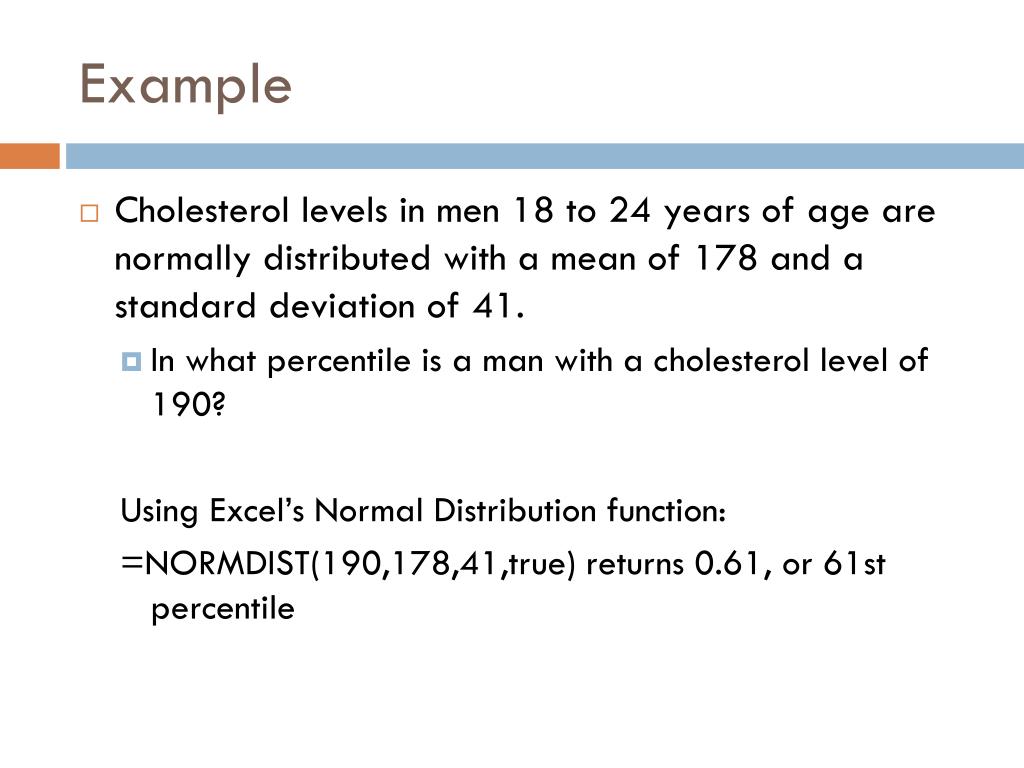

  10. Example • Cholesterol levels in men 18 to 24 years of age are normally distributed with a mean of 178 and a standard deviation of 41. • In what percentile is a man with a cholesterol level of 190? Using Excel’s Normal Distribution function: =NORMDIST(190,178,41,true) returns 0.61, or 61st percentile

  11. Standard Scores • The number of standard deviations a data value lies above or below the mean is called its Standard Score, or z-score, or simply z. • The standard score of the mean is z=0 • The standard score of a data value 1.5 standard deviations above the mean is z=1.5

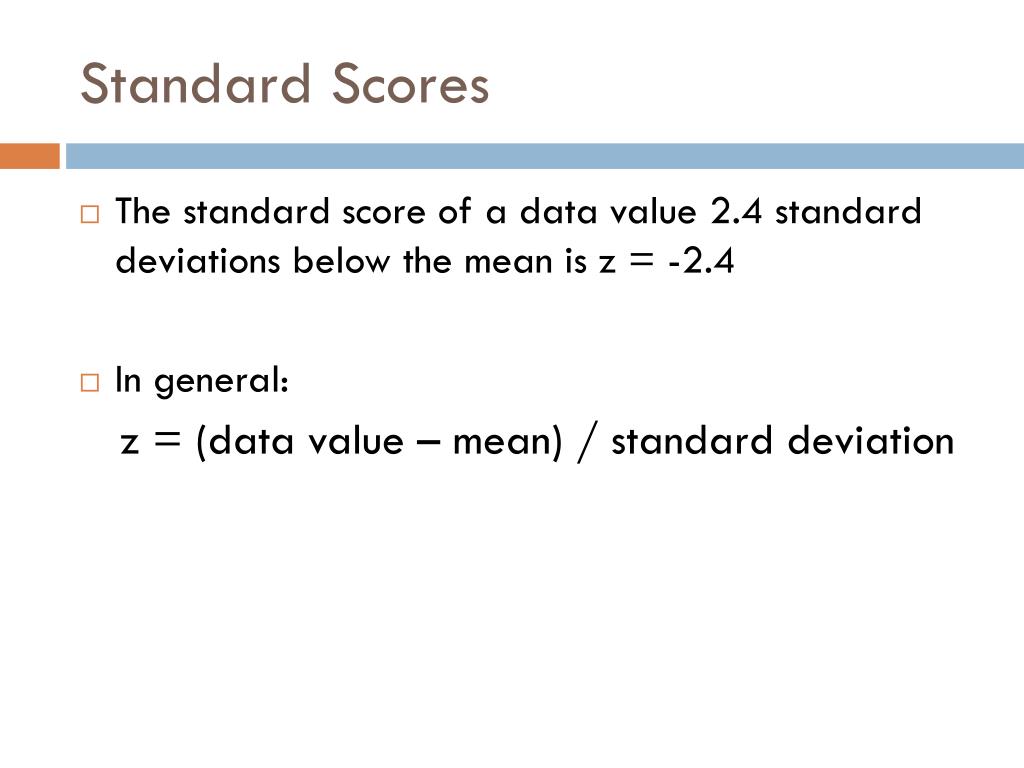

  12. Standard Scores • The standard score of a data value 2.4 standard deviations below the mean is z = -2.4 • In general: z = (data value – mean) / standard deviation

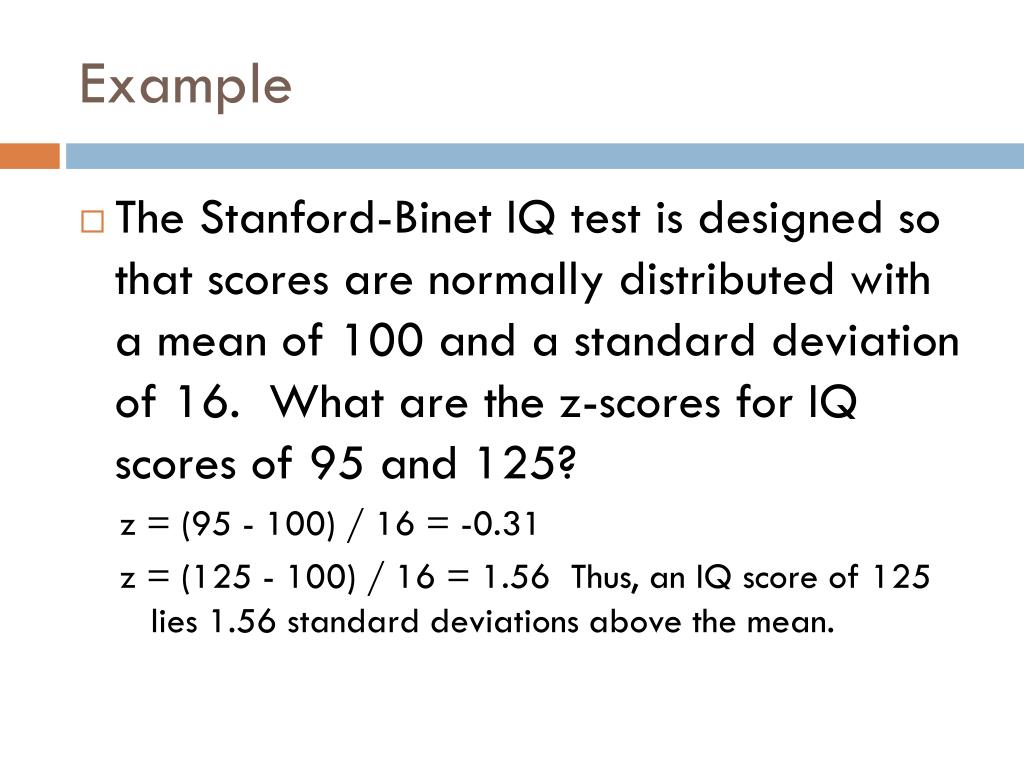

  13. Example • The Stanford-Binet IQ test is designed so that scores are normally distributed with a mean of 100 and a standard deviation of 16. What are the z-scores for IQ scores of 95 and 125? z = (95 - 100) / 16 = -0.31 z = (125 - 100) / 16 = 1.56 Thus, an IQ score of 125 lies 1.56 standard deviations above the mean.

  14. Inverse Normal Distribution Function • What if you know the mean and standard deviation of a set of data and you want to know a particular percentile, x? • We use Excel’s NORMINV • For example, if a set of scores has a mean of 76, a standard deviation of 12, what is the 66th percentile? • Answer: x = NORMINV(0.66,76,12) = 80.95
