  1. Mathematics for Computer Graphics

  2. Lecture Summary • Matrices • Some fundamental operations • Vectors • Some fundamental operations • Geometric Primitives: • Points, Lines, Curves, Polygons

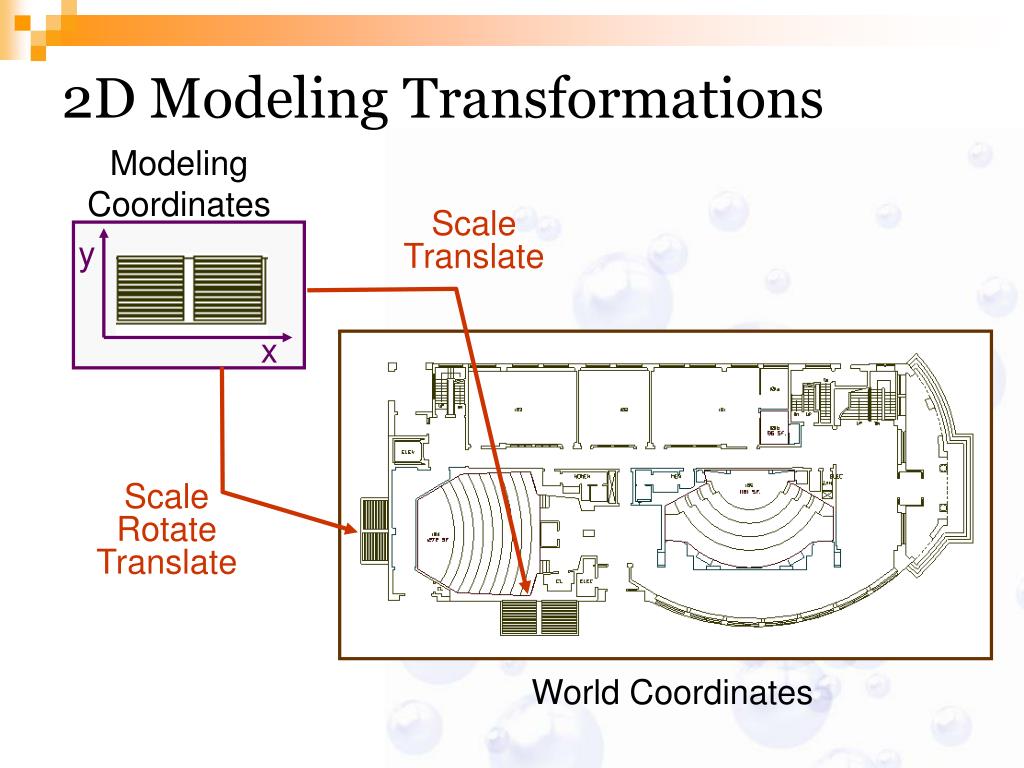

  3. 2D Modeling Transformations Modeling Coordinates Scale Translate y x Scale Rotate Translate World Coordinates

  4. 2D Modeling Transformations Modeling Coordinates y x Let’s lookat this indetail… World Coordinates

  5. 2D Modeling Transformations Modeling Coordinates y x Initial locationat (0, 0) withx- and y-axesaligned

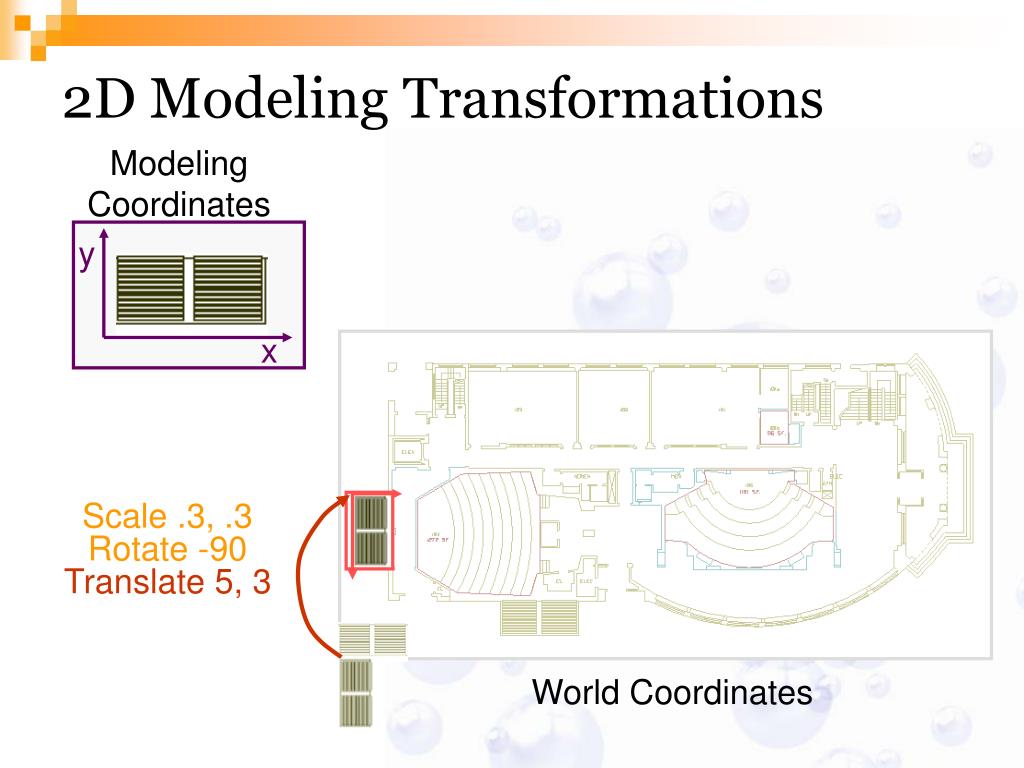

  6. 2D Modeling Transformations Modeling Coordinates y x Scale .3, .3 Rotate -90 Translate 5, 3

  7. 2D Modeling Transformations Modeling Coordinates y x Scale .3, .3 Rotate -90 Translate 5, 3

  8. 2D Modeling Transformations Modeling Coordinates y x Scale .3, .3 Rotate -90 Translate 5, 3 World Coordinates

  9. Matrices • A matrix is a rectangular array of elements (numbers, expression, or function) • A matrix with m rows and n columns is said to be an m-by-n matirx ( matrix), e.g • In general, we can write an m-by-n matrix as

  10. Matrices • A matrix with a single row or a single column represent a vector • Single row : 1-by-n matrix is a row vector • Single column : n-by-1 matrix is a column vector • A square matrix is a matrix has the same number of rows as columns • In graphics, we frequently work with two-by-two, three-by-three, and four-by-four matrices • The zero matrix • The identity matrix • A diagonal matrix

  11. Scalar Multiplication • To multiply a martix A by a scalar value s, we multiply each element amn by the scalar • Ex. , find 3A = ?

  12. Matrix Addition • Two matrices A and B may be added together when these two matrices have the same number of rows and column  the same shape • The sum is obtained by adding corresponding elements. • Ex. , find A+B = ? • Ex. , find A+B = ?

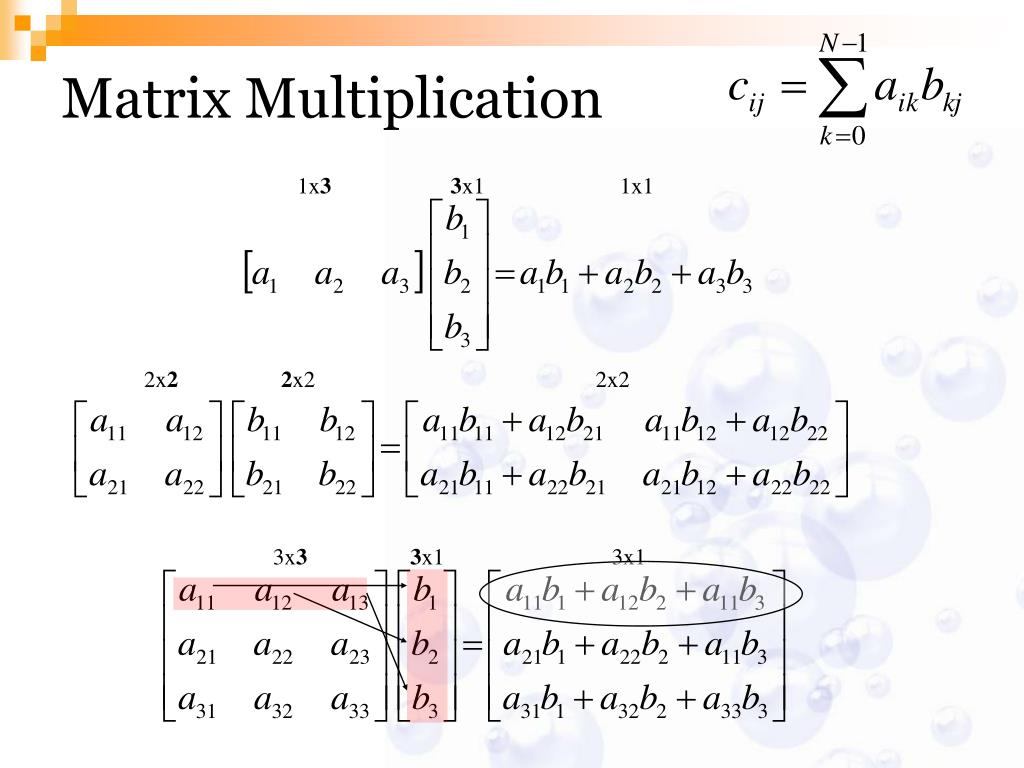

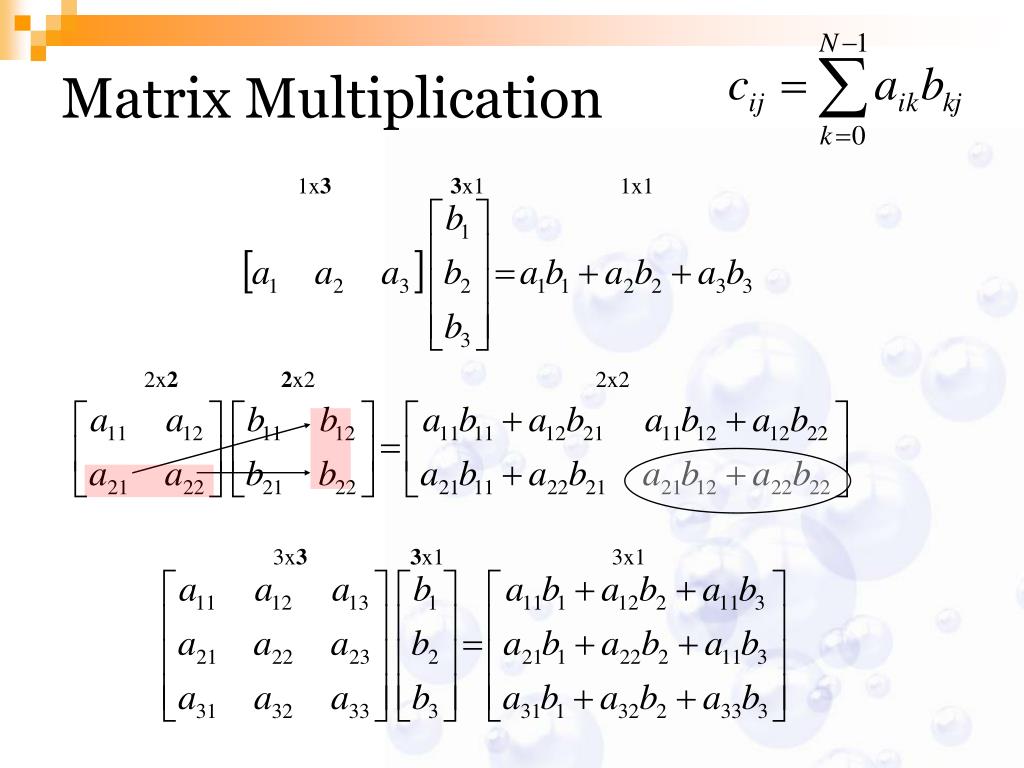

  13. Matrix Multiplication 1x3 3x1 1x1 2x2 2x2 2x2 3x3 3x1 3x1

  14. Matrix Multiplication 1x3 3x1 1x1 2x2 2x2 2x2 3x3 3x1 3x1

  15. Matrix Multiplication 1x3 3x1 1x1 2x2 2x2 2x2 3x3 3x1 3x1

  16. Matrix Multiplication 1x3 3x1 1x1 2x2 2x2 2x2 3x3 3x1 3x1

  17. Matrix Multiplication 1x3 3x1 1x1 2x2 2x2 2x2 3x3 3x1 3x1

  18. Matrix Multiplication 1x3 3x1 1x1 2x2 2x2 2x2 3x3 3x1 3x1

  19. Matrix Multiplication 1x3 3x1 1x1 2x2 2x2 2x2 3x3 3x1 3x1

  20. Matrix Multiplication 1x3 3x1 1x1 2x2 2x2 2x2 3x3 3x1 3x1

  21. Matrix Multiplication 1x3 3x1 1x1 2x2 2x2 2x2 3x3 3x1 3x1

  22. Matrix Multiplication 1x3 3x1 1x1 2x2 2x2 2x2 3x3 3x1 3x1

  23. Matrix Multiplication 1x3 3x1 1x1 2x2 2x2 2x2 3x3 3x1 3x1

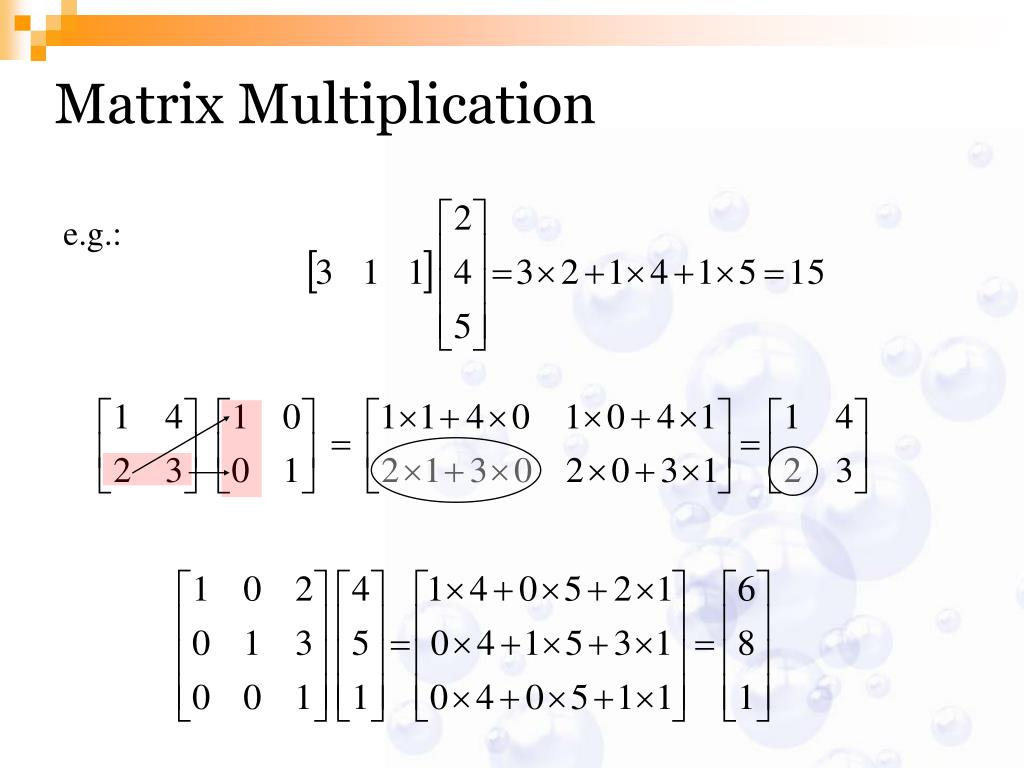

  24. Matrix Multiplication e.g.:

  25. Matrix Multiplication e.g.:

  26. Matrix Multiplication e.g.:

  27. Matrix Multiplication e.g.:

  28. Matrix Multiplication e.g.:

  29. Matrix Multiplication e.g.:

  30. Matrix Multiplication e.g.:

  31. Matrix Multiplication e.g.:

  32. Matrix Multiplication e.g.:

  33. Matrix Multiplication e.g.:

  34. Matrix Multiplication e.g.:

  35. Matrix Multiplication e.g.:

  36. Warning!!! • but (AB)C = A(BC) • A(B+C) = AB + AC • (A+B)C = AC + BC • (AB)T = BTAT • A(sB) = sAB

  37. Determinant of a Matrix

  38. Matrix Inverse
