  1. Software Rhesy S proRheo GmbH

  2. Software Rhesy S for controlling a viscometer, Reading and evaluation of measurement data. For starting a measurement press:

  3. Choose the desired measurement method.

  4. Select baud rate according to the baud rate of Rheomat. Select COM Portcorresponding to the Rheomat.

  5. Press button!

  6. 2. 1.

  7. When clicking this button, the measurement will start immediately.

  8. During measurement the progress of procedure and result are displayed. Full range display of measurement result.

  9. When measurement is finished or interupted, … … store data.

  10. That‘s it!

  11. For defining or modifying methods, click …

  12. D hold up down preshearing time

  13. That‘s it!

  14. Choose your options…

  15. Define special measurement systems. Select language.

  16. Coaxial measurement systems .

  17. That‘s it!

  18. After processing and storing „Automatic“ measurements with R 180, Transfer data to PC:

  19. Number of stored data sets.

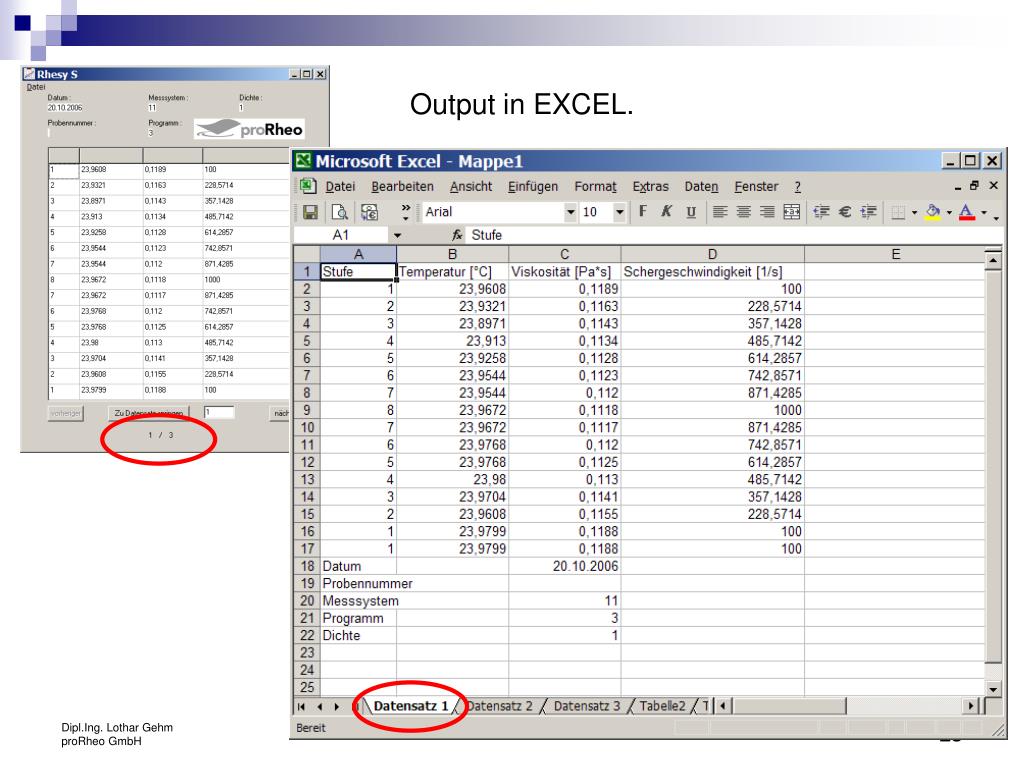

  20. Output in EXCEL.

  21. That‘s it!

  22. Evaluate data:

  23. Open file:

  24. Rhesy S suggests optimal model, … … but you can choose another.

  25. That‘s it!

  26. Comparison of measurement data obtained with the same method. actual measurement MASTER curve

  27. Select „File“ for defining a master or for comparison.

  28. Now it‘s your turn!
