  1. Command Post of the FutureLimited Objective Experiment-1 Presented to: Information Superiority Workshop II: Focus on Metrics 28 - 29 March 2000 Presented by: Dr. Richard E. Hayes Evidence Based Research, Inc. 1595 Spring Hill Road, Suite 250 Vienna, VA 22182 703-893-6800 www.ebrinc.com

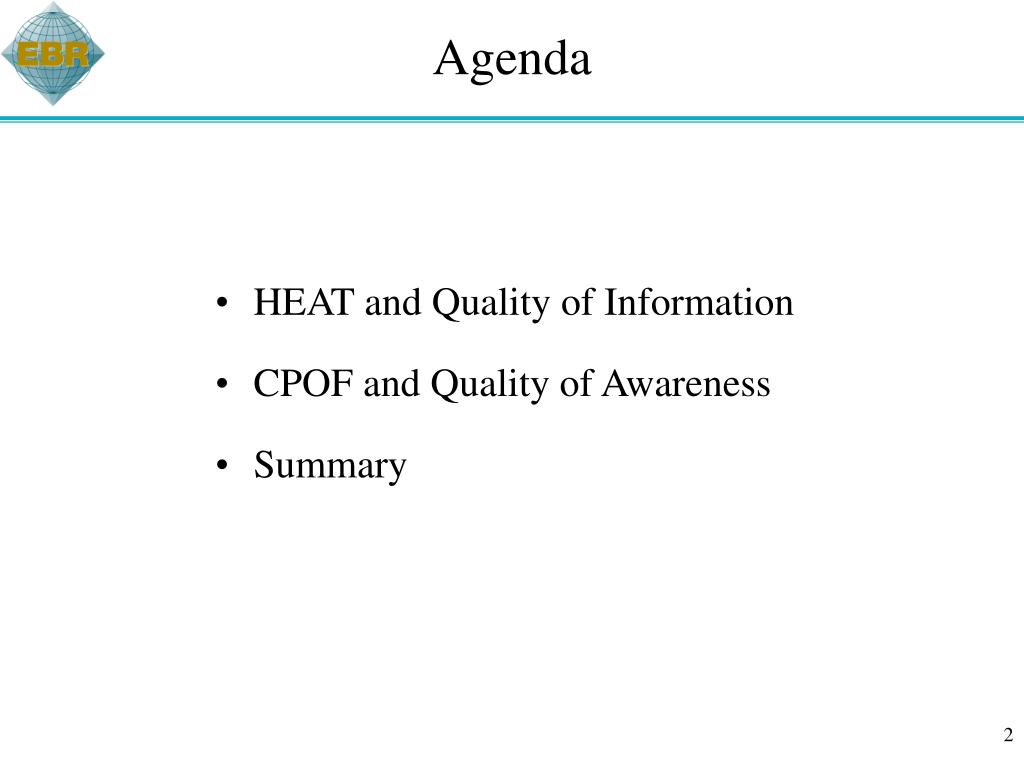

  2. Agenda • HEAT and Quality of Information • CPOF and Quality of Awareness • Summary

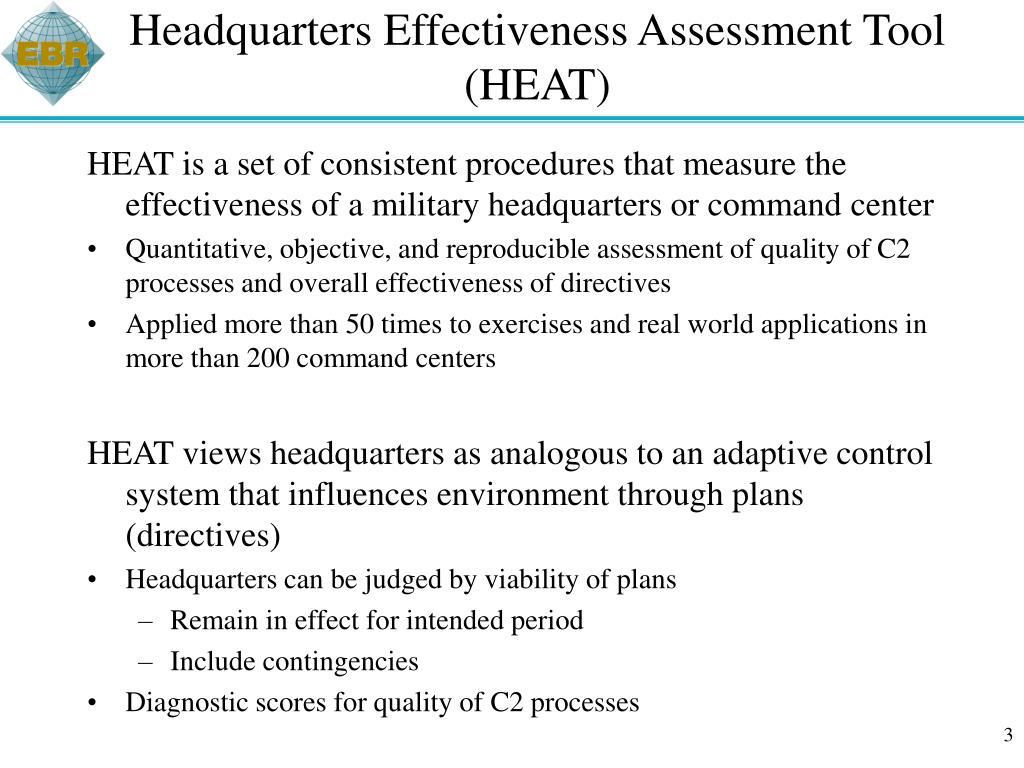

  3. Headquarters Effectiveness Assessment Tool (HEAT) HEAT is a set of consistent procedures that measure the effectiveness of a military headquarters or command center • Quantitative, objective, and reproducible assessment of quality of C2 processes and overall effectiveness of directives • Applied more than 50 times to exercises and real world applications in more than 200 command centers HEAT views headquarters as analogous to an adaptive control system that influences environment through plans (directives) • Headquarters can be judged by viability of plans • Remain in effect for intended period • Include contingencies • Diagnostic scores for quality of C2 processes

  4. HEADQUARTERS PREDICT CONSEQUENCES DEVELOP ALTERNATIVE ACTIONS UNDERSTAND DECIDE MONITOR DIRECT HEAT Analytic Structure ENVIRONMENT: - OWN & ENEMY FORCES - PHYSICAL - POLITICAL & ECONOMIC QUERY INFORM Awareness

  5. HEAT Information Measures Completeness • Are all the required elements present? Correctness • Does the information match the truth? Consistency • Is the information the same across all nodes? Precision • Was the information presented at the proper level of precision? Currency (Latency) • How old is the information?

  6. Command Post of the Future Command Post of the Future (CPOF) is a DARPA program that aims to: • Increase Speed and Quality of Command Decisions • Faster recognition and better understanding of changing battlefield situation • Faster and more complete exploration of available courses of action • Provide More Effective Dissemination of Commands • COA capture for dissemination of commander’s intent • Status and capability feedback from deployed operators • Enable Smaller, More Mobile and Agile Command Structures • More mobile, distributed command element • Smaller support tail & reduced deployment requirements The goal of CPOF is to shorten the commander’s decision cycle to stay ahead of the adversary’s ability to react.

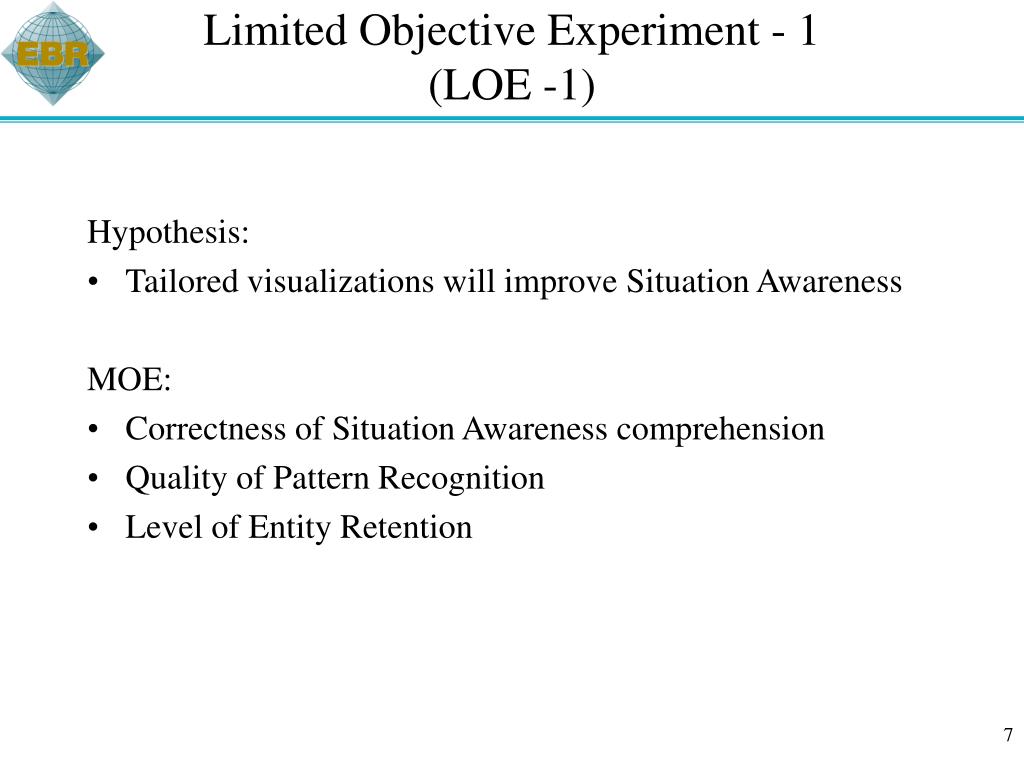

  7. Limited Objective Experiment - 1(LOE -1) Hypothesis: • Tailored visualizations will improve Situation Awareness MOE: • Correctness of Situation Awareness comprehension • Quality of Pattern Recognition • Level of Entity Retention

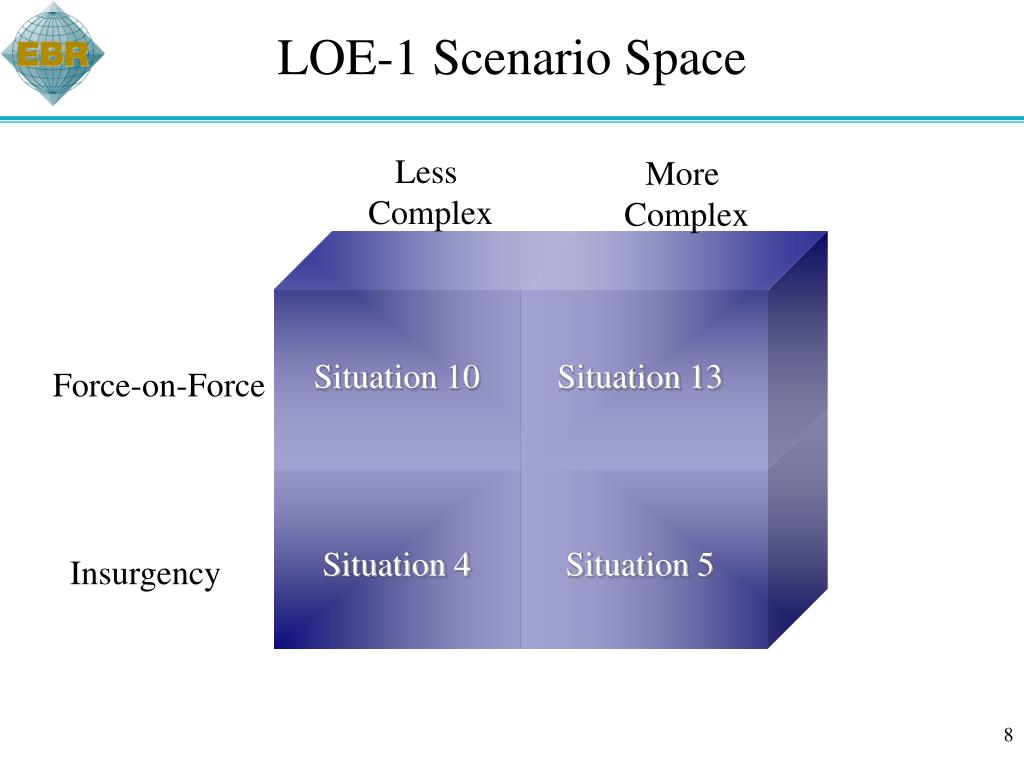

  8. LOE-1 Scenario Space Less Complex More Complex Situation 10 Situation 13 Force-on-Force Situation 4 Situation 5 Insurgency

  9. Data Collection • 157 valid runs over 5 days (98% of design goal of 160) • Data Collection Vehicle - Debrief Questionnaire • Questions divided into four major elements: overall Situation Assessment, Patterns, Elements, and a Sketch of the situation • Military experience data collected for each subject • Run randomization compensated for variations between coders and subjects

  10. Top Level Measures • Overall Situation Awareness • Picture of the battlespace - enemy posture and intentions, friendly possibilities for favorable action • Pattern Recognition • Dynamics of the battlespace - relative positions, strength, and capabilities • Element Retention • Locations, status, events over time • Ability to draw a general Sketch with relative positioning of important entities in space and time

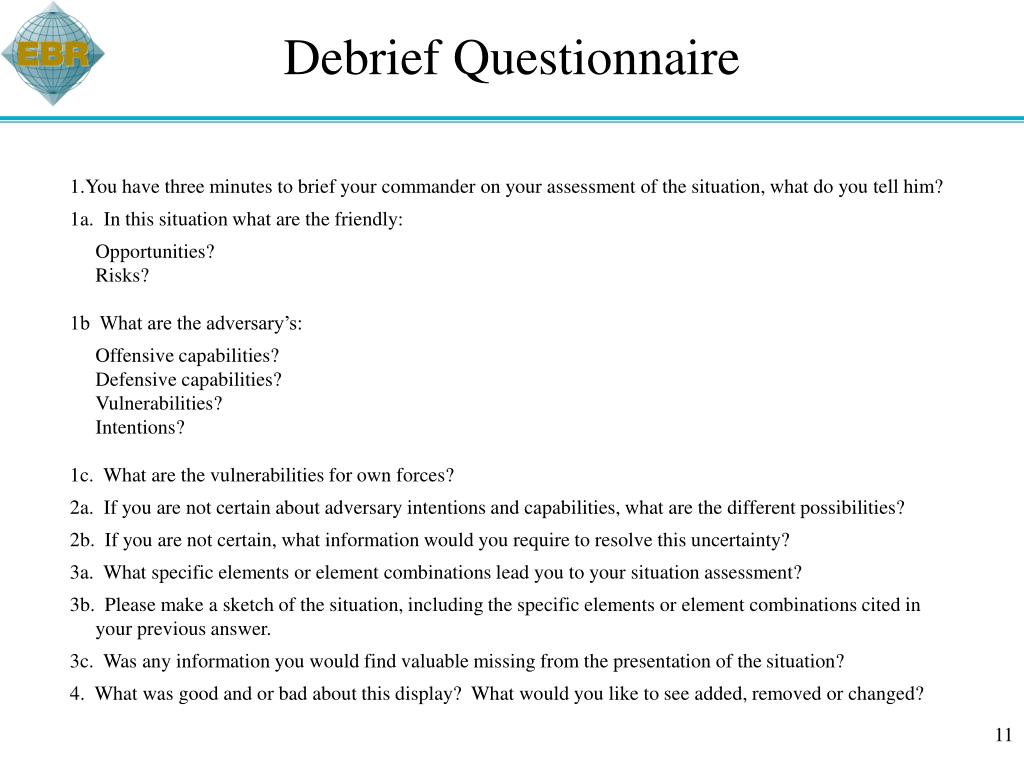

  11. Debrief Questionnaire 1.You have three minutes to brief your commander on your assessment of the situation, what do you tell him? 1a. In this situation what are the friendly: Opportunities? Risks? 1b What are the adversary’s: Offensive capabilities? Defensive capabilities? Vulnerabilities? Intentions? 1c. What are the vulnerabilities for own forces? 2a. If you are not certain about adversary intentions and capabilities, what are the different possibilities? 2b. If you are not certain, what information would you require to resolve this uncertainty? 3a. What specific elements or element combinations lead you to your situation assessment? 3b. Please make a sketch of the situation, including the specific elements or element combinations cited in your previous answer. 3c. Was any information you would find valuable missing from the presentation of the situation? 4. What was good and or bad about this display? What would you like to see added, removed or changed?

  12. Metrics Overall • Prompted % of key components wrong inferences added inferences • Unprompted % of key components wrong inferences added inferences Patterns % of pre-identified wrong added Elements % of important elements wrong added Sketch % of pre-identified elements wrong added temporal pattern geographic pattern

  13. Interpretation CPOF Technologies Generated: Better Situation Awareness (Higher Mean or X) CPOF Technologies Performance Improves for Prompted CPOF Technologies Control CPOF Technologies SignificantlyOutperform Control in Overall Scores Unprompted Prompted 33.86 25.62 25.80 x 23.40 17.77 21.41 22.30 23.89 s N=157 p=.058 N=157 p=.007

  14. Interpretation: CPOF Technologies generated better Situation Awareness (higher mean or x) in complex situations CPOF Technologies Control CPOF Technologies SignificantlyOutperform Control in Complex Situations Prompted Unprompted 19.96 18.28 17.24 x 18.53 5.10 8.85 3.95 s 6.28 N=78 p=.000 N=78 p=.000

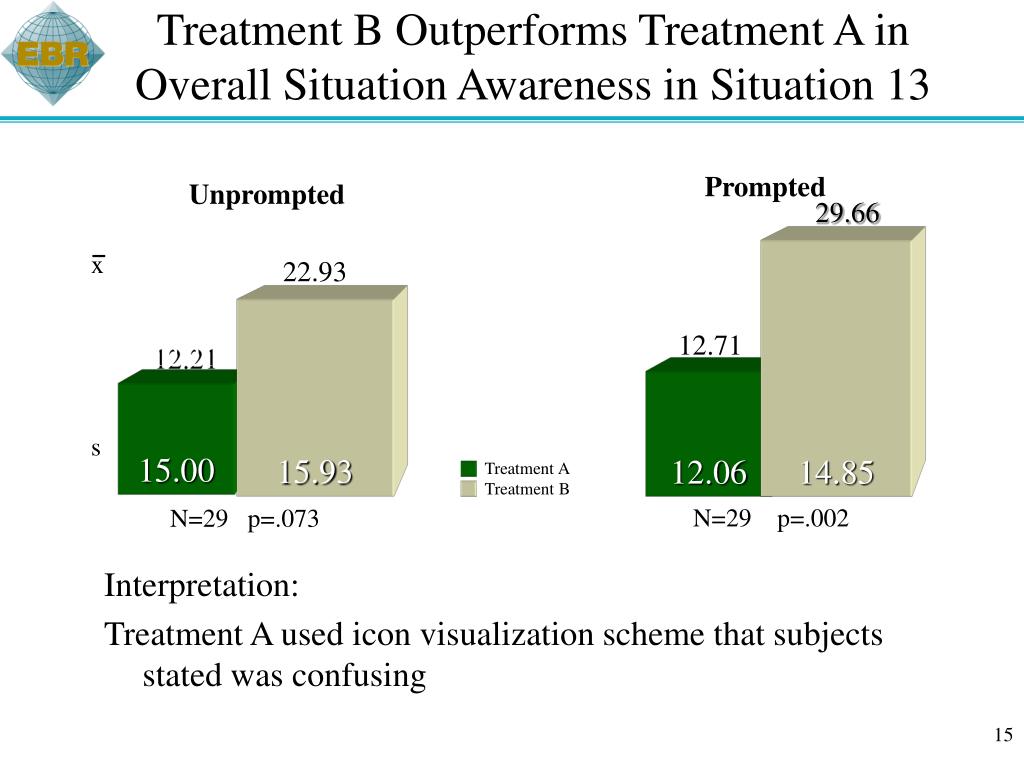

  15. Treatment A Treatment B x Treatment B Outperforms Treatment A in Overall Situation Awareness in Situation 13 Prompted Unprompted 29.66 14.85 22.93 15.93 12.71 12.21 12.06 15.00 s N=29 p=.002 N=29 p=.073 Interpretation: Treatment A used icon visualization scheme that subjects stated was confusing

  16. The Force-on-Force Visualization Treatments Treatment B Blobs and Allegiance Color Coding Today’s Technology Allegiance Color Coding Treatment A Function Color Coding

  17. Summary • Information does not equal awareness • Natural layers of overall patterns and elements • Measures must always be developed in a military context • Overall • Patterns • Elements • Incorrect • Richness
