Dataflow Analysis for Concurrent Programs using Datarace Detection Ravi Chugh, Jan W. Voung, Ranjit Jhala, Sorin Lerner LBA Reading Group Michelle Goodstein 6/5/08

Outline • Motivation • Overview of Radar • Radar Formalization • Radar Optimizations • Radar(Relay) • Evaluation & Results • Conclusions

Motivation • Want to apply dataflow analysis to concurrent programs without: • Requiring annotations • Escape analysis (loss of precision) • Custom concurrency analysis • Model checking (combinatorial explosion)

Introducing Radar • Scheme for concurrent dataflow analysis • Starts with sequential dataflow analysis • Race detection creates concurrent analysis • Can use already-created race detectors • We’ll see it applied to Relay

Assumptions • For each procedure, either • Have access to code • Have access to a sound summary • Shared memory is sequentially consistent

Radar’s Key Insights • Adjustability of sequential analysis: • Concurrent dataflow facts are a subset of sequential dataflow facts • “Missing facts” • Facts that can be killed by other threads • Suppose we have a fact about lvalue l • “At line y, l is not null” • Enough to know if another thread can write to l concurrently • “At line z, another thread can write to l”

Radar’s Key Insights • Pseudo-Races : • Identify “missing facts”, • Remove from sequential analysis • Solution: insert a pseudo-read for location l • Ask a race detector: “is there a race at this point for l?” • Yes  Another thread can write. Remove fact • No  No other thread can write. Retain fact. • Producer/Consumer examples follow • Non-null dataflow analysis • Sequential analysis on left • Facts “killed” by concurrency crossed out in red

Producer–Consumer Pseudo-read for px->data at line PA Consumer thread can execute line C5  Race! px->data is crossed out at line PA First example: non-null facts

Modified producer/consumer Still race-free, other than perf_ctr Now, producer acquires/releases lock twice Second example: non-null facts

Insert pseudo-read at P5 on px->data Races with C5 write to cx->data Kills px->data at P5 and where it propagates At P8, not necessarily true that px->data is non-null Null pointer dereference! Note: no data races (except on perf_ctr) We can detect this! Second example: non-null facts

Sequential Dataflow Analysis • Representation: nodes in CFG • Flow function F(n,d,p): facts true after point p • n: node, d: incoming dataflow fact, p: program point • lvals(f): lvalues fact f depends on • ThreadKill(p,l): computes whether race can occur on l at program point p Fadj(n,d,p) = {fF(n,d,p), llvals(f), fThreadKill(p,l)}

Is Radar Sound? • Suppose there is an oracle function O • Give a program point p and a location l • Returns whether a race is possible • Suppose radar is given a race detector R • Radar is sound if O(p,l) implies R(p,l) • If there is a race, radar wil detect it • Can also return false positives

Radar Optimizations • Reduce number of times call ThreadKill • Handle function calls

Reduce ThreadKill calls • Race detector for cross product of program points and lvalues is expensive • Many program points have similar behavior • For each lvalue in a region: • Racy for entire region • Not racy for entire region • Compute once for entire region • Region Map: points  “regions

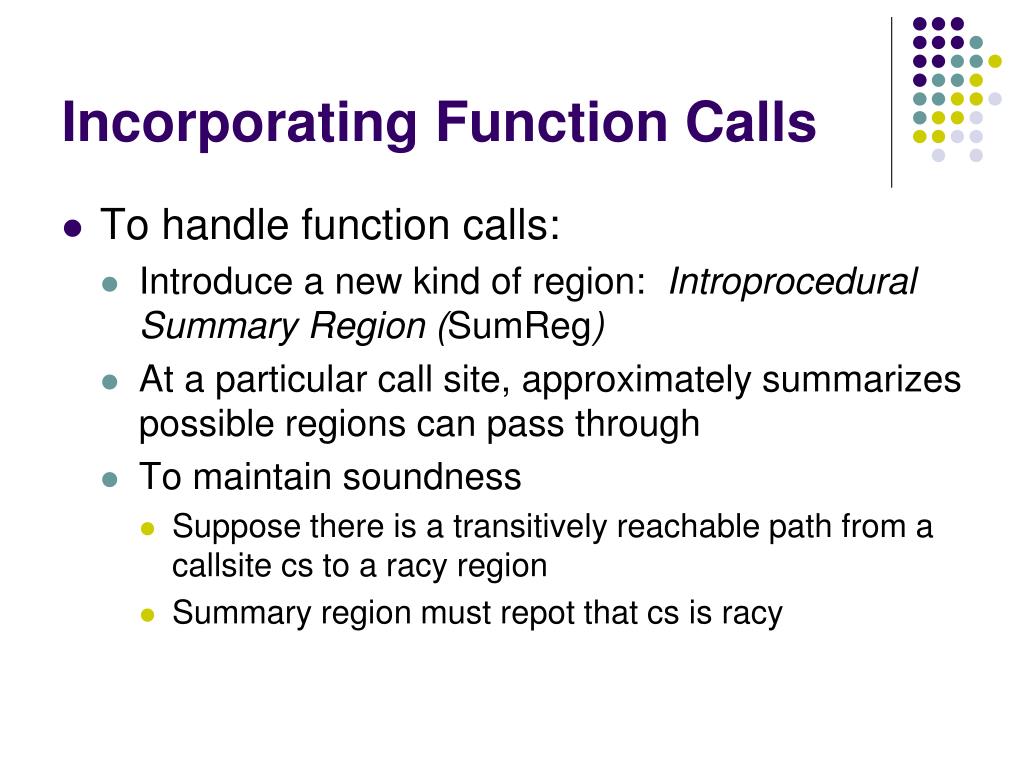

Incorporating Function Calls • To handle function calls: • Introduce a new kind of region: Introprocedural Summary Region (SumReg) • At a particular call site, approximately summarizes possible regions can pass through • To maintain soundness • Suppose there is a transitively reachable path from a callsite cs to a racy region • Summary region must repot that cs is racy

Radar’s Requirements • Race Detection Engine • Region  Lvalue  raciness • Region Map • Points  Race-equivalent Regions • Summary Region Map • Callsites  Summary Regions

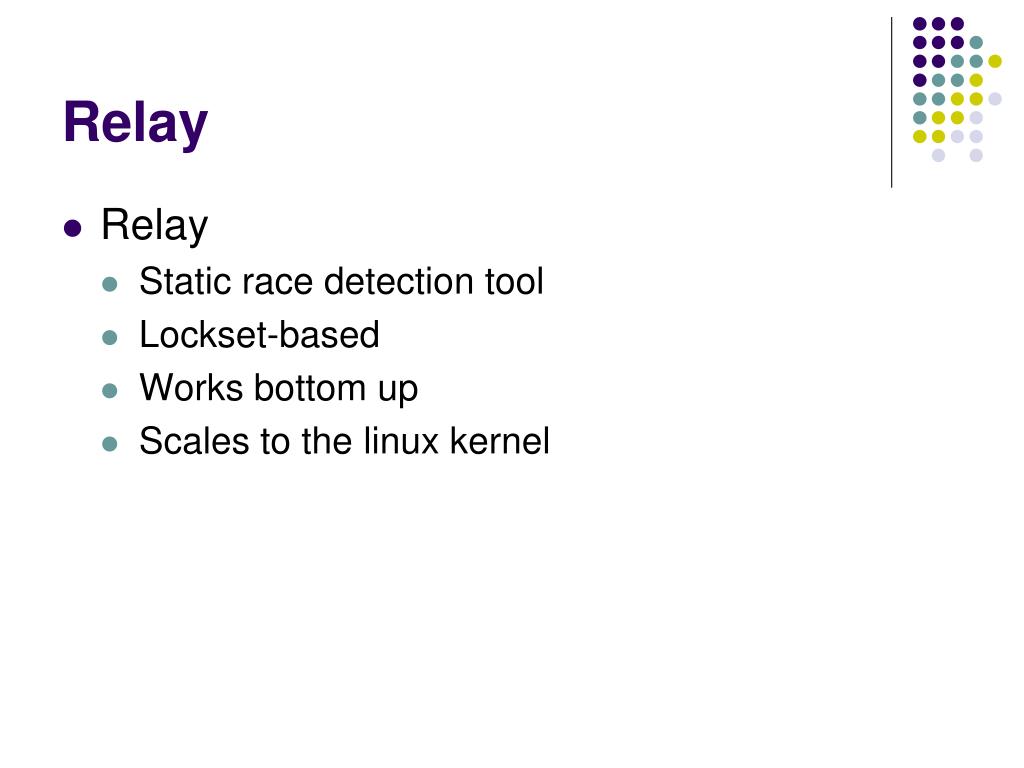

Relay • Relay • Static race detection tool • Lockset-based • Works bottom up • Scales to the linux kernel

Relay • Uses relative lockset analysis: • L+, L- : • L+ : locks definitely acquired since function entry point • L- : locks possibly released since function entry point • Relative lockset for exit point of function is stored as summary of function’s behavior • Approximates effect of function call on locks currently held

Radar(Relay) • Race Detection Engine • Relay • Region Map • Maps program point  (g, (L+,L-)) • g: function name • (L+,L-): relative lockset summary for function g • Summary Region Map • Function g being called at the call site cs in function h • Computes AllUnlocks(cs) =  L- in g • Suppose Region is (h, (L+,L-)) • Returns (h, (L+ - AllUnlocks(cs),L-AllUnlocks(cs)))

Pseudoreads • Suppose at some program point p fact f holds • RegionMap(p):region (g, (L+,L-)) • For all lvalues l  lvals(f): • Pretend to read l at p with relative lockset (L+,L-) • For any other lvalue m which might be aliased… • Intersection of positive locksets is empty  report race

Relay with Radar: Implementation • First Pass: Run Relay • Computes relative lockset associated with each function • Second Pass: Sequential Analysis • Pretend no races exist • Collect all the possible queries about races • Third Pass: Run Relay, Adding Pseudo-reads • Insert pseudo-access wherever race query exist • Fourth Pass: Adjusted Sequential Analysis • At each pseudo-access for l, query race detector • If race could occur, kill facts depending on l

Outline • Motivation • Overview of Radar • Radar(Relay) • Radar Formalization • Radar Optimizations • Evaluation & Results • Conclusions

Evaluation • Focus on non-null dataflow analysis • Used 4 black boxes to answer race queries • Steensgaard’s pointer analysis • If a value is reachable from a global  true • Radaralias • Region map always returns empty lockset • Answers the question of whether any two values alias • Radar • Optimistic • Always return false • Unsound, and overly precise

Results

Terminology • Blob nodes: • Many lvalues on the heap are merged into one node by alias analysis • Can lead to false positives when checking null-dereferences • Other work shows hard to account for heap structures • Next figure excludes “blob nodes” for pointer dereferences • Non-blob dereferences: • Apache: 52% • SSL: 76% • Linux: 71%

Results

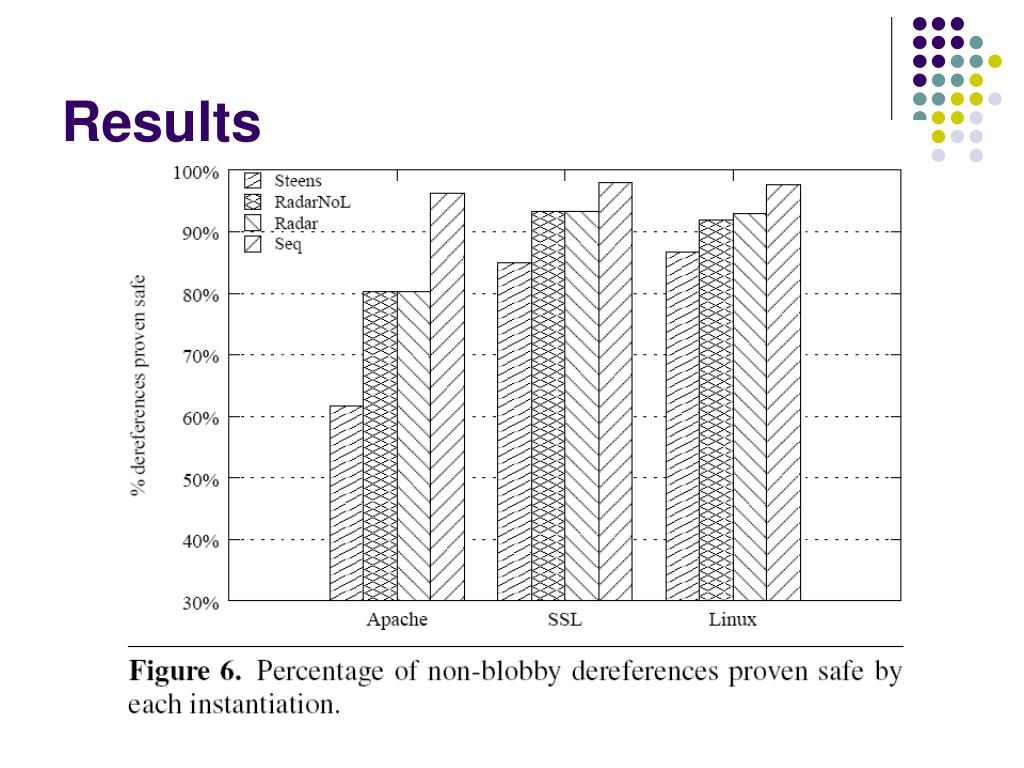

Results • Consider gap between Seq and Steensgaard • Check how much is bridged by Radar • With and without locks

Outline • Motivation • Overview of Radar • Radar(Relay) • Radar Formalization • Radar Optimizations • Evaluation & Results • Conclusions

Conclusions • Radar is • Scalable • Not tied to particular concurrency models • Tunable to desired precision • Radar(Relay) • Good precision relative to sequential, steensgaard • Future Work • More types of analysis • Race detection for other concurrency constructs
