Integer Rod Operations

gzifa avatar
gzifa
26 diapositives · 391 Views · Aug 07, 2014

Learn the essential steps for performing integer rod operations—addition, subtraction, multiplication, and division—with minimal rods. This guide provides a systematic 6-step approach to represent fractions using integer rods, ensuring clarity and efficiency. Discover how to find common denominators, simplify representations, and interpret results effectively. Whether you're a student or educator, enhance your understanding of fraction representation using visual tools. Join the race to mastering these operations today!

Integer Rod Operations - slide 1
01 / 26Integer Rod Operations
1 / 17

Télécharger la présentation

Integer Rod Operations
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Integer Rod Operations Adding, Subtracting, Multiplying, and Dividing

  2. Six Steps Required • Represent the fraction with the smallest and least number of rods possible • Race the denominators to a tie. This will ALWAYS take 3 rows – the new common denominator is at the bottom

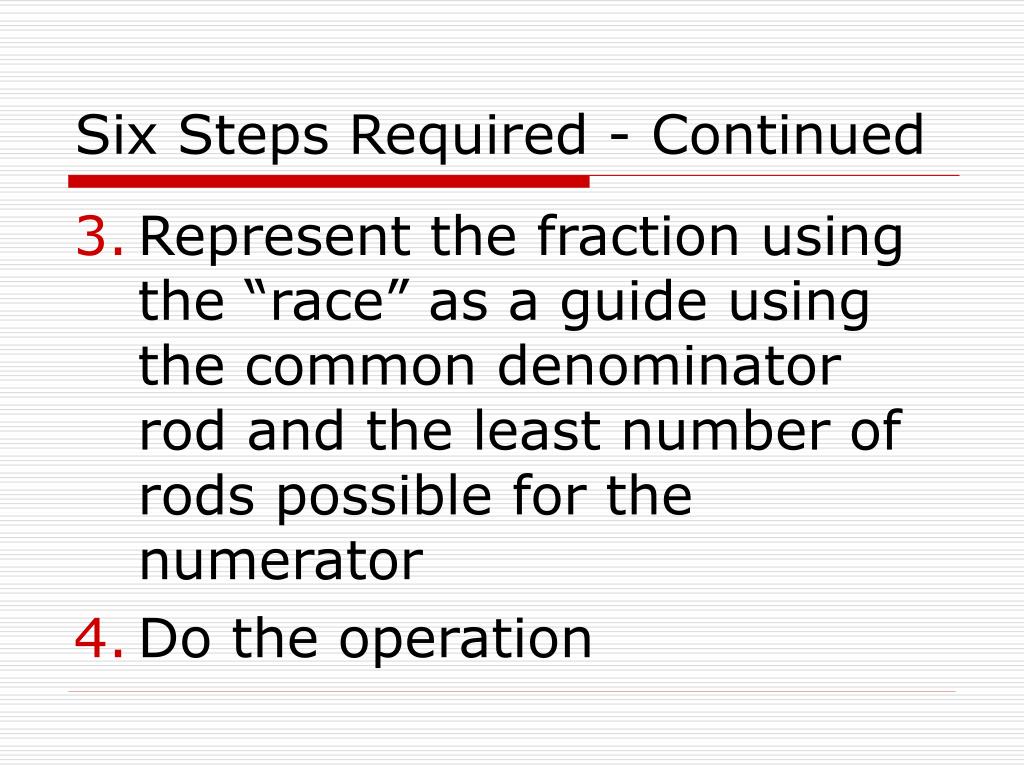

  3. Six Steps Required - Continued • Represent the fraction using the “race” as a guide using the common denominator rod and the least number of rods possible for the numerator • Do the operation

  4. Six Steps Required - Continued • Simplify the representation –least number of rods possible • Interpret the representation in #5 as a fraction number answer

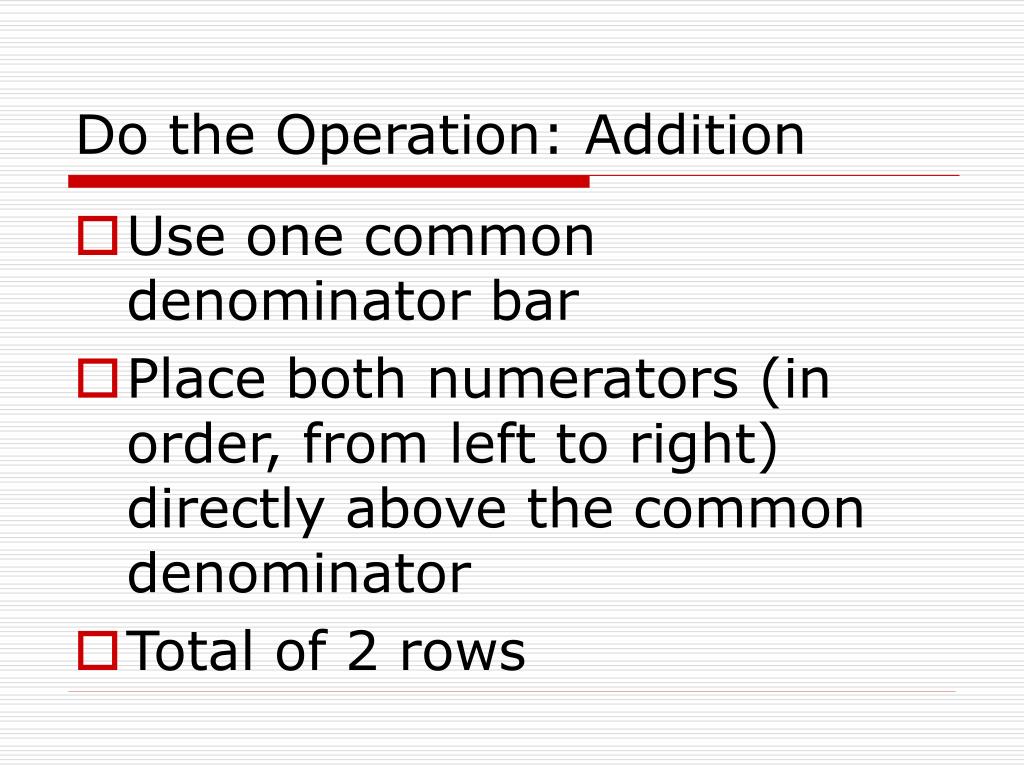

  5. Do the Operation: Addition • Use one common denominator bar • Place both numerators (in order, from left to right) directly above the common denominator • Total of 2 rows

  6. Simplify the Representation: Addition • Use one common denominator bar • Represent all with the least number of rods possible • Total of 2 rows

  7. Addition – Semi-Concrete A. B. C. D. E. F. A. B. C. D. E. F.

  8. Addition – Semi-Concrete A. B. C. D. E. F. A. B. C. D. E. F.

  9. Adding – Semi-Abstract

  10. Do the Operation: Subtraction • Use one common denominator bar • Place the minuend (the sum) directly above the common denominator • Place the subtrahend (addend) directly above the minuend (the sum) • Use dashed lines to indicate the difference (missing addend) next to the subtrahend • Total of 3 rows

  11. Simplify the Representation: Subtraction • Use one common denominator bar • Place the difference (missing addend) directly above the common denominator bar • Represent all with the least number of rods possible • Total of 2 rows

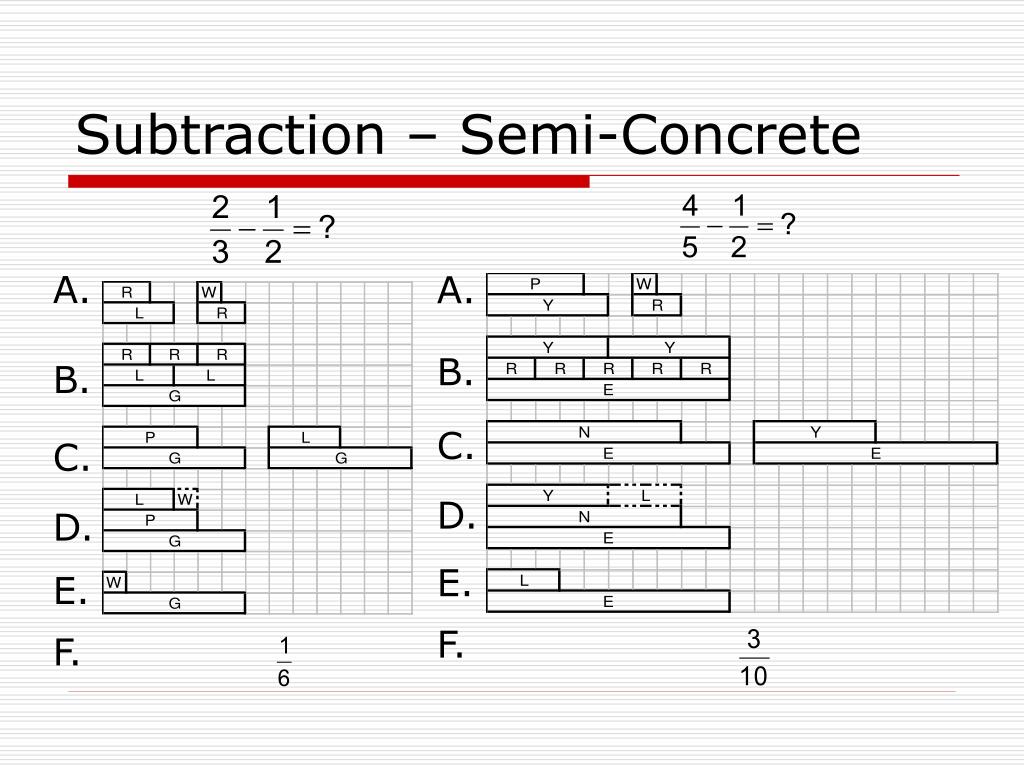

  12. Subtraction – Semi-Concrete A. B. C. D. E. F. A. B. C. D. E. F.

  13. Subtraction – Semi-Concrete A. B. C. D. E. F. A. B. C. D. E. F.

  14. Subtraction – Semi-Abstract

  15. Race Representation: Multiplication • Use one common denominator bar • The numerator will represent the SECONDfactoronly • Do NOT represent the first factor

  16. Do the Operation: Multiplication • Use one common denominator bar • Place the numerator of the second factor directly above the common denominator • Look at the first factor in the problem • Treat the numerator of the second factor as the denominator of the first factor • Place a bar above it that represents the numerator for the first factor • Total of 3 rows

  17. Simplify the Representation: Multiplication • Use one original common denominator bar • Place the top bar from the step above directly above the common denominator bar • Represent all with the least number of rods possible • Total of 2 rows

  18. Multiplication – Semi-Concrete A. B. C. D. E. F. A. B. C. D. E. F.

  19. Multiplication – Semi-Concrete A. B. C. D. E. F. A. B. C. D. E. F.

  20. Multiplication – Semi-Abstract

  21. Do the Operation: Division • Use one common denominator bar • Place the divisor (the factor) directly above the common denominator • Place the dividend (the product) directly above the divisor (the factor) • Total of 3 rows

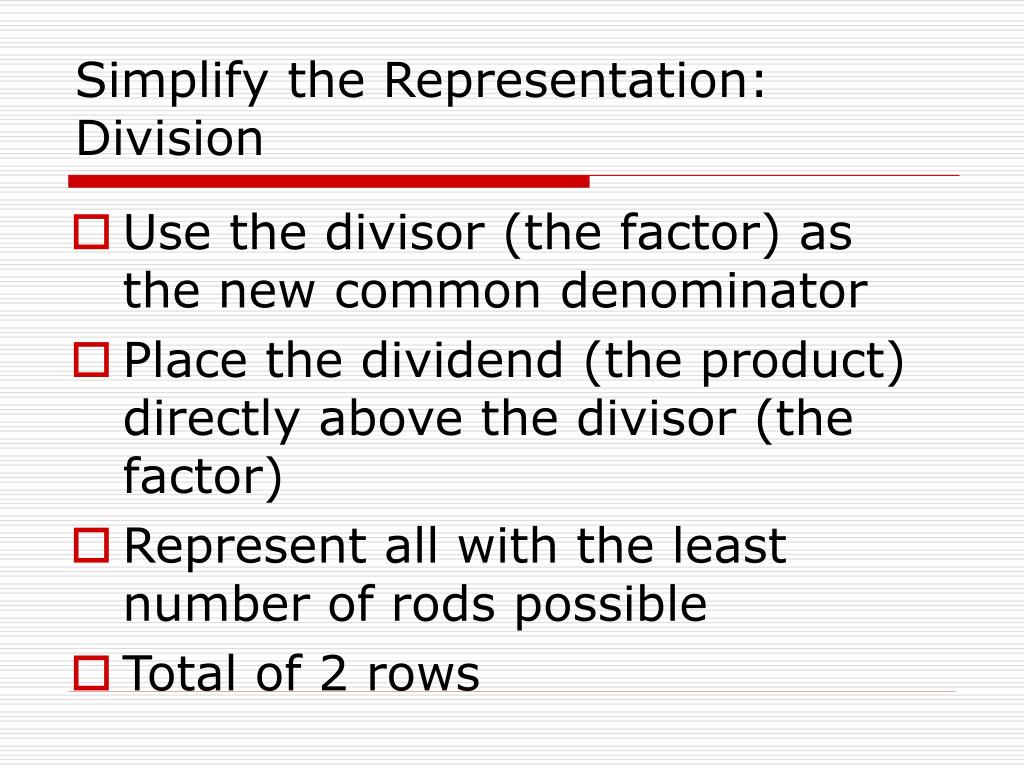

  22. Simplify the Representation: Division • Use the divisor (the factor) as the new common denominator • Place the dividend (the product) directly above the divisor (the factor) • Represent all with the least number of rods possible • Total of 2 rows

  23. Division – Semi-Concrete A. B. C. D. E. F. A. B. C. D. E. F.

  24. Division – Semi-Concrete A. B. C. D. E. F. A. B. C. D. E. F.

  25. Division – Semi-Abstract

  26. Representing Fractions Using Bars • How do we represent fractions using integer bars? • Part to whole • Whole changes as necessary to make equivalents • A train is two rods put together – ALL trains must have at least one E in them • We will ALWAYS use the least number of bars possible to make a representation • Do NOT draw more lines on representations than necessary
