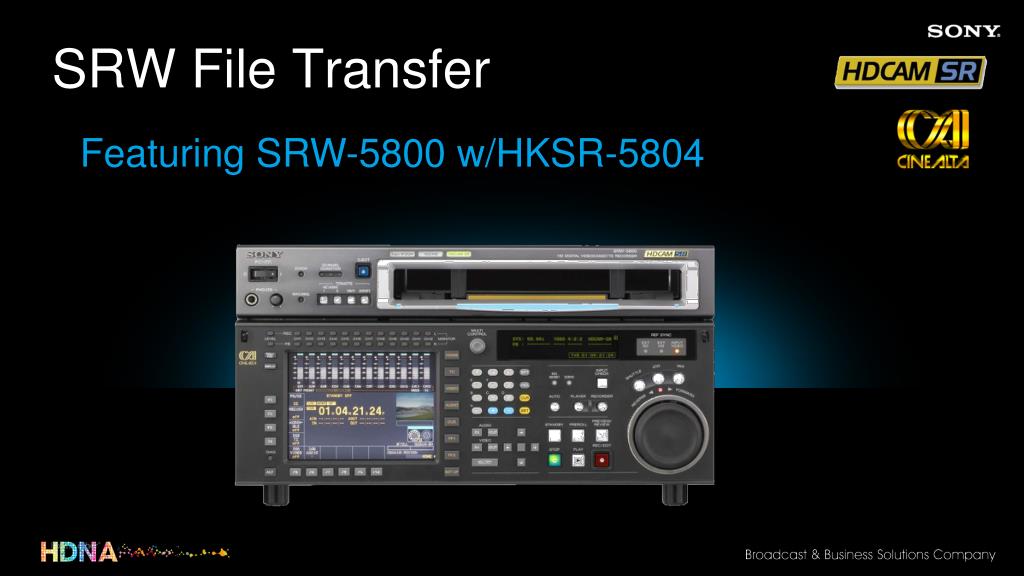

  1. SRW File Transfer Featuring SRW-5800 w/HKSR-5804

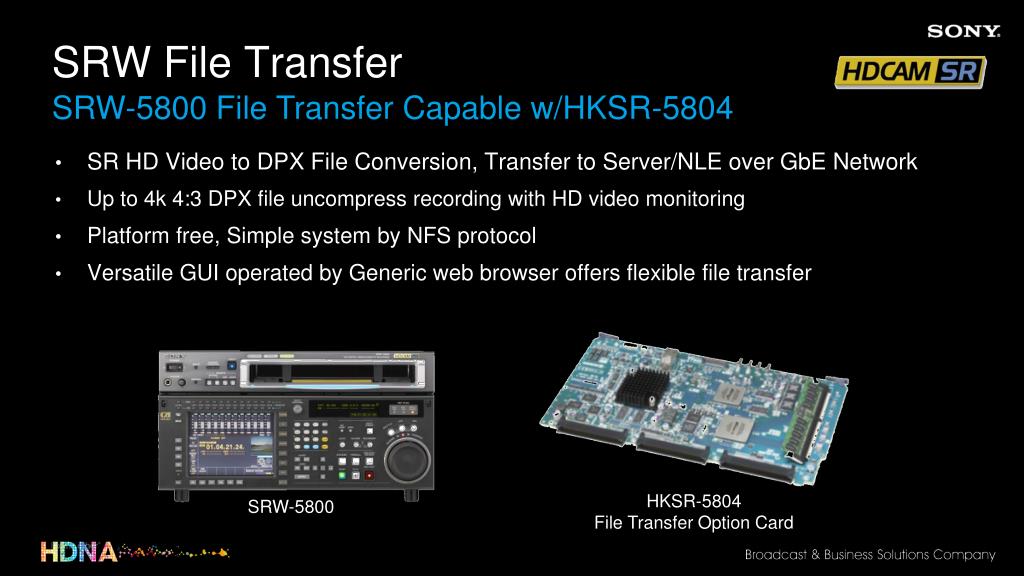

  2. SRW File Transfer SRW-5800 File Transfer Capable w/HKSR-5804 • SR HD Video to DPX File Conversion, Transfer to Server/NLE over GbE Network • Up to 4k 4:3 DPX file uncompress recording with HD video monitoring • Platform free, Simple system by NFS protocol • Versatile GUI operated by Generic web browser offers flexible file transfer HKSR-5804 File Transfer Option Card SRW-5800

  3. DPX Files DPX File Transfer– HD Recording Mode HDCAM-SR 4:4:4/4:2:2 GbE ・VTR joint via Network ・Ingest immediately 4/10

  4. 2K/4K DPX DPX File Transfer– Data Recording Mode GbE ・4K/2K DPXNon-compression data record ・HD Monitoring ・Material exchange among DI Facilities 5/10

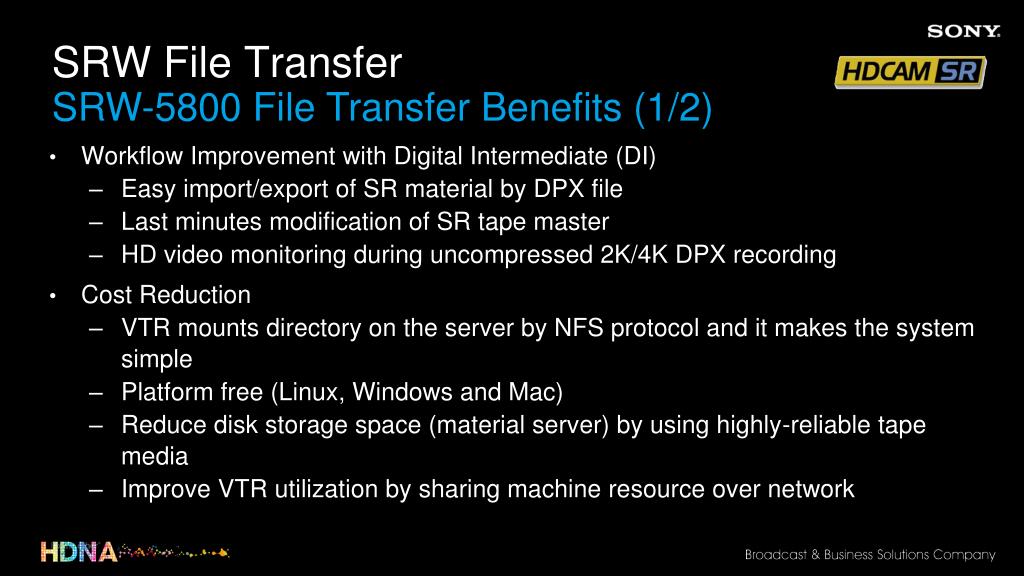

  5. SRW File Transfer SRW-5800 File Transfer Benefits (1/2) • Workflow Improvement with Digital Intermediate (DI) • Easy import/export of SR material by DPX file • Last minutes modification of SR tape master • HD video monitoring during uncompressed 2K/4K DPX recording • Cost Reduction • VTR mounts directory on the server by NFS protocol and it makes the system simple • Platform free (Linux, Windows and Mac) • Reduce disk storage space (material server) by using highly-reliable tape media • Improve VTR utilization by sharing machine resource over network

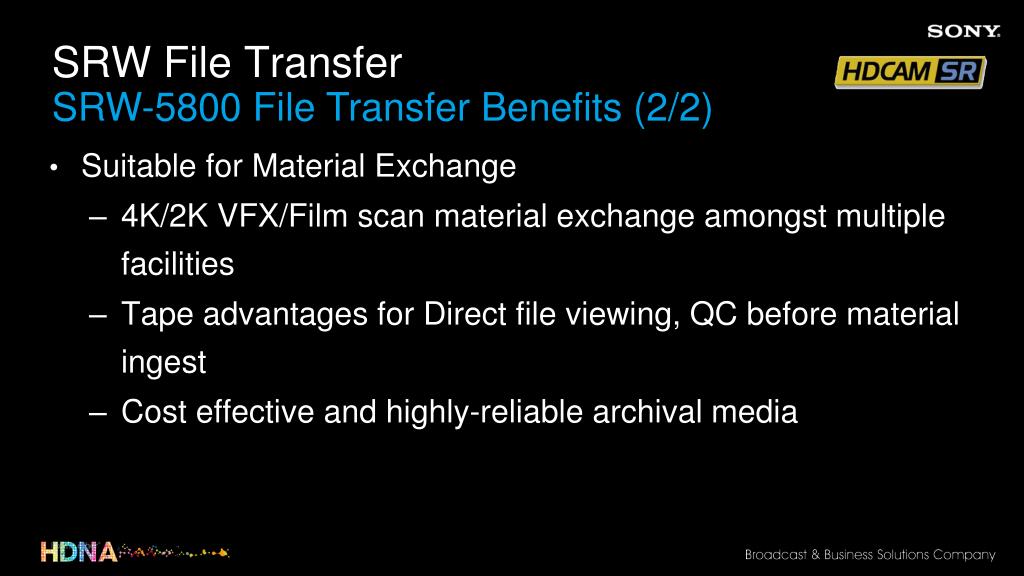

  6. SRW File Transfer SRW-5800 File Transfer Benefits (2/2) • Suitable for Material Exchange • 4K/2K VFX/Film scan material exchange amongst multiple facilities • Tape advantages for Direct file viewing, QC before material ingest • Cost effective and highly-reliable archival media

  7. SRW File Transfer Video mode: SR HD to/from DPX File Conversion HDCAM-SRCamera Original 1920 x 1080 / RGB / 23.98PsF HD VIDEO Monitoring DPX File Output ECC Block Real- Time I/O Tape Transport Com- pression Block Buffer Memory Network Interface Block

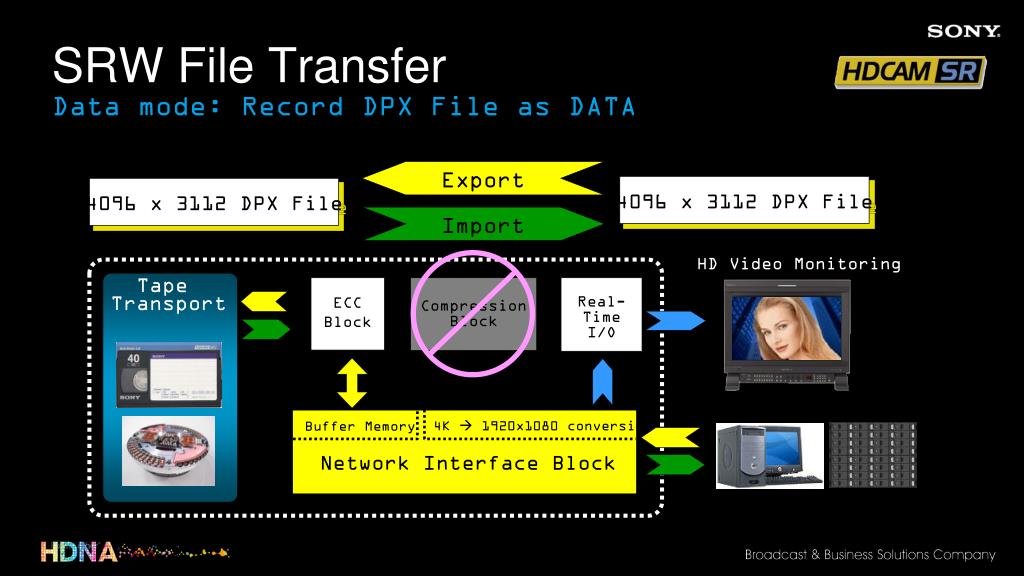

  8. SRW File Transfer Data mode: Record DPX File as DATA Export 4096 x 3112 DPX File 4096 x 3112 DPX File Import HD Video Monitoring Tape Transport ECC Block Compression Block Real- Time I/O Buffer Memory 4K  1920x1080 conversion Network Interface Block

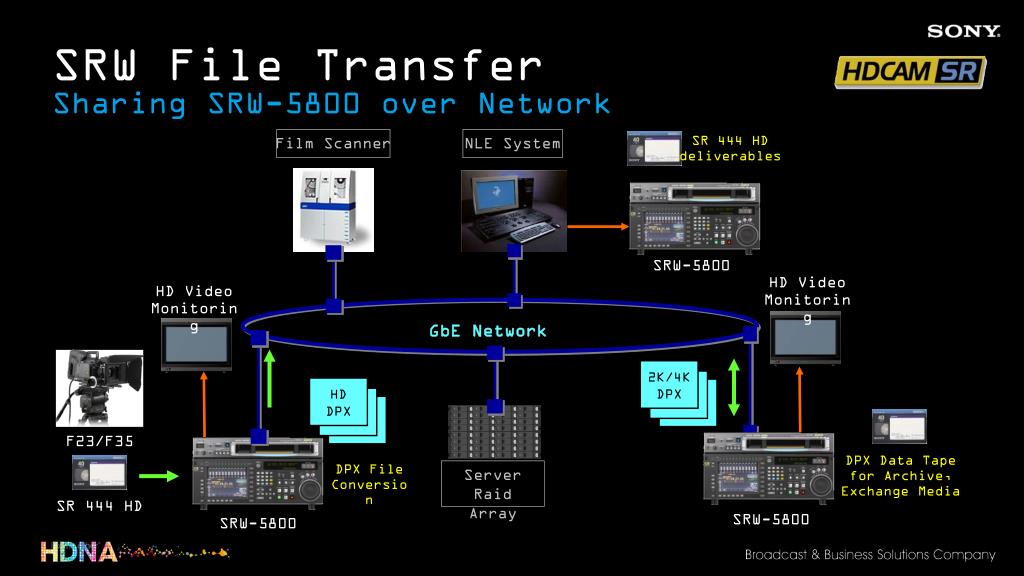

  9. 2K/4K DPX HD DPX SRW File Transfer Sharing SRW-5800 over Network Film Scanner NLE System SR 444 HD deliverables SRW-5800 HD Video Monitoring HD Video Monitoring GbE Network F23/F35 DPX Data Tape for Archive, Exchange Media DPX File Conversion Server Raid Array SR 444 HD SRW-5800 SRW-5800

  10. DPX Files VTR Control GUI on the SRW-5800 Shared Drive SRW File Transfer NFS protocol makes File Transfer simple! NFS Client NFS Server GbE Network Server/NLE SRW-5800 w/HKSR-5804 DPX File Transfer NFS Mount

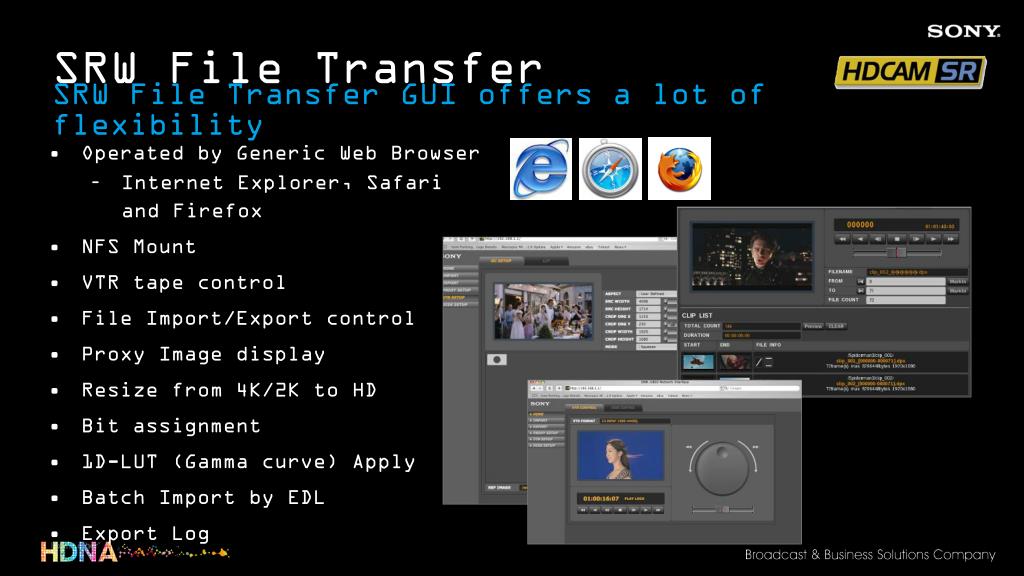

  11. SRW File Transfer SRW File Transfer GUI offers a lot of flexibility • Operated by Generic Web Browser • Internet Explorer, Safari and Firefox • NFS Mount • VTR tape control • File Import/Export control • Proxy Image display • Resize from 4K/2K to HD • Bit assignment • 1D-LUT (Gamma curve) Apply • Batch Import by EDL • Export Log

  12. SRW File Transfer GUI LUT Function • Load and apply 1D LUT to Import or Export files • Apply 1D LUT and Bit assignment separately to HD monitor output for viewing • Check Gamma curve with Graphic

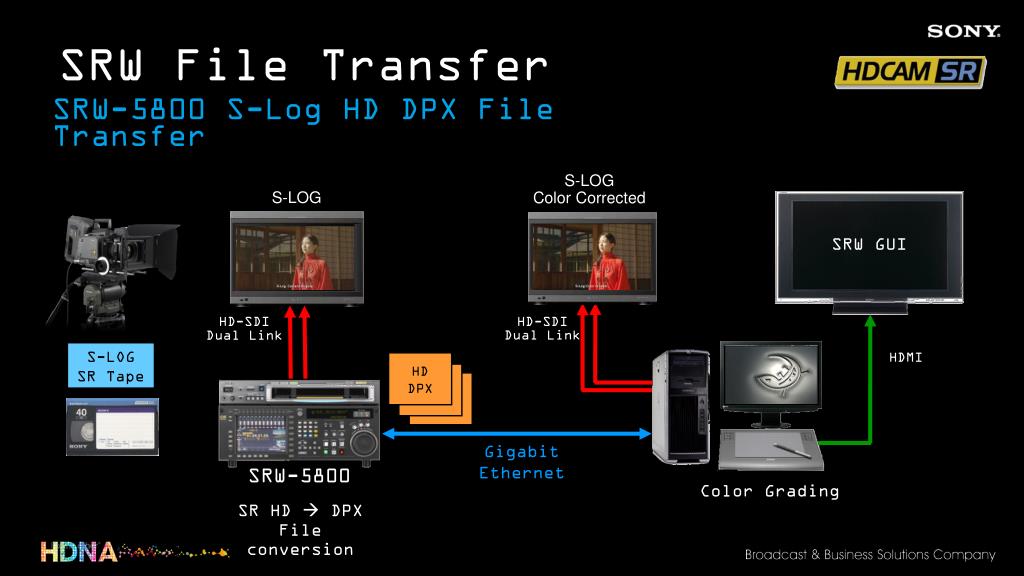

  13. HD DPX SRW File Transfer SRW-5800 S-Log HD DPX File Transfer S-LOG Color Corrected S-LOG SRW GUI HD-SDI Dual Link HD-SDI Dual Link S-LOG SR Tape HDMI Gigabit Ethernet SRW-5800 Color Grading SR HD  DPX File conversion

  14. SRW File Transfer GUI Resize function from 4K (4096 x 3112) to HD (1920 x 1080) • Change following parameters manually • Cropping Position (X, Y) • Width and Height • Keep Aspect/Variable Aspect • Register up to 8 own preset configuration

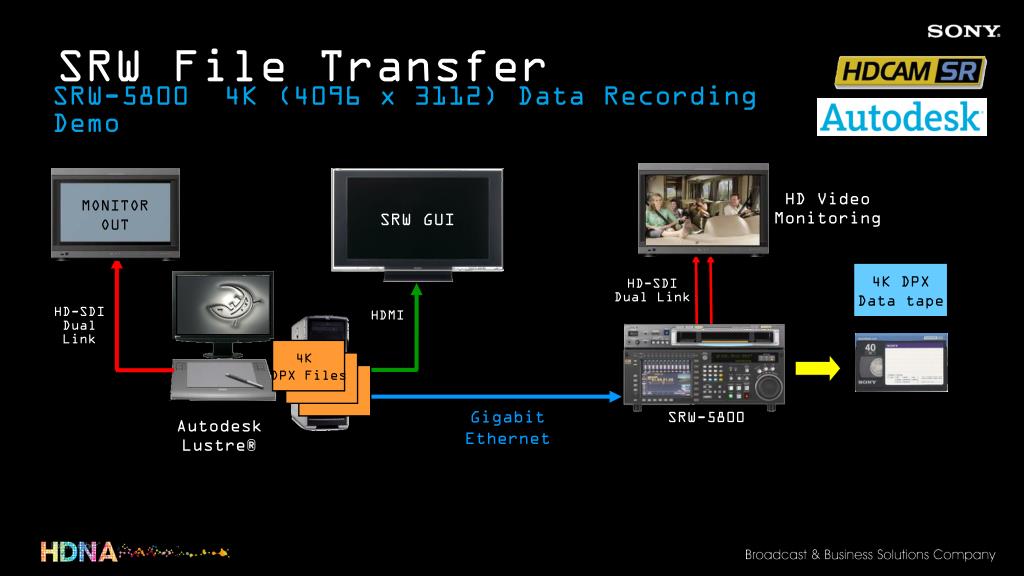

  15. MONITOR OUT SRW GUI 4K DPX Data tape 4K DPX Files SRW File Transfer SRW-5800 4K (4096 x 3112) Data Recording Demo HD Video Monitoring HD-SDI Dual Link HD-SDI Dual Link HDMI SRW-5800 Gigabit Ethernet Autodesk Lustre® HD Video Monitoring

  16. Data Recording Mechanism 01:12:23:15 01:12:23:13 Timecode 01:12:23:14 01:12:23:12 Portion: 04 PID: 000028 PID: 000027 Tape 0 1 2 3 4 5 SR Video Recording One Video Frame = One Time Code Portion size example; HD (1920x1080) DPX: 10 2K (2048x1556) DPX: 16 4K (4096x3012) DPX: 58 One image file requires multiple video frames data capacity Tape Data Recording

  17. DPX Files & Recording Time *Recording time is an equivalent to 24fps

  18. SRW-5800 SRW-5800 DPX File DPX File SRW-5800 in DI Workflow GbE Import Back-up Exchange Conforming Suites HD-SDI X2 Ingest (4:2:2) Color Grading Suites DPX Filing Dust busting Suites SAN Telecine/Filmscan
