  1. Chartwork and Tides

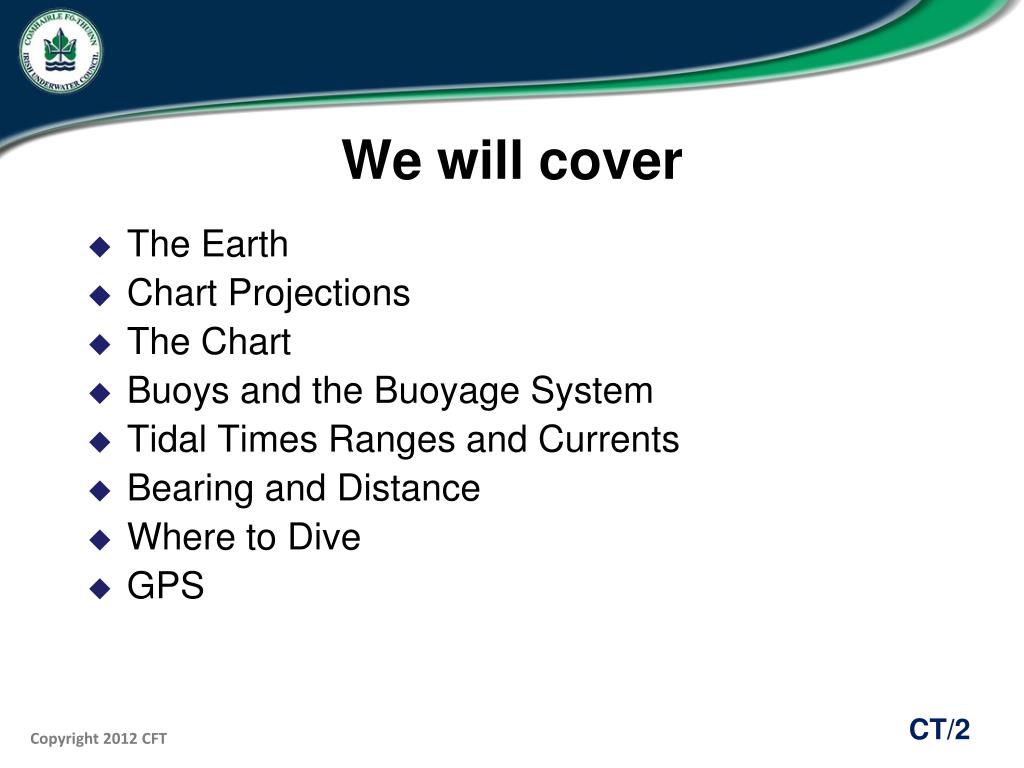

  2. We will cover • The Earth • Chart Projections • The Chart • Buoys and the Buoyage System • Tidal Times Ranges and Currents • Bearing and Distance • Where to Dive • GPS

  3. The Earth • A sphere which rotates about its axis. • Extremities, the North and South Poles. • Rotates from West to East. • Equator divides the earth.

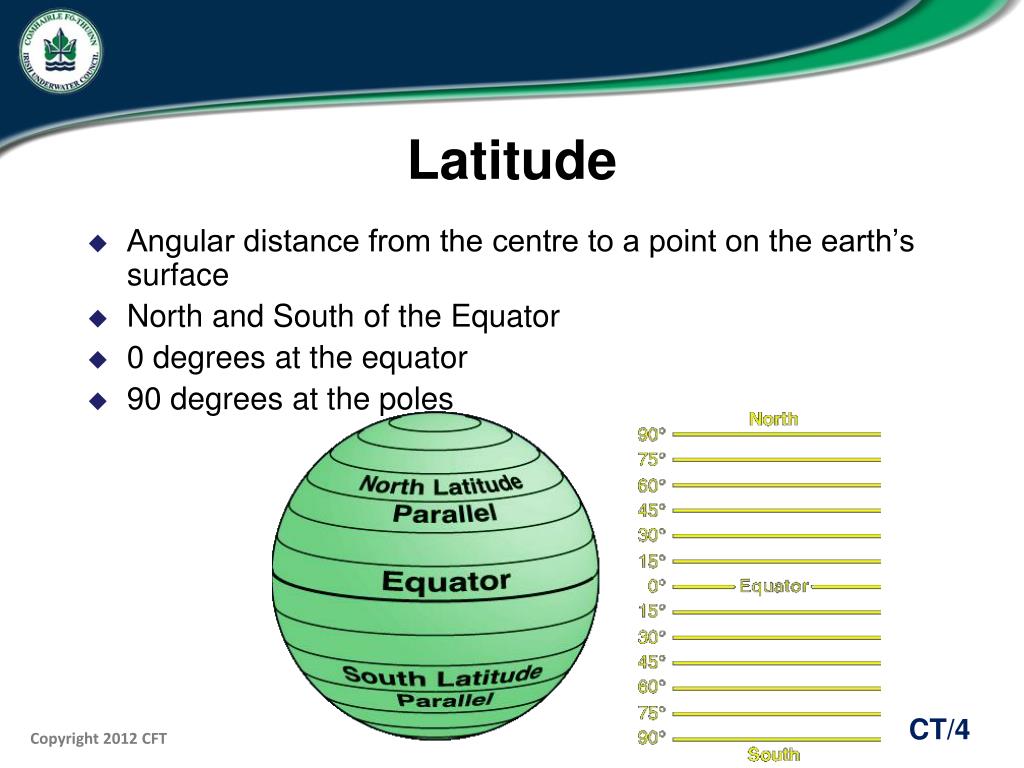

  4. Latitude • Angular distance from the centre to a point on the earth’s surface • North and South of the Equator • 0 degrees at the equator • 90 degrees at the poles

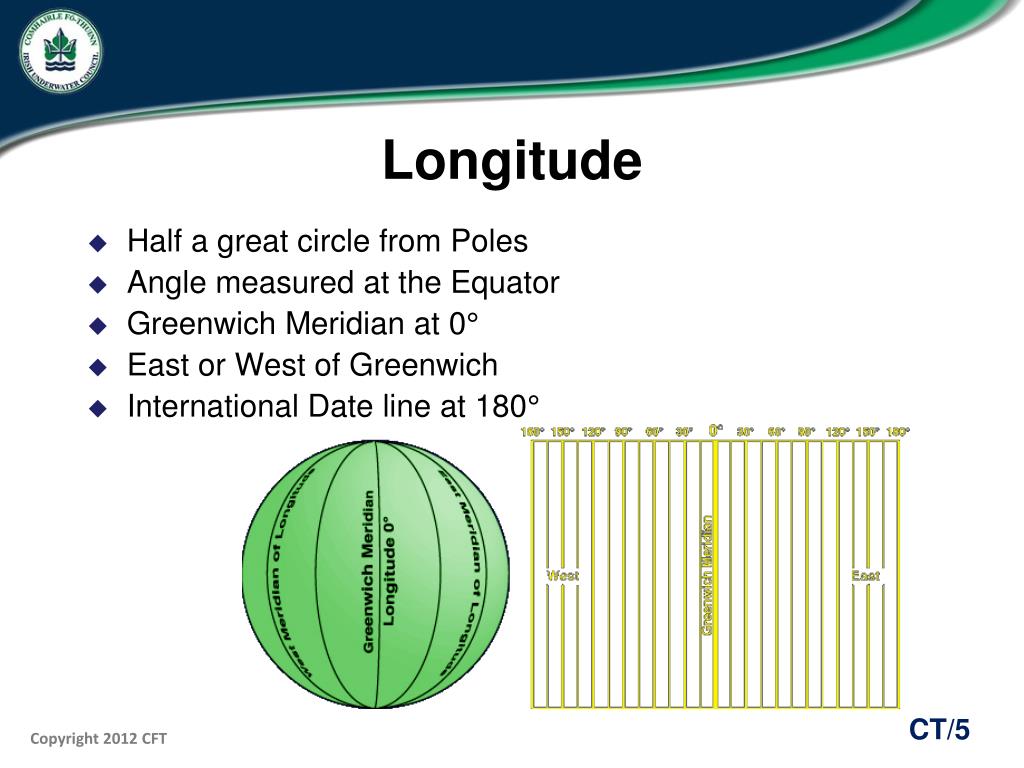

  5. Longitude • Half a great circle from Poles • Angle measured at the Equator • Greenwich Meridian at 0° • East or West of Greenwich • International Date line at 180°

  6. Position Fixing • Latitude and Longitude form a grid reference • Divide into degrees and Minutes

  7. Distance on the ChartOn the Latitude scale 1° = 60 Minutes 1 Minute = 1 Nautical Mile = 6076 Feet = 1852 Metres = 10 Cables (1 Cable = 200 Yards) Dublin Port 53°20’.60N 06°08’.09W Cobh 51°50’.00N 08°19’.00W Killybegs 54°36’.90N 08°26’.80W

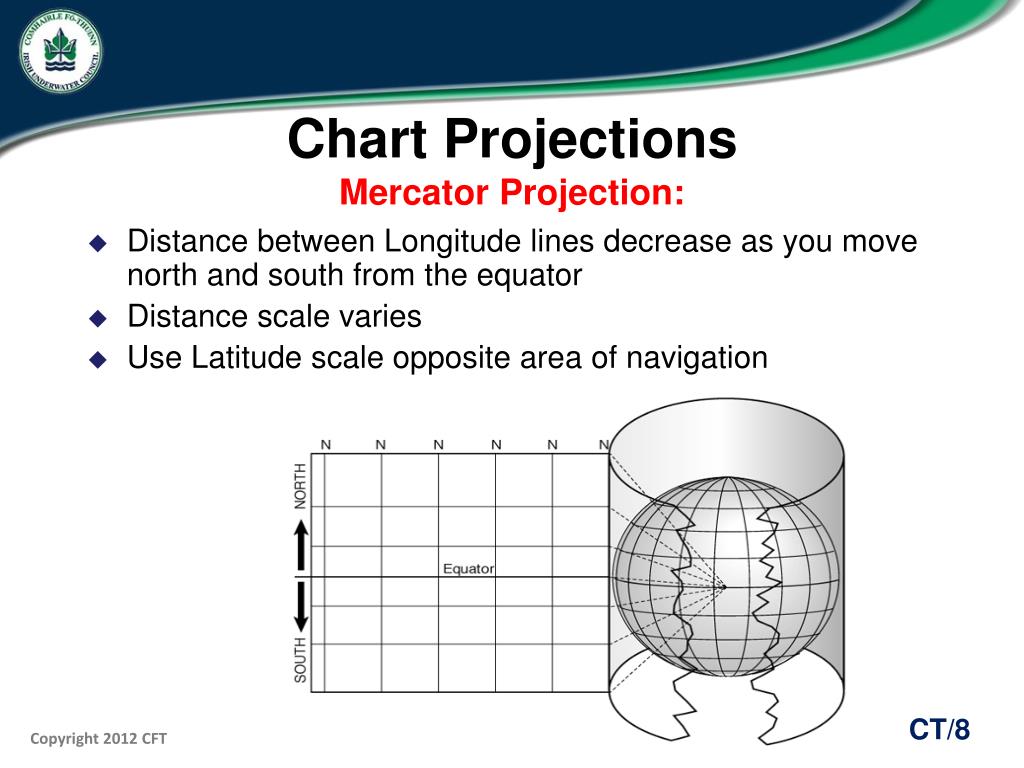

  8. Chart ProjectionsMercator Projection: • Distance between Longitude lines decrease as you move north and south from the equator • Distance scale varies • Use Latitude scale opposite area of navigation

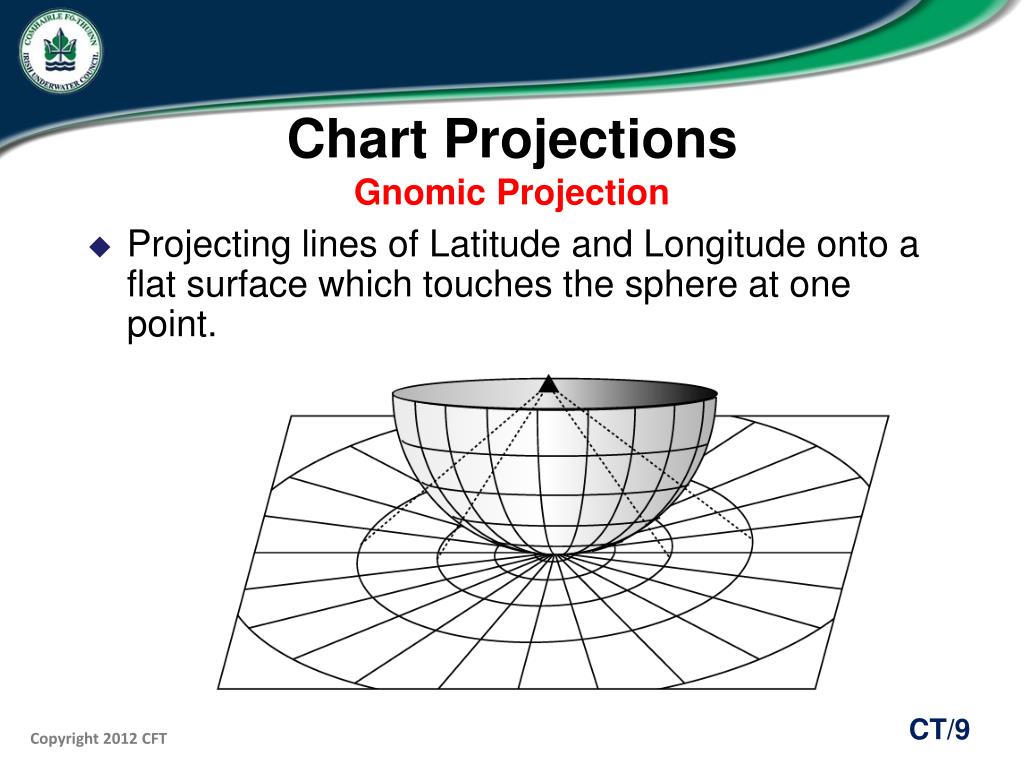

  9. Chart ProjectionsGnomic Projection • Projecting lines of Latitude and Longitude onto a flat surface which touches the sphere at one point.

  10. The Chart • British Admiralty Charts, normally Mercator projections • High quality tough paper • Rolled up or folded along its normal folds • Use a soft 2B pencil & soft eraser Admiralty publication: ‘Home Waters Catalogue, Admiralty Charts and other Hydrographic Publications’

  11. Chart Information • Title and Number • Scale • Soundings • Chart Corrections REPUBLIC OF IRELAND - EAST COAST ARKLOW to the SKERRIES ISLAND DEPTHS in METERS SCALE 1:100,000 at Lat 53°30’

  12. Symbols and Abbreviations (Admiralty Chart 5011) • Compass Rose • True North • Magnetic North • Variation

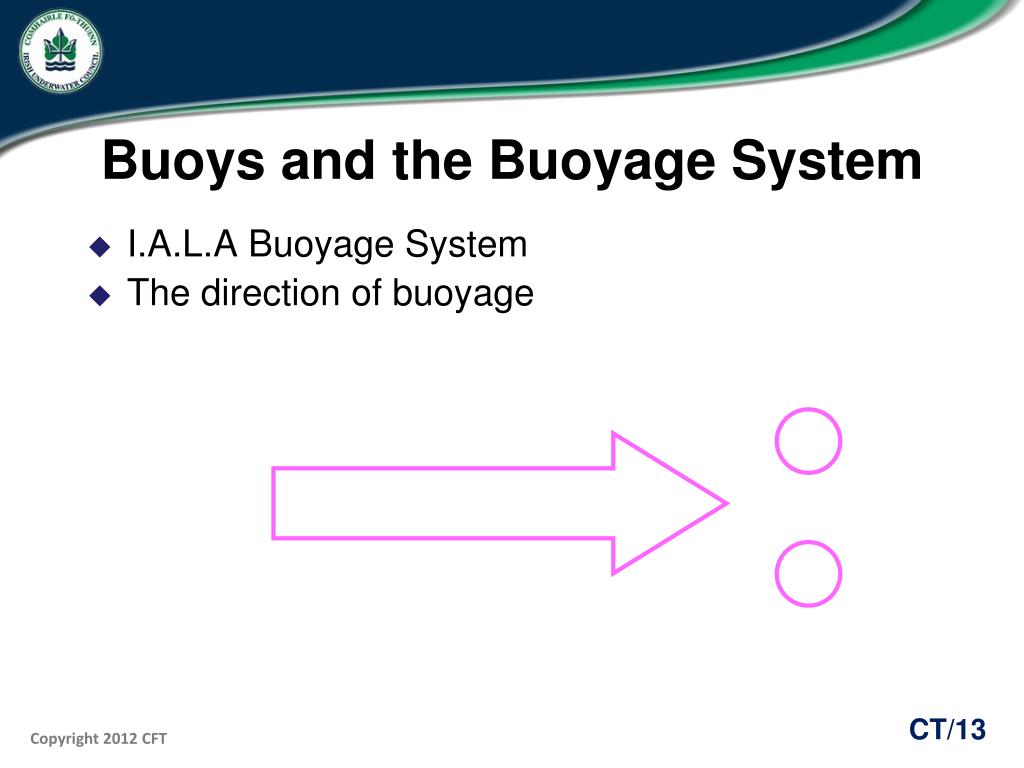

  13. Buoys and the Buoyage System • I.A.L.A Buoyage System • The direction of buoyage

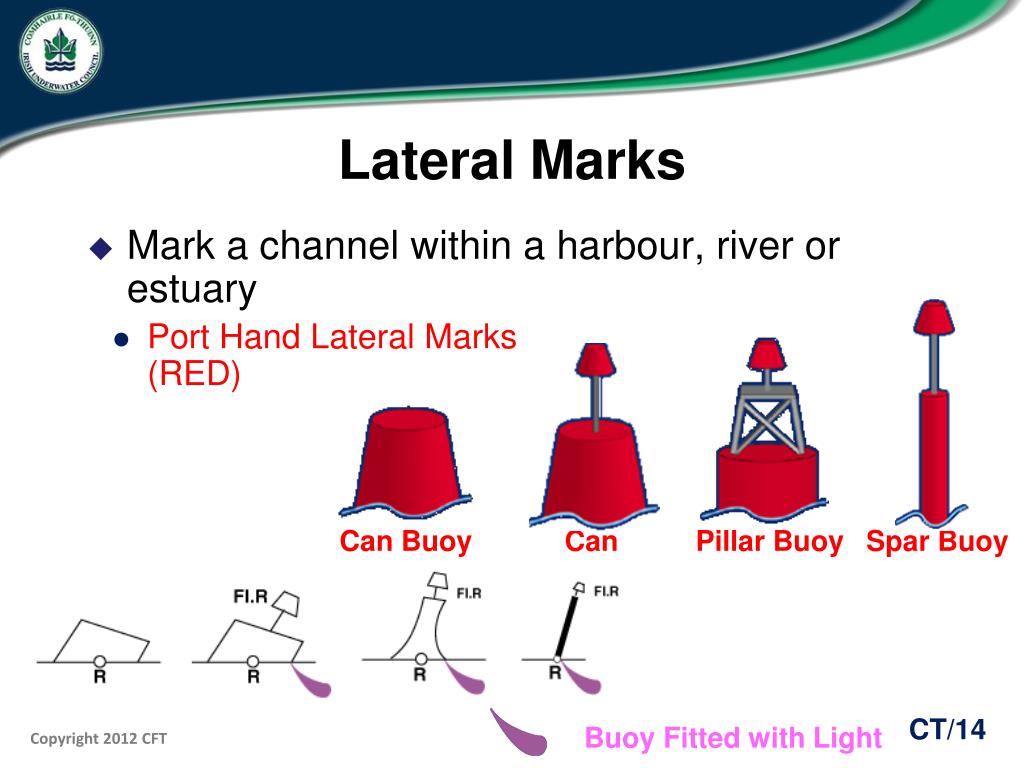

  14. Buoy Fitted with Light Lateral Marks • Mark a channel within a harbour, river or estuary • Port Hand Lateral Marks (RED) Can Buoy Can Pillar Buoy Spar Buoy

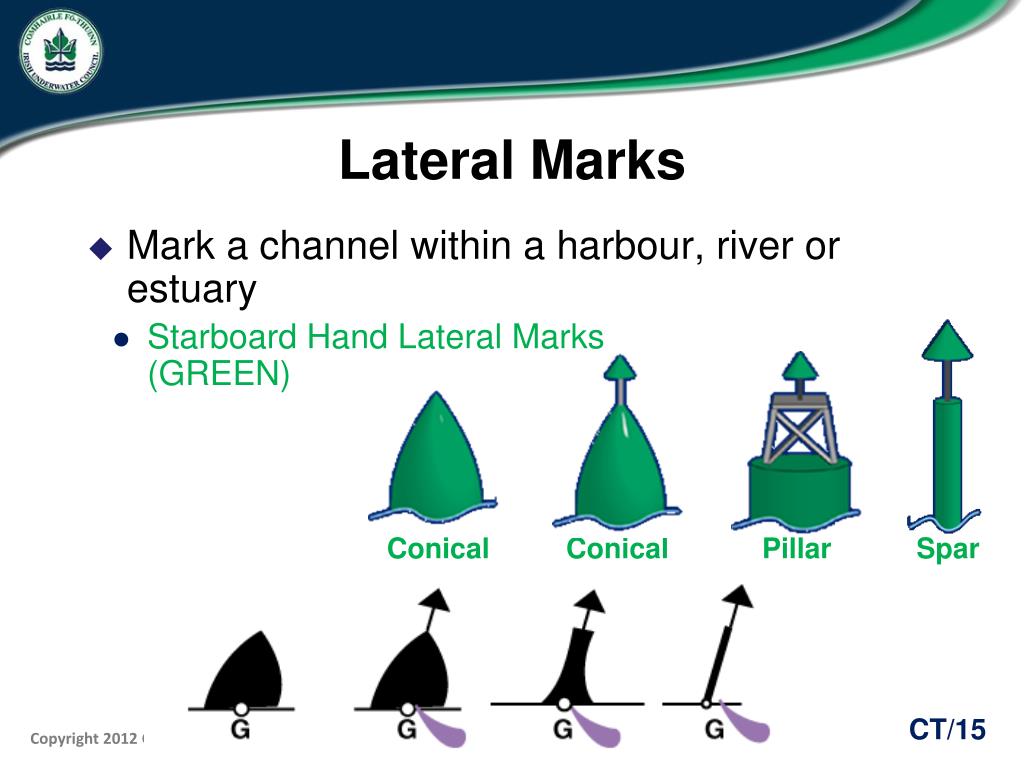

  15. Lateral Marks • Mark a channel within a harbour, river or estuary • Starboard Hand Lateral Marks (GREEN) Conical Conical Pillar Spar

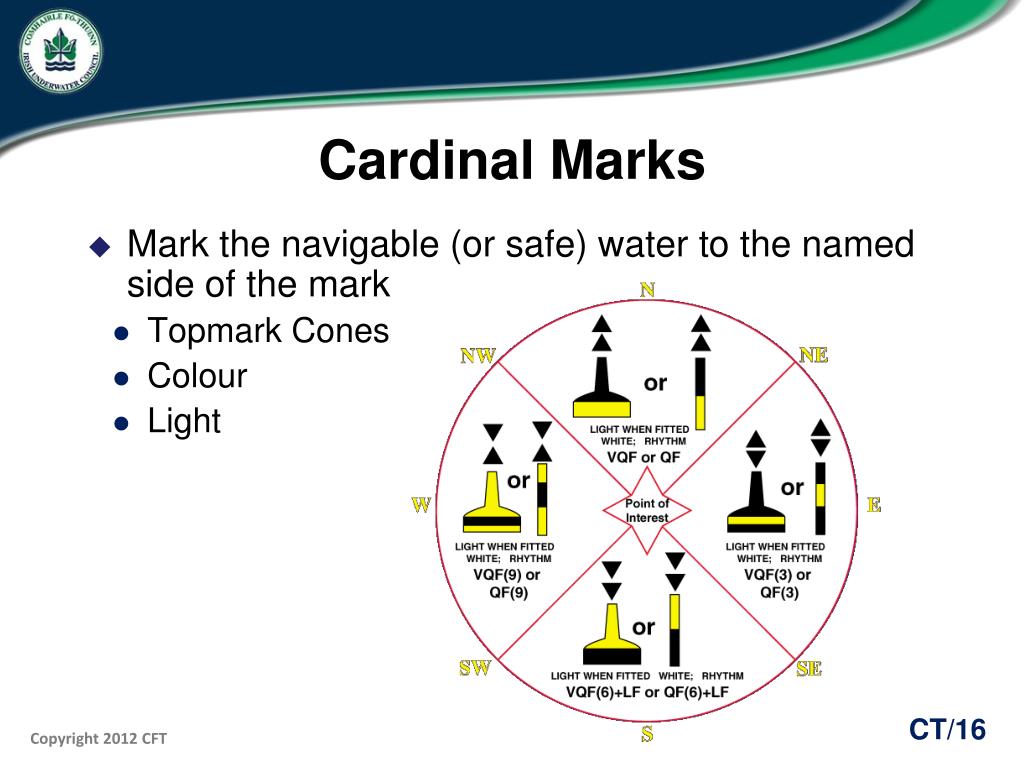

  16. Cardinal Marks • Mark the navigable (or safe) water to the named side of the mark • Topmark Cones • Colour • Light

  17. Safe Water Marks • Indicate navigable water all around the mark Spherical Spherical Pillar Spar

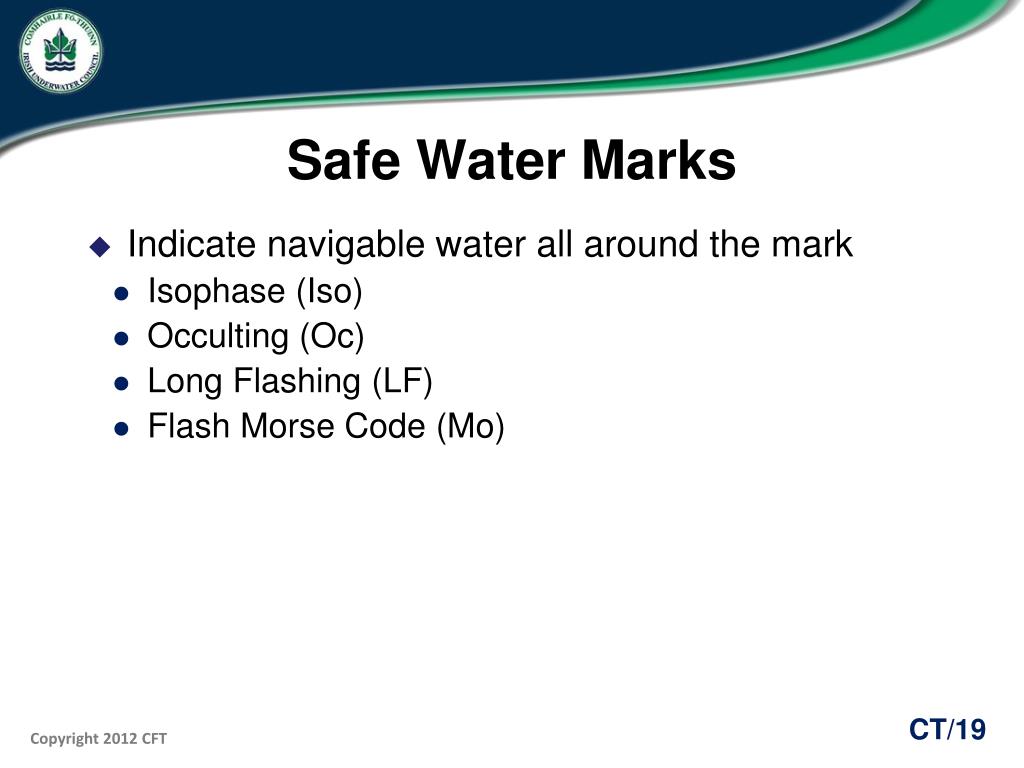

  18. Safe Water Marks • Indicate navigable water all around the mark • Isophase (Iso) • Occulting (Oc) • Long Flashing (LF) • Flash Morse Code (Mo)

  19. Isolated Danger Marks • May mark a rock or shoal offshore with navigable water all around Pillar Spar

  20. Special Marks • Indicate areas like recreational zones, military exercise areas, cable or pipe lines and spoil grounds

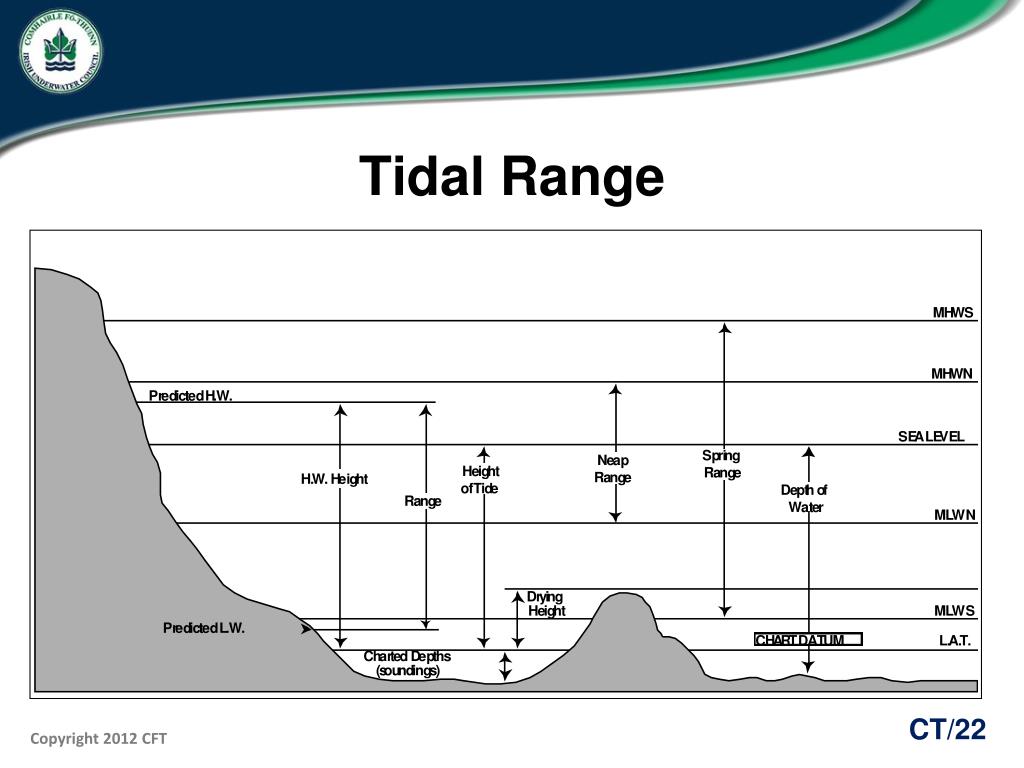

  21. Tidal Range

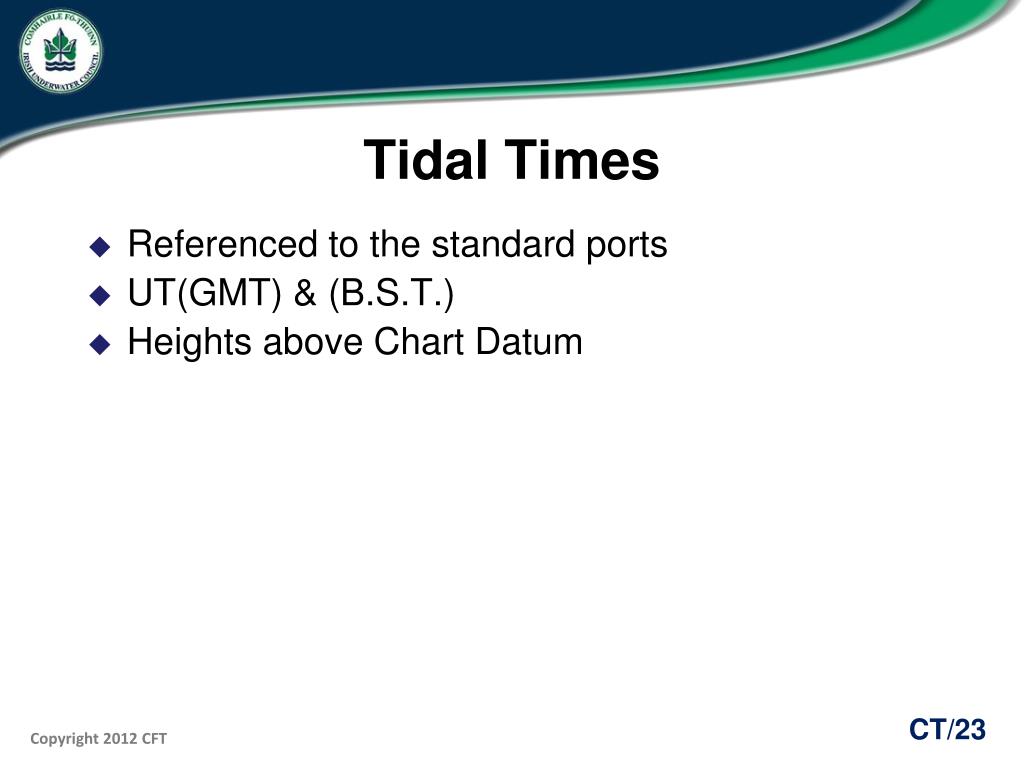

  22. Tidal Times • Referenced to the standard ports • UT(GMT) & (B.S.T.) • Heights above Chart Datum

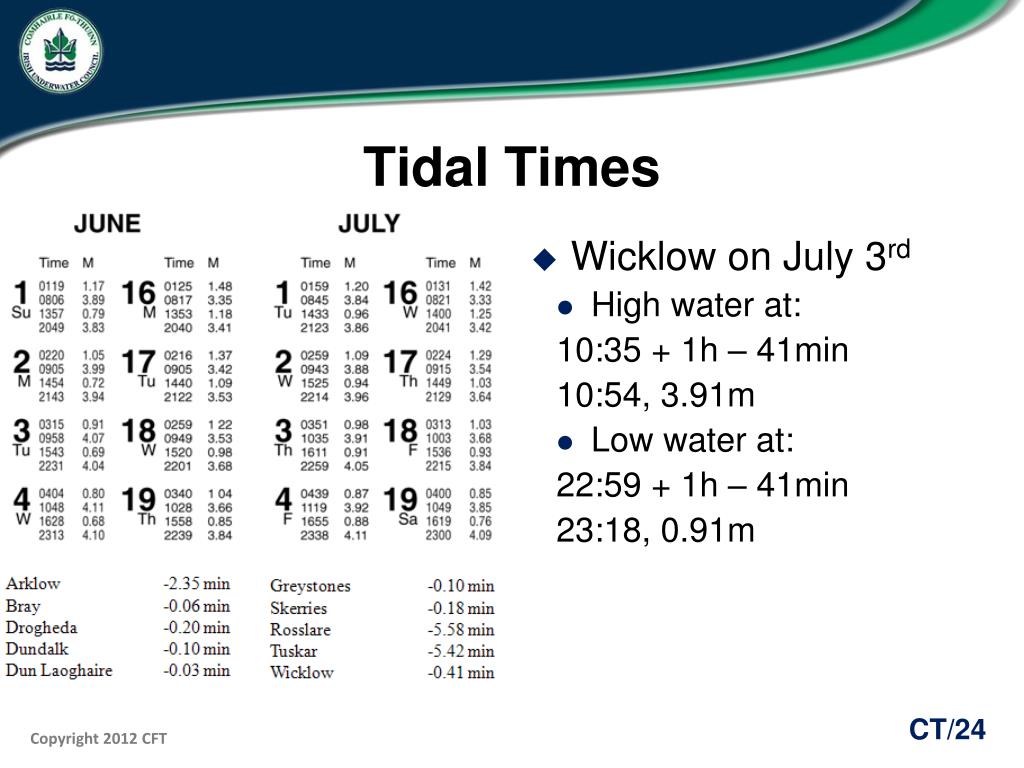

  23. Tidal Times • Wicklow on July 3rd • High water at: 10:35 + 1h – 41min 10:54, 3.91m • Low water at: 22:59 + 1h – 41min 23:18, 0.91m

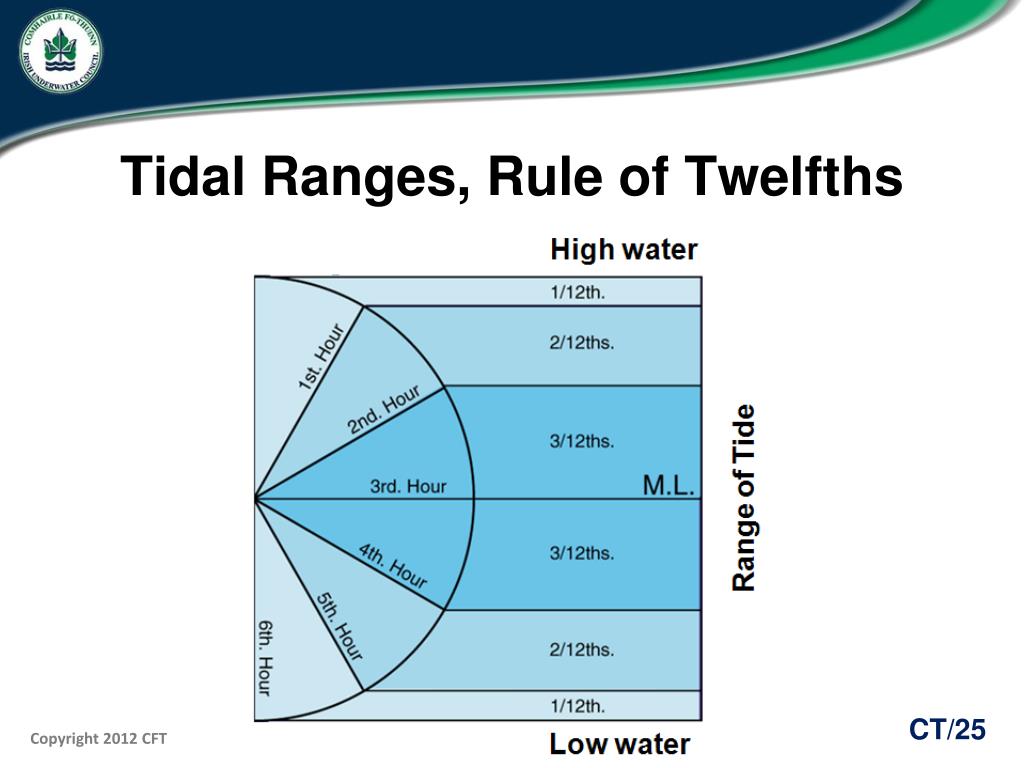

  24. Tidal Ranges, Rule of Twelfths

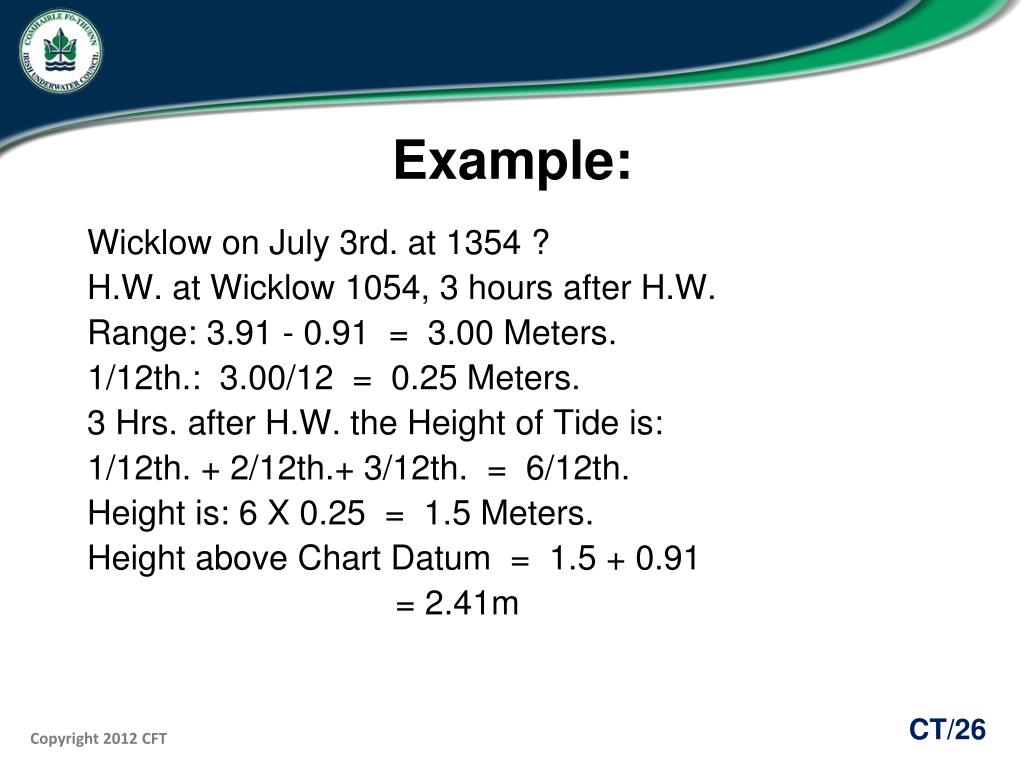

  25. Example: Wicklow on July 3rd. at 1354 ? H.W. at Wicklow 1054, 3 hours after H.W. Range: 3.91 - 0.91 = 3.00 Meters. 1/12th.: 3.00/12 = 0.25 Meters. 3 Hrs. after H.W. the Height of Tide is: 1/12th. + 2/12th.+ 3/12th. = 6/12th. Height is: 6 X 0.25 = 1.5 Meters. Height above Chart Datum = 1.5 + 0.91 = 2.41m

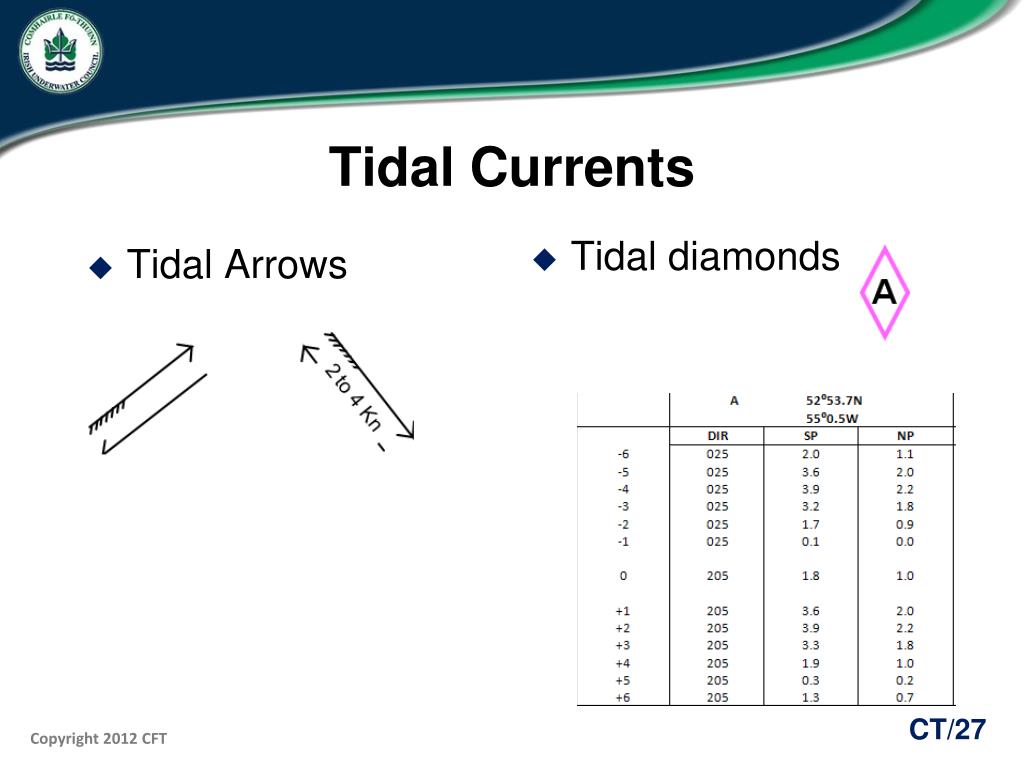

  26. Tidal Currents • Tidal Arrows • Tidal diamonds

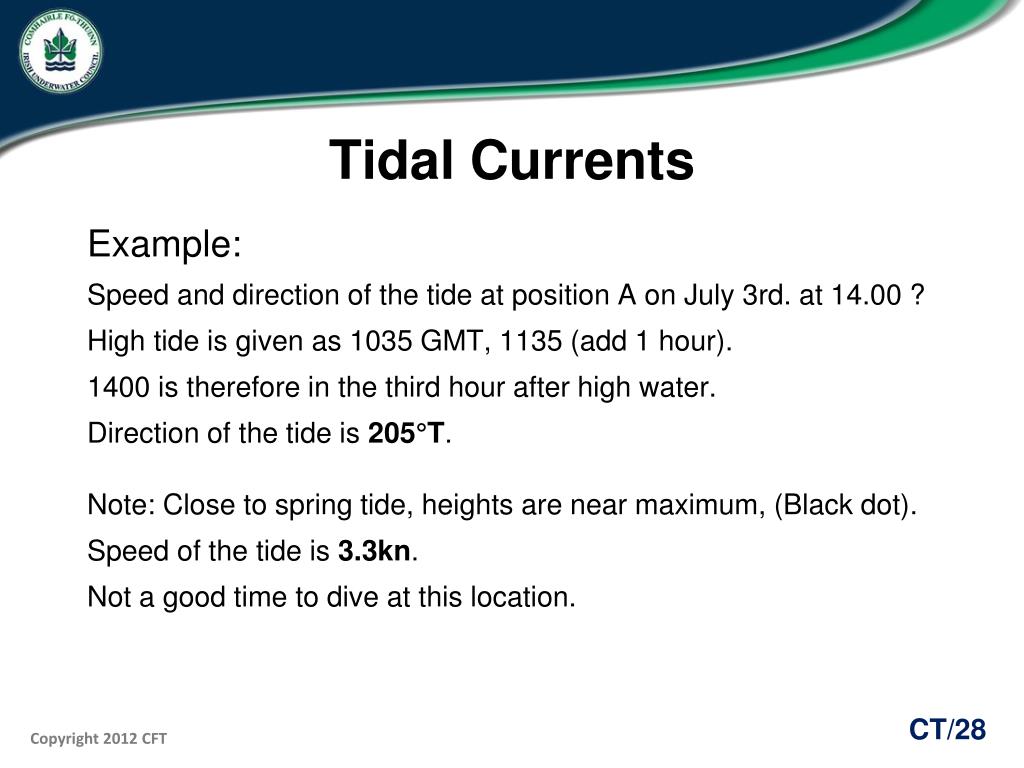

  27. Tidal Currents Example: Speed and direction of the tide at position A on July 3rd. at 14.00 ? High tide is given as 1035 GMT, 1135 (add 1 hour). 1400 is therefore in the third hour after high water. Direction of the tide is 205°T. Note: Close to spring tide, heights are near maximum, (Black dot). Speed of the tide is 3.3kn. Not a good time to dive at this location.

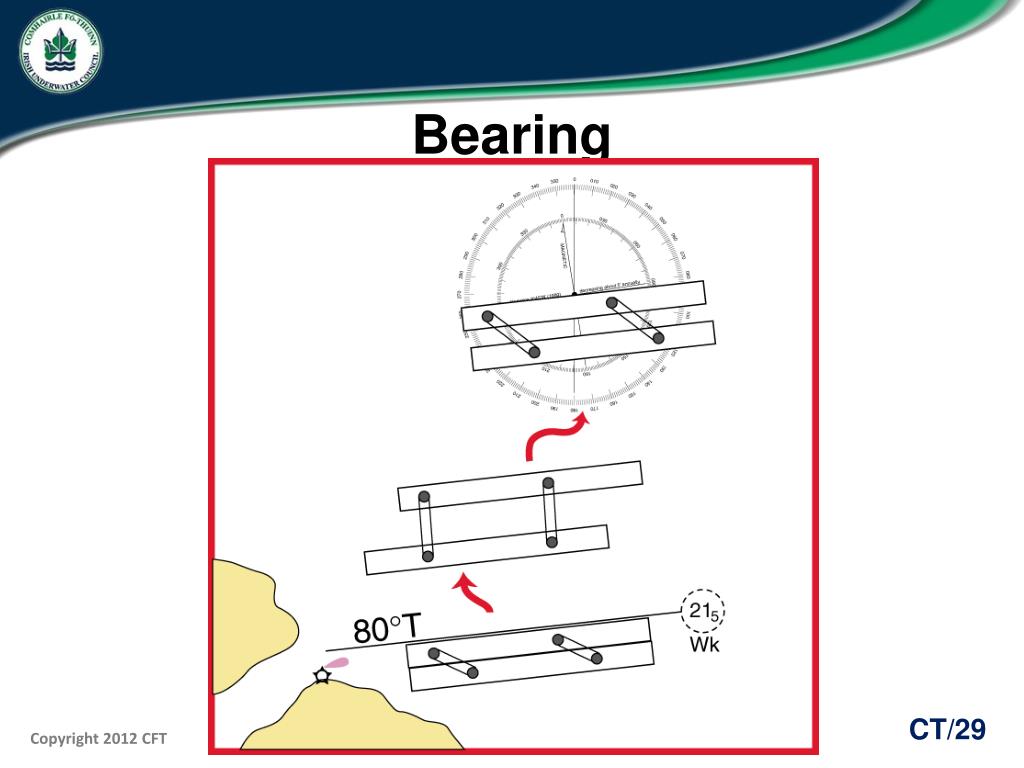

  28. Bearing

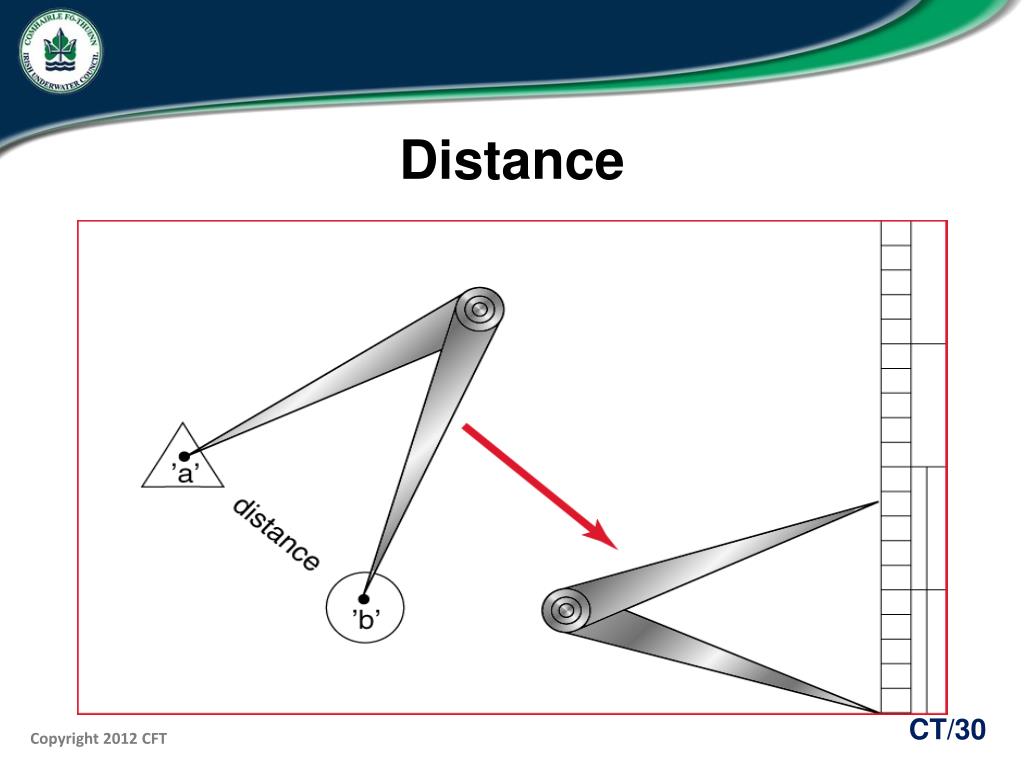

  29. Distance

  30. Time Time = Distance/Speed or Speed = Distance/Time or Distance = Speed x Time Boats speed is 20 Knots, how long for 8 miles ? Time = Distance / Speed Time = 8 / 20 = 0.4 Hour = 0.4 x 60 Minutes. = 24 Minutes.

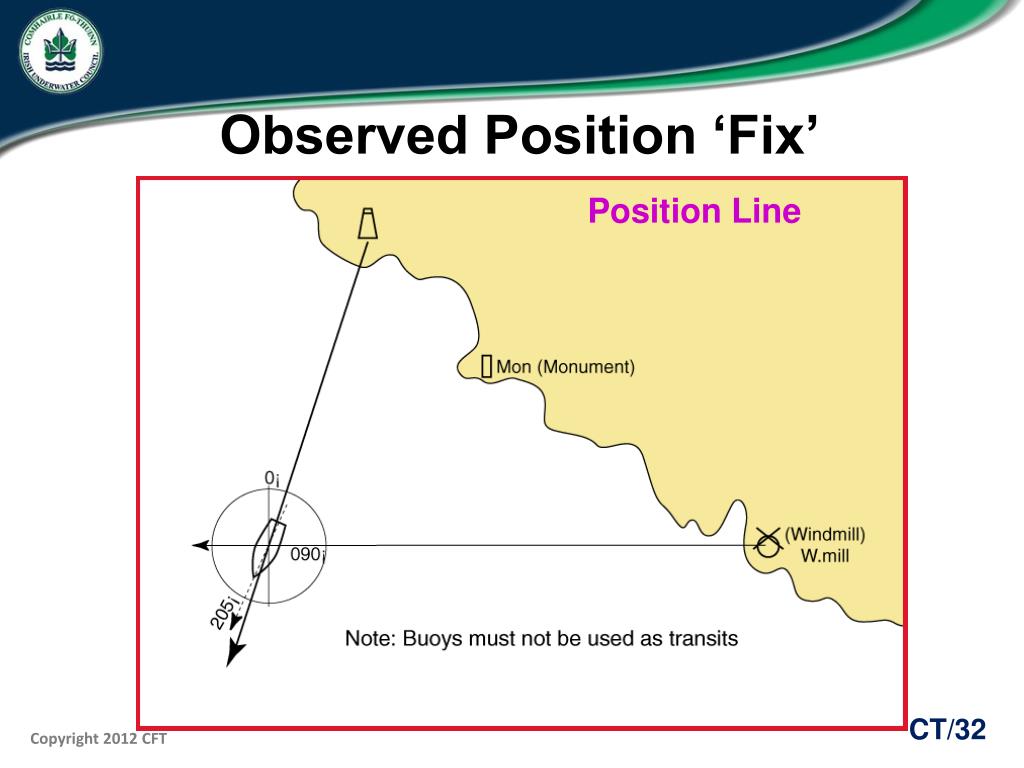

  31. Observed Position ‘Fix’ Position Line

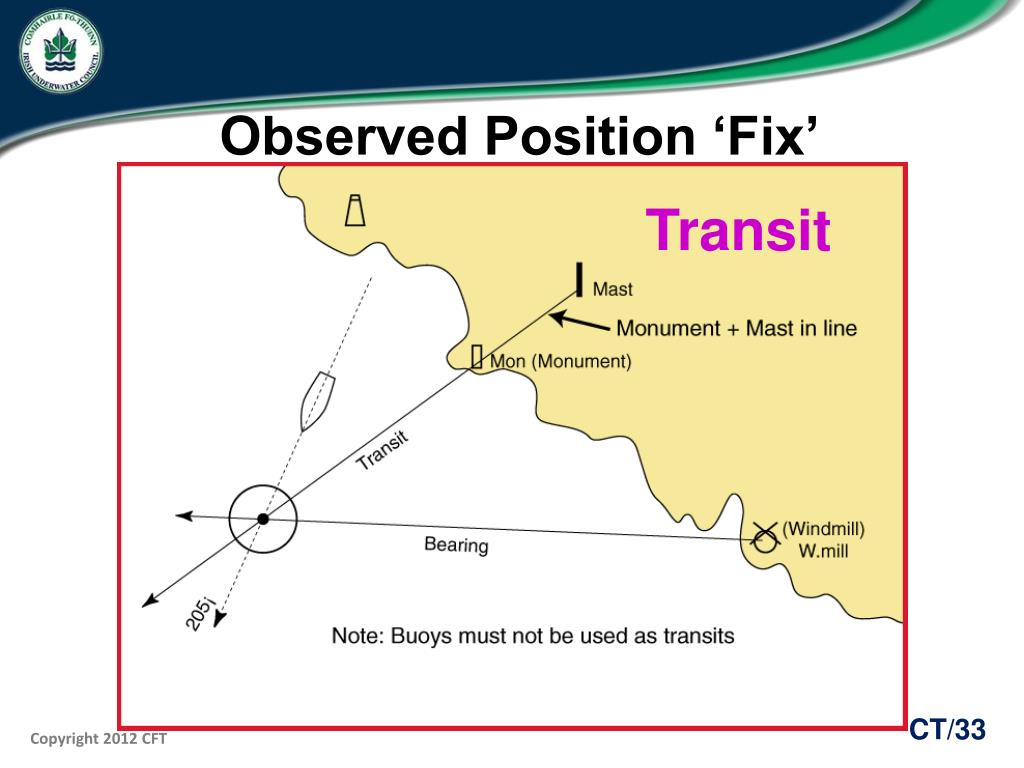

  32. Observed Position ‘Fix’ Transit

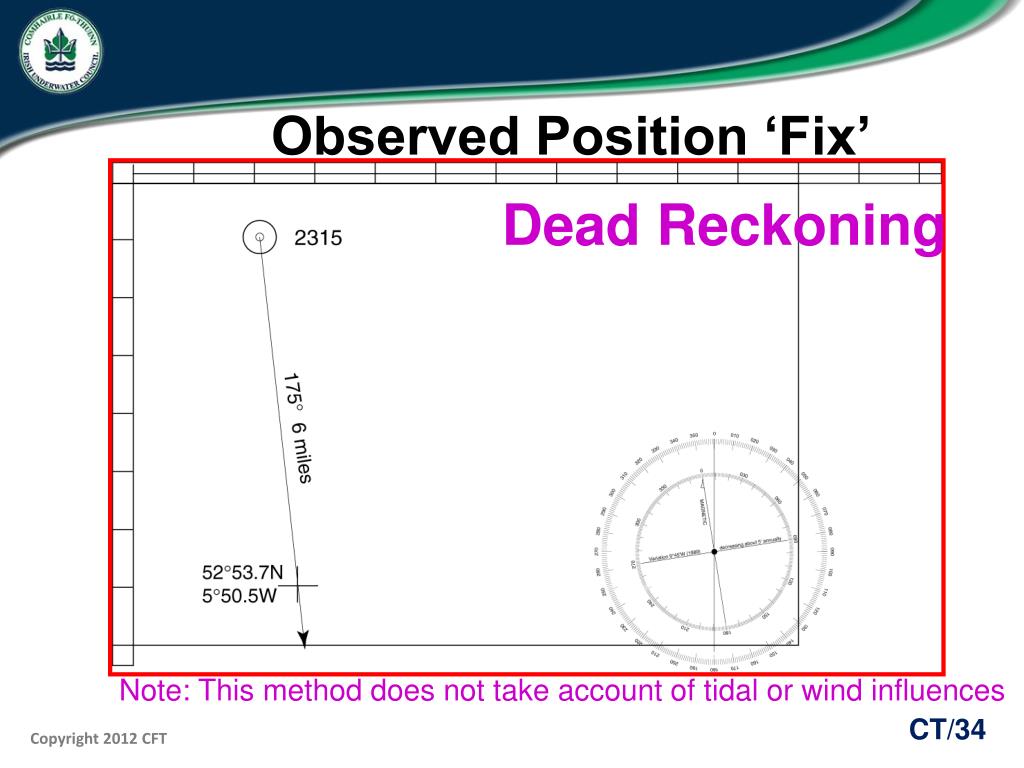

  33. Observed Position ‘Fix’ Dead Reckoning Note: This method does not take account of tidal or wind influences

  34. Wreck: swept by wire to the depth shown. Wk 18 Wreck: depth has be obtained by soundings. Wk 20 Wreck: portion of the superstructure at chart datum. Where to Dive

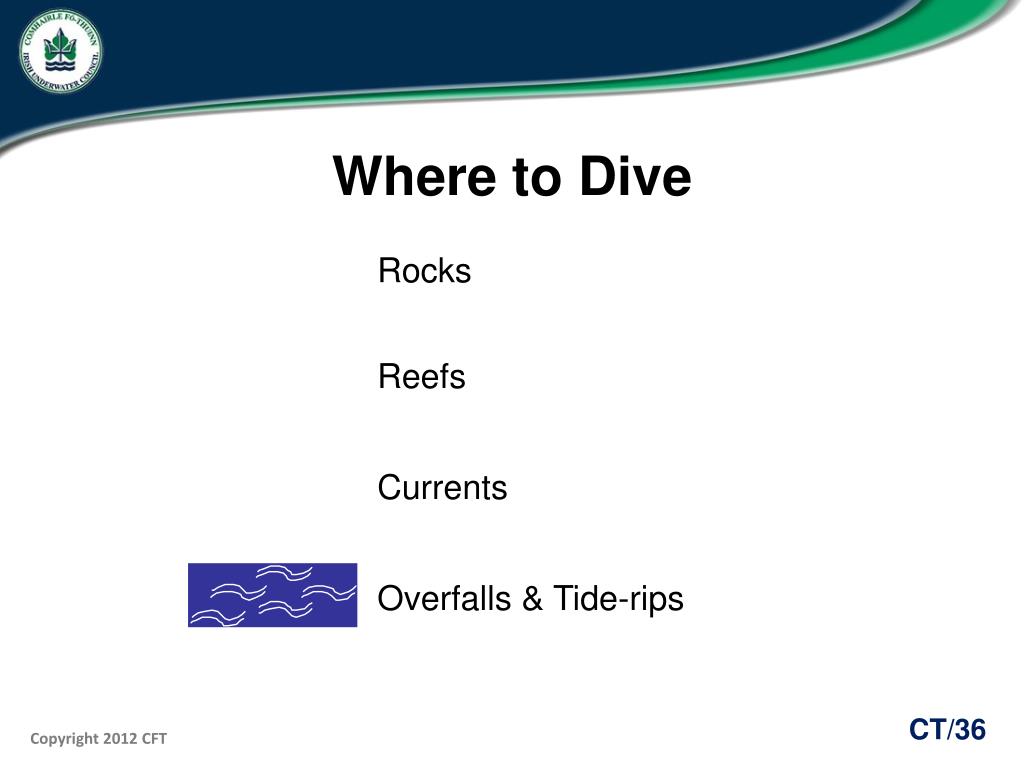

  35. Overfalls & Tide-rips Where to Dive Rocks Reefs Currents

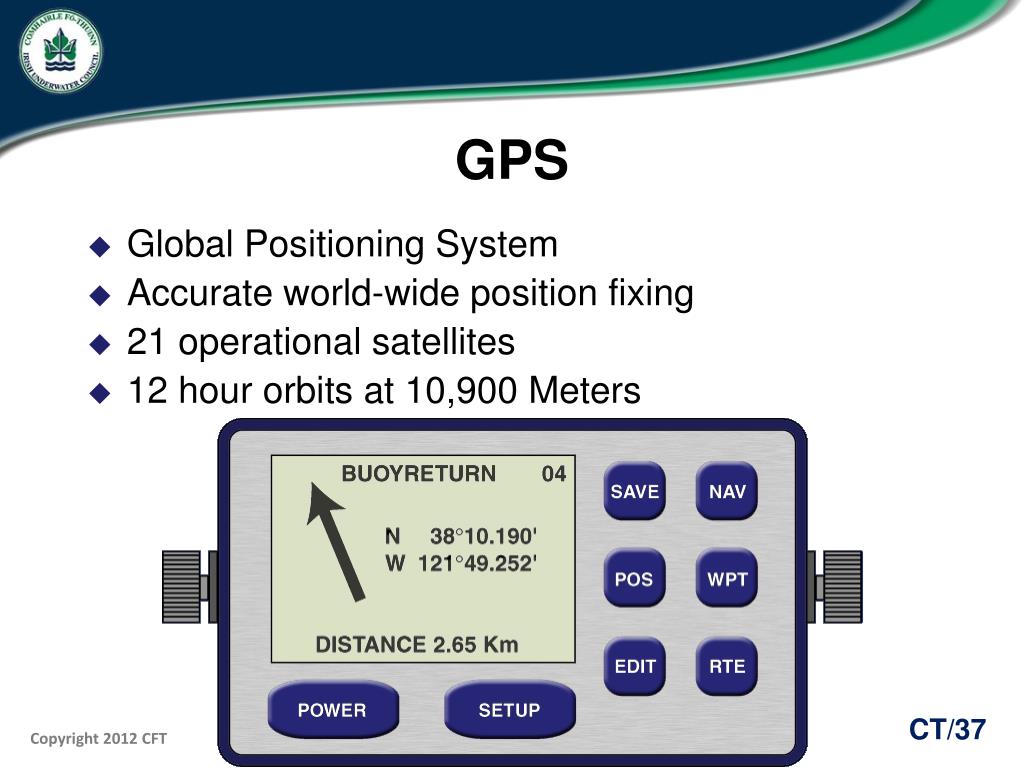

  36. GPS • Global Positioning System • Accurate world-wide position fixing • 21 operational satellites • 12 hour orbits at 10,900 Meters

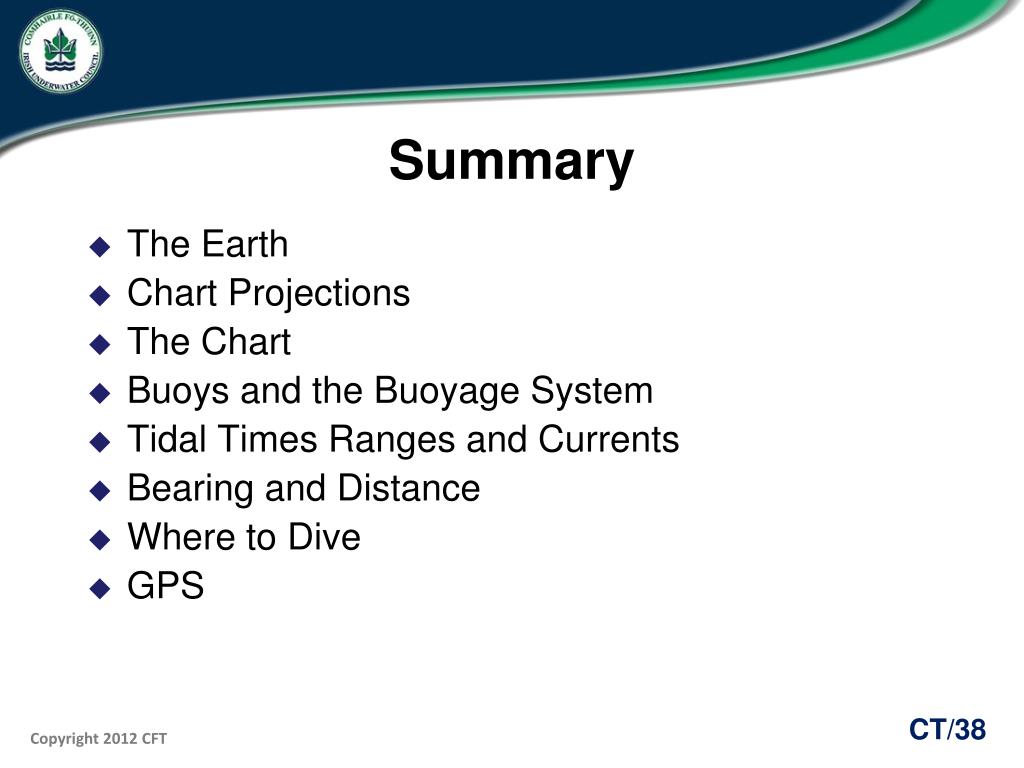

  37. Summary • The Earth • Chart Projections • The Chart • Buoys and the Buoyage System • Tidal Times Ranges and Currents • Bearing and Distance • Where to Dive • GPS

  38. Questions?
