Radiation protection of the environment – an introduction

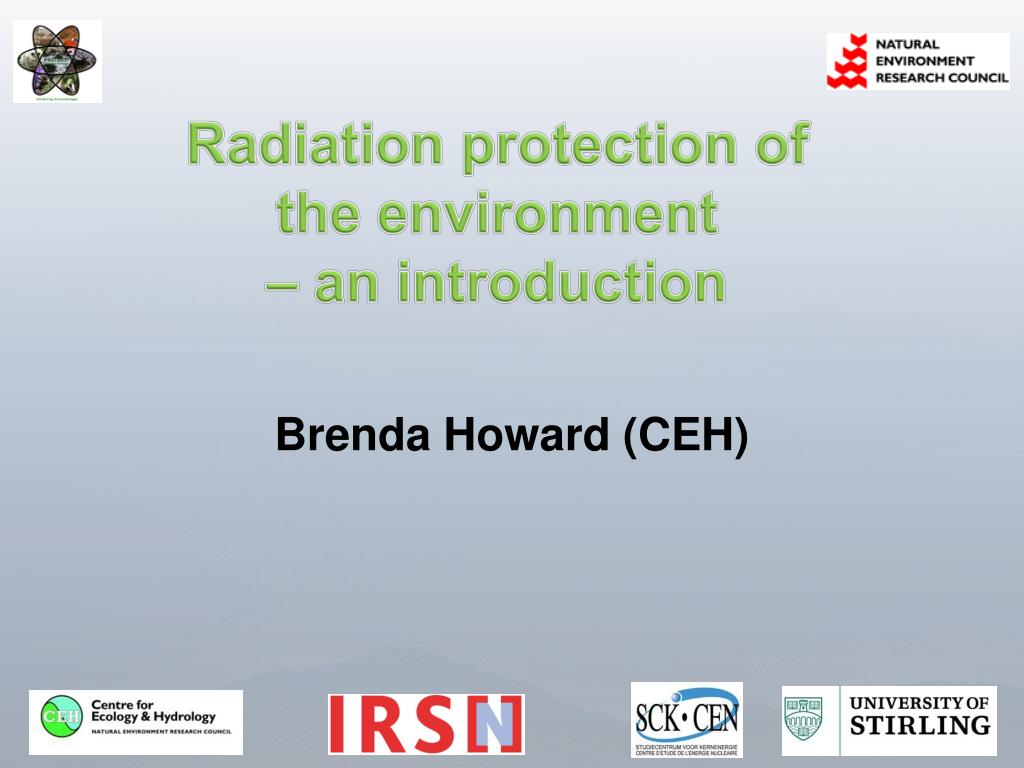

1. Radiation protection of the environment – an introduction Brenda Howard (CEH)

2. Outline • Historical perspective – previous ICRP guidance • Why this has changed - prime motivations • International initiatives at the EC, IAEA, ICRP and UNSCEAR • Comparison with system for humans • The situations in which assessments may be used • Radiation protection of the environment in the UK • Tiered assessments • Comparison with chemicals • The course www.ceh.ac.uk/PROTECT

3. Historical perspective – previous ICRP guidance “The Commission believes that the standard of environmental control needed to protect man to the degree currently thought desirable will ensure that other species are not put at risk. Occasionally, individual members of non-human species might be harmed, but not to the extent of endangering whole species or creating imbalance between species. At the present time, the Commission concerns itself with mankind’s environment only with regard to the transferof radionuclides through the environment, since this directly affects the radiological protection of man” ICRP, 1991, Para. 16

4. History • Focus on worker/most exposed individuals • Incomplete ecological information • Limited evidence provided to support statement (in the context of the environment)

5. History • Focus on worker/most exposed individuals • Incomplete ecological information • Limited evidence provided to support statement • Changing attitudes • Late 1990s tools and techniques available • Recognition of environmental risks (e.g. Rio) • Conservation and protection drivers

6. History • Focus on worker/most exposed individuals • Incomplete ecological information • No evidence provided to support statement • Changing attitudes • Late 1990s tools and techniques available • Recognition of environmental risks (e.g. Rio) • Conservation and protection drivers The need to explicitly demonstrate no impact…

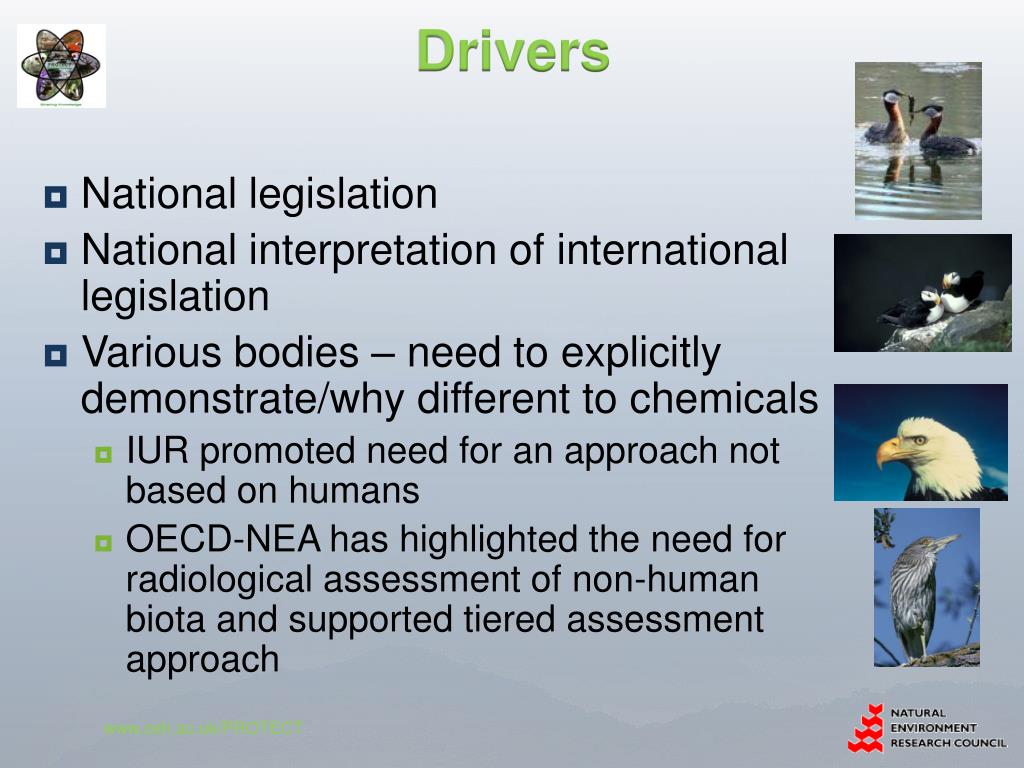

7. Drivers • National legislation • National interpretation of international legislation • Various bodies – need to explicitly demonstrate/why different to chemicals • IUR promoted need for an approach not based on humans • OECD-NEA has highlighted the need for radiological assessment of non-human biota and supported tiered assessment approach www.ceh.ac.uk/PROTECT

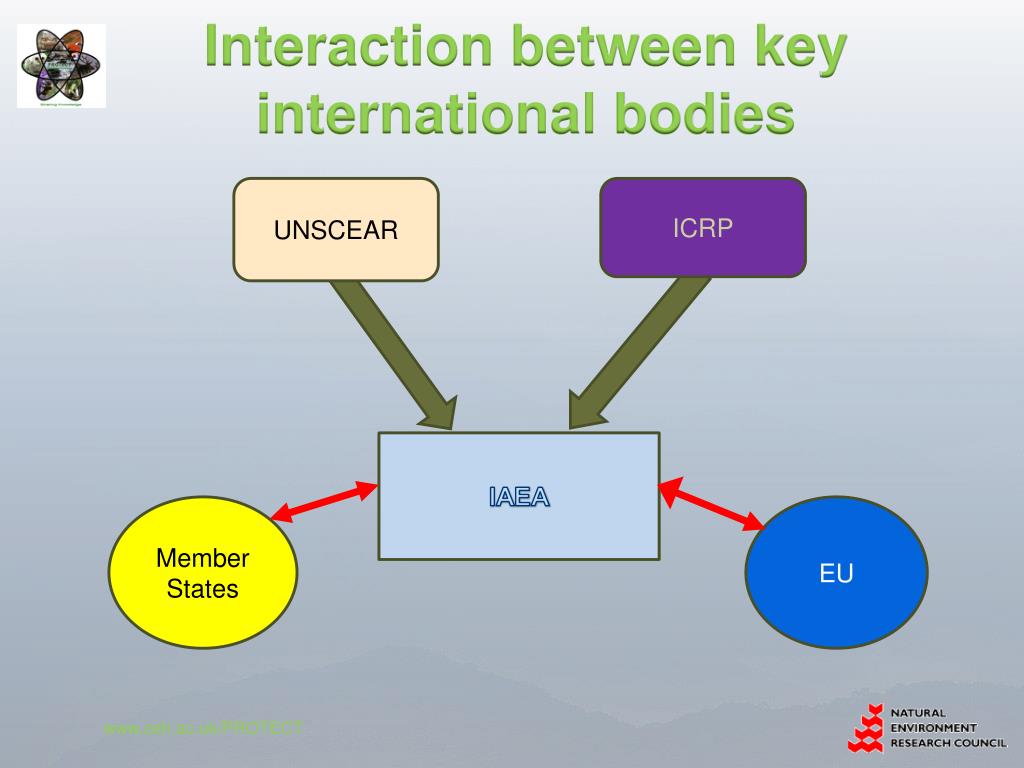

8. Interaction between key international bodies UNSCEAR ICRP IAEA Member States EU www.ceh.ac.uk/PROTECT

9. Radiation Protection and Environment: development • ICRP 1977, 1990 Recommendations • If there is compliance with radiation protection standards for man, other species are not put at risk • UNSCEAR (1996) • Report on Effects of Ionizing Radiation to Biota • USA, Canadian, EU-Projects (2000-2009) • Scientific base • Development of frameworks • IAEA 2005 • Setup of the ”Plan of Activities on Protection of the Environment” • IAEA Safety Fundamentals (2006) • Principle 7:Protection of “People and the environment, present and in the future, must be protected against radiation risks” www.ceh.ac.uk/PROTECT

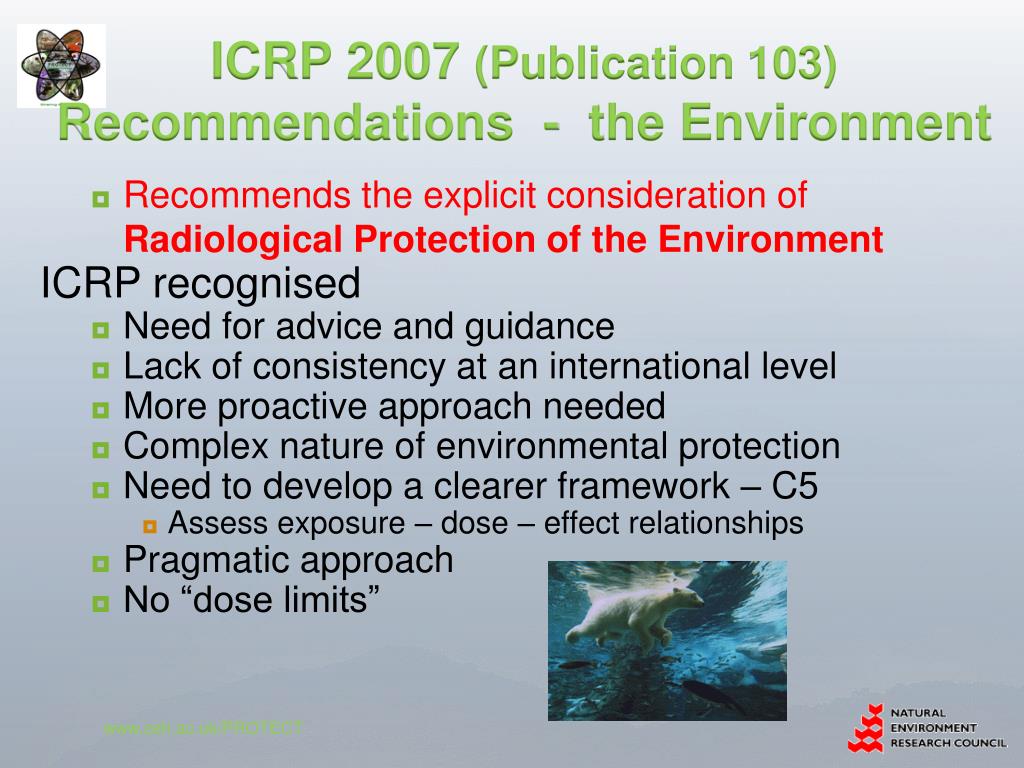

10. ICRP 2007 (Publication 103) Recommendations - the Environment • Recommends the explicit consideration of Radiological Protection of the Environment ICRP recognised • Need for advice and guidance • Lack of consistency at an international level • More proactive approach needed • Complex nature of environmental protection • Need to develop a clearer framework – C5 • Assess exposure – dose – effect relationships • Pragmatic approach • No “dose limits” www.ceh.ac.uk/PROTECT

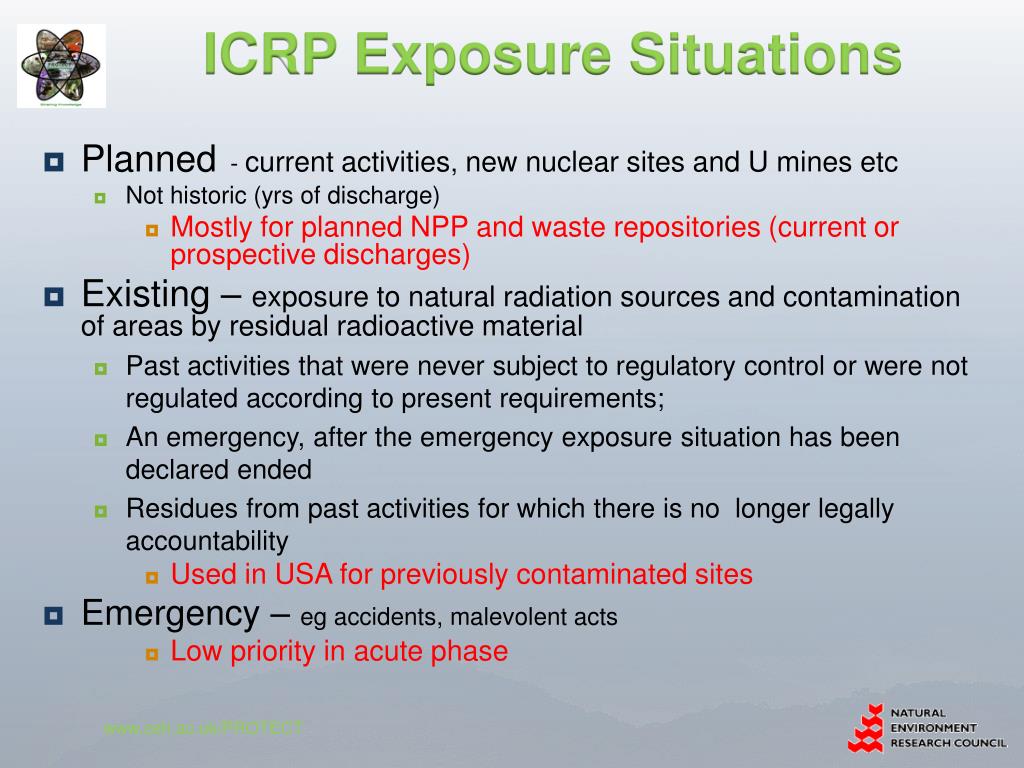

11. ICRP Exposure Situations • Planned - current activities, new nuclear sites and U mines etc • Not historic (yrs of discharge) • Mostly for planned NPP and waste repositories (current or prospective discharges) • Existing – exposure to natural radiation sources and contamination of areas by residual radioactive material • Past activities that were never subject to regulatory control or were not regulated according to present requirements; • An emergency, after the emergency exposure situation has been declared ended • Residues from past activities for which there is no longer legally accountability • Used in USA for previously contaminated sites • Emergency – eg accidents, malevolent acts • Low priority in acute phase www.ceh.ac.uk/PROTECT

12. ICRP Publication 108 (2008) Provides a Concept and Use of Reference Animals and Plants • Transfer, Dosimetry, Effects to biota • => Derived Consideration Reference Levels • Ideas for application • Maintain biological diversity • Conservation of species • Protect health and status of • Natural habitats • Communities • Ecosystems • Targets are all related to • Living organisms • Populations or higher organisational levels • Not on individuals (except for endangered species) • Protection of natural resources not included • Soil, water, air • Demonstration through a set of Reference Animals and Plants (RAPs) • Protection targets www.ceh.ac.uk/PROTECT

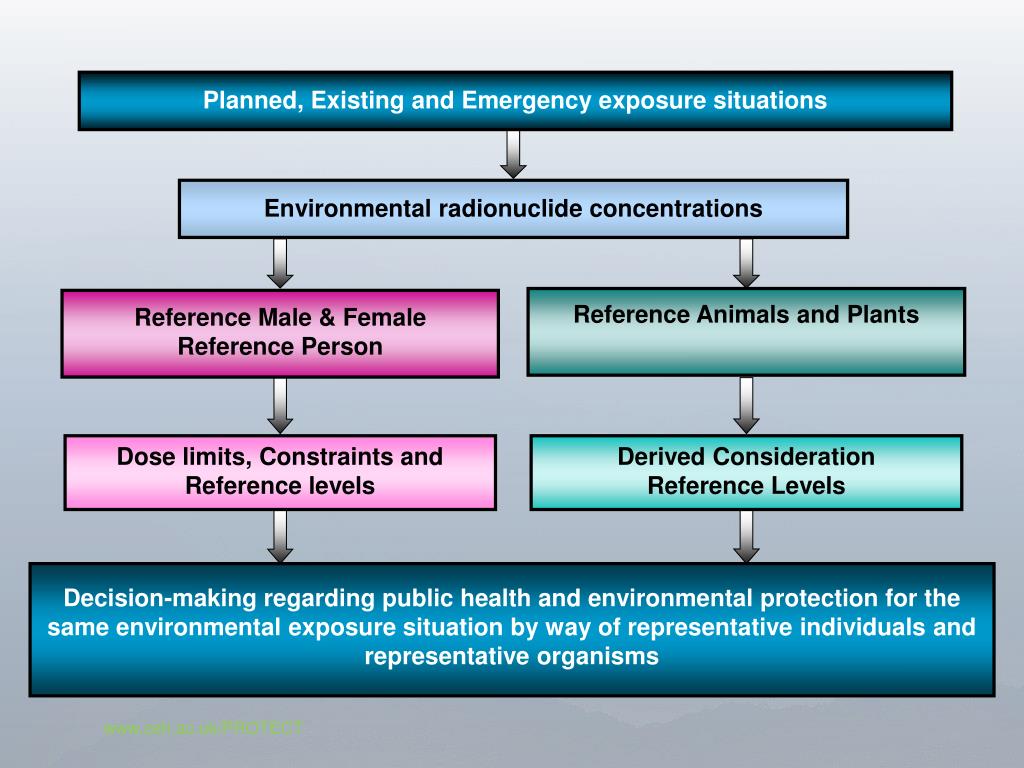

13. Planned, Existing and Emergency exposure situations Environmental radionuclide concentrations Reference Animals and Plants Reference Male & Female Reference Person Dose limits, Constraints and Reference levels Derived Consideration Reference Levels Decision-making regarding public health and environmental protection for the same environmental exposure situation by way of representative individuals and representative organisms www.ceh.ac.uk/PROTECT

14. Human assessment (overview) PATHWAY OF EXPOSURE RADIONUCLIDE SOURCE HABITS DATA REFERENCE PERSON Application of a weighting factors for RBE & different tissues TOTAL ABSORBED DOSE Compare predicted dose to known biological effects & dose limits www.ceh.ac.uk/PROTECT IMPACT

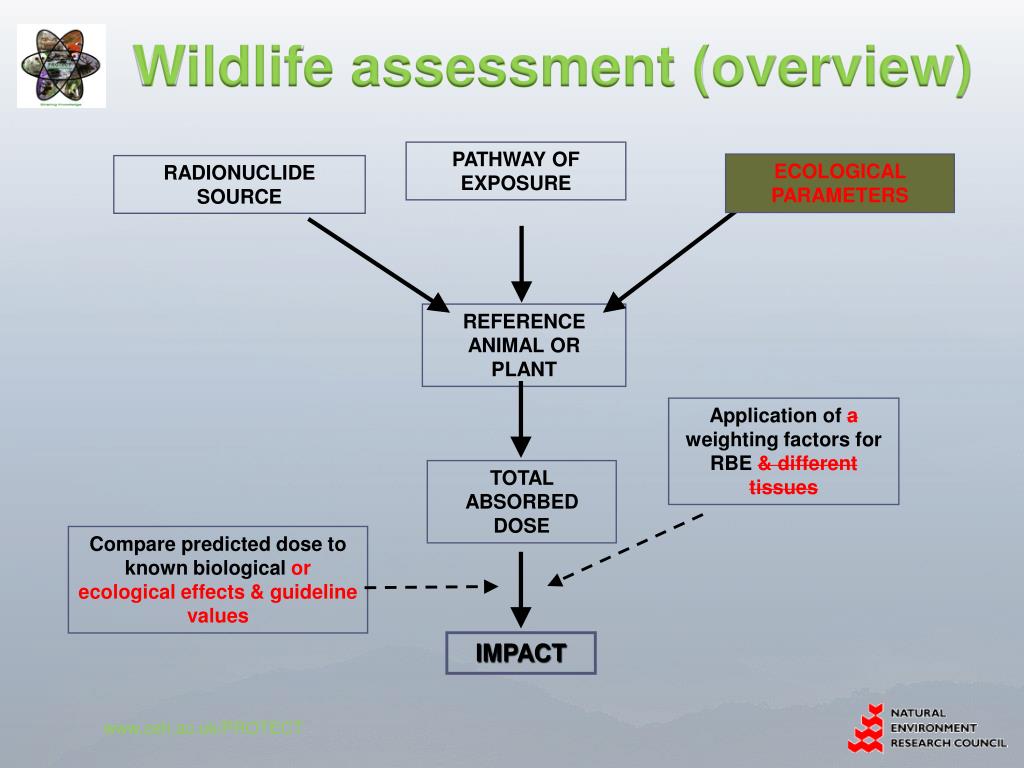

15. Wildlife assessment (overview) ECOLOGICAL PARAMETERS PATHWAY OF EXPOSURE RADIONUCLIDE SOURCE HABITS DATA REFERENCE ANIMAL OR PLANT Application of a weighting factors for RBE & different tissues TOTAL ABSORBED DOSE Compare predicted dose to known biological or ecological effects & guideline values www.ceh.ac.uk/PROTECT IMPACT

16. RAPs www.ceh.ac.uk/PROTECT

17. RAP definition For human protection, the reference individuals and Reference Person are idealised models developed for the specific purposes of relating exposure to dose, and dose to effect. • They do not represent any specific type of human being (the reference individuals are phantoms, and the Reference Person is a hermaphrodite), but nevertheless have to be discretely defined to serve their basic purpose. To be consistent with the original concept of Reference Man, a Reference Animal or Plant can be described as follows: • “A Reference Animal or Plant is a hypothetical entity, with the assumed basic biological characteristics of a particular type of animal or plant, as described to the generality of the taxonomic level of family, with defined anatomical, physiological, and life-history properties, that can be used for the purposes of relating exposure to dose, and dose to effects, for that type of living organism.” www.ceh.ac.uk/PROTECT

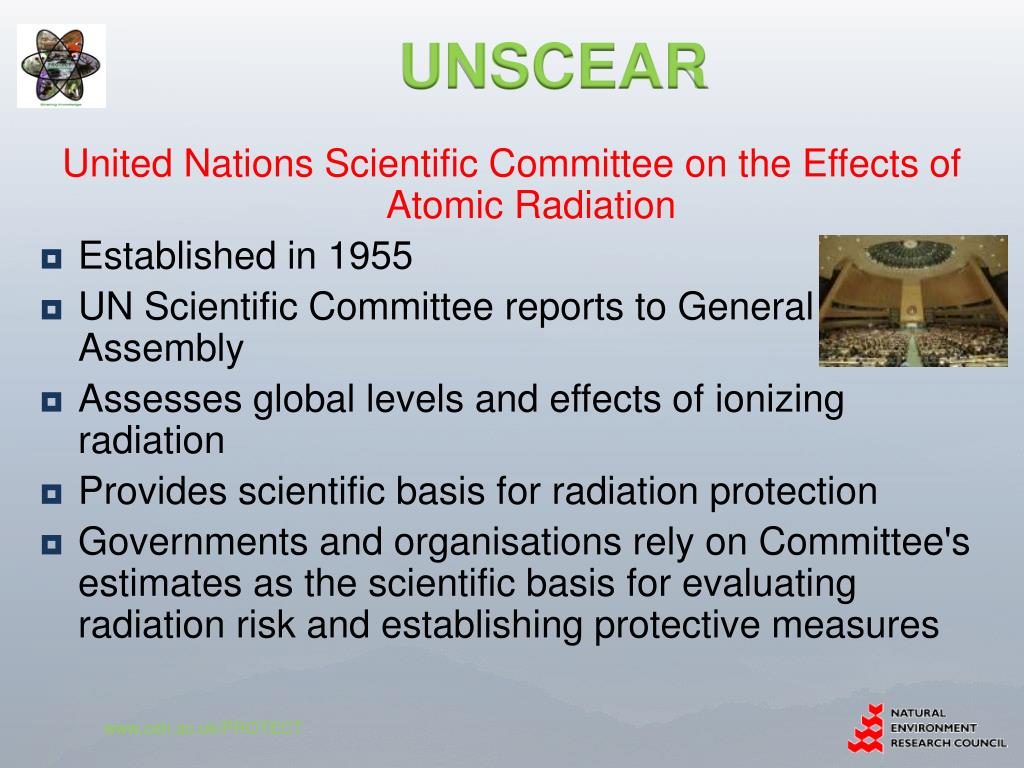

18. UNSCEAR United Nations Scientific Committee on the Effects of Atomic Radiation • Established in 1955 • UN Scientific Committee reports to General Assembly • Assesses global levels and effects of ionizing radiation • Provides scientific basis for radiation protection • Governments and organisations rely on Committee's estimates as the scientific basis for evaluating radiation risk and establishing protective measures www.ceh.ac.uk/PROTECT

19. UNSCEAR - environment • Report on “Effects of radiation on the Environment” in 1996 • Limited available data • Review of data, including Chernobyl • Based largely on acute data • Effects difficult to estimate due to long term recovery, compensatory behaviour and confounding environmental factors • New report imminent www.ceh.ac.uk/PROTECT

20. UNSCEAR 1996 Acute doses

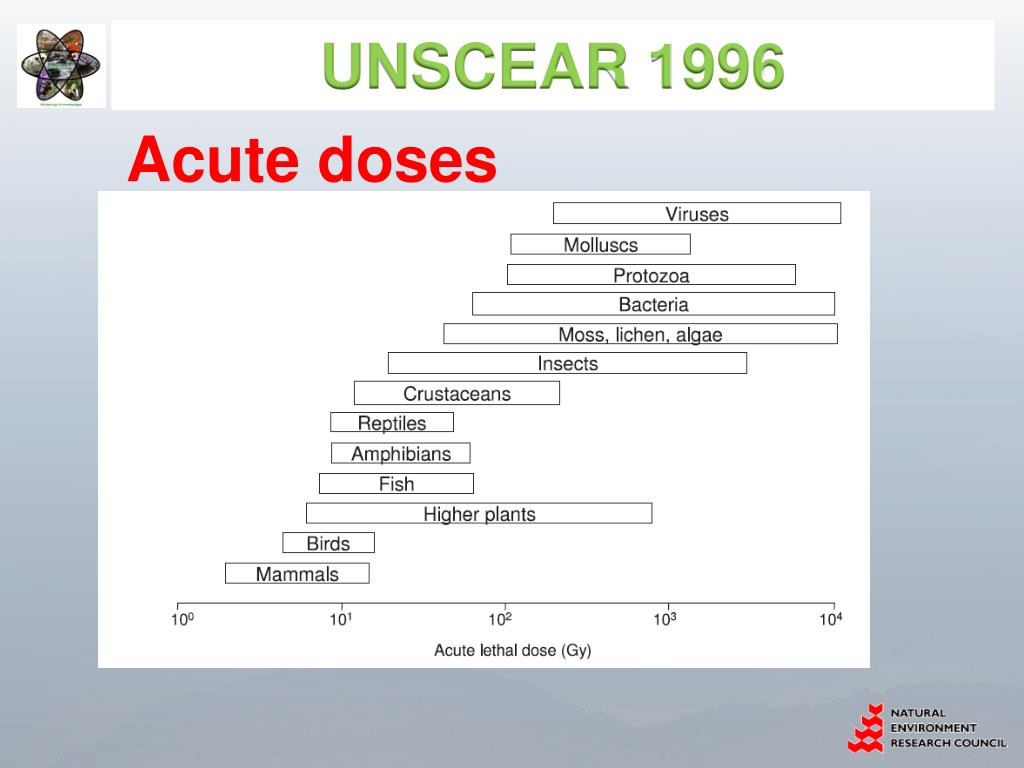

21. UNSCEAR draft conclusions • As in its 1996 recommendations, UNSCEAR considers that chronic dose rates of • less than (about) 100 μGy h‑1 to the most highly exposed individuals would be unlikely to have significant effects on most terrestrial communities; and • that maximum dose rates of 400 μGy h‑1 to any individual in aquatic populations of organisms would be unlikely to have any detrimental effect at the population level • nominal Relative Biological Effectiveness (RBEs) of 10 for internally deposited alpha radiation and 1 for beta radiation were recommended www.ceh.ac.uk/PROTECT

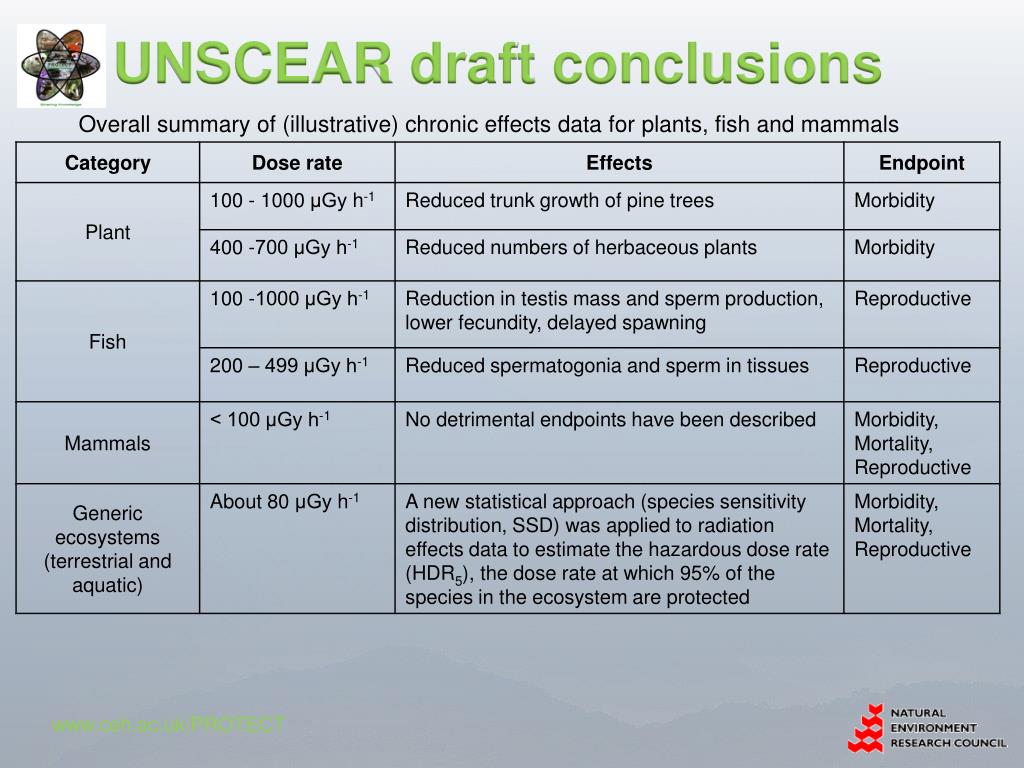

22. UNSCEAR draft conclusions Overall summary of (illustrative) chronic effects data for plants, fish and mammals www.ceh.ac.uk/PROTECT

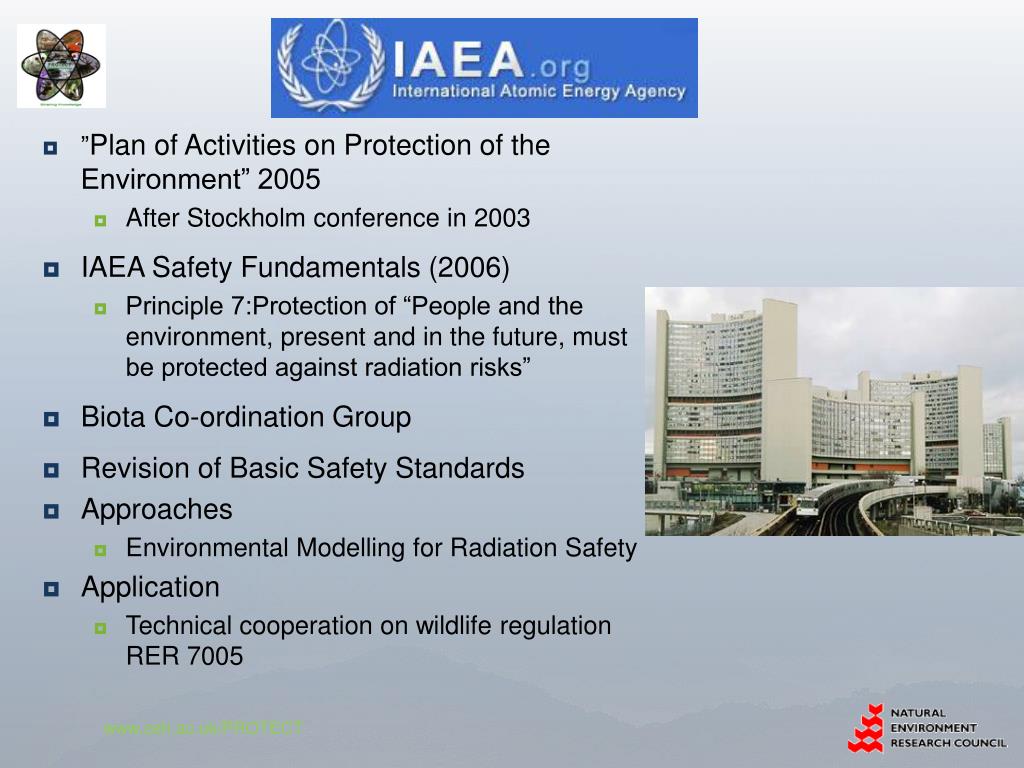

23. ”Plan of Activities on Protection of the Environment” 2005 • After Stockholm conference in 2003 • IAEA Safety Fundamentals (2006) • Principle 7:Protection of “People and the environment, present and in the future, must be protected against radiation risks” • Biota Co-ordination Group • Revision of Basic Safety Standards • Approaches • Environmental Modelling for Radiation Safety • Application • Technical cooperation on wildlife regulation RER 7005 www.ceh.ac.uk/PROTECT

24. Revision of the International Basic Safety Standards (BSS), Draft 4.0, September 2010 Introduction • Protection of people and the environment • Prevention of radiological effects on human health and on flora and fauna. • Adopt an integrated perspective to ensure the sustainable use of natural resources for agriculture, forestry, fisheries and tourism - now and in the future. Requirements • Consider Protection of the Environment • Registration and licensing • Setting discharge limits • Protection of the environment is one factor during optimization in existing and emergency exposure situations • =>3 Safety Guides and 1 Safety Report under development

25. Radiation Protection of the Public and the Environment (New Safety Guide) • Guidance for the implementation of radiation protection as recommended in the new BSS • Exposures to public • Exposures to environment • How to apply radiation protection principles to exposures of the environment • Justification, Limitation, Optimization • Exposure situations • Planned, existing, emergency • Discuss the application of Derived Consideration Reference Levels => Input expected from a currently working ICRP Task Group

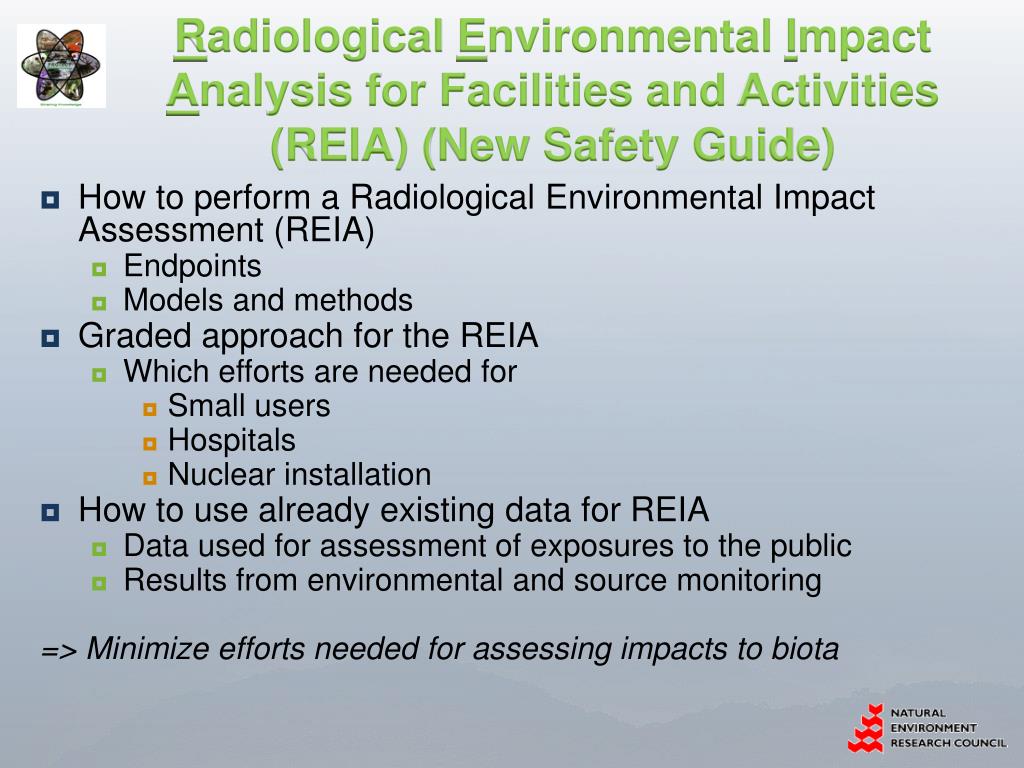

26. Radiological Environmental Impact Analysis for Facilities and Activities (REIA) (New Safety Guide) • How to perform a Radiological Environmental Impact Assessment (REIA) • Endpoints • Models and methods • Graded approach for the REIA • Which efforts are needed for • Small users • Hospitals • Nuclear installation • How to use already existing data for REIA • Data used for assessment of exposures to the public • Results from environmental and source monitoring => Minimize efforts needed for assessing impacts to biota

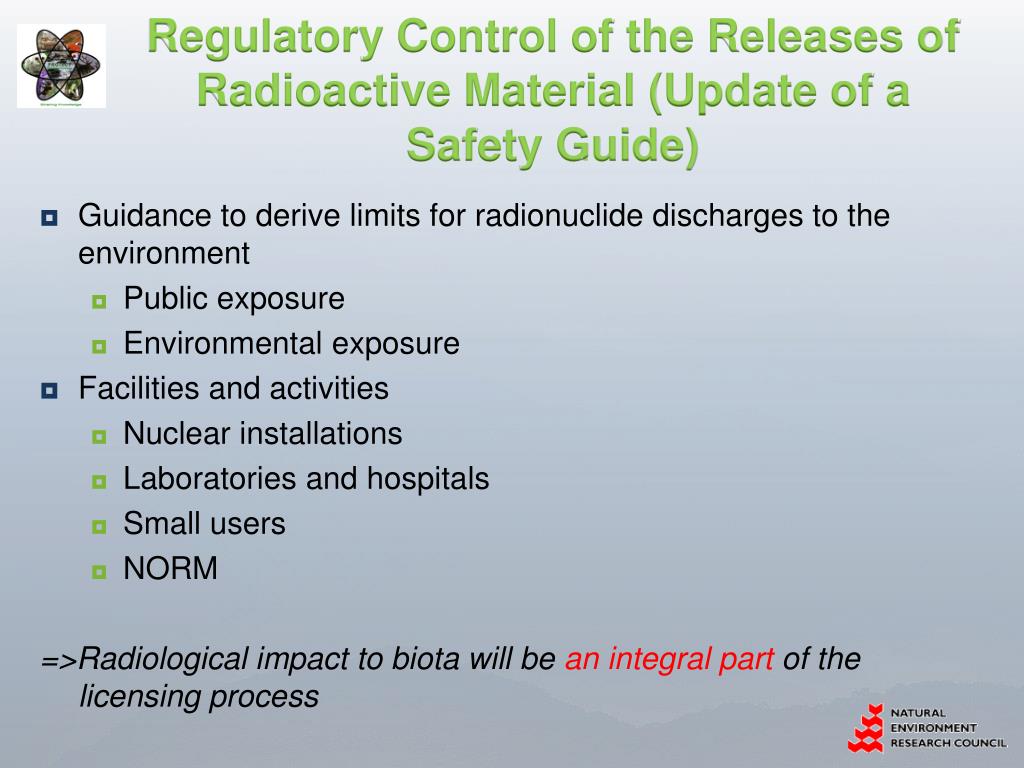

27. Regulatory Control of the Releases of Radioactive Material (Update of a Safety Guide) • Guidance to derive limits for radionuclide discharges to the environment • Public exposure • Environmental exposure • Facilities and activities • Nuclear installations • Laboratories and hospitals • Small users • NORM =>Radiological impact to biota will be an integral part of the licensing process

28. EC • Euratom Basic Safety Standards • New BSS outline • Title X: Protection of the Environment • Euratom projects • FASSET • ERICA • PROTECT • FP7 – STAR Network CURRENT DRAFT only www.ceh.ac.uk/PROTECT

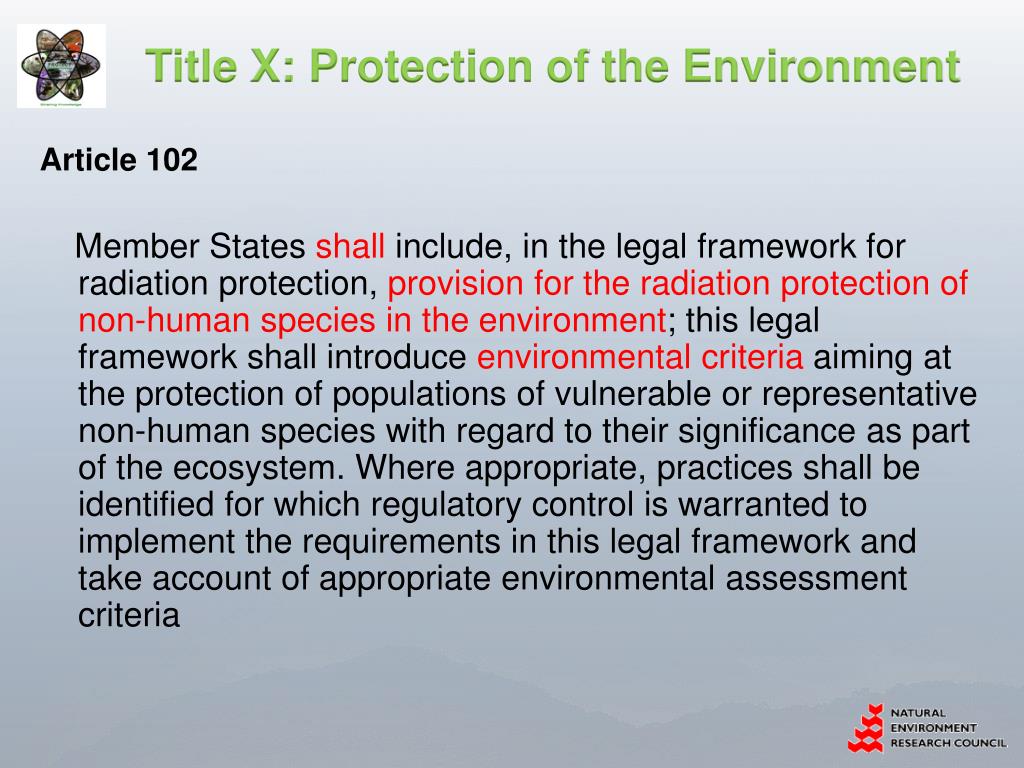

29. Title X: Protection of the Environment Article 102 Member States shall include, in the legal framework for radiation protection, provision for the radiation protection of non-human species in the environment; this legal framework shall introduce environmental criteria aiming at the protection of populations of vulnerable or representative non-human specieswith regard to their significance as part of the ecosystem. Where appropriate, practices shall be identified for which regulatory control is warranted to implement the requirements in this legal framework and take account of appropriate environmental assessment criteria

30. Title X: Protection of the Environment Article 103 Member States' competent authorities, when establishing authorised limits on discharges of radioactive effluents, in accordance with Article 91 paragraph 2, shall also ensure adequate protection of non-human species; for this purpose a generic screening assessment may be conducted to provide reliance that the environmental criteria are met. Article 104 Member States shall require undertakings to take appropriate technical measures with the aim to avoid that in the event of an accidental release there will be significant environmental damage, or to mitigate the extent of such consequences. Article 105 While establishing environmental monitoring programmes, or requiring such programmes to be carried out, Member States' competent authorities shall include representative nonhuman species, if necessary, in addition to such environmental media which constitute a pathway of exposure to members of the public.

31. Article 31 Group of Experts • Recognise that • in line with ICRP Publication 103, is a need for specific consideration of the exposure of biota where appropriate • environmental criteria as well as dose constraints should be considered for the authorisation of discharges of radioactive effluent • Support the development of a framework by ICRP C5

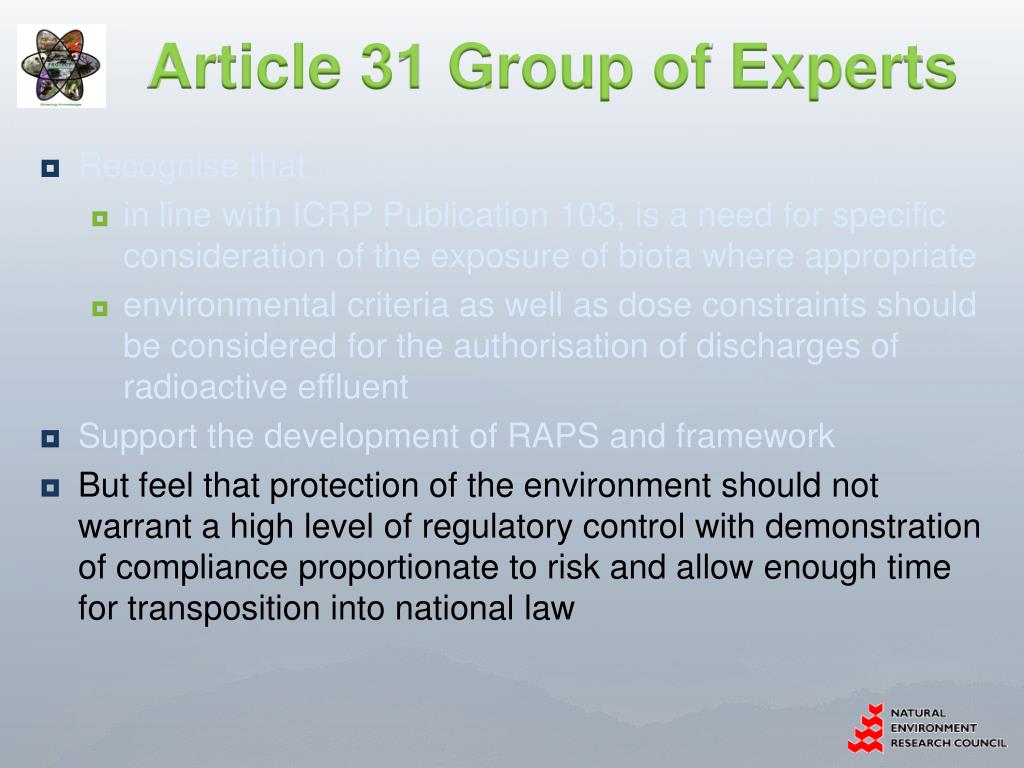

32. Article 31 Group of Experts • Recognise that • in line with ICRP Publication 103, is a need for specific consideration of the exposure of biota where appropriate • environmental criteria as well as dose constraints should be considered for the authorisation of discharges of radioactive effluent • Support the development of RAPS and framework • But feel that protection of the environment should not warrant a high level of regulatory control with demonstration of compliance proportionate to risk and allow enough time for transposition into national law

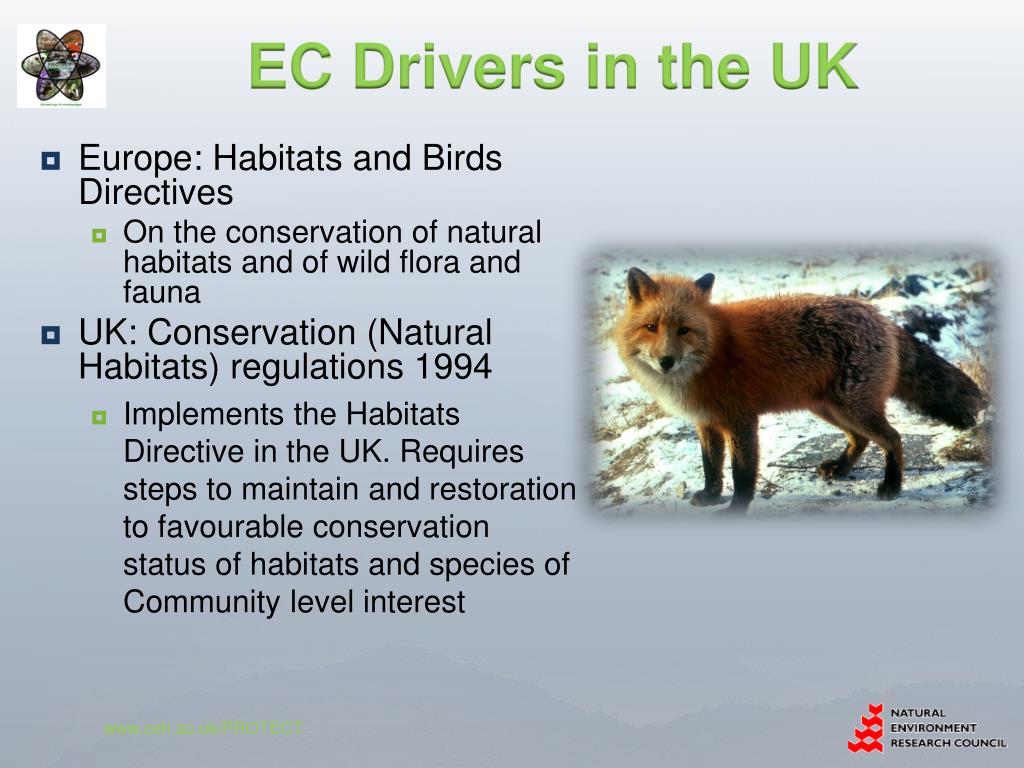

33. EC Drivers in the UK • Europe: Habitats and Birds Directives • On the conservation of natural habitats and of wild flora and fauna • UK: Conservation (Natural Habitats) regulations 1994 • Implements the Habitats Directive in the UK. Requires steps to maintain and restoration to favourable conservation status of habitats and species of Community level interest www.ceh.ac.uk/PROTECT

34. Tiered Assessments • Many approaches use a tiered assessment structure (in common with other areas of risk assessments) • simple initial screening through to more refined assessments • Also referred to as: • staged or graded approaches

35. ERICA flow chart www.ceh.ac.uk/PROTECT

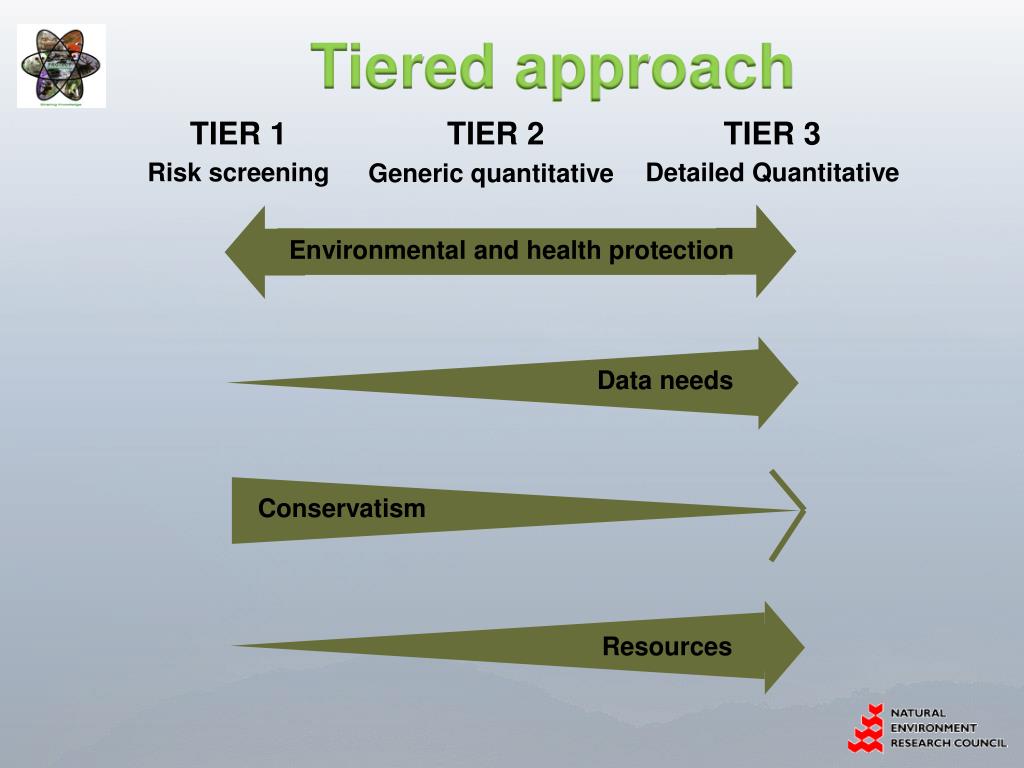

36. Tiered approach TIER 1 Risk screening TIER 2 Generic quantitative TIER 3 Detailed Quantitative Environmental and health protection Data needs Conservatism Resources

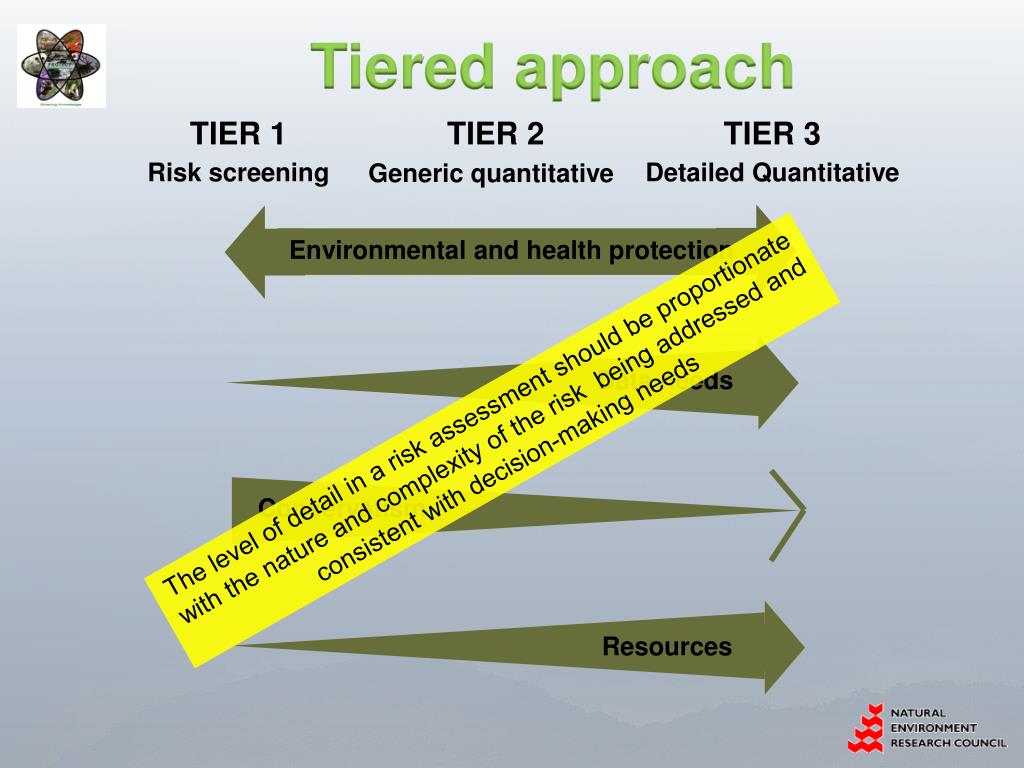

37. Tiered approach TIER 1 Risk screening TIER 2 Generic quantitative TIER 3 Detailed Quantitative Environmental and health protection Data needs The level of detail in a risk assessment should be proportionate with the nature and complexity of the risk being addressed and consistent with decision-making needs Conservatism Resources

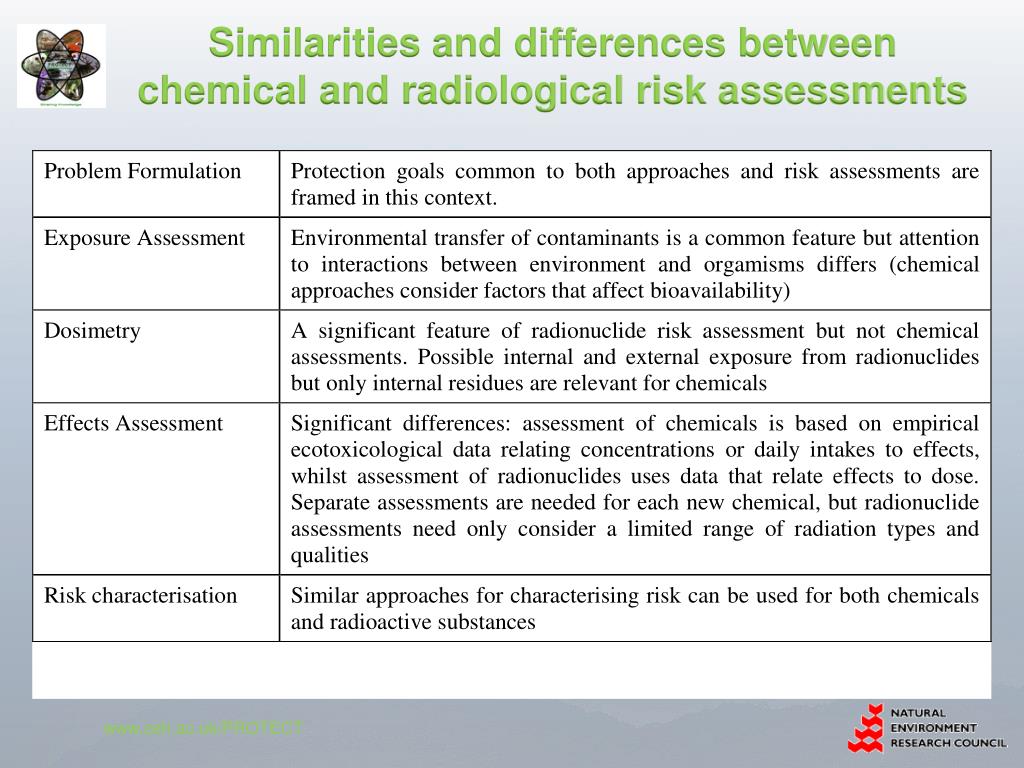

38. Similarities and differences between chemical and radiological risk assessments www.ceh.ac.uk/PROTECT

39. Approaches for chemicals in the environment • Direct toxicity in soil and water:the assessment of toxicity thresholds for plants, invertebrates and microbial processes • Higher organism health:comparison with • Concentration in food eaten • Ingested amount per unit liveweight of receptor species • Concentration in organs of species compared to a risk quotient • Human health: quantifying exposure to contaminants and assessing acceptable intake values

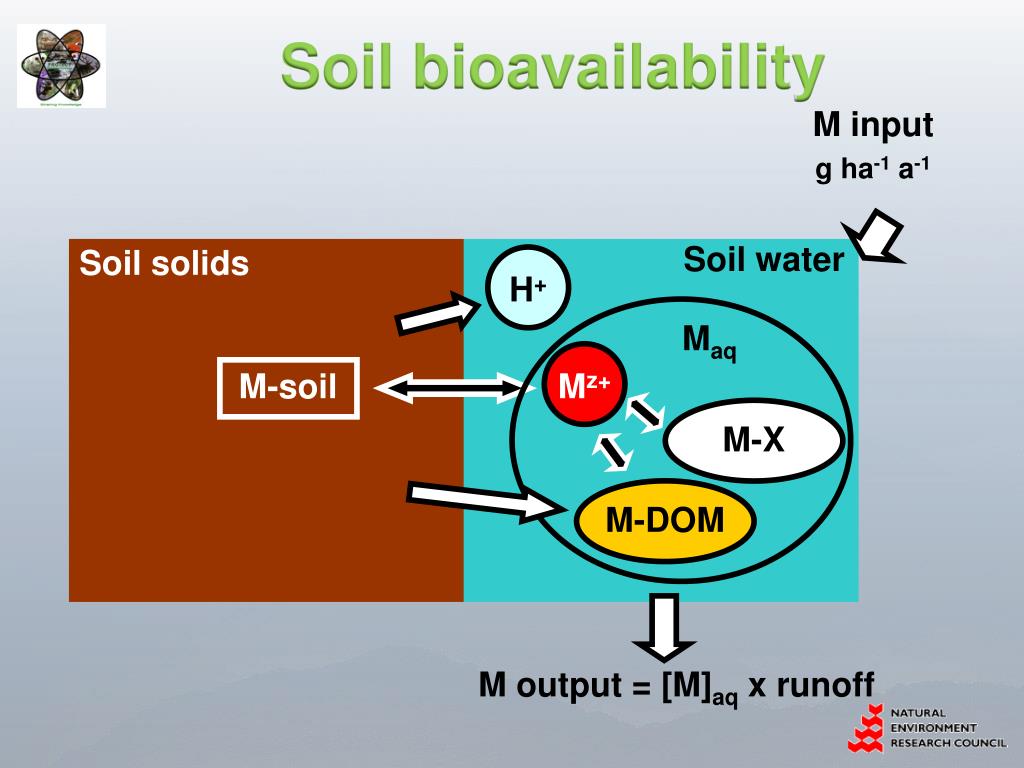

40. M input g ha-1 a-1 H+ Soil water Soil solids Maq M-soil Mz+ M-DOM M-X M output = [M]aq x runoff Soil bioavailability

41. Critical Loads The critical load is the rate of deposition of a metal from the atmosphere, which at steady state, leads to the metal concentration in soils or water reaching a threshold for adverse effects (the critical limit)

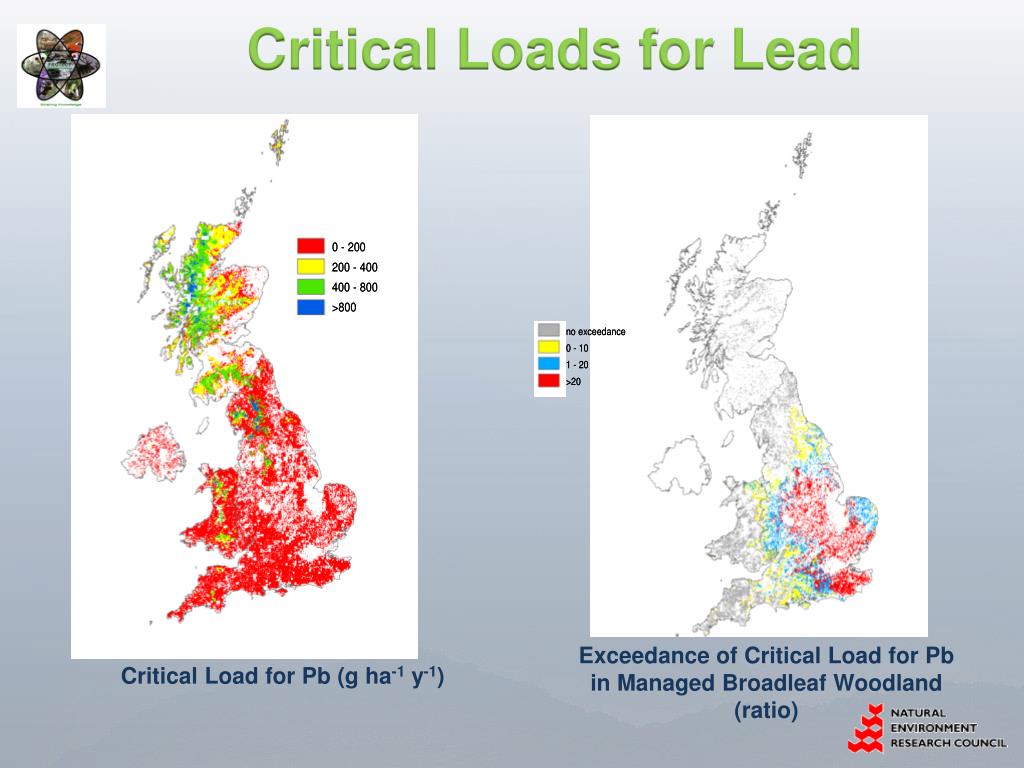

42. Critical Loads for Lead Exceedance of Critical Load for Pb in Managed Broadleaf Woodland (ratio) Critical Load for Pb (g ha-1 y-1)

43. Why are we giving these courses? • Assessments are being done – little formal training available • - so we don't assume much prior knowledge • We are being asked for advice on use of assessment tools • The tools are only recently developed and there are various complexities and assumptions which need to be understood www.ceh.ac.uk/PROTECT

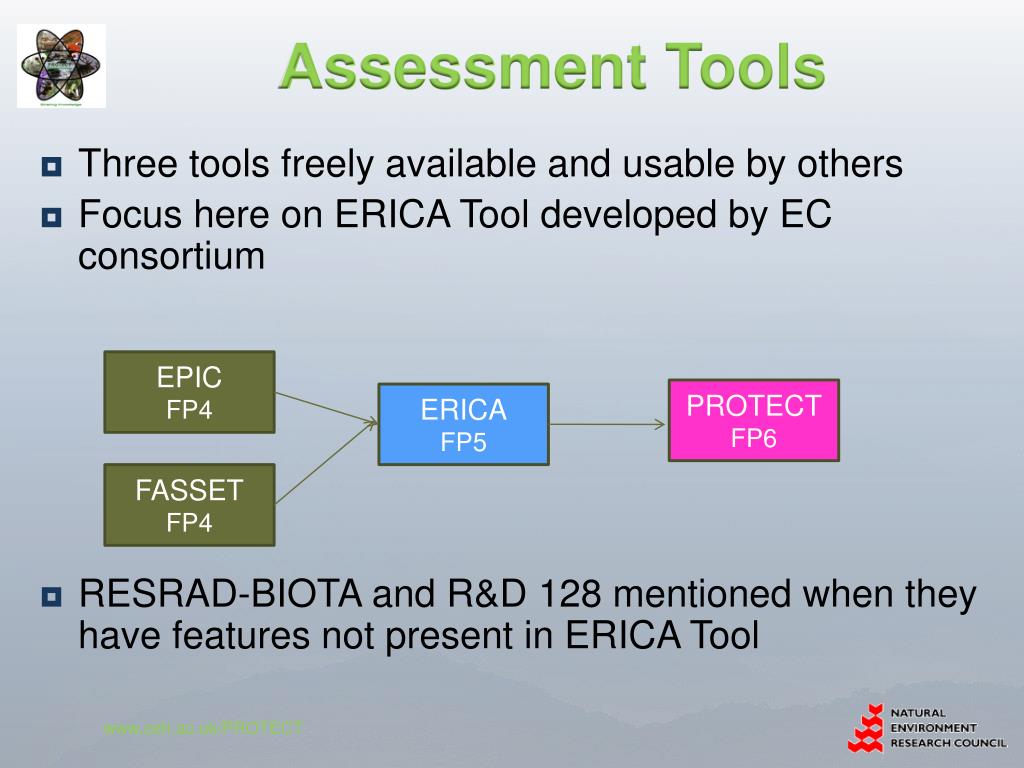

44. Assessment Tools • Three tools freely available and usable by others • Focus here on ERICA Tool developed by EC consortium • RESRAD-BIOTA and R&D 128 mentioned when they have features not present in ERICA Tool EPIC FP4 PROTECT FP6 ERICA FP5 FASSET FP4 www.ceh.ac.uk/PROTECT
