Adapting ‘Segment C’ Device Driver Module for UDP Segmentation Offloading

Explore necessary changes in ‘Segment C’ device driver module to support UDP segmentation offloading. Understand Ethernet and IP header fields, UDP segment components, and relevant context descriptors.

hadar
Télécharger la présentation

Adapting ‘Segment C’ Device Driver Module for UDP Segmentation Offloading

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

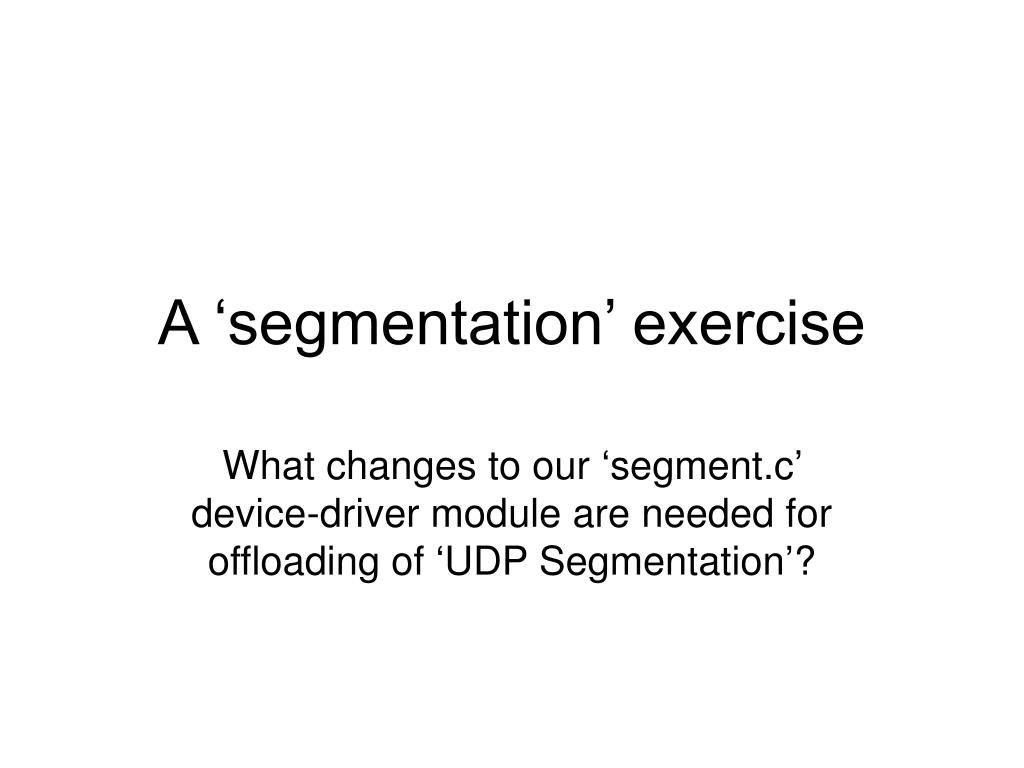

  1. A ‘segmentation’ exercise What changes to our ‘segment.c’ device-driver module are needed for offloading of ‘UDP Segmentation’?

  2. Ethernet Header Destination MAC-address Source MAC-address TYPE / LENGTH

  3. IP Header VERS HLEN TOS Total Length Identification FLAGS fragment offset TTL Protocol ID IP Header Checksum Destination IP-address Source IP-address

  4. UDP Header Source port-number Destination port-number UDP Segment Length UDP Checksum

  5. UDP Pseudo Header Destination IP-address Source IP-address ZERO Protocol ID UDP Length

  6. ‘Partial’ pseudo-header Destination IP-address Source IP-address ZERO Protocol ID ZERO

  7. Context descriptor (type 0) 63 48 47 40 39 32 31 16 15 8 7 0 TUCSE TUCSO TUCSS IPCSE IPCSO IPCSS MSS HDRLEN RSV STA TUCMD DTYP =0 PAYLEN DEXT=1 (Extended Descriptor) Legend: IPCSS (IP CheckSum Start) TUCSS (TCP/UDP CheckSum Start) IPCSO (IP CheckSum Offset) TUCSO (TCP/UDP CheckSum Offset) IPCSE (IP CheckSum Ending) TUCSE (TCP/UDP CheckSum Ending) PAYLEN (Payload Length) DTYP (Descriptor Type) TUCMD (TCP/UCP Command) STA (TCP/UDP Status) HDRLEN (Header Length) MSS (Maximum Segment Size)

  8. The TUCMD byte 7 6 5 4 3 2 1 0 IDE SNAP DEXT (=1) reserved (=0) RS TSE IP TCP Legend: IDE (Interrupt Delay Enable) SNAP (Sub-Network Access Protocol) DEXT (Descriptor Extension) RS (Report Status) TSE (TCP-Segmentation Enable) IP (Internet Protocol) TCP (Transport Control Protocol) always valid valid only when TSE=1

  9. Context descriptor (type 1) 63 48 47 40 39 32 31 16 15 8 7 0 BASE ADDRESS VLAN POPTS RSV STA DCMD DTYP =1 DTALEN DEXT=1 (Extended Descriptor) Legend: DTALEN (Data Length) DTYP (Descriptor Type) DCMD (Descriptor Command) STA (Status) RSV (Reserved) POPTS (Packet Options) VLAN (VLAN tag)

  10. The DCMD byte 7 6 5 4 3 2 1 0 IDE VLE DEXT (=1) reserved (=0) RS TSE IFCS EOP Legend: IDE (Interrupt Delay Enable) VLE (VLAN Enable) DEXT (Descriptor Extension) RS (Report Status) TSE (TCP-Segmentation Enable) IFCS (Insert Frame CheckSum) EOP (End Of Packet)) always valid valid only when EOP=1
