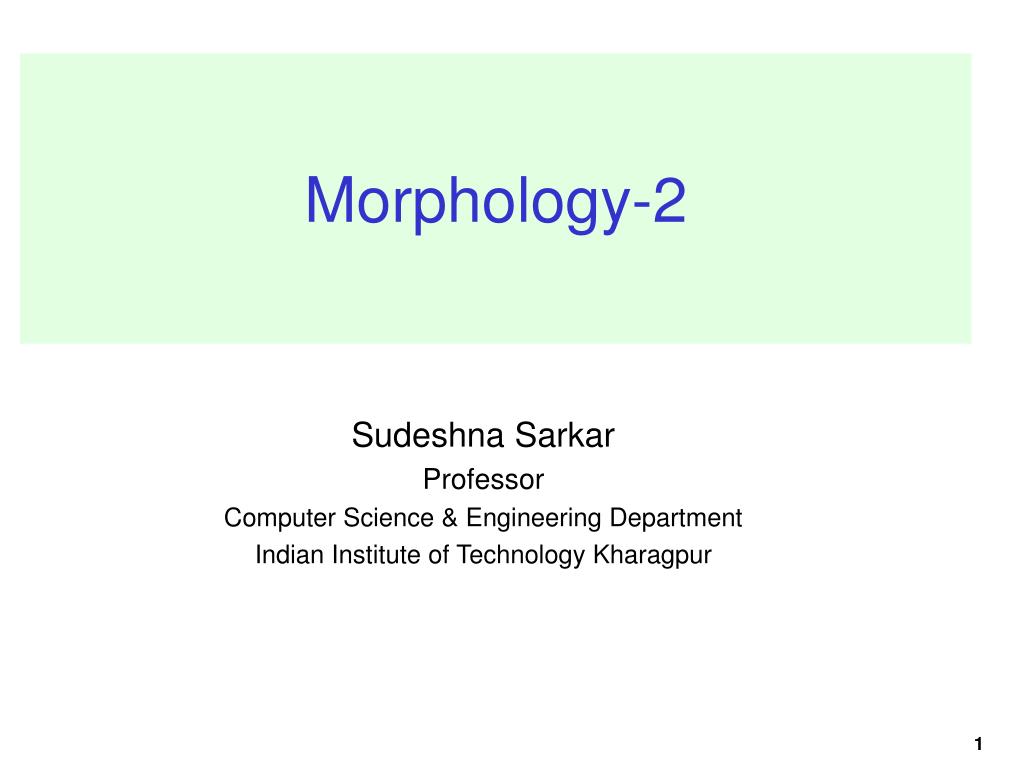

1. Morphology-2 Sudeshna Sarkar Professor Computer Science & Engineering Department Indian Institute of Technology Kharagpur

2. Morphology in NLP • Analysis vs synthesis • what does dogs mean? vs what is the plural of dog? • Analysis • Need to identify lexeme • Tokenization • To access lexical information • Inflections (etc) carry information that will be needed by other processes (eg agreement useful in parsing, inflections can carry meaning (eg tense, number) • Morphology can be ambiguous • May need other process to disambiguate (eg German –en) • Synthesis • Need to generate appropriate inflections from underlying representation

3. Morphological processing • Stemming • String-handling approaches • Regular expressions • Mapping onto finite-state automata • 2-level morphology • Mapping between surface form and lexical representation

4. Stemming • Stemming is the particular case of tokenization which reduces inflected forms to a single base form or stem • Stemming algorithms are basic string-handling algorithms, which depend on rules which identify affixes that can be stripped

5. Surface and Lexical Forms • The surface level of a word represents the actual spelling of that word. • geliyorum eats cats kitabım • The lexical level of a word represents a simple concatenation of morphemes making up that word. • gel +PROG +1SG • eat +AOR • cat +PLU • kitap +P1SG • Morphological processors try to find correspondences between lexical and surface forms of words. • Morphological recognition/ analysis – surface to lexical • Morphological generation/ synthesis – lexical to surface

6. Morphological Parsing • Morphological parsing is to find the lexical form of a word from its surface form. • cats -- cat +N +PLU • cat -- cat +N +SG • goose -- goose +N +SG or goose +V • geese -- goose +N +PLU • gooses -- goose +V +3SG • catch -- catch +V • caught -- catch +V +PAST or catch +V +PP • AsachhilAma AsA+PROG+PAST+1st I/We was/were coming • There can be more than one lexical level representation for a given word. (ambiguity) flies flyVERB+PROG flyNOUN+PLU mAtAla kare

7. Formal definition of the problem • Surface form: The word (ws) as it occurs in the text. [sings] ws L  Σ+ • Lexical form: The root word(s) (r1, r2, …) and other grammatical features (F). [sing,v,+sg,+3rd ] wl {Σ+,}+F+ wl  Δ+

8. Analysis & Synthesis • Morphological Analysis: Maps a string from surface form to corresponding lexical form. fMA:Σ+  Δ+ • Morphological Synthesis: Maps a string from lexical form to surface form. fMA:Δ+ Σ+

9. Fly + s  flys  flies (y i rule) • Duckling Go-getter  get + er Doer  do + er Beer  ? What knowledge do we need? How do we represent it? How do we compute with it?

10. Knowledge needed • Knowledge of stems or roots • Duck is a possible root, not duckl We need a dictionary (lexicon) • Only some endings go on some words • Do + er ok • Be + er – not ok • In addition, spelling change rules that adjust the surface form • Get + er – double the t getter • Fox + s – insert e – foxes • Fly + s – insert e – flys – y to i – flies • Chase + ed – drop e - chased

11. Put all this in a big dictionary (lexicon) • Turkish – approx 600  106 forms • Finnish – 107 • Hindi, Bengali, Telugu, Tamil? • Besides, always novel forms can be constructed • Anti-missile • Anti-anti-missile • Anti-anti-anti-missile • …….. • Compounding of words – Sanskrit, German

12. Dictionary • Lemma: lexical unit, “pointer” to lexicon • typically is represented as the “base form”, or “dictionary headword” • possibly indexed when ambiguous/polysemous: • state1 (verb), state2 (state-of-the-art), state3 (government) • from one or more morphemes (“root”, “stem”, “root+derivation”, ...) • Categories: non-lexical • small number of possible values (< 100, often < 5-10)

13. Morphological Analyzer • Relatively simple for English. • But for many Indian languages, it may be more difficult. Examples Inflectional and Derivational Morphology. • Common tools: Finite-state transducers • A transducer maps a set/string of symbols to another set/string of symbols

14. A simpler problem • Linear concatenation of morphemes with possible spelling changes at the boundary and a few irregular cases. • Quite practical assumptions • English, Hindi, Bengali, Telugu, Tamil, French, Turkish … • Exceptions: Semitic languages, Sanskrit

15. Computational Morphology • Approaches • Lexicon only • Rules only • Lexicon and Rules • Finite-state Automata • Finite-state Transducers

16. Computational Morphology • Systems • WordNet’s morphy • PCKimmo • Named after Kimmo Koskenniemi, much work done by Lauri Karttunen, Ron Kaplan, and Martin Kay • Accurate but complex • http://www.sil.org/pckimmo/ • Two-level morphology • Commercial version available from InXight Corp. • Background • Chapter 3 of Jurafsky and Martin • A short history of Two-Level Morphology • http://www.ling.helsinki.fi/~koskenni/esslli-2001-karttunen/

17. Morphological Anlayser To build a morphological analyser we need: • lexicon: the list of stems and affixes, together with basic information about them • morphotactics: the model of morpheme ordering (eg English plural morpheme follows the noun rather than a verb) • orthographic rules: these spelling rules are used to model the changes that occur in a word, usually when two morphemes combine (e.g., fly+s = flies)

18. Finite State Machines • FSAs are equivalent to regular languages • FSTs are equivalent to regular relations (over pairs of regular languages) • FSTs are like FSAs but with complex labels. • We can use FSTs to transduce between surface and lexical levels.

19. Can FSAs help? Reg-noun Plural (-s) Q0 Q1 Q2 Irreg-pl-noun Irreg-sg-noun

20. What’s this for? un Adj-root Q0 Q1 Q2 Q3 -er -est -ly ε un?ADJ-ROOT{er | est | ly}?

21. Morphotactics • The last two examples basically model some parts of the English morphotactics • But where is the information about regular and irregular roots?LEXICON • Can we include the lexicon in the FSA?

22. Reg-noun Plural (-s) Q0 Q1 Q2 Irreg-pl-noun Irreg-sg-noun The English Pluralization FSA

23. After adding a mini-lexicon a s g u b s Q1 Q2 Q0 d o g m a n n e

24. Elegance & Power • FSAs are elegant because • NFA  DFA • Closed under Union, Intersection, Concatenation, Complementation • Traversal is always linear on input size • Well-known algorithms for minimization, determinization, compilation etc. • They are powerful because they can capture • Linear morphology • Irregularities

25. But… FSAs are language recognizer/generator. We need transducers to build Morphological Analyzers (fMA) & Morphological Synthesizers (fMS)

26. Finite State Transducers Surface form Finite State Machine Lexical form

27. Formal Definition • A 6-tuple {Σ,Δ,Q,δ,q0,F} • Σ is the (finite) set of input symbols • Δ is the (finite) set of output symbols • Q is the set (FINITE) of states • δ is the transition function Q Σ to Q  Δ • q0 Q is the start state • F  Q is the set of accepting states

28. An example FST a:a s:ε g:g b:b u:u s:s Q1 Q2 Q0 d:d o:o g:g a:a m:m n:n n:n e:a

29. The Lexicon FST a:a s:+Pl g:g #:+Sg b:b u:u s:s Q1 Q2 Q0 d:d o:o g:g #:+Sg a:a n:n m:m Q3 e:a #:+Pl n:n Q4

30. Ways to look at FSTs • Recognizer of a pair of strings • Generator of a pair of strings • Translator from one regular language to another • Computer of a relation – regular relation

31. Invertibility • Given T = {Σ,Δ,Q,δ,q0,F} • Construct T-1 = {Δ,Σ,Q,δ-1,q0,F} such that if δ(x,q)  (y,q’) then δ-1(y,q)  (x,q’) where, x Σand y  Δ

32. Compositionality • T1 = {Σ, X, Q1,δ1,q1,F1} & T2 = {X, Δ, Q2,δ2,q2,F2} • DefineT3 = {Σ, Δ, Q3,δ3,q3,F3} such that Q3 = Q1 Q2 q3 = (q1, q2) δ3 ((q,s), i) = ((q’,s’),o) if c s.t δ1 (q, i) = (q’,c) andδ2 (s, c) = (s’,o)

33. Modeling Orthographic Rules • Spelling changes in morpheme boundaries • bus+s  buses, watch+s  watches • fly+s  flies • make+ing  making • Rules • E-insertion takes place if the stem ends in s, z, ch, sh etc. • y maps to ie when pluralization marker s is added

34. Incorporating Spelling Rules • Spelling rules, each corresponding to an FST, can be run in parallel provided that they are "aligned". • The set of spelling rules is positioned between the surface level and the intermediate level. • Parallel execution of FSTs can be carried out: • by simulation: in this case FSTs must first be aligned. • by first constructing a a single FST corresponding to their intersection.

35. Rewrite Rules • Chomsky and Halle (1968) • General form: ab / λ__ ρ • E-insertion: ε e / {x,s,z,ch,sh…}^ __ s# • Kay and Kaplan (1994) showed that FSTs can be compiled from general rewrite rules

36. Two-level Morphology (Koskenniemi, 1983) lexical LEXICON FST intermediate FST1 FSTn orthographic rules surface

37. b b u u s s e e s s A Single FST for MA and MS b u s +N +Pl b u s +N +Pl LEXICON FST Morphology FST b u s ^ s # FST1 FSTn orthographic rules

38. Can we do without the lexicon • Not really! • But for some applications we might need to know the stem only • Surface form  Stem [Stemming] • Porter Stemming algorithm (1980) is a very popular technique that does not use lexicon.

39. Derivational Rules

40. Lexicon & Morphotactics • Typically list of word parts (lexicon) and the models of ordering can be combined together into an FSA which will recognise the all the valid word forms. • For this to be possible the word parts must first be classified into sublexicons. • The FSA defines the morphotactics (ordering constraints).

41. Sublexicons to classify the list of word parts

42. Towards the Analyser • We can use lexc or xfst to build such an FSA (see lex1.lexc) • To augment this to produce an analysis we must create a transducer Tnum which maps between the lexical level and an "intermediate" level that is needed to handle the spelling rules of English.

43. Ambiguity • Recall that in non-deterministic recognition multiple paths through a machine may lead to an accept state. • Didn’t matter which path was actually traversed • In FSTs the path to an accept state does matter since differ paths represent different parses and different outputs will result

44. Ambiguity • What’s the right parse for • Unionizable • Union-ize-able • Un-ion-ize-able • Each represents a valid path through the derivational morphology machine.

45. Ambiguity • There are a number of ways to deal with this problem • Simply take the first output found • Find all the possible outputs (all paths) and return them all (without choosing) • Bias the search so that only one or a few likely paths are explored

46. Generativity • Nothing really privileged about the directions. • We can write from one and read from the other or vice-versa. • One way is generation, the other way is analysis

47. Multi-Level Tape Machines • We use one machine to transduce between the lexical and the intermediate level, and another to handle the spelling changes to the surface tape

48. Note • A key feature of this machine is that it doesn’t do anything to inputs to which it doesn’t apply. • Meaning that they are written out unchanged to the output tape. • Turns out the multiple tapes aren’t really needed; they can be compiled away.

49. Overall Scheme • We now have one FST that has explicit information about the lexicon (actual words, their spelling, facts about word classes and regularity). • Lexical level to intermediate forms • We have a larger set of machines that capture orthographic/spelling rules. • Intermediate forms to surface forms

50. Other Issues • How to formulate the rewrite rules? • How to ensure coverage? • What to do for unknown roots? • Is it possible to learn morphology of a language in supervised/unsupervised manner? • What about non-linear morphology?
