Security Analysis of Network Protocols Anupam Datta Stanford University May 18, 2005

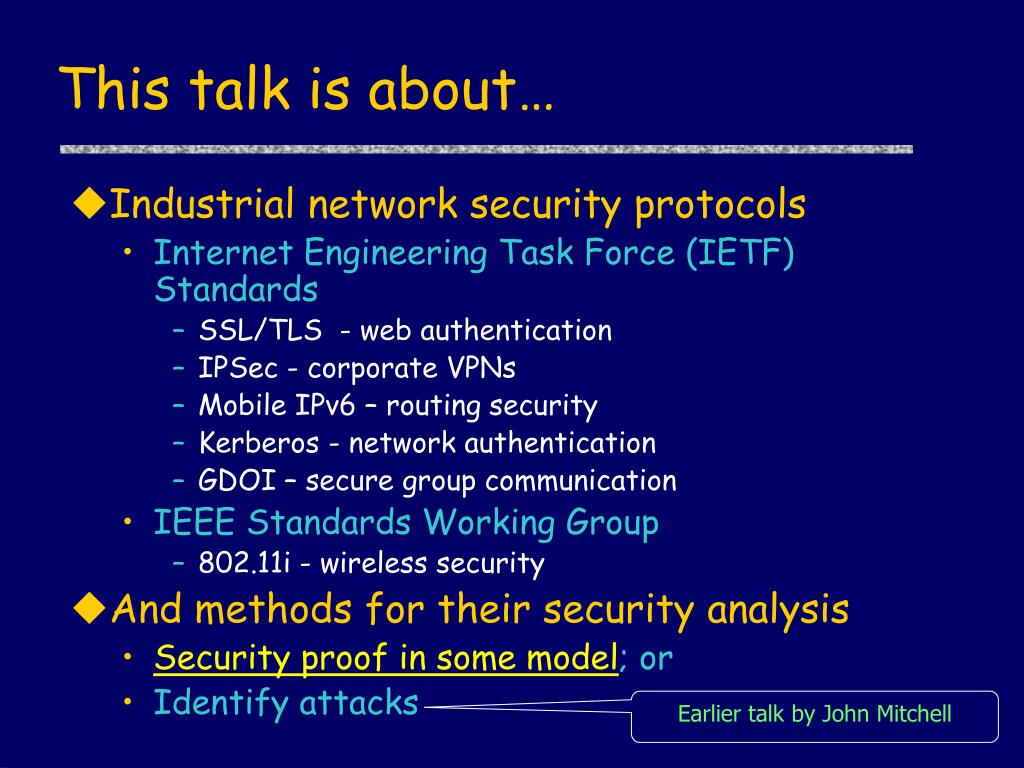

This talk is about… • Industrial network security protocols • Internet Engineering Task Force (IETF) Standards • SSL/TLS - web authentication • IPSec - corporate VPNs • Mobile IPv6 – routing security • Kerberos - network authentication • GDOI – secure group communication • IEEE Standards Working Group • 802.11i - wireless security • And methods for their security analysis • Security proof in some model; or • Identify attacks Earlier talk by John Mitchell

Outline Part I: Overview • Motivation • Central problems • Divide and Conquer paradigm • Combining logic and cryptography • Results Part II: Protocol Composition Logic • Compositional Reasoning • Complexity-theoretic foundations

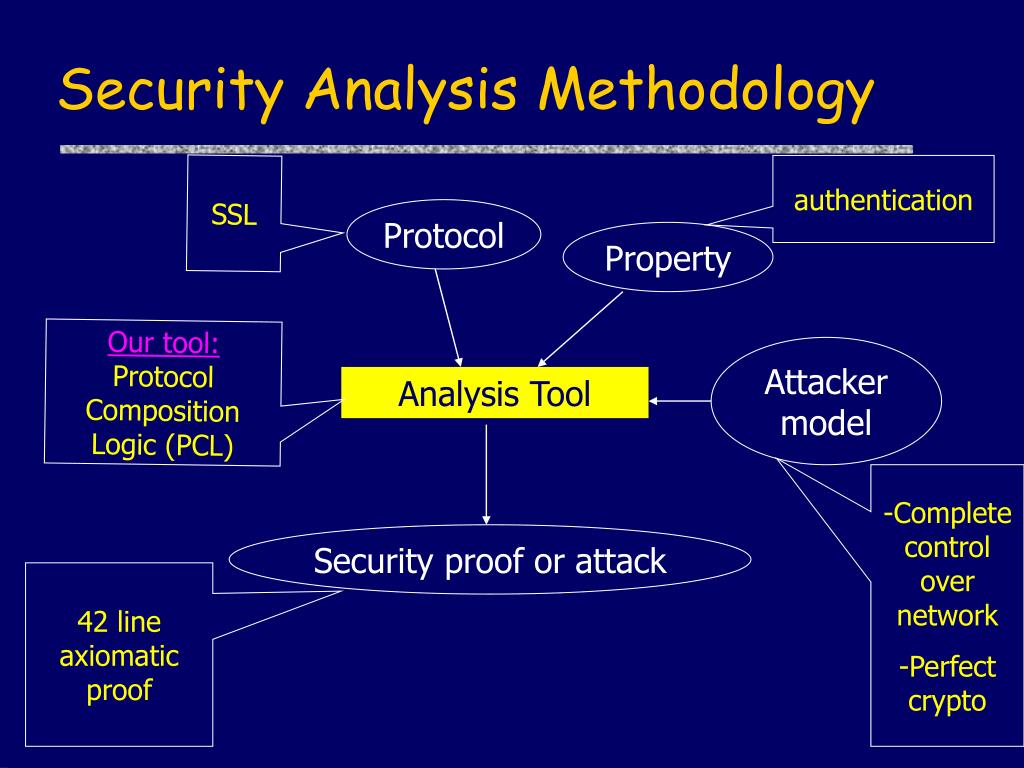

SSL authentication Our tool: Protocol Composition Logic (PCL) -Complete control over network -Perfect crypto 42 line axiomatic proof Security Analysis Methodology Protocol Property Attacker model Analysis Tool Security proof or attack

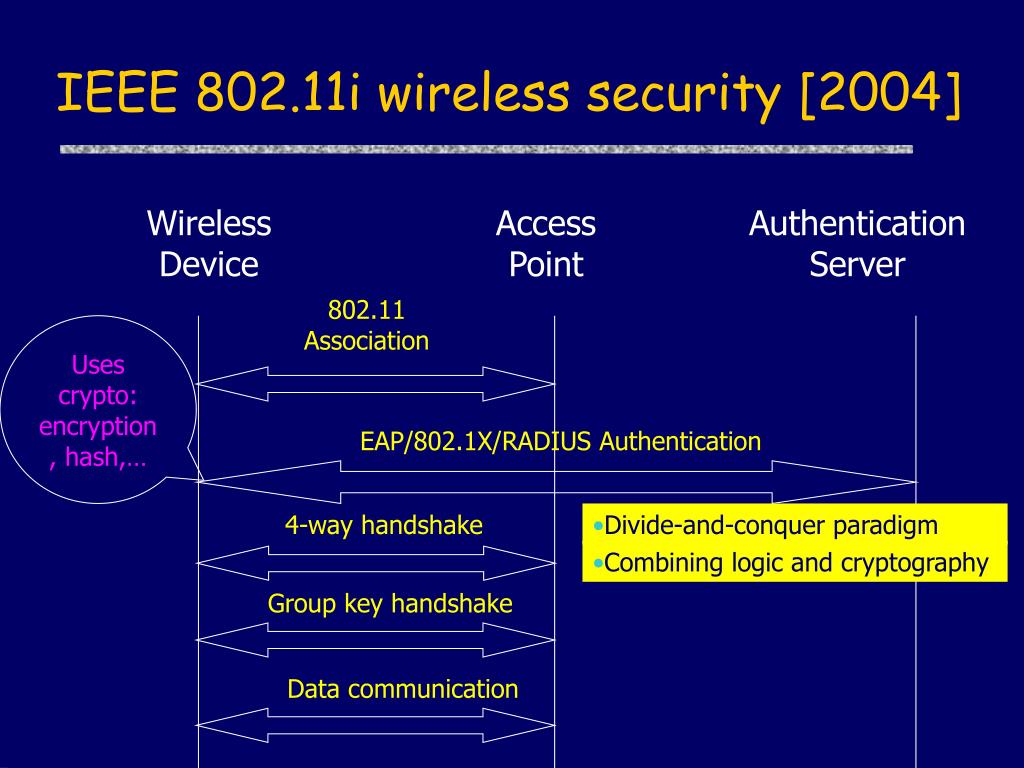

IEEE 802.11i wireless security [2004] Wireless Device Access Point Authentication Server 802.11 Association Uses crypto: encryption, hash,… EAP/802.1X/RADIUS Authentication 4-way handshake • Divide-and-conquer paradigm • Combining logic and cryptography Group key handshake Data communication

Divide-and-Conquer paradigm • Result:Protocol Derivation System [DDMP03-05] • Incremental protocol construction • Result:Protocol Composition Logic (PCL) [DDDMP01-05] • Compositional correctness proofs • Related work: [Heintze-Tygar96], [Lynch99], [Sheyner-Wing00], [Canetti01], [Pfitzmann-Waidner01], … Composition is a hard problem in security Central Problem 1

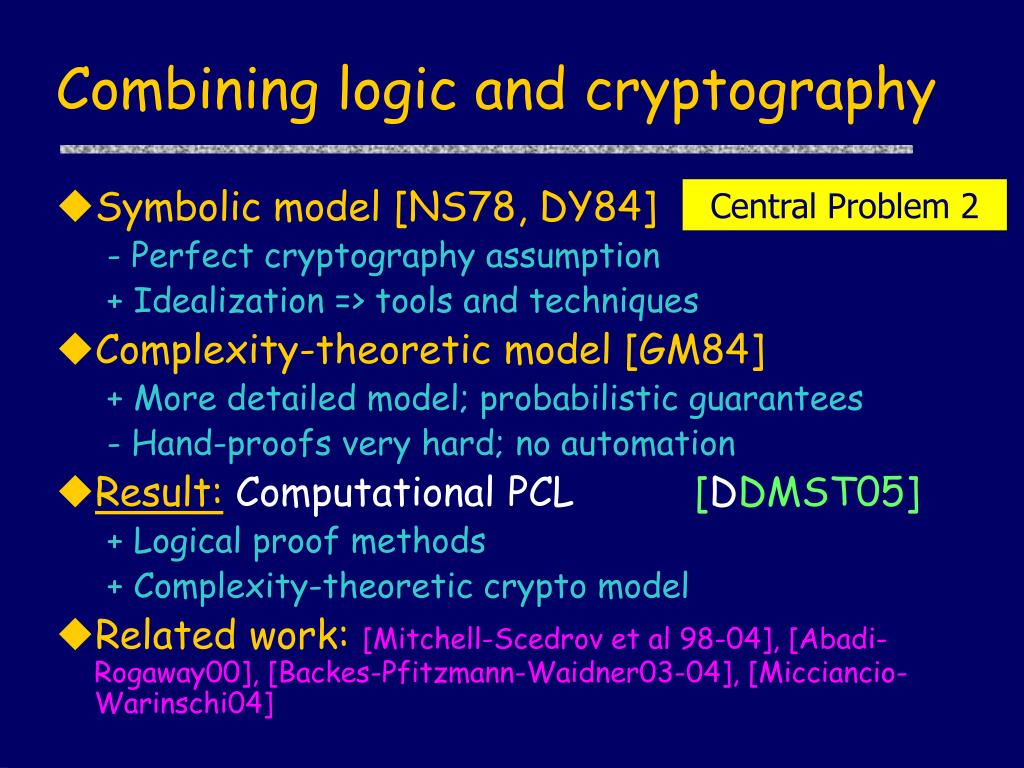

Combining logic and cryptography • Symbolic model [NS78, DY84] - Perfect cryptography assumption + Idealization => tools and techniques • Complexity-theoretic model [GM84] + More detailed model; probabilistic guarantees - Hand-proofs very hard; no automation • Result:Computational PCL[DDMST05] + Logical proof methods + Complexity-theoretic crypto model • Related work: [Mitchell-Scedrov et al 98-04], [Abadi-Rogaway00], [Backes-Pfitzmann-Waidner03-04], [Micciancio-Warinschi04] Central Problem 2

Applied to industrial protocols • IEEE 802.11i authentication protocol [IEEE Standards; 2004] (Attack! Fix adopted by IEEE WG) [He et al] • IKEv2 [IETF Internet Draft; 2004] [Aron et al] • TLS/SSL [RFC 2246; 1999] [He et al] • Mobile IPv6 [RFC 3775; 2004] (New Attack!) [Roy et al] • Kerberos V5 [IETF Internet Draft; 2004] [Cervasato et al] • GDOI Secure Group Communication protocol [RFC 3547; 2003] (Attack! Fix adopted by IETF WG) [Meadows et al]

  Protocol analysis spectrum Combining logic and cryptography Hand proofs Computational Protocol logic Holy Grail  High Divide and conquer Poly-time calculus Multiset rewriting Protocol logic Spi-calculus  Strength of attacker model Athena  Paulson   NRL  BAN logic  Low Model checking   FDR Murj Low High Protocol complexity

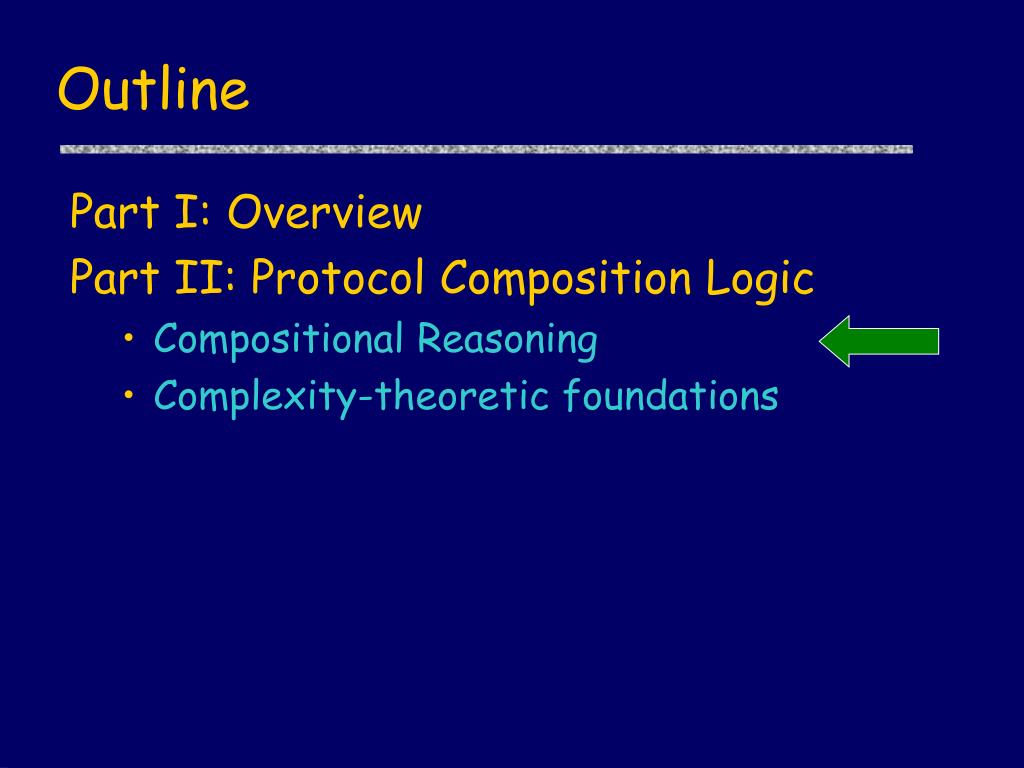

Outline Part I: Overview Part II: Protocol Composition Logic • Compositional Reasoning • Complexity-theoretic foundations

Challenge-Response: Proof Idea m, A n, sigB {m, n, A} A B sigA {m, n, B} • Alice reasons: if Bob is honest, then: • only Bob can generate his signature. [protocol independent] • if Bob generates a signature of the form sigB {m, n, A}, • he sends it as part of msg 2 of the protocol and • he must have received msg1 from Alice. [protocol specific] • Alicededuces:Received (B, msg1) Λ Sent (B, msg2)

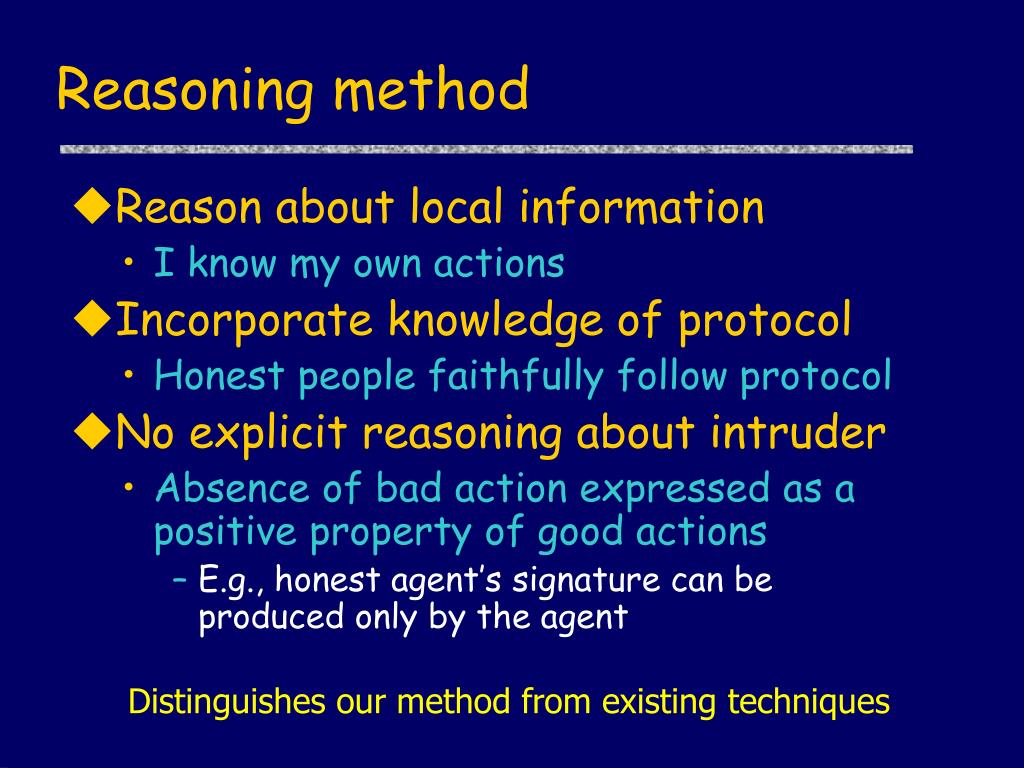

Reasoning method • Reason about local information • I know my own actions • Incorporate knowledge of protocol • Honest people faithfully follow protocol • No explicit reasoning about intruder • Absence of bad action expressed as a positive property of good actions • E.g., honest agent’s signature can be produced only by the agent Distinguishes our method from existing techniques

Formalism • Cord calculus • Protocol programming language • Execution model (Symbolic/“Dolev-Yao”) • Protocol logic • Expressing protocol properties • Proof system • Proving protocol properties • Soundness theorem

Challenge-Response as Cords m, A n, sigB {m, n, A} A B sigA {m, n, B} RespCR(B) = [ receive Y, B, y, Y; new n; send B, Y, n, sigB{y, n, Y}; receive Y, B, sigY{y, n, B}; ] InitCR(A, X) = [ new m; send A, X, m, A; receive X, A, x, sigX{m, x, A}; send A, X, sigA{m, x, X}; ]

Challenge Response: Property • Modal form:  [ actions ]P  • precondition: Fresh(A,m) • actions: [ Initiator role actions ]A • postcondition: • Honest(B)  ActionsInOrder( • send(A, {A,B,m}), • receive(B, {A,B,m}), • send(B, {B,A,{n, sigB {m, n, A}}}), • receive(A, {B,A,{n, sigB {m, n, A}}}) )

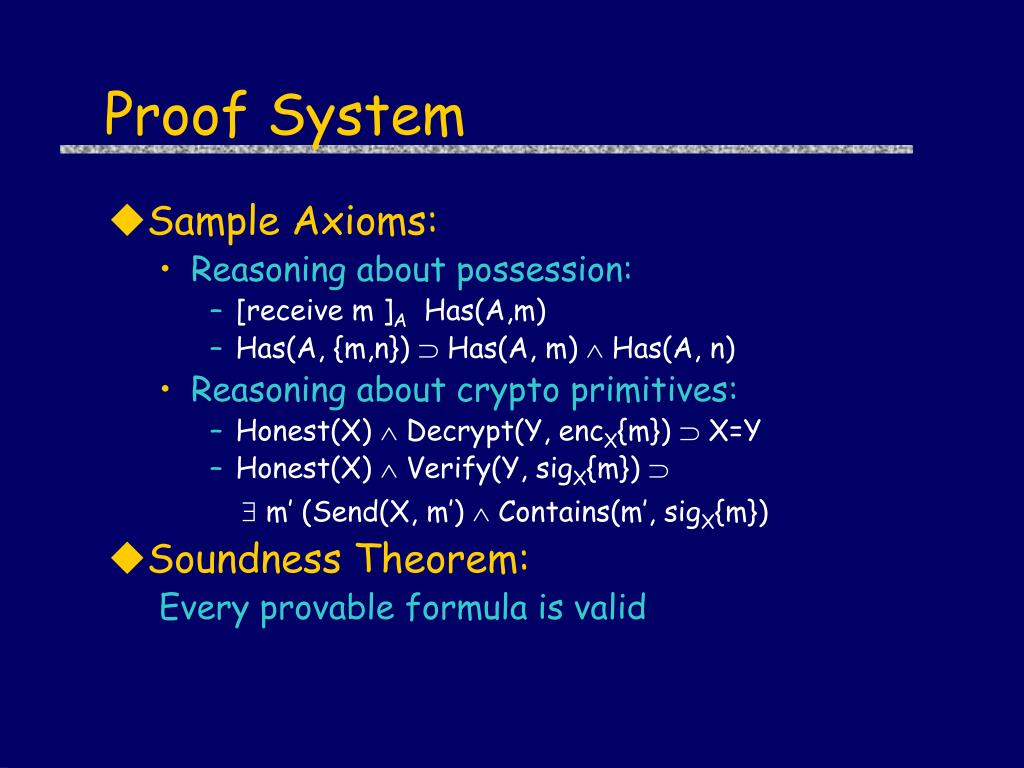

Proof System • Sample Axioms: • Reasoning about possession: • [receive m ]A Has(A,m) • Has(A, {m,n})  Has(A, m)  Has(A, n) • Reasoning about crypto primitives: • Honest(X)  Decrypt(Y, encX{m})  X=Y • Honest(X)  Verify(Y, sigX{m})  •  m’ (Send(X, m’)  Contains(m’, sigX{m}) • Soundness Theorem: • Every provable formula is valid

Reasoning about Composition • Non-destructive Combination: • Ensure combined parts do not interfere • In logic: invariance assertions • Additive Combination: Accumulate security properties of combined parts, assuming they do not interfere • In logic: before-after assertions

Proof steps (Intuition) • Protocol independent reasoning • Has(A, {m,n})  Has(A, m)  Has(A, n) • Still good: unaffected by composition • Protocol specific reasoning • “if honest Bob generates a signature of the form • sigB {m, n, A}, • he sends it as part of msg 2 of the protocol and • he must have received msg1 from Alice” • Could break:Bob’s signature from one protocol could be used to attack another • Technically: • Protocol-specific proof steps use invariants • Invariants must be preserved for safe composition

Composing protocols  ’ DHHonest(X)  … CRHonest(X)  … ’ |- Authentication  |- Secrecy ’ |- Secrecy ’ |- Authentication ’ |- Secrecy  Authentication [additive] DHCR’[nondestructive] = ISOSecrecy  Authentication Sequential and parallel composition theorems

Composition Rules • Invariant weakening rule •  |-  […]P •   ’ |-  […]P • Sequential Composition •  |-  [ S ] P  |-  [ T ] P  •  |-  [ ST ] P • Prove invariants from protocol • Q   Q’   • Q  Q’  

Composition: Big Picture • Q |- Inv(Q) • Inv(Q) |-  • Qi |- Inv(Q) • No reasoning about attacker Safe Environment for Q Q1 Q2 Q3 … Qn • Different from: • Assume-guarantee in distributed computing [MC81] • Universal Composability [C01, PW01] Protocol Q

Two worlds Can we get the best of both worlds?

Our Approach • Protocol Composition Logic (PCL) • Syntax • Proof System • Computational PCL • Syntax ±  • Proof System ±  • Symbolic “Dolev-Yao” model • Semantics • Complexity-theoretic model • Semantics Leverage PCL success… Talk so far…

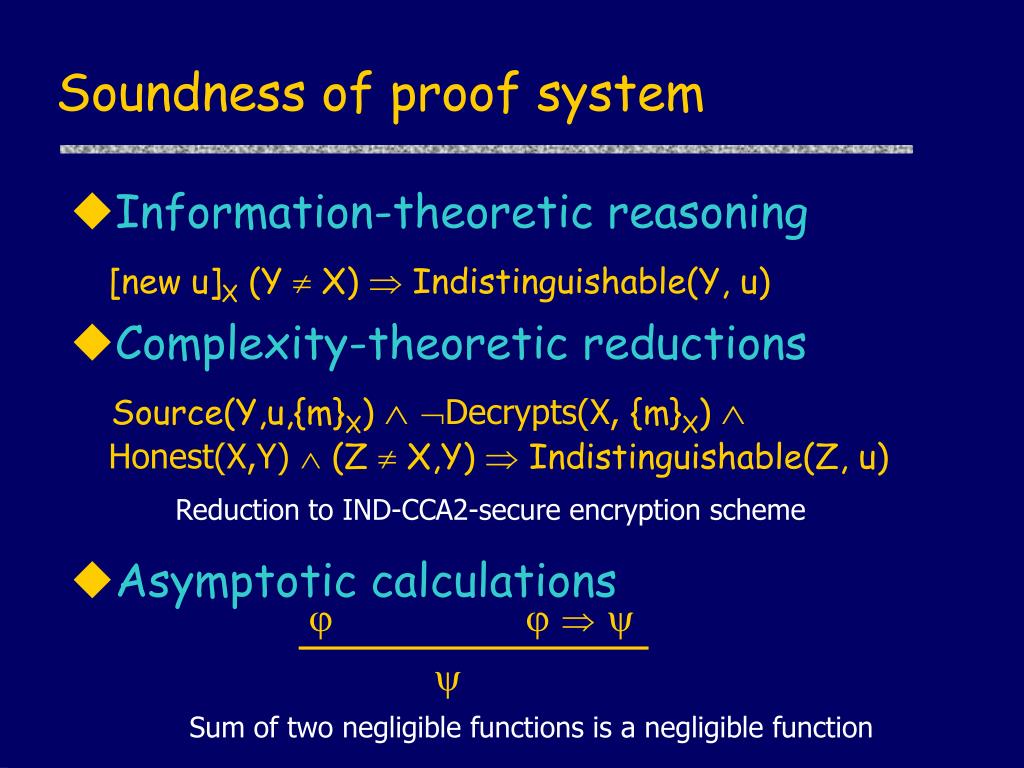

Soundness of proof system • Information-theoretic reasoning [new u]X (Y  X)  Indistinguishable(Y, u) • Complexity-theoretic reductions Source(Y,u,{m}X)  Decrypts(X,{m}X)  Honest(X,Y)  (Z  X,Y)  Indistinguishable(Z, u) • Asymptotic calculations Reduction to IND-CCA2-secure encryption scheme     Sum of two negligible functions is a negligible function

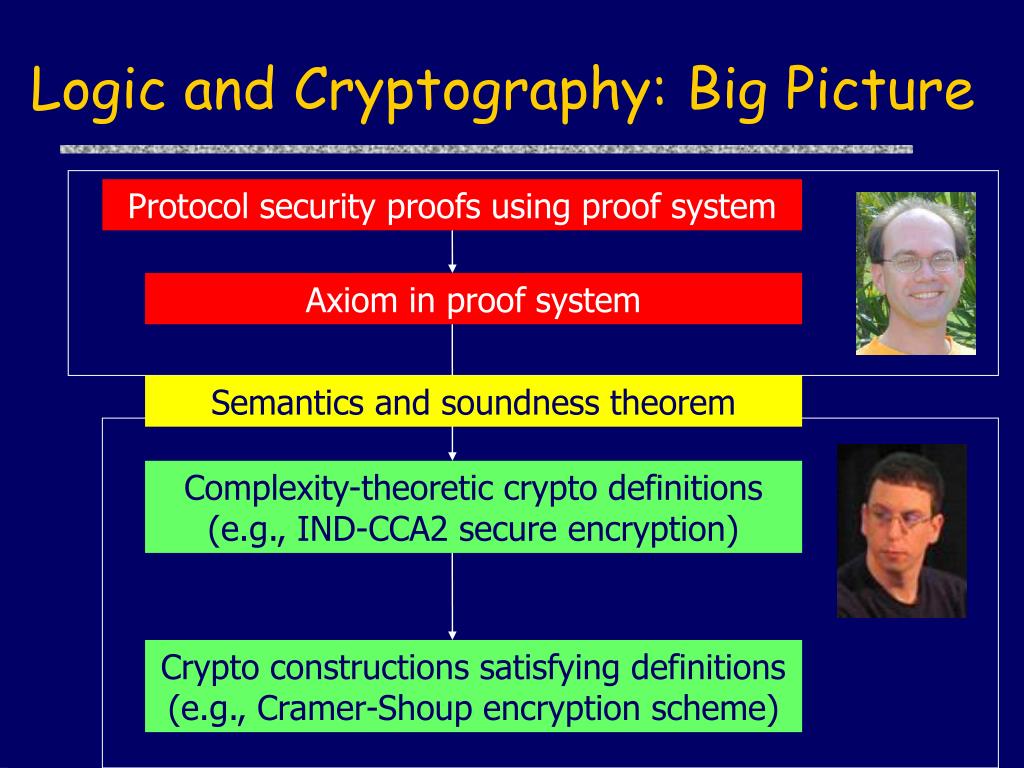

Logic and Cryptography: Big Picture Protocol security proofs using proof system Axiom in proof system Semantics and soundness theorem Complexity-theoretic crypto definitions (e.g., IND-CCA2 secure encryption) Crypto constructions satisfying definitions (e.g., Cramer-Shoup encryption scheme)

Summary • Methodology: • Divide-and-conquer paradigm in security • Combining logic and cryptography • Applications: • IEEE 802.11i (Attack! Fix adopted by IEEE WG) • GDOI Secure Group Communication protocol [RFC 3547; 2003] (Composition Attack! Fix adopted by IETF WG) • IKEv2 [IETF Internet Draft; 2004] • TLS [RFC 2246; 1999] • Kerberos V5 [IETF Internet Draft; 2004] • Mobile IPv6 [RFC 3775; 2004] (New Attack!)

  Protocol analysis spectrum Combining logic and cryptography Hand proofs Computational Protocol logic Holy Grail  High Divide and conquer Poly-time calculus Multiset rewriting Protocol logic Spi-calculus  Strength of attacker model Athena  Paulson   NRL  BAN logic  Low Model checking   FDR Murj Low High Protocol complexity

Selected Publications • A. Datta, A. Derek, J. C. Mitchell, D. Pavlovic • A derivation system and compositional logic for security protocols [CSFW03, JCS05 special issue] • Secure Protocol Composition [MFPS03] • Abstraction and refinement in protocol derivation [CSFW04] • A. Datta, A. Derek, J. C. Mitchell, V. Shmatikov, M. Turuani. Probabilistic polynomial time semantics for a protocol security logic[ICALP05] • C. He, M. Sundararajan, A. Datta, A. Derek, J. C. Mitchell. A Modular Correctness Proof of TLS and IEEE 802.11i[In submission] www.stanford.edu/~danupam
