Presentation Transcript

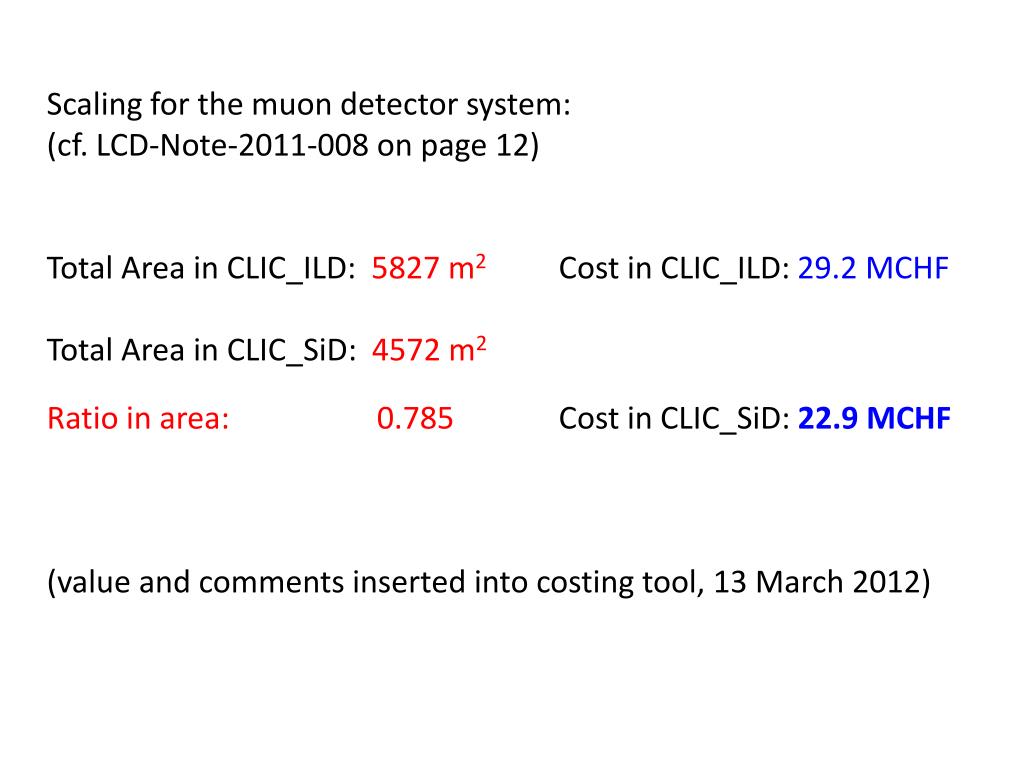

  1. Scaling for the muon detector system: (cf. LCD-Note-2011-008 on page 12) Total Area in CLIC_ILD: 5827 m2 Cost in CLIC_ILD: 29.2 MCHF Total Area in CLIC_SiD: 4572 m2 Ratio in area: 0.785 Cost in CLIC_SiD: 22.9 MCHF (value and comments inserted into costing tool, 13 March 2012)

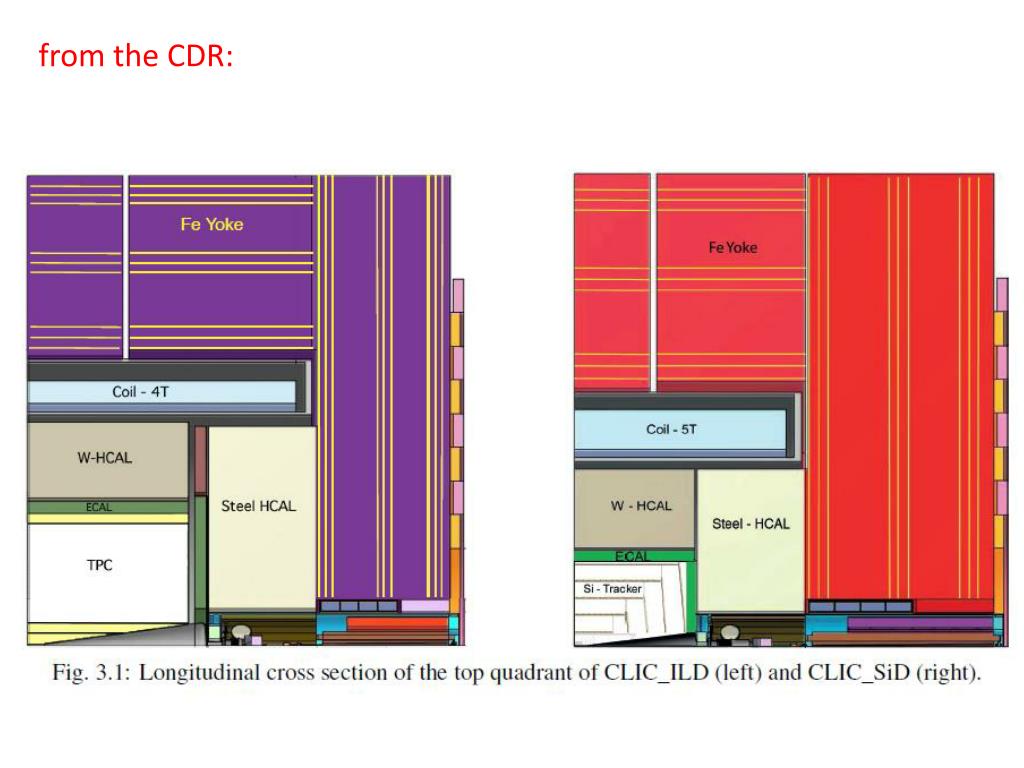

  2. from the CDR:
