  1. Beam Position Monitors William Morse PEDM Review 12/7/09

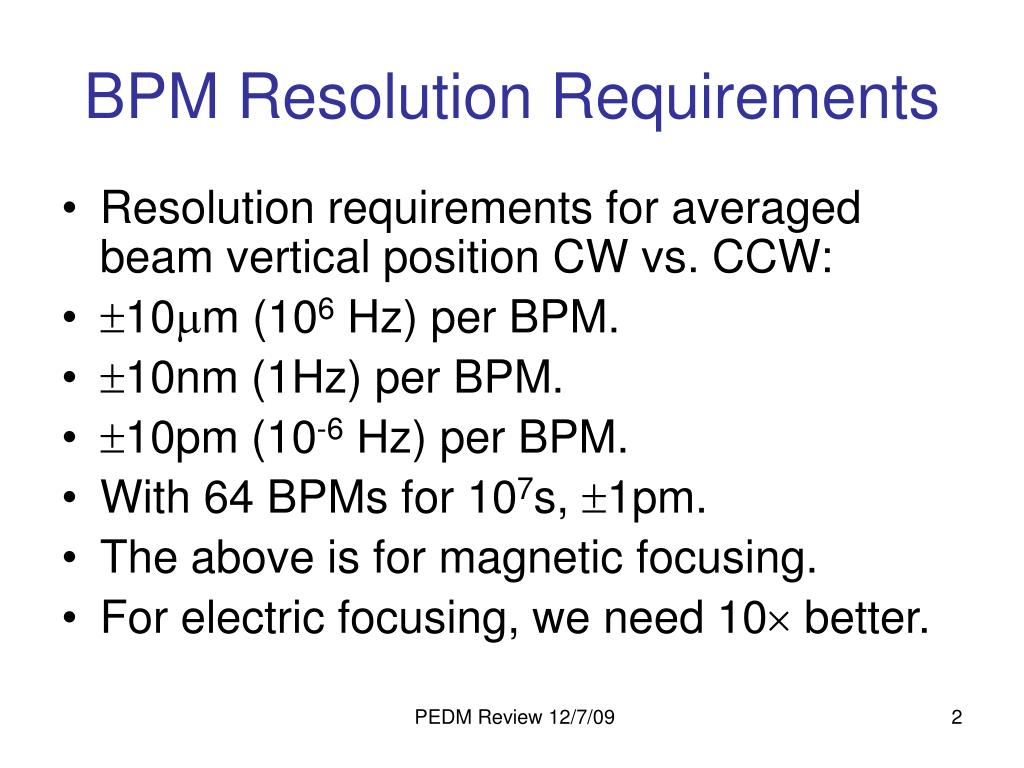

  2. BPM Resolution Requirements • Resolution requirements for averaged beam vertical position CW vs. CCW: • 10m (106 Hz) per BPM. • 10nm (1Hz) per BPM. • 10pm (10-6 Hz) per BPM. • With 64 BPMs for 107s, 1pm. • The above is for magnetic focusing. • For electric focusing, we need 10 better. PEDM Review 12/7/09

  3. Strip-line BPM Cartoon for Relativistic Bunch for Non-experts +I Z/2 Z Z E PEDM Review 12/7/09

  4. Strip-line BPM Cartoon for Relativistic Bunch -I Z/2 Z Z E PEDM Review 12/7/09

  5. Strip-line BPM resolution from Peter Cameron’s June C-AD Review Talk • The average power available in the signals from each of the four lines is about -25dBm at the feedthrus. Conservatively estimating losses of 28dB, the signal power available after digitization will be approximately -53dBm. • The resulting signal-to-noise ratio, given the thermal noise floor of -173dBm/Hz, will be ~120dB in a 1 Hz bandwidth. With the 10mm half aperture, the resolution in the 1 Hz bandwidth will be 10nm. • BPM electronics that will provide this measurement resolution are commercially available. PEDM Review 12/7/09

  6. Issues • Strip-line BPMs have the resolution, but • Beam impedance Re(ZL)  25. • 6425 = 2.4K. • This is a lot compared to other stuff, like the E plates, etc., and is a spin systematic. • Requirement for the whole ring is <10K. • Also, strip-line systematic errors are challenging at the 1pm level: x = VR - VL PEDM Review 12/7/09

  7. Resonant Cavity BPMs PEDM Review 12/7/09

  8. Dipole TM110 Mode • First order: (Iy)CW - (Iy)CCW • Monopole mode TM010 measures (ICW -ICCW). Need several of these. • If yCW = yCCW = y, then • Second order: (ICW - ICCW) y. • With only one beam measure y, and zero with feedback, i.e. center beam in cavity. • S/N is better than stripline BPM because cavity has Q 5103, i.e. signal is at one f with narrow f. PEDM Review 12/7/09

  9. Cavity Beam Impedance • Re (ZL) is zero to first order in monopole mode, • i.e., zero if (ICW -ICCW ) = 0. • Zero to second order in dipole mode, • i.e., zero if (ICW - ICCW) y = 0. • Re(ZL) <<10K. PEDM Review 12/7/09

  10. Dipole Mode Cavity Design • Working with Mike Blaskiewicz et al. • Preliminary: • 2.5GHz TM110 mode. • R/Q = 18 for 1cm offset. • Q  5000. • 12cm(V)12.8cm(H)5cm(L). • RF is 0.1GHz with 2.5GHz modulation. PEDM Review 12/7/09

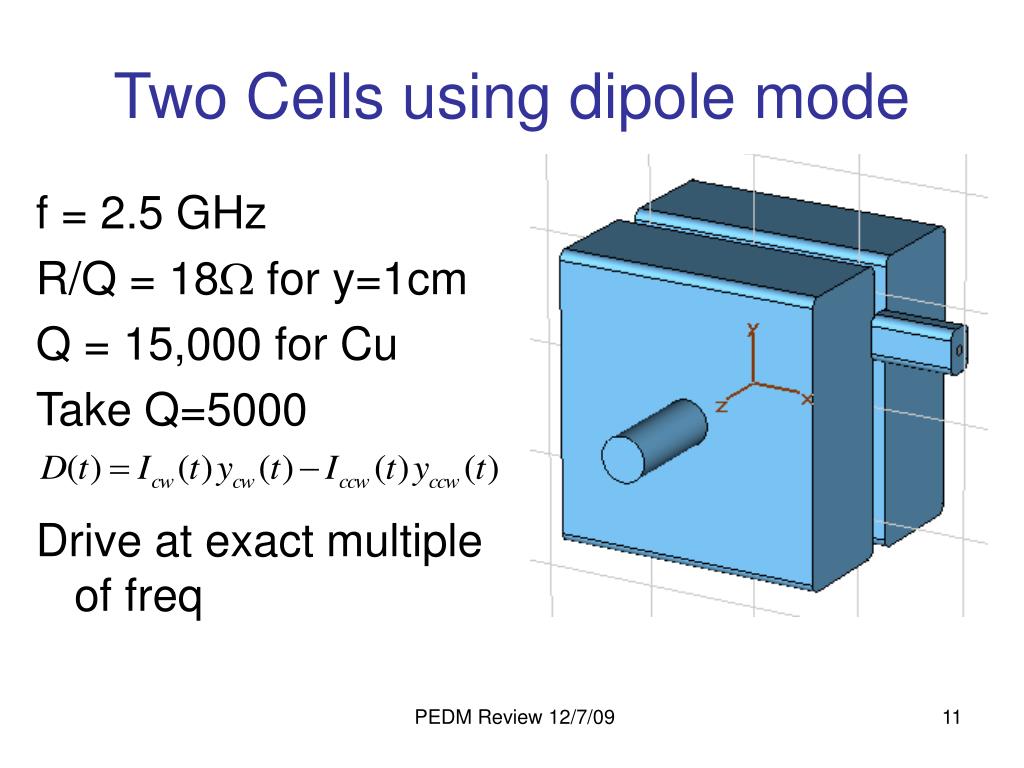

  11. Two Cells using dipole mode f = 2.5 GHz R/Q = 18 for y=1cm Q = 15,000 for Cu Take Q=5000 Drive at exact multiple of freq PEDM Review 12/7/09

  12. Are We the Only People Trying for Nanometer Precision? • Y. Inoue et al., Phys. Rev. ST – Acc. and Beams 11, 062801 (2008). • ILC R&D at KEK ATF. • Achieved 9nm precision over a dynamic range of 5m with 6GHZ Dipole Resonant Cavity for each 7109 electron bunch. This is best resolution achieved yet. Their goal is 1nm. • Our requirement: 10nm for y for 106 turns of 21010 =0.6 protons. • Light Source 2 also needs nm precision. • We benefit from their efforts, even though we can’t just use their designs. PEDM Review 12/7/09

  13. Sensitivity/Systematics • Add BRsin(BRt) and Evsin(EVt) • 1Hz frequency. • This moves the CW/CCW beams in the same or opposite directions. • Set to 10nm during setup, for example. • Set to 10pm during physics running, for example. • See effect in both the BPM and spin signals. PEDM Review 12/7/09

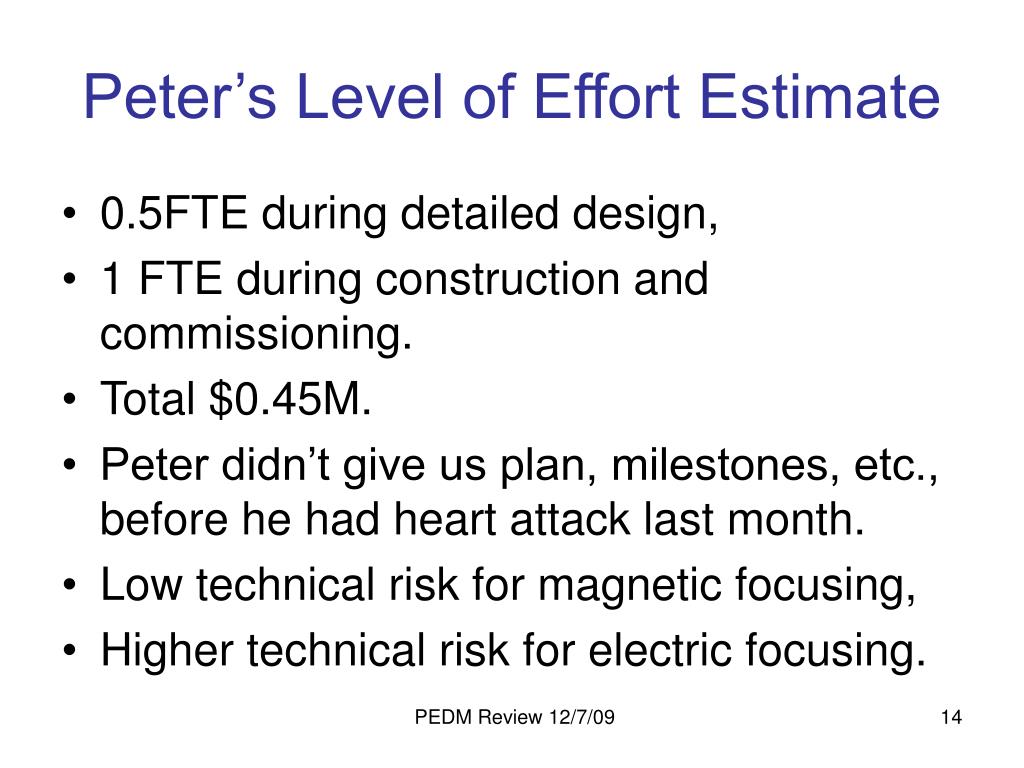

  14. Peter’s Level of Effort Estimate • 0.5FTE during detailed design, • 1 FTE during construction and commissioning. • Total $0.45M. • Peter didn’t give us plan, milestones, etc., before he had heart attack last month. • Low technical risk for magnetic focusing, • Higher technical risk for electric focusing. PEDM Review 12/7/09
