  1. Hardware RAID versus Software RAID CSE598D Youngjae Kim February 15, 2007

  2. Hardware RAID vs. Software RAID • Hardware RAID • Not flexible • Fast • RAID subsystem is independent from host system. • Better performance than Software RAID • Expensive • Built-in RAID controller in hardware • Software RAID • Flexible, cheap • Easy to implement RAID • Implemented in kernel disk (block device) code • Performance dependent on host system (CPU and Memory) • Consumes around 25% of host system processing cycles • But, fast CPU help improve the performance of Software RAID.

  3. Performance Comparison http://www.adaptec.com/pdfs/raid_soft_v_hard.pdf

  4. Linux Software RAID • Supported in 2.6 Linuxkernel series by default • RAID Levels • Linear mode • RAID-0 • RAID-1 • RAID-4 • RAID-5 • Etc. • Hacking the source code • /usr/src/linux/drivers/md/raid0.c (or raid1.c, raid5 …) Application File System Buffer Cache Software RAID Device Driver

  5. Example – RAID1 • Configuration File • /etc/raidtab raiddev /dev/md0 raid-level 1 nr-raid-disks 2 nr-spare-disks 0 persistent-superblock 1 device /dev/sdb6 raid-disk 0 device /dev/sdc5 raid-disk 1 • Initialization • mkraid /dev/md0 • Formatting • mke2fs /dev/md0 • Mounting • Mount –text2 /dev/md0 /mnt/raid0 File System / Buffer Cache /dev/md /dev/sdb6 /dev/sdc5

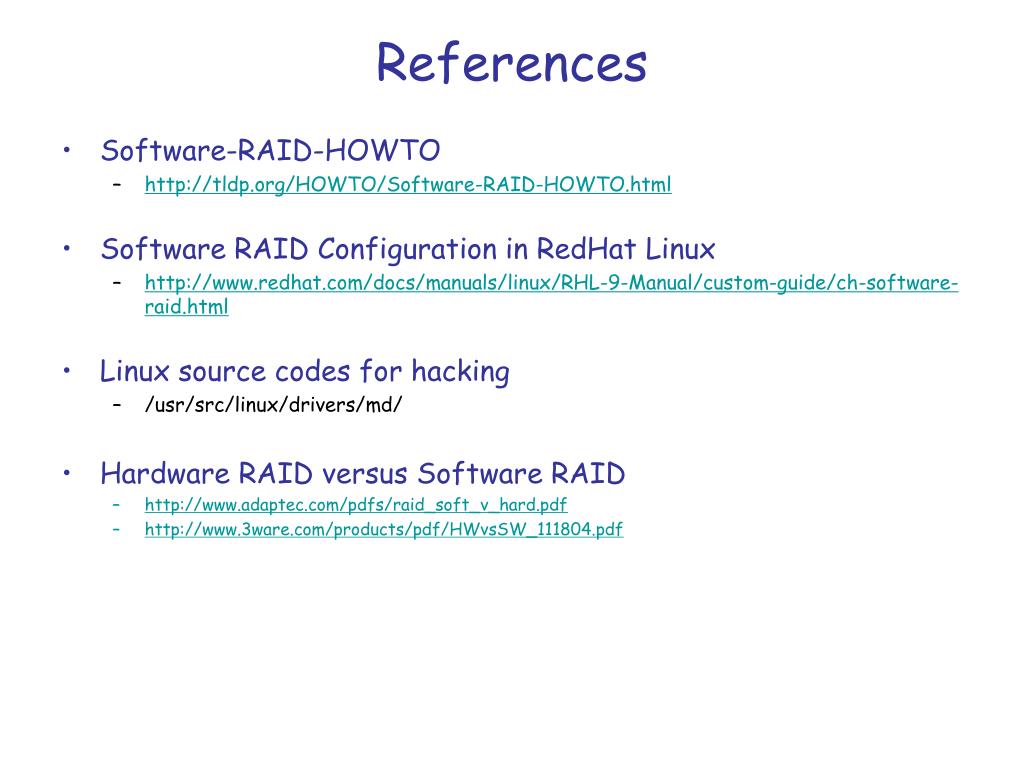

  6. References • Software-RAID-HOWTO • http://tldp.org/HOWTO/Software-RAID-HOWTO.html • Software RAID Configuration in RedHat Linux • http://www.redhat.com/docs/manuals/linux/RHL-9-Manual/custom-guide/ch-software-raid.html • Linux source codes for hacking • /usr/src/linux/drivers/md/ • Hardware RAID versus Software RAID • http://www.adaptec.com/pdfs/raid_soft_v_hard.pdf • http://www.3ware.com/products/pdf/HWvsSW_111804.pdf
