Announcements • Chapters 1 and 2 are available online (see the 150 web page). • There will be a Quiz on Chapter 2 on Tuesday at the beginning of class. • Homework 1 is due on Monday at midnight. Please go to the 150 web page. • i>clickers are required starting Tuesday. Please register via the 150 web page. Phys 150 Lecture 2
Explosions Cannon • Rapidly expanding hot gas Phys 150 Lecture 2

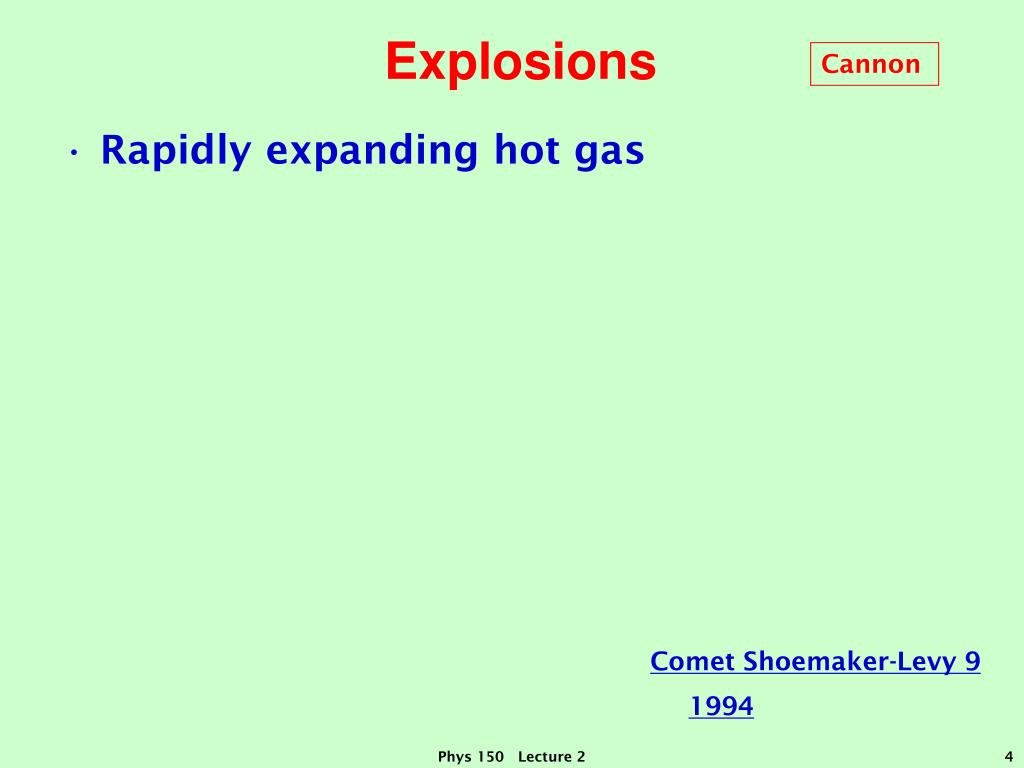

Explosions Cannon • Rapidly expanding hot gas Comet Shoemaker-Levy 9 1994 Phys 150 Lecture 2
Explosions • Kinetic energy = energy of motion = ½ mv2 Extinction of dinosaurs 65 million years ago Phys 150 Lecture 2

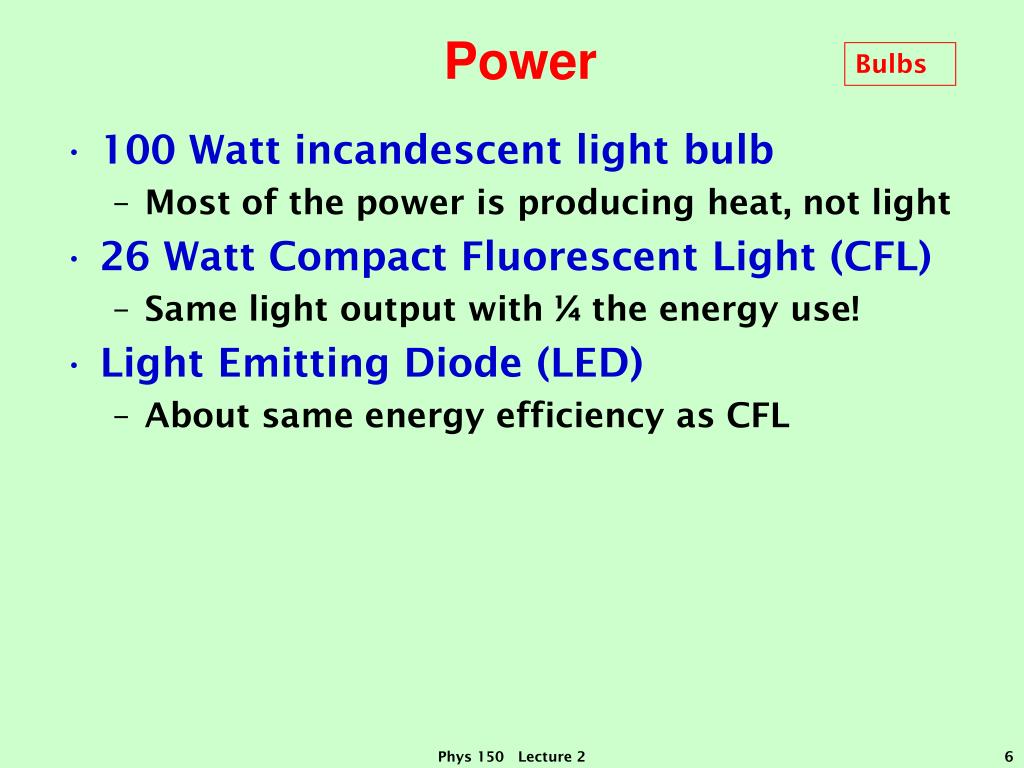

Power Bulbs • 100 Watt incandescent light bulb • Most of the power is producing heat, not light • 26 Watt Compact Fluorescent Light (CFL) • Same light output with ¼ the energy use! • Light Emitting Diode (LED) • About same energy efficiency as CFL Phys 150 Lecture 2
Power Bulbs • 100 Watt incandescent light bulb • Most of the power is producing heat, not light • 26 Watt Compact Fluorescent Light (CFL) • Same light output with ¼ the energy use! • Light Emitting Diode (LED) • About same energy efficiency as CFL Phys 150 Lecture 2
Human energy consumption 100 Watts needed to fuel your bodily functions • Eventually given off as heat • The amount of energy you burn per day is thus about • 100 Watts x 20 hours ≈ 2000 Watt-hours = 2 kWh • kilowatt-hour (kWh) is a commonly used unit of energy (kilowatt = 1000 Watts) Phys 150 Lecture 2
i>clicker question A typical adult needs to consume about 2000 Calories/day. Find the relationship between Calories and kWh. • Cal ≈ kWh • 10 Cal ≈ kWh • 100 Cal ≈ kWh • 1000 Cal ≈ kWh Phys 150 Lecture 2
i>clicker question A typical adult needs to consume about 2000 Calories/day. Find the relationship between Calories and kWh. • Cal ≈ kWh • 10 Cal ≈ kWh • 100 Cal ≈ kWh • 1000 Cal ≈ kWh Consume per day = Burn per day • 2000 Cal/day ≈ 2 kWh • 1000 Cal ≈ kWh Phys 150 Lecture 2
Energy units • Calorie (Cal) • kilowatt-hour (kWh) • British Thermal Unit (BTU) • Joules (J) – BTU ≈ 1000 J 1000 Cal ≈ 1 kWh ≈ 4000 BTU Phys 150 Lecture 2
Energy units • Calorie (Cal) • kilowatt-hour (kWh) • British Thermal Unit (BTU) • Joules (J) – Watt = J/s 1000 Cal ≈ 1 kWh ≈ 4000 BTU Phys 150 Lecture 2

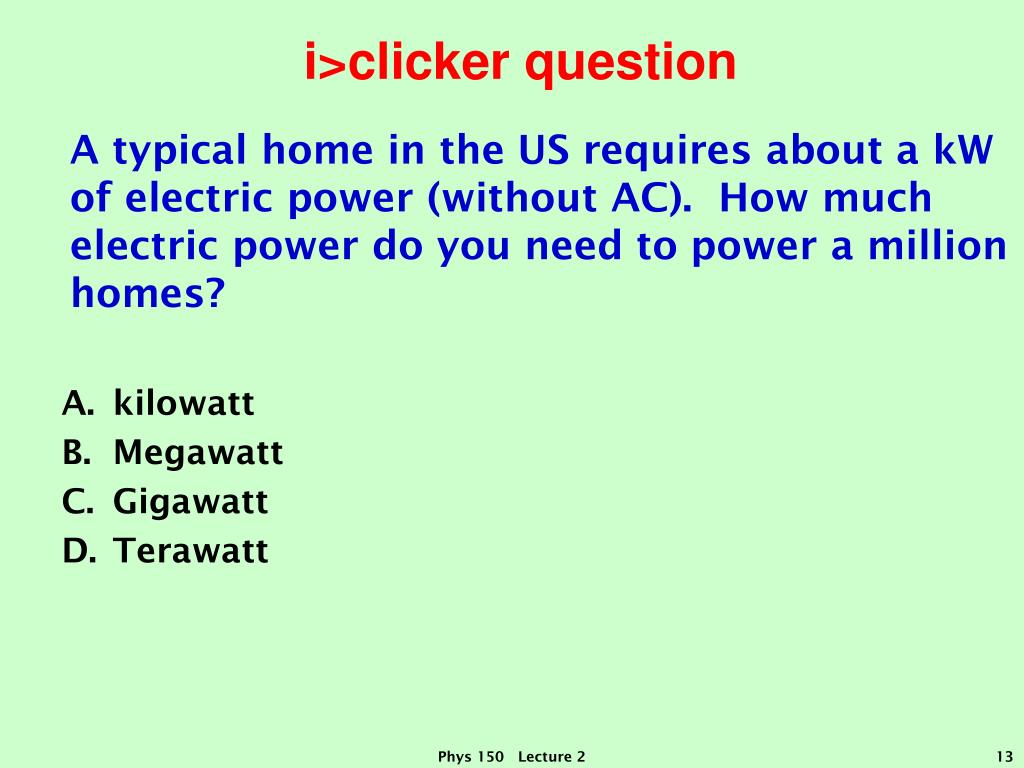

i>clicker question A typical home in the US requires about a kW of electric power (without AC). How much electric power do you need to power a million homes? • kilowatt • Megawatt • Gigawatt • Terawatt Phys 150 Lecture 2
i>clicker question A typical home in the US requires about a kW of electric power (without AC). How much electric power do you need to power a million homes? • kilowatt (kW) = 1000 W = 103 W • Megawatt (MW) = 1,000,000 W = 106 W (million) • Gigawatt (GW) = 1,000,000,000 W = 109 W (billion) • Terawatt (TW) = 1,000,000,000,000 W = 1012 W (trillion) A large electric power plant generates about a Gigawatt of electric power Phys 150 Lecture 2
i>clicker question A typical home in the US requires about a kW of electric power (without AC). How much electric power do you need to power a million homes? kW x 1,000,000 = 1000 W x 1,000,000 = 1,000,000,000 W = Gigawatt kW x 106 = 103 W x 106 = 109 W = Gigawatt Calculator: 1 EE 3 x 1 EE 6 = 1 09 Phys 150 Lecture 2
Types of Energy • Chemical energy • Chemical energy • Heat energy = Thermal energy • Kinetic energy = energy of motion = ½ mv2 • Electric energy • Light energy • Nuclear energy ≈ 106 x chemical energy Phys 150 Lecture 2
Light energy • Light energy (solar energy) Solar motor Phys 150 Lecture 2
i>clicker question The amount of power in one square meter of sunlight (with the sun directly overhead) is about • 1000 BTU • 1000 Calories • 1 kWh • 1 kW Phys 150 Lecture 2
i>clicker question The amount of power in one square meter of sunlight (with the sun directly overhead) is about • 1000 BTU • 1000 Calories • 1 kWh • 1 kW meter2 of sunlight ≈ 1 kW Phys 150 Lecture 2
Solar automobiles • Typical automobile uses 50 – 400 hp meter2 of sunlight ≈ 1 hp Solar car Phys 150 Lecture 2

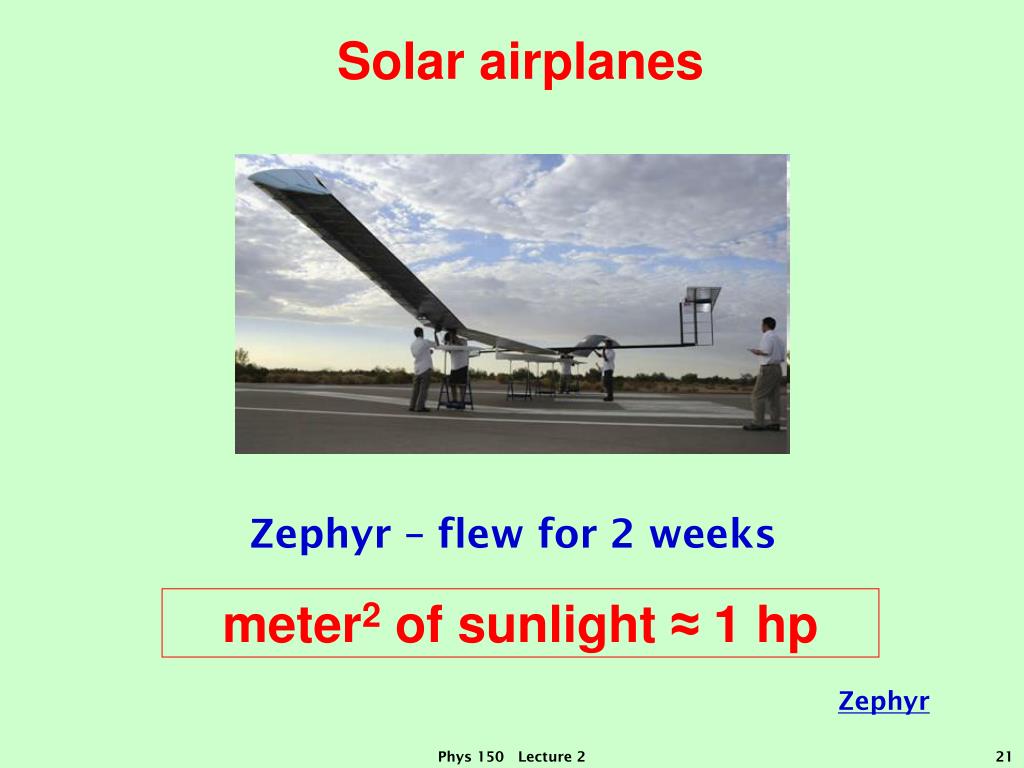

Solar airplanes Zephyr – flew for 2 weeks meter2 of sunlight ≈ 1 hp Zephyr Phys 150 Lecture 2

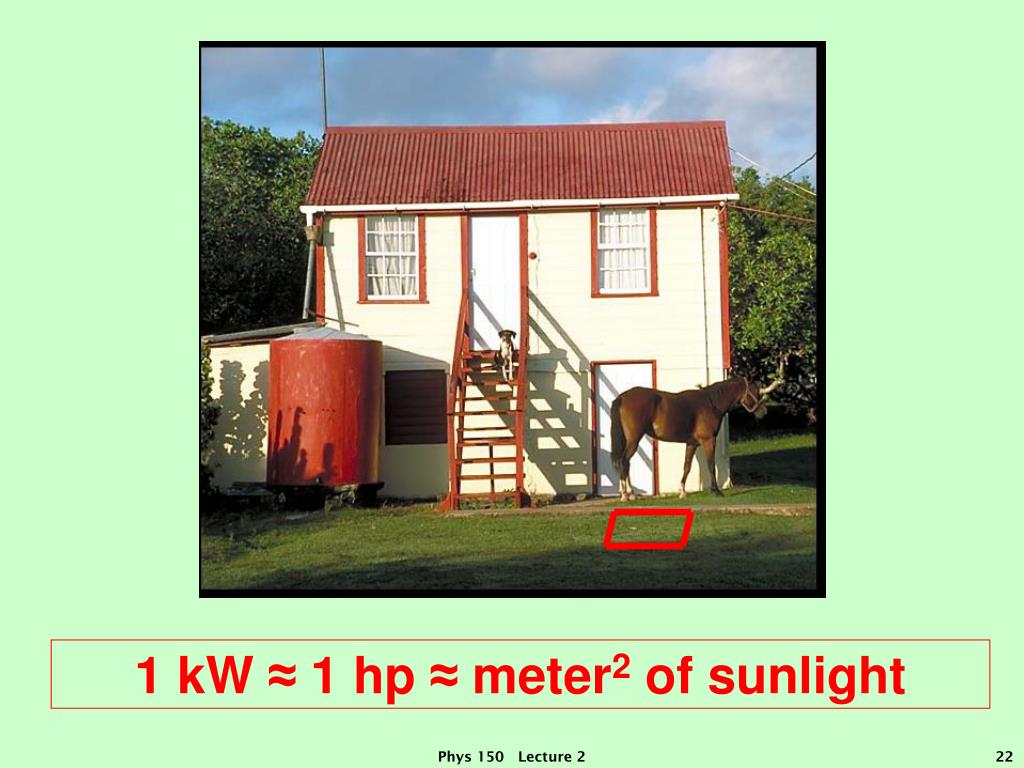

1 kW ≈ 1 hp ≈ meter2 of sunlight Phys 150 Lecture 2
i>clicker question The amount of power in one square kilometer of sunlight (with the sun directly overhead) is about • 1 kW • 1 MW • 1 GW • 1 TW Phys 150 Lecture 2
i>clicker question The amount of power in one square kilometer of sunlight (with the sun directly overhead) is about • 1 kW • 1 MW • 1 GW • 1 TW • km2 = 103 m x 103 m = 106 m2, so • km2 sunlight = 106 x kW = 106 x 103 W = GW • Same as a large power plant Phys 150 Lecture 2

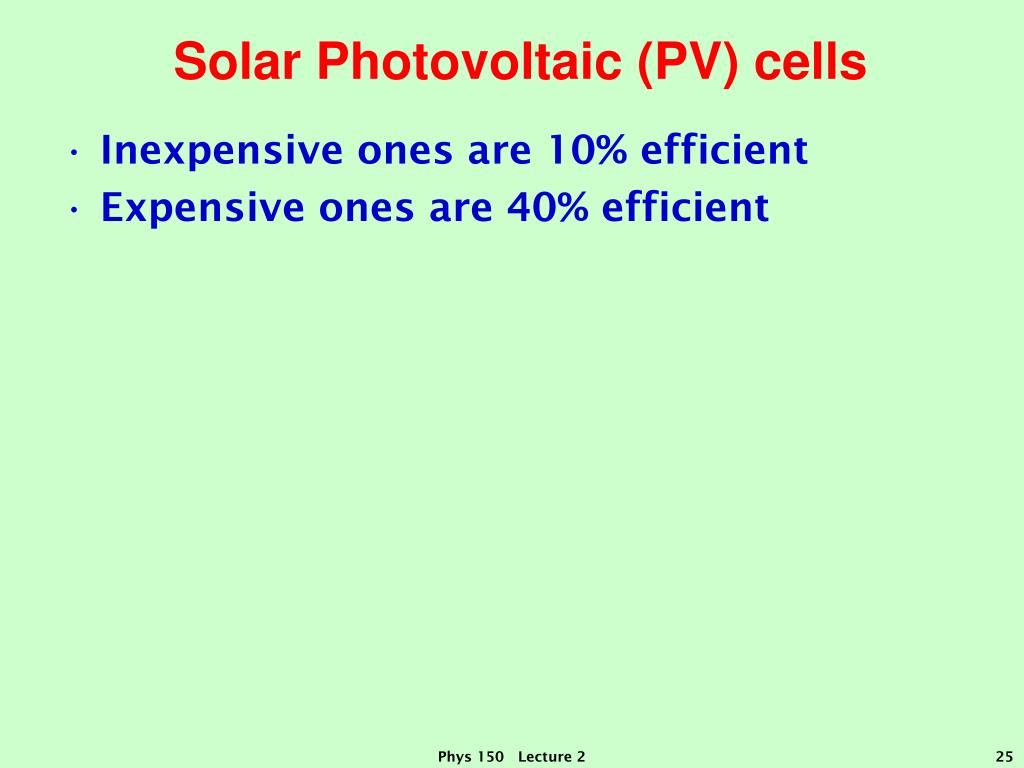

Solar Photovoltaic (PV) cells • Inexpensive ones are 10% efficient • Expensive ones are 40% efficient Phys 150 Lecture 2
Hydrogen Fuel Cell • 2 H2 + O2 = 2 H2O + energy Phys 150 Lecture 2

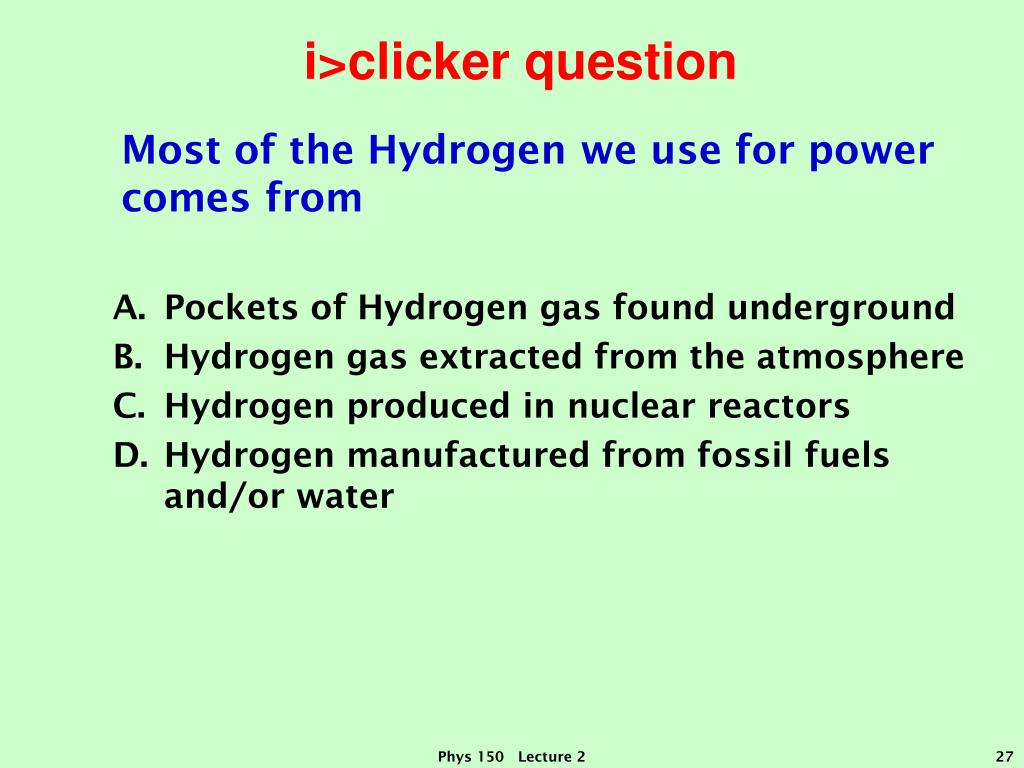

i>clicker question Most of the Hydrogen we use for power comes from • Pockets of Hydrogen gas found underground • Hydrogen gas extracted from the atmosphere • Hydrogen produced in nuclear reactors • Hydrogen manufactured from fossil fuels and/or water Phys 150 Lecture 2
i>clicker question Most of the Hydrogen we use for power comes from • Pockets of Hydrogen gas found underground • Hydrogen gas extracted from the atmosphere • Hydrogen produced in nuclear reactors • Hydrogen manufactured from fossil fuels and/or water Phys 150 Lecture 2
Hydrogen Fuel Cell • 2 H2 + O2 = 2 H2O + energy • Energy + 2 H2O = 2 H2 + O2 Electrolysis Phys 150 Lecture 2
Hydrogen CH4 = methane Fuel Cell • 2 H2 + O2 = 2 H2O + energy • Energy + 2 H2O = 2 H2 + O2 • Energy + 2 H2O + CH4 = 4 H2 + CO2 Electrolysis Phys 150 Lecture 2

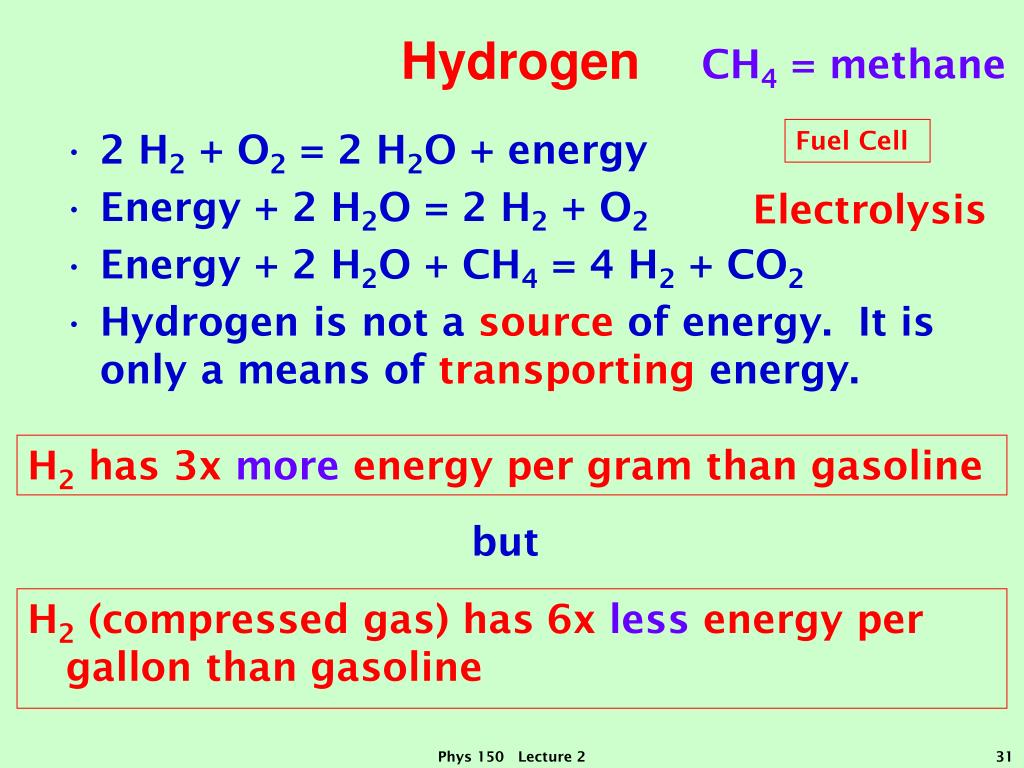

Hydrogen CH4 = methane Fuel Cell • 2 H2 + O2 = 2 H2O + energy • Energy + 2 H2O = 2 H2 + O2 • Energy + 2 H2O + CH4 = 4 H2 + CO2 • Hydrogen is not a source of energy. It is only a means of transporting energy. • but Electrolysis H2 has 3x more energy per gram than gasoline H2 (compressed gas) has 6x less energy per gallon than gasoline Phys 150 Lecture 2
