Use Case diagram for the gas pump system

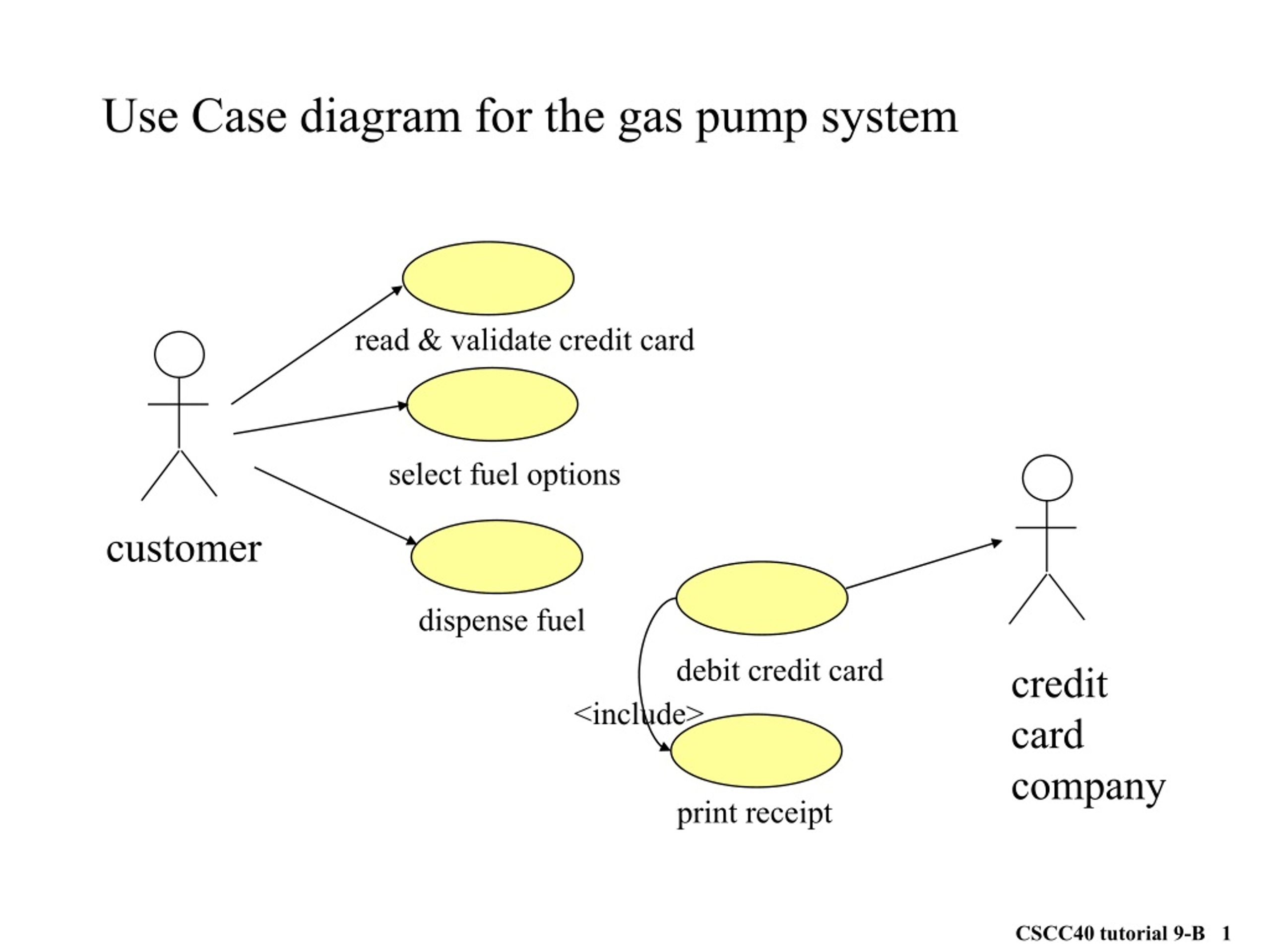

Use Case diagram for the gas pump system. read & validate credit card. select fuel options. customer. dispense fuel. debit credit card. credit card company. <include>. print receipt. Context Diagram for an ATM system (used for both structured and object-oriented techniques).

hali
Télécharger la présentation

Use Case diagram for the gas pump system

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Use Case diagram for the gas pump system read & validate credit card select fuel options customer dispense fuel debit credit card credit card company <include> print receipt

  2. Context Diagram for an ATM system(used for both structured and object-oriented techniques)

  3. A context diagram for a patient information system in a hospital. Includes image storage for x-rays and a patient admissions system. image database medical records system hospital admissions system patient information system drug dispensing system

  4. Lacks details and need to be supplemented by DD

  5. Name of object class Class Diagram:Part of a Library class hierarchy Class attributes Object’s operations

  6. Class Diagram:Object aggregation

  7. State DiagramMicrowave oven model
